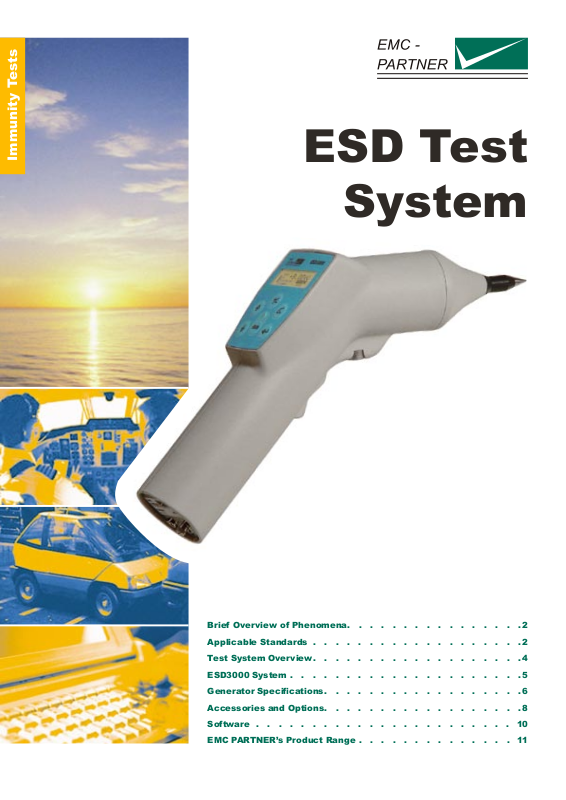

Page 1
Immunity Tests
ESD Test
System
Brief Overview of Phenomena. . . . . . . . . . . . . . . . 2
Applicable Standards . . . . . . . . . . . . . . . . . . . 2
Test System Overview. . . . . . . . . . . . . . . . . . . 4
ESD3000 System . . . . . . . . . . . . . . . . . . . . . 5
Generator Specifications. . . . . . . . . . . . . . . . . . 6

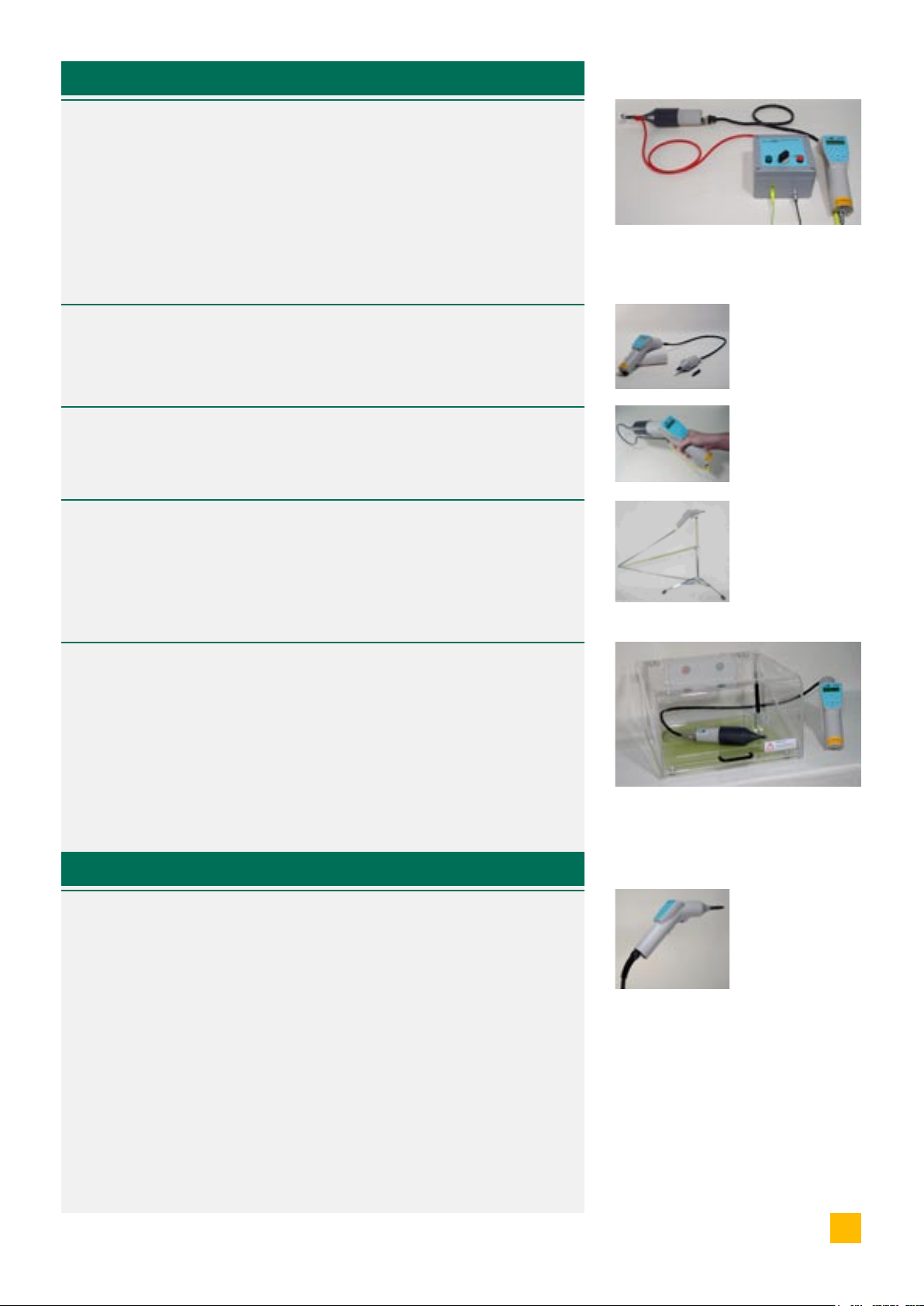

Accessories and Options. . . . . . . . . . . . . . . . . . 8

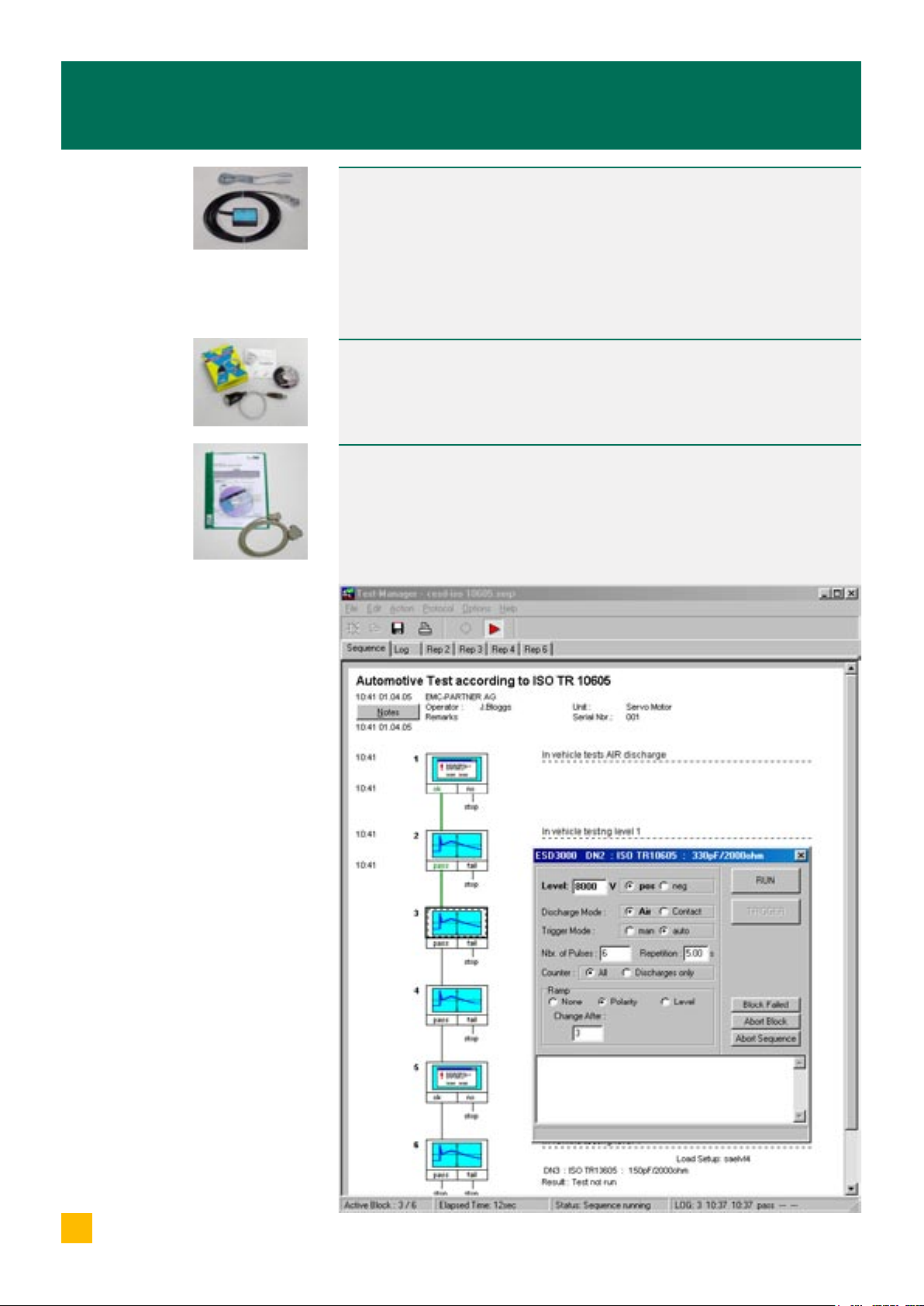

Software . . . . . . . . . . . . . . . . . . . . . . . 10

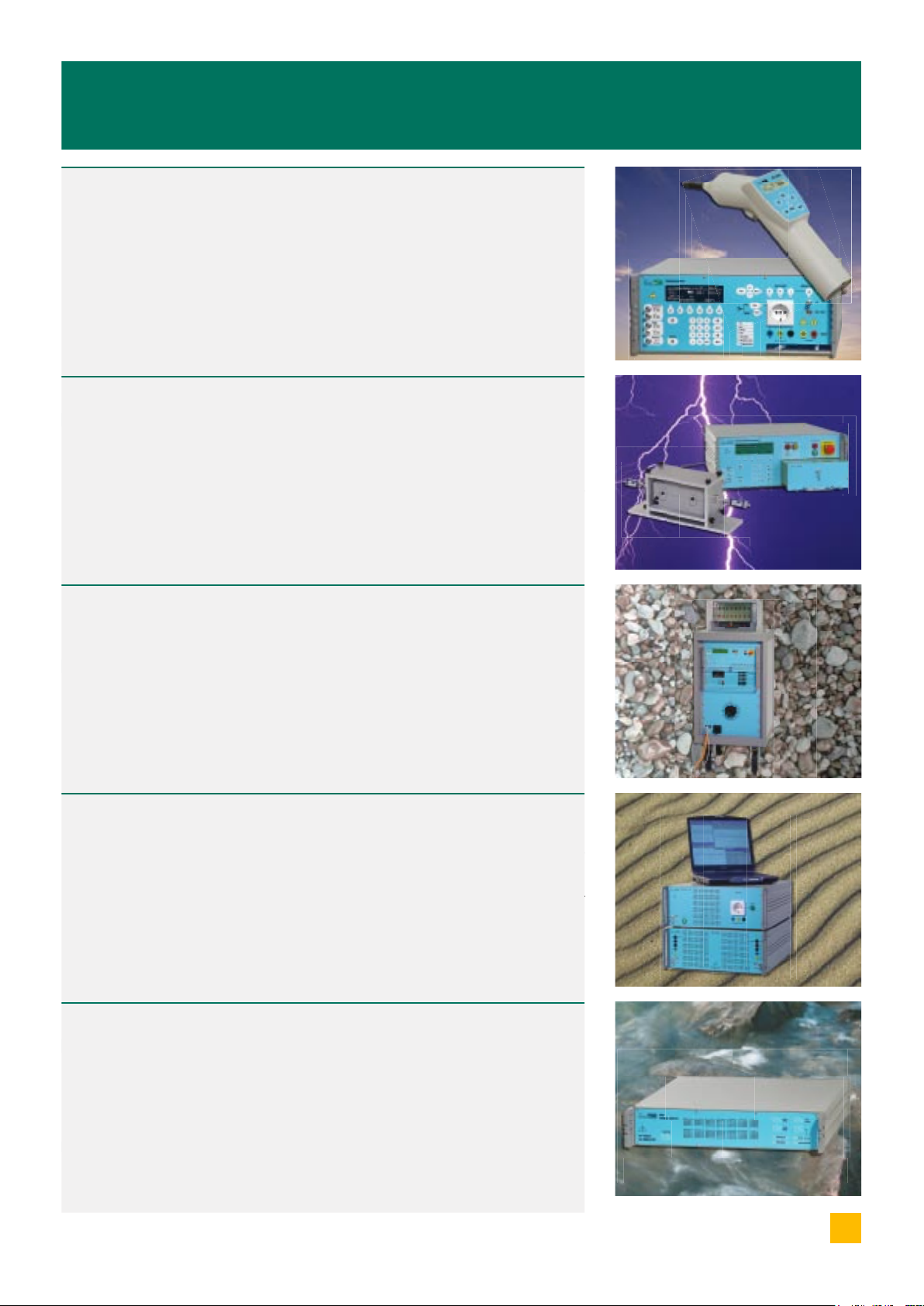

EMC PARTNER’s Product Range . . . . . . . . . . . . . . 11
Immunity Tests: ESD Test System
1
Page 2
Brief Overview of Phenomena
What causes electrostatic discharges?
Humans become electrostatically charged by walking over an insulating floor surface.
The body’s capacitance can be charged to several kilovolts. A discharge occurs when
contact is made to an electronic unit or system. These are visible as a spark and in
many cases can be felt by the person, who receives a „shock“. These discharges are
harmless to humans, but not to sensitive, modern electronic equipment. The resulting current can cause interference in electronic equipment or even cause an entire
system „crash“.
ESD has been known to the electrical industry for over 30 years but only recently has
increased in significance with the advent of sensitive micro electronic devices.
The cost of damage caused by ESD is difficult to assess, but amounts to billions of
dollars worldwide.
Most affected are:
- manufacturers of integrated circuits
- the chemical industry where explosions or fires can occur
- manufacturers where process controllers and electronic equipment can be disrupted
- automotive manufacturers
- military users
Applicable Standards
International Electrotechnical Committee (IEC)
IEC 61000-4-2 (Ed2:2008): Testing and measurement techniques - Electrostatic discharge immunity test.
IEC 61340-3-1: Electrostatics - Electrostatic discharge simulation - Human body model
(HBM) - Component testing.
IEC 61340-3-2: Electrostatics - Electrostatic discharge simulation - Machine model
(MM) - Component testing.
International Telecommunications Union (ITU)
T- K.20 (February 2000): Resistibility of Telecommunications Equipment installed in a
telecommunications centre to overvoltages and overcurrents.
International Standards Organisation (ISO)
ISO10605: Road vehicle - Test methods for electrical disturbance from electrostatic
discharges.
2 Immunity Tests: ESD Test System
Page 3
Japanese Automobile Standards Organisation (JASO)
D001-94 (31 March 1994): General Rules of Environmental Testing Methods for Automotive Eelctronic Equipment.
EUROCAE ED-14 /RTCA DO-160
Environmental Conditions and Test Procedure for Airborne Equipment. Section 25:
Electrostatic Discharge.
Military Procurement Standards (MIL)
MIL-STD-883 (18 June 2004): ESD classification testing of devices.
MIL-STD-331 (5 January 2005): Fuse and Fuse components.
MIL-STD-750 (28 February 1995): Test method standard semiconductor devices.
MIL-STD-464 (18 March 1997): Electromagnetic Environmental Effects.
MIL-STD-1541 (30 December 1987): Electromagnetic Compatibility Requirements for
space systems.
European Standard (EN)
EN 61000-4-2 (A2:2009 Ed.2): Part 4-2: Testing and measurement techniques - Electrostatic discharge immunity test.
American National Standards Institute (ANSI)
C63.16 : American National Standard for Electrostatic Discharge Test Methodologies
and Criteria for Electronic Equipment.
Telcordia
Bellcore GR-78-CORE (September 1997): Generic Requirements for the Physical
Design and Manufacture of Telecommunications products and Equipment.
Bellcore-GR-1089-CORE (4 June 2006): Electromagnetic Compatibility and Electrical
Safety-Generic Criteria for Network Telecommunications Equipment.
Electronic Industry Association / JEDEC
EIA/JESD22-A114-B (June 2000): ESD Sensitivity Testing Human Body Model
EIA/JESD22-A115-A (October 1997): ESD Sensitivity Testing Machine Model
Society of Automotive Engineers (SAE)
SAE J551-15 (July 2002): Vehicle Electromagnetic Immunity - Electrostatic Discharge
(ESD).
Immunity Tests: ESD Test System
3
Page 4

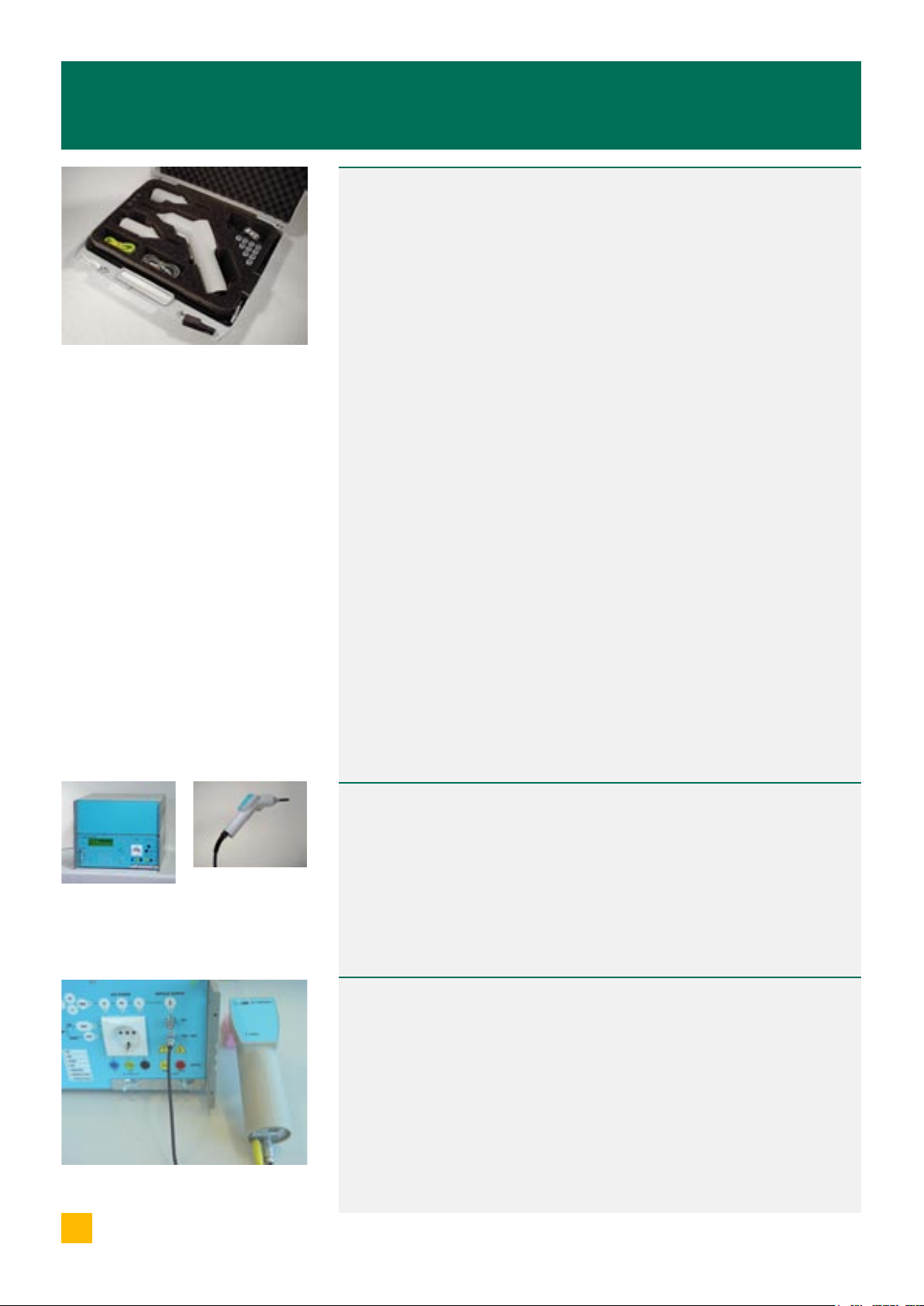

Test System Overview
ESD3000
ESD3000 is a light weight, hand-held battery operated tester. The modular construction enables many different test standards to be performed by simply changing the
module. A broad range of accessories enable testing to many applications for contact
discharge, air discharge and indirect discharge.
The easily interchangeable discharge modules (DM) quickly adapt ESD3000 to the
specified circuits of a new application. Each new module fitted to the ESD3000 is
automatically identified and the corresponding program displayed. Modules can be
ESD3000 – EMC PARTNER’s battery operated,
portable, 30 kV ESD generator
configured to meet requirements for special component values but also so that the
waveshape is correct using the defined calibration method. The modules contain
all the high voltage circuits making ESD3000 the ONLY ESD system capable of fully
conforming to different calibration requirements.
Unique in it’s class, ESD3000 is powered by a rechargable battery pack up to 30kV
for approximately 8 hours @ 1Hz discharge repetition. Regular AA batteries can also
be used.
Electronic polarity reversal, including alternating polarity, is provided as standard in all
ESD3000 models.
TRA2006 with ESD2000
Available as a basic 16 kV unit ESD3000 is easily expandable to 30kV by simply adding a Relay Module (RM).
Remote control of ESD3000 test system is possible using the EMC PARTNER TEMA
software package.
Long duration testing is made easier by fitting ESD3000 to a tripod mount fitted with
standard „photo“ type mount. In combination with the TEMA software, test reports can
be generated.
As standard accessories ESD3000 is equipped with one set of UM-3/AA size NiMH
rechargable batteries a power adapter for recharging, 2 m Earth cable, serial link cable
to update the software via EMC PARTNER’s website, user manual with verification protocol, conformity declaration and software package. All delivered in a smart case.
TRA2004, TRA2006
ESD2000 is an accessory to EMC PARTNER’s Transient Test System. Power supplies
and control of ESD2000 are incorporated into Transient Test System generators.
Connecting ESD2000 to TRA2004 or TRA2006 offers the possibilities of unlimited storage places and immediate protocol printing in the same protocol as surge, EFT, etc.
As standard accessories, ESD2000 is equipped with 2m earth cable, air and contact
test tips and a safety “crocodile clip” for connecting earth cable to a ground reference
plane.
TRA3000
EXT-TRA3000 E is an accessory to EMC PARTNER’s TRA3000 test system.
Power and High Voltage are fully contained in EXT-TRA3000 E. Programming and
control is via the TRA3000 front panel menu.
A test report is available from the TRA3000 Web Server.
TRA3000 with EXT-TRA3000 E
4 Immunity Tests: ESD Test System
Page 5

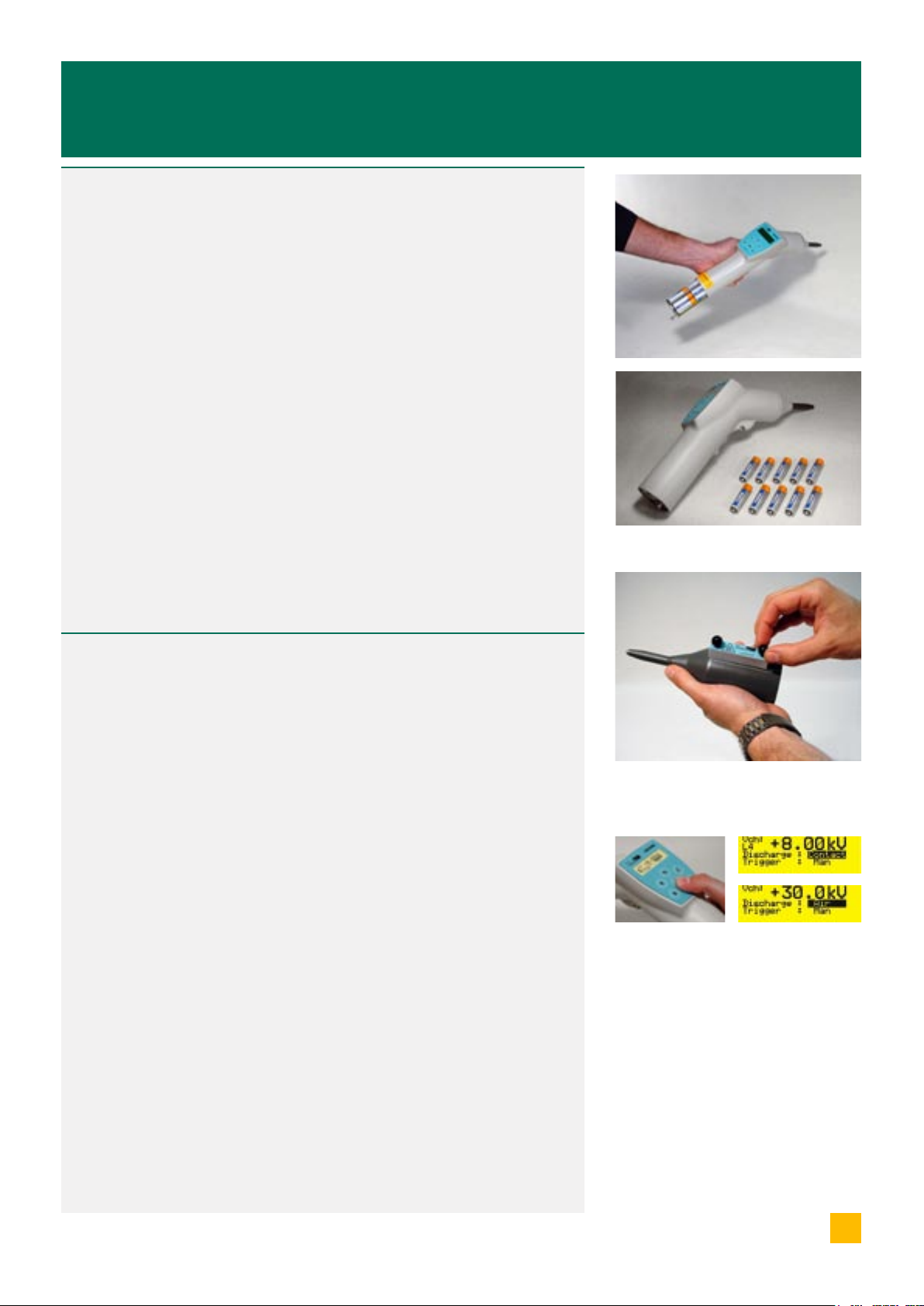

ESD3000 System
ESD3000 Features
ESD3000 has many unique and outstanding Features:
- 30kV contact discharge level
- Single impulse mode
- Simple operation
- Parameter change during operation using “+” and “-” keys
- Internal program memory
- Backlit LCD display
- Electronic polarity change
- Light weight
- Battery operation
- Compact design
- Fulfills ALL standard requirements
- Wide range of discharge modules (DM) and discharge networks (DN)
- Individually calibrated discharge modules and networks
- Standard (0.7nS - 1nS) or Fast ESD (ca. 300pS) events
- Remote control and software upgrade through standard interface
- Wide range of accessories
- 2 year warranty
ESD3000 is powered by regular or rechargeable batteries.
User Benefits
The technical excellence and many unique features of ESD3000 translate directly into
benefits for the user:
- Cost effective solution to meet many test requirements
- Low cost and rapid extension to 30kV
- Save unnecessary development time, no overtest
- ESD events realised exactly as in standard
- Increase quality of test object
- Always calibrated, ALL high voltage elements are in the module
- Real time parameter change, Ideal development tool
- Save operator time with the automated test routines and test report facility
- No operator fatigue due to ergonomic design and light weight
- Unparalleled reliability and system up-time
- Increase reliability of test object (EUT)
As standard equipment, risetime switching on
30kV modules
The ergonomic design allows easy parameter
change during operation with one hand and
without fatigue.
Immunity Tests: ESD Test System
5
Page 6
ESD3000 16kV version
ESD3000 30kV version

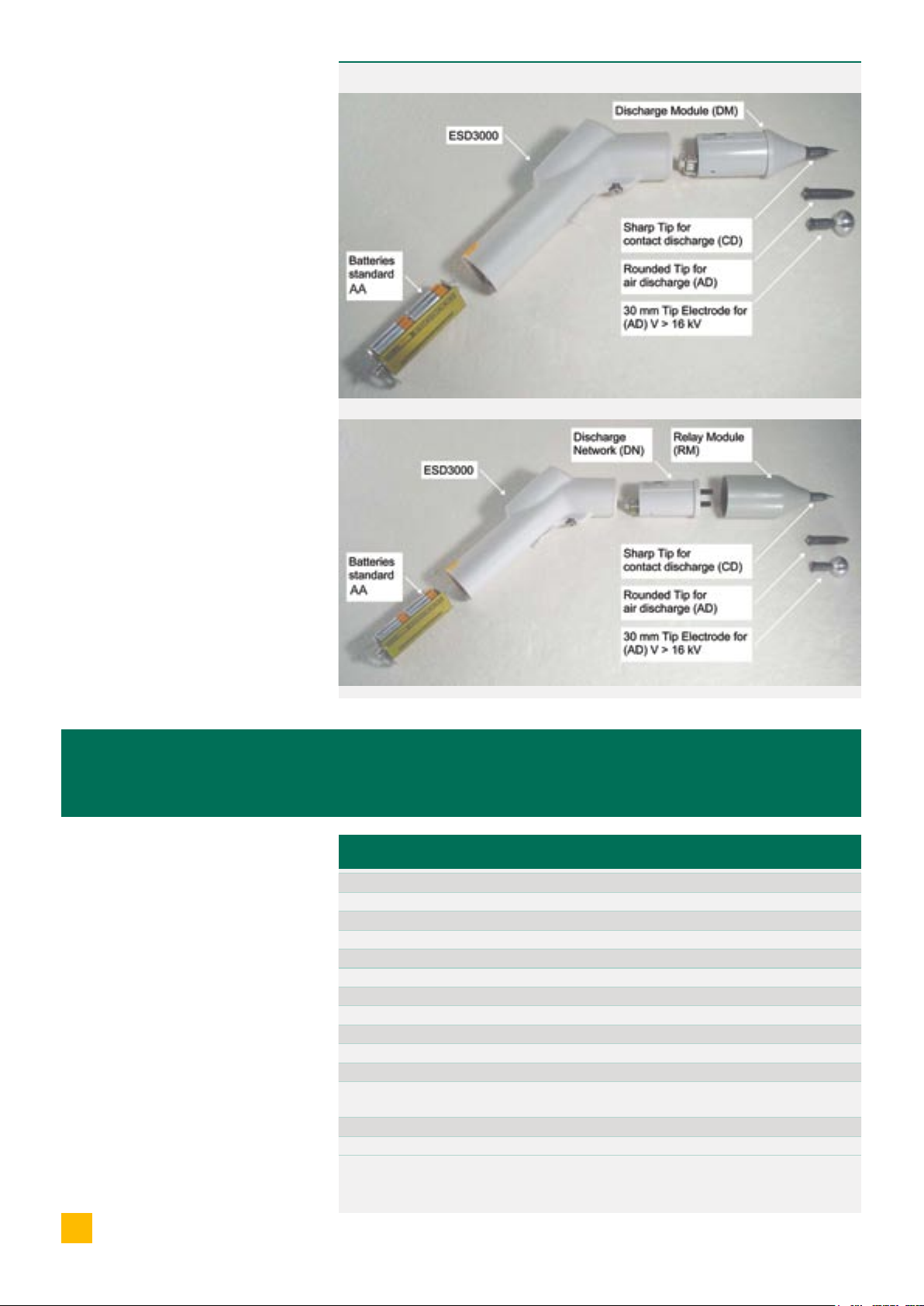

Component Parts of the ESD3000
Generator Specifications
ESD3000
Discharge risetime depending on module type
Air discharge 0.2 up to 30kV depending on module type
Contact discharge 0.08 up to 30kV depending on module type
Voltage increment resolution 100 volt steps
Contact discharge repetition interval 1)0.05 to 30s
Discharge detection every pulse or real discharges only
Discharge counter 1 to 29999
Discharge polarity positive, negative and alternating
Holding time 5s
Programmable parameter ramps voltage, polarity
Discharge trigger manual, automatic or remote
Test report data from TRA2000 soft-
ware
Power supply 10 x UM-3 / AA batteries
Weight including batteries 870g
1) Note: The repetition rates are applicable to IEC61000-4-2 only. For all other modules or applications consult
the relevant DM (Discharge Module) or DN (Discharge Network) specific instruction sheets.
sequence, number of discharges, voltage,
polarity
6 Immunity Tests: ESD Test System
Page 7
Modules
Standard Modules
Modules Standards Cap. / Res. Voltage range (CD)
Contact Discharge
ESD3000DM1 IEC 61000-4-2
150pF / 330ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV
ITU-T K20
ESD3000DM2 ISO TR10605
330pF / 2000ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV
PSA Peugeot-Citroën B21 7110
ESD3000DM4 MIL-STD-883
100pF / 1500ohm +/- 0.2kV up to 10kV +/- 0.2kV up to 16kV
GR78-CORE
ESD3000DM5 RTCA/DO-160 150pF / 330ohm no CD +/-1kV up to 30kV
ESD3000DM6 IEC 61340-3-1
100pF / 1500ohm +/- 0.2kV up to 8kV no AD
JEDEC 22-A114
MIL-STD-750D
ESD3000DM7 IEC 61340-3-2
200pF / 0ohm +/- 0.1kV up to 2kV no AD
JEDEC 22-A115
ESD3000DM81) IEC 60571
EN 50155
rise time < 0.05µs
duration 0.1µs
+/- 0.2kV up to 10kV +/- 0.2kV up to 16kV
ESD3000RM32 0.7ns up to 1ns and < 400ps +/- 1kV up to 30kV +/- 1kV up to 30kV
ESD3000DN1 IEC 61000-4-2
150pF / 330ohm +/- 1kV up to 30kV +/- 1kV up to 30kV
RTCA/DO-160
PSA Peugeot-Citroën B21 7110
GMW 3100
ESD3000DN2 ISO TR10605
330pF / 2000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV
SAEJSSI-IS
FORD AB/AC
GMW 3097
ESD3000DN3 ISO TR10605
150pF / 2000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV
SAEJSSI-IS
FORD AB/AC
GMW 3097
ESD3000DN4 STANAG 4239
500pF / 5000ohm +/- 1kV up to 30kV +/- 1kV up to 30kV
ISO 14304
MIL-STD-1512
ESD3000DN5 MIL-STD-331C
500pF / 500ohm +/- 2kV up to 30kV +/- 2kV up to 30kV
MIL-DTL-23659D
STANAG 4239
ESD3000DN6 ISO TR10605 330pF / 330ohm +/- 2kV up to 30kV +/- 2kV up to 30kV
Voltage range (AD)
Air Discharge
1) Generates Waveform B. Can be used together with TRA3000, TRA2004 or TRA2006 and NW-TRA-RAIL
to complete Waveform A requirements.
Modules for Special Applications
Modules Standards Cap. / Res. Voltage range (CD)
Contact Discharge
Voltage range (AD)
Air Discharge
ESD3000DN32-CAR1 JASO D 001-94 150pF / 500ohm +/- 2kV up to 30kV +/- 2kV up to 30kV
ESD3000DN32-CAR51)Renault 32-10-001/D 330pF / 0ohm +/- 2kV up to 30kV +/- 2kV up to 30kV
ESD3000DN32-IND1 IEC801-2 150pF / 150ohm +/- 2kV up to 30kV +/- 2kV up to 30kV
ESD3000DN32-MIL2 Special Military 400pF / 150ohm +/- 2kV up tp 30kV +/- 2kV up to 30kV
ESD3000DN32-MIL3 MIL-STD-1576 500pF / 0ohm +/- 2kV up to 30kV +/- 2kV up to 30kV
1) module integrated into ESD3000RM32 relay module
Further information for all modules is available on the individual instruction sheets.
Refer to EMC PARTNER or your local representative.
DM1 module for IEC 61000-4-2
IEC 61000-4-2 Ed.2: New test method and tolerances for impulse evaluation. ESD3000
with DM1 fulfills BOTH Ed.1 and Ed.2
Immunity Tests: ESD Test System
7
Page 8

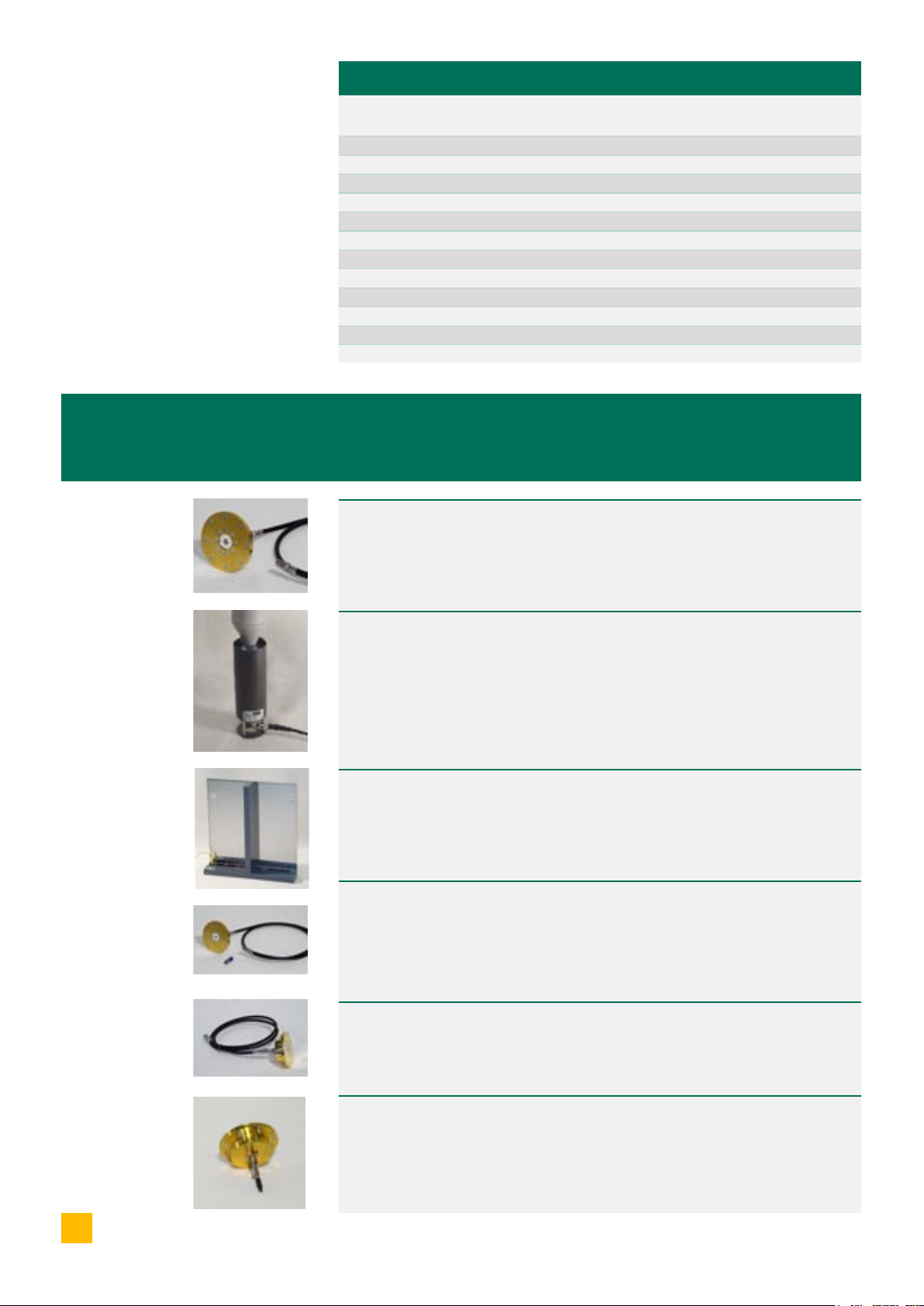

TRA3000, TRA2004, TRA2006
ESD specifications of TRA3000, TRA2000IN4 and TRA2000IN6:
Discharge risetime: 0.7 - 1.0nS
Air discharge: 2.0 up to 16kV
Contact discharge: 2.0 up to 10kV
Voltage increment resolution: 1 volt steps
Contact discharge repetition interval: 0.05 to 30s
Discharge detection: Every pulse or real discharges only
Discharge counter: 1 to 29999
Discharge polarity: Positive, Negative and Alternating
Holding time: 5s
Programmable parameter ramps: Voltage, Polarity
Discharge trigger: Manual or Automatic
Accessories and Options
ESD-TARGET2
ESD-VERI-V
ESD-VCP50 – Vertical
Coupling Plate
ESD.-TARGET2-DN
ESD-TARGET2
2ohm target with SMA connector, upper limit > 4GHz, 20dB attenuator and 1m coaxial
cable. Calibration: target-attenuator-cable chain..
Application: ESD calibration and comparison
ESD-VERI-V
20GOhm divider for high voltage measurement on the ESD3000 up to 25kV.
Ratio is determined by the 1MOhm input of the oscilloscope. Ratio approx. 20’000.
Application: ESD voltage verification.
ESD-VCP50 – Vertical Coupling Plate
- Mechanical dimension: 0.5m x 0.5m
- Application: indirect ESD discharge with contact tip
- Includes: 2m cable with 2 x 470kOhm resistors
ESD-TARGET2-DN
2ohm target with SMA connector, upper limit > 4GHz. Calibrated target attenuator
cable chain for up to 30kV.
Application: ESD calibration and comparison
ESD.-TARGET2-50
ESD-TARGET2-50
50 Ohm target with SMA connector. Calibrated target attenuator cable chain according
to IEC61340-3-1 and -2.
ESD.-TARGET2-500
8 Immunity Tests: ESD Test System
ESD-TARGET2-500
500 Ohm target with SMA connector. Calibrated target attenuator cable chain according to IEC61340-3-1 and -2.
Page 9
ESD3000 only
ESD3000 SAFETY-S
Under certain circumstances it is desirable to remove all charge from the ESD generator discharge tip before connecting a test object. Particularly in applications involving
explosive devices (airbags, foil initiators, etc.) where unexpected activation may endanger operating personnel. In addition, semiconductor devices can be damaged by
a test finger holding residual charge.
ESD3000 Safety switch used in conjunction with ESD3000DM and ESD3000DN enables testing in a controlled environment that provides maximum safety for operating
personnel and minimum risk of damage to Semiconductors.
ESD3000DM-EXT
This extension allows the separation of control and discharge module. It can be used
for DM and RM+DN.
CNH12
The CNH12 can be used for proximity magnetic field susceptibility tests.
ESD-STAND Ed2
- Non metallic stand for ESD2000 / 3000 in accordance with IEC 61000-4-2 Ed.2.
- Height adjustable from 0.4m up to 1.75m.
- Application: long term tests in contact and air discharge mode
TC-MIG24 ED (for explosive devices)
Testing of EUTs that could spontaneously explode or rapidly change state, such as
airbags or munition fuses, can be accomplished with minimum risk to testing personnel
by separating the ESD3000 control unit and the discharge module. ESD3000DM-EXT
enables a separation of up to 1m.
ESD3000 SAFETY-S
ESD3000DM-EXT
CNH12
ESD-STAND Ed2
Use of a test cabinet from EMC PARTNER further increases safety by containing flying debris.
TRA2000, TRA2004, TRA2006 only
ESD2000
ESD2000 is a light weight desig n with fixed disc harge network to meet the
IEC/EN 61000-4-2 requirement (150pF/330ohm).
ESD3000 with remote DM for testing explosive
devices
ESD2000
Immunity Tests: ESD Test System
9
Page 10
Software
ESD3000-OPTOLINK
USB-RS232 Adapter
TEMA Software
Example of sequence for automotive tests
ESD3000-OTPOLINK
For remote control of ESD3000, the ESD3000-OPTOLINK and one of the following
software packages is needed:
- E3LOADER: downloaded free of charge from the EMC PARTNER Website. Using
the serial interface, firmware can be updated.
- TEMA Software: Comfortable control of ESD3000 from a PC. Includes also control
for EMC PARTNER Transient Test System and MIG2000 generators.
USB-RS232 Adapter
ESD3000 can be controlled from TEMA software using computers with USB interfaces
and the USB-RS232 adapter.
TEMA Software
Start testing faster with pre-loaded standard routines. Supervise the test process using, Loop continue or stop functions linked into EUT responses. Customise the test
report format and content automatically generating a document for export to Word©
or Excel©.
10 Immunity Tests: ESD Test System
Page 11
EMC PARTNER’s Product Range
EMC PARTNER’s Product Range
The Largest Range of Impulse Test Equip ment up to 100kA and 100kV.
Lightning Tests
A range of test equipment and accessories for aircraft, military and telecom applica-
tions. Complete solutions including all hardware and software to meet the require-
ments of RTCA / EUROCAE DO160 / ED14 for indirect lighting on aircraft systems,
Component Tests
Emission Measurements
Immunity Tests
System Automation
As addition to the basic generators, a range of accessories are available to enhance
Hidden Heading to provoke a TOC entry
Immunity Tests: ESD Test System
11
Page 12
For further information please do not hesitate to contact EMC PARTNER’s representative in your region. You will find a complete list of our representatives and a lot of other
useful information on our website:
www.emc-partner.com
The Headquarters in Switzerland
EMC PARTNER AG
Baselstrasse 160
CH - 4242 Laufen
Switzerland
Phone: +41 61 775 20 30
Fax: +41 61 775 20 59
Email: [email protected]
Web-Site: www.emc-partner.com
Your local representative
Version 3. June 2010. Subject to change without notice.
12 Immunity Tests: ESD Test System
Loading...
