EMC CX200-Series Hardware Reference Manual

EMC

2-Gigabit Disk Processor Enclosure (DPE2)

CX200-Series

HARDWARE REFERENCE

P/N 014003118

REV A03

EMC Corporation

Corporate Headquarters

Hopkinton, MA 01748-9103
(800) 424-EMC2
http://www.EMC.com

:

Copyright ©2002, 2003 EMC Corporation. All rights reserved.

Published May, 2003

EMC believes the information in this publication is accurate as of its publication date. However, the
information is subject to change without notice.

THE INFORMATION IN THIS PUBLICATION IS PROVIDED “AS IS.” EMC CORPORATION MAKES NO
REPRESENTATIONS OR WARRANTIES OF ANY KIND WITH RESPECT TO THE INFORMATION IN THIS
PUBLICATION, AND SPECIFICALLY DISCLAIMS IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.

Use, copying, and distribution of any EMC software described in this publication require an applicable
software license.

Trademark Information

EMC2, EMC, CLARiiON, and Navisphere are registered trademarks and Access Logix, Application Transparent Failover, ControlCenter, EMC
Enterprise Storage, The Enterprise Storage Company, The EMC Effect, FLARE, PowerPath, MirrorView, and SnapView are trademarks of EMC
Corporation.

All other trademarks used herein are the property of their respective owners.

ii

EMC CX200-Series DPE2 Hardware Reference

Regulatory Notices

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.
Testing was done with shielded cables. Therefore, in order to comply with the FCC regulations, you must use

shielded cables with your installation. Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.

This Class A digital apparatus complies with Canadian ICES-003
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada

Manufacturer’s Declaration of Conformity - CE mark

This equipment has been tested and found to comply with the requirements of European Community Council
Directives 89/336/EEC, 73/23/EEC, and 98/68/EEC relating to electromagnetic compatibility and product safety
respectively.

This product complies with EN55022, CISPR22 and AS/NZS 3548 Class A.

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user
may be required to take adequate measures.

EMC CX200-Series DPE2 Hardware Reference

iii

iv

EMC CX200-Series DPE2 Hardware Reference

Contents

Preface............................................................................................................................. ix

Warnings and Cautions......................................................................................... xiii

Chapter 1 About the CX200-Series DPE2

Overview........................................................................................... 1-2

CX200-Series Components ............................................................. 1-3

Midplane.................................................................................... 1-6

Front Bezel................................................................................. 1-6

Storage Processors.................................................................... 1-7

Disk Modules ............................................................................ 1-8

Power Supply/System Cooling Modules ............................. 1-9

Standby Power Supply (SPS)................................................ 1-10

Chapter 2 Installing a CX200-Series DPE2

Requirements.................................................................................... 2-2

Site Requirements..................................................................... 2-2

Cabling Requirements.............................................................. 2-2

Addressing Requirements....................................................... 2-3

Disk Requirements ................................................................... 2-3

Installing a DPE2 in a Cabinet ....................................................... 2-4

Warnings and Recommendations: ......................................... 2-4

Setting Up an Installed CX200-Series DPE2................................. 2-5

Setting Enclosure Addresses................................................... 2-5

Making Power Connections.................................................... 2-6

Making Back End Connections............................................. 2-10

Connecting the CX200-Series DPE2 to the External

Environment............................................................................ 2-11

v

Contents

Making Management LAN Connections............................ 2-12

DPE2 Powerup and Initialization................................................ 2-14

CX200-Series Powerdown............................................................ 2-15

Turning Off the Power........................................................... 2-15

Chapter 3 Servicing and Upgrading a CX200-Series DPE2

Monitoring CX200-Series Status.................................................... 3-2

Handling FRUs ................................................................................ 3-5

Power Issues and FRUs ........................................................... 3-5

Avoiding Electrostatic Discharge (ESD) Damage................ 3-6

Emergency Procedures (Without an ESD Kit)...................... 3-7

Precautions When Removing, Installing, or Storing FRUs 3-8

Replacing or Adding a Disk Module............................................ 3-9

Unlocking and Removing the Front Bezel ......................... 3-10

Removing a Disk Filler Module ........................................... 3-11

Removing a Disk Module...................................................... 3-11

Installing a Disk or Filler Module ........................................ 3-12

Installing and Locking the Front Bezel................................ 3-14

Replacing a Storage Processor (SP)............................................. 3-15

Removing an SP...................................................................... 3-15

Installing an SP ....................................................................... 3-16

Replacing a Power Supply/System Cooling Module .............. 3-18

Removing a Power Supply/System Cooling Module ...... 3-18

Installing a Power Supply/System Cooling Module or

Blower Module ....................................................................... 3-20

Chapter 4 The Standby Power Supply (SPS)

About the SPS................................................................................... 4-2

Appendix A Technical Specifications and Operating Limits

CX200-Series DPE2 Technical Specifications ............................. A-2

Size and Weight ....................................................................... A-3

Drive Type ................................................................................ A-3

Operating Limits ............................................................................ A-6

SPS Technical Specifications ......................................................... A-7

Operating Limits...................................................................... A-8

Glossary ........................................................................................................................ g-1

Index................................................................................................................................ i-1

vi

EMC CX200-Series DPE2 Hardware Reference

Figures

1-1 Model CX200 Disk Processor Enclosure (DPE2) ...................................... 1-2

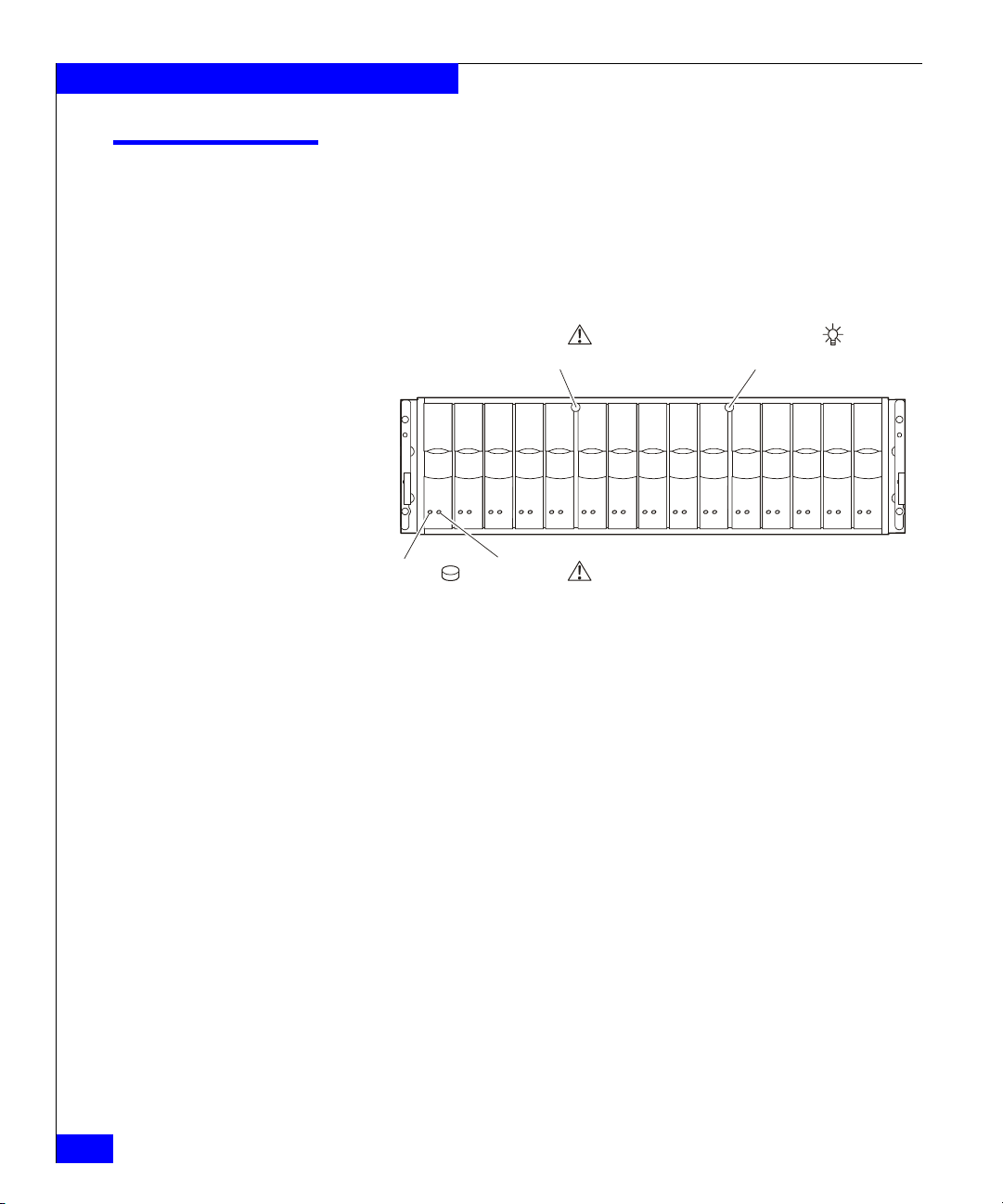

1-2 CX200 DPE2 Front LED Display ................................................................ 1-4

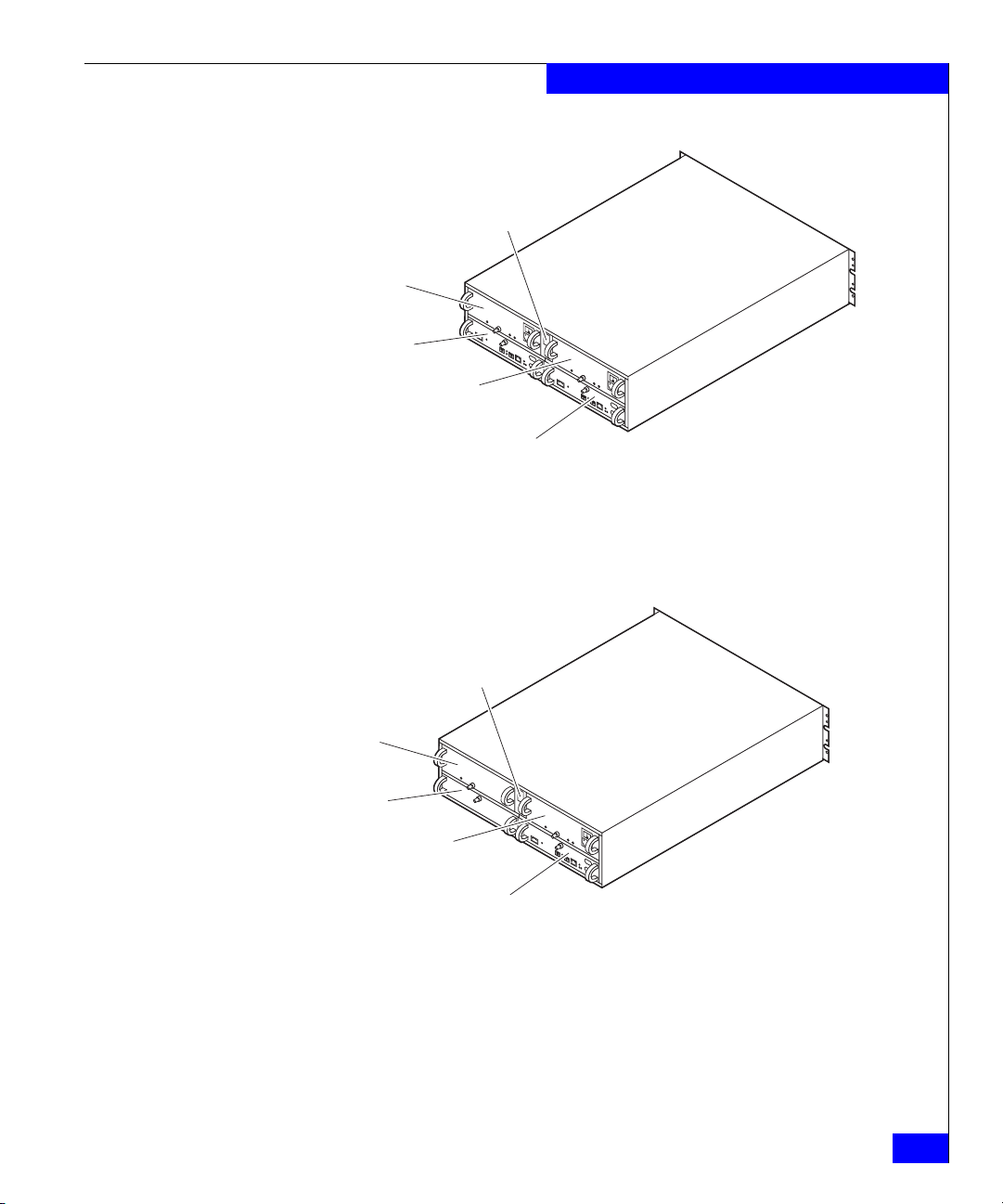

1-3 CX200 DPE2 Rear View .............................................................................. 1-5

1-4 CX200LC DPE2 Rear View .......................................................................... 1-5

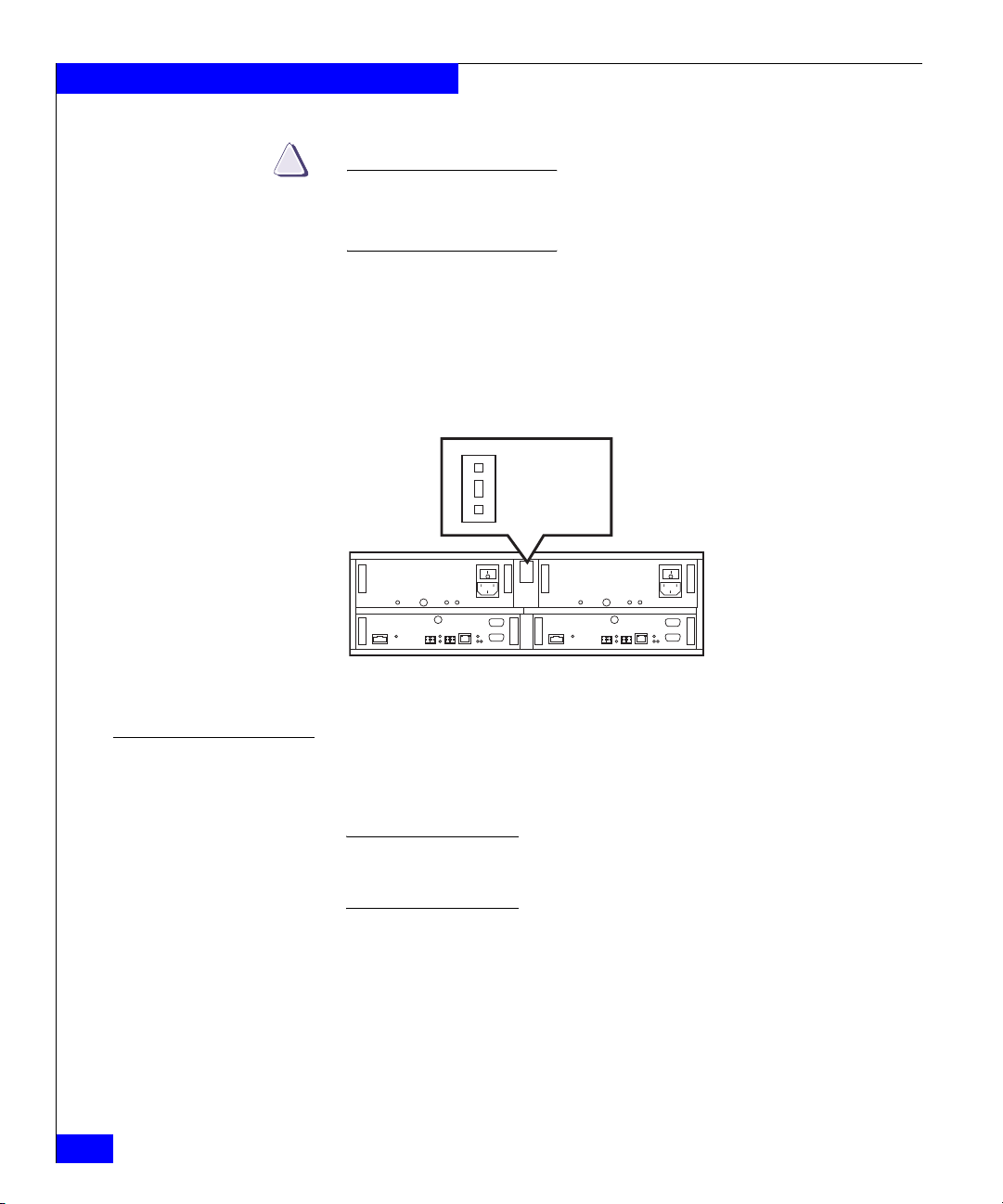

1-5 CX200 DPE2 Enclosure Address Switch/Indicator ................................. 1-6

1-6 Disk Processor Enclosure Front Bezel ....................................................... 1-6

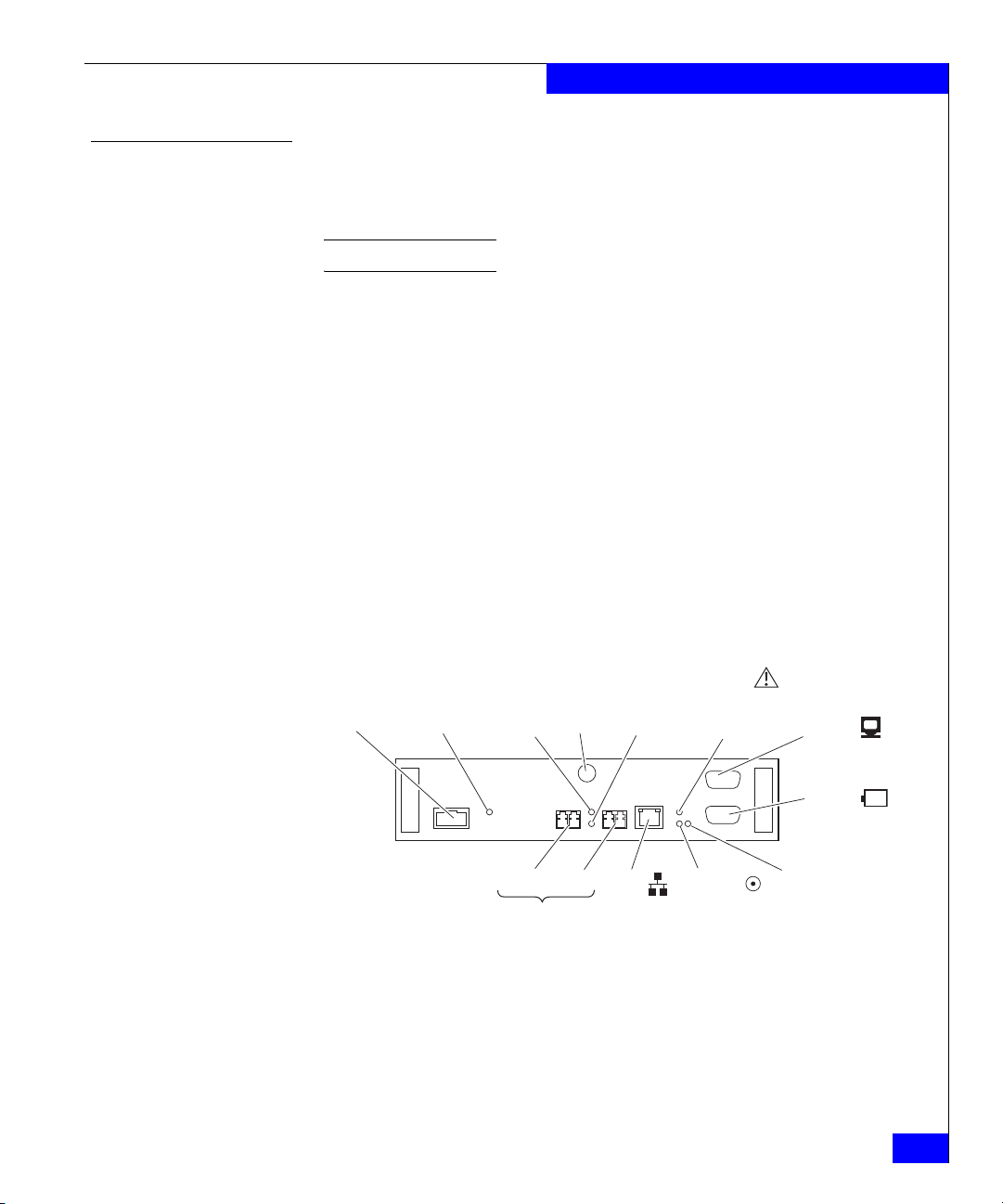

1-7 CX200 Storage Processor ............................................................................. 1-7

1-8 Disk Module .................................................................................................. 1-8

1-9 Power Supply/System Cooling Module ................................................. 1-10

1-10 Standby Power Supply .............................................................................. 1-10

2-1 CX200-Series Enclosure Address Switch (CX200 Shown) ...................... 2-6

2-2 ac Line Cord and the Power Switch (CX200 Shown) .............................. 2-7

2-3 Connecting CX200 Power Cords ................................................................ 2-7

2-4 Connecting the Standby Power Supply to SP A ...................................... 2-8

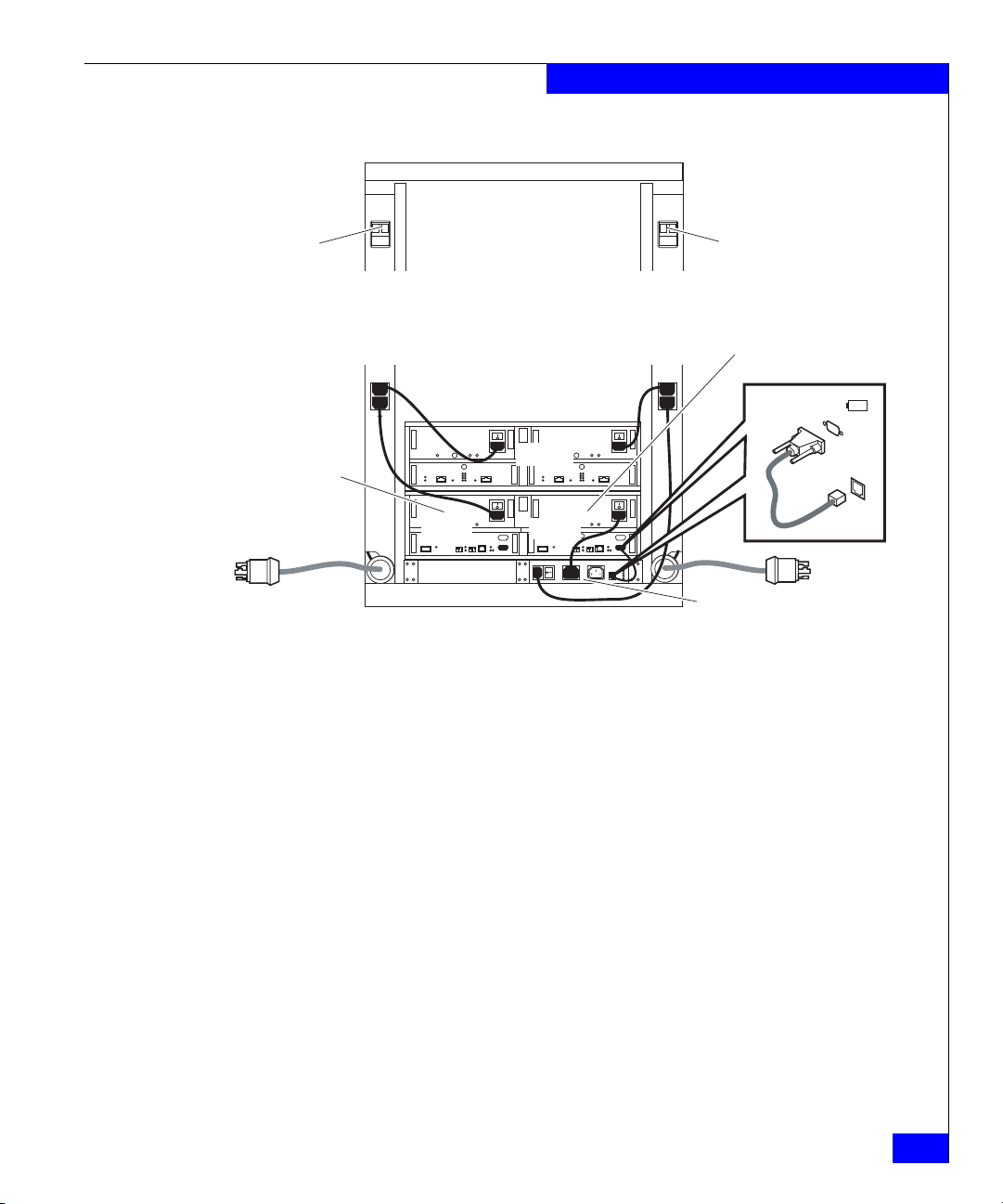

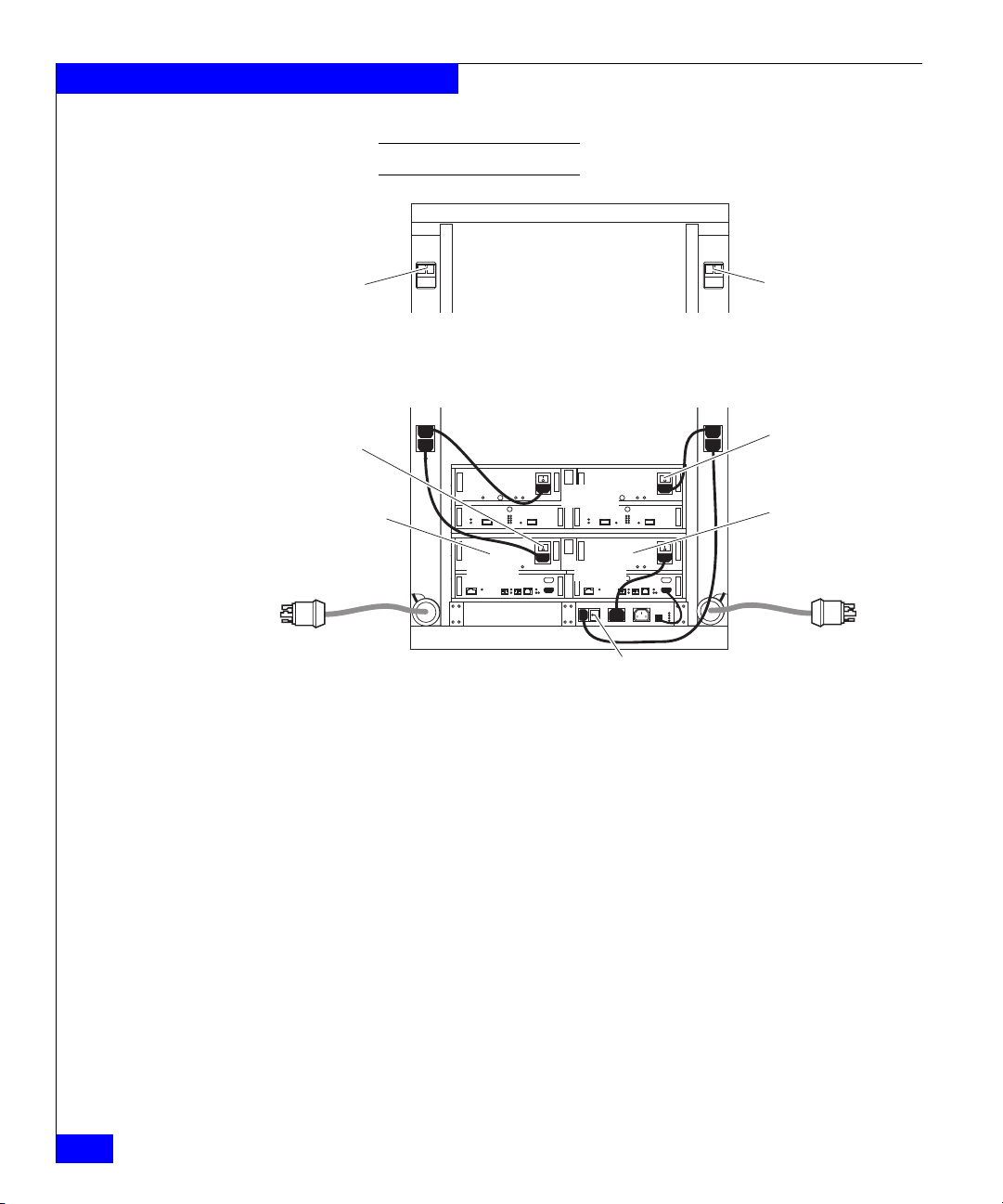

2-5 CX200 Power Connections .......................................................................... 2-9

2-6 Connecting a CX200 DPE2 to Another Disk Enclosure ........................ 2-10

2-7 Cabling a CX200 and Disk Enclosure Together ..................................... 2-10

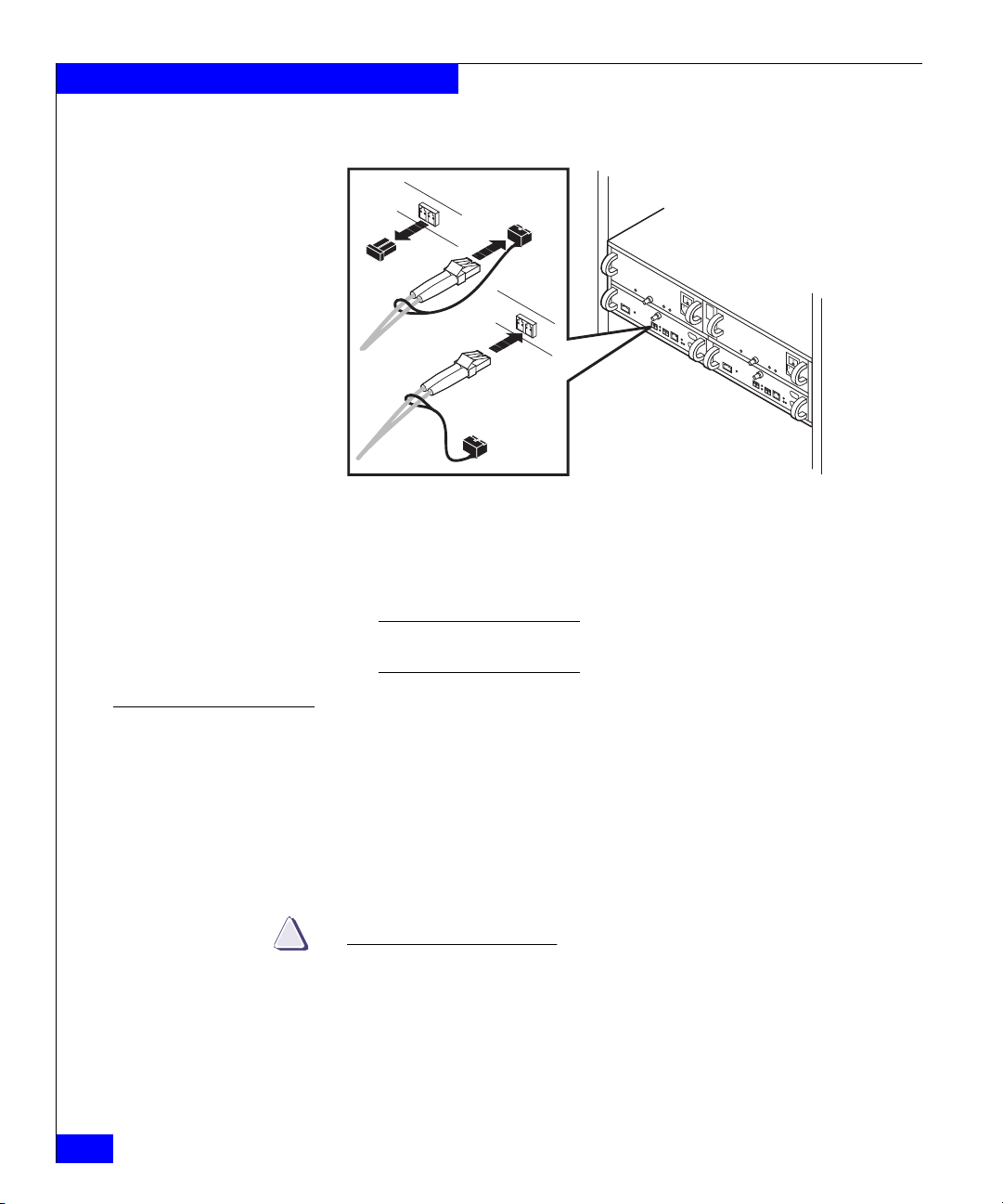

2-8 Attaching Fibre-Optic (Front-End) Cables to the SP (CX200 Shown) . 2-12

2-9 Connecting the CX200 to a Shared LAN ................................................. 2-13

2-10 Connecting the CX200 to a Local Management Client ......................... 2-13

2-11 Powering Down (CX200 Shown) ............................................................. 2-16

3-1 Enclosure and Disk Module Status Lights (Front Bezel Removed) ...... 3-2

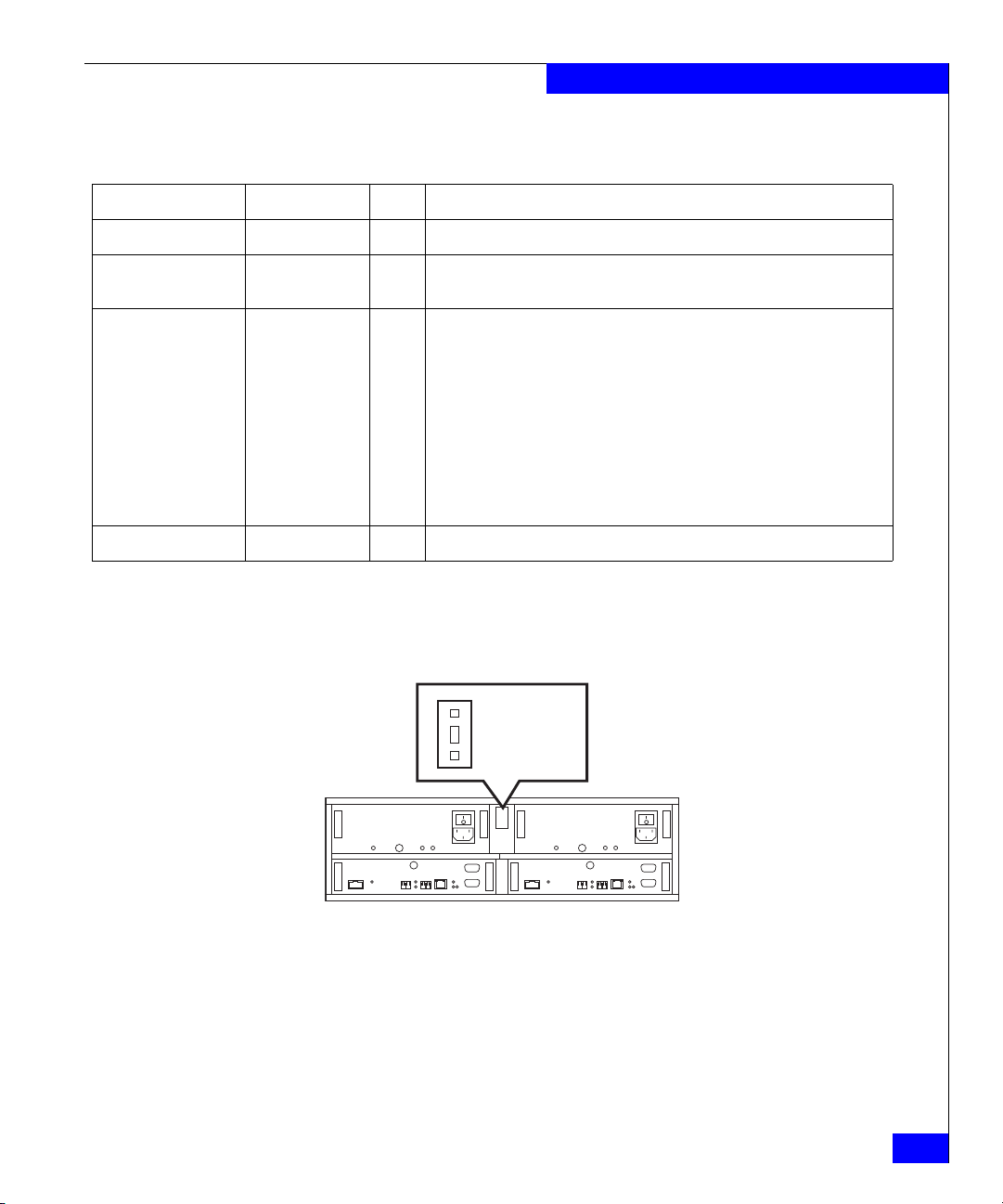

3-2 Enclosure Address Switch (CX200 Shown) .............................................. 3-3

3-3 Power Supply/Cooling Module Status Indicators .................................. 3-4

3-4 SP Status LEDs .............................................................................................. 3-4

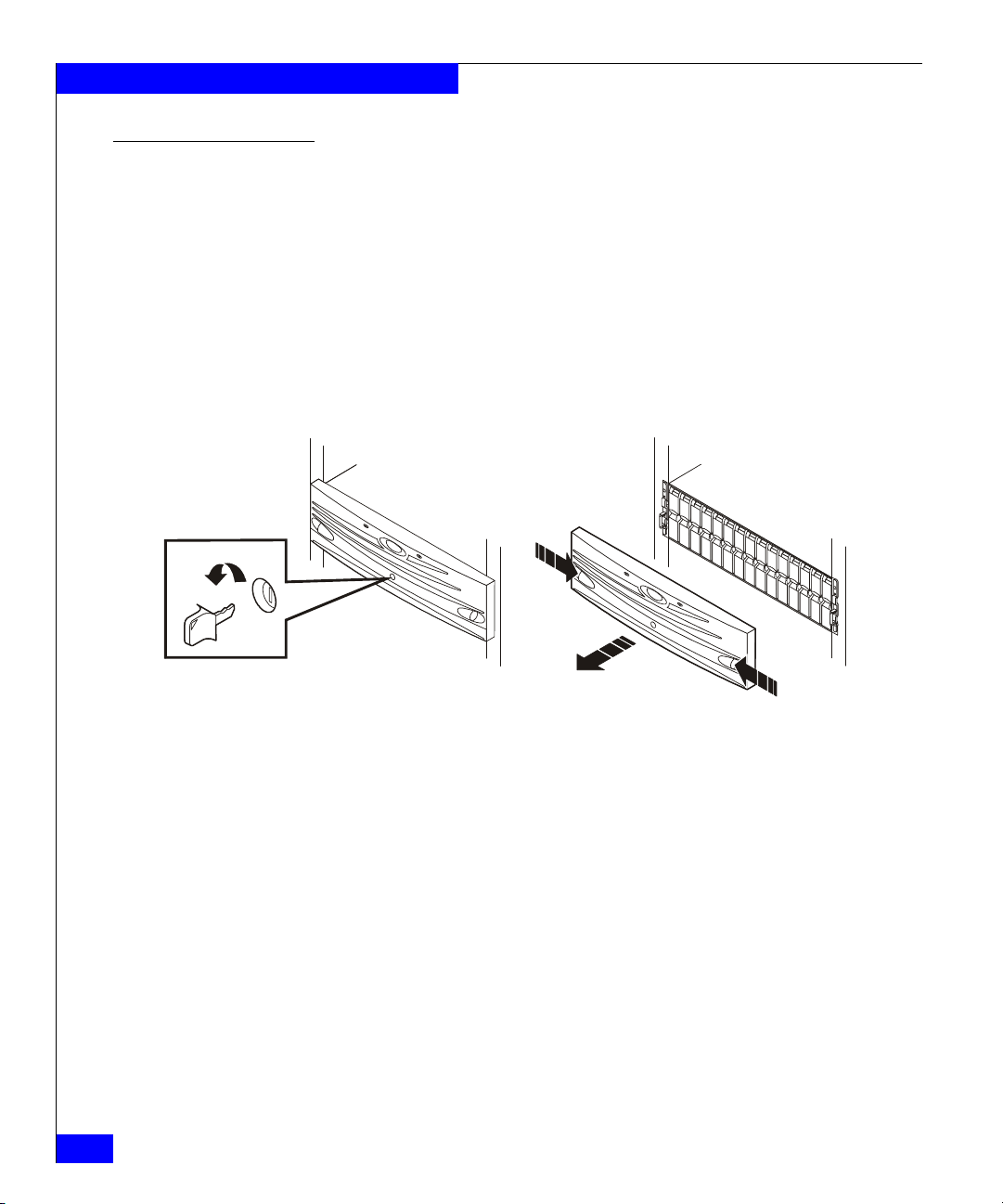

3-5 Unlocking and Removing the Front Bezel .............................................. 3-10

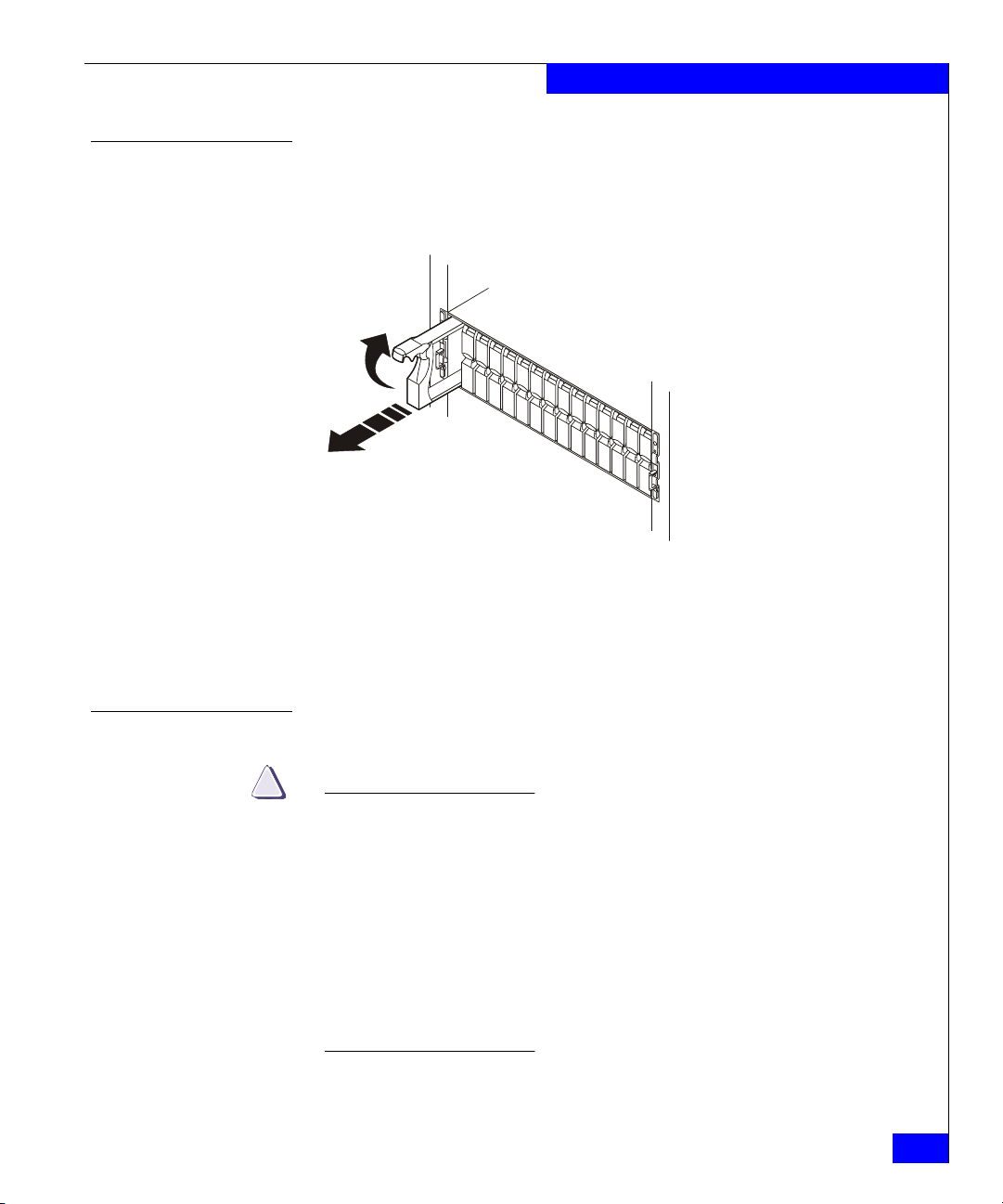

3-6 Removing a Disk Filler Module ............................................................... 3-11

3-7 Removing a Disk Module .......................................................................... 3-12

3-8 Installing a Disk or Filler Module ............................................................ 3-13

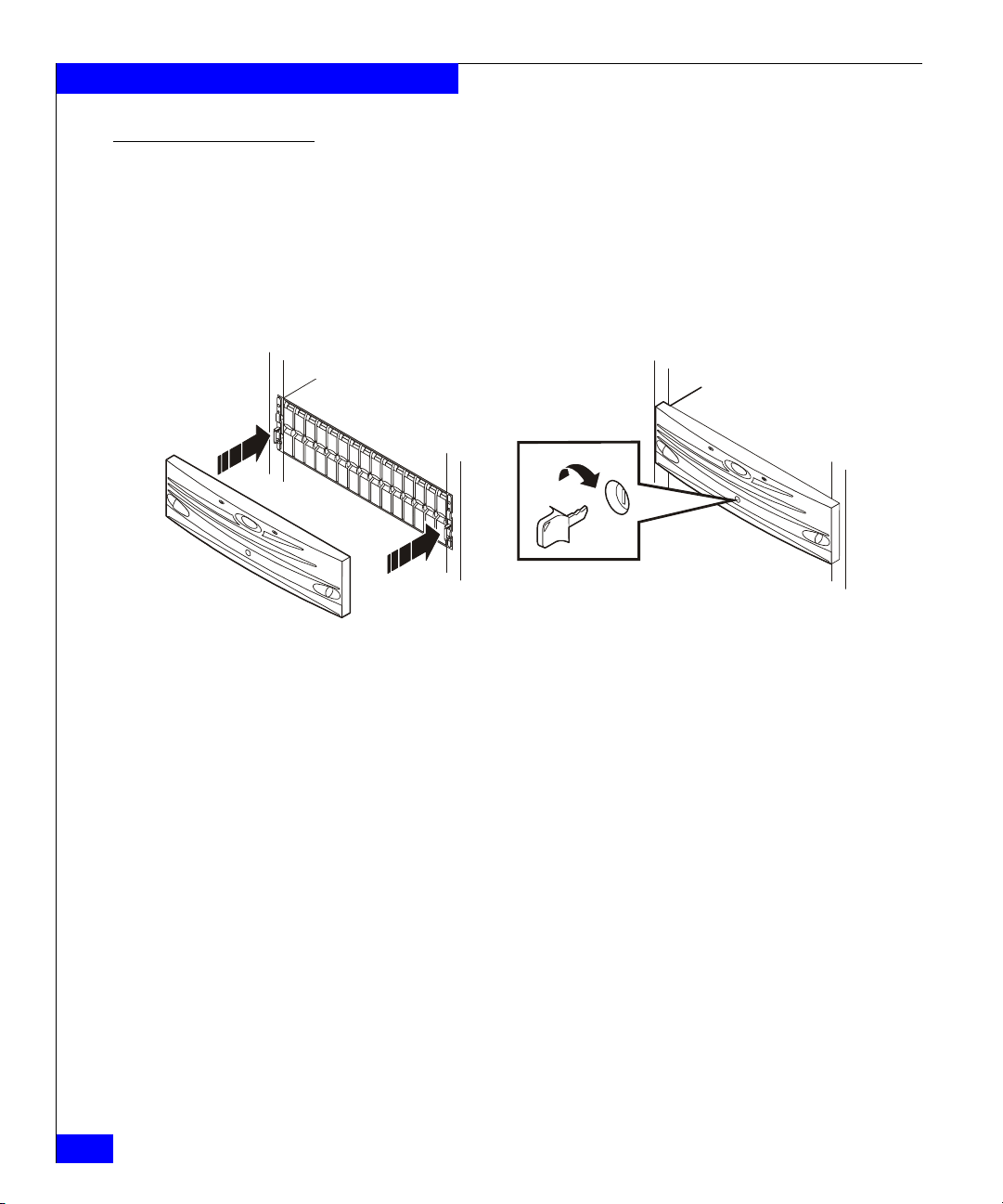

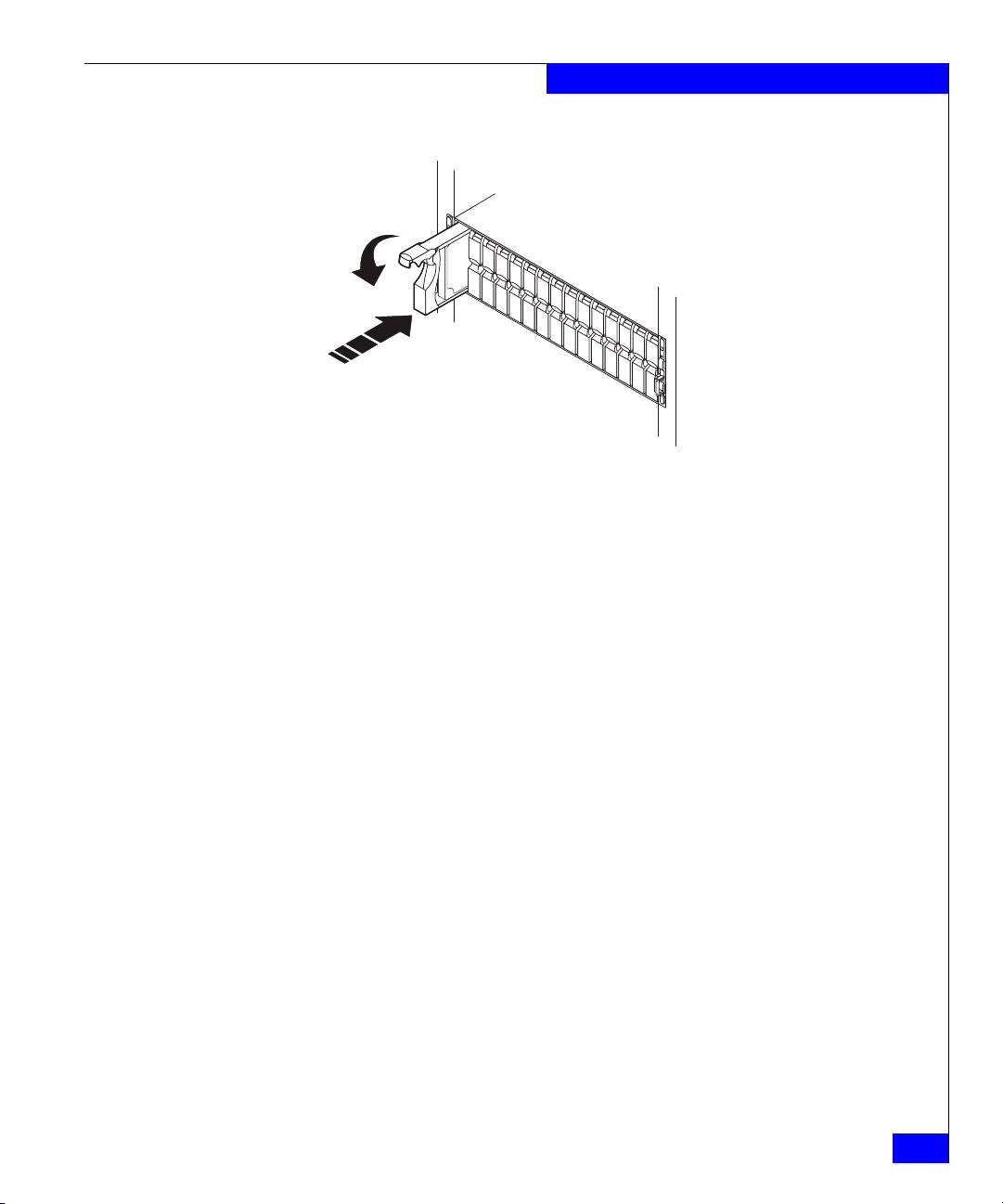

3-9 Installing and Locking the Front Bezel .................................................... 3-14

EMC CX200-Series DPE2 Hardware Reference

vii

Figures

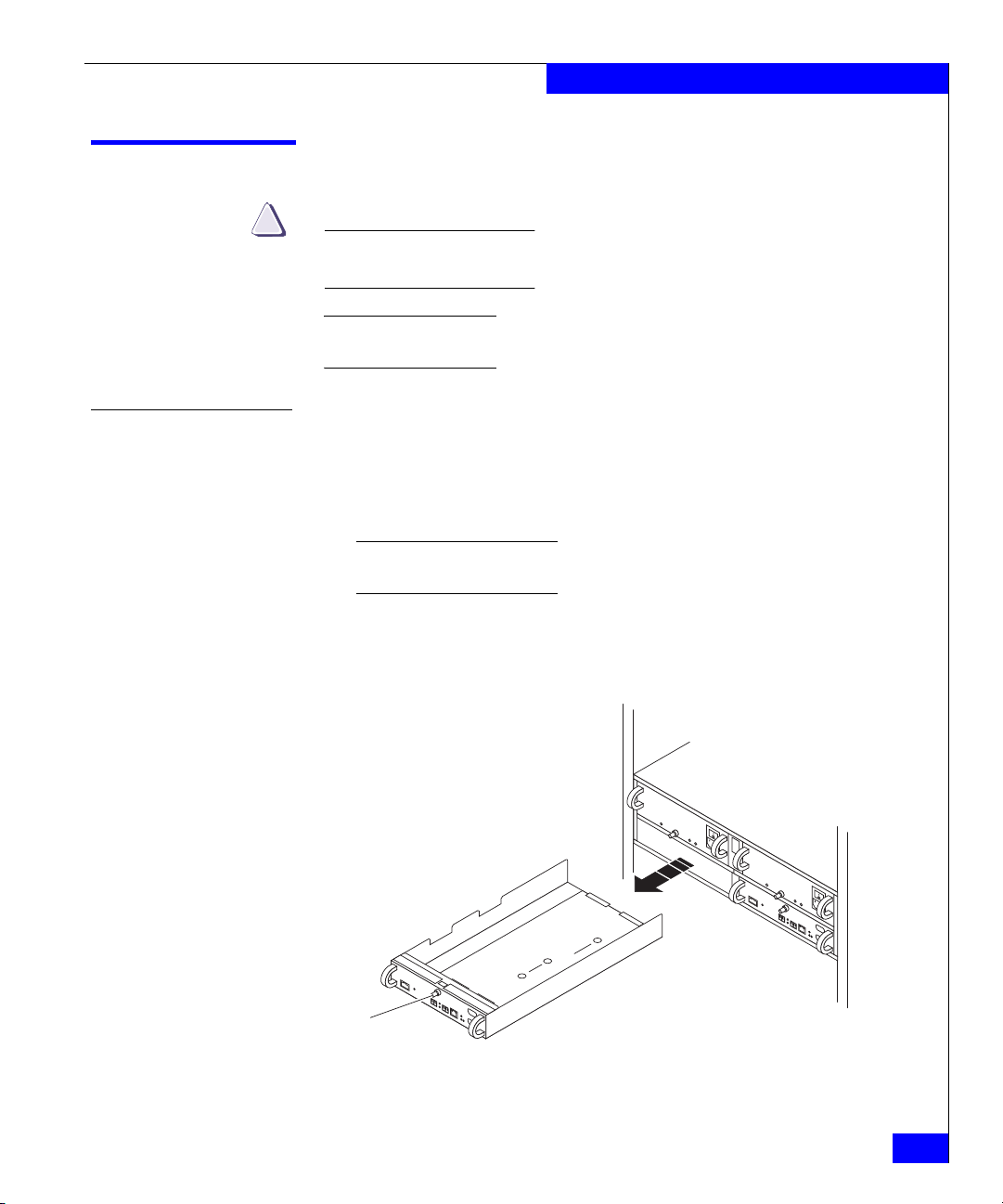

3-10 Removing an SP (CX200 Shown) .............................................................. 3-15

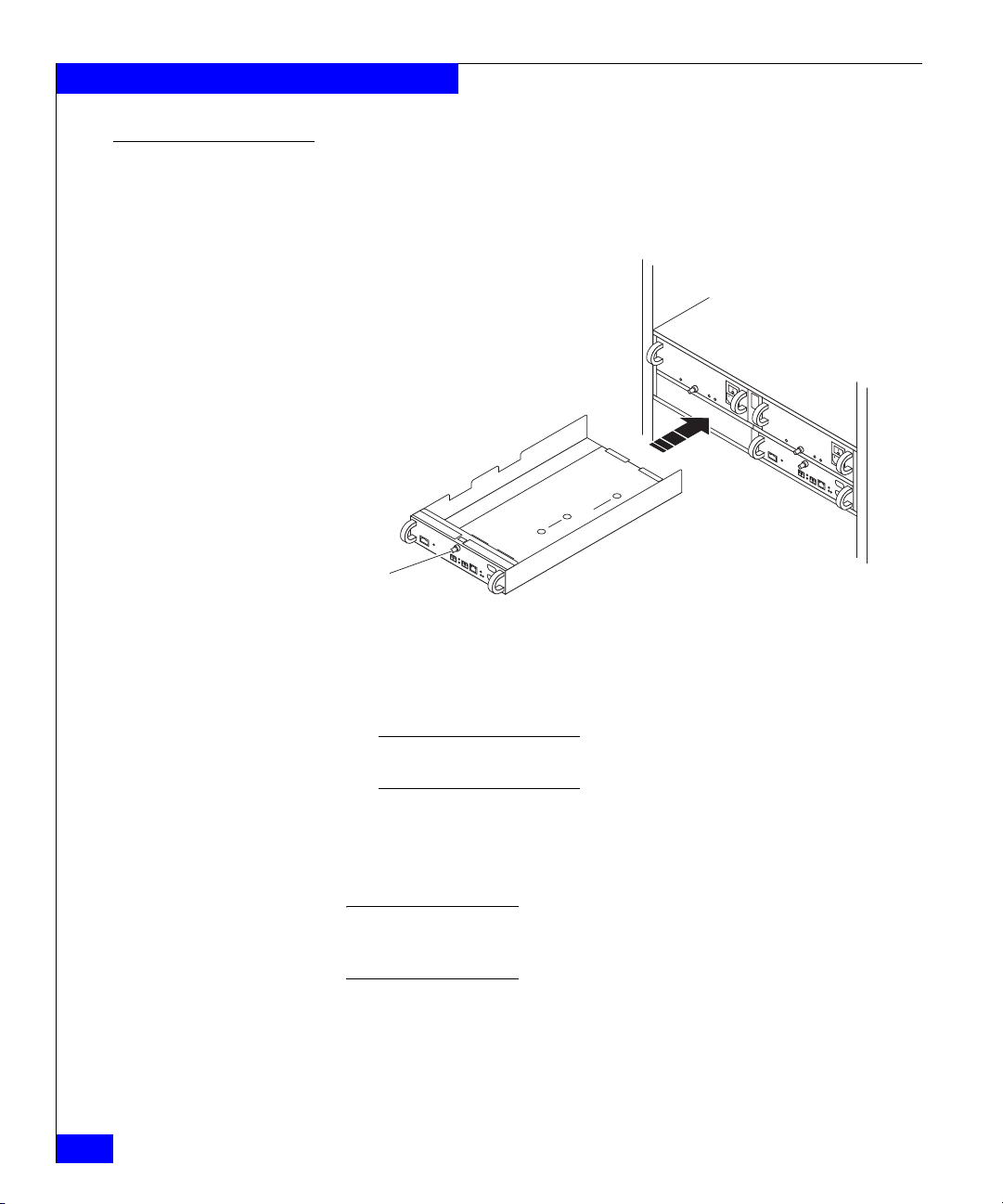

3-11 Installing an SP (CX200 Shown) ................................................................ 3-16

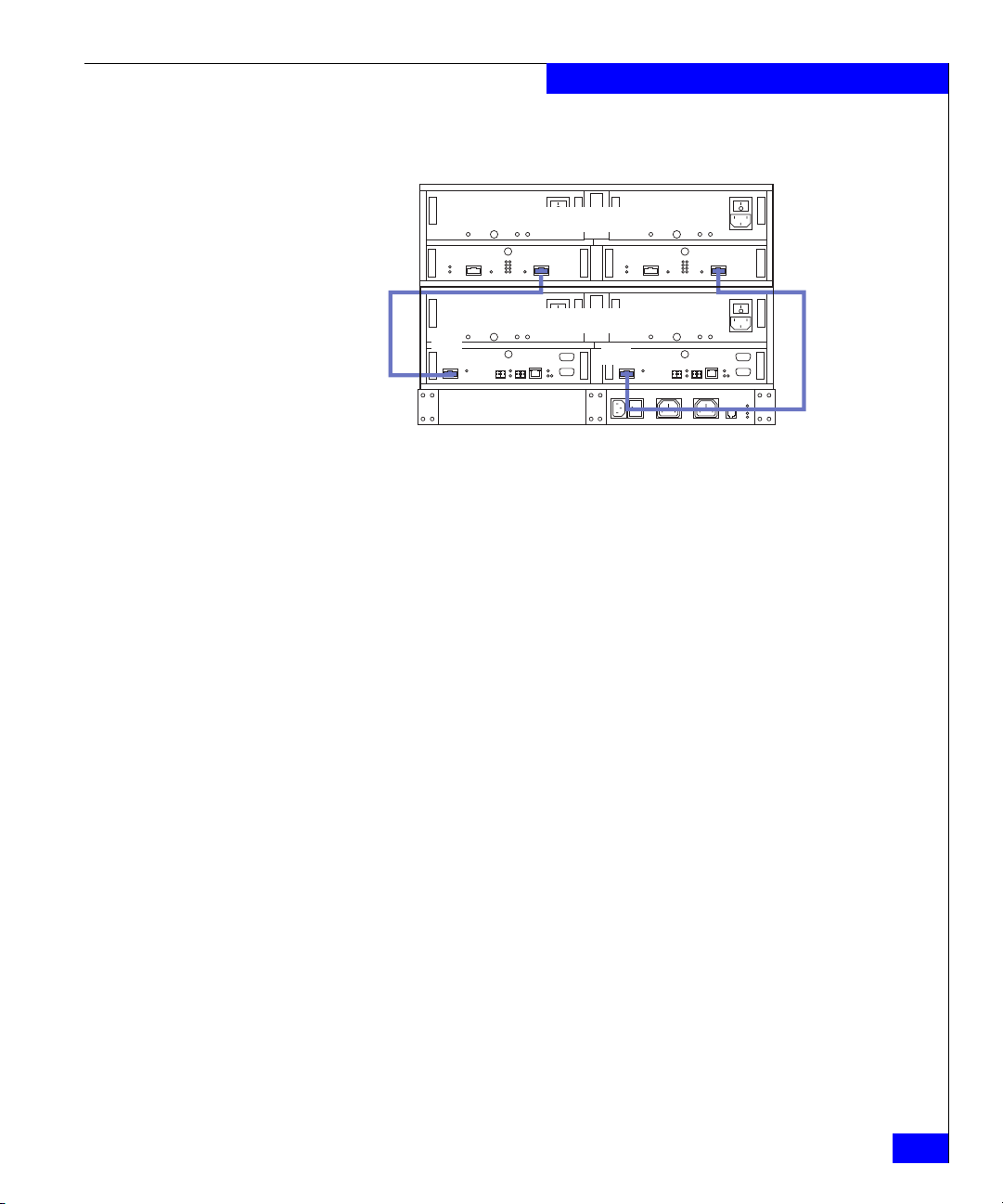

3-12 Connecting SPs and Disk Enclosures Together with Copper Cable ... 3-17

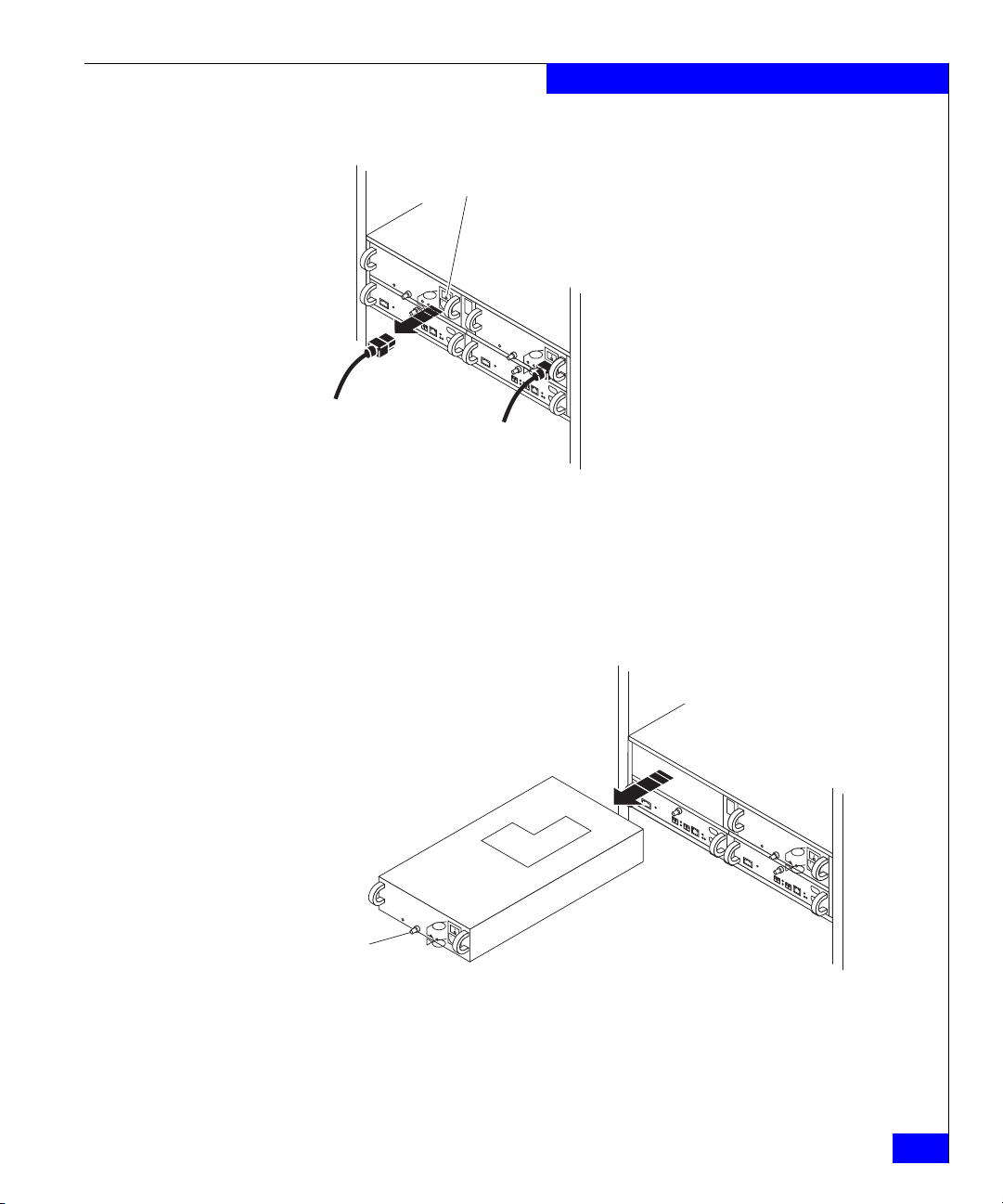

3-13 Turning Off a Supply’s Power and Unplugging Its ac Power Cord ... 3-19

3-14 Removing a Power/Cooling or Blower Module (CX200 Shown) ........ 3-19

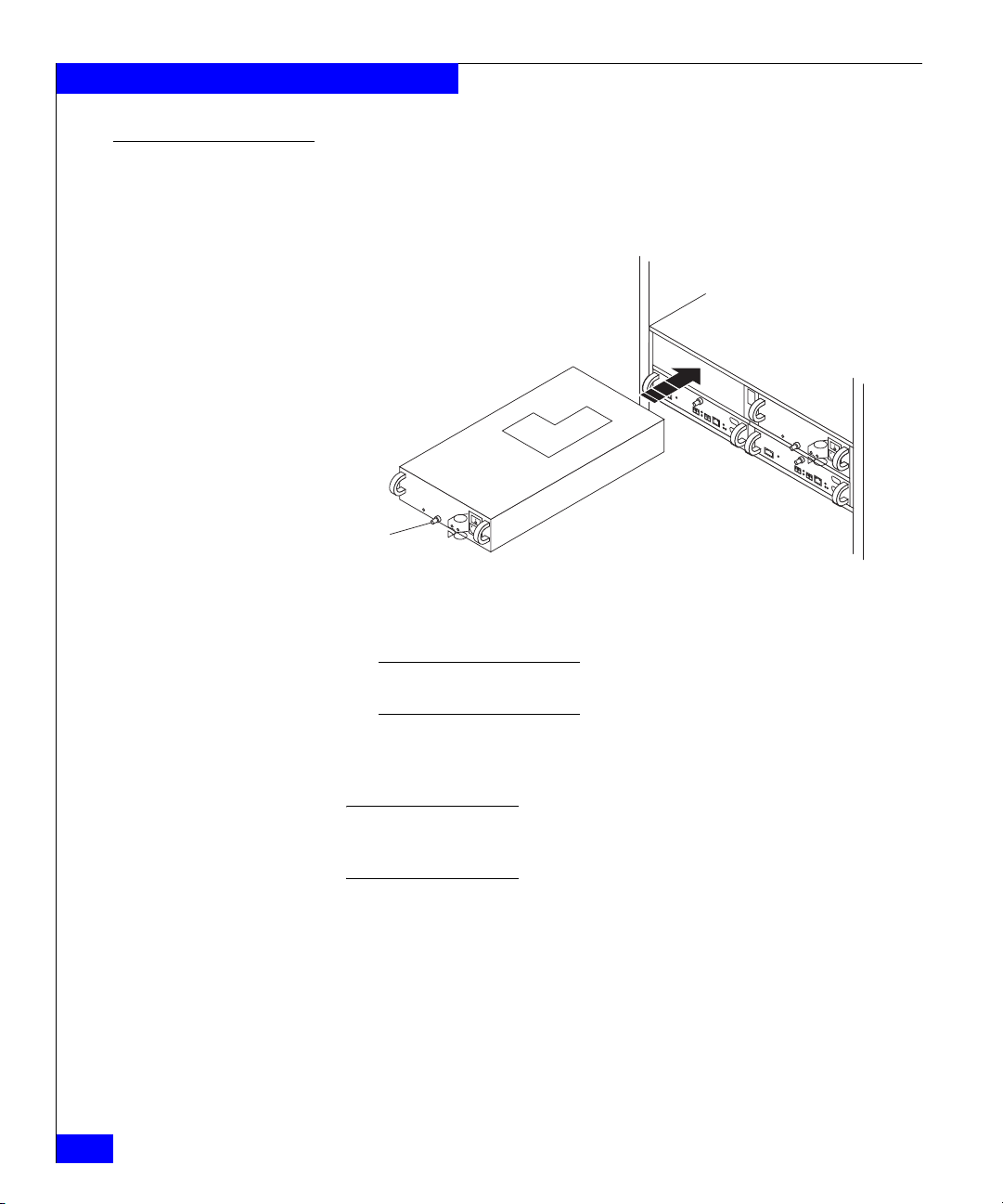

3-15 Installing a Power/Cooling or Blower Module (CX200 Shown) ......... 3-20

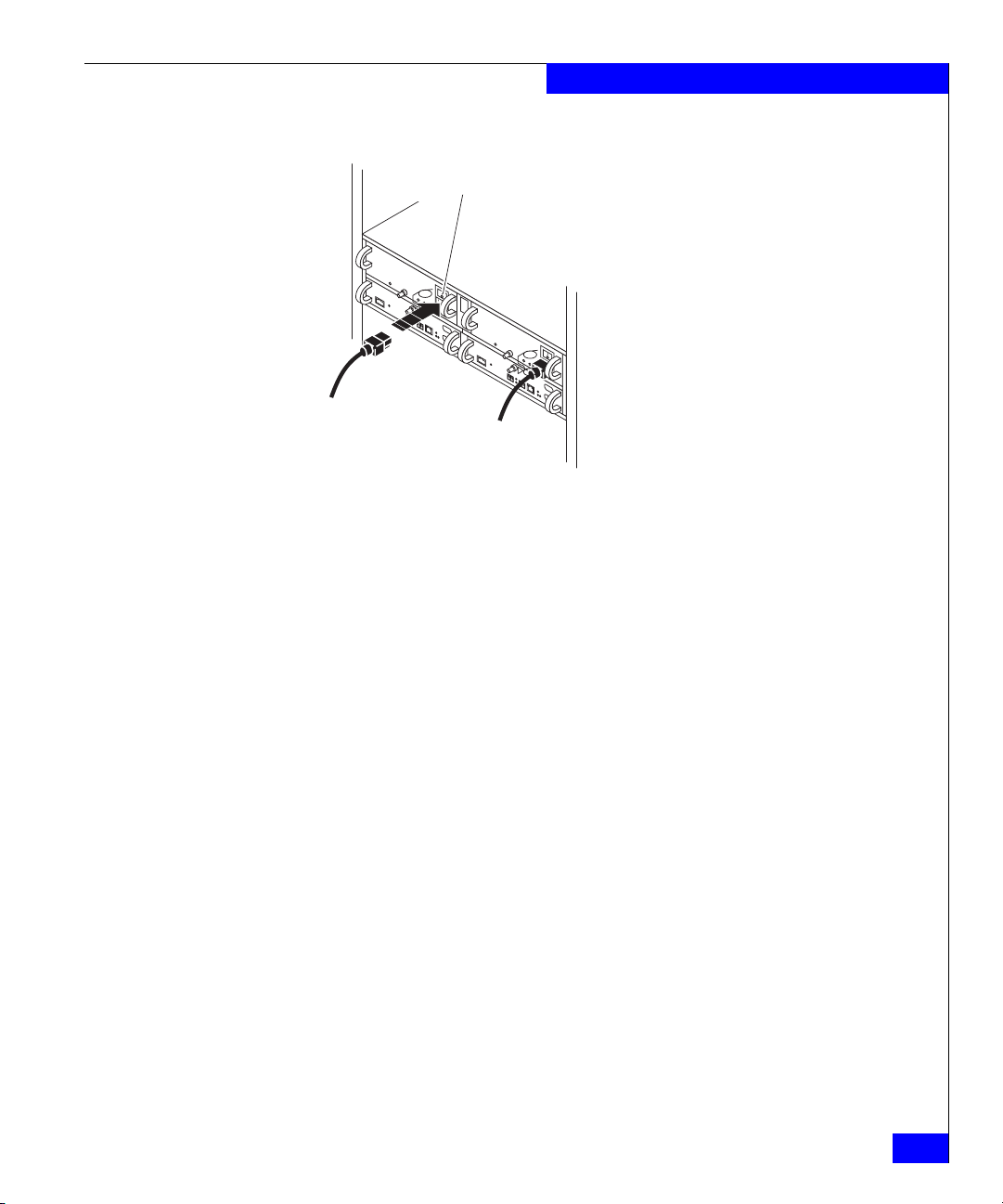

3-16 Plugging in the Power Cord and Turning on Power (CX200 Shown) 3-21

4-1 CX200 SPS ...................................................................................................... 4-2

4-2 SPS Installation, Front and Back Views ..................................................... 4-4

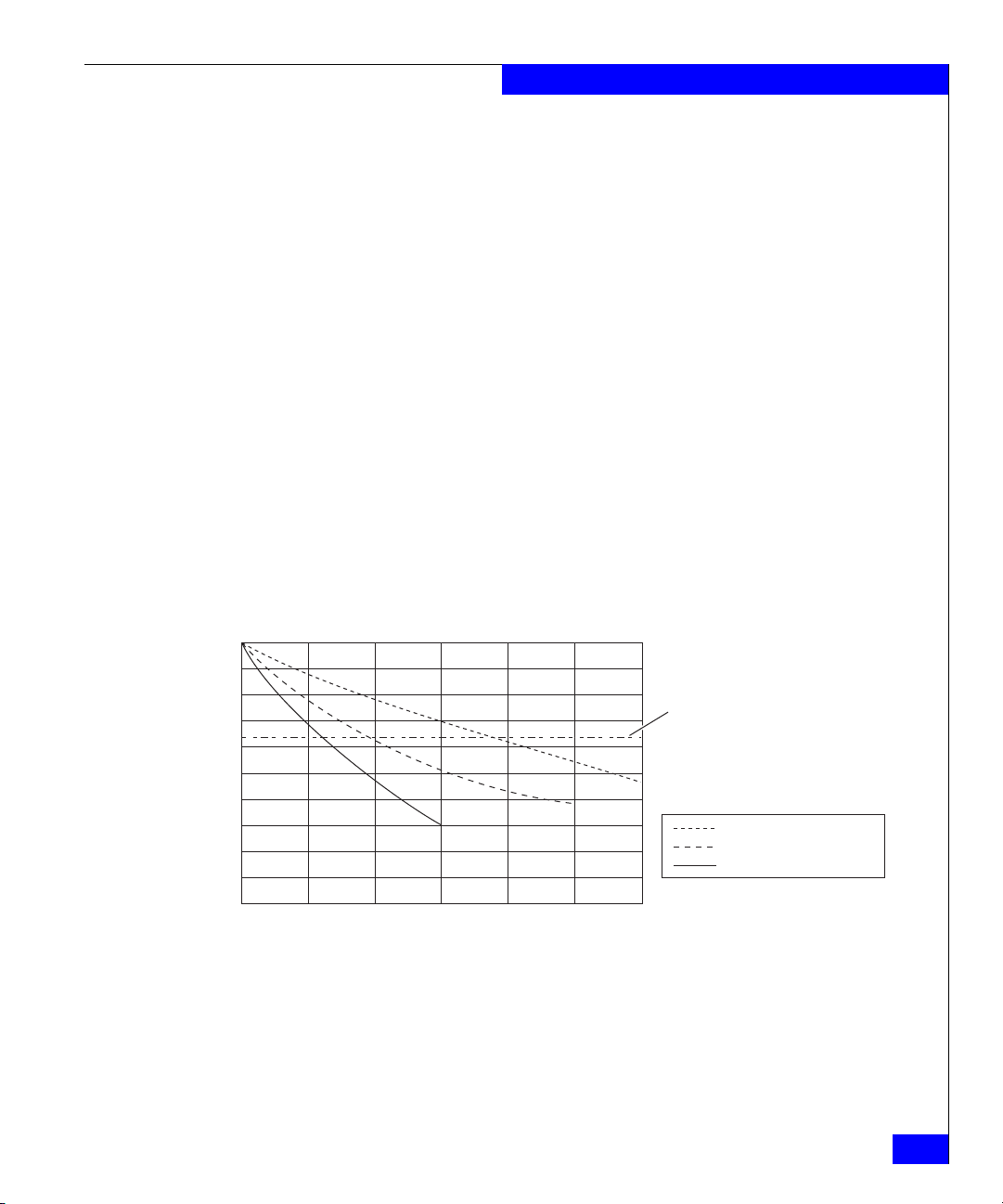

A-1 Typical SPS Self-Discharge Levels at Different Storage Temperatures A-9

viii

EMC CX200-Series DPE2 Hardware Reference

How This Manual Is

Organized

Preface

This manual explains how to install an EMC CX200 or CX200LC
2-gigabit disk processor enclosure (DPE2), and how to replace
field-replaceable units (FRUs). It is intended for system
administrators and other qualified technical personnel.

Chapter 1 Introduces the CX200-Series DPE2 components.
Chapter 2 Explains requirements and describes how to

cable the DPE2 to the server and to other
rackmounted disk enclosures.

Chapter 3 Describes how to replace FRUs such as disk

modules, power supplies, and storage

processors.
Chapter 4 Describes the standby power supply (SPS).
Appendix A Lists the CX200-Series technical specifications.
Glossary Defines terms used in the documentation.

EMC CX200-Series DPE2 Hardware Reference

ix

Preface

Related

Documentation

This guide refers to various documents that provide detailed
descriptions of each step. The most current versions of storage system
documentation are available on the EMC Powerlink website,

http://powerlink.emc.com

. Once logged in to Powerlink, select

Support (or Services), then Document Library, CLARiiON,
CLARiiON Fibre Channel Storage (FC) and either CLARiiON FC
Hardware, CLARiiON FC Core Software, or CLARiiON FC
Software for lists and .pdf copies of relevant manuals, notes, and

articles, including:

40U Cabinet Setup Guide (P/N 014003099)
Site Preparation and Unpacking Guide for the 40U Cabinet

(P/N 014003100)

EMC Rails and Enclosures Installation Guide for 19-Inch NEMA Cabinets

(P/N 014003082)
EMC Storage Systems CX200-Series Initialization Guide

(P/N 014003117)

EMC 2-Gigabit Disk Enclosure (DAE2) Setup Guide (P/N 014003104)
EMC 2-Gigabit Disk Enclosure (DAE2) Hardware Reference

(P/N 014003048)
EMC Navisphere Manager Revision 6.X Administrator’s Guide

(P/N 069001161)

Conventions Used in

x

EMC CX200-Series DPE2 Hardware Reference

This Manual

!

EMC Fibre Channel Storage System CX200-Series Configuration Planning
Guide (P/N 014003115)

EMC Navisphere Version 6.X Security Administrator’s Guide

(P/N 069001124)
EMC Installation Roadmap for CX-Series and FC-Series Storage Systems

(P/N 069001166)

EMC uses the following conventions for notes, cautions, warnings,
and danger notices.

A note presents information that is important, but not hazard-related.

CAUTION

A caution contains information essential to avoid damage to the
system or equipment. The caution may apply to hardware or
software.

Preface

WARNING

A warning contains information essential to avoid a hazard that can
cause severe personal injury, death, or substantial property damage
if you ignore the warning.

DANGER

A danger notice contains information essential to avoid a hazard
that will cause severe personal injury, death, or substantial property
damage if you ignore the warning.

EMC uses the following type style conventions in this guide:

This
typeface

Indicates text (including punctuation) that you type
verbatim, all commands, pathnames, filenames,
and directory names. It indicates the name of a
dialog box, field in a dialog box, menu, menu
option, or button.

This typeface Represents variables for which you supply the

values; for example, the name of a directory or file,
your username or password, and explicit
arguments to commands.

This
typeface

x -> y

Represents a system response (such as a message or
prompt), a file or program listing.

Represents a menu path. For example, Operations

-> Poll All Storage Systems tells you to select Poll
All Storage Systems on the Operations menu.

[ ]

|

Encloses optional entries.

Separates alternative parameter values; for
example:
LUN-name | LUN-number means you can use either
the LUN-name or the LUN-number.

EMC CX200-Series DPE2 Hardware Reference

xi

Preface

Where to Get Help For questions about technical support and service, contact your

service provider.
If you have an EMC service contract, contact EMC Customer Service

at:

United States: [phone] (SVC-4EMC)
Canada: [phone] (543-4SVC)
Worldwide: [phone]

Follow the voice menu prompts to open a service call, then select
CLARiiON Product Support.

Sales and Customer

Service Contacts

For the list of EMC sales locations, please access the EMC home page
at:

http://www.emc.com/contact/

For additional information on the EMC products and services
available to customers and partners, refer to the EMC Powerlink Web
site at:

http://powerlink.emc.com

Your Comments Your suggestions will help us continue to improve the accuracy,

organization, and overall quality of the user publications. Please send
a message to [e-mail] with your opinions of
this guide.

xii

EMC CX200-Series DPE2 Hardware Reference

Warnings and

Cautions

The following warnings and cautions pertain throughout this guide.

WARNING

Trained service personnel only.
This unit has two power supply cords. To reduce the risk of electric

shock, disconnect both power supply cords before servicing.
Ground circuit continuity is vital for safe operation of the machine.

Never operate the machine with grounding conductors disconnected.
Remember to reconnect any grounding conductors removed for or
during any installation procedure.

Resérvé au personnel autorisé.
Cet appareil comporte plus d'un cordon d'alimentation. Afin de

prévenir les chocs électriques, débrancher les deux cordons
d'alimentation avant de faire le dépannage.

Un circuit de terre continu est essentiel en vue du fonctionnement
sécuritaire de l'apareil. Ne jamais mettre l'appareil en marche lorsque
le conducteur de mise a la terre est débranché.

Nur für Fachpersonal.
Das Geraet hat mehr als eine Anschlussleitung. Zur Vermeidung der

Gefahr eines elektrischen Schlages sind vor dem öffnen beide
Anschlussleitungen vom Netz zu trennen.

STROMSTREUVERLUST: Gerät muss geerdet werden, bevor es am
Stromnetz angeschlossen wird.

EMC CX200-Series DPE2 Hardware Reference

xiii

Warnings and Cautions

!

CAUTION

Trained personnel are advised to exercise great care at all times
when working on the unit. Remember to:

◆ Remove rings, watches, or other jewelry and neckties before

you begin any procedures.

◆ Use caution near any moving part and any part that may start

unexpectedly such as fans, motors, solenoids, and so on.

◆ Always use the correct tools for the job.

◆ Always use the correct replacement parts.

◆ Keep all paperwork, including incident reports, up to date,

complete, and accurate.

Static Precautions EMC incorporates state-of-the-art technology in its designs, including

the use of LSI and VLSI components. These chips are very susceptible
to damage caused by static discharge and need to be handled
accordingly.

!

CAUTION

Before handling printed-circuit boards or other parts containing
LSI and/or VLSI components, observe the following precautions:

◆ Store all printed-circuit boards in antistatic bags.

◆ Use a ground strap whenever you handle a printed-circuit

board.

◆ Unless specifically designed for nondisruptive replacement,

never plug or unplug printed-circuit boards with the power on.
Severe component damage may result.

Replacing the SP battery

xiv

EMC CX200-Series DPE2 Hardware Reference

The storage processor includes a lithium battery. Only trained
personnel should change or replace this battery.

WARNING

Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the equipment
manufacturer. Discard used batteries according to manufacturer's
instructions.

1

About the

CX200-Series DPE2

This chapter describes the CX200 and CX200LC 2-gigabit disk
processor enclosures (DPE2). Major topics include

◆ Overview.............................................................................................1-2

◆ CX200-Series Components................................................................1-3

About the CX200-Series DPE2

1-1

About the CX200-Series DPE2

Overview

Disk
Drive
(0 - 14)

The Model CX200-Series of 2-gigabit disk processor enclosures
(DPE2), shown in Figure 1-1, are intelligent, high-performance,
high-capacity disk-array storage systems that use a Fibre Channel
Arbitrated Loop (FC-AL) or fabric as their interconnect interface.
Each enclosure is only 3U (5.25 inches) high, but can include 15 hard
disk drives. The system’s modular, scalable design provides
additional disk storage as your needs increase. The examples and
illustrations in this manual show the rackmounted DPE2 in a
standard 40U EMC cabinet.

1-2

Front
Bezel

Figure 1-1 Model CX200 Disk Processor Enclosure (DPE2)

A standard CX200 can support one additional disk-array enclosure
(DAE2, also called an array module). A DAE2 is a basic 15-disk
enclosure without a storage processor (SP). The CX200 and DAE2
together support up to 30 disk modules in a single disk-array storage
system.

Economical CX200LC systems do NOT support an additional DAE2.

EMC CX200-Series DPE2 Hardware Reference

Rackmount
Cabinet

EMC2164

You can place the DAE2 in the same cabinet as the CX200, or in a
separate cabinet. The CX200-Series systems connect to the external
Fibre Channel environment using small form factor SFF LC optical
transceivers on the storage processor. High-availability features are
standard. The EMC Access Logix™ software option provides Storage
Group functionality for the CX200 and CX200LC.

CX200-Series Components

The CX200-Series storage system includes:

◆ A CX200 DPE2 consisting of

• A sheet-metal enclosure with a midplane and front bezel

• Two storage processors (SPs)

• Five to fifteen disk modules

• A single standby power supply (SPS)

• Two power supply/system cooling modules

Blowers integrated in the power/cooling modules cool the entire
enclosure. The CX200 does not require discrete fan assemblies.

or

About the CX200-Series DPE2

◆ A CX200LC DPE2 with

• A sheet-metal enclosure with a midplane and front bezel

• One storage processor

• Three to fifteen disk modules

• One power supply/system cooling (power/cooling) module

•One blower module

Standard CX200 systems can support an optional single DAE2 with
as many as fifteen disk modules.

Any unoccupied disk module slot has a filler module to maintain air
flow.

The storage processors, disk modules, power/cooling modules,
blower modules, and filler modules are field replaceable units
(FRUs). You can add or replace them without tools and, in most cases,
while the array is powered up.

The disk modules are FC-AL compliant and support dual-port FC-AL
interconnects through the storage processors and their cabling.

CX200-Series Components

1-3

About the CX200-Series DPE2

(

)

A CX200 system can continue running in a degraded mode with one
operating power supply and one functioning SP. You should replace a
failed FRU as soon as possible.

Figures 1-2 through 1-4 show the enclosure components. Where the
enclosure provides slots for two identical components, the
components are called component-name A or component-name B, as
shown in the illustrations.

For increased clarity, the following figures 1-2 through 1-10 depict the DPE2
outside of the rack cabinet. Your enclosure may be installed in a rackmount
cabinet as shown in Figure 1-1.

As shown in Figure 1-2, the front LED display contains two status
lights for each disk module, and two disk enclosure status lights. The
status lights are visible with the front bezel installed.

Fault LED
(Amber)

Disk Activity
LED

Green

Figure 1-2 CX200 DPE2 Front LED Display

Fault LED
(Amber)

Figure 1-3 shows the DPE2 components visible from the rear of the
cabinet.

Power LED
(Green)

EMC2166

1-4

EMC CX200-Series DPE2 Hardware Reference

Power/Cooling
Module B

SP B

Power/Cooling
Module A

About the CX200-Series DPE2

Enclosure
Address
Switch

SP A

Figure 1-3 CX200 DPE2 Rear View

CX200LC systems include a filler module in place of SP B, and a
blower-only module in place of power/cooling module B.

Enclosure
Address
Switch

Blower
Module

Filler

Power/Cooling
Module A

SP A

Figure 1-4 CX200LC DPE2 Rear View

EMC2461

EMC2644

As shown in Figure 1-5, an enclosure ID, or enclosure address, switch is
located between the power/cooling modules at the rear of the disk
enclosure.

The enclosure address for the CX200-Series DPE2 is always 0.

CX200-Series Components

1-5

About the CX200-Series DPE2

3

Figure 1-5 CX200 DPE2 Enclosure Address Switch/Indicator

_

Enclosure

0

Address

+

Switch

EMC2462

The CX200-Series status lights are described in Chapter 3, Servicing
and Upgrading a CX200-Series DPE2.

Midplane

Front Bezel

The midplane distributes power and signals to all the enclosure
components. All FRUs plug directly into midplane connectors.

The front bezel has a locking latch and an electromagnetic
interference (EMI) shield. You can remove the bezel to remove and
install drive modules. EMI compliance requires a properly installed
front bezel.

EMC217

Figure 1-6 Disk Processor Enclosure Front Bezel

1-6

EMC CX200-Series DPE2 Hardware Reference

About the CX200-Series DPE2

Storage Processors

The SP is the CX200’s intelligent component. It combines the
functions of a typical storage processor circuit board and a disk
enclosure link control card into a single module.

Full high availability with write caching requires two storage processors.

The CX200-Series SP has the following ports:

◆ COM 1 serial port

◆ COM 2 serial SPS port for communication with the standby

power supply in a standard CX200 system

◆ Network port for storage-system management

◆ One high speed serial data connector (HSSDC) back-end (BE)

port for the FC-AL loop to the disks in a DAE2 (not supported in
CX200LC systems)

◆ Two fibre-optic front-end (FE) connectors, for connecting to the

external Fibre Channel environment (switch or host).

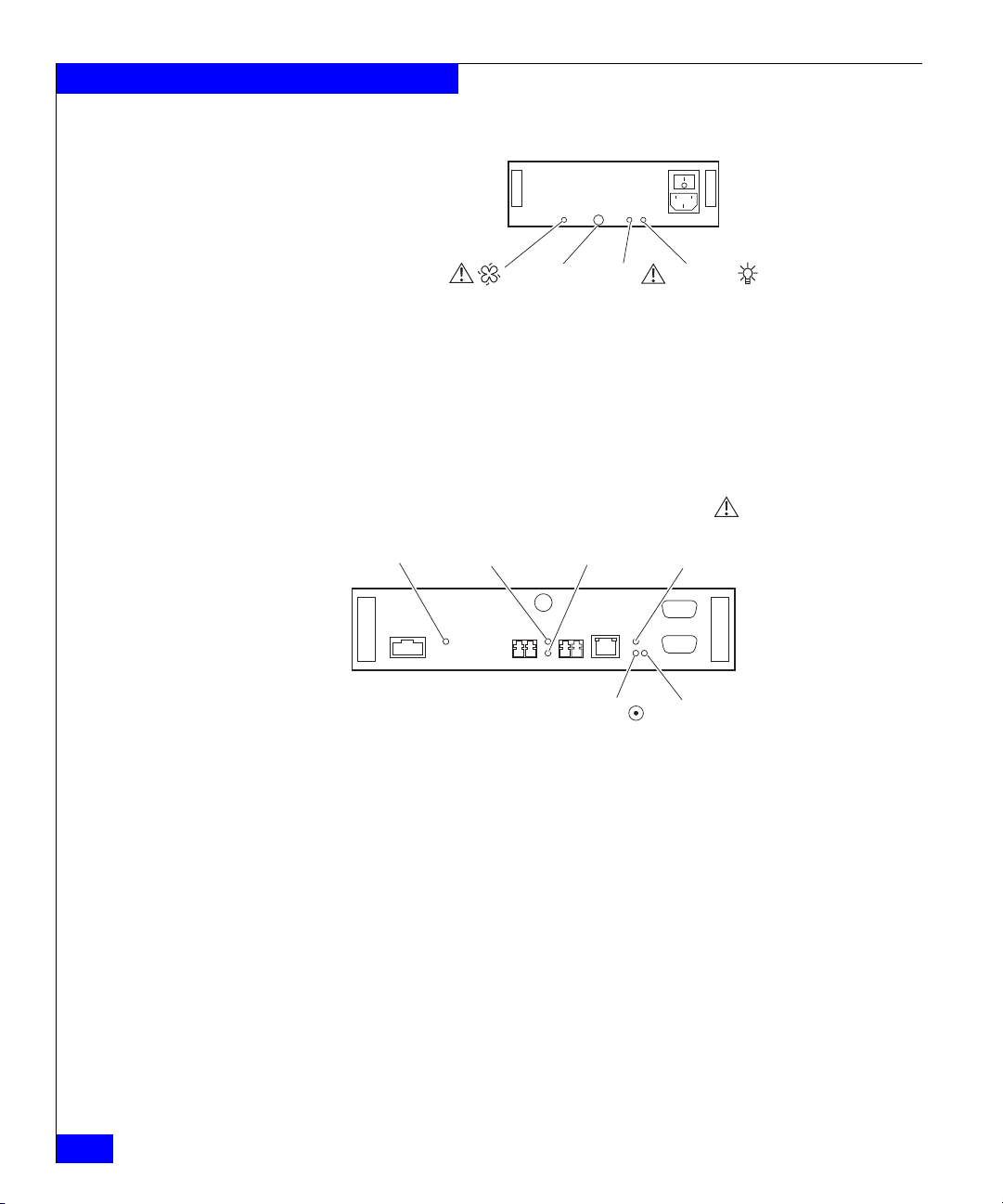

Figure 1-7 shows the SP front panel, with connectors and status
LEDs.

BE
HSSDC
Connector

BE
Link Active
LED
(Green)

FE A
Link Active
LED
(Green)

Latch

FE B
Link Active
LED
(Green)

Fault
LED
(Amber)

Serial
Port

FE A FE B

Front-end
Host
Connectors

Figure 1-7 CX200 Storage Processor

The CX200-Series status lights are described in Monitoring
CX200-Series Status in Chapter 3.

LAN

Power
LED
(Green)

CX200-Series Components

Serial
Port

Factory Use
Only

EMC2463

+

-

1-7

About the CX200-Series DPE2

The storage processor communicates with internal disks through the
midplane. It connects to external link control cards (LCCs) and disks
via an external FC-AL loop (bus). The SP-LCC interface is called the
SP back end.

On a highly available CX200 system, you can replace either storage
processor module while the CX200 is running. Since a CX200LC
system does not include redundant SPs, failure or removal of the
single SP will cause a system failure.

You should never attempt to replace any of the SP’s components.

Disk Modules

!

CAUTION

Pulling out a CX200 SP will cause a failover. (A failover is the
automatic transfer of one or more LUNS from one SP to another, if
a failure occurs in the path of the original SP.)

CX200 SPs are paired. If you remove both storage processors
simultaneously, neither SP can save cached data to disk.

Each disk module, shown in Figure 1-8, consists of one 12-volt Fibre
Channel disk drive in a carrier. You can add or remove a disk module
while the CX200 is powered up, but you should exercise special care
when removing drives while they are in use.

Carrier

Latch

Handle

Figure 1-8 Disk Module

Disk
Drive

EMC1758

1-8

Disk Drives The disk drives are 3.5-inch (8.75 cm) by 1.0-inch (2.54 cm), 12-Volt,

Fibre Channel drives that conform to the following standards:

◆ SFF-8045

◆ SCSI Enclosure Services (SES) portion of the SCSI 3 Standard

◆ FC-AL

◆ FC-AL Private Loop Direct Attach (PLDA) Profile

◆ 2-Gbit Fibre Channel interface

EMC CX200-Series DPE2 Hardware Reference

Drive Carrier The disk drive carrier is a metal and plastic assembly that provides

smooth, reliable contact with the enclosure slot guides and midplane
connectors. It has a handle with a latch and spring clips. The latch
holds the disk module in place to ensure proper connection with the
midplane. Disk drive Activity/Fault LEDs are integrated into the
carrier.

Drive modules are extremely sensitive electronic components. Refer to the
instructions on Handling FRUs and Replacing or Adding a Disk Module in
Chapter 3 whenever you handle a disk module.

Power Supply/System Cooling Modules

The power supply/system cooling (power/cooling) modules are
located above the SPs. The units integrate independent power supply
and dual-blower cooling assemblies into a single module. CX200LC
enclosures use one power\cooling assembly and a blower-only
module that includes dual blowers but no power supply.

Each power supply is an auto-ranging, power-factor-corrected,
multi-output, off-line converter with its own line cord and on/off
switch. Each supply supports a fully configured DPE2 and shares
load currents with the other supply. The drives and SPs have
individual soft-start switches that protect the disk drives and SPs if
you install them while the disk enclosure is powered up. A FRU
(disk, SP, blower, or power/cooling module) with power-related
faults will not adversely affect the operation of any other FRU.

About the CX200-Series DPE2

The system cooling assembly includes two dual-blower modules. If
one blower fails, the others will speed up to compensate. If two
blowers in a system (both in one power/cooling or blower module,
or one in each module) fail, the CX200 will go off line within two
minutes.

Each power/cooling module has visible status lights. The rightmost
LED indicates power to the supply; the LED adjacent to it indicates a
power supply fault. The leftmost LED (the single LED in a CX200LC
blower module) indicates a failure in one of the integrated blowers
within that module. The status lights are described in Monitoring
CX200-Series Status in Chapter 3.

Figure 1-9 shows a rear view of a CX200 power/cooling module; note
that a CX200LC blower and power/cooling modules are externally
identical except the blower module includes none of the power
switch, connector, or LED components.

CX200-Series Components

1-9

About the CX200-Series DPE2

3

Power Switch

ac
Connector

Blower Fault
LED
(Amber)

Figure 1-9 Power Supply/System Cooling Module

Standby Power Supply (SPS)

Disk configurations that use write caching require a standby power
supply (SPS) to prevent data loss during a power failure. The
standard CX-Series SPS supports a variety of processor and disk
enclosures similar to the CX200 and DAE2. See Figure 1-10.

To Power/Cooling
Module A

ac
Power
Connector

Power
Switch

Do Not Use

Fault
LED
(Amber)

SP
Interface

Latch

Active
LED
(Green)

On Battery
LED
(Amber)

Replace
Battery
LED
(Amber)

Power Fault
LED (Amber)

Power
LED
(Green)

EMC216

EMC2464

1-10

Figure 1-10 Standby Power Supply

See Chapter 4, The Standby Power Supply (SPS), for detailed
information about SPSs.

EMC CX200-Series DPE2 Hardware Reference

2

Installing a

CX200-Series DPE2

This chapter describes the CX200-Series DPE2 installation
requirements and procedures. Major topics include

◆ Requirements......................................................................................2-2

◆ Installing a DPE2 in a Cabinet..........................................................2-4

◆ Setting Up an Installed CX200-Series DPE2...................................2-5

◆ DPE2 Powerup and Initialization..................................................2-14

◆ CX200-Series Powerdown...............................................................2-15

Installing a CX200-Series DPE2

2-1

Installing a CX200-Series DPE2

Requirements

This section explains site, cabling, address, and disk requirements.

Site Requirements

Power To determine an enclosure’s power requirements, use the power

Cooling The temperature at the front bezel inlet must meet the ambient

For proper operation, the installation site must conform to certain
environmental specifications. These are detailed below and in
Appendix A.

rating on the enclosure label. This rating is the maximum power
required for a fully loaded enclosure. The input current, power (VA),
and dissipation per enclosure are based on the maximum capability
of the power supplies and cooling system to provide internally
regulated power. Typical values will be less than the maximum,
depending on the number and manufacturer of disk drives. These
values represent the sum of values shared by the line cords of two
power supplies in the same enclosure. Power cords and supplies
share the power load evenly. If one of the two power supplies in a
standard CX200 fails, the remaining supply and cord support the full
load. You must use a rackmount cabinet with ac power distribution,
and have main branch ac distribution that can handle these values for
the number of components that you will interconnect.

temperature specification described in Appendix A. The site must
have air conditioning of the correct size and placement to maintain
the specified ambient temperature range. The air conditioning must
be able to handle the BTU requirements of the CX200-Series DPE2
and any additional disk enclosure.

Cabling Requirements

2-2

EMC CX200-Series DPE2 Hardware Reference

The CX200 DPE2 supports copper cable for back-end (BE) connections
to disks it controls (for example, DAE2 disk enclosures). CX200-Series
systems use optical cables for front-end (FE) connections to the
external Fibre Channel environment.

Any copper cables you use must meet the appropriate standards for
2-Gbit FC-AL. Such cables must be fully shielded, twin-axial,
full-duplex cables with High Speed Serial Data Connector (HSSDC)
connectors. Distances greater than 1 meter require equalized cables;
unequalized 1-meter cables are adequate. The DPE2 does not support
cables shorter than 1 meter or longer than 10 meters.

Installing a CX200-Series DPE2

EMC supports and can provide 1-, 5-, and 10-meter cables. The 5- and
10-meter cables are equalized.

Interconnections between the CX200 and a disk enclosure should
maintain consistency with the link controller cards (LCCs) in the
additional disk enclosure. For example, SP A interconnects with LCC
A, and SP B interconnects only to LCC B.

Do not leave an unused (that is dangling) cable connected to a host or
enclosure port because it may cause excess noise on the loop.

Addressing Requirements

Enclosure Address

(EA)

Disk Requirements

Addressing requirements vary between fibre port (fabric) and fibre
loop (FC-AL) environments.

Fabric environments use the Source_ID (SID) and enclosure address
(EA) to address each disk enclosure. A switch in the external Fibre
Channel environment automatically assigns the Source_ID.

FC-AL environments use the FC-AL address ID and the enclosure
address (EA) to address each enclosure.

Each CX200 DPE2 and DAE2 on a back-end loop needs a unique
enclosure address (EA) that identifies the enclosure and determines
disk module addresses.

The CX200-Series DPE2 has a fixed EA of 0, which you should not change.
The standard CX200 supports one Fibre Channel loop and a
maximum of two disk enclosures (including the CX200 DPE2 itself).
The CX200LC supports a single, non-redundant, integrated loop and
does not support a second disk enclosure. For ease of use, we
recommend that you keep the EAs sequential; a maximum
configuration would therefore include an EA 0 and an EA 1 for the
single CX200 loop (loop 0).

CX200 storage systems require at least five disk modules installed in
slots 0, 1, 2, 3, and 4 (the leftmost slots) of the DPE2. Full high
availability that includes write caching requires five disk modules
and an SPS unit. CX200LC storage systems do not support write
caching and require only three disk modules, in slots 0, 1, and 2. Disk
module IDs are numbered left to right (facing the unit) and are
contiguous throughout an array: enclosure 0 contains modules 0-14;
enclosure 1 contains modules 15-29.

Requirements

2-3

Installing a CX200-Series DPE2

The disk modules in slots 0-3 (CX200 enclosure) or 0-2 (CX200LC) provide
mirrored boot capability and are preloaded according to their slot assignment
before shipment. Do not move a preloaded module from its assigned slot to
another slot, and remove it only to replace the disk. For details on DAE2
disks and their configuration, refer to the EMC 2-Gigabit Disk Enclosure

(DAE2) Hardware Reference.

Installing a DPE2 in a Cabinet

CX200-Series DPE2s mount inside a cabinet on two L-shaped
mounting rails connected to the cabinet’s vertical channels. If you
need to install a cabinet or CX200-Series chassis, refer to one of the
following manuals:

◆ Installing the cabinet itself is explained in the cabinet installation

manual shipped with the cabinet.

◆ Installing the universal mounting rails in the cabinet, and

installing the 3U chassis on those rails, is explained in the EMC
Rails and Enclosures Installation Guide for 19-Inch NEMA Cabinets

that shipped with the rails.

Warnings and Recommendations:

2-4

EMC CX200-Series DPE2 Hardware Reference

The cabinet in which you will install the CX200 must have a full earth
ground to provide reliable grounding. Also, the cabinet should have
its own switchable power distribution. We suggest that you use a
cabinet that has dual power distribution units, one on each side.

WARNING

The enclosure is heavy and should be installed into a rack by two
people. To avoid personal injury and/or damage to the equipment, do
not attempt to lift and install the enclosure into a rack without a
mechanical lift and/or help from another person.

L’armoire étant lourde, sa mise en place sur une rampe nécessite deux
personnes. Afin de ne pas vous blesser et/ou endommager le matériel,
n’essayez pas de soulever et d’installer l’armoire sur une rampe sans
avoir recours à un relevage mécanique et/ou à l’aide d’une autre
personne.

Das Gehäuse ist schwer und sollte nur von zwei Personen in einem
Rack installiert werden. Zur Vermeidung von körperlichen
Verletzungen und/oder der Beschädigung des Gerätes, bitte das

Gehäuse nicht ohne die Hilfe einer zweiten Person anheben und
einbauen.

Il contenitore è pesante e dev'essere installato nel rack da due
persone. Per evitare danni personali e/o all’apparecchiatura, non
tentare di sollevare ed installare in un rack il contenitore senza un
sollevatore meccanico e/o l’aiuto di un’altra persona.

Debido a su considerable peso, la instalación del compartimento en
el bastidor deben realizarla siempre dos personas. Para evitar daños
personales o en el equipo, el compartimento no debe levantarse ni
instalarse en el bastidor sin la ayuda de un elevador mecánico o de
otra persona.

We recommend that you use cabinet anti-tip devices, especially if you
are installing or removing a storage system or disk enclosure in the
upper half of the cabinet when the lower half is empty.

Setting Up an Installed CX200-Series DPE2

Installing a CX200-Series DPE2

Setting Enclosure Addresses

!

CAUTION

Be sure the circuit breakers and any standby power supplies in
your cabinet are switched off before you begin setting up the
CX200 or CX200LC.

Each disk enclosure in your system must have a unique enclosure ID
(also called an enclosure address, or EA) that identifies the enclosure
and determines disk module IDs. In most cases, the enclosure
address has been set before shipment to coincide with the rest of the
system; you need to reset the switch if you installed the enclosure
into your rack independently. The EA can range from 0 through 7,
though we recommend that you number them consecutively from 0.
The CX200-Series DPE2 is always enclosure 0. An additional DAE2
disk enclosure is usually numbered 1, reflecting its position on the
Fibre Channel loop (bus) connecting the array. You set the EA with
the enclosure address switch, which has one push button for
incrementing the address and another for decrementing it. To set the
EA, you can use a pen, paper clip, or small screwdriver.

Setting Up an Installed CX200-Series DPE2

2-5

Installing a CX200-Series DPE2

!

CAUTION

Each drive reads its FC-AL physical address only at powerup or
when the drive is reset. To avoid losing data, you must set the EA
when power is off; you cannot change the EA while power is on.

1. Set the enclosure address for the CX200/CX200LC to 0. Refer to
Figure 2-1.

2. Set the enclosure address for an additional disk enclosure (CX200
only) to 1.

See Figure 2-1 as necessary.

_

Enclosure

0

Address

+

Switch

EMC2462

Making Power Connections

2-6

EMC CX200-Series DPE2 Hardware Reference

Figure 2-1 CX200-Series Enclosure Address Switch (CX200 Shown)

1. Make sure the power switches are in the off position, and then
plug an ac line cord into each power supply/cooling module. See
Figure 2-2.

Make certain you secure the power cord with the wire bail strain reliefs at
each connector. The strain reliefs prevent the power cord from pulling out of
the connection.

Installing a CX200-Series DPE2

Power
Switch

Power
Switch

EMC2465

Figure 2-2 ac Line Cord and the Power Switch (CX200 Shown)

2. Connect enclosure power.
CX200 systems:

• Plug the ac line cord from power supply/cooling module

(PS) A to the standby power supply (SPS). Plug the other end
of the PS B power cord into the closest power strip. Whenever
possible, connect the SPS and PS B to independent circuits. Do
not connect PS B and PS A to the same SPS. Refer to Figure 2-3.

Power
Supply B
(PS B)

Figure 2-3 Connecting CX200 Power Cords

Setting Up an Installed CX200-Series DPE2

Power
Supply A
(PS A)

SPS A

EMC2466

2-7

Installing a CX200-Series DPE2

CX200LC systems:

• Plug the ac line cord from power supply/cooling module (PS)
A to the closest power strip.

• Skip the remaining steps in this section, and proceed with
Connecting the CX200-Series DPE2 to the External Environment
on page 2-11.

3. Connect storage processor A to the serial port on the standby
power supply, as shown in Figure 2-4.

SP ASP B

SPS A

2-8

Figure 2-4 Connecting the Standby Power Supply to SP A

4. Connect DAE2s and other devices to the power strips in your
cabinet. For high availability, connect dual power supplies in any
component to separate power circuits (opposite strips in the
cabinet).

5. Connect the SPS to the cabinet power strip.

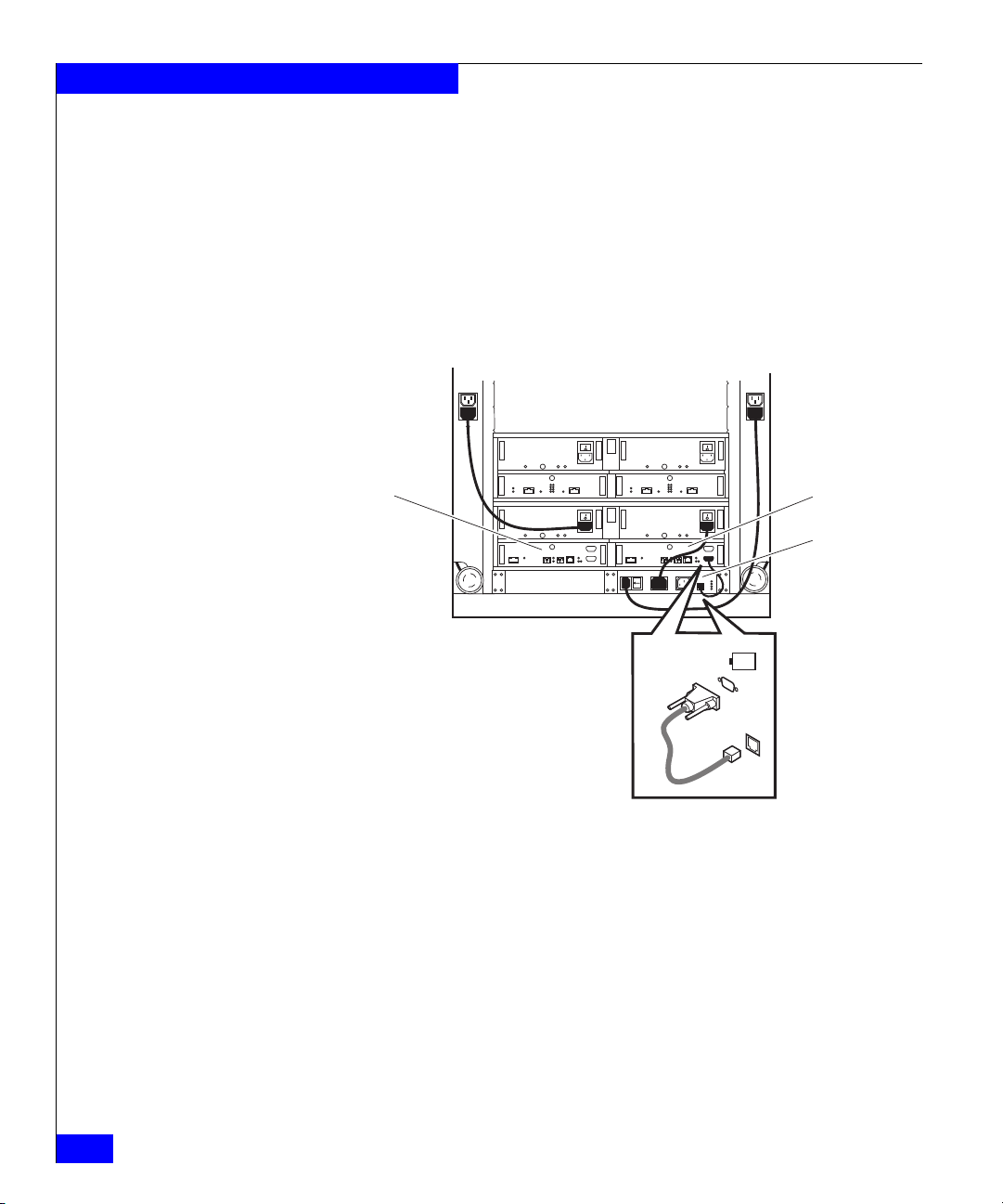

Figure 2-5 shows typical power connections in a CX200 system.

EMC CX200-Series DPE2 Hardware Reference

+

-

EMC2467

Installing a CX200-Series DPE2

Circuit
Breaker

Power/
Cooling
Module B

SP B

Figure 2-5 CX200 Power Connections

DAE2

SP A

SPS

Circuit
Breaker

Power/
Cooling
Module A

SPS

240 V240 V

+

-

EMC2483

Setting Up an Installed CX200-Series DPE2

2-9

Installing a CX200-Series DPE2

Making Back End Connections

Figure 2-6 Connecting a CX200 DPE2 to Another Disk Enclosure

1. Attach copper cables from the CX200 DPE2 to additional disk
enclosures, as shown in Figure 2-6.

BE
Connector

To DAE2

EMC2469

Connect the back end (BE) on the CX200 to the Primary (PRI)
connector in any additional disk enclosure (EA 1).

2. Disk-array enclosures cabled together should appear as shown in
Figure 2-7.

2-10

The example configuration in Figure 2-7 shows a CX200 below a DAE2
disk-array enclosure. The two devices support a redundant loop 0. Note that
the CX200 connects to the Primary disk enclosure connectors.

EXP EXPPRI PRI

Loop 0 Loop 0

Figure 2-7 Cabling a CX200 and Disk Enclosure Together

EMC CX200-Series DPE2 Hardware Reference

BE

LCC B LCC A

EA1/Loop 0

EA0/Loop 0

BE

EMC2470

Connecting the CX200-Series DPE2 to the External Environment

When working with optical cables, observe the following
precautions:

◆ Keep the covers on all optical cables and optical connectors until

you are ready to insert the cables. The covers protect the cables
and connectors, and prevent foreign particles, such as dust, from
entering and affecting the connection.

◆ Do not leave any unused (dangling) cables connected to an SP

port.

◆ Avoid tight bends, particularly those 90º or more.

◆ Do not use optical cables to support weight, including long cable

runs without support.

◆ Do not pull long runs of cable. It is best to lay the cable in place or

pull only a few feet at a time.

◆ Run the cables so that they are not stepped on or rolled over by

anything.

For each SP connection to the external environment, attach an optical
cable from the front-end (FE) connector to the external environment.
Follow the steps below to cable and connect the SPs.

Installing a CX200-Series DPE2

1. Remove the protective covers from optical connector FE A and an
optical cable, as shown in Figure 2-8.

2. Plug the cable into the FE A connector on the SP. See Figure 2-8.

Do not use the FE B host connector, except for a direct connection to a
host bus adapter on a dual-node cluster.

Never connect both FE A and FE B to a switch.

Setting Up an Installed CX200-Series DPE2

2-11

Installing a CX200-Series DPE2

Figure 2-8 Attaching Fibre-Optic (Front-End) Cables to the SP (CX200 Shown)

EMC2471

3. Plug the other end of the FE A fibre-optic cable into the host bus
adapter (HBA) or switch port.

Making Management LAN Connections

2-12

EMC CX200-Series DPE2 Hardware Reference

CX200-Series systems do not support MirrorView™ or SnapView™
software applications, external hubs, or daisy-chained arrays.

Before you connect your system to a management Local Area
Network, refer to the Navisphere 6.X Release Notes for the version of
the Java 2 Runtime Environment (JRE) and web browser (Internet
Explorer or Netscape) required to manage your system. With the
proper browser and JRE, you can manage a CX200 Series system from
any server that shares a LAN with your storage system’s domain.
(Note that Navisphere Manager is required on at least one system in
the domain.)

!

CAUTION

To manage the storage system in a NEBS (Network Equipment
Building System) environment, use either of the following
configurations:

◆ To connect a local client (a notebook or other server) to the SP

LAN ports, use short Ethernet cables and a simple Ethernet
hub.

◆ To connect the SP LAN ports to your intra-building network,

you must use shielded cable and grounded connectors at both
ends of the connection points.

Connect each SP to the LAN from which you will run Navisphere
management, as shown in Figure 2-9 or Figure 2-10.

LAN

Figure 2-9 Connecting the CX200 to a Shared LAN

Installing a CX200-Series DPE2

EMC2472

Hub

Figure 2-10 Connecting the CX200 to a Local Management Client

Setting Up an Installed CX200-Series DPE2

EMC2674

2-13

Installing a CX200-Series DPE2

DPE2 Powerup and Initialization

Before applying power to a storage system, make sure all the disk
module slots in each disk enclosure contain either disk or filler
modules, for proper cooling and normal operation.

Do not power up a disk enclosure without at least one SP or LCC installed.

To power up the CX200-Series system:

1. Turn on the power to any DAE2 connected to the CX200.

2. Turn the CX200/CX200LC power supply/cooling module
switches to the on (l) position.

3. If present (CX200 systems only), turn the SPS power switch to the
on position.

4. In the cabinet, set the main circuit breaker switches to the on
position.

The CX200/CX200LC and any connected DAE2 in the cabinet
will power up.

2-14

The only power switches on a DPE2 or DAE2 disk enclosure are those on the
power supply, which are normally on. As a result, the units are always active.

When you initially apply ac power to a disk enclosure, the disk drives
power up according to their specifications, and spin up in a specified
sequence dictated by enclosure and loop id. The slot spin-up delays
range from 0 to 84 seconds. The slots use the same delays when you
insert a drive while the system is powered up.

The CX200-Series hardware monitor (FRU monitor) resets and begins
its control loop. The port bypass circuits enter the states indicated by
their associated drives. The monitor continues to run in this local
mode until it receives commands that dictate otherwise. In local
mode, the monitor maintains the port bypass circuits in the same
states as the drive command signals. When a drive fault occurs, the
corresponding drive fault light turns on. Firmware commands can
take control of the port bypass circuits and the drive status lights.

EMC CX200-Series DPE2 Hardware Reference

Installing a CX200-Series DPE2

!

CAUTION

The drives read their FC-AL physical address only at powerup or
when the drive is reset. To avoid potential data loss, you must set
the enclosure address when you install the disk enclosure and
power is off; you cannot change the EA while power is on.

For instructions on how to initialize your system after its first
powerup, refer to the EMC Storage Systems CX200-Series Initialization

Guide and the EMC Installation Roadmap for CX-Series and FC-Series
Storage Systems.

CX200-Series Powerdown

If a CX200 with an SPS is powered down abnormally (for example, a
brownout or ac failure), cached data is saved to the storage-system
vault disks. However, when the CX200 is powered back up again, it
may take longer to come on line.

Turning Off the Power

1. Stop all I/O activity to the DPE2.

Stopping the I/O allows the SP in a CX200 DPE2 to transfer cache data,
and may take some time. The length of time will be based on criteria such
as the amount of cache, the amount of data in the cache, the type of data
in the cache, and the target location on the disks, but it is typically less
than one minute. CX200LC systems do not support write-caching.

2. If the server connected to the CX200/CX200LC is running the
UNIX® operating system, unmount file systems.

3. Use the power switch on an SPS to turn off power to the CX200
DPE2 and any other device connected to the SPS. If the
power/cooling module is not connected to an SPS, turn off power
with the power/cooling module power switch. See Figure 2-11.

CX200-Series Powerdown

2-15

Installing a CX200-Series DPE2

You do not need to turn off power to a connected DAE2.

Circuit
Breaker

Power
Switch

Power/
Cooling

DAE2

Module B

SP B

Figure 2-11 Powering Down (CX200 Shown)

SP A

SPS Power Switch

Circuit
Breaker

Power
Switch
DAE2

Power/
Cooling
Module A

240 V240 V

EMC2484

2-16

EMC CX200-Series DPE2 Hardware Reference

Installing a CX200-Series DPE2

!

CAUTION

Never shut off the power supply/cooling modules to shut down a
CX200 power supply that is connected to an SPS. Bypassing the
SPS in that manner prevents the system from saving write cache
data to the vault drives, and results in data loss. You will lose access
to data, and the storage processor event log will display an error
message similar to the following:

Enclosure 0 Disk 5 0x90a (Can’t Assign - Cache Dirty) 0
0xafb40 0x14362c

.

Contact your service provider if this situation occurs.

CX200-Series Powerdown

2-17

Installing a CX200-Series DPE2

2-18

EMC CX200-Series DPE2 Hardware Reference

3

Servicing and

Upgrading a

CX200-Series DPE2

This chapter describes how to monitor disk enclosure status, handle
Field-Replaceable Units (FRUs), and replace or add a FRU. Topics are

◆ Monitoring CX200-Series Status ......................................................3-2

◆ Handling FRUs...................................................................................3-5

◆ Replacing or Adding a Disk Module ..............................................3-9

◆ Replacing a Storage Processor (SP) ...............................................3-15

◆ Replacing a Power Supply/System Cooling Module.................3-18

Servicing and Upgrading a CX200-Series DPE2

3-1

Servicing and Upgrading a CX200-Series DPE2

(

)

Monitoring CX200-Series Status

Status lights on the CX200/CX200LC and its FRUs indicate error
conditions. These lights are visible outside the enclosure. Some lights
are visible from the front, and the others from the back. Figures 3-1
through 3-4 and Tables 3-1 through 3-2 describe the status lights.

Fault LED
(Amber)

Disk Activity
LED

Green

Figure 3-1 Enclosure and Disk Module Status Lights (Front Bezel Removed)

Fault LED
(Amber)

Power LED
(Green)

Table 3-1 describes the LEDs visible from the front of the
CX200-Series DPE2.

EMC2166

3-2

EMC CX200-Series DPE2 Hardware Reference

Servicing and Upgrading a CX200-Series DPE2

Table 3- 1 Status Lights Visible from the Front of the CX200

Light Quantity Color Meaning

Enclosure Power 1 Green Power to enclosure is ON.

Enclosure Fault 1 Amber On when any fault condition exists; if the fault is not obvious from a disk

module light, look at the back of the enclosure.

Disk Active 1 per disk module Green Off when the slot is empty or contains a filler module.

(mostly off)

Flashing
a normal part of the spin

when the drive is powered up but not spinning; this is

-

up sequence, occurring during the spin-up delay

of a slot.
Flashing

(at a constant rate)

when the disk drive is spinning up or spinning

down normally.
On when the drive is spinning but not handling any I/O activity (the ready

state).
Flashing

(mostly on

) when the disk drive is spinning and handling I/O

activity.

Disk Fault 1 per disk module Amber On when the disk module is faulty, or as an indication to remove the drive.

Figure 3-2 shows the enclosure address switch. In CX200-Series
configurations, the enclosure address will be 0; a subsequent DAE2
disk enclosure on that loop will use an incremental address (1).

_

Enclosure

0

Address

+

Switch

Figure 3-2 Enclosure Address Switch (CX200 Shown)

Figure 3-3 shows the status LEDs for the power supplies.

Monitoring CX200-Series Status

EMC2462

3-3

Servicing and Upgrading a CX200-Series DPE2

Blower Fault
LED
(Amber)

Latch

Power
Fault
LED

Power
LED
(Green)

(Amber)

Figure 3-3 Power Supply/Cooling Module Status Indicators

Figure 3-4 shows the status LEDs for the SP.

BE
Link Active
LED
(Green)

FE A
Link Active
LED
(Green)

FE B
Link Active
LED
(Green)

Power
LED
(Green)

Fault
LED
(Amber)

Factory Use
Only

EMC2230

EMC2474

3-4

Figure 3-4 SP Status LEDs

Table 3-2 describes the status LEDs visible from the rear of the disk
enclosure.

EMC CX200-Series DPE2 Hardware Reference

Servicing and Upgrading a CX200-Series DPE2

Table 3- 2 Status Lights Visible from the Rear of the Disk Enclosure

Light Quantity Color Meaning

SP Power 1 per SP Green On when the SP is powered up.

SP Fault 1 per SP Amber Flashing indicates:

once/4 seconds — BIOS activity.
once/second — POST activity.
four/second — booting.

Steady indicates fault; refer to event log.

Link Active 3 per SP Green On when designated connection is active.

Power Supply Active 1 per supply Green On when the power supply is operating.

Power Supply Fault 1 per supply Amber On when the power supply is faulty or is not receiving ac line voltage.

Flashing when either a multiple blower or ambient overtemperature
condition has shut the dc power off to the system.

Blower Fault 1 per power supply Amber On when a blower in the cooling module is faulty.

If the enclosure Fault light is on, examine the other status lights to
determine which FRU(s) is faulty. If a fault light on a FRU remains on,
you should replace that FRU as soon as possible.

Handling FRUs

Power Issues and FRUs

When a redundant FRU fails, high availability is compromised until you
replace the faulty FRU.

This section describes the precautions that you must take and the
general procedures you must follow when removing, installing, and
storing FRUs.

The CX200-Series DPE2 is designed to always be powered up and to
be hot repairable. Its front bezel should be attached and each of its
compartments should contain a FRU or filler panel to ensure EMI
compliance and proper air flow over the FRUs.

While the CX200 is powered up, you can service or replace any FRU,
although removing an active SP will affect operating system access to

Handling FRUs

3-5

Servicing and Upgrading a CX200-Series DPE2

the disks it controls. You should not remove a faulty FRU until you
have a replacement available.

Since you can replace or add any FRU without sliding the enclosure
out of the cabinet, you do not have to use cabinet anti-tip devices
when you upgrade or service a CX200-Series DPE2.

If you need to power down a CX200-Series system, first shut down
the storage processors (refer to your Navisphere Manager
Administrator’s Guide), and then shut off power to the SPS, if you
have one. Shut off power to the power/cooling module(s) with the
power switch. You do not need to shut down main ac lines to the disk
enclosure unless you need to power down all the cabinet contents
connected to that line.

Avoiding Electrostatic Discharge (ESD) Damage

!

CAUTION

Never shut off the power supplies to shut down a CX200 power
supply that is connected to an SPS. Bypassing the SPS in that
manner prevents the system from saving write cache data to the
vault drives, and results in data loss. You will lose access to data,
and the storage processor event log will display an error message
similar to the following:

Enclosure 0 Disk 5 0x90a (Can’t Assign - Cache Dirty) 0
0xafb40 0x14362c

.

Contact your service provider if this situation occurs.

When you replace or install FRUs, you can inadvertently damage the
sensitive electronic circuits in the equipment by simply touching
them. Electrostatic charge that has accumulated on your body
discharges through the circuits. If the air in the work area is very dry,
running a humidifier in the work area will help decrease the risk of
ESD damage. You must follow the procedures below to prevent
damage to the equipment.

Read and understand the following instructions:

◆ Provide enough room to work on the equipment. Clear the work

site of any unnecessary materials or materials that naturally build
up electrostatic charge, such as foam packaging, foam cups,
cellophane wrappers, and similar items.

3-6

EMC CX200-Series DPE2 Hardware Reference

Servicing and Upgrading a CX200-Series DPE2

◆ Do not remove replacement or upgrade FRUs from their antistatic

packaging until you are ready to install them.

◆ Gather together the ESD kit and all other materials you will need

before you service an enclosure. Once servicing begins, you
should avoid moving away from the work site; otherwise, you
may build up an electrostatic charge.

◆ Use the ESD kit when handling any FRU. If an emergency arises

and the ESD kit is not available, follow the procedures in the
Emergency Procedures (Without an ESD Kit) section.

◆ An ESD wristband is supplied with your storage system. To use

it, attach the clip of the ESD wristband (strap) to any bare
(unpainted) metal on the enclosure; then put the wristband
around your wrist with the metal button against your skin.

Emergency Procedures (Without an ESD Kit)

In an emergency when an ESD kit is not available, use the following
procedures to reduce the possibility of an electrostatic discharge by
ensuring that your body and the subassembly are at the same
electrostatic potential.

These procedures are not a substitute for the use of an ESD kit.
Follow them only in the event of an emergency.

◆ Before touching any FRU, touch a bare (unpainted) metal surface

of the cabinet or enclosure.

◆ Before removing any FRU from its antistatic bag, place one hand

firmly on a bare metal surface of the enclosure, and at the same
time, pick up the FRU while it is still sealed in the antistatic bag.
Once you have done this, do not move around the room or contact
other furnishings, personnel, or surfaces until you have installed
the FRU.

◆ When you remove a FRU from the antistatic bag, avoid touching

any electronic components and circuits on it.

◆ If you must move around the room or touch other surfaces before

installing a FRU, first place the FRU back in the antistatic bag.
When you are ready again to install the FRU, repeat these
procedures.

Handling FRUs

3-7

Servicing and Upgrading a CX200-Series DPE2

Precautions When Removing, Installing, or Storing FRUs

Use the precautions listed below when you remove, handle, or store
FRUs.

◆ Do not remove a faulty FRU until you have a replacement

available.

◆ Handle a FRU only when using an ESD wristband as follows:

attach the clip of the ESD wristband to the ESD bracket or bare
metal on the enclosure, and put the wristband around your wrist
with the metal button against your skin.

◆ Handle FRUs gently. A sudden jar, drop, or vibration can

permanently damage a FRU and may not be immediately
evident. Never place a FRU on a hard surface such as an
unpadded cart, floor, or desktop, or stacked on top of another
FRU.

◆ Never use excessive force to remove or install a FRU.

◆ Store a FRU in the antistatic bag and specially designed shipping

container in which you received it. Use that container if you need
to return the FRU for repair.

◆ Store FRUs in a location that is within the limits specified in

Appendix A.

◆ Place the cables where no one can step on them or roll equipment

over them.

3-8

EMC CX200-Series DPE2 Hardware Reference

Replacing or Adding a Disk Module

Servicing and Upgrading a CX200-Series DPE2

!

CAUTION

Disk modules are extremely sensitive electronic components.
Always handle a disk module gently, and observe the following
guidelines:

◆ Follow the instructions in the preceding section Avoiding

Electrostatic Discharge (ESD) Damage on page 3-6.

◆ Always wear a properly attached ESD wristband when

removing or replacing a disk module.

◆ When removing a disk module, pull the module partially out of

the slot, then wait 30 seconds for the drive to spin down before
removing it.

◆ Place modules on a soft, antistatic surface, such as an

industry-standard antistatic foam pad or the container used to
ship the module. Never place a disk module directly on a hard
surface.

◆ Never hit modules, stack modules, or allow them to tip over or

fall.

◆ Avoid touching any exposed electronic components and circuits

on the disk module.

◆ Do not remove a faulty disk module until you have a

replacement module (with the same part number) or a filler
module available. The part number (PN005xxxxxx) appears on
the top or bottom of the module. A replacement or add-on disk
module should have the same format (bytes per sector) and the
same capacity (size and speed) as the other modules in the
enclosure.

◆ Before adding more disks to your DPE2, refer to the EMC

Storage Systems CX200-Series Configuration Planning Guide,

which contains guidelines for creating RAID groups with disks
of varying sizes and speeds.

You must remove the DPE2 front bezel to gain access to the disk
modules. The bezel is required for EMI compliance when the
enclosure is powered up. Remove it only to replace or add a disk
module.

Replacing or Adding a Disk Module

3-9

Servicing and Upgrading a CX200-Series DPE2

3

Unlocking and Removing the Front Bezel

Refer to Figure 3-5 as you follow these steps to remove the front bezel
and gain access to the disk modules.

1. Insert the key that shipped with your enclosure into the bezel
lock, and turn it to release the lock.

2. Press the two latch buttons on the bezel surface toward each other
to release the bezel from the cabinet.

3. Pull the bezel off the cabinet and put it on a clean, static-free
surface.

3-10

EMC217

Figure 3-5 Unlocking and Removing the Front Bezel

If you are adding a new disk module, continue to the disk filler
module removal procedure that follows. If you are replacing a faulty
disk module, proceed to the disk module removal procedure.

EMC CX200-Series DPE2 Hardware Reference

Removing a Disk Filler Module

Locate the slot where you want to install the disk module, and
remove the filler module, as shown in Figure 3-6.

Figure 3-6 Removing a Disk Filler Module

Servicing and Upgrading a CX200-Series DPE2

EMC2210

Removing a Disk Module

!

Skip to the disk installation procedure (page 3-12) to install the
add-on disk in the slot you just emptied.

CAUTION

If a disk module has been bound into a LUN, do not move it to
another slot unless you do not care about the data on the LUN. Each
module has LUN-identifying information written when it is
bound. Moving it to another slot can make information on the
original LUN inaccessible.

The disk modules in slots 0-3 (CX200 enclosure) or 0-2 (CX200LC)
provide mirrored boot capability and are preloaded according to
their slot assignment before shipment. Do not move a preloaded
module from its assigned slot to another slot, and remove it only to
replace the disk.

Replacing or Adding a Disk Module

3-11

Servicing and Upgrading a CX200-Series DPE2

Generally, you should not remove a disk module unless its amber
fault light is on. See Table 3-1

1. Attach an ESD wristband to your wrist and the enclosure (see the
precautions on page 3-7 and page 3-8).

2. If the active light is on steadily, pull the latch, and slowly pull the
module about 3 cm (1 inch) from its slot. Wait 30 seconds for the
disk to stop spinning. Then remove the module and place it on a
padded, static-free surface.

If the active light is off or mostly off you do not need to wait for
the disk to stop spinning. Pull the latch and slowly pull the
module from its slot, as shown in Figure 3-7. Place it on a padded,
static-free surface.

.

Figure 3-7 Removing a Disk Module

Installing a Disk or Filler Module

3-12

EMC CX200-Series DPE2 Hardware Reference

EMC2174

Continue to the next section to install the replacement disk module.

1. Make sure an ESD wristband is attached to your wrist and the
enclosure (see the precautions on page 3-7 and page 3-8).

2. Align the module with the guides in the slot.

3. Gently push the module completely into the slot, and then engage
the latch. See Figure 3-8.

Figure 3-8 Installing a Disk or Filler Module

The disk module’s Active light flashes to reflect the disk’s spin-up
sequence.

4. Remove and store the ESD wristband and continue to the next
section to install the front bezel.

Servicing and Upgrading a CX200-Series DPE2

EMC2211

Replacing or Adding a Disk Module

3-13

Servicing and Upgrading a CX200-Series DPE2

Installing and Locking the Front Bezel

Refer to Figure 3-9 as you do the following:

1. Align the bezel with the disk enclosure.

2. Gently push the bezel into place on the cabinet until it latches.

3. Secure the bezel by turning the key in the lock.

EMC2222

3-14

Figure 3-9 Installing and Locking the Front Bezel

EMC CX200-Series DPE2 Hardware Reference

Replacing a Storage Processor (SP)

Servicing and Upgrading a CX200-Series DPE2

Removing an SP

!

CAUTION

Handle an SP gently and use an ESD wristband. Do not remove a
faulty SP until you have a replacement module available.

A CX200 disk enclosure must have at least one SP installed while it is
powered up. Do not remove both SPs while the disk enclosure is powered up.

1. Before replacing a storage processor, gently release the connectors
as you remove the optical, copper, LAN, and SPS cables
connected to that SP.

Note where the cable(s) connect to the SP. You will need to reconnect
them correctly to the replacement SP.

2. Turn the latch counterclockwise to release the module, and then
remove the SP from its slot, as shown in Figure 3-10.

Latch

Figure 3-10 Removing an SP (CX200 Shown)

EMC2476

Replacing a Storage Processor (SP)

3-15

Servicing and Upgrading a CX200-Series DPE2

Installing an SP

1. Gently insert the SP as shown in Figure 3-11. Be sure the module is
completely seated in the CX200 midplane.

Latch

Figure 3-11 Installing an SP (CX200 Shown)

The SP Power light turns on.

2. Turn the latch clockwise to secure the module.

The CX200-Series SP latch holds the module in an established position. It
does not pull or otherwise help to seat the SP.

3. Reattach the cables to the same connectors from which you
removed them.

4. Remove and store the ESD wristband.

The example configuration in Figure 3-12 shows a CX200 below a DAE2 disk
enclosure. Note that the CX200 connects to the Primary disk enclosure
connectors.

EMC2477

3-16

EMC CX200-Series DPE2 Hardware Reference

Servicing and Upgrading a CX200-Series DPE2

LCC B LCC A

EA1/Loop 0

EXP EXPPRI PRI

Loop 0 Loop 0

Figure 3-12 Connecting SPs and Disk Enclosures Together with Copper Cable

BE

EA0/Loop 0

BE

EMC2470

Replacing a Storage Processor (SP)

3-17

Servicing and Upgrading a CX200-Series DPE2

Replacing a Power Supply/System Cooling Module

This section explains how to replace a power supply/system cooling
module, and a CX200LC blower module.

!

Removing a Power Supply/System Cooling Module

CAUTION

Handle the modules gently and use an ESD wristband. Do not
remove a power/cooling or blower module until you have a
replacement module available.

If one power supply is off and the other is on, do not turn one on
and immediately turn off the other. Instead, turn one on and wait
five seconds after the green LED lights before turning the other off.

Turn off the power supply before unplugging the power cord from
a module or cabinet power strip.

Access to the disks in your enclosure will time out two minutes after
you remove a power supply/system cooling module or a blower
module from the system. While the system can continue operating on
a single power supply, the loss of a module’s two blowers will cause a
time-out unless you replace the module within two minutes.

Follow these steps to replace a power supply/system cooling module
or a blower module.

1. If you are replacing a power/cooling module, turn off the power
supply and unplug its ac line cord. Figure 3-13 shows the power
switch and line cord location on a CX200.

3-18

EMC CX200-Series DPE2 Hardware Reference

Servicing and Upgrading a CX200-Series DPE2

Power
Switch

EMC2478

Figure 3-13 Turning Off a Supply’s Power and Unplugging Its ac Power Cord

2. Turn the latch counterclockwise to release the module, and then
remove the power/cooling or blower module as shown in
Figure 3-14.

Latch

Figure 3-14 Removing a Power/Cooling or Blower Module (CX200 Shown)

Continue to the next section to install the replacement module.

Replacing a Power Supply/System Cooling Module

EMC2479

3-19

Servicing and Upgrading a CX200-Series DPE2

Installing a Power Supply/System Cooling Module or Blower Module

1. Gently insert the new module into the enclosure, as shown in
Figure 3-15. Be sure the module is completely seated.

Latch

Figure 3-15 Installing a Power/Cooling or Blower Module (CX200 Shown)

2. Turn the latch clockwise to secure the module.

EMC2480

3-20

The latch holds the module in an established position. It does not pull or
otherwise help to seat the module.

3. If you replaced a power/cooling module, plug the ac power cord
into the new supply, and turn on the power supply. See
Figure 3-16.

Make certain you secure the power cord with the wire bail strain reliefs at
each connector. The strain reliefs prevent the power cord from pulling out of
the connection.

EMC CX200-Series DPE2 Hardware Reference

Servicing and Upgrading a CX200-Series DPE2

Power
Switch

EMC2481

Figure 3-16 Plugging in the Power Cord and Turning on Power (CX200 Shown)

Replacing a Power Supply/System Cooling Module

3-21

Servicing and Upgrading a CX200-Series DPE2

3-22

EMC CX200-Series DPE2 Hardware Reference

4

The Standby Power

Supply (SPS)

The standby power supply (SPS) provides backup power required to
protect the integrity of the CX200’s storage processor write cache.
This chapter describes the CX200 SPS and how to determine SPS
status.

For instructions on installing or replacing an SPS, refer to the EMC
Rails and Enclosures Installation Guide for 19-Inch NEMA Cabinets.

IMPORTANT: The SPS is intended to provide backup power for DAE2 and
CX-Series enclosures only.

CX200LC systems do not include an SPS, and do not support write-caching.

The Standby Power Supply (SPS)

4-1

The Standby Power Supply (SPS)

About the SPS

A 1000-watt dc SPS can provide backup power for one CX200 power
supply and storage processor. The SPS provides higher availability
and allows write caching — which prevents data loss during a power
failure — to continue. A faulted or not fully charged SPS disables
write caching.

The SPS rear panel has one ac inlet power connector with a power
switch, an ac outlet for the CX200, another ac outlet which you
should not use in CX200 configurations, one data connector to the
storage processor, and status lights.

IMPORTANT: Improper storage and handling of an SPS will render the
warranty null and void. Please see Appendix A for appropriate SPS storage
requirements.

Figure 4-1 shows the SPS unit, removed from its cabinet mounting.

4-2

To Power/Cooling
Module A

ac
Power
Connector

Power
Switch

Figure 4-1 CX200 SPS

Do Not Use

SP
Interface

Fault
LED
(Amber)

See Table 4-1 for the meanings of the SPS status LEDs.

EMC CX200-Series DPE2 Hardware Reference

Active
LED
(Green)

On Battery
LED
(Amber)

Replace
Battery
LED
(Amber)

EMC2464

Table 4- 1 DC SPS Status LEDs

Light Meaning When Lit

The Standby Power Supply (SPS)

SPS fault - Amber The SPS has an internal fault. The SPS may still be able

to run on line, but write caching cannot occur. Replace
the SPS as soon as possible.

Replace battery - Amber The SPS battery pack can no longer support loads.

When the battery reaches this state, and no other on-line
SPS is connected to the CX200, the processor flushes all
cache data to disk and disables caching. This LED stays
active until the SPS completes a successful power test.
Replace the SPS as soon as possible.

On battery - Amber The ac line power is no longer available and the SPS is

supplying dc output power from its battery. When battery
power comes on, and no other on-line SPS is connected
to the CX200, the processor writes all cached data to
disk; and the event log records the event.

Active - Green When this LED is steady, the SPS is ready and operating

normally. When this LED blinks, the SPS is charging. In
either case, ac line input supplies the output from the
SPS.

About the SPS

4-3

The Standby Power Supply (SPS)

Mounting Tray with
Standby Power Supplies
(Behind the Bezel)

Figure 4-2 SPS Installation, Front and Back Views

In rackmount installations, an SPS unit fits in a tray beneath the
CX200 to which it connects. Figure 4-2 shows the SPS in a cabinet
with a CX200.

Front

Rear

Filler Panel

Standby Power

Supply (SPS)

EMC2475

In the event of a power failure, an SPS provides backup power until
the storage processor has flushed its write cache data to the CX200
disks. The storage processor then shuts the SPS power off. If the cache
flush has not completed within 60 seconds — more than enough time
to flush a full cache — or if the storage processor has failed, then the
SPS shuts itself down to prevent deep discharge. If there is no ac inlet
power and the SPS is shut down, all status lights will be off.

4-4

When power returns, the SPS starts recharging. It may reach a state of
full charge relatively quickly. If power remains off for a long period
— days or weeks — the battery may require more time to charge
fully. The storage processor will not use the write cache unless it
detects a fully charged SPS.

Battery lifetime depends on the number of discharge cycles and
depth of discharge. In a typical environment, a battery pack can last 3
to 5 years. Battery pack lifetime is shorter in locations that have
frequent ac outages.

EMC CX200-Series DPE2 Hardware Reference

Invisible Body Tag

A

Technical

Specifications and

Operating Limits

This appendix describes the disk processor enclosure technical
specifications, operating limits, and shipping and storage
requirements. Major topics are

◆ CX200-Series DPE2 Technical Specifications ................................A-2

◆ Operating Limits ...............................................................................A-6

◆ SPS Technical Specifications............................................................A-7

Technical Specifications and Operating Limits

A-1

Technical Specifications and Operating Limits

CX200-Series DPE2 Technical Specifications

Technical specifications include power requirements, size, drive,
interface, and standards information.

ac Power Requirements

The input current, power (VA), and dissipation per DPE2 are based
on the maximum capability of the power supplies and cooling system
to provide internal regulated power. Typical values will be less,
depending on the number and manufacturer of disk modules. These
values represent either

◆ the values for a single power supply line cord, or

◆ the sum of the values shared by the line cords of two power

supplies in the same enclosure, with the division between the line
cords and supplies at the current sharing ratio (approximately
50% each).

A failure of one of the two power supplies in the DPE2 results in the
remaining supply and cord supporting the full load. You must use a
rackmount cabinet with ac power distribution, and have main branch
ac distribution that can handle these values for each CX200 in the
cabinet.

A-2

Requirement Description

ac line voltage 100 to 240 V ac +
ac line current 5.9 A at 100 V ac, 2.9 A at 200 Vac
Power consumption 590 VA (578 W) max (fully configured)*
Power factor 0.98 min at full load, low voltage
Heat dissipation 2.08 10
In-rush current 25 A max for 1/2 line cycle, per power supply at 240 V ac

Startup surge current 15 A pk (10.6 Arms) max for 100 ms, at any line voltage
ac protection 10 A fuse in each power supply, both phases
ac receptacle type IEC320-C14 appliance coupler, per power supply
Ride-through time 30 ms min
Current sharing 60% max, 40% min, between power supplies

*A fully configured DPE2 includes 2 power supplies, 2 SPs, and 15 disk drives.

EMC CX200-Series DPE2 Hardware Reference

10%, single phase, 47 to 63 Hz

6

J/hr (1,975 BTU/hr) max *

15 A max for 1/2 line cycle, per power supply at 120 V ac

Technical Specifications and Operating Limits

Size and Weight

Measurement CX200-Series DPE2 SPS DAE2

Height 133.35 mm (5.25 in)

3 NEMA units including mounting hardware

4.02 cm (1.58 in)
1 U, including mounting rails

133.35 mm (5.25 in)
3 NEMA units including
mounting hardware

Width 450 mm (17.72 in) 20.96 cm (8.25 in) each 450 mm (17.72 in)

Depth 603.25 mm (23.75 in) 60.33 cm (23.75 in) 603.25 mm (23.75 in)

Weight 44.5 kg (98.3 lbs) maximum configuration

1.1 kg (2.4 lbs) per disk module

1.6 kg (3.6 lbs) per storage processor

10.7 kg (23.65 lbs) SPS

4.5 kg (9.85 lbs) tray

43.2 kg (95.3 lbs)
(fully configured with FC

drives)

4.1 kg (9 lbs) per power/cooling module

2.8 kg (6.2 lbs) per blower module

12.7 kg (28 lbs) chassis and midplane

Drive Type

Fibre Channel interface disk drives used in CX200-Series systems are

◆ 8.75 cm (3.5-inches) wide

◆ 2.54 cm (1.0-inch) tall

◆ 12 Volt only

The drive module power is 16 W maximum per drive slot.

DPE2 FC-AL Interface

The CX200 back end (BE) Fibre Channel interface is shielded HSSDC
(High Speed Serial Data Connector).

Copper Cabling The expansion port interface to the DPE2 is copper cable that meets

the following specifications:

◆ Shielded, 150Ω differential, shield bonded to HSSDC plug

connector shell (360

◆ FC-PI Standard, Revision 13 or higher

◆ 1 meter (3.3 feet) unequalized;

◆ 5 meters (16.5 feet) and 10 meters (33 feet) equalized

°)

CX200-Series DPE2 Technical Specifications

A-3

Technical Specifications and Operating Limits

Storage Processor Optical Cabling

The CX200 uses optical cable from the SP’s SFF (Small Form Factor)
LC transceivers to the external Fibre Channel environment.

Type 50 µm or 62.5 µm, multi-mode, dual LC

Length 50

Length 62.5

Bend Radius 3 cm (1.2 in) min

µ

m

µ

m

1.0625 Gbit 2 m (6.6 ft) minimum to 500 m (1,650 ft) maximum

2.125 Gbit 2 m (6.6 ft) min to 300 m (985 ft) maximum

1.0625 Gbit 2 m (6.6 ft) min to 300 m (985 ft) maximum

2.125 Gbit 2 m (6.6 ft) min to 150 m (492 ft) maximum

The maximum length when using either the 62.5 µ
the table above) includes two connections or splices between the source and
destination. For a detailed overview of cable types, connections, and lengths,
refer to the EMC Storage System CX200-Series Configuration Planning Guide.

!

CAUTION

m or 50 µm

cable (noted in

EMC does not recommend mixing 62.5 µm and 50 µm optical cable in
the same link. In certain situations you can add a 50
cable to the end of an already installed 62.5

µ

m

µ

m

adapter

cable plant. Contact

your EMC service representative for details.

A-4

EMC CX200-Series DPE2 Hardware Reference

Technical Specifications and Operating Limits

Standards

Certification and

Compliance

EMI Standards

Rackmount disk enclosures are tested and certified for compliance
with the international environmental and safety specifications listed
below and marked to indicate such compliance and certification as
required.

Standard Description

CSA 22.2 No. 950

EN 60950

UL 1950

CE Mark European EMC Directive & Low Voltage Directive Requirements

Standard Description

FCC Part 15 Class A, Radio Frequency Device Requirements

ICES-003 Class A, Interference-Causing Equipments Standard - Digital

CE Mark European EMC Directive & Low Voltage Directive Requirements.

VCCI Class A, Voluntary Control Council for Interference

Safety of Information Technology Equipment including Electrical
Business Equipment

Apparatus

AS/NZS 3548 Class A, Electromagnetic Interference - Limits & Methods of

CNS13438 BSMI EMC Requirements

Fibre Channel Related Standards

Standard Description

Fibre Channel Physical and signaling interface, FC-PI, draft Rev. 13

Fibre Channel Arbitrated Loop (FC-AL), Revision 4.5

Fibre Channel Private Loop Direct Attach (PLDA), Revision 2.1

SCSI III SCSI Enclosure Services (SES), Revision 8a

Note: In some cases, the DPE2 uses functions from later revisions of specifications.

Measurement of ITE

CX200-Series DPE2 Technical Specifications

A-5

Technical Specifications and Operating Limits

Operating Limits

The ambient temperature specification is measured at the front bezel
inlet. The site must have air conditioning of the correct size and
placement to maintain the specified ambient temperature range. The
air conditioning must be able to handle the BTU requirements of the
disk enclosures.

Requirement Description

Ambient temperature 10
Temperature gradient 10
Relative humidity 20% to 80% noncondensing
Elevation 2438 m (8,000 ft) at 40

The operating limits for temperature and humidity must not be exceeded
inside the closed cabinet in which the
equipment in a cabinet directly above or below a
flow to the disk enclosure, because air flows through the enclosure from front
to back. Cabinet doors must not impede the front-to-back air flow.

o

C to 40oC (50oF to 104oF)

o

C/hr (18oF/hr)

o

C, 3077 m (10,000 ft) at 37oC

DPE2 is mounted. Mounting

DPE2 does not restrict air

Environmental Recovery

If the system exceeds maximum ambient temperature by more than
10°C/18°F (that is, to 50° C or 122°F), the processor(s) will begin an
orderly shutdown that saves cached data, powers down the disks,
and then powers off the SP(s). If the system detects that the
temperature has dropped to an acceptable level, it restores power to
the SP(s) and disks.

Shipping and Storage Requirements

Requirement Description

Ambient temperature -40
Temperature gradient 25
Relative humidity 10% to 90% noncondensing
Elevation 7625 m (25,000 ft)

A-6

EMC CX200-Series DPE2 Hardware Reference

o

C to 65oC (-40oF to 149oF)

o

C/hr (45oF/hr)

SPS Technical Specifications

This section lists the technical specifications and operating limits for
the standby power supply (SPS).

SPS to SP Interface

Type: Half-duplex RS-232

Baud rate: 9600, 8-bit

Parity: None

Power Specifications

Requirement Description (All Ratings Assume Fully Configured System)

Technical Specifications and Operating Limits

ac line voltage 100 V ac to 240 V ac -10%/+10% single-phase,

ac line current,
internal and pass-through

Internal power consumption 60 VA (40 W) peak in hi-charge mode

Power factor NA for pass-through load. .67 pf for internal 10 VA load

Heat dissipation 21.6 x 10

In-rush current 6 A max for 1/2 line cycle @ 240 V ac

ac protection 15 A fuse, both phases

Chassis power inlet IEC 320-C14 Appliance Connector (panel mount)

Chassis power outlet EC 320-C13 Appliance Connector (panel mount) (2)

Charge times After full power outage, 75 minutes maximum (45 minutes

ac failure detect time 12 ms max

Transfer time 28 ms maximum

47 Hz to 63 Hz; auto-ranging

0.2 A max @ 100 V ac, internal current consumption
(up to 10 A max at 100 V ac, pass-through to ac outlets)

0.1 A max @ 200 V ac, internal current consumption
(up to 5 A max @ 200 V ac, pass-through to ac outlets)

10 VA (6 W) float charge mode

3

J/hr, (21 BTU/hr) steady state

typically)
After off-line storage, 2 hours approximately

SPS Technical Specifications

A-7

Technical Specifications and Operating Limits

Operating Limits

Requirement Description

Ambient temperature 10

Relative humidity 20% to 80% noncondensing

Elevation 2439 m (8000 ft)

IMPORTANT: The operating limits listed above for temperature and
humidity must not be exceeded inside the closed cabinet in which the SPS is
mounted.

Nonoperating Limits (Shipping and Storing)

Requirement Description

Ambient temperature -40°C to 65°C (-40°F to 149°F)

°

C to 40°C (50°F to 104°F)

Gradient, maximum 25°C/hr (45°F/hr)

Relative humidity 10% to 90% noncondensing

Elevation 7625 m (25,000 ft)

Dimensions and Battery Information

Service Clearance

Front 81.3 cm (32.0 in)

Rear 81.3 cm (32.0 in)

A-8

EMC CX200-Series DPE2 Hardware Reference

Battery Tests

Battery Self-Discharge Times

When you store an SPS, the battery charge level naturally decreases
over time. This is characteristic of all rechargeable batteries. The rate
of self-discharge depends on temperature. Lower storage
temperatures are desirable since the self-discharge rate is lower. The
following graph shows how the remaining charge decreases over
time at different temperatures.

Technical Specifications and Operating Limits

Internal Within 60 minutes after powerup and approximately every 2 weeks

thereafter, the SPS itself performs a light test on the batteries. This test lasts
less than one second. It does not verify battery capacity but does check
connectivity and functionality. This test is transparent to other components in
the array. If an actual power failure occurs during the test, the test is
terminated and the unit goes into On-Battery mode.

Full At each storage-system startup, the system software initiates a full power

test. During the test, the system disables write cache and allows the SPS to
stay on for a full 90 seconds.

The system initiates a full test when the SPS is online and fully charged. If
the batteries are charging at test time, the system defers the test until the
next programmed time.

100

90
80
70
60
50
40
30

Remaining Capacity (%)

20
10

0

Figure A-1 Typical SPS Self-Discharge Levels at Different Storage Temperatures

3 6 9 12 15 18

Storage Time (Months)

Avoid allowing the battery
to discharge below this
level to allow full recharge
within the SPS time limit.

20 degrees C (68 F)
30 degrees C (88 F)
40 degrees C (104 F)

SPS Technical Specifications

EMC2447

A-9

Technical Specifications and Operating Limits

IMPORTANT: If you are storing an SPS, do not store it longer than 6 months
or at a temperature exceeding 30° C without recharging it. When you retrieve
an SPS unit from storage, you should charge it by connecting it to ac power,
with its power switch in the on position, for at least 12 hours before putting it
into service or returning it to storage.

Standards Certification/Compliance

A stand-alone SPS has been tested and certified for compliance with
the international environmental and safety specifications listed
below. The SPS is marked to indicate such compliance and
certification as required.

Safety Standards

Standard Description

EN 60950
UL 1950
CSA 22.2 No. 950
CE Mark European EMC Directive & Low Voltage Directive Requirements.

Safety of Information Technology Equipment including Electrical
Business Equipment.

A-10

EMI Standards

Standard Description

FCC Part 15 Class B, Radio Frequency Device Requirements
ICES-003 Class B, Interference-Causing Equipments Standard - Digital Apparatus
CE Mark European EMC Directive & Low Voltage Directive Requirements.
VCCI Class B, Voluntary Control Council for Interference
AS/NZS 3548 Class B, Electromagnetic Interference - Limits & Methods of

Measurement of ITE

CNS13438 BSMI EMC Requirements

EMC CX200-Series DPE2 Hardware Reference

Cable Pinout Information

Technical Specifications and Operating Limits

The SPS interface serial connector pinouts are as follows:

Pin Function

1 Ground
2 ENABLED_OUT
3 AC_FAIL_OUT
4ANY_FAULT_OUT
5 SPS transmit to SP
6 SPS receive from SP

SPS Technical Specifications

A-11

Technical Specifications and Operating Limits

A-12

EMC CX200-Series DPE2 Hardware Reference

Glossary

The terms defined here are important to installing and maintaining a
storage system.

A

ALPA (arbitrated loop

physical address)

bind In the context of a disk-array storage system, the procedure by which

cache See storage-system caching.

CRU (customer-

replaceable unit)

DAE (disk array

enclosure)

DIMM (dual in-line

memory module)

An 8-bit address that uniquely identifies an SP (or other device) on an
FC-AL loop.

B

you format one or more disk modules into one LUN (logical unit) —
usually as one of several types of RAID group.

C

A hardware component, such as a disk module, that anyone can
replace.

D

A storage device that includes an enclosure, disk modules, two LCCs,
and two power supplies. The 2-gigabit disk array enclosures (DAE2)
supported in CX200 systems can hold 0-15 disks.

A type of memory module used in SP memory for caching or RAID.

EMC CX200-Series DPE2 Hardware Reference

g-1

Glossary

disk-drive module Another name for disk module.

disk module A self-contained disk drive that slides into one of the slots in the front

of the enclosure. The carrier assembly holds the disk drive.

disk unit A short name for physical disk unit.

DPE (disk processor

enclosure)

EA (enclosure

address)

EMI (electromagnetic

interference)

ESD (electrostatic

discharge)

failover The automatic transfer of one or more LUNs from one SP to another if

A storage device that includes an enclosure, disk modules, Fibre
Channel storage processors, power supplies, and cooling modules.

E

A number, selectable on a CX200 or DAE2 rear panel — fixed at 0 on a
DPE2 — that helps establish a unique address for each disk module
on an FC-AL loop. You must set the EA on each DAE2. Since the
CX200 EA is 0, you should set the DAE2 EA on the single loop (0) to

1.

Electronic radiation emitted by an electrical device. The levels of EMI
are strictly controlled for data processing equipment. The EMI
standards to which the CX200-Series complies are listed in
Appendix A of this manual.

The discharge of an accumulated electrical charge (static). This can
severely damage delicate electronic circuits so you should take steps
to prevent this, as explained in Chapter 3, Servicing and Upgrading a
CX200-Series DPE2.

F

a failure occurs in the path of the original SP.

FC-AL (Fibre Channel

Arbitrated Loop)

Fibre Channel host

bus adapter (FC

field-replaceable

g-2

EMC CX200-Series DPE2 Hardware Reference

adapter)

unit

An arrangement of Fibre Channel stations such that messages pass
from one to the next in a ring.

The name for the printed-circuit board within the computer chassis
through which the server gains access to the Fibre Channel loop and
thus the SP(s).

See FRU (field-replaceable unit).

Glossary

FRU

(field-replaceable

unit)

GBIC

(Gigabit Interface

Converter)

HBA (host-bus

adapter)

host See server.

hot repair See replace under power.

hub An FC-AL switching device that allows multiple servers and targets

LCC (link control

card)

A hardware assembly that can be replaced on site, instead of at the
point of manufacture, by trained personnel.

G

A device for converting Fibre Channel signals from electrical to
optical, and vice versa.

H

Another name for Fibre Channel adapter.

such as storage systems to connect at a central point. A single hub
configuration appears as a single loop.

L

A FRU in DAE2 enclosures, integrated into the SP module in a
CX200-Series DPE2. An LCC connects Fibre Channel signalling to the
disk modules, and provides Fibre Channel connectivity between the
SP, disks, and other enclosures. It also provides bypass capability for
faulted or missing units, and monitors and controls enclosure
elements.

LUN (logical unit) One or more disk modules (each having a head assembly and

spindle) bound into a group — usually a RAID group. The operating
system sees the LUN, which includes one or more disk modules, as
one contiguous span of disk space.

M

memory module See SP memory module.

N

node Any device with a Fibre Channel interface (such as an HBA in a

server or a storage system’s SP) that connects to a Fibre Channel loop.

EMC CX200-Series DPE2 Hardware Reference

g-3

Glossary

P

PDU (power

distribution unit)

power supply A device to connect ac main power to low voltage dc power for the

replace under

power

SCSI (small computer

system interface)

A device for the distribution of ac line power from one inlet to
multiple outlets. Multiple PDUs in a rackmount cabinet provide
higher availability since the power continues if one PDU (or its ac
source, if the PDUs use separate ac sources) loses power.

system components. A storage system can have two power supplies,
PS A and PS B. With two, it can survive failure of one supply. You can
replace one of two power supplies under power, without interrupting
applications.

R

The storage system provides replace under power capability that
allows you to replace a FRU (for example, a disk module or a fan
module) without powering down the storage system. Applications
continue while you replace the failed module.

S

A well-known protocol and standard for connecting computers and
peripheral devices. Some Fibre Channel SPs use a Fibre Channel
FC-AL front end to the server and a SCSI back end to the disk
modules. The SPs used in DPEs use the Fibre Channel protocol
throughout. The array uses SCSI protocol over Fibre Channel.

g-4

server In the context of storage systems, a processor that runs an operating

system and uses a disk-array storage system for data storage and
retrieval.

SP (storage

processor)

SP memory

module

SPS (standby power

supply)

EMC CX200-Series DPE2 Hardware Reference

A printed-circuit board with processor memory modules and control
logic that manages the storage-system I/O between the server FC
adapter and the disk modules.

A memory module that provides the local storage for an SP.

A unit that provides temporary backup power in case of a power
outage. An SPS is required for storage-system write caching. If power
fails, the SPS allows the SP to write the data from its cache to disk.

Glossary

storage processor

(SP)

storage-system

caching

See SP (storage processor).

The procedure of temporarily storing disk-based data in SP memory
to save time if the data is needed again soon.

EMC CX200-Series DPE2 Hardware Reference

g-5

Glossary

g-6

EMC CX200-Series DPE2 Hardware Reference

Index

A

ac power cord

attaching to power supply 3-21

removing from power supply 3-19
ac power, current draw A-2
Active light

power supply 3-5

SP 3-5
adding

disk module 3-9

power supply 3-18

SP 3-15
addressing requirements 2-3
ALPA (arbitrated loop physical address)

see FC-AL
avoiding electrostatic discharge damage (ESD)

3-6

B

back end

cabling requirements 2-2

defined 1-8
battery pack, SPS, lifetime 4-4
battery, lithium, disposing of safely xiv
bezel 1-6

unlocking and removing 3-10
binding disk modules g-1
blower module 1-3, 1-5, 1-9

failure 1-9

replacing 3-18

C

cabinet, installing DPE2 in 2-4
cable pinout information, SPS interface A-11
cables

connecting copper 2-10
connecting optical 2-11
copper, specifications for SP A-4
optical, specifications for A-4

cabling A-3

DPE2 to DAE2 3-17
DPE2 to HBA or switch 2-11
precautions 3-8

requirements 2-2
chassis, see enclosure
Check light

power supply 3-5

SP 3-5
circuit breaker 4-2
Cooling Check light 3-5
copper cables

attaching DPE2 to DAE2 with 3-17

specifications A-4
CRUs (customer-replaceable units), defined g-1
current draw, DPE2 A-2

D

DAE (disk array enclosure), defined g-1
DAE2 (2-gigabit disk array enclosure)

defined 1-2

EA requirements 2-5

maximum supported by DPE2 1-2
discharge times, SPS A-9, A-11

EMC CX200-Series DPE2 Hardware Reference

i-1

Index

disk drive

description 1-8
specifications A-3

disk module

adding 3-9
defined g-2
description 1-8
disk drive 1-8
drive carrier 1-9
drive specifications A-3
replacing 3-9
status lights 1-5

DPE2 (2-gigabit disk processor enclosure)

addressing requirements 2-5
components 1-3
disk module 1-8
drive carrier 1-9
EA, setting 2-6
enclosure

description 1-4
front panel 1-4

midplane 1-6
monitoring status 3-2
operating limits A-6
power/cooling module 1-9
powering down 3-6, 3-19
powering up 3-21
powerup and initialization sequence 2-14
requirements

addressing 2-5

cabling 2-2

operating A-6
technical specifications A-2

drive carrier description 1-9

E

EA (enclosure address)

about 2-3
defined g-2
requirements 2-5
setting 2-6

electromagnetic interference (EMI)

shield 1-6
standards certification/compliance A-5

electrostatic discharge (ESD)

avoiding 3-6

EMI (electromagnetic interference), defined g-2

see also electromagnetic interference

(EMI)

enclosure

description 1-4
front panel description 1-4
midplane description 1-6

ESD (electrostatic discharge) 3-6

defined g-2

F

fabric environment 2-3
failover 1-8
FC-AL (Fibre Channel Arbitrated Loop)

address ID, defined g-2
cabling

copper A-3

requirements 2-2

optical A-4

requirements 2-2
connector A-3
interface specifications A-3
physical address 2-5
powerup 2-15

Fibre Channel

adapter (FC adapter) 1-3, g-2
related standards A-5

front bezel 1-6

unlocking and removing 3-10

front panel description 1-4
FRUs (field-replaceable units)

defined 1-3, g-3
disk module

adding 3-9
description 1-8
removing 3-11

replacing 3-9
handling 3-5
power issues 3-5
power/cooling module

adding 3-18

description 1-9

replacing 3-18

i-2

EMC CX200-Series DPE2 Hardware Reference

Index

SP

adding 3-15
description 1-7
replacing 3-15

SPS g-4

replacing 4-1
storing 3-5
technical specifications A-2

G

grounding 2-2

H

HBA (host bus adapter) g-3
hub, defined g-3

I

installing

disk filler modules 3-12
DPE2 in cabinet 2-4

interface specifications A-7

J

JBOD (just a box of disks), see DAE2 (2-Gigabit

Disk-Array Enclosure)

L

LCC (link control card) cabling, copper A-3
length restrictions

copper cabling A-3
optical cabling A-4

lithium battery, disposing of safely xiv
loose cable 2-11

M

memory modules g-4
midplane, description 1-6

SPS A-8

O

operating limits

DPE2 A-6
SPS A-8
