EMC Connectrix ED-64M User Manual

Page 1
Connectrix ED-64M
2 Gb Fibre Channel Directo r
USER GUIDE
REV A02
EMC Corporation
Corporate Headquarters : Hopkinton, MA 01748-9103 (800) 424-EMC2 http://www.EMC.com
Page 2
Copyright © 2002, 2003 EMC Corporation. All rights reserved.
Printed Apr il 2003
EMC believes the information in this publication is accurate as of its publication date. The information is subject to change without notice.
THE INFORMATION IN THIS PUBLICATION IS PROVIDED "AS IS." EMC CORPORATION MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WITH RESPECT TO THE INFORMATION IN THIS PUBLICATION, AND SPECIFICALLY DISCLAIMS IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Use, copying, and distribution of any EMC software described in this publication requires an applicable software license.
Regulatory Agency Information
The Connectrix ED- 64M has been extensively tested and certified to meet UL1950, CSA 22.2 No 950, IEC 60950/EN60950; Safety of Information Technology Equipment including Electrical Business Equipment, FCC Rules Part 15 Subpart B; CISPR22 Class A; European EMC Directive 89/336/EEC on, electromagnetic compatibility.
The The Connectrix ED-64M is a Stationary Pluggable Type B system. This class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Warning!
This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
Achtung! Dieses ist ein Gerät der Fu nkstörgrenzwertkla sse A. In Wohnbe reichen können bei Betrieb dieses Gerätes Rundfunkstörungen auftreten, in welchen Fällen der Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist.
Attention! Ceci est un produit de Classe A. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l'utilisateur de prendre les mesures spécifiques appropriées.
ii
Connectrix ED-64M User Guide
Page 3
This equipment generates, uses, and may emit radio frequency energy. The e quipment has been type tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC rules, which are designed to provide reasonable protection against such radio frequency interference.
Operation of this equipment in a residential area may cause interference in which case the user at his own expense will be required to take whatever measures may be required to correct the interference.
Any modifications to this device - unless expressly approved by the manufacturer - can void the user’s authority to operate this equipment under part 15 of the FCC rules.
Trademark In formation
Connectrix ED-64M User Guide
iii
Page 4
iv
Connectrix ED-64M User Guide
Page 5
Contents
Preface........................................................................................................................... xxi
Warnings and Cautions...................................................................................... xxvii
Chapter 1 ED-64M Director Operating Features
Overview........................................................................................... 1-2
Features...................................................................................... 1-2
Performance Features............................................................... 1-4
Director Management.......................................... ..... ...... ......... 1-5
High-Availability ...................................................................... 1-6
Connectivity .............................................................................. 1-7
Security....................................................................................... 1-8
Serviceability ............................................................................. 1-9

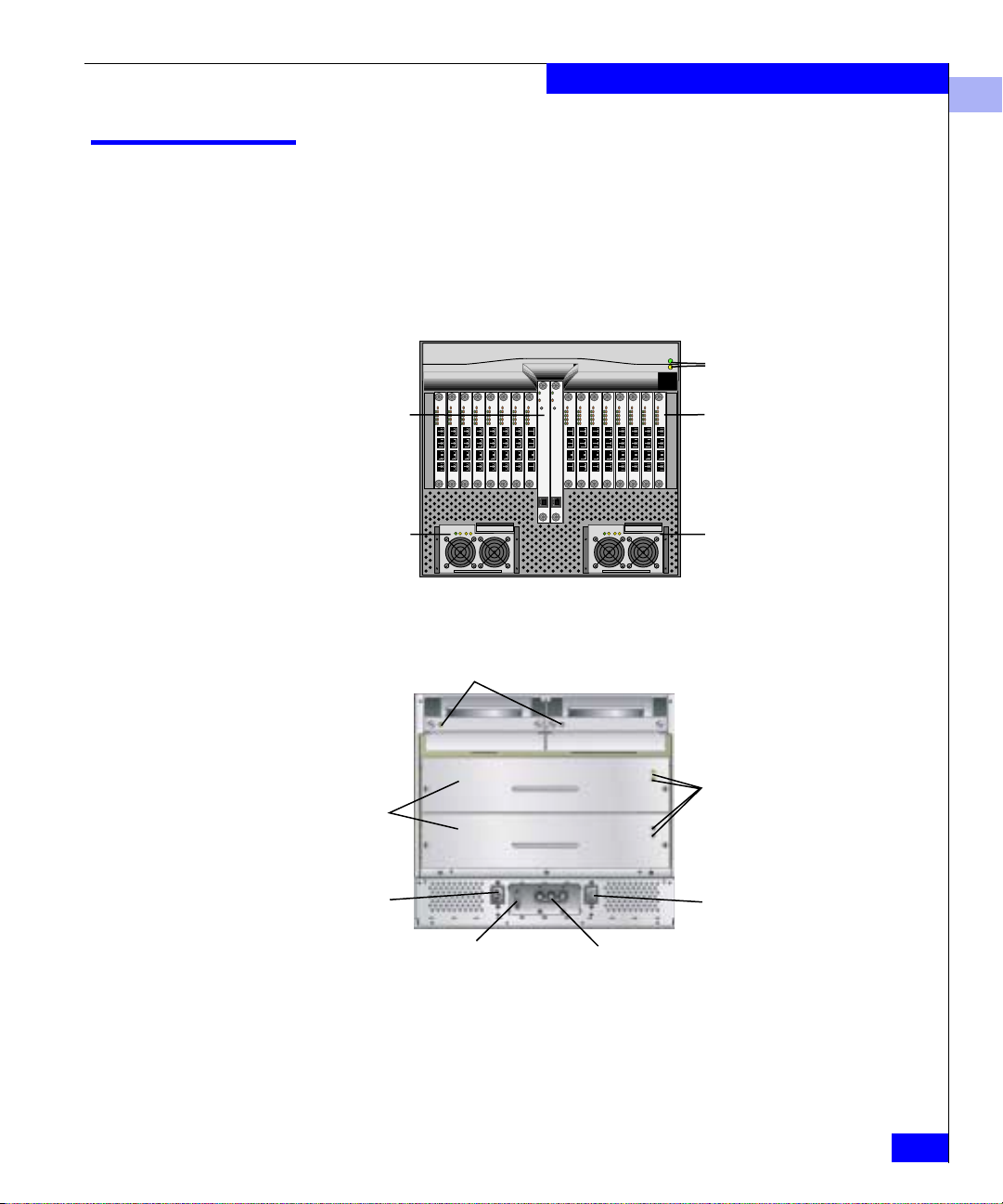

Director Components............................................................. ..... .. 1-11
CTP Card.................................................................................. 1-12
UPM Card................................................................................ 1-13
Power Supplies ....................................................................... 1-14
RFI Shield................................................................................. 1-14
Input Power Module.............................................................. 1-14
Fan Modules.......................................................... .................. 1-15
SBAR Card............................................................................... 1-15
Backplane................................................................................. 1-15
Embedded Web Server.................................................................. 1-16
Hardware Operations.................................................................... 1-17
Updating Firmware................................................................ 1-17
Blocking and Unblocking Ports............................................ 1-17
Director Operational States................................................... 1-17
IML Function........................................................................... 1-18
IPL Function ............................................................................ 1-19
Connectrix ED-64M User Guide
v
Page 6
Contents
Chapter 2 Operating the D i rector
Power Procedures.............................. ..... .................................. ...... . 2-2
Powering the Director On....................................................... 2-2
Powering the Director Off ....................................................... 2-3

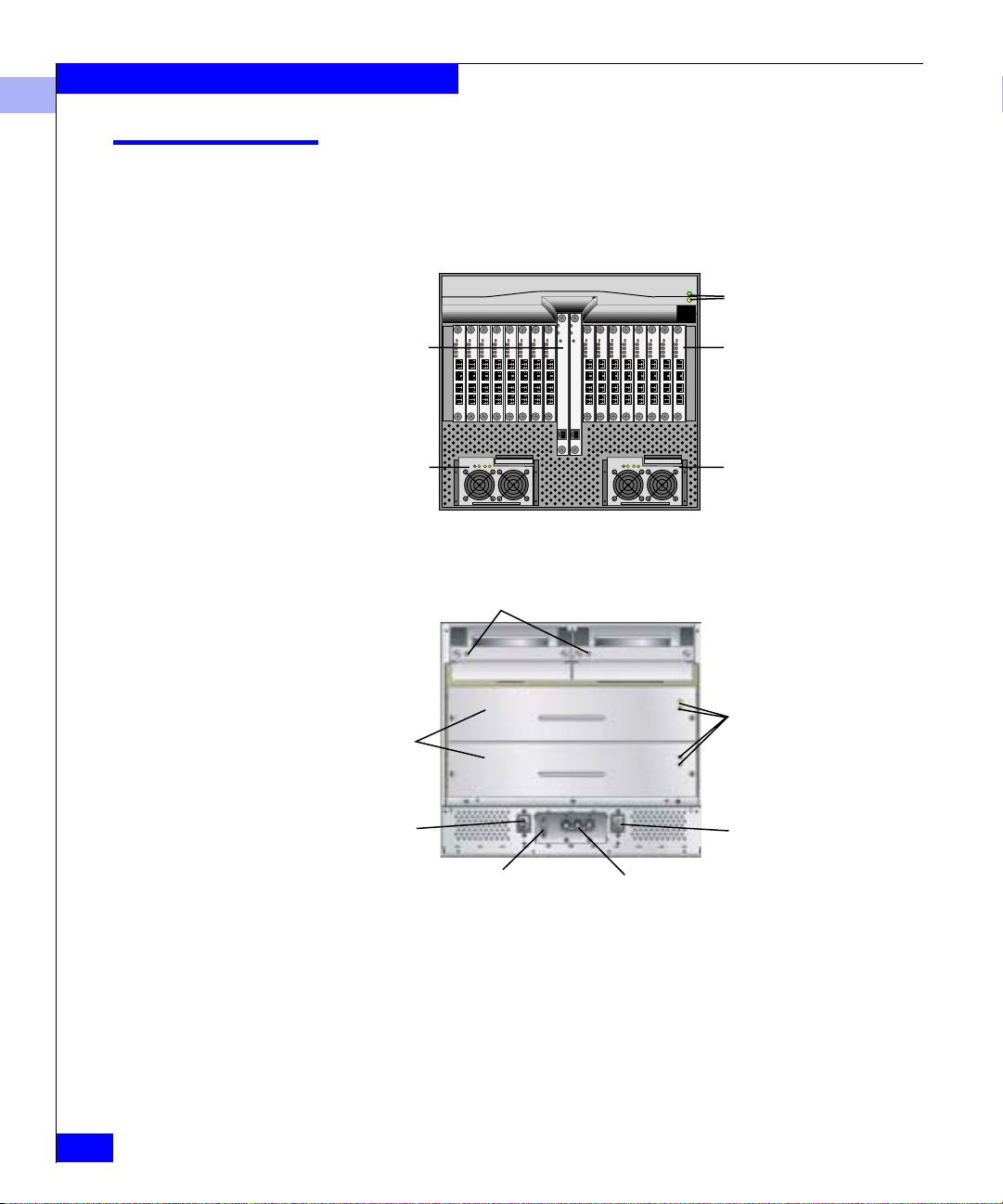

Connectors, Controls, and Indicators.......................................... . 2-4
Power and Error LEDs............................................................. 2-5

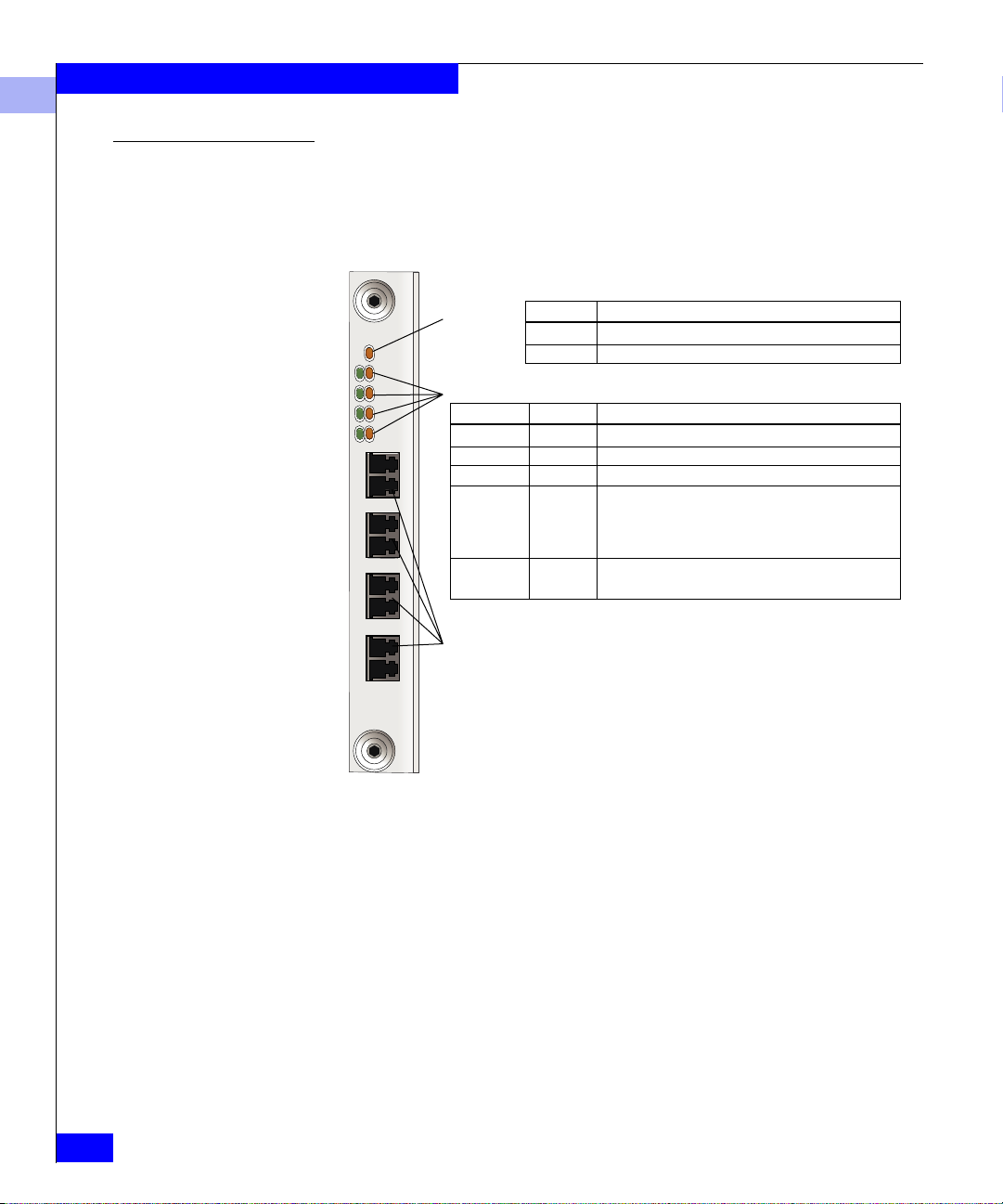

UPM Cards................................................................................ 2-6

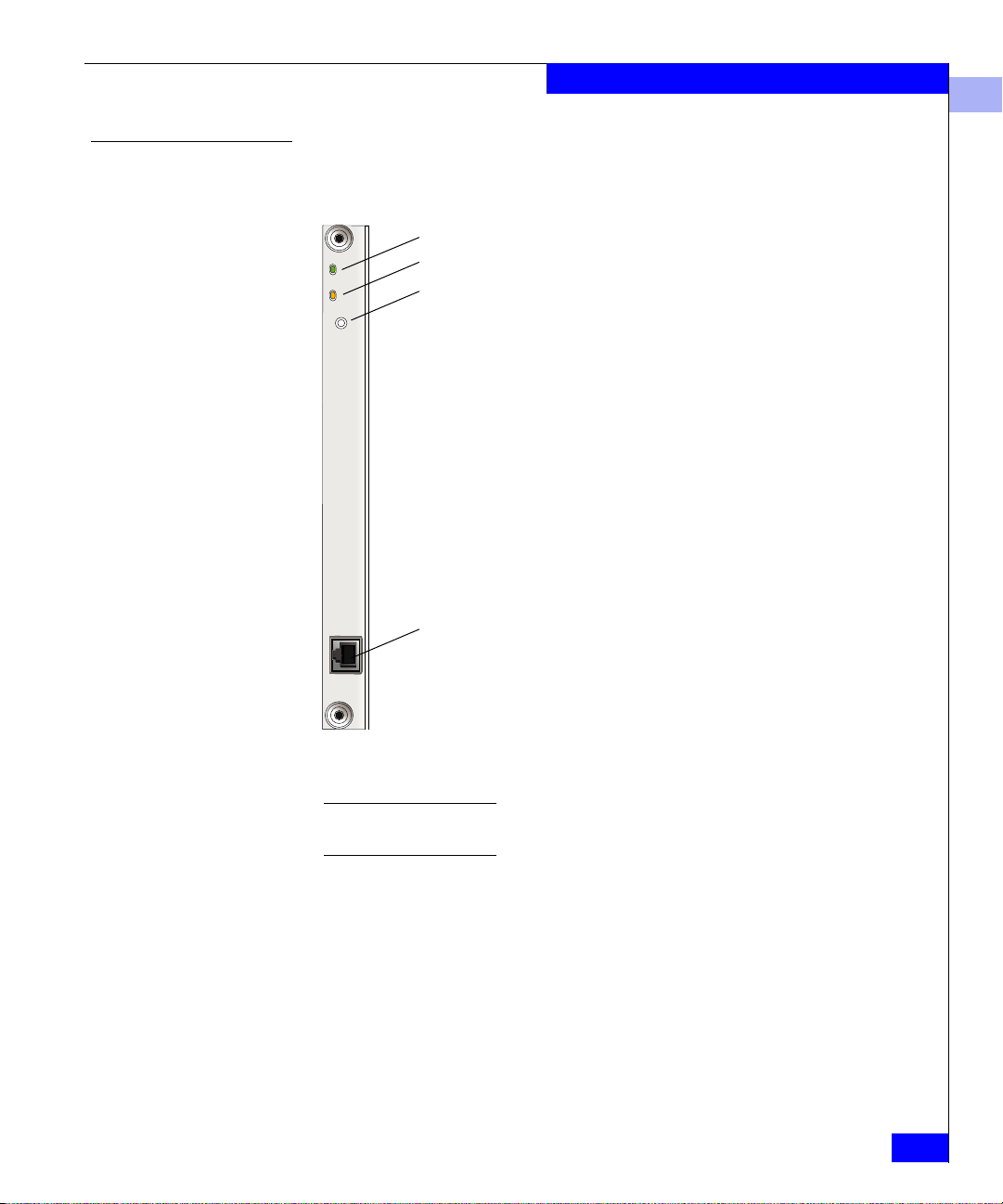

CTP Cards.................................................................................. 2-7
Power Supplies ....................................................... ...... ..... ....... 2-8

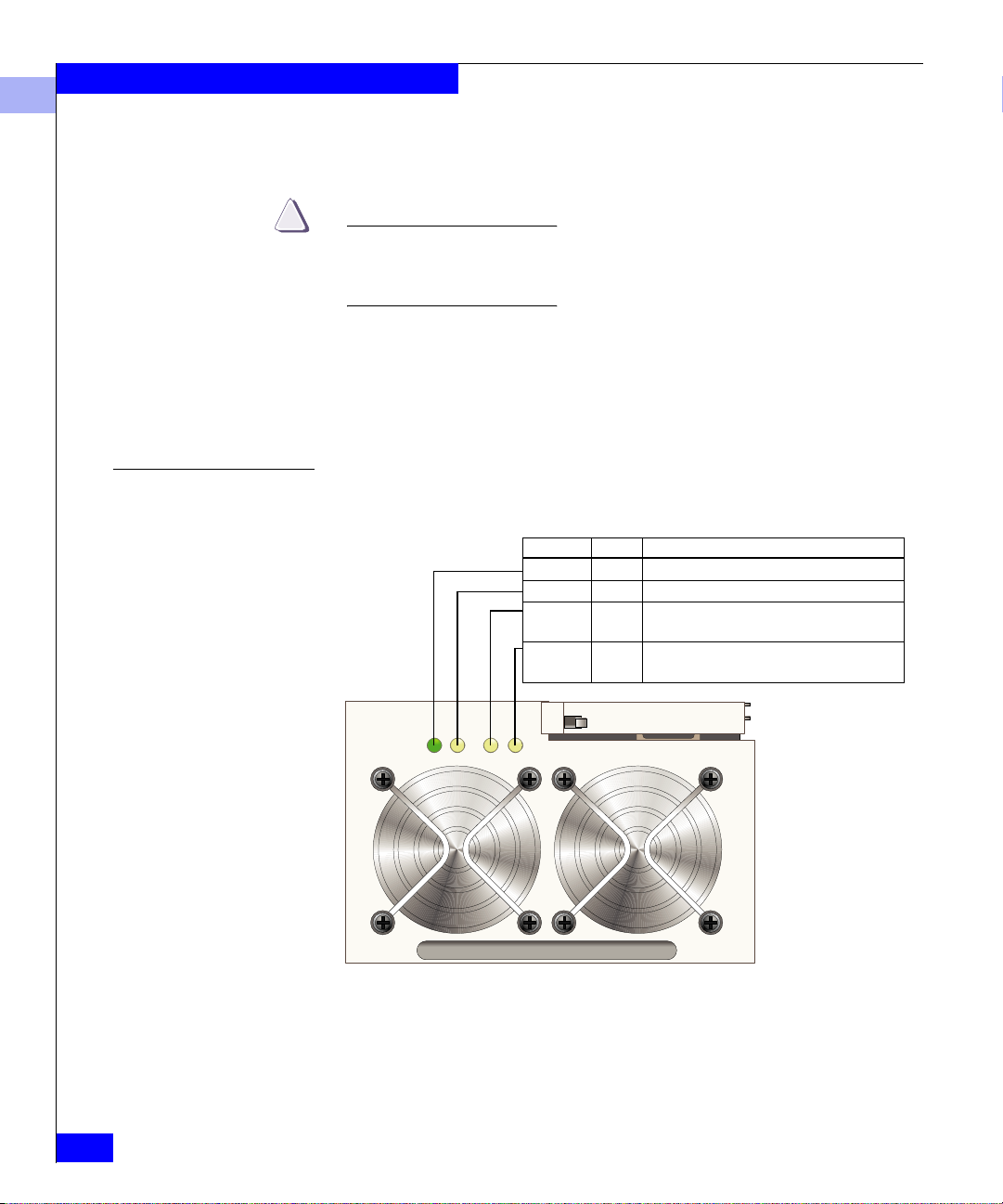

Fan Modules.............................................................................. 2-9
SBAR Cards............................................................................... 2-9
Input Power Module................................................................ 2-9
Chapter 3 Product Manager Overview
Product Manager Overview........................................................... 3-2
Using the Product Manager........................................................... 3-5
Using Dialog Boxes.................................................................. 3-5

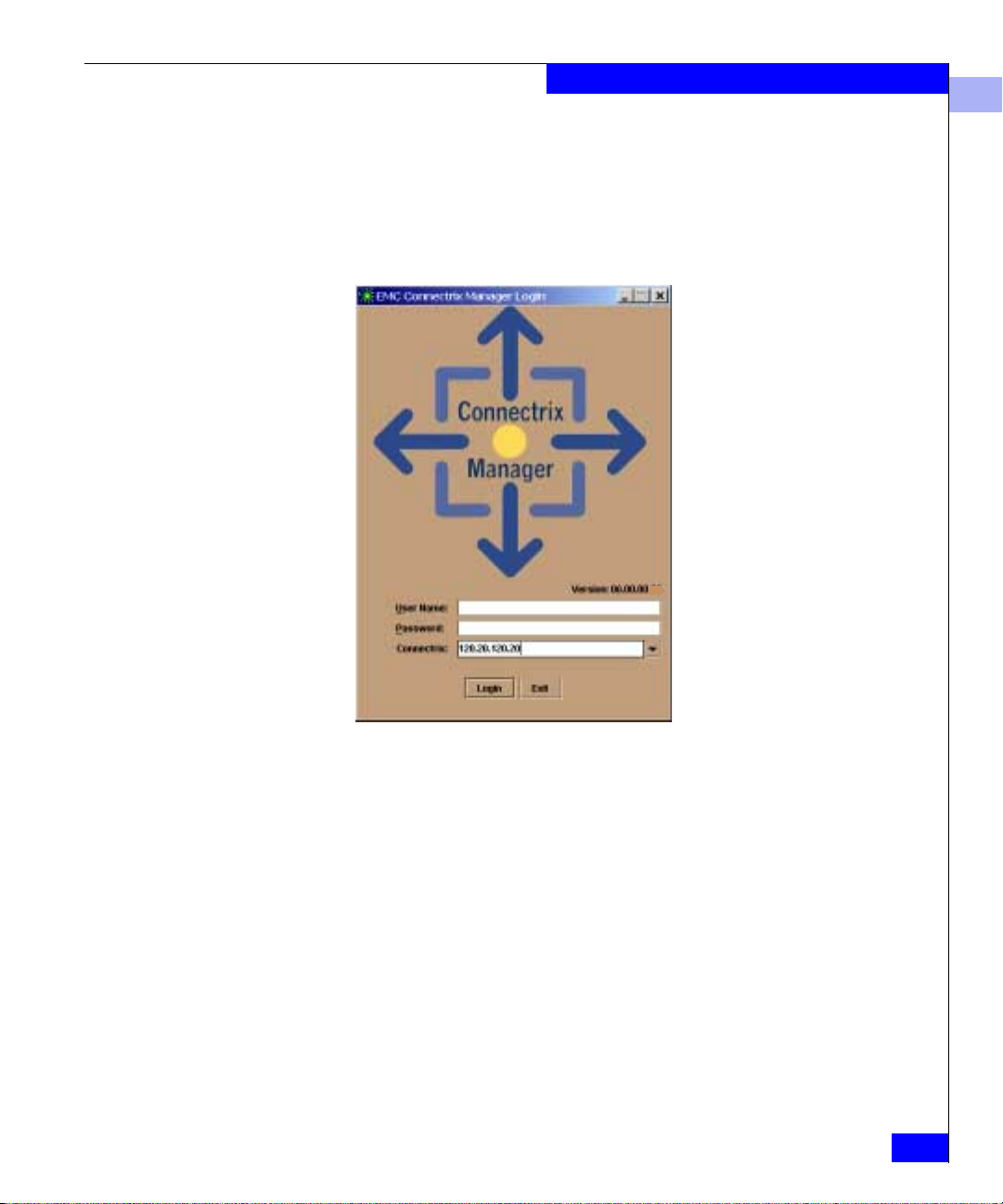

Logging Into the Connectrix Manager.................................. 3-6
Opening the Product Manager............................................. 3-10
Closing the Product Manager............................................... 3-11
Closing the Connectrix Manager.......................................... 3-11

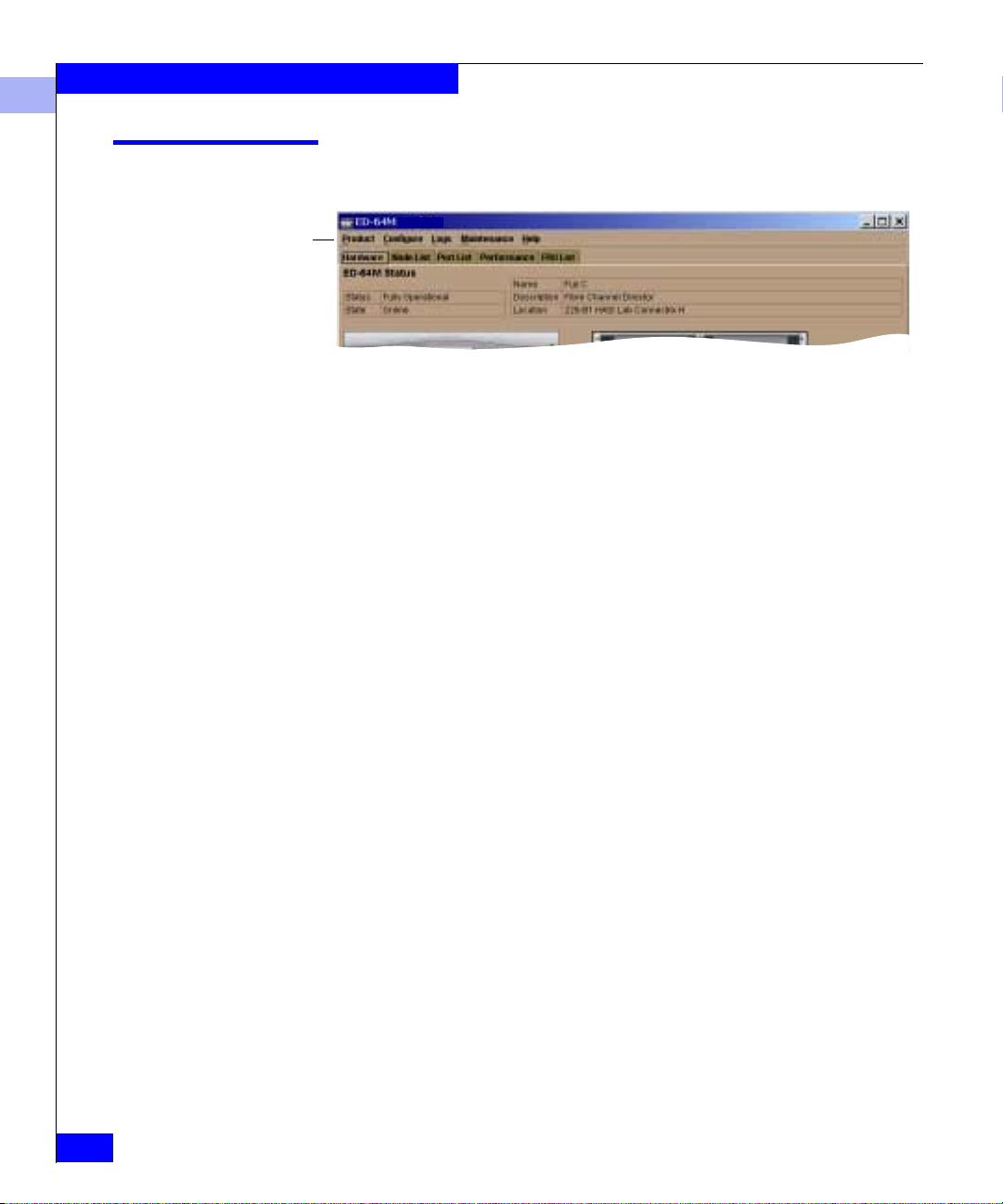

Product Manager Menu Bar......................................................... 3-12
Product Manager Views................................................................ 3-18

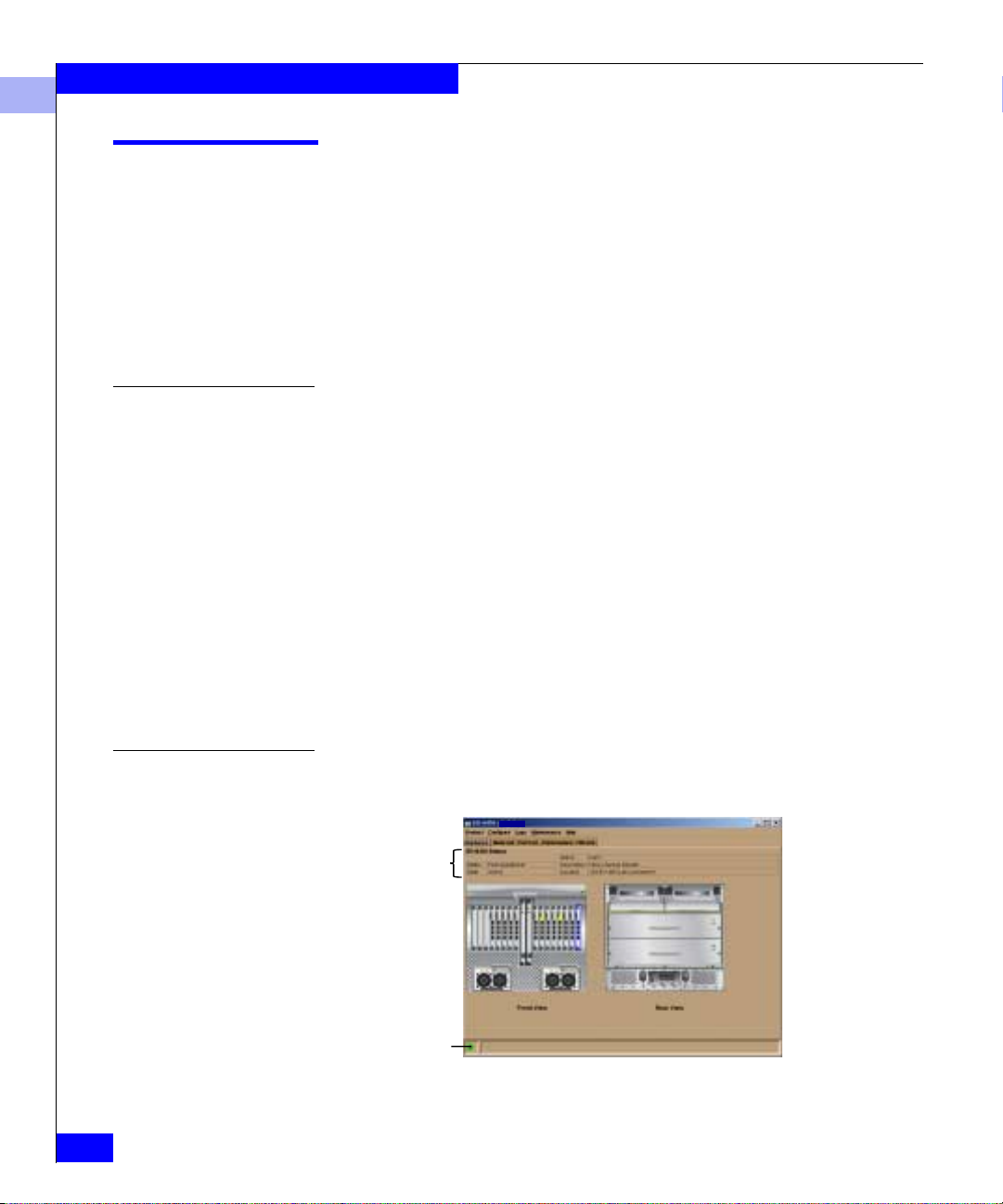

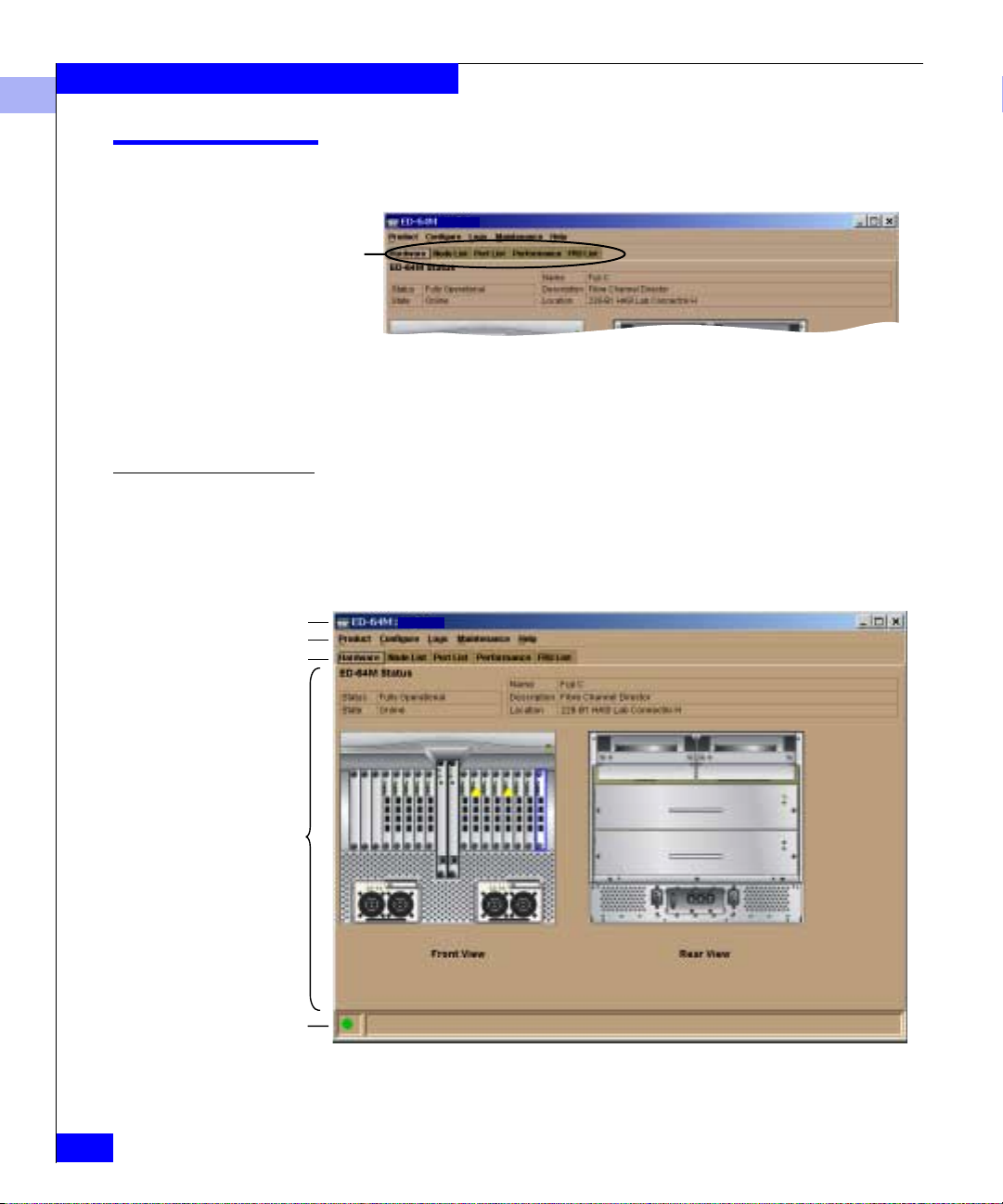

Hardware View....................................................................... 3-18
Node List View ....................................................................... 3-21
Port List View.......................................................................... 3-21
Performance View .................................................................. 3-22
FRU List View ......................................................................... 3-22
User Rights ..................................................................................... 3-23
User Rights for Specific Functions....................................... 3-23
Chapter 4 Monitoring and Managing the Director
Using the Hardware View.............................................................. 4-2
Identifying FRUs ...................................................................... 4-2
Monitoring Director Operation.............................................. 4-2
Obtaining Hardware Information.......................................... 4-8
Using Menu Options.............................................................. 4-10
Using the Port Card View...................................................... 4-14
Using the Port List View............................................................... 4-23
Displaying Port Properties.................................................... 4-25
Menu Options ......................................................................... 4-25
vi
Connectrix ED-64M User Guide
Page 7
Using the Node List View............................................................ 4-27
Displaying Node Properties................................................. 4-29
Displaying Port Properties ................................................... 4-29
Defining Nicknames.................................................. ............ 4-30
Using the Performance View....................................................... 4-31
Bar Graph Display ................................................................. 4-32
Port Statistics .......................................................................... 4-33
Menu Options......................................................................... 4-37
Using the FRU List........................................................................ 4-39
Alerts............................................................................................... 4-41
Link Incident Alerts............................................................... 4-41
Threshold Alerts..................................................................... 4-42
Chapter 5 Configuring th e D i rector
Configuring the Management Style ............................................. 5-2
Configuring Director Identification.............................................. 5-3
Configuring Operating Parameters.............................................. 5-5
Switch Parameters.................................................................... 5-6
Fabric Parameters................................................................... 5-10
Configuring Switch Binding........................................................ 5-14
Activating Switch Binding and Selecting Port Types ....... 5-14
Editing the Switch Membership List................................... 5-16
Switch Binding: Rules and Guidelines ............................... 5-17
Zoning with Switch Binding Enabled................................. 5-18
Configuring Ports.......................................................................... 5-19
Port Parameters.......................................................... ...... ...... 5-20
Configuring Port Binding..................................................... 5-24
Configuring Port Addresses........................................................ 5-26
Address Parameters............................................................... 5-28
Managing Stored Address Configurations................................ 5-30
Configuring the SNMP Agent..................................................... 5-32
Configuring Management Server Control................................. 5-35
Open Systems Management Server..................................... 5-35
FICON Management Server................................................. 5-36
Configuring Feature Keys............................................................ 5-39
Configuring the Date and Time .................................................. 5-42
Configuring Threshold Alerts..................................................... 5-44
Creating New Alerts.............................................................. 5-45
Modifying Alerts.................................................................... 5-50
Activating or Deactivating Alerts........................................ 5-51
Deleting Alerts........................................................................ 5-52
Contents
Connectrix ED-64M User Guide
vii
Page 8
Contents
Exporting a Configuration Report .............................................. 5-53
Report Data ............................................................................. 5-53
Export Procedure.................................................................... 5-53
Enabling the Embedded Web Server .......................................... 5-55
Enabling Telnet............................................................................... 5-56
Chapter 6 Using Logs
Using Logs........................................................................................ 6-2
Button Function ........................................................................ 6-2
Expanding Columns ........................................ ...... ...... ............ 6-3
Sorting Entries........................................................................... 6-3
Audit Log.......................................................................................... 6-4
Event Log.......................................................................................... 6-6
Hardware Log.................................................................................. 6-8
Link Incident Log............................................................................. 6-9
Threshold Alert Log...................................................................... 6-11
Chapter 7 Using Maintenance Features
Running Port Diagnostics............................................................... 7-2
Swapping Ports.............................................................. ...... ............ 7-3
Procedure................................................................................... 7-3
Collecting Maintenance Data......................................................... 7-5
Executing an IPL.............................................................................. 7-6
Setting the Online State................................................................... 7-8
Managing Firmware Versions........................................................ 7-9
Enabling E-Mail Notification....................................................... 7-10
Enabling Call-Home Notification................................................ 7-11
Backing Up and Restoring the Configuration........................... 7-12
Backup...................................................................................... 7-13
Restore...................................................................................... 7-14
Automatic Backup to Zip Disk............................................. 7-14
Using QuikSync...................................................................... 7-16
Resetting the Configuration......................................................... 7-18
Note on IP Address................................................................ 7-18
Procedure................................................................................. 7-18
viii
Connectrix ED-64M User Guide
Page 9
Appendix A Using SNMP to Manage the Switch
Introduction ................................................................................... A-2
Supported MIBs ...................................................................... A-2
SNMP Tree Structure.............................................................. A-3
SNMP Commands .................................................................. A-4
Traps.......................................................................................... A-4
Protocol Definition.................................................................. A-5
Configuring an SNMP Agent................................................ A-5
V7.01 MIB Support.................................................................. A-5
MIB-II Support ............................................................................... A-7
The System Group .................................................................. A-8
The Interfaces Group.............................................................. A-9
The Address Translation Group/Table.............................. A-13
The IP Group ......................................................................... A-14
The ICMP Group................................................................... A-20
The TCP Group ..................................................................... A-22
The UDP Group..................................................................... A-25
The SNMP Group.................................................................. A-26
Fabric Element MIB Support ..................................................... A-29
Predefined Types................................................................... A-30
MIB Objects Defined in the Fabric Element MIB.............. A-32
Module Table ......................................................................... A-32
FxPort Configuration Table ................................................. A-34
FxPort Operation Table ........................................................ A-37
FxPort Physical Level Table................................................. A-38
FxPort Fabric Login Table .................................................... A-40
FxPort Error Table................................................................. A-43
Class 1 Accounting Table ..................................................... A-44
Class 2 Accounting Table ..................................................... A-44
Class 3 Accounting Table ..................................................... A-45
FxPort Capability Table........................................................ A-46
Fibre Alliance MIB (fcmgmt.mib) ............................................. A-49
Type Definitions ................................... ..... ...... ...................... A-49
Connectivity Unit Group..................................................... A-50
fcConnUnitTable ................................................................... A-51
Firmware Table...................................................................... A-57
Sensor Table ............. .................................. ...... ...... ................ A-58
The Port Table........................................................................ A-60
The Event Table ..................................................................... A-69
Link Table............................................................................... A-71
Port Statistics Table ............................................................... A-74
Name Server Table................................................................ A-81
Trap Registration Group...................................................... A-83
Contents
Connectrix ED-64M User Guide
ix
Page 10
Contents
The TrapRegTable.................................................................. A-83
Trap Types............................................................................... A-85
Connectrix Private Enterprise MIB (fceos.mib) ....................... A-86
System Group................................... .................................. .... A-88
FRU Table (Module Group)................................................. A-90
Port Table (Port Group)........................................................ A-91
Port Binding Table................................................................. A-96
Zoning Variables ................................................................... A-96
Active Zone Table.................................................................. A-97
Active Member Table............................................................ A-97
Threshold Alert Table........................................................... A-98
Enterprise Specific Traps...................................................... A-99
Port State Descriptions........................................................ A-100
Appendix B Configuring Ne twork Addresses
Configuring Network Addresses ................................................ B-2
Appendix C Port Card Map
Port Numbering ............................................................................. C-2
Appendix D Configuring Embedded Web Server Passwords
Introduction .................................................................................... D-2
Requirements ........................................................................... D-2
Opening the Web Server Application................................... D-3
Configuring Passwords ................................................................ D-5
Appendix E Command Line Interface
Telnet Sessions .............................................. .................................. E-2
Ethernet Connection Loss ...................................................... E-2
CLI Overview .......................................................... ....................... E-3
Entering CLI Commands ....................................................... E-4
login........................................ ...... .................................. ..... ..... E-11
logout ...................................................................................... E-12
commaDelim.......................................................................... E-13
Handling Command Line Interface Errors........................ E-14
Using CLI Help...................................................................... E-14
Commenting Scripts.............................................................. E-15
The config Branch ........................................................................ E-16
config.enterpriseFabMode.setState..................................... E-16
config.features.installKey..................................................... E-17
x
Connectrix ED-64M User Guide
Page 11
Contents
config.features.enterpriseFabMode..................................... E-17
config.features.ficonMS......................................................... E-18
config.features.openSysMS................................................... E-18
config.features.show.............................................................. E-19
config.ficonMS.setState......................................................... E-20
config.ip.ethernet................................................................... E-20
config.ip.show ........................................................................ E-21
config.port.blocked................................................................ E-21
config.port.extDist ................................................................. E-22
config.port.name.................................................................... E-22
config.port.speed.................................................................... E-23
config.port.type...................................................................... E-24
config.port.show .................................................................... E-24
config.openSysMS.setState................................................... E-25
config.security.FabricBinding .............................................. E-25
config.security.fabricBinding.activatePending.................. E-26
config.security.fabricBinding.addMember ........................ E-27
config.security.fabricBinding.clearMemList...................... E-27
config.security.fabricBinding.deleteMember..................... E-28
config.security.fabricBinding.replacePending................... E-28
config.security.fabricbinding.setState................................. E-29
config.security.fabricBinding.showActive......................... E-30
config.security.fabricBinding.showPending...................... E-30
config.security.portBinding.bound ..................................... E-31
config.security.portBinding.wwn........................................ E-32
config.security.portBinding.show ....................................... E-33
config.security.switchBinding.addMember....................... E-34
config.security.switchBinding.deleteMember................... E-34
config.security.switchBinding.setState............................... E-35
config.security.switchBinding.show................................... E-37
config.security.userRights.administrator........................... E-37
config.security.userRights.operator.................................... E-38
config.security.userRights.show.......................................... E-39
config.snmp.addCommunity............................................... E-39
config.snmp.authTraps ......................................................... E-40
config.snmp.deleteCommunity ........................................... E-41
config.snmp.show.................................................................. E-41
config.switch........................................................................... E-42
config.switch.bbCredit.......................................................... E-42
config.switch.domainRSCN................................................. E-43
config.switch.insistDomainId .............................................. E-43
config.switch.edTOV............................................................. E-44
config.switch.interopMode................................................... E-44
Connectrix ED-64M User Guide
xi
Page 12
Contents
config.switch.prefDomainId................................................ E-45
config.switch.priority............................................................ E-45
config.switch.raTOV ............................................................. E-46
config.switch.rerouteDelay.................................................. E-47
config.switch.show................................................................ E-48
config.switch.zoningRSCN.................................................. E-49
config.system.contact............................................................ E-50
config.system.date................................................................. E-51
config.system.description..................................................... E-51
config.system.location .......................................................... E-52
config.system.name............................................................... E-52
config.system.show............................................................... E-52
config.zoning.......................................................................... E-53
config.zoning.setDefZoneState............................................ E-53
config.zoning.activateZoneSet............................................. E-54
config.zoning.deactivateZoneSet........................................ E-54
config.zoning.replaceZoneSet.............................................. E-54
config.zoning.clearZoneSet.................................................. E-55
config.zoning.addZone......................................................... E-55
config.zoning.deleteZone..................................................... E-56
config.zoning.renameZoneSet............................................. E-56
config.zoning.addWwnMem............................................... E-57
config.zoning.addPortMem................................................. E-57
config.zoning.clearZone....................................................... E-58
config.zoning.deleteWwnMem........................................... E-58
config.zoning.deletePortMem ............................................. E-59
config.zoning.renameZone .................................................. E-59
config.zoning.showPending ................................................ E-60
config.zoning.showActive.................................................... E-60
maint .............................................................................................. E-62
maint.port.beacon.................................................................. E-62
maint.port.reset...................................................................... E-62
maint.system.beacon............................................................. E-63
maint.system.clearSysError ................................................. E-63
maint.system.ipl..................................................................... E-64
maint.system.resetConfig..................................................... E-64
maint.system.setOnlineState................................................ E-64
perf ................................................................................................. E-66
perf.class2 ............................................................................... E-66
perf.class3 ............................................................................... E-67
perf.clearStats......................................................................... E-68
perf.errors............................................................................... E-69
perf.link................................................................................... E-70
xii
Connectrix ED-64M User Guide
Page 13
Contents
perf.thresholdAlerts............................................................... E-71
perf.thresholdAlerts.counter.addAlert............................... E-73
perf.thresholdAlerts.counter.addPort................................. E-74
perf.thresholdAlerts.counter.deleteAlert........................... E-75
perf.thresholdAlerts.counter.removePort.......................... E-75
perf.thresholdAlerts.counter.setCounter............................ E-76
perf.thresholdAlerts.counter.setParams ............................. E-76
perf.thresholdAlerts.counter.show ..................................... E-78
perf.ThreshAlerts.counter.showStatisticTable................... E-78
perf.thresholdAlerts.setState................................................ E-79
perf.traffic................................................................................ E-80
show ............................................................................................... E-81
show.eventLog ....................................................................... E-81
show.features.......................................................................... E-82
show.frus................................................................................. E-83
show.ip.ethernet..................................................................... E-84
show.loginServer ................................................................... E-85
show.nameServer................................................................... E-86
show.nameServerExt............................................................. E-88
show.port.config .................................................................... E-89
show.port.info ........................................................................ E-90
show.port.status..................................................................... E-91
show.port.technology............................................................ E-94
show.security.fabricBinding................................................. E-95
show.security.portBinding ................................................... E-95
show.security.switchBinding............................................... E-96
show.switch ............................................................................ E-97
show.system............................................................................ E-99
show.thresholdAlerts.alert....................................... ...... .... E-100
show.thresholdAlerts.log..................................... ............... E-102
show.zoning............................................... ...... ..................... E-103
Appendix F Specifications
Specifications .................................................................................. F-2
Connectrix ED-64M User Guide
xiii
Page 14
Contents
Appendix G Customer Support
Overview of Detecting and Resolving Problems ...................... G-2
Troubleshooting the Problem ....................................................... G-3
Before Calling the Customer Support Center ............................ G-4
Documenting the Problem ........................................................... G-5
Reporting a New Problem ............................................................ G-6
Sending Problem Documentation ............................................... G-7
Glossary ........................................................................................................................ g-1
Index................................................................................................................................ i-1
xiv
Connectrix ED-64M User Guide
Page 15
Figures

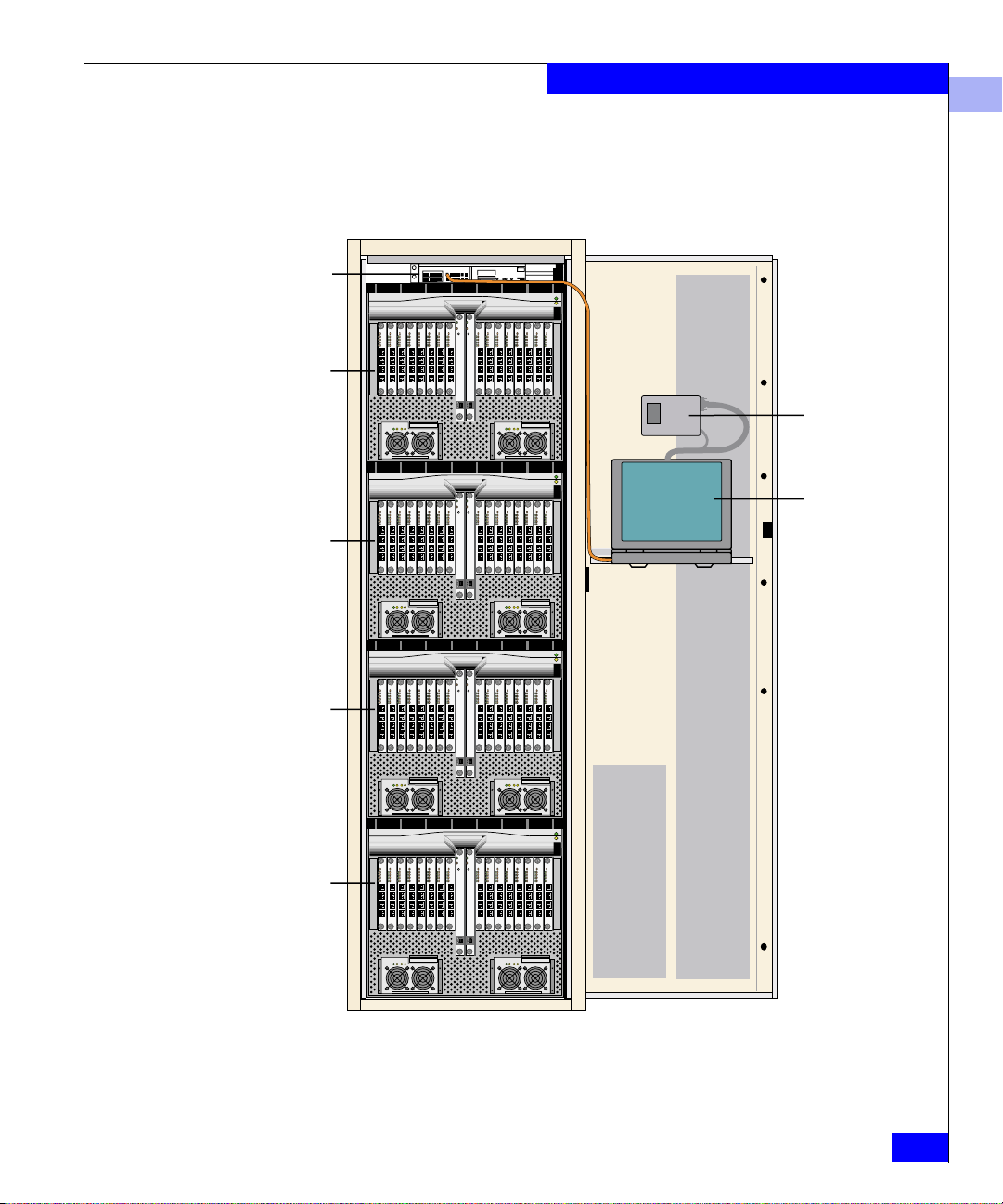

1-1 EC-1200 Cabinet with ED-64Ms and Connectrix Service Processor ..... 1-3

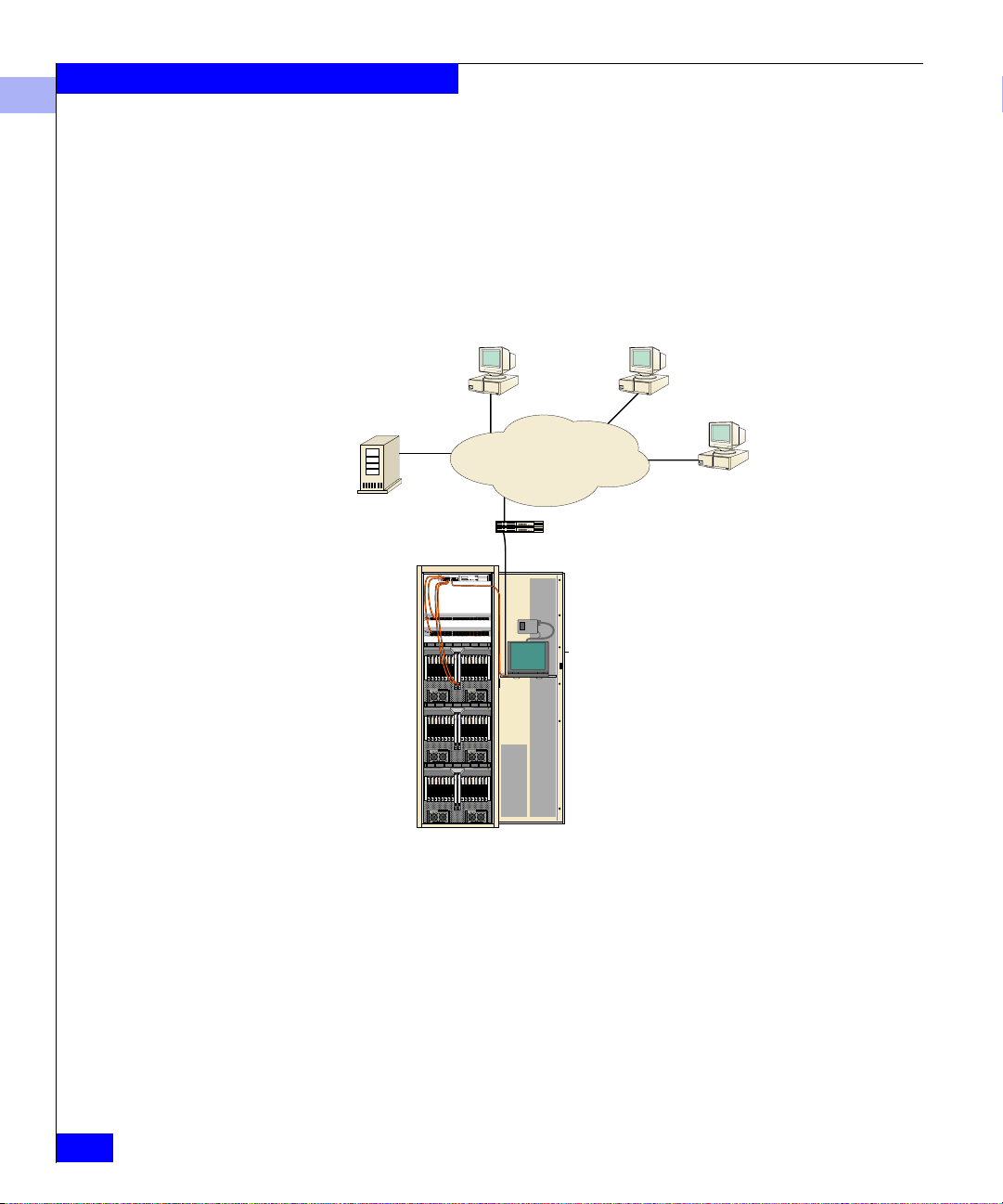

1-2 Out-of-Band Management .......................................................................... 1-6
1-3 ED-64M, Front View .................................................................................. 1-11
1-4 ED-64M, Rear View .................................................................................... 1-11
2-1 ED-64M, Front View .................................................................................... 2-4
2-2 ED-64M, Rear View ...................................................................................... 2-4
2-3 UPM Card Indicators and Connectors ...................................................... 2-6
2-4 CTP Card LEDs, Connectors, and Controls ........................... ................... 2-7
2-5 Power Supply LEDs ..................................................................................... 2-8
3-1 Connectrix Service Processor and Remote Workstation Configuration 3-4
3-2 Typical Dialog Box ....................................................................................... 3-5
3-3 Connectrix Manager Login Window ......................................................... 3-7

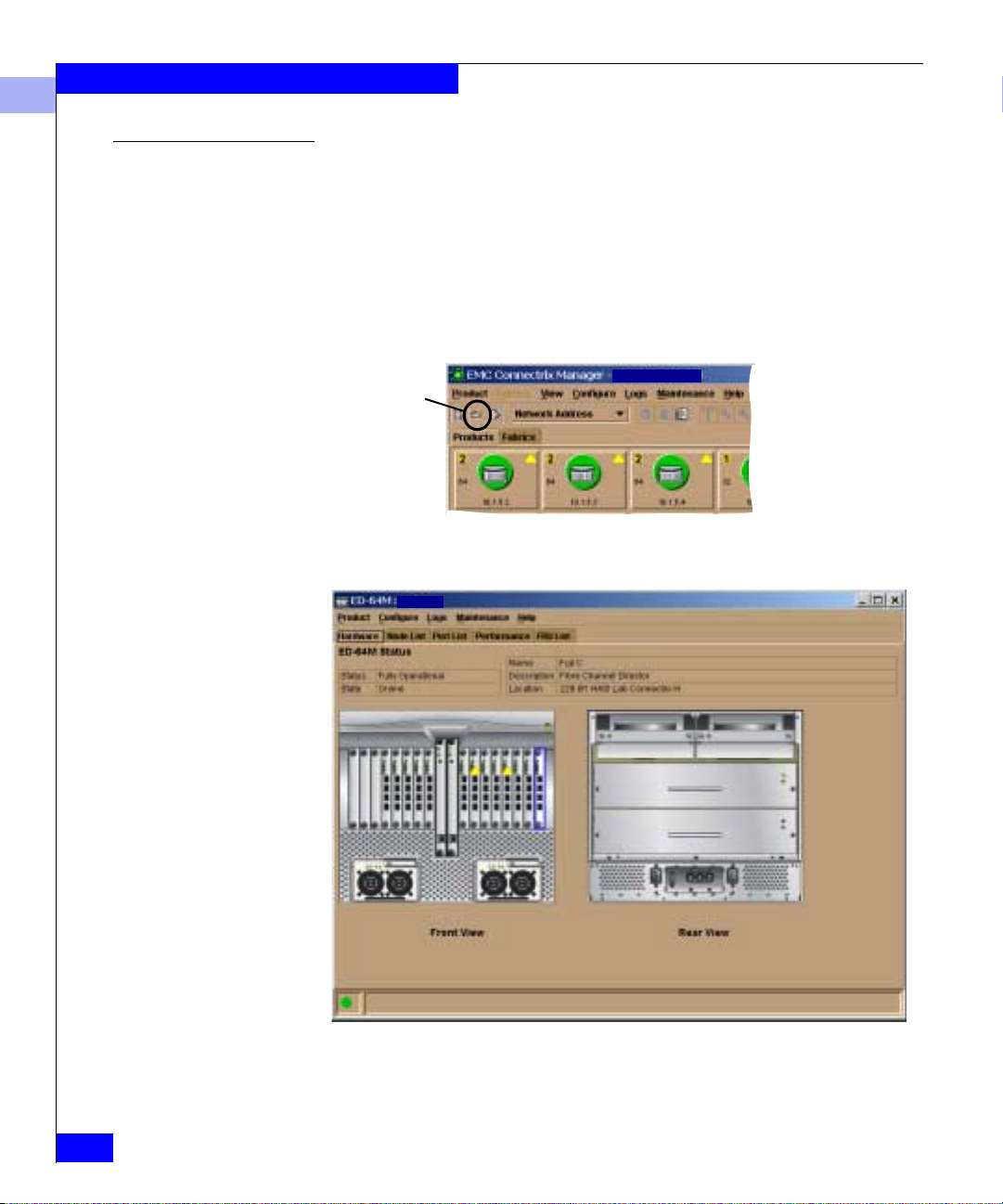

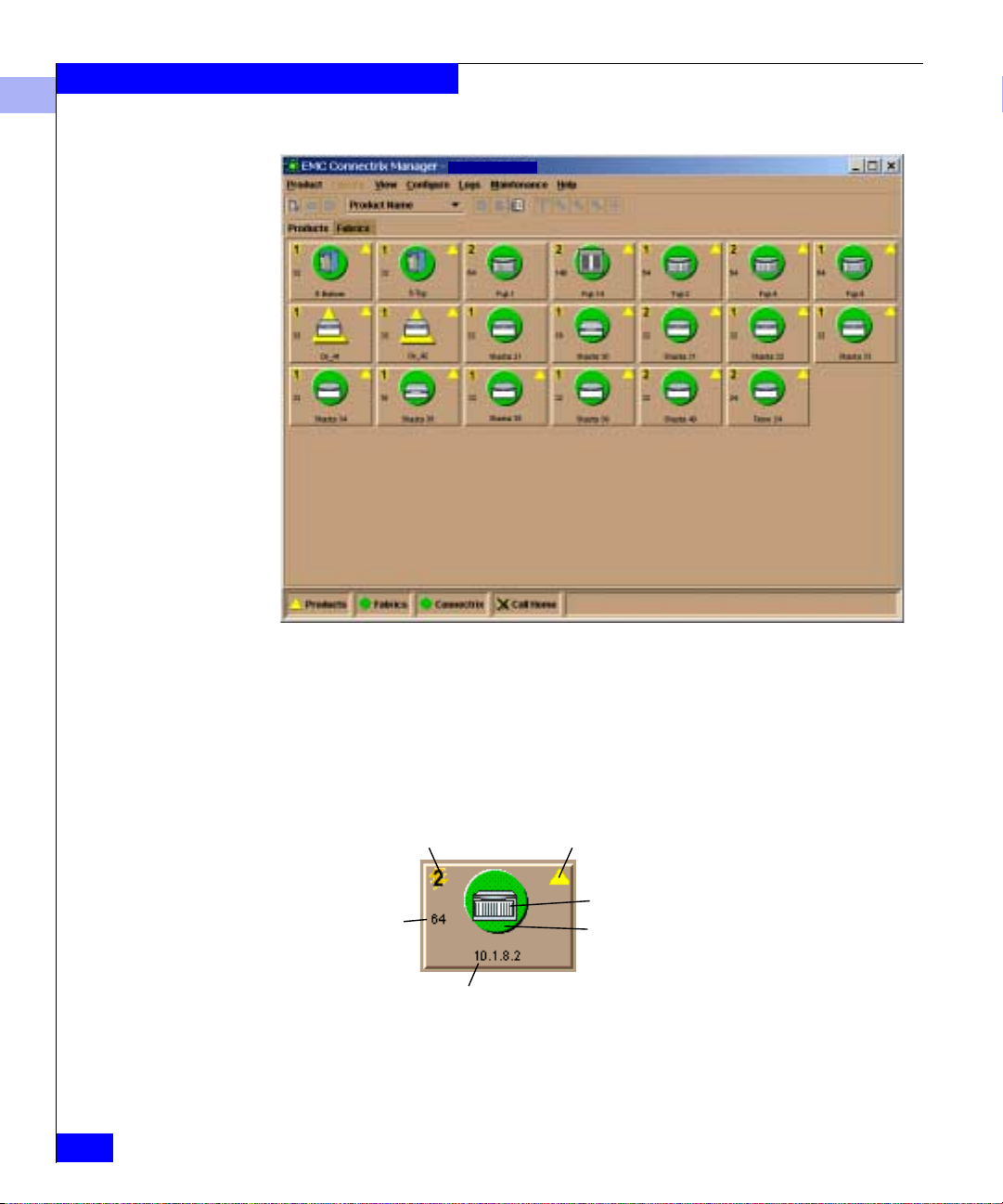

3-4 Connectrix Manager Products View .......................................................... 3-8
3-5 Product Manager Window ........................................................................ 3-10
3-6 Product Manager Menu Bar ...................................................................... 3-12

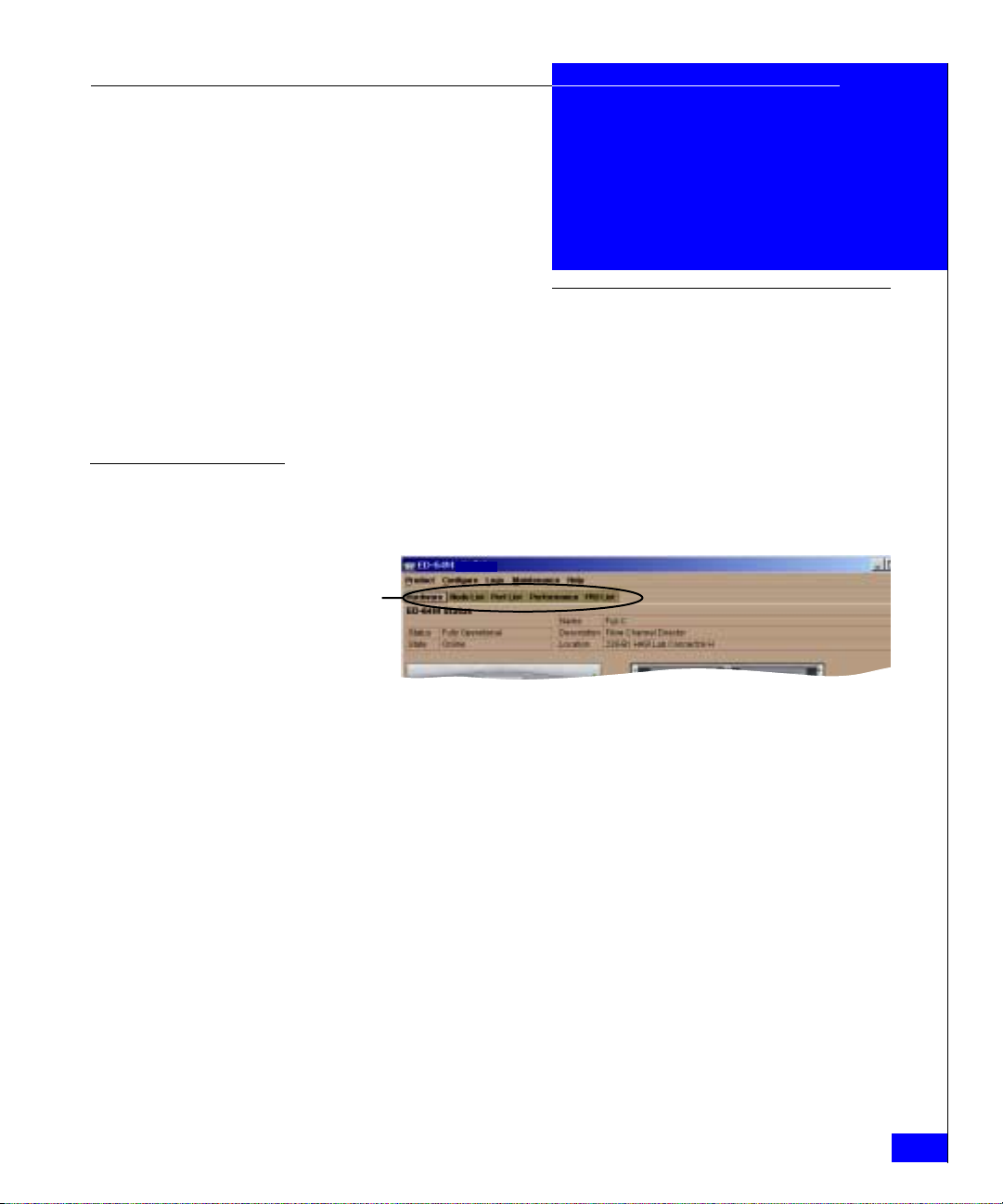

3-7 Product Manager View Selector Tabs ..................................................... 3-18
3-8 Product Manager Hardware View ........................................................... 3-18

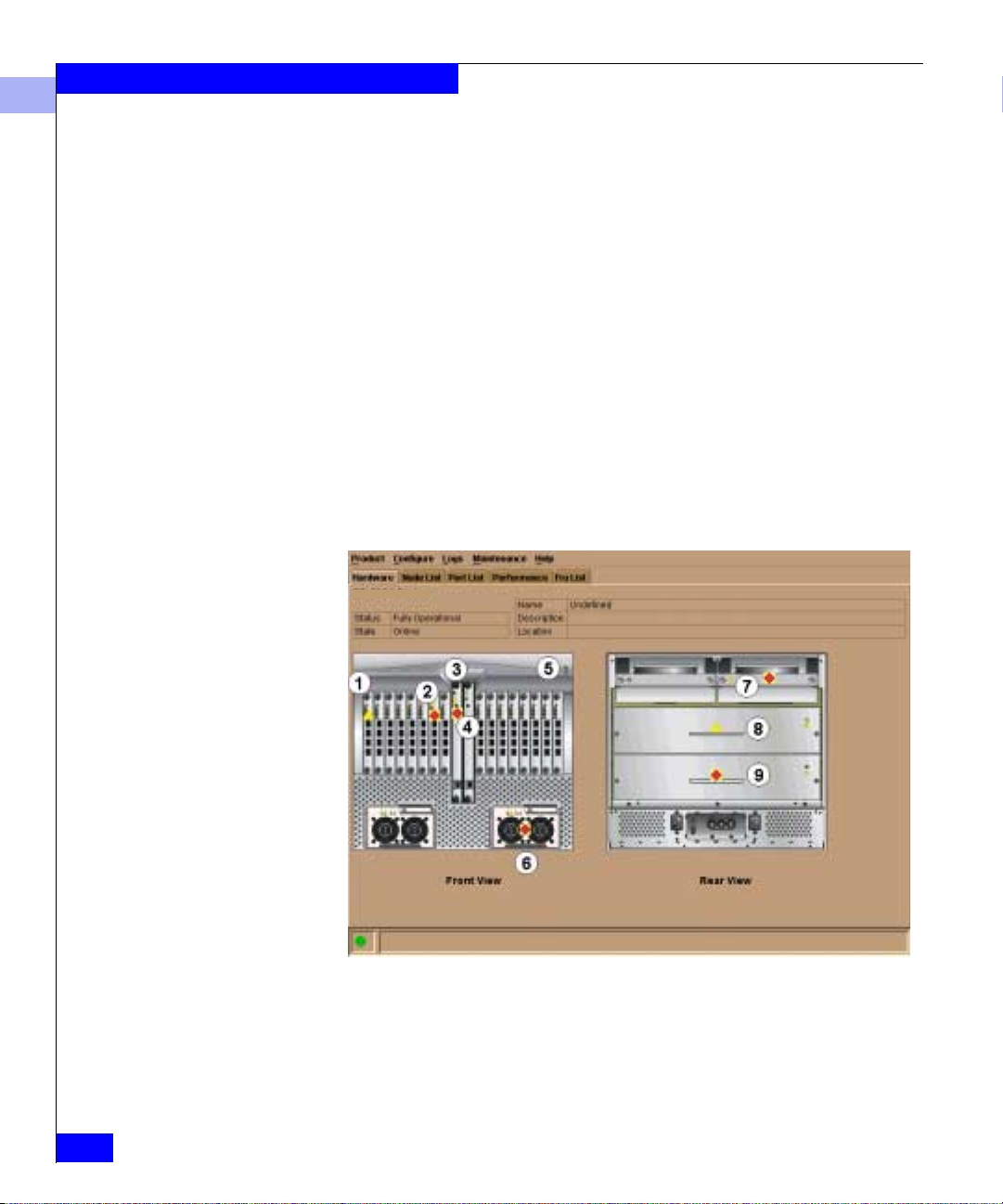

4-1 Monitoring Hardware Operation ............................................................... 4-6

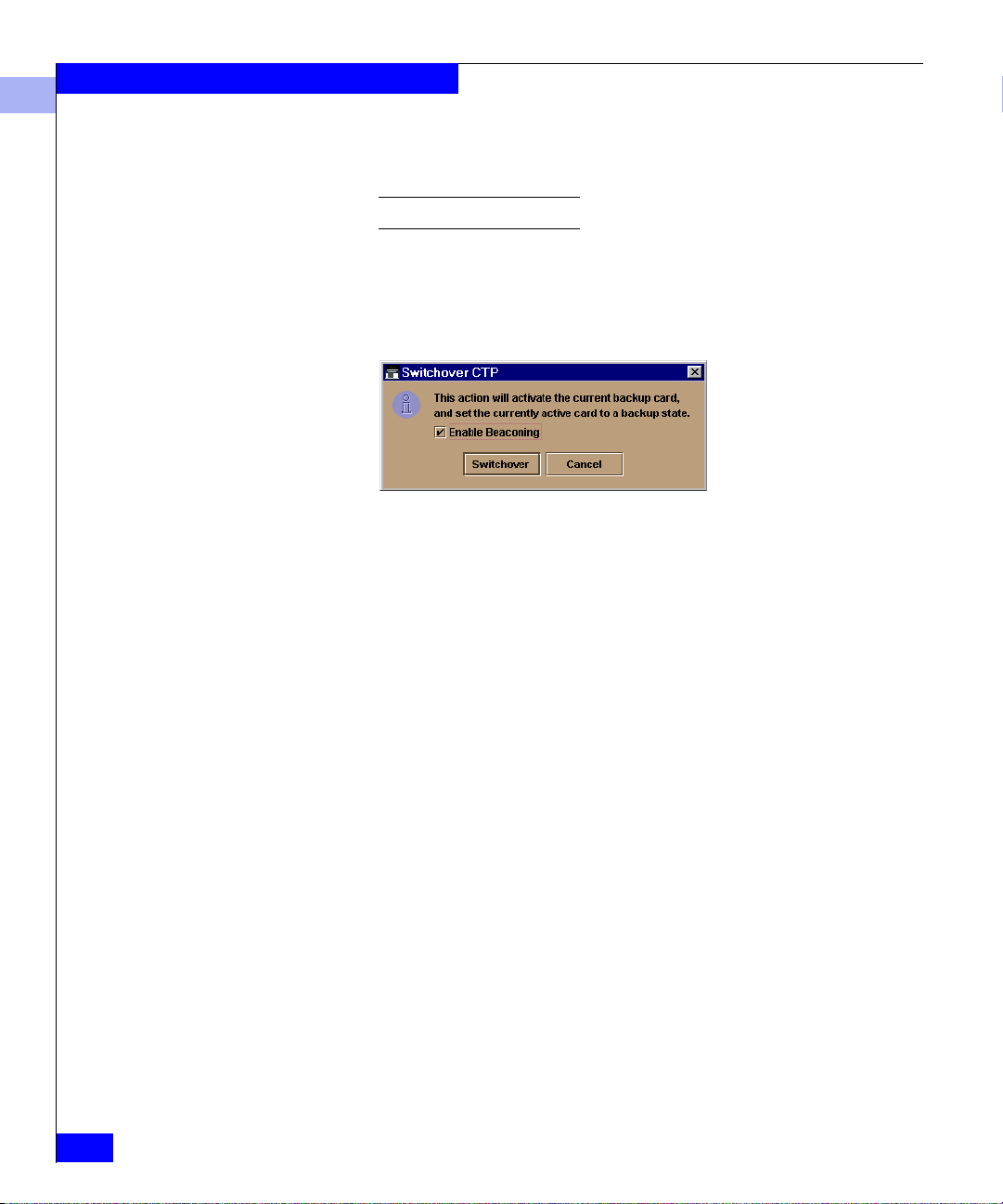

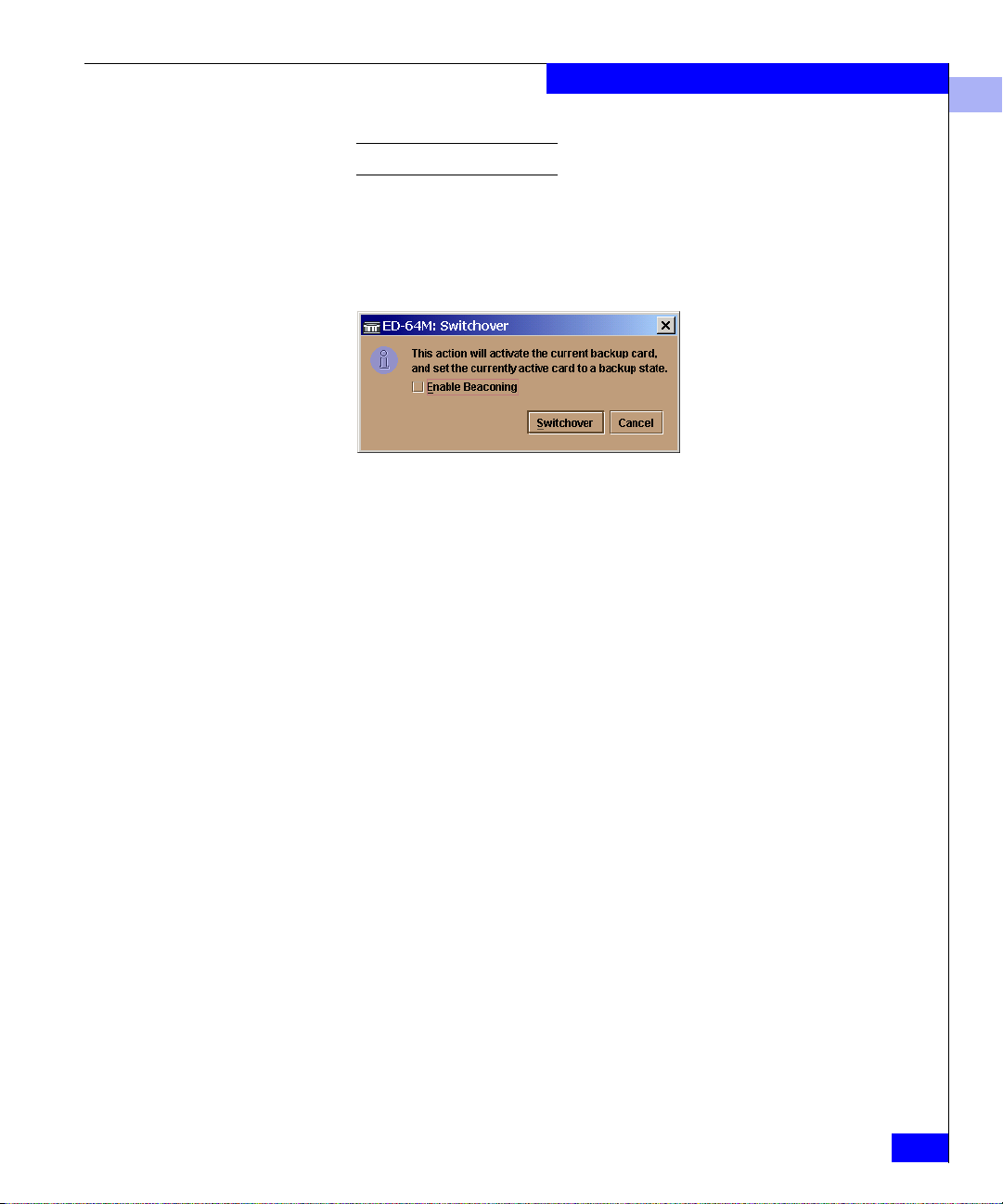

4-2 Switchover CTP Window .......................................................................... 4-12
4-3 Switchover SBAR Window ....................................................................... 4-13

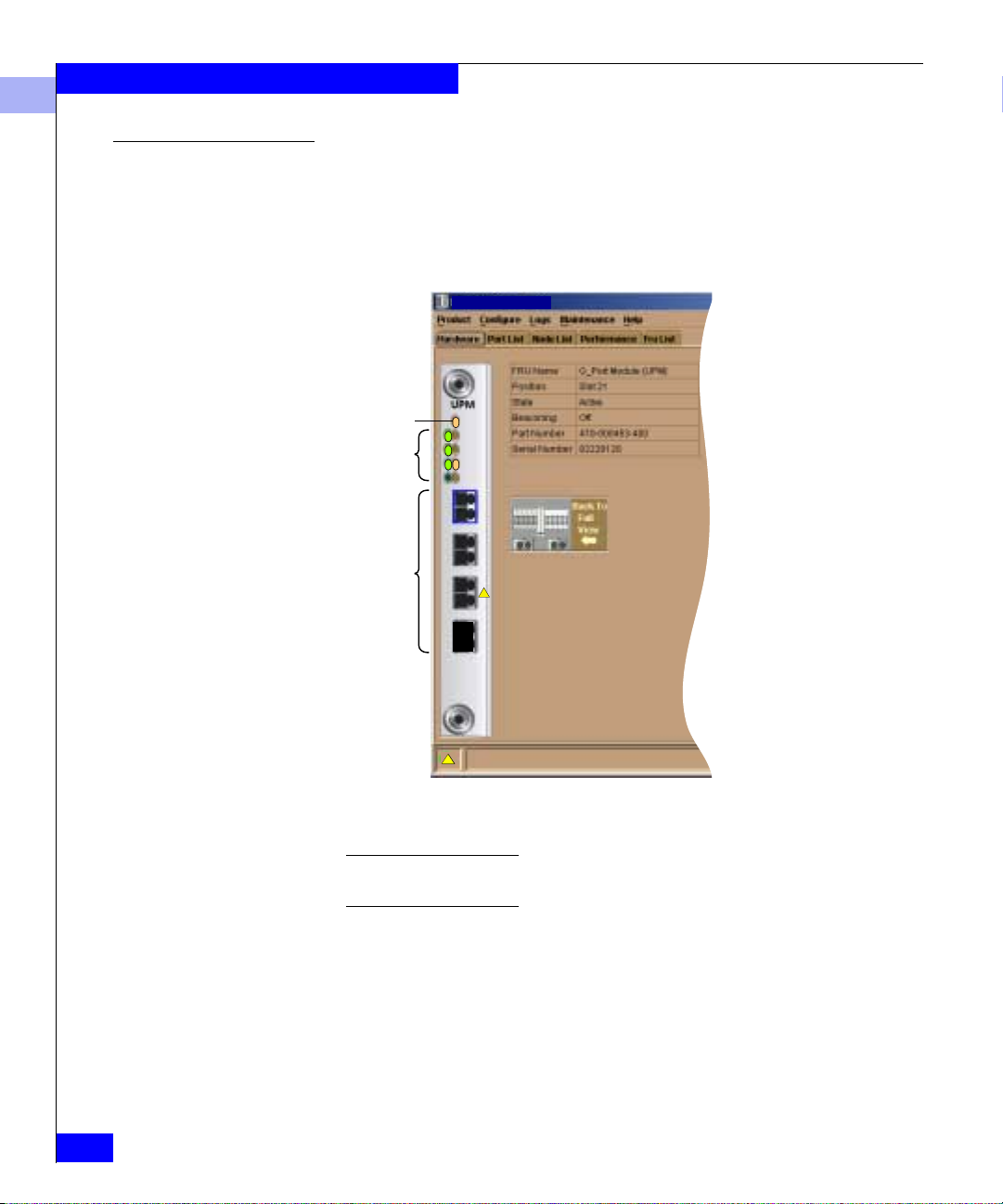

4-4 Port Card View Example ........................................................................... 4-14
4-5 Clear Threshold Alert(s) Window ........................................................... 4-22
4-6 Port List View .............................................................................................. 4-23
4-7 Clear Threshold Alert(s) Window ........................................................... 4-26
4-8 Node List View ........................................................................................... 4-27
4-9 Define Nickname Dialog Box ................................................................... 4-30
4-10 Performance View ..................................................................................... . 4-31
4-11 Clear Threshold Alert(s) Window ........................................................... 4-38
4-12 FRU List View ....................................................................................... ..... . 4-39
4-13 Clear Link Incident Alert Window .......................................................... 4-42
Connectrix ED-64M User Guide
xv
Page 16
Figures

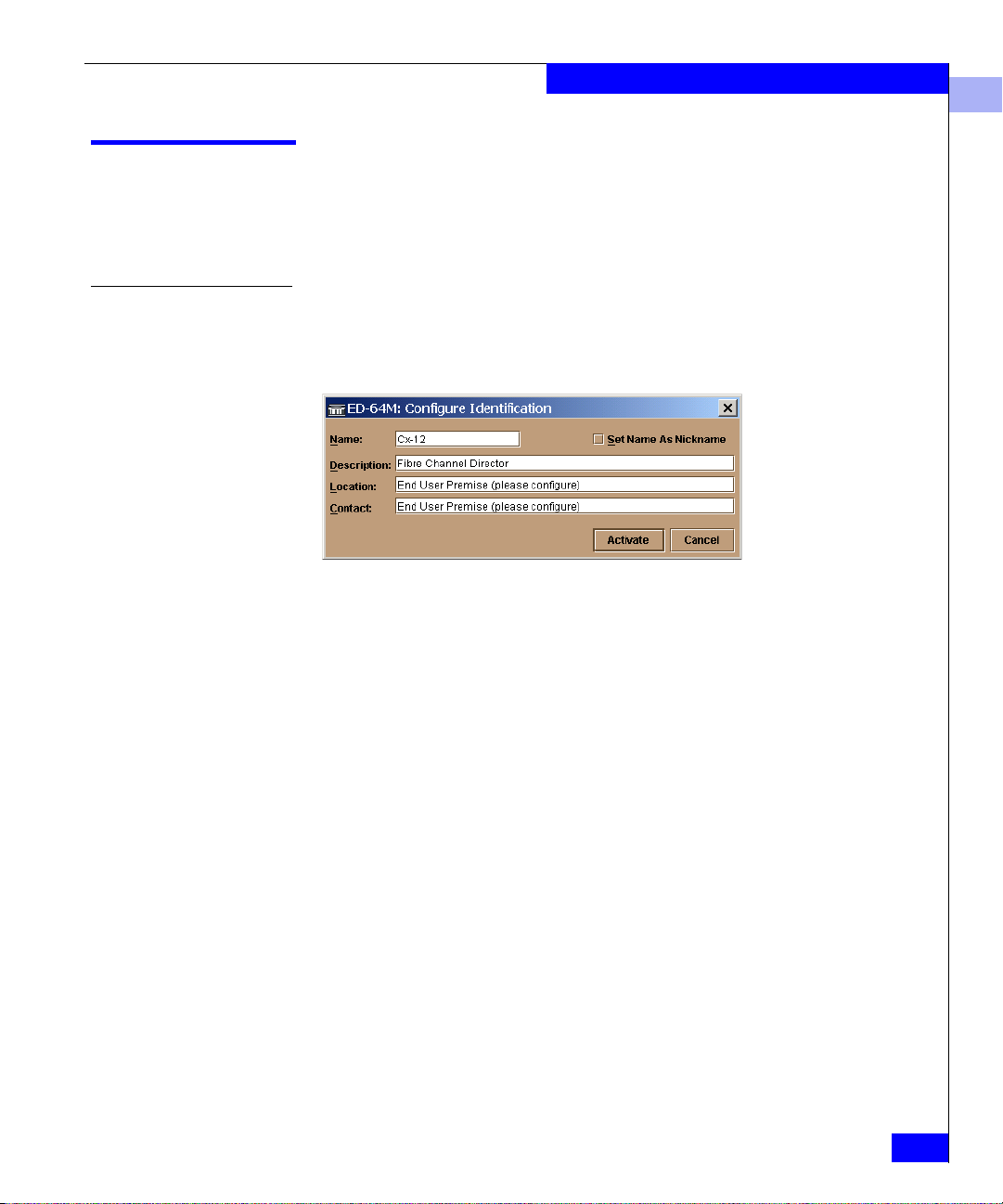

5-1 Configure Identification Dialog Box .......................................................... 5-3
5-2 Set Online State Window .......................... ...... ...... ................................. ...... 5-5
5-3 Configure Switch Parameters Dialog Box ................................................. 5-6
5-4 Configure Fabric Parameters Dialog Box ................................................ 5-10
5-5 Switch Binding — State Change Dialog Box ........................................... 5-14
5-6 Switch Binding — Membership List ........................................................ 5-16
5-7 Configure Ports Dialog Box ....................................................................... 5-19
5-8 Bound WWN Mismatch Warning ............................................................ 5-20
5-9 Bind WWN Dialog Box .............................................................................. 5-24
5-10 Configure Addresses - “Active” Dialog Box ........................................... 5-26
5-11 Save Address Configuration Dialog Box ................................................. 5-27
5-12 Prohibited Port Connection Symbol ......................................................... 5-29
5-13 Address Configuration Library Dialog Box ............................................ 5-30
5-14 Configure SNMP Dialog Box ..................................................................... 5-33
5-15 Configure Open Systems Management Server Window ...................... 5-35
5-16 Configure FICON Management Server Window ................................... 5-36
5-17 Set Online State Window ...................................... ..... ................................ 5-39
5-18 Configure Feature Key Window ............................................................... 5-40
5-19 New Feature Key Dialog Box .................................................................... 5-40
5-20 Enable Feature Key Dialog Box ................................................................. 5-41
5-21 Configure Date and Time Dialog Box ...................................................... 5-42
5-22 Configure Threshold Alerts Window ...................................................... 5-45
5-23 New Threshold Alerts Window — First Screen ..................................... 5-46
5-24 New Threshold Alerts Window — Second Screen ................................ 5-47
5-25 New Threshold Alerts Window — Third Screen ................................... 5-48
5-26 New Threshold Alerts Window — Summary Screen ............................ 5-49
5-27 Configure Threshold Alerts Window — Activate Alert ....................... 5-50
5-28 Export Configuration Dialog Box ............................................................. 5-54
6-1 Save Window ................................................................................................. 6-2
6-2 Audit Log ....................................................................................................... 6-4
6-3 Event Log ........................................................................................................ 6-6
6-4 Hardware Log ................................................................................................ 6-8
6-5 Link Incident Log .......................................................................................... 6-9
6-6 Threshold Alert Log .................................................................................... 6-11
7-1 Swap Ports Dialog Box ................................................................................. 7-3
7-2 Set Online State Window .......................... ...... ...... ................................. ...... 7-8
7-3 Backup and Restore Configuration Window .......................................... 7-13
7-4 QuikSync Icon in Windows System Tray ................................................ 7-16
7-5 Iomega QuikSync Dialog Box .................................................................... 7-16
7-6 Iomega QuikSync Dialog Box (Advanced Tab) ...................................... 7-17
A-1 MIB Tree ...................................................... .................................. ...... ..... ..... A-3
A-2 SNMP MIB-II Support ................................................................................. A-7
A-3 Fibre Channel Fabric Element MIB Supported ...................................... A-29
xvi
Connectrix ED-64M User Guide
Page 17
A-4 Private Enterprise MIB Support .............................................................. A-86
B-1 Connection Description Dialog Box ........................... ...... ......................... B-4
B-2 Connect To Dialog Box ................................................................................ B-4
B-3 Com 1, 2 Properties Dialog Box .................................................................. B-5
B-4 HyperTerminal Window ............................................................................. B-6
C-1 ED-64M Port Card Map ............................................................................... C-2
D-1 User Name and Password Dialog Box ..................................................... D-3
D-2 Web Server Interface View Window ................................................... D-4
D-3 Web Server Interface Configure User Rights ..................................... D-5
G-1 Problem Detection and Resolution Process ............................................. G-2
Figures
Connectrix ED-64M User Guide
xvii
Page 18
Figures
xviii
Connectrix ED-64M User Guide
Page 19
Tables
3-1 User Rights for Product Manager ............................................................ 3-24

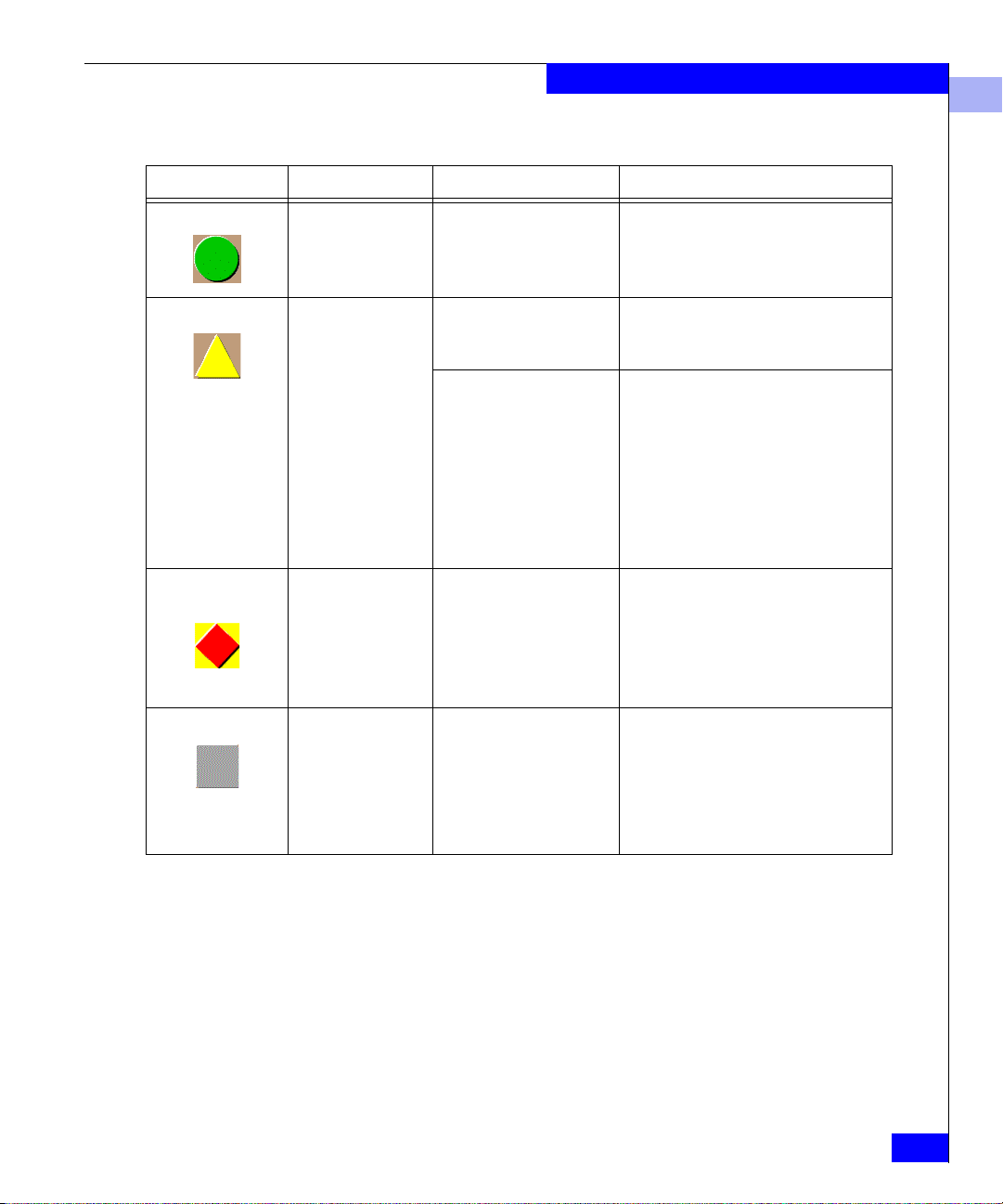

4-1 Operating Status - Status Symbol and Director Status ........................... 4-5
4-2 Legend for Figure 4-1 ................................................................................... 4-7
4-3 Port States .................................................................................................... 4-15
5-1 Available Code Pages ................................................................................ 5-38
7-1 Data Default Values ................................................................................... 7-19
A-1 System Group ............................................................................................... A-8
A-2 Interfaces Group .......................................................................................... A-9
A-3 Interfaces Table ............................................................................................ A-9
A-4 Address Translation Table ....................................................................... A-13
A-5 IP Group Table ........................................................................................... A-14
A-6 IP Address Table ........................................................................................ A-16
A-7 IP Routing Table ........................................................................................ A-16
A-8 IP Address Translation Table .................................................................. A-19
A-9 Additional IP Objects ................................................................................ A-19
A-10 ICMP Group Table .................................................................................... A-20
A-11 TCP Group Table ....................................................................................... A-22
A-12 TCP Connection Table .............................................................................. A-24
A-13 Additional TCP Objects ............................................................................ A-25
A-14 UDP Group ................................................................................................. A-25
A-15 UDP Listener Table ................................................................................... A-25
A-16 SNMP Group .............................................................................................. A-26
A-17 Fabric Element Management MIB: Predefined Types ......................... A-30
A-18 Fabric Element MIB Objects ..................................................................... A-32
A-19 Fabric Element MIB Modules .................................................................. A-32
A-20 FxPort Configuration Table ..................................................................... A-34
A-21 FxPort Operation Table ............................................................................ A-37
A-22 FxPort Physical Level Table ..................................................................... A-38
A-23 FxPort Fabric Login Table ........................................................................ A-40
A-24 FxPort Error Table ..................................................................................... A-43
Connectrix ED-64M User Guide
xix
Page 20
Tables
A-25 Class 2 Accounting Table ......................................................................... A-44
A-26 Class 3 Accounting Table ......................................................................... A-45
A-27 FxPort Capacity Table ............................................................................... A-46
A-28 FibreAlliance MIB Type Definitions ....................................................... A-49
A-29 Connectivity Unit Group ......................................................................... A-50
A-30 fcConnUnitTable ....................................................................................... A-51
A-31 Firmware Table .......................................................................................... A-57
A-32 Sensor Table ............................................................ ..... ...... ........................ A-58
A-33 Port Table .................................................................................................... A-60
A-34 Event Table ................................................................................................. A-69
A-35 Link Table ................................................................................................... A-72
A-36 Port Statistics Table ................................................................................... A-74
A-37 Name Server Table .................................................................................... A-81
A-38 Trap Registration Group .......................................................................... A-83
A-39 Trap Registration Table ............................................................................ A-83
A-40 Trap Types ............................. ..... ...... .................................. ...... ..... ............. A-85
A-41 Private Enterprise MIB Table .................................................................. A-87
A-42 System Group Variables ........................................................................... A-88
A-43 FRU Table ......................................... .................................. ...... .................. A-90
A-44 Port Table .................................................................................................... A-91
A-45 Port Binding Table .................................................................................... A-96
A-46 Zoning Variables ....................................................................................... A-96
A-47 Active Zone Table ..................................................................................... A-97
A-48 Active Zone Member Table ..................................................................... A-97
A-49 Threshold Alert Table ............................................................................... A-98
A-50 Enterprise-Specific Traps ......................................................................... A-99
A-51 Port State Descriptions ........................................................................... A-100
E-1 CLI Command Tree Navigation Conventions ......................................... E-5
E-2 CLI Command Tree ..................................................................................... E-6
E-3 Threshold Alert Counters ......................................................................... E-72
xx
Connectrix ED-64M User Guide
Page 21
This Guide describes how to operate and manage the Connectrix ED-64M Director. It is intended for data center administrators, LAN administrators, operations personnel, and customer support personnel who must monitor and manage product operation.

Organization This publication is organized as follows:

Chapter 1, ED-64M Director Operating Features, describes director
hardware components and their operating features. It also describes management and serviceability features available on the directors through network components, such as the Connectrix Manager Server, user workstations, and SNMP management stati ons.

Preface

Chapter 2, Operating the Director, prov ides procedures for using
the director controls, connectors, hardware LED indicators, and switching the unit power off and on. This chapter also describes general hardware operations.
Chapter 3, Product Manager Overview, provides an introduction
and overview of the ED-64M Product Manager . It is intended as a quick reference for using features available through the main Product Manager window.
Chapter 4, Mon i to ring and Ma na g i ng the Director, describes how to
monitor and manage ED-64M operation us ing the Product Manager. Thi s in cludes using status indicat ors, menu options, dialog boxes, and performance and error data available through the various views.
Chapter 5, Configuring the Director, describes how to use the
options available through the Product Manager Configure me nu.
Connectrix ED-64M User Guide
xxi
Page 22
Preface
Chapter 6, Using Logs, describes the log options that are available
through the Product Manager Logs menu.
Chapter 7, Using Maintenance Features, describes how to use the
options available through the Product Manager Maintena nce menu.
Appendix A, Using SNMP to Manage the Switch, provides details
on SNMP support for the ED-64M and provi des a l ist o f MIB and SNMP trap definitions.
Appendix B, Configuring Network Add resses, describes the
procedure for configuring unique addresses for each director.
Appendix C, Port Card Map, includes a chart that shows physical
port numbering for UPM cards installed in the director.
Appendix D, Configuring Embedded Web Server Passwords,
describes the procedures for configuring the ED-64M from the Embedded Web Server.
Appendix E, Command Line Interface, describes the commands that
an administr ator or opera tor can ent er ove r a Telnet sessi on, as an alternative to using the Connectrix Manager or Embedded Web Server.
xxii
Appendix F, Specifications, lists the physical characteristics and
operating environment of the ED-64M.
Appendix G, Customer Support, describes the EMC process for
detecting and resolving software problems, and provides essential questions that you should answer before contacting the EMC Customer Support Center.
The Glossary defines terms, abbreviations, and acronyms used in
this manual.
An Index also provided.
Connectrix ED-64M User Guide
Page 23
Preface
Related
Documentation
Related documents include:
Connectrix Manager v7.01 User Guide, P/N 069001219
Connectrix v7.01 E nterprise Storage Net w ork System Planning Guide,
P/N 069001218
Connectrix DS-16M Fibre Channel Switch User Guide,
P/N 069001080
Connectrix DS-16M2 Fibre Channel Switch User Guide,
P/N 069001205
Connectrix DS-24M2 Fibre Channel Switch User Guide,
P/N 069001203
Connectrix DS-32M Fibre Channel Switch User Guide,
P/N 069001081
Connectrix DS-32M2 Fibre Channel Switch User Guide,
P/N 069001206
Connectrix ED-64M Fibre Channel Director User Guide,
P/N 069001096
Connectrix ED-64M 2 Gb Fibre Channel Director User Guide,
P/N 069001204
Connectrix ED-140M Fibre Channel Director User Gu ide,
P/N 069001202
Conventions Used in
this Guide
!
EMC uses the following conventions for notes, cautions, and warnings.
A note presents information that is important, but not hazard-related.
CAUTION
A caution contains information essential to avoid data loss or damage to the system or equipment. The caution may apply to hardware or software.
WARNING
A warning contains information essential to avoid a hazard that can cause severe personal injury, death, or substantial property damage if you ignore the message.
Connectrix ED-64M User Guide
xxiii
Page 24
Preface
Typographical Conventions
EMC uses the following type style conventions in this guide:
AVANT GARDE Keystrokes
Palatino, bold
Dialog box, button, icon, and menu items in text
Selections you can make from the user interface,
including buttons, icons, options, and field names
Palatino, italic
Courier, italic
Courier
New terms or unique word usage in text
Command line argumen t s when used in text
Book titles
Arguments used in examples of command line syntax.
System prompts and displays and specific filenames or complete paths. For example:
working root directory [/user/emc]:
c:\Program Files\EMC\Symapi\db
Courier, bold
User entry. For example:
symmpoll -p
Options in command line syntax

Where to Get Help For questions about technical support, call your local sales office or

service provider. If you have a valid EMC service contract, contact EMC Customer
Service at:
United States: (800) 782-4362 (SVC-4EMC) Canada: (800) 543-4782 (543-4SVC) Worldwide: (508) 497-7901
xxiv
Follow the voice menu prompts to open a service call and select the applicable product support.
Connectrix ED-64M User Guide
Page 25
Preface
Sales and Customer
Service Contacts
For the list of EMC sales locations, please access the EMC home page at:
http://www.EMC.com/contact/
For additional information on the EMC products and services available to customers and partners, refer to the EMC Powerlink Web site at:
http://powerlink.EMC.com

Your Comments Your suggestions will help us continue to improve the accuracy,

organization, and overall quality of the user publications. Please send a message to techpub_comments@EMC.com with your opinions of this guide.
Connectrix ED-64M User Guide
xxv
Page 26
Preface
xxvi
Connectrix ED-64M User Guide
Page 27
The following warnings and cautions pertain throughout this guide.

WARNING Trained service personnel only.

This EMC product has more than one power supply cord. To reduce the risk of electric shock, disconnect all power supply cords before servicing.
Ground circuit continuity is vital for safe operation of the machine. Never operate the machine with grounding conductors disconnected. Remember to reconnect any grounding conductors removed for or during any installation procedure.
Warnings and
Cautions

ATTENTION Resérvé au personnel autorisé.

Cet appareil EMC comporte plus d'un cordon d'alimentation. Afin de prévenir les chocs électriques, débranchez tous les cordons d'alimentation avant de faire le dépannage.
Un circuit de terre continu est essentiel en vue du fonctionnement sécurisé de l'appareil. Ne mettez jamais l'appareil en marche lorsque le conducteur de mise à la terre est débranché.

WARNUNG Nur für authorisiertes Fachpersonal.

Dieses EMC Produkt verfügt über mehrere elektrische Netzanschlüsse. Zur V ermeidung eines elektrischen Schlages sind vor Servicearbeiten an der Stromversorgung alle Netzanschlüsse zu trennen.
Kontinuierliche Erdung is t notwendig während der gesamten Betriebsdauer des Gerätes. Es ist unzulässig das Gerät ohne Erdung
Connectrix ED-64M User Guide
xxvii
Page 28
Warnings and Cautions
zu betreiben. Gerät muss geerdet werden, bevor es am Stromnetz angeschlossen wird.
Additional Warnings
and Cautions
!
Before attempting to service EMC hardware described in this document, observe the following additional Warnings and Cautions:
WARNING
The hardware enclosurecontains no user-serviceable parts, so it should not be moved or opened for any reason by untrained persons. If the hardware needs to be relocated or repaired, only qualified personnel familiar with safety procedures for electrical equipment and EMC hardware should access components inside the unit or move the unit.
WARNING
This product operates at high voltages. To protect against physical harm, power off the system whenever possible while servicing.
WARNING
In case of fire or other emergency involving the EMC product, isolate the products power and alert appropriate personnel.
CAUTION
Trained personnel are advised to exercise great care at all times when working on the EMC hardware. Remember to:
xxviii
Remove rings, watches, or other jewelry and neckties before
you begin any procedures.
Use caution near any moving part and any part that may start
unexpectedly such as fans, motors, solenoids, etc.
Always use the correct tools for the job.
Always use the correct replacement parts.
Keep all paperwork, including incident reports, up to date,
complete, and accurate.
Connectrix ED-64M User Guide
Page 29
Warnings and Cautions

Static Precautions EMC incorporates state-of-the-art technology in its designs, including

the use of LSI and VLSI components. These chips ar e very susceptible to damage caused by static discharge and need to be handled accordingly.
!
CAUTION
Before handling printed circuit boards or other parts containing LSI and/or VLSI components, observe the following precautions:
Store all printed circuit boards in antistatic bags.
Use a ground strap whenever you handle a printed circuit
board.
Unless specifically designed for non-disruptive replacement,
never plug or unplug printed circuit boards with the power on. Severe component damage may result.
Connectrix ED-64M User Guide
xxix
Page 30
Warnings and Cautions
xxx
Connectrix ED-64M User Guide
Page 31
Invisible Body Tag
1
ED-64M Direct or
Operating Features
This chapter introduces the operating features of the EMC Connectrix ED-64M Director, including hardware features and components. The chapter describes management, service, and operation features, and hardware operations.
Overview.............................................................................................1-2
Director Components......................................................................1-11
Embedded Web Server...................................... ...... ...... ..................1-16
Hardware Operations......................................................................1-17

ED-64M Director Operating Features

1-1
Page 32
ED-64M Director Operating Features
1

Overview

The ED-64M is a 64-port director-class switch tha t provides dynamic switched connections between Fibre Channel servers and devices in a Storage Area Network (SAN) environment. Directors are managed and controlled through the Connectrix service processor . Remote user workstations can also be used in addition to a server for remote management and co ntrol o f d irec t or s.
Up to four directors are delivered in a EMC-supplied EC-1200 equipment cabinet. (Refer to Figure 1-1 on page 1-3.) The Connectrix service processor is mounted inside the front door of the cabinet.
Multiple directors and the service processor communicate on a LAN through one or more 10/100Base-T Ethernet hubs. (Refer to Figure 1-2 on page 1-6.) Up to four hubs can be connected together as more directors are instal led on a customer network.
The directors Fibre Channel techno logy provides high-performance scalable bandwidth (2 Gb/s), highly available operation, redundant switched data paths, long tra nsmission distances (up to 20 km), and high device population.
1-2

Features

Connectrix ED-64M User Guide
The director supports Open Systems Interconnection (OSI) computing environments and provides data tr ansmission and flow control between device node ports (N_Ports) as dictated by the Fibre Channel Physical and Signaling Interface (FC-PH 4.3).
Key features of the ED-64M include:
64 ports of non- b l ocking 1 Gb/s or 2 Gb/s Fibre Channel
switching in a 9U form factor.
Redundant CTPs, SBARs, power, and cooling units.
Hot-replaceable port cards, optics, CTPs, SBARs, power, and
cooling units.
On-line microcode upgrades.
Management, maintenance, and serviceability features through
Connectrix Manager.
E_Port compatibility with inst alled base of ED-140Ms, ED-64Ms,
ED-1032s, and DS-xxMs (DS-16M, DS-16M2, DS-24M2, DS-32M, DS-32M2).
LC-based Fibre Channel connector system.
Page 33
Ethernet Hub
ED-64M
ED-64M
ED-64M Director Operating Features
1
Up to four ED-64Ms in a single EC-1200, providing up to 256
director-class ports per cabinet.
Web browser , CLI, and SNMP support.
Zip Drive
Connectrix Service Processor
ED-64M
ED-64M
Figure 1-1 EC-1200 Cabinet with ED-64Ms and Connectrix Service Processor
Overview
1-3
Page 34
ED-64M Director Operating Features
1
Connectrix release 6.0 includes new hardware that delivers 2 Gb/s capability for the ED-64M. The new hardware includes a new Control Processor (CTP2) and a set of new universal port cards (UPMs):
ED-UPM-04 — Universal Port Card: 1–2 Gb/s, 4 shortwave ports
ED-UPM-04-UPG — Universal Port Card: 1–2 Gb/s, 4 sh ortwave
ports, post-sale upgrade
ED-UPM-L10 Universal Port Card: 12 Gb/s, 4 longw ave
ports, 10 km distance
ED-UPM-L10-UPG Universal Port Card: 12 Gb/s, 4
longwave ports, 10 km distance, post-sale upgrade
ED-UPM-L20 Universal Port Card: 12 Gb/s, 4 longw ave
ports, 20 km distance
ED-UPM-L20-UPG Universal Port Card: 12 Gb/s, 4
longwave ports, 20 km distance, post-sale upgrade
DSED-LWKT10 Long Wave Optic Kit for DS or ED: 10 km
distance
DSED-LWKT20 Long Wave Optic Kit for DS or ED: 20 km
distance
ED-CTP2-UPG Control Processor Card: Required for 2 Gb/s
ED-64M

Performance Features

1-4
Connectrix ED-64M User Guide
In addition to Fibre Channel port connectivity, the director provides the following performance features:
High bandwidth — Each port provides full-duplex serial data
transfer at a rate of 2.125 Gb/s.
High-availability — The director design provides a redundant
configuration of critical hardware components with automatic failure detection and notification.
Low latency — The latency is less than two microseconds
between transmission of a frame at a source port to receipt of the frame at the corresponding destination port (with no port contention).
Low communication overhead — Fibre Channel protocol
provides efficient use of transmission bandwidth, reduces interlocked handshakes across the communicatio n interface, and efficiently implements low-level error recovery mechanisms. This
Page 35
ED-64M Director Operating Features
results in little communication overhead in the protocol and a director Bit Error Rate (BER) not exceeding one bit error per trillion (10
Local control Actions taking place at a device N_Port seldom
-12
) bits.
affect operation of other ports, therefore servers need to maintain little or no information about other con nected d e vices in a SAN.
Multiple topology support —The dir ector supports single-switch
and multiswitch fabric topologies.
Refer to the EMC Connectrix Enterprise Storage Network System Planning Guide for more information on creating a multiswitch fabric.
1

Director Management

Management access to the ED-64M Director is provided through an Ethernet LAN connection to the directors CTP card. The following management access methods are provided:
The Connectrix Manager and ED-64M Product Manager
applications These Java-based GUIs reside on the Connectrix service processor under control of the Microsoft Windows NT operating system. Remote clients can also be installed onto remote user workstations. Refer to Chapter 3, Product Manager Overview for information about the interfaces.
Remote operators can connect to the Connectrix service proce ssor through the Connectrix Manager Client application on their workstations, to manage and monitor directors controlled by the Connectrix service processor. A maximum of nine concurrent users (including a local user) can log in to the Connectrix Manager application.
SNMP (Simple Network Management Protocol) — An SNMP
agent is implemented through the Product Manager application that allows administrators on SNMP management workstations to access director management informat ion using any standard network management tool. Administra tors can assign IP addresses and corresponding community names for up to six SNMP workstations functioning as SNMP trap message recipients.
Figure 1-2 illustrates out-of-band director mana gement through the Connectrix service processor, SNMP management station, and remote user workstation configurations.
Overview
1-5
Page 36
ED-64M Director Operating Features
1
Connectrix Manager Client Workstations
E-Mail Server
10/100 Mb/s
Corporate LAN
Switch/Hub
Connectrix Manager Server
Running on
Connectrix Service Processor
SNMP
Management
Station

High-Availability

1-6
Connectrix ED-64M User Guide
Figure 1-2 Out-of-Band Management
Pairs of critical FRUs installed in the director provide redundancy in case a FRU fails. When an active FRU fails, the backup FRU tak es over operation automatically to maintain director and Fibre Channel link operation. (This process is called failover.)
UPM cards do not automatically fail over and provide link operation after a failure. Fiber optic cables from the failed UPM card must be disconnected and reconnected to ports on a functional card to continue operation.
Standard redundancy is provided through these components :
Power supplies — The director contains two power supplies that
share the electrical operating load. If one power supply fails, the other supply handles t he full load. S eparate r eceptacles at the r ear of the director provide facility input power to each supply. For full redundancy, input power for each receptacle should come from a different so u rce .
Page 37
ED-64M Director Operating Features
Fan modules — The director contains two fan modules, each
containing three fans. If one or more fans in a module fail, the redundant fan module provides cooling until the failed module is replaced. If the second fan module fails, software shuts off power to the director to prevent system damage.
Ports — The director is delivered with a minimum of four UPM
cards (16 ports). Any unused Fibre Channel port can be used in place of a failed port. To continue device operation, you must reconnect the fiber optic cable from a failed port is to an unused operational port.
CTP Card — A redundant CTP card prov ides a backup
connection to the Connectrix service processor and ensures continued director operation if the active CTP card fails.
SBAR Card — A redundant serial crossbar (SBAR) card ensures
uninterrupted transmission and receipt of Fibre Channel frames between ports if the active SBAR card fails.
1

Connectivity

The director and the Product Manager applications support these Fibre Channel connectivity features:
Any-to-any connectivity — The direct or software configures
hardware rou ting tables for each source port to provide any-to-any port connectivity. Subject to user-defined restrictions (port blocking and zoning), the tables define the destination ports with which the source port is allowed to communicate.
Extended distance support — Through repeaters or Dense Wave
Division Multiplexing (DWDM) equipment, any director port can be configured (by increasing a ports buffer-to-buffer credit value) to operate over extended distances at full speed.
Port blocking — System administrators can block or unblock any
director port through the Product Manager application. Blocking a port prevents an attached device from logging in to the director or communicating with any attached device. A blocked port continuously transmits an off-line sequence (OLS).
Zoning — System administrators can partition attached devices
into restricted-access zones. A zone contains a set of devices that can access each other . A zone member can be a port or the WWN of the device attached to a port. (EMC
®
recommends that zones contain only WWNs.) Ports and devices spread throughout switches in a multiswitch fabric can be grouped into the same zone.
Overview
1-7
Page 38
ED-64M Director Operating Features
1
Refer to the EMC Connectrix Enterprise Storage Network System Planning Guide for more information on creating a multiswitch fabric.
Members of a zone can see each other, but members in different zones cannot. HBAs with EMC-approved device drivers will discover only those storage devices in their zone.
State change notificatio n — The di r e cto r s u pport s a s t ate change
notification function that allow s attached N-Ports to request notification when other N_Ports change operational state.

Security

The Connectrix Manager and Product Mana ger applications offer these security features:
Password protection — Users must provide a user name and
password to log in to the Connectrix service processor and access managed directors. Administrators can configure user names and passwords for up to 16 users, and can authorize or prohibit management permissions for each user.
Remote user rest rictions — Remote user access to the director
can be either disabled or restricted to configured IP addresses.
SNMP workstatio n restrictions — SNM P workstations can only
access Management Information Base (MIB) variables managed by the director SNMP agent. SNMP workstations must belong to SNMP communities configured through the Product Manager application. If configured, the agent can send authorization failure traps when unauthorized SNMP workstations attempt to access the director.
Audit log tracking — Configuration changes to the director are
recorded in an audit log stored on the Connectrix service processor or customer-supplied server. Users can display the audit log through the Product Manager application. Log entries include the date and time of the configuration change, a description of the change, and the source of the change.
1-8
E_Port/F_Port control function The administrator can
configure the G_port for F_port operation only . If the port extends the link outside the data center, this feature prevents the remote user from connecting a switch and making the port an E_port.
Port blocking — System administrators can block or unblock any
director port to restrict device access to the director.
Connectrix ED-64M User Guide
Page 39
ED-64M Director Operating Features
Zoning — System administrators can create zones that provide
director access control to increase network security, differentiate between operating systems, and prevent data loss or corruption. Zoning can be implemented in conjunction with server-level access control and storage device access control.
1

Serviceability

The ED-64M, Connectrix Manager, and Product Manager applications offer these serviceability features:
LEDs on director FRUs and the front bezel that provide visual
indicators of hardware status or malfunctions.
System alerts, event logs, audit logs, link inci d ent logs, and
hardware logs that display director, Ethernet link, and Fibre Channel link status at the Connectrix service processor or a remote workstation.
Diagnostic software that perform s power-on self tests (POSTs)
and internal/external loopback port diagnostics tests.
Automatic notification of significant system events to support
personnel or administrators through e-mail messages or the call-home feature.
An external modem for support personnel to dial-in to the
Connectrix service processor for event notification and to perform remote diagnostics.
An RS-232 maintenance port at the rear of the director (port
access is password protec ted) that enables inst allation or service personnel to:
Change the directors MAC address, IP address, subnet mask,
and gateway address.
Enable or disable the LAN data rate auto-negotiate feature.
The default is enabled.
Redundant FRUs SFP LC transceivers, power supplies, and
cooling fans) that can be removed or replaced without disrupting director or Fibre Channel link operation.
A modular design that enables quick removal and replacement of
FRUs without tools.
Concurrent port maintenance. SFP transceivers can be added or
replaced, and fiber optic cables can be attached to ports without interrupting other ports or director operation.
Overview
1-9
Page 40
ED-64M Director Operating Features
1
Beaconing to assist service personnel in locating a specific
director, port, or FR U. Wh en unit beaconing is enabled, the system error indicator on the front bezel flashes. When port beaconing is enabled, the amber LED flashes o n the director where the port is installed. When SBAR or CTP card beaconing is enabled, the amber LED flashes on the appropriate card.
Beaconing does not affect port or director operation.
SNMP management using the Fibre Alliance MIB that runs on the
Connectrix service processor. Up to 12 authorized management workstations can be co nfigured through the Connectrix Man ager application to receive unsolicited SNMP trap messages. The trap messages indicate operational state changes and failure conditions.
SNMP management using the Fibre Channel Fabric Element MIB,
TCP/IP MIB-II definition (RFC 1213), or an ED-64M MIB that r un on each director. Up to six authorized management workstations can be configured through the Product Manager application to receive unsolicited SNMP trap messages. The trap messages indicate operational state changes and failure conditions.
Data collection through the Product Manager applica tion to help
isolate system problems. The data includes a memory dump file and audit, hardware, and engineering logs.
1-10
Connectrix ED-64M User Guide
Page 41

Director Components

The ED-64M Directors modular design allows quick removal and replacement of field replaceable units (FRUs). Figure 1-3 and Figure 1-4 show some of these FRUS, as well as some LEDs and connectors. (Refer to Connectors, Co ntrols, and Indicator s on page 2-4 for more information on the LEDs and connectors.)
ED-64M Director Operating Features
1
Power and
System Error LEDs
CTP Cards (2)
Power Supply
PS 1
Figure 1-3 ED-64M, Front View
Fan Module LEDs
Serial Crossbars
(SBARs)
AC Power Connector
for PS 0
Maintenance Port
UPM Cards (up to 16)
Power Supply
PS 0
SBAR LEDs
AC Power Connector
for PS 1
AC Power Switch
Figure 1-4 ED-64M, Rear View
Director Components
1-11
Page 42
ED-64M Director Operating Features
1
FRUs accessed from the front of the director include the:
Front bezel
Control Processor (CTP) cards
2 Gb Universal Port Module (UPM) cards
Power supplies
Director FRUs accessed from the rear include the:
Radio frequency interference (RFI) shield
Input power module
Cooling fan modules
Serial crossbar (SBAR) cards
Backplane (not shown)

CTP Card

The Control Processor (CTP) card initializes and configures the director after the power is switched on, and contains the microprocessor and associated logic that coordinate operation of the director. An IML (Initial Machine Load) button and Ethernet connector are built into the cards faceplate. The faceplate also contains LEDs to indicate the cards operational status. For more information, refer to CTP Cards on page 2-7.
The CTP card contains the System Services Processor (SSP) and Embedded Port (EP) subsystems.
The SSP subsystem runs director appli cations and the underl ying
operating system, communicates with director ports, and controls the RS-232 maintenance port and 10/100 Mbps Ethernet port.
The EP subsystem provides Class F and exception frame
processing, and manages frame transmission to and from the SBAR card.
In addition, the CTP card provides nonvolatile memory for storing firmware (two memory regions), switch configuration information, persistent operating parameters, and memory dump files. Because two firmware versions can be stored on the card, firmware is upgraded concurrently (without disrupting operation), even for a single-CTP director.
A backup CTP card can take over operation if the active card fails. Failover from a faulty card to the backup card is transparent to attached devices. A backup CTP card can be added while the director is powered on and operating.
1-12
Connectrix ED-64M User Guide
Page 43
ED-64M Director Operating Features
1

UPM Card

The director is configured with 4 to 16 Universal Port Module (UPM) cards (16 to 64 ports). Each UPM card contains four duplex small-form-factor pluggable (SFP) shortwa ve optic transceivers. Any or all of the transceivers can be upgraded to longwave using an upgrade kit available from EMC.
UPM cards use non-Open Fiber Control (OFC) Class 1 laser transceivers that comply with Section 21 of the Code of Fed e ral Regulations (CFR), Subpart (J) as of the date of manufacture. Each port can transmit or receive data at 2.125 Gb/s. G_Port functionality depends on the type of attachment:
If the G_Port is attached to a Fibre Channel device, the port
functions as a fabric port (F_Port). An F_Port is the interface on a director that connects to a device node port (N_Port).
If the G_Port is attached to another director to form an
interswitch link (ISL), the port functions as an expansion port (E_Port). A multiswitch fabric is formed through m ultiple directors and ISLs.
An ESN security feature allows the administrator to configure the G_Port for F_Port operation only. If the data center is extended the link outside the data center, this feature prevents the remote user from connecting a switch and making the port an E_Port.
If the port extends the link outside the data center, this feature prevents the remote user from connecting a switch and making the port an E_Port.
If the director G_Po rt is attached to the B_Port of a switch,
arbitrated loop devices attached to the switch can connect to a multiswitch fabric. B_Ports are not assigned a Domain ID an d do not participate in fabric path selection processes.
Single-mode or multimode fiber optic cables attach to the UPM cards through duplex LC connectors, which can be detached from the UPM cards (through a 10-pin interface) for easy replacement.
Director Components
1-13
Page 44
ED-64M Director Operating Features
1
Two fiber-optic transceiver types are available:
Shortwave laser — Provides connections for transferring data
over short distances (up t o 300 mete rs at 2 Gb/s and 50 0 meters at 1 Gb/s) through 50-micron or 62.5 -micron multimode fiber.
Transmission speeds affect the distance capabilities of multimode fiber. Refer to Planning Cabling in the
Storage Network System Planning Guide, P/N ..
Longwave laser — Provides connections for transferring data
over long distances (up to 20 kilometers) through 9-micron single-mode fiber.
The director provides chassis slots for up to 16 UPM cards (64 ports total). An UPM card is a concurrent FRU and can be added or replaced while the director is powered on and operating.
Connectrix V.6.03 2 Gb/s Enterprise

Power Supplies

RFI Shield

Input Power Module

Redundant, load-sharing power supplies step down and rectify facility input power to provide 48 VDC power to director FRUs. The power supplies also provide overvoltage and overcurrent protectio n. Y ou can r eplace either power supply while the director is powered on and operational.
Each power supply has two separate backplane connections for different AC power sources. The power supplies are in put rated up to 264 VAC.
The RFI shield covers and provides RFI protection for all rear-access FRUs except the input power module. The RFI shield can be removed or replaced while the director is powered on and operating.
The input power module is located at the bottom rear of the director. The module is a nonconcurrent FRU; the director must be powered off before s che duled removal and repl acem ent. The mo dule provides:
Two single-phase AC power connectors for connection to the
EC-1200 AC power distribution system. Each connector is input rated at up to 264 VAC.
A power switch (circuit breaker) that controls AC power
distribution to both power supplies. The breaker is set manually, or is automatically tripped by internal software if thermal sensors indicate the director is overheated.
1-14
Connectrix ED-64M User Guide
Page 45
ED-64M Director Operating Features
A 9-pin maintenance por t tha t provides a connec t ion for a loc al
terminal or dial-in connection for a remote terminal. Although the port is typically used by authorized maintenance
personnel, and for operations personnel to set IP addresses.
An input filter and AC system harness (internal to the FRU) that
provides the wiring to connect the AC power connectors to the power switch and power supplies (through the backplane).
1

Fan Modules

SBAR Card

Two fan modules, each containing three fans (six fans total), provide cooling for director FRUs, as well as redundancy for continued operation if a fan fails.
A fan module can be replaced while the director is powered on and operating,
Each SBAR card is responsible for Fibre Channel frame transmission from any director port to any other director port. C onnections are established without software intervention. The card accepts a connection request from a port, determines if a connection can be established, and establishes the connection if the destination port is available. The card also stores busy, source connection, and error status for each director port.
A backup SBAR card takes over operation if the active card fails. It provides the ability to maintain connectivity and data frame transmission without interruption if the active SBAR card fails. Failover to the backup card is transparent to attached devices.
The SBAR card mounts flush on the backplane, and the SBAR FRU is comprised of the card and a steel carriage. The carriage provides protection for the back of the card, distributes cooling airflow, and assists in aligning the card during installation. The carriage contains two LEDs to indicate operational status. For details on LED operation, refer to SBAR Cards on page 2-9.

Backplane

The backplane provides 48 VDC power distribution and connections for all logic cards. The backplane is a nonconcurrent FRU; the director must be p o wered off prior to FRU removal and replacement.
Director Components
1-15
Page 46
ED-64M Director Operating Features
1

Embedded Web Server

Using a browser-capable PC with an Internet connection to the ED-64M, you can monitor and manage the director through the Web Server interface embedded in the director firmware. The interface provides a GUI similar to the Product Manager application, and supports switch configuration, statistics monitoring, and basic operation.
To launch the Web Server interface, enter the directors IP address as the URL into any standard browser. (The directors IP address appears under the switch icon on the Connectrix Manager Products view when Network Address is selected as the display option.) Enter a user name and password at a the login screen. The browser then becomes a management console.
The default user name for the right to view status and other information is operator. The default user name for the right to modify configuration data, perform m ainte nance tasks, or perform other options is Administrator. The default password for both user names is password.
1-16
Refer to Appendix D for detailed information on configuring Web Server passwords.
The Embedded Web Server is not intended to be the primary means of management for ED-64Ms. It is recommended that the Web Server be disabled (using Connectrix Manager). This is specially important if the ED-64M is configured to reside on a public LAN.
Connectrix ED-64M User Guide
Page 47

Hardware Operations

This section introduces hardware operations that affect the ED-64M.
ED-64M Director Operating Features
1

Updating Firmware

Blocking and Unblocking Ports

Director Operational States

The Connectrix service processors fixed disk can contain a library of firmware versions for downloading to any ED-6 4M managed by the Connectrix service processor. Because the CTP card contains two memory regions for storing firmware, new firmware can be loaded (sent) to the director without disrupting port operation. This is true even if the director contains only a single CTP card.
An entire port card (four ports) can be blocked or unblocked, or ports can be blocked or unblocked on an individual basis. When a port is blocked, the port is automatically set off line, an d continuously transmits OLS. When a port is unblocked, the port is automatically set on line.
When a director port is blocked, operation of an attached Fibre Channel device is disrupted. Do not block director ports unless directed to do so by a procedural step or the next level of support.
The director can have one of the following operational states:
On line — When the director is in the on-line state, all of the
unblocked ports are allowed to log in to the fabric and begi n communicating. Devices can connect to the director if the port is not blocked and can communicate with another attached device if both devices are in the same zone or if the default zone is enabled.
Off line — When the director is in the off-line state, all the
installed ports are off line. The ports transmit OLS, and they cannot accept a login for connection from an attached device. All ports in the director, including E_Ports, are placed off line regardless of whether they were blocked or unblocked and the director is removed from a multiswitch fabric.
Change the operational state of the director through the Product Manager usin g the Se t Online State option. Refer to Setting the Online State on page 7-8 for details.
Hardware Operations
1-17
Page 48
ED-64M Director Operating Features
1

IML Function

When the small, white IML button on the CTP card is pressed and held for three seconds, the director performs an IML (Initial Machine Load). The director reloads firmware and rese ts both CT P cards without switching off power or affecting operational fiber optic links. An IML performs essentially the same functions as an IPL (Initial Program Load), but resets both CTP cards instead of just the active CTP card. Refer to IPL Function on page 1-19 for more detail on the IPL process.
An IML causes the link between the ED-64M and the Connectrix service processor to drop momentarily. Pressing the IML button and holding it for three seconds causes the following to occur in the Product Manager window:
As the network connection drops, the ED-64M Status table on the
Hardware view turns yellow.
The Status field in the table displays No Link and the State field
displays the reason why the link did not occur.
A Link Loss Status table appears.
A gray square appears in the alert panel.
The FRUs illustrated in the Hardware view disappear, and then
reappear as the connection is reestablished.
1-18
Connectrix ED-64M User Guide
Page 49
ED-64M Director Operating Features
1

IPL Function

T o perform an IPL, click Maintenance on the Prod uct M ana ge r me nu bar and select IPL on the drop-down menu.
!
CAUTION
An IPL is not intended for ordinary or casual use and should only be performed if the active CTP card is suspect or if directed by next-level support or documentation. An IPL interrupts the link between the Connectrix service processor and director.
A director IPL performs the following functions:
Resets the functional logic for the active CTP card only. An IPL
does not reset the backup CTP card, SBAR cards, or UPM cards. All director switching operations are unaffected.
An IML performs essentially the same functions, but resets both CTP cards. A director IML is initiated by pressing and holding the white IML button (on the faceplate of either CTP card) for three seconds.
Loads firmware from the CTP card flash memory without cycling
director power.
Resets the Ethernet LAN interface on the active CTP car d, causing
the connection to the Connectrix service processor to drop momentarily until the connection automatically recovers.
Automatically sets the director on line. The blocked/unbl ocked state of each port remains intact.
After the IPL:
All fabric services databases containing information about
current fabric logins, name server registrations, and ot he r data remain intact, making the operation transparent to attached devices.
The director returns to the on-line state, even if it was off line
before the operation.
All ports configured as blocked will remain blocked.
Hardware Operations
1-19
Page 50
ED-64M Director Operating Features
1
Port Diagnostics Maintenance personnel can perfor m the following tests through the
Port Diagnostics option on the Product Manager Maintenance menu.
Internal Loopback an internal loopback test checks port card
circuitry, but does not check fiber optic components of a port transceiver. The test is performed with a device attached to the port, but the test momentarily blocks the port and is disruptive to the attached device.
External Loopback — an external loopback test checks all port
card circuitry, including fiber optic components of a port transceiver. To perform the test, the attached device must be quiesced and disconnected from the port, and a multimode or singlemode wrap plug must be inserted in the port receptacle.
1-20
Connectrix ED-64M User Guide
Page 51
Invisible Body Tag
2

Operating the Director

This chapter describes the operation of the ED-64M Director and identifies the controls and indicators.
Power Procedures ..............................................................................2-2
Connectors, Controls, and Indicators..............................................2-4
Operating the Director
2-1
Page 52
Operating the Director
2

Power Procedures

Powering the Director On

Follow these steps to switch power on to the ED-64M and verify operation. Refer to Figure 2-2 on page 2-4 for component locations:
1. One AC power cord is required for each power supply installed. These are located on the bottom rear of the director. Ensure that each cord is connected to a separate facility power circuit.
WARNING
An EMC-supplied power cord is provided for each director power supply. To prevent electric shock when connecting the director to primary facility power, use only the supplied power cord(s), and ensure that the facility power receptacle is the correct type, supplies the required voltage, and is properly grounded.
2. At the bottom rear of the director, set the power switch (circuit breaker) to the up position.
The director powers on and performs power-on self-tests (POSTs) to ensure correct operation of switch logic. These tests reside in flash memory on the Control Processor (CTP) card.
During POSTs: a. Amber LEDs on both CTP cards and all Fiber Port Module
(UPM) cards illuminate momentarily.
b. The green LED on each CTP card (active and backup)
illuminates as the card is tested and UPM cards are tested.
2-2
c. Green LEDs associated with Fibre Channel ports sequentially
illuminate as the ports are tested.
3. After successful POST completion, the green power LED on the front bezel, green LED on the active CTP card, and green PWR OK LEDs on both power supplies remain illumi nated.
4. If a POST error or other malfunction occurs, contact EMC Customer Support.
When powerin g on the director after removing and replac ing a faulty FRU, the amber system error LED may remain illuminated. Clear the system error LED as part of the replacement procedure.
Connectrix ED-64M User Guide
Page 53
Operating the Director
2

Powering the Director Off

Procedure To switch the power off, follow these steps:
Notes
!
Follow these steps to switch power off to the ED-64M or to power cycle (turn power off and on).
Do not switch the power off to remove FRUs or to connect fiber
optic cables to and from ports. You must switch off the power to relocate the director.
Power-cycling the director resets all logic cards, executes POSTs,
and interrupts port operation. When performing a power cycle, wait approximately 30 seconds before switching pow er on.
When the director is powered off, the operation of attached Fibre
Channel devices is disrupted. Do not power off the director unless directed to do so by a procedural step or the next level of support.
CAUTION
Warn administrators and u sers current ly operating devices that are attached to the director that it is going off line and that communications will disrupt. Also, request that the devices affected by an interruption of data flow be set off line.
1. Notify the customer the director will be powered off. Ensure that the customers system administrator quiesce s Fibre Channel frame traffic through the director and sets attached devices off line.
2. Set the director off line. For instructions, refer to Setting the Online State on page 7-8.
3. At the bottom rear of the director, set the power switch (circuit breaker) to the down (off) position. (Refer to Figure 2-2 on page 2-4 for switch location.)
Power Procedures
2-3
Page 54
Operating the Director
2

Connectors, Controls, and Indicators

This section describes some of the external components of the ED-64M. Refer to Figure 2-1 and Figure 2-2 for locati ons.
Power and
System Error LEDs
CTP Cards (2)
Power Supply
PS 1
Figure 2-1 ED-64M, Front View
Fan Module LEDs
Serial Crossbars
(SBARs)
AC Power Connector
for PS 0
Maintenance Port
UPM Cards (up to 16)
Power Supply
PS 0
SBAR LEDs
AC Power Connector
for PS 1
AC Power Switch
2-4
Figure 2-2 ED-64M, Rear View
Connectrix ED-64M User Guide
Page 55
Operating the Director
2

Power and Error LEDs

The bezel at the top front of the director includes these LEDs:
Power — When the director power is switched on, a green power
LED illuminates. If the LED is off, the unit may not be receiving AC power. Check the AC power source and power cords. If the cords are plugged in and the AC source is functional, contact EMC Customer Support.
Error — The amber system error LED illuminates if system errors
occur. The LED flashes if unit beaconing is enabled (through the Product Manager).
The system error LED illuminates when the director detects an event requiring immediate operator attention, such as a FRU failure. The LED remains illuminated as long as an event is active. The LED goes dark when someone selects Clear System Error Light from the Product Manager application. The LED blinks if unit beaconing is enabled (and there is no error; even if beaconing is enabled, the LED will illuminate contin ously if there is a failure).
Connectors, Controls, and Indicators
2-5
Page 56
Operating the Director
2

UPM Cards

UPM cards contain an amber LED to indicate the cards operating status. Located under this LED are amber and green indicators for each port (as shown in Figure 2-3). Each pair of LEDs corresponds to a port.
Card LED
UPM
Port LEDs
Green
On Blinking Off Off
On, Off, or Blinking
Port Connectors
Amber
On Blinking
Amber
Off Off On Off
Blinking
Meaning
One or more ports have failed. FRU beaconing is enabled.
Meaning
The port is operational. There is active traffic on the port. The port has failed. The port is operational but is not
communicating with an N_Port. Possible reasons are: no cable attached; loss of light; blocked port; link recovery in process.
The port is beaconing or running on-line diagnostics.
2-6
Figure 2-3 UPM Card Indicators and Connectors
Connectrix ED-64M User Guide
Page 57
Operating the Director
2

CTP Cards

CTP cards contain LEDs, an IML button, and an Ethernet connector, as illustrated in Figure 2-4.
Card LED Port LED IML Button
Ethernet Connector
Figure 2-4 CTP Card LEDs, Connectors, and Controls
CTP cards for 2 Gb ED-64Ms have CTP2 silkscreened on the bezel, where the earlier 1 Gb CTPs said CTP. CTP2s are required for 2 Gb operation.
LEDs The card faceplate contains a green LED that illuminates if the card is
operational and is the acti ve car d, an d an am ber LED th at illum inates if the card fails. Both LEDs are dark on an operational backup card. The amber LED blinks if FRU beaconing is enabled.
IML Button The CTP card provides an IML button on the faceplate. When the
button is pressed and held for three seconds, the director reloads firmware and resets both CTP cards without switching off power or affecting operational fiber optic links. An IML performs essentially the same functions as an IPL, but resets both CTP cards instead of just
Connectors, Controls, and Indicators
2-7
Page 58
Operating the Director
2
the active CTP card. Refer to IPL Function on page 1-19 for more detail on the IPL process.
!
CAUTION
Use the IML button only if directed by your next level of support. An IML is not intended for ordinary or casual use and should only be performed if the CTP card is suspect.
Ethernet Connector The CTP card also includes a 10/100 Mbps RJ-45 twisted pair
connector on the faceplate that attaches to an Ethernet LAN to communicate with the Connectrix service processor or an SNMP management station. All data to and from the director and Connectrix service processor is transported on this link.

Power Supplies

Figure 2-5 shows the power supply LEDs.
PWR OK
FAULTTEMP
LED
PWR OK FAULT TEMP
ILIM
ILIM
Color
Meaning if ON
Green
Power supply is operational.
Amber
Power supply has failed.
Amber
Power supply has shut down due to high temperature.
Power supply is overloaded and is
Amber
operating at current limit of 15.6 Amps.
2-8
Figure 2-5 Power Supply LEDs
Connectrix ED-64M User Guide
Page 59
Operating the Director
2

Fan Modules

Each fan module has one amber LED. The LED illuminates when a fan fails or is rotating insufficiently. Refer to Figure 2-2 for LED locations.

SBAR Cards

As seen from the rear of th e dir ecto r, the SBAR card carriage contains a green LED and amber LED indicator. The green LED illuminates if the card is operational and is the active card, and the amber LED illuminates if the card fails. Both LEDs are dark on an operationa l backup card. The amber LED blinks if FRU beaconing is enabled. Refer to Figure 2-2 for LED locations.

Input Power Module

The input power module is located at the bottom rear of the director. The module includes two AC power connectors, maintenance port, and a power on/off switch.
AC Power Connectors Two single-phase AC power connectors. Each connector is input
rated up to 264 VAC.
Power On/Off Switch The power switch (circuit breaker) controls AC power distribution to
both power supplies. The breaker is set manually or is automatically tripped by internal software if thermal sensors indicate the director is overheated.
Maintenance Port The maintenance port provides a 9-pin DSUB connection for a local
terminal or dial-in connection for a remote terminal. Although the port is typically used by authorized maintenance person nel, operations personnel can use the port to set IP addresses.
Connectors, Controls, and Indicators
2-9
Page 60
Operating the Director
2
2-10
Connectrix ED-64M User Guide
Page 61
Invisible Body Tag
3
Product Manager
Overview
This chapter is an introduction and overview of the ED-64M Product Manager. It is intended as a quick reference for using features available through the main Product Manager window.
Product Manager Overview.............................................................3-2
Using the Product Manager..............................................................3-5
Product Manager Menu Bar...........................................................3-12
Product Manager Views..................................................................3-18
User Rights.......................................................... ..............................3-23

Product Manager Overview

3-1
Page 62

Product Manager Overview

3
Product Manager Overview
The Product Manager for the ED-64M Director has a Java-based graphical user interface (GUI) that provides in-depth management, configuration, and monitoring functions for individual directors and their field-replaceable units (FRUs). Although each Product Manager is accessed from the Connectrix Manager, it is a separate application.
In contrast to the Product Manager, the Connectrix Manager enables administrators to monitor operational status for all products and Fibre Channel fabrics managed by an Connectrix service processor. The Connectrix Manager also provides tools to administer user and product access to the Connectrix Manager and Product Manager. (Refer to the Connectrix Manager User Guide.)
The Product Manager provides graphical views of director hardware components and displays of component status. By positioning the cursor on icons, graphics, panels, and other visual elements in these views and clicking the left or right mouse button, you can quickly manage and monitor the director on your network.
Using the Product Manager, you can:
3-2
Back up and restore configuration data.
Clear the system error indicator.
Configure extended distance buffering for ports.
Configure Fibre Channel operating parameters for the director.
Configure individual ports with a port name describing the node
attached to the port.
Configure link incident (LIN) alerts.
Configure port binding (if the Port Binding feature is enabled).
Configure nicknames to appear instead of WWNs for switches
and attach ed devices.
Configure port address configurations (FICON mode only).
Configure SNMP trap recipients and community names.
Configure the FICON and Open Systems Management Server
features (if installed).
Configure switch binding if the optional Enterprise Fa bric
Extensions feature is installed.
Connectrix ED-64M User Guide
Page 63
Product Manager Overview
Configure the management style between Open Systems an d
FICON.
Configure the interoperability mode for multiswitch fabrics.
Configure the director name, location, description, and contact
person.
Configure the data speed for the director and individual ports.
Configure threshold alerts for ports.
Enable LIN alerts on ports.
Control individual Fibre Channel ports by blocking/unblocking
operation.
Display FRU properties such as the FRU name, physical position
in the director (chassis slot number), active failed state, part number, and serial number.
Display information for individua l Fibre Channel ports, such as
the port name, port number, Fibre Channel address, operational state, type of port, and login data.
Display information on nodes attached to ports.
Display port performance and statistics.
Display vital product data for the director, such as the system
name, description, contact person, location, status, model number, firmware and Engineering Change (EC) level, and manufacturer.
3
Enable beaconing for ports and the director.
Enable channel wrap mode (FICON mode only).
Maintain a port address library (FICON mode only).
Monitor the operational status of the director and each of its
hardware field-replaceable units.
Perform an Initial Program Load (IPL).
Perform maintenance tasks for the director including maintaining
firmware levels, administering the call-home feature, accessing the director logs, and collecting data to support failure analysis .
Reset port operation.
Run port diagnostics.
Set the date and time on the director.
Swap addresses between ports (FICON mode only).
Product Manager Overview
3-3
Page 64
Product Manager Overview
3
Access the director Product Manager by double-clicking a director’s product icon on the Connectrix Manager window (in either the Products view or the Fabrics view).
You can in stall the Connectrix Manager Client application onto a remote workstation using any standard Web browser. For instructions on installing the Client, refer to the appendix titled Configuring Remote Workstations in the Connectrix Manager User Guide .
Connectrix Manager Client Workstations
E-Mail Server
10/100 Mb/s
Corporate LAN
Switch/Hub
SNMP
Management
Station
3-4
Connectrix Manager Server
Running on
Connectrix Service Processor
Figure 3-1 Connectrix Service Processor and Remote Workstation Configuration
Connectrix ED-64M User Guide
Page 65

Using the Product Manager

This section provides a general overview of the Product Manager and its functions. For details on performing specific tasks and using specific dialog boxes, refer to the appropriate chapters in this manual.
Product Manager Overview
3

Using Dialog Boxes

Figure 3-2 Typical Dialog Box
Dialog boxes, such as the one in Figure 3-2, display when you select options from the pop-up menus. To enter data in a dialog box field, click in the field and begin typing when the insertion point appears.
To enter data into an empty field, click in the field and begin typing when the cursor appears at insertion point.
To change or remove data that already exists in a field, drag the cursor (or double-click on the data) to highlight the cha r acters you want to change/delete; then type in the new data. (It should overwrite the highlighted characters; if not, use the
BACKSP ACE key to remove characters.
DELETE or
Clicking one of these buttons in a dialog box initiates the described function (not all buttons appear in all dialog boxes):
OK Saves the data you entered and closes the dialog box.
Activate Saves the data you entered and closes the dialog box,
unless there is a Close button, in whi c h c as e Activate saves the information without closing the box.
Close Closes the dialog box and saves the data you entered.
Cancel Cancels the operation and closes the dialog box
without saving the information you entered.
Keyboard Navigation Keyboard navigation is an alternative to mouse navigation. Use the
methods described in this section to naviga te using your keyboard.
Using the Product Manager
3-5
Page 66
Product Manager Overview
3

Logging Int o t he Connectrix Manager

To open th e Product Manager, you must first log into the Connectrix Manager:
1. The Connectrix Manager starts automatically when the Connectrix service processor is powered on or rebooted.
If you need to start the Client application on a remote workstation, follow the appropriate steps:
OS Steps
a
Windows
a. If necessary, switch the Connectrix service processor
on.
b. On the Windows desktop,
double-click the Connectrix Manager icon:
Solaris or Linux
a. In the Terminal window, type the following and
ENTER:
b
press
[root@evtcom2 /root]# cd /home
b. Type the following and press ENTER:
[root@evtcom2 /root]# cd EFCM
3-6
HP/UX or AIX
Connectrix ED-64M User Guide
c. Type the following and press ENTER:
[root@evtcom2 /root]# ./ConnectrixManager
a. In the Terminal window, type the following and
ENTER:
b
press
[root@evtcom2 /root]# cd /home
b. Type the following and press ENTER:
[root@evtcom2 /root]# cd EFCM
c. Type the following and press ENTER:
[root@evtcom2 /root]# ConnectrixManager
a. Windows 95, Windows 98, Windows NT, or Windows 2000. b. These steps assume the Connec tr ix Manager is in your home dir ec t o ry. If you
saved it to a different location, enter the appropriate directory names.
Page 67
Product Manager Overview
2. On the Connectrix Manager Login window (Figure 3-3), enter
your user name and password. (U ser names and passwords are case-sensitive.)
If user names have not been established, use the default user name (Administrator) and password (password).
3
Figure 3-3 Connectrix Manager Login Window
3. The default address that appears in the Connectrix field is the
address of the last service processor or server accessed. Click the arrow to the right of the field display the network addresses of all Connectrix service processors that were accessed from your PC/workstation.
Select an address or, if you want to connect to a Connectrix service processor that is not listed, enter the name or IP address.
4. Click Login.
The Connectrix Manager opens to the Products view (Figure 3-4). (The other main view is the Fabrics view, which is described in the Connectrix Manager User Guide.)
Using the Product Manager
3-7
Page 68
Product Manager Overview
3
110.22.140.78
3-8
Figure 3-4 Connectrix Manager Products View
The Products view provides a graphical overview of all the products that can be managed and monitored through the Connectrix Manager. In a full-screen environment on an 800 x 600 resolution monitor, this panel displays up to 48 product icons.
Product Icons Information in each product icon in clud es the following:
Director Speed (Gb/s) Attention Indicator
Product Illustration
Number of Ports
Product Name or Network Address
Connectrix ED-64M User Guide
Status Indicator
Page 69
Product Manager Overview
Object descriptions:
Director data speed, either 1 Gb/s or 2 Gb/s, is configured
through the Product Manager application for the specific director.
Attention indicator — A yellow triangle means that product
requires attention. Open the Product Manager application for the director by double-clicking on the icon to find out more information.
Product name or network address — You can determine which
appears by right-clickin g on the open ar ea away from the pro duct icons and selecting Display Options from the pop-up menu.
Whichever identifier appears, you can display a pop-up window with the other identifier by moving the cursor over the product icon.
Status indicator (the color-coded symbol behind the product
illustration):
A red and yellow diamond means that the product has failed and requires immediate service.
A yellow triangle means that the product is degraded, but is still performing as designed.
A green circle means that the product is fully operational.
A grey square means that the Connectrix Manager cannot
determine product status.
If an alert symbol does not display behind the product, the product is not managed by the Connectrix service processor to which you are logged in.
The most critical status reflected by a product in the view is also reflected in the Products status box in the left corner of the Connectrix Manager window.
3
Using the Product Manager
3-9
Page 70
Product Manager Overview
3

Opening the Product Manager

You can o pen the Product Manager for a product in any of these ways:
Double-click the product icon in the Connectrix Manager
window, in either the Products or Fabrics view.
Right-click the product icon, and select Open on the pop-up
menu.
Click the product icon to highlight it; then press CTRL-O or click
the Open Product icon on the Connectrix Manager toolbar:
Open Product
120.20.150.10
The Product Manager opens to the Hardware view (Figure 3-5).
3-10
Figure 3-5 Product Manager Window
Connectrix ED-64M User Guide
Page 71
Product Manager Overview
The Connectrix Manager window is still available as a separate w in dow. You can drag the Product Manager window away from the Connectrix Manager window and view both windows on your PC desktop (or minimize one or both of them to icons if desired). You can have up to four Product Manager windows open concurrently.
3
Window Lay out and
Functions

Closing the Product Manager

Closing the Connectrix Manager

As shown in Figure 3-5, the main P roduct Manager window consists of a Windows title bar and four specific areas for the Product Manager, described in the next few sections.
To clos e the Product Manag er, select Close from the Product menu.
To log out of the Connectrix Manager (so you can log in again using a diferent user name a nd password), s elect Logout from the Connectrix Manager Product menu.
To close the Connectrix Manager application, select Exit from the Connectrix Manager Product menu.
Using the Product Manager
3-11
Page 72
Product Manager Overview
3

Product Manager Menu Bar

Menu Bar
Figure 3-6 Product Manager Menu Bar
The menu bar consists of these menus:
Product:
Management StyleOpen Systems or FICON
Port Contains the following items; refer to Port Menu on
page 4-20 for descriptions:
Port PropertiesNode PropertiesPort TechnologyBlock PortEnable BeaconingDiagnostics
Channel Wrap (FICON mode only)Swap Ports (FICON mode only)
Clear Link Incident Alert(s)Reset PortPort BindingClear Threshold Alert(s)
FRU Contains the following items ; refer to Port Card Menu
on page 4-11 for descriptions:
Open Port Card ViewFRU Properties Enable BeaconingBlock All PortsUnblock All Ports
3-12
Connectrix ED-64M User Guide
Page 73
Product Manager Overview
Diagnostics
Clear System Error Light Turns off the amber system error LED, located below the green power LED on the front of the director.
Enable Unit Beaconing Causes a system error light on the front of the director to blink, to help users locate the actual unit in an equipment room. (You can enable unit beaconing only if the system error light is off, signifying that there are no outstanding errors.)
Properties Displays such information as the director name, description, location, and contact person. Refer to Displaying Director Properties on page 4-9.
Close Closes the Product Manager window.
Configure:
Identification Allows you to specify information that will appear in the identification table at the top of the Hardware view and in the Connectrix Manager Products view (if the Products view is configured to display names)
Refer to Configuring Director Identification on page 5-3 fo r mo re information.
3
Operating Parameters — Allows you to set the following operating parameters (described in greater detail under Configuring Operating Parame te rs on page 5-5):
Switch Parameters
Preferred Domain ID Insistent Rerouting Delay Domain RSCNs Suppress RSCNs on zone set activations Director Speed (2 Gb/s or 1/Gb/s)
Product Manager Menu Bar
3-13
Page 74
Product Manager Overview
3
Fabric
BB_Credit
Parameters
R_A_TOV E_D_TOV Switch Priority Interop Mode (Homogeneous Fabric or
Open Fabric 1.0)
Switch Binding allows you to activate switch binding
according to a specific connection policy., and to create a list of switches and devices that you want to allow exclusively to attach to switch ports.
Switch Binding is an optional feature that you can enable through the Configure Feature Key dialog box. For details, refer to Configuring Switch Binding on page 5-14.
This function is available only if Enterprise Fabric Extensions is installed.
Ports Allows you to configure extended distance buffering
for 10 to 100km, enable LIN alerts for each port, provide a name, block or unblock operation, and define a port type (E_Port, F_Port, or G_Port).
Refer to Configuring Port s on page 5-19 for more information.
3-14
Addresses (FICON mode only) Allows you to configure a
name, blocked/unblocked state, and prohibited/allowed connection attributes for a port. You can also activate, modify, or delete existing address configurations.
Refer to Configuring Port Addresses on page 5-26 and Managing Stored Address Configurations on page 5-30 for more information.
SNMP Agent Allows you to configure network addresses
and community names for up to six SNMP trap recipients. Refer to Configuring the SNMP Agent on page 5-32 for more
information.
Management Server Allows you to configure the open
systems inband management program to function with the director. (The Open Systems Management Server feature must be installed in order to perform this procedure.)
Connectrix ED-64M User Guide
Page 75
Product Manager Overview
Refer to Configuring Management Server Control on page 5-35 for more information.
Features Allows you to validate an installed feature for use. Refer to Configuring Feature Keys on page 5-39 for more
information.
Date/Time — Allows you to set the date and time on the director, a nd to set the director to synchronize with the date and time on the Connectrix service processor.
Refer to Configuring the Date and Time on page 5-42 for more information.
Threshold Ale rts Allows you to configure threshold alerts for ports. A threshold alert notifies users when the transmit (Tx) or receive (Rx) throughput reaches specified values for specific director ports or port types (E_Ports or F_Ports).
Refer to Configuring Threshold Alerts on page 5-44 for more information.
Export Configuration Report Allows you to save an ASCII text file containing all current user-definable configuration options in a printable format.
Refer to Exporting a Configuration Report on page 5-53 for more information.
3
Enable Web Server — Allows you to to enable the Embedded Web Server interface on the director.
Refer to Enabling the Embedded Web Server on page 5-55 for more information.
Enable Telnet — Allows you to enable Telnet access to the director.
Refer to Enabling Telnet on page 5-56 for more information.
Logs:
Audit Log Provides a record of all configuration changes made on the director. Refer to Audit Log on page 6-4 for more information.
Event Log Provides a record of significant events that have occurred on the director, such as hardware failures, degraded operation, and port problems.
Refer to Event Log on page 6-6 for more information.
Product Manager Menu Bar
3-15
Page 76
Product Manager Overview
3
Hardware Log Displays information on FRUs inserted and
removed from the director. Refer to Hardware Log on page 6-8 for more information.
Link Incident Log Displays the most recent incidents with
their date and time, port number, and description of the incident.
For a list of events that may cause a link incident to be written to the log, refer to Link Incident Log on page 6-9.
Threshold Alert Log Provides notifications of threshold
alerts, including date and time each alert occurred, port for which the alert is configured, and type of alert (transmit throughput, receiv e throughput, or both).
For more details on this log, refer to Threshold Alert Log on page 6-11.
Maintenance:
Port Diagnostics Is used by service personnel to run
internal and external loopback tests on ports.
Swap Ports (FICON mode only) Allows you to swap one
port address with another.
Data Collection Allows you to collect maintenance data
into a file. This file is used by support personnel to diagno se system problems.
Refer to Collecting Maint enance Data on page 7-5 fo r more information.
3-16
IPL Allows you to initiate an Initial Program Load on th e
director. Refer to IPL Function on page 1-19 for more information.
Set Online State Allows you to change the on-line state of
the director to off line or on line. Refer to Setting the Online State on page 7-8 for more
information.
Firmware Library Displays all firmware versions currently
installed on the Connectrix service processor that can be downloaded to directors.
Refer to Managing Firmware Versions on page 7-9 for more information.
Connectrix ED-64M User Guide
Page 77
Product Manager Overview
Enable E-Mail Notification Allows you to enable e-mail notification for a specific director.
Refer to Enabling E-Mail Notification on page 7-10 for more information.
Enable Call Home Notification Allows you to enable the call-home function for the director.
Refer to Enabling Call-Home Notification on page 7-11 for more information.
Backup & Restore Configuration Allows you to save the product configuration stored on the director to the Connectrix service processor hard disk or to restore the product configuration from the Connectrix service processor (to a director with the same IP address as the one that was backed up).
Refer to Backing Up and Restoring the Configuration on page 7-12 for more information.
Reset Configuration Allows you to reset all director configuration data back to the factory defaults.
Refer to Resetting the Configuration on page 7-18 for more information.
3
Help:
Contents Displays online help for the Product Manager.
About Displays the version number for the Product
Manager and copyright information.
Product Manager Menu Bar
3-17
Page 78
Product Manager Overview
3

Product Manager Views

View Tabs
Figure 3-7 Product Manager View Selector Tabs
The Product Manager offers four main views, accessible by clicking the tabs.

Hardware View

Windows Title Bar
Menu Bar
View Selector
Main Panel
Status Indicator
The Hardware view (Figure 3-8) is the default view that appears in the main panel when you open the Product Manager.
For details on navigating and monitoring via the Hardware view, refer to Chapter 4.
3-18
Figure 3-8 Product Manager Hardware View
Connectrix ED-64M User Guide
Page 79
Product Manager Overview
In the Hardware view, color-coded indicators reflect the status of actual LEDs on the director FRUs. The status indicator at the lower left displays a symbol to represent the most degraded status currently reported by any of the director FRUs. For example, for a port failure (indicated by a red and yellow diamond on a port), a yellow triangle appears on the alert panel to indicate a degraded condition. However, if a red and yellow diamond appears over both SBAR cards, a red and yellow diamond appears as the status indicator, indicating a failure that requires immediate attention.
For an explanation of the various alert symbols, refer to Table 4-1 on page 4-5.
3
Displaying Properties
and Options
Double-clicking anywhere on the director except on a FRU displays a Director Properties window. Double-clicking on the power supply, CTP card, cooling fan module, or SBAR card displays a FRU Properties window containing detailed informatio n on the hardware component.
Right-clicking anywhere on the director except on a FRU, or right-clicking on a FRU, displays a list of options for the director or FRU. Refer to Using Menu Options on page 4- 10 for more information.
For reference, here are t h e menu options:
Director:
Director Properties
Enable Unit Beaconing
Clear System Error Light
IPL Director
Set Director Date and Time
Set Director Online State
Port Card:
Open Port Card View
FRU Properties
Enable Beaconing
Block All Ports
Unblock All Ports
Diagnostics
Product Manager Views
3-19
Page 80
Product Manager Overview
3
CTP card:
FRU Properties
Enable Beaconing
Switchover
SBAR Card:
FRU Properties
Enable Beaconing
Switchover
Displaying the Port
Card View
To displa y a more detailed view of a port card, double-click on the card, or right-click on the card and select Open Port Card View fr om the pop-up menu. Figure 4-4 on page 4-14 shows an example.
In this expanded view of the port card, you can:
Determine UPM card status by amber LED at the top of the card.
A table also displays on the Port Card View that provides the FRU name, position, operating state, beaconing state, and part number.
Determine port status and operation by the alert symbols that
appear next to the port connectors and simulated LED indicators above the connectors.
Block/unblock ports.
Display node and port properties.
Display port technology: connector and transceiver types,
distance, media, and speed.
Enable beaconing.
(FICON mode only) Enable/disable cha nnel wrap.
(FICON mode only) Swap ports.
Clear Link Incident Alert(s).
Reset the port.
3-20
Display port binding information.
Refer to Using the Port Card View on page 4-14 for detailed information on this view.
Connectrix ED-64M User Guide
Page 81
Product Manager Overview
3

Node List View

Port List Vi e w

Clicking the Node List tab on the Product Manager window (refer to Figure 3-7 on page 3-18) displays a table of informa tion about all node attachments or N_Ports tha t have logged into existing F_Ports on the director. Only N_Ports appear in the Node List view after nodes have logged in to the fabric.
The columns that appear in the table include:
Port Port number where the node is attached
Address Port addres s (FICON mode ) or Fibre Ch annel addr ess
(Open Systems mode)
Port WWN WWN of the attached node (device)
Unit Type Type of connected device
BB_Credit Value used by the attached node
For details on navigating and monitoring via the Node List view, refer to Using the Performance View on page 4-31.
Clicking the Port List tab on the Product Manager window (refer to Figure 3-7 on page 3-18) displays a table (shown in Fi gure 4-6 on page 4-23) listing:
# Port number
Name Port name
Block Confi g Blocked/unblocked configuration
State Operating state
Type Port type
Operating speed
Alert Identification of any ports with outstanding alert
conditions
Product Manager Views
3-21
Page 82
Product Manager Overview
3
Other options available on the Port List vi ew allow you to:
Block/unblock ports
Display port properties
Display port technology: connector and transceiver types,
distance, media, and speed
Enable Beaconing
Clear Link Incident Alert(s)
Reset the port
For details on these menu options, refer to Port Menu on page 4-20. For details on navigating and monitoring using the Port List view, refer to Using the Performance View on page 4-31.

Performance View

FRU List View

Clicking the Performance tab on the Product Manager window (refer to Figure 3-7 on page 3-18) displays a graphical display of performance for all ports. (Figure 4-10 on page 4-31 shows an example of the Performance view. )
The top portion of the Performance view displays bar graphs that show the level of transmit/receive activity for each port. This information is updated every five seconds. Each bar graph also shows the percentage link utilization for the port.
For more in formation about the Performance view, refer to Using the Performance View on page 4-31.
Clicking the FRU List tab on the Product Manager window (refer to Figure 3-7 on page 3-18) displays a table with information about each of the FRUs installed in the director. All data is dynamic and is updated automatically .
Figure 4-12 on page 4-39 shows an example of the FRU List view. For details on navigating and monitoring via the FRU List view, refer to Using the FRU List on page 4-39.
3-22
Connectrix ED-64M User Guide
Page 83

User Rights

Product Manager Overview
3
The Connectrix Managers system administrator can assign levels of access, or user rights, to Product Manager users through the Connectrix Manager application.
The Connectrix Managers system administrator has view rights only while operating in a specific Product Manager application. Conversely, a Product Managers product administrator only has view rights while operating in the Connectrix Manager applicati on.
Detailed instructions concerning the ass ignment of user rights for both the Connectrix Manager and Product Manager appl ications appear in the Co nnectrix Manager User Guide.
There are four levels of user rights that can be assigned to specific users:
System Administrator
Product Administrator
Operator

User Rights for Specific Functions

Maintenance
By default, all users have view rights, which allow for the viewing of configurations but not the changing of configurations. View rights cannot be removed.
The user(s) with system administrator rights can make all control and configuration changes implemented through the Connectrix Manager application.
T able 3-1 item izes the specific functions available to Product Manager users that have been assigned user rights of product administrator, operator, and/or maint enance. If a user does not have the right to perform a specific operation, a not authorized error box appears when the operation is attempted.
User Rights
3-23
Page 84
Product Manager Overview
3
Table 3-1 User Rights for Product Manager
Product
Product Manager Rights
Backup and Restore Configuration X X X Channel Wrap (FICON mode only) X X Clear Audit Log X Clear Event Log X Clear Hardware Log X X Clear LIN Alert X X X Clear LIN Log X Clear System Error Light X Clear Threshold Alerts X
Administrator Operator Maintenance
Configure Addresses – Active
XX
(FICON mode only) Configure Addresses – Stored
X
(FICON mode only) Configure Date/Time X X X Configure Feature Key X Configure Identification X Configure Management Server X Configure Switch Parameters X Configure Fabric Parameters X Configure Port Binding X X Configure Ports X X Configure SNMP X Configure Switch Binding X Configure Threshold Alerts X Configure Zoning X Data Collection X
3-24
Connectrix ED-64M User Guide
Page 85
Table 3-1 User Rights for Product Manager (continued)
Product
Product Manager Rights
Administrator Operator Maintenance
Date/Time Sync Configuration X X X Enable Call Home Notification X Enable E-Mail Notification X Enable Telnet X Enable Web Server X Export Configuration Report X X X FRU Beaconing X FRU Switchover X IPL X X X Manage Firmware X Port Diagnostics X
Product Manager Overview
3
Port Beaconing X X X Set Online State X X X Swap Ports (FICON mode only) X X Reset Configuration X Reset Statistics Counters
XX
(Performance View) Reset Port X X Unit Beaconing X X X View Event Log X X View Firmware X View Hardware Log X X X View LIN Log X X X View SNMP X X X View Threshold Alert Log X X X
User Rights
3-25
Page 86
Product Manager Overview
3
3-26
Connectrix ED-64M User Guide
Page 87
Invisible Body Tag
Monitoring and
Managing the Director
This chapter describes how to use the features available in the various Product Manager views to monitor and manage director operation. The views are accessible from the tabs shown here:
View Tabs
4
Using the Hardware View................................................................4-2
Using the Port List View .................................................................4-23
Using the Node List View...............................................................4-27
Using the Performance View..........................................................4-31
Using the FRU List...........................................................................4-39
Alerts..................................................................................................4-41

Monitoring and Managing the Director

4-1
Page 88
Monitoring and Managing the Director
S
4

Using the Hardware View

The Hardware view is the default view that appears when you open the Product Manager. Using this graphical view of the director, you can view status symbols and simulated LEDs, display data, monitor status, and obtain vital product information for the director and its hardware components.
To display the Hardware view from some other view in the Product Manager, click the Hardware tab.

Identify i ng FRUs

Monitoring Director Operation

Move the cursor over p arts of the director graphi c i n the Hardware view to display pop-up labels identifying each hardware component and its slot position in the chassis relative to identical components installed in the director.
FRUs include:
Up to 16 port cards. Acronyms that might appear to identify port
technology will also appear in the FRU column of the FRU List. Refer to Using the FRU List on page 4-39 for details.
Two Control Processor (CTP) cards.
Two power supply modules.
Two cooling fan modules.
Two serial crossbars (SBARs).
This section describes the ED-64M Status table and status symbol (shown below), which indicate the operati ng status of the director:
Status T ab le
tatus Symbol
4-2
Connectrix ED-64M User Guide
Page 89
Monitoring and Managing the Director
Status Refer to Table 4-3 on page 4-15 for the meaning of the text in the
Status field and the corresponding symbol in the lower left corner of the Product Manager wind ow
State The State field displays one of the following:
OFFLINE — When the director is off line, all ports are off line.
The ports cannot accept a login from an attached device, nor can it connect to other directors or switches.
Refer to Setting the Online State on page 7-8 for instructions on setting the director on line or off line.
Online — All unblocked ports are able to connect with devices.
Note that the director automatically goes on line after a power-up, IML, or IPL.
Refer to Setting the Online State on page 7-8 for instructions on setting the director on line or off line.
Coming online — This is a transitional state that occurs just
before the director goes on line. This state normally only happens briefly, unless there is a problem reaching the on-line state.
Going offline — This is a transitional state that occurs just befo re
the director goes off line. This state normally only happens briefly, unless there is a problem reaching the off-line state.
4
Name, Descr i p ti on,
Location
Refer to Configuring Director Identification on page 5-3 for details on setting these parameters.
No Link Status If the Ethernet network connection between the Connectrix service
processor and the director is down, the Hardware view displays the front and rear of the unit without FRUs. The ED-64M Status table at the top of the Hardware view changes to display the status ( and reason with a yellow background. The Name, Description, and Location fields are blank.
A Reason field on the ED-64M Status table displays one of the following reasons when there are no links.
Never Connected — Could be either of these causes:
A network connection was never established between the
switch and the Connectrix service processor
The CTP subsystem failed.
Using the Hardware View
No Link)
4-3
Page 90
Monitoring and Managing the Director
4
Check the IP addresses, the Ethernet LAN physical connection between the switch and Connectrix service processor, and other network connection conditions.
Link Timeout — The network connection that was established
between the director and Connectrix service processor has been lost. Check the IP addresses, the Ethernet LAN physical connection between the director and Connectrix service processor, IP addresses, and other network components.
Protocol Mismatch — The director and the Connectrix service
processor are not at compatible software release levels. Update the Connectrix Manager software version.
Duplicate Session — A link has previously been established
between the director and another instance of the Connectrix service processor. Connect to the previously established Connectrix service processor from the Connectrix Manager login screen.
Unknown Network Address — The address defined for the
director in the Connectrix Manager could not be found in the Domain Name Server (DNS). Either the name was mistyped when the director was added to the Connectrix Manager, or the name was not available from the DNS. Check the network IP address for the director definition in the Connectrix Manager by right-clicking the product icon and selecting Properties. The IP address displays in the Network Address field.
4-4
Incorrect Product Type — The product at the configured network
address is not a director. Verify address, configuration, and product type.
Status Symbol The status symbol in the lower left of the Hardware view indicates
the overall operating status of the director. The status depends on specific hardware component failures, which are indicated by status symbols that appear over component graphics in the Hardware view.
Table 4-1 shows the various alert panel symbols and their meanings.
Connectrix ED-64M User Guide
Page 91
Monitoring and Managing the Director
Table 4-1 Operating Status - Status Symbol and Director Status
Status Symbol Operator Panel Text Director Status Table Text Meaning
4
Green Circle: Online or Offline Fully Operational All components and installed ports are
operational; no failures.
Yellow Triangle: Degraded Redundant Failure A redundant component has failed, such
as a power supply, and the backup component has taken over operation.
Minor Failure A failure occurred which has decreased
the director operational ability. Normal switching operations are not affected.
One or more port cards failed, but at least one port card is still operational.
A fan has failed or is not rotating sufficiently.
One of two CTP cards failed.
One of two SBAR cards failed.
Red Diamond on Yellow Background:
Failed NOT OPERATIONAL A critical failure prevents the director from
performing fundamental switching operations.
All fans fail.
Both SBAR cards fail.
All installed port cards fail.
Gray Square: N/A Never Connected
Link Timeout Protocol Mismatch Duplicate Session Unknown Network Address Incorrect Product Type
director status is unknown. This occurs if the Ethernet network connection between the Connectrix service processor and the director cannot be established or if the CTP fails. Refer to No Link Status on page 4-3 for details on the status table text.
Using the Hardware View
4-5
Page 92
Monitoring and Managing the Director
4
Operation Monitoring
Example
Determine hardware component operating status and states by the simulated LED indicators and status symbols that appear on port cards, CTP cards, power supplies, fan modules, and SBAR cards illustrated in the Hardware view.
Green and amber indicators illuminate on each FRU to in d icate
either an operational or degraded state respectively. LEDs for individual ports do not illuminate on po rt cards the Hardware view, but do illuminate in the port card view for each port. (Refer to Using the Port Card View on page 4-14.)
Status symbols, such as flashing red and yellow diamonds and
yellow triangles, appear on FRUs to reflect the overall state of the hardware as changes occur. (Refer to Table 4-1 on page 4-5.)
Figure 4-1 illustrates the Hardware view with examples of symbols and simulated LED indicators that can help you monitor hardware operation. Numbers by each example are keyed to descriptions that follow the figure.
ED-64M Status
4-6
Figure 4-1 Monitoring Hardware Operation
Connectrix ED-64M User Guide
Page 93
Monitoring and Managing the Director
Table 4-2 Legend for Figure 4-1
The yellow triangle status symbol indicates that the port card is in a degraded state.
1
This could indicate a problem with an individual port, such as a link failure or service-required status. A yellow triangle could also indicate that a port is in beaconing state. Open the port card view by clicking the port card to examine individual port status. Refer to Using the Port Card View on page 4-14 for details.
The blinking red and yellow diamond displayed on the port card with the amber
2
port card LED illuminated may indicate that the card has failed. This m ay also indicate that an individual port has failed on the card. Open the port card view by clicking the port card to examine individual port status. If an individual port has not failed, the card is at fault.
Refer to Table 4-3 on page 4-15 for details on port o perating stat es and the status symbol and indicator operation.
A blinking red and yellow diamond on a CTP card with its amber LED illuminated
3
indicates that the card has failed. The green LED on a CTP card illuminates to indicate that the card is active. Since
4
the redundant CTP card on the left has failed, this CTP card has become the active card. If both CTP cards are operational, no LEDs illuminates on the backup card, while the green LED illuminates on the active CTP card.
4
The green and amber indicators on the far right of the front bezel simulate the
5
power and system error LEDs on the actual director bezel.
The green indicator simulates the power LED on the actual director. When the
indicator illuminates, the director is connected to facility AC power and operational. The indicator will be on if either power supply is operating.
The amber system error light indicator (illuminated in Figure 4-1) simulates the
system error light on the actual director. When this indicator illuminates, an event has occurred requiring immediate attention, such as a system, fan, po wer supply, or port failure. View details of system errors by selecting Event Log from the Product Manager Logs menu. The indicator in the Hardware view and the LED on the actual unit remains illuminated until you clear the event by right-clicking on the director graphic, away from a FRU, and selecting Clear System Error Light from the pop-up menu.
If the amber LED flashes, this indicates that unit beaconing has been enabled for the director. Enable or disable unit beaconing by r ight-cli cking on the d ire ctor g raphic, a way from a FRU, and selecting Enable Unit Beaconing from the pop-up menu.
Using the Hardware View
4-7
Page 94
Monitoring and Managing the Director
4
Table 4-2 Legend for Figure 4-1 (continued)
When a blinking red and yellow diamo nd displays on a power supply with the
6
amber Fault indicator illuminated, the power supply has failed. The backup po wer supply has taken over to supply DC voltage to the director.
If the power supply is working, a green indicator appears, and no status symbols appear.
When a blinking red and yel l ow diamo nd appears on a fan module with the amber
7
LED indicator illuminated, the modu le has failed or is rotating insufficiently.
If the amber LED flashes and a yel low triangle st atus symbol appears on a fan module, beaconing is enabled. Enable or disable beaconing by right-clicking on a fan module and selecting Enable Beaconing from the pop-up menu. If the amber LED does not illuminate and no status symbols display, the fan module is operating normally.
The yellow triangle status symbol appearing on the SBAR card with the amber LED
8
illuminated indicates that beaconing has been enabled. The blinking red and yellow diamond appearing on the SBA R card with the amber
9
LED illuminated indicates a card failure.

Obtaining Hardware Information

Displaying FRU
4-8
Connectrix ED-64M User Guide
Properties
This section explains how to access the FRU Properties, Port Properties, and Director Properties windows.
To display a FRU Properties window for a CTP card, power supply, cooling fan module, or SBAR card, double-click the FRU in the Hardware view. To display the FRU Properties window for a port card, right-click the card; then click FRU Properties on the pop-up menu.
The FRU Properties window shows:
FRU name
Slot position relative to identical FRUs insta lled in the chassis
State: active or failed
Beaconing state (CTP cards, port cards, SBAR cards)
Part number
Serial number
Speed capability (CTP card only)
Page 95
Monitoring and Managing the Director
4
Displaying Port
Properties
Displaying Director
Properties
To display a Port Properties window for a port on a port card, you must be in the port card view. Refer to Using the Port Card View on page 4-14 for details.
Tto display a Director Properties window, double-click on the director illustration, away from any FRUs (or right-click the illustration and click Properties on the pop-up menu).
The Director Properties window displays:
Director name, description, location, and contact, as configured
through the Configure Identification dialog box
Fibre Channel World Wide Name identifier for the director
Product type number
Product model number
Product manufacturer
Product serial number
Engineering Change (EC) level
Firmware level
Management Style: Open Systems or FICON
Preferred Domain ID, as set through the Configure Operating
Parameters dialog box
Active Domain ID (the actual Domain ID assigned to the director)
Fibre Channel Address domain
Director Speed, 1 Gb/s or 2 Gb/s, as configured through the
Configure Operating Parameters dialog box
Switch Binding: enabled if the optional Enterprise Fabric
Extensions features are installed and enabled; otherwise, disabled.
Using the Hardware View
4-9
Page 96
Monitoring and Managing the Director
4

Using Menu Options

Director Menu Right-click on an y area of the director illustration where a hardware
Right click on various parts of the Hardware view to displa y pop- up menu options for displaying s tatus and information and for controlling the director and its FRUs.
component is not installed t o display the following menu options:
Director Properties Displays such information as the director
name, description, location, and contact person. Refer to Displaying Director Properties on page 4-9.
Enable Unit Beaconing Click the check box to toggle unit
beaconing on or off. When the box is checked, unit beaconing is on, and the amber system error light on the front of the actual director blinks to help users locate the unit in an equipment room. (The amber indicator on the Hardware view also blinks.)
When you click the check box to remove the checkmark, unit beaconing is off and the amber LED goes out.
You can enable beaconing only if the system error light is off, meaning there are no system errors.
Clear System Error Light Turns off the amber system error
LED, located below the green power LED on the front of the director . (This also turns off the amber system error light indicator in the Hardware view.)
IPL Director Initiates an IPL on the director. R efer to Executing
an IPL on page 7-6.
4-10
!
Set Director Date and Time Sets the date and/or time. You can
Set Director Online State Displays the current state (off line or
Connectrix ED-64M User Guide
CAUTION
An IPL is not intended for ordinary or casual use and should only be performed when directed by your support personnel.
also configure the director to synchronize its date and time to the Connectrix service processor. Refer to Configuring the Date and Time on page 5-4 2 for more information.
on line) and provides a button for changing the state. Refer to Setting the Online State on page 7-8 for more information.
Page 97
Monitoring and Managing the Director
4
!
CAUTION
Before setting the director off line, warn administrators and users currently operating attached devices that the director is going off line and that there will be a disruption of port operation. Also, request that the devices af fecte d by an interruption of data flow be set off line.
Port Card Menu Right-click a port card in the Hardware view to display the following
menu options.
Open Port Card View — Opens the port card view. You can also
open the port card view by double-clicking the port card in the display. Refer to Using the Port Card View on page 4-14 for detailed information.
FRU Properties — Displays the Properties window for the port
card, including the FRU name, position (slot number in backplane), state (active or failed), beaconing state (on or of f) part number, and serial number.
Enable Beaconing — Alows you to enable or disable beaconing
for the card. Click the checkbox to add/remove a check mark. (When the box is checked, beaconing is enabled .) Ena b ling beaconing causes the amber LED on the card to flash, to help locate the card in the unit.
Block All Ports — Allows you to block all ports on the selected
card.
Unblock All Ports — Allows you to unblock all ports on the
selected card.
Diagnostics — Is used by service personnel to run internal
loopback and external loopback tests on port card ports.
CTP Card Menu Right-click the CTP card in the Hardware view to display a menu
with the following options:
FRU Properties — Displays a FRU Properties window for the
CTP card. Properties include the FRU name, position (slot number in the backplane), state (active, backup, or failed), part number, and serial number.
Enable Beaconing — Allows you enable/disable beaconing fo r
the CTP card. Enabling beaconing causes the amber LED on the card to flash to help you locate it in the unit.
Using the Hardware View
4-11
Page 98
Monitoring and Managing the Director
4
Switchover Allows you to switch operation from the active
CTP card to the backup card.
You must have maintenance authorization rights to access this feature.
Click Switchover on the Switchover CTP window (Figure 4-2) button to switch operation to the backup card. When switchov er occurs, the green LED illuminates on the backup CTP card to indicate that it is now the active card.
Figure 4-2 Switchover CTP Window
If you enable beaconing (by clicking the check box to add a check mark), the amber LED blinks on the card that was the active card before switchover.
4-12
If a redundant card has failed, or is not installed, cl icking Switchover displays an error message explaining that two operational cards must be installed to use this fea ture.
Fan Module Menu Right-click a cooling fan module card in the Hardware view to
display a FRU Properties window for the module. The window includes the FRU name, position (slot number in the backplane), state (active, backup, or failed), part number, and serial number.
SBAR Card Menu Right-click an S BAR card in the Hardware view to display a men u
with the following options:
FRU Properties Displays a FRU Properties window for the
card. The window includes the FRU name, position (slot number in the backplane), state (active, backup, or failed), part number, and serial numb er.
Enable Beaconing — Allows you to enable/disable beaconing for
the SBAR card. Enabling beaconing causes the amber LED on the card to flash to help you locate it in the unit.
Switchover Allows you to switch operation from the active
SBAR card to the backup card.
Connectrix ED-64M User Guide
Page 99
You must have maintenance authorization rights to access this feature.
Click Switchover on the Switchover SBAR window (Figure 4-3) button to switch operation to the backup card. When switchov er occurs, the green LED illuminates on the backup SBAR card to indicate that it is now the active card.
Figure 4-3 Switchover SBAR Window
If you enable beaconing (by clicking the check box to add a check mark), the amber LED blinks on the card that was the active card before switchover.
Monitoring and Managing the Director
4
Using the Hardware View
4-13
Page 100
Monitoring and Managing the Director
4

Using the Port Card View

In the Hardware view, double-click a port card (or right-click and select Open Port Card View) to see a detailed view of the port card (Figure 4-4). In the port card view, colo r-coded ind icators reflect functions of the actual LEDs on the card. The table in the port card view displays the port operating state and vita l product in formation.
ED-64M
Card LED
Port LEDs
Ports
4-14
Figure 4-4 Port Card View Example
As shown on the bottom port, a blank port indicates that the port optics are not installed.
The amber indicator at the top of a port card illuminates if the port card fails. A port card fails if one or more individual ports fail.
Four sets of green and amber LEDs beneath the amber card status indicator correspond to the four port connectors installed vert ically down the port card.
Connectrix ED-64M User Guide
