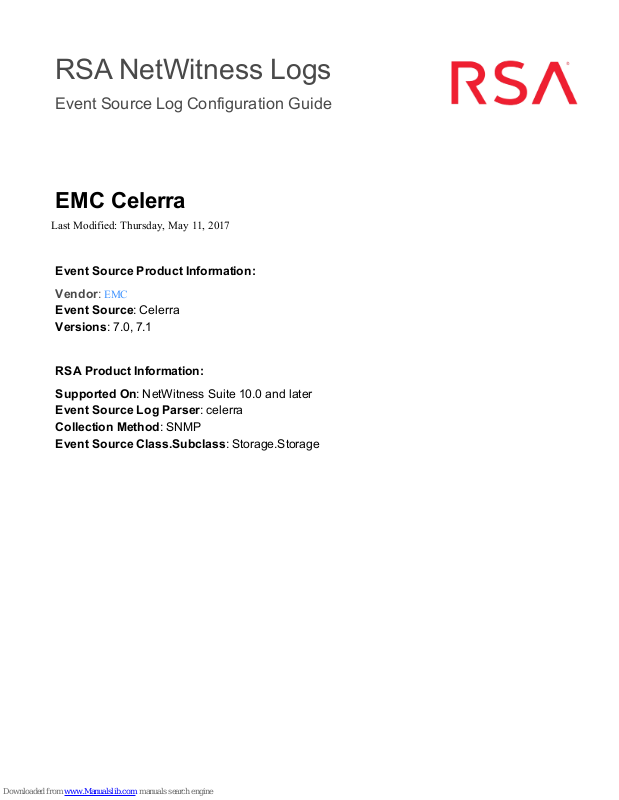

RSANetWitness Logs
Event Source Log Configuration Guide
EMC Celerra
Last Modified: Thursday, May 11, 2017
Event Source Product Information:
Vendor:EMC
Event Source:Celerra
Versions:7.0,7.1
RSA Product Information:
Supported On:NetWitnessSuite10.0andlater
Event Source Log Parser:celerra
Collection Method:SNMP
Event Source Class.Subclass:Storage.Storage
Configure EMC Celerra
Perform the following tasks to configure EMC Celerra to work with RSA NetWitness
Suite:
l Configure EMC Celerra to send SNMP traps.
l Configure EMC Celerra as an SNMP event source on RSA NetWitness Suite:
i.
Add the SNMP Event Source Type
ii. Configure SNMP Users
Configure EMC Celerra to Send SNMP Traps
You have to configure your EMC Celerra event source to send SNMP traps.
To configure EMC Celerra version 7.x:
1. Log onto EMC Unisphere with your credentials.
2. On the Dashboard, click on the Celerra system from which you want to send
SNMP logs.
3. Click System > Monitoring and Alerts > Notifications.
4. Form the Event tab, click Create.
5. In the Additional notifications section, enter the following information:
l For the Facility, choose one or more facilities for which you want to send SNMP
traps.
l For Severity, select Info.
l For Action, select Trap.
l For Destination Type, enter the IP address for the RSA NetWitness Suite Log
Collector; public.
6. Click Apply, then OK to save your changes.
Add the SNMP Event Source Type
Note: If you have previously added the snmptrap type, you cannot add it again. You can
edit it, or manage users.
2
Configure EMC Celerra
Event Source Log Configuration Guide
Add the SNMP Event Source Type:
1.
In the RSA NetWitness Suite menu, select Administration > Services.
2.
In the Services grid, select a Log Collector service.
3.
Click under Actions and select View > Config.
4.
In the Log Collector Event Sources tab, select SNMP/Config from the drop-down
menu.
The Sources panel is displayed with the existing sources, if any.
5.
Click + to open the Available Event Source Types dialog.
6.
Select snmptrap from the Available Event Source Types dialog and click OK.
7.
Select snmptrap in the Event Categories panel.
8.
Select snmptrap in the Sources panel and then click the Edit icon to edit the
parameters.
Add the SNMP Event Source Type
3
Event Source Log Configuration Guide
9. Update any of the parameters that you need to change.
(Optional) Configure SNMP Users
If you are using SNMPv3, follow this procedure to update and maintain the SNMP v3
users.
Configure SNMP v3 Users
1.
In the RSA NetWitness Suite menu, select Administration > Services.
2.
In the Services grid, select a Log Collector service.
3.
Click under Actions and select View > Config.
4.
In the Log Collector Event Sources tab, select SNMP/SNMP v3 User Manager from
the drop-down menu.
The SNMP v3 User panel is displayed with the existing users, if any.
5.
Click + to open the Add SNMP User dialog.
4
(Optional) Configure SNMP Users
Event Source Log Configuration Guide
6. Fill in the dialog with the necessary parameters. The available parameters are
described below..
SNMP User Parameters
The following table describes the parameters that you need to enter when you create an
SNMP v3 user.
Parameter Description
Username *
User name (or more accurately in SNMP terminology, security
name). RSA NetWitness Suite uses this parameter and the Engine
ID parameter to create a user entry in the SNMP engine of the
collection service.
The Username and Engine ID combination must be unique (for
example, logcollector).
Engine ID
(Optional) Engine ID of the event source. For all event sources
sending SNMP v3 traps to this collection service, you must add the
username and engine id of the sending event source.
For all event sources sending SNMPv3 informs, you must add just the
username with a blank engine id.
Authentication
Type
(Optional) Authentication protocol. Valid values are as follows:
l
None (default) - only security level of noAuthNoPriv can be used
for traps sent to this service
l
SHA - Secure Hash Algorithm
SNMP User Parameters
5
Event Source Log Configuration Guide
Parameter Description
l
MD5 - Message Digest Algorithm
Authentication
Passphrase
Optional if you do not have the Authentication Type set.
Authentication passphrase.
Privacy Type
(Optional) Privacy protocol. You can only set this parameter if
Authentication Type parameter is set. Valid values are as follows:
l
None (default)
l
AES - Advanced Encryption Standard
l
DES - Data Encryption Standard
Privacy
Passphrase
Optional if you do not have the Privacy Type set. Privacy
passphrase.
Close
Closes the dialog without adding the SNMP v3 user or saving
modifications to the parameters.
Save
Adds the SNMP v3 user parameters or saves modifications to the
parameters.
Copyright © 2017 EMC Corporation. All Rights Reserved.
Trademarks
RSA, the RSA Logo and EMC are either registered trademarks or trademarks of EMC Corporation
in the United States and/or other countries. All other trademarks used herein are the property of
their respective owners.
