EMC 1UP Owner's Manual

EMC 1UP

Owner’s Manual

UK

UK

UK

Owner’s Manual

EMC 1UP Reference CD Player

24 Bit Upsampler 192kHz DAC

Warning:

To avoid risk of fire or electric shock, do not expose this appliance to rain or moisture.

Verify line voltage before use.

Do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

The warranty is void if the product is tampered with by non-authorised personnel.

Use only authorised Electrocompaniet service center.

3

Unpacking the EMC 1UP

Immediately upon receipt of the EMC 1UP CD player, inspect the carton for
possible damage during shipment. The carton and packaging have been
designed to provide the safest possible protection for transport of your
EMC 1UP. Unpack the unit carefully. Save all packaging materials for future
shipment.

The contents of the carton

1 pcs Electrocompaniet: EMC 1UP CD player.
1 pcs AC main cord.
1 pcs inspection card.
1 pcs CD clamp.
1 pcs self-adhesive felt ring for placement of the CD clamp when not in use.
2 pcs Allen keys for securing of the Electro Mechanical Cancellation System.

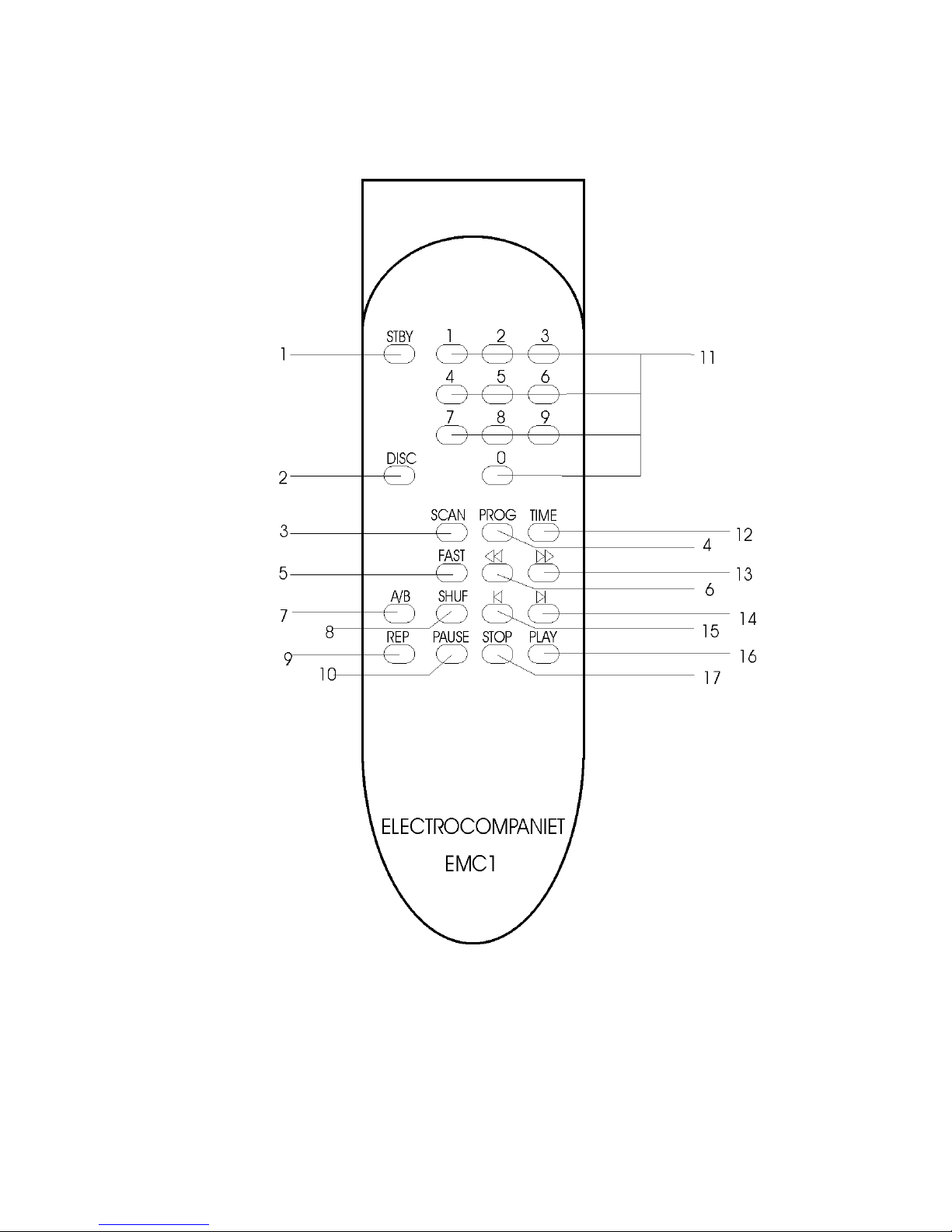

1 pcs remote control

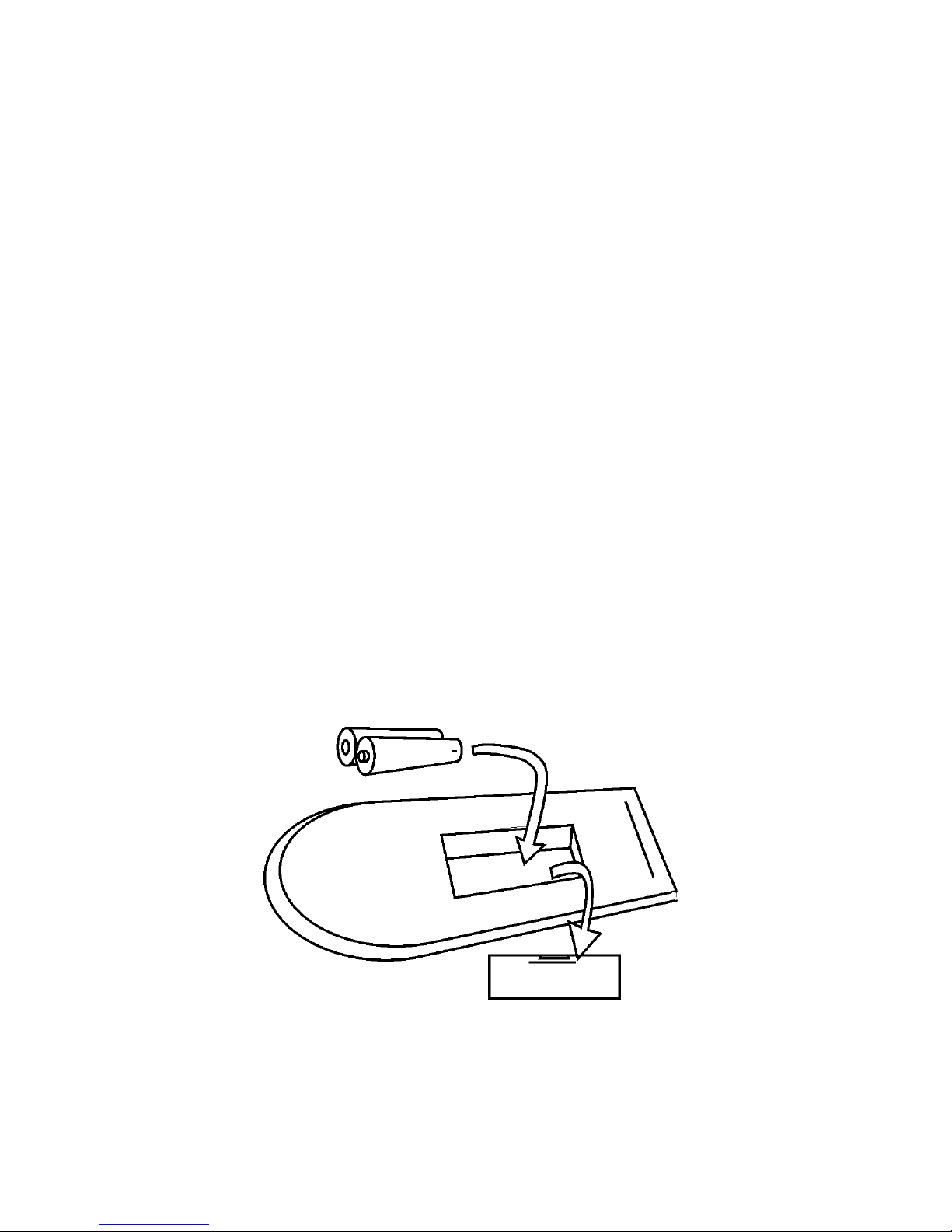

2 pcs batteries.

Important Notice

The transport screw must be removed for proper operation. When moving the
CD player. Always re-insert and tighten the transport screw to avoid severe dam­age to the unit!

For optimal sonic performance, the EMC 1UP should be burned in for a mini­mum time of 72 hours. The easiest way to burn in your EMC 1UP is to put a disc
in REPEAT mode with the rest of your system turned off. In daily operation, switch
off the CD player by using the STANDBY button on the remote. If the CD player
has been switched off, allow two hours of warm-up to optimize sonic performance.
Due to high class A operation in all Electrocompaniet designs, it is normal for the
CD player to feel warm. Proper ventilation is important. The CD player should by
no means be completely covered. A good rule of thumb is to allow at least 3 - 5
cm (1 - 2 inches) of air sidewise, and 5 - 8 cm (2 - 3 inches) above the CD player.
Please refer to Owner's Manual for removal of the CD transport screw.

4

Set up procedure

How to remove and UN secure transport necessities.

1. Remove the two wing bolts and
the wing nut located underneath the
unit.

2. Unscrew the Allen screws hol­ding the gold sign marked
«Mechanical Cancellation Sys­tem» with the smallest Allen key
and remove the bracket.

3. To loosen the transport screw
located underneath the golden
sign, use the largest Allen key and
unscrew counter clockwise for
about 10 turns. Do not remove this
allen screw.

4. Put the gold sign back and fasten
it whith the Allen screws.

! Important!

Keep Allen keys and all transport
necessities in a safe place for
future use. Always tighten the trans­port screw ontopp first, then the wing
nut and wing bolts when moving the
CDPlayer. The cancellation system
weights close to six kilograms
alone. If not securely fastened, the
CD player will be severely
damaged, resulting in void of
warranty. Do not over-tighten the
transport screw.
