Introduction
The next chapter in reading
The Elonex eBook turns the next page in the history of reading. eBooks are a
revolution in the written word and mark one of the biggest technological
developments since prehistoric Cave Paintings, the Quill and the Gutenberg
printing press.
The Elonex eBook is a great new way for you to enjoy reading your favourite
books. The eBook lets you carry around thousands of eBooks, pictures and
files with you, wherever you go. It’s incredibly thin and light, and the long
battery life means you can enjoy up to 8000 pages between charges.
What are eBooks?
Rather than books being printed on paper, eBooks (or electronic books) are
digital edition books that are downloaded from the internet and can be read on
your eBook reader. This not only lets you carry around a library’s worth of
books in one hand but is also incredibly environmentally friendly, as every new
eBook you get doesn’t involve any trees being cut down!
100 free eBooks!
To get your eBook collection started we have preloaded your eBook with 100
of the all time classic eBooks for you to enjoy!
How does it work?
eBook uses innovative e-Ink® technology within the screen which is the
thickness of a credit card. Each page of the book is electronically printed on
the screen. It is non-flicker and non-glare so reading is gentle on the ey e, even
in direct sunlight!
eBooks also have the unique function in that you can change the font size
which is great if you have difficulty reading normal print. The eBook supports
PDF and ePub reflow which is a method of resizing the eBook content to help
you get the best display on the screen.
Getting Started
After unpacking your eBook please check you have all the package contents
and they are in good order. If you are missing anything or any item has been
damaged please contact the store you purchased your eBook from or call
customer services on
0871 222 3456
(National rate)
Package Contents
Your package includes the following contents:
eBook Reader
Power Adapter
USB Data Cable
Quick S tart Guide
Warranty Card
Technical Support
If you have any queries on using your eBook or you are having difficulties
please ring the Technical Support Helpdesk. Please don’t take your eBook
back to the store.
Technical Support Helpdesk
0871 222 3456
(national rate)
Please read this user manual carefully to help you get the most out of your
eBook. Also please observe the safety warnings so you don’t damage your
eBook or more importantly yourself.
A full support site and trouble-shooting tips are available at
www.elonex.com/support
User M
Getting to know your Elonex eBook reader
Front View
Getting to know your Elonex eBook reader
Rear View
User M
Getting to know your Elonex eBook reader
Inputs and Outputs
1. Power Button
To turn the device on and off.
To power ON press for one second and let the eBook load.
To power OFF press and hold the button for two seconds.
Power LED
When the eBook is operating the LED will illuminate Green
When the Battery is charging the LED will illuminate Red
2. Multimedia Button
Press this button to enter the Multimedia page.
3. Rotate Button
Press this button to rotate the screen to display in portrait or landscape.
4. Return Button
Press this button to return to the Main Menu at any time.
5. Menu Button
Show a popup menu corresponding to the function you are using
E.g., when reading a book, the popup menu will give you options to
bookmark, status options, library setting, general setting, etc.
6. Select Button and Arrow Keys
In a menu the arrow keys let you move the cursor up, down, left or right.
The Select Button lets you proceed with your selection.
While reading an eBook you can use arrow keys to turn a page
and by pressing the Selec t Button to show the popup menu.
7. SD card slot
Use this slot to add an expansion card up to 4Gb. This slot is compatible
with SD cards only.
8. Font Size Buttons
Press these buttons to increase or decrease the font size.
9. Reset Button
In the unlikely event that the firmware crashes, pressing the reset button
for 5 seconds will reset the dev ice firmware and you will be able to continue
reading.
10. mini-USB port
Use this port to connect the USB cable to transfer data to and from your
computer or eBook. You should only plug a mini-USB cable into this port.
When plugging in the cable, please ensure that the cable is the right way
up and aligned correctly so as to not cause any damage to the eBook.
11. AC power input
Use this port to connect the AC power adaptor. Only use the power
adaptor supplied, or an authorized Elonex power adapter otherwise you
may cause damage to your eBook.
When no USB / Power Cable is attached to the eBook, Elonex
recommends that you put the Port Cover back in place, ensuring the USB
plug fits inside the USB port, as this will prevent any material entering the
eBook.
User M
Using your eBook
Your library
When you turn your eBook on (by pressing the Power Button), please wait a
few moments to allow the eBook to boot up.

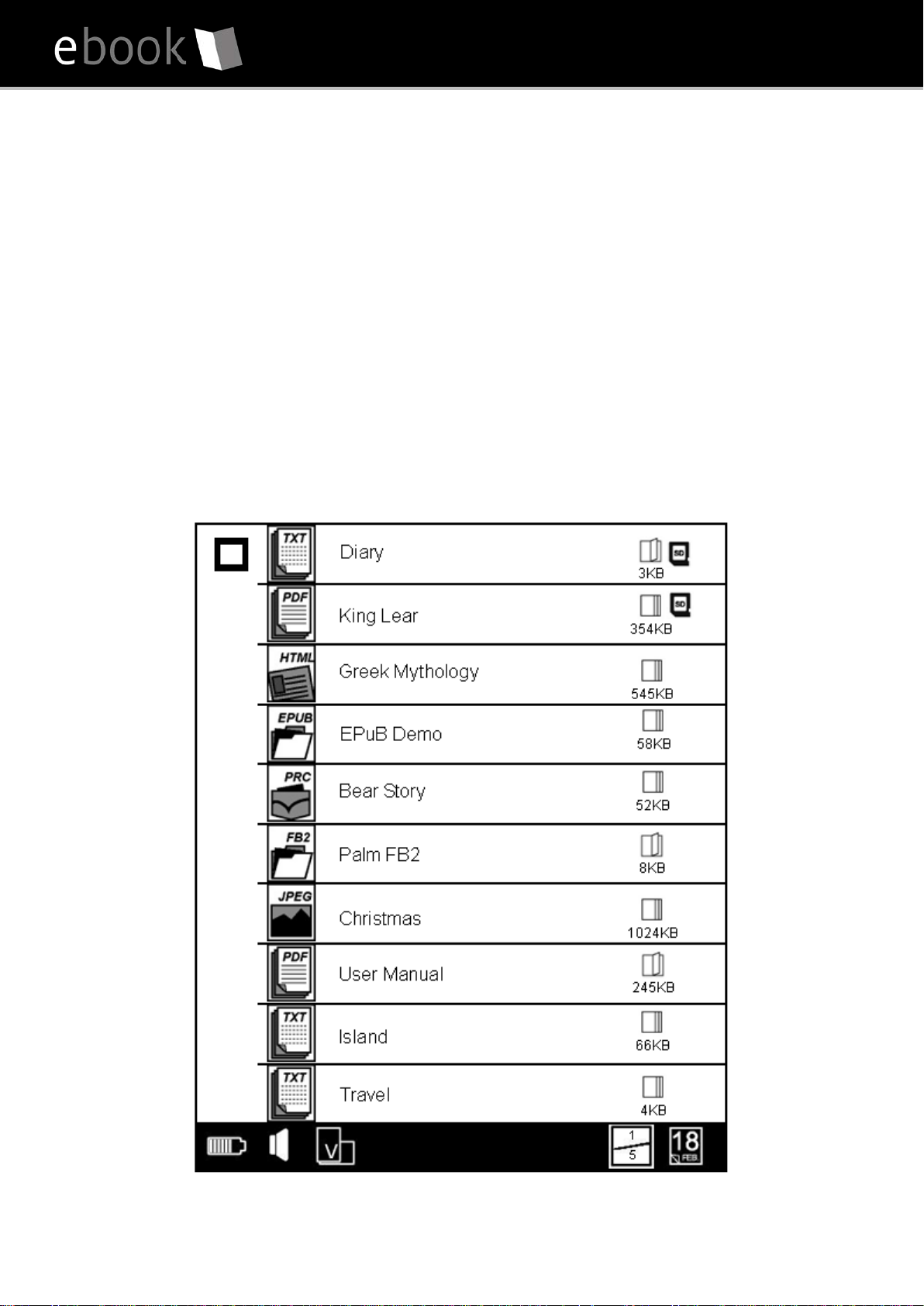

The main menu screen (library) displays a list of the eBooks you have stored
on the eBook (or expansion card if you have one). You can return to this
screen at any time by pressing the Return Button on the left side of your
eBook.
Cursor Use the arrow keys and select button to move the
cursor and navigate through your library. To start reading an
eBook, select the one you wish to read and press the Select
Button.
In vertical mode, press up/down to select, left/right to turn
page. In horizontal mode, press left/right to select, up/down
to turn page.
eBook Formats This displays the file format of the eBooks
loaded in your library.
Hamlet
eBook Name The name of your eBooks
eBook Size This displays the size in kb (kilobytes) of the
eBooks loaded in your library.
eBook Read/Unread The
have started to read the eBook and the
icon indicates that you
icon indicates
that the eBook is still unread.
If there is an SD symbol next to the icon this shows that the
particular eBook is stored on SD card and not the system
memory.
User M
Battery Displays the amount of battery life remaining.
The icon changes into
when you connect your eBook
to a power source.
Page Orientation This display the image status of vertical
or horizontal .
To change the page orientation, press the “Rotate Button” on
the left side of your eBook.
Page Show the page number you are currently on / the total
page numbers of the library.
Sorting Type Display the sorting status of your library. See
“Sorting your library” for more info.
Preparing your PC and eBook
The process of downloading, managing and transferring eBooks is a simple 3
step process. The first time you set-up your eBook you must complete a
few procedures to prepare your computer.
Setup 1: Install Adobe Digital Editions
Adobe Digital Editions is the industry standard software for downloading and
managing your eBook collection. The best bit about i t is that i t is free and easy
to use.
• To download Adobe Digital Editions go online to
www.adobe.com/products/digitaleditions
• Find the installer which will look like the box
shown to the right. Click Install.
• You will be asked to confirm the install. Click
Install
• Click YES to continue the installation
