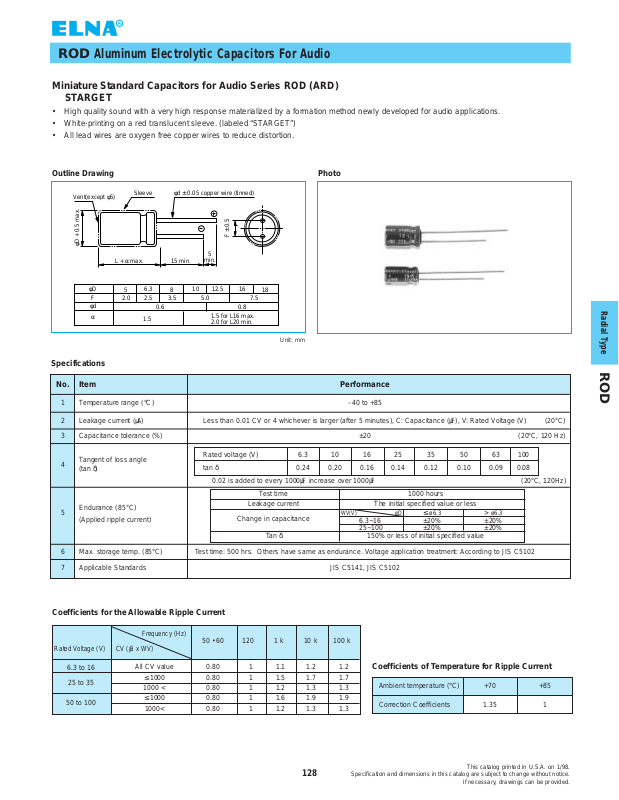

ROD Aluminum Electrolytic Capacitors For Audio
Miniature Standard Capacitors for Audio Series ROD (ARD)
STARGET
• High quality sound with a very high response materialized by a formation method newly developed for audio applications.
• White-printing on a red translucent sleeve. (labeled
• All lead wires are oxygen free copper wires to reduce distortion.
“STARGET”)

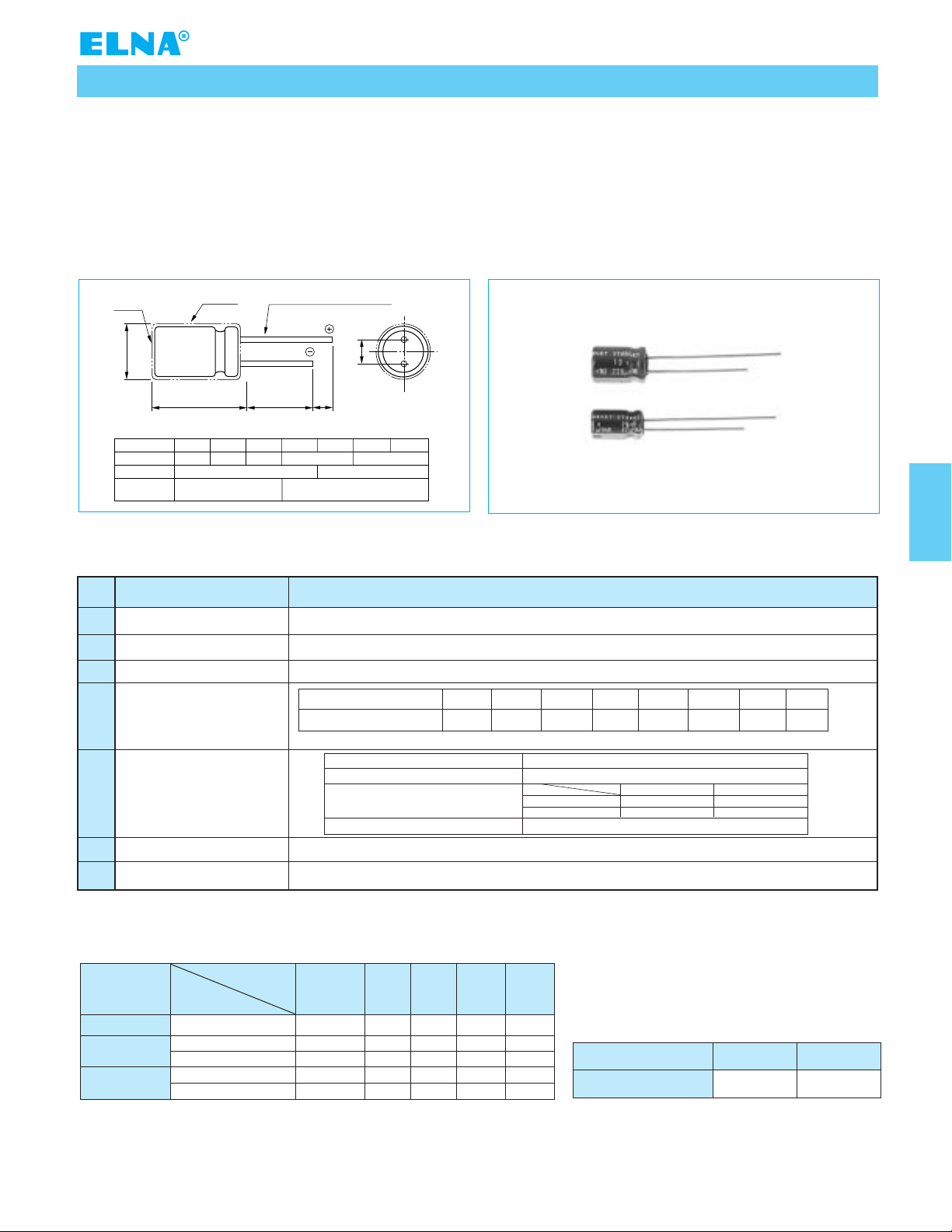

PhotoOutline Drawing
Vent(except φ5)
φD + 0.5 max.
φD
F
φd
α
Sleeve
L + α max.
5
2.0
1.5
φd ± 0.05 copper wire (tinned)
5
15 min.
6.3
8
2.5
3.5
0.6 0.8
min.
10
5.0
12.5 16
1.5 for L16 max.
2.0 for L20 min.
F ± 0.5
18
7.5
Unit: mm
Specifications
No. Item Performance
1 Temperature range (°C) –40 to +85
2 Leakage current (µA) Less than 0.01 CV or 4 whichever is larger (after 5 minutes), C: Capacitance (µF), V: Rated Voltage (V) (20°C)
3 Capacitance tolerance (%) ±20 (20°C, 120 Hz)
Tangent of loss angle
4
(tan δ)
Endurance (85°C)
5
(Applied ripple current)
6 Max. storage temp. (85°C) Test time: 500 hrs. Others have same as endurance. Voltage application treatment: According to JIS C5102
7 Applicable Standards JIS C5141, JIS C5102
Rated voltage (V) 6.3 10 16 25 35 50 63 100
tan δ 0.24 0.20 0.16 0.14 0.12 0.10 0.09 0.08
0.02 is added to every 1000µF increase over 1000µF (20°C, 120Hz)
Test time 1000 hours
Leakage current The initial specified value or less
Change in capacitance
Tan δ 150% or less of initial specified value
WV(V) øD
6.3~16 ±20% ±20%
25~100 ±20% ±20%
≤ ø6.3 > ø6.3
Radial Type
ROD
Coefficients for the Allowable Ripple Current
Frequency (Hz)
Rated Voltage (V) CV (µF x WV)
6.3 to 16
25 to 35
50 to 100
All CV value 0.80 1 1.1 1.2 1.2
≤ 1000 0.80 1 1.5 1.7 1.7
1000 < 0.80 1 1.2 1.3 1.3
≤ 1000 0.80 1 1.6 1.9 1.9
1000< 0.80 1 1.2 1.3 1.3
50 • 60 120 1 k 10 k 100 k
128
Coefficients of Temperature for Ripple Current
Ambient temperature (°C) +70 +85
Correction Coefficients 1.35 1
Specification and dimensions in this catalog are subject to change without notice.
This catalog printed in U.S.A. on 1/98.
If necessary, drawings can be provided.
Page 2
ROD Aluminum Electrolytic Capacitors For Audio
Radial Type
ROD
Case size by working voltage & capacitance (in mm)
WV(V)
Cap.(µF)
0.47
1
2.2
3.3
4.7
10
22
33
47
100
220
330
470
1000
2200
3300
4700
6800
10000
6.3 10 16 25 35 50 63 100
5 x 11
5 x 11
5 x 11
6.3 x 11
8 x 11.5
10 x 12.5
10 x 16
10 x 20
12.5 x 25
16 x 25
16 x 35.5
18 x 35.5
6.3 x 11
6.3 x 11
12.5 x 20
5 x 11
5 x 11
6.3 x 11
8 x 11.5
10 x 12.5
10 x 12.5
10 x 20
12.5 x 25
16 x 25
16 x 31.5
16 x 35.5
18 x 40
5 x 11
5 x 11
5 x 11
6.3 x 11
8 x 11.5
10 x 12.5
10 x 16
12.5 x 20
16 x 25
16 x 31.5
16 x 35.5
18 x 40
Standard Ratings
ELNA PART NO. / WV (V)
CAP. SIZE (φx L)
(µF) (mm) (mArms)
tan δ
Ripple Current
5 x 11
5 x 11
5 x 11
8 x 11.5
10 x 16
10 x 20
16 x 25
16 x 35.5
18 x 40
6.3 x 11
6.3 x 11
10 x 12.5
10 x 20
12.5 x 20
12.5 x 25
16 x 25
18 x 35.5
ELNA PART NO. / WV (V)
5 x 11
8 x 11.5
5 x 11
5 x 11
5 x 11
5 x 11
5 x 11
5 x 11
6.3 x 11
8 x 11.5
8 x 11.5
10 x 16
12.5 x 20
12.5 x 20
16 x 25
16 x 31.5
CAP. SIZE (φx L)
(µF) (mm) (mArms)
5 x 11
6.3 x 11
8 x 11.5
8 x 11.5
10 x 12.5
10 x 20
12.5 x 20
12.5 x 25
16 x 25
18 x 35.5
tan δ
6.3 x 11
10 x 12.5
10 x 16
10 x 20
12.5 x 20
16 x 25
16 x 31.5
18 x 35.5
Ripple Current
(mm)
5 x 11
5 x 11
5 x 11
5 x 11
8 x 11.5
6.3 V
ROD-6V330M 33 5 x 11 0.24 55
ROD-6V470M 47 5 x 11 0.24 65
ROD-6V101M 100 6.3 x 11 0.24 110
ROD-6V221M 220 8 x 11.5 0.24 185
ROD-6V331M 330 10 x 12.5 0.24 265
ROD-6V471M 470 10 x 12.5 0.24 315
ROD-6V102M 1000 10 x 20 0.24 550
ROD-6V222M 2200 12.5 x 25 0.26 980
ROD-6V332M 3300 16 x 25 0.28 1300
ROD-6V472M 4700 16 x 31.5 0.30 1700
ROD-6V682M 6800 16 x 35.5 0.34 2100
ROD-6V103M 10000 18 x 40 0.40 2800
10 V
ROD-10V220M 22 5 x 11 0.20 50
ROD-10V330M 33 5 x 11 0.20 65
ROD-10V470M 47 5 x 11 0.20 75
ROD-10V101M 100 6.3 x 11 0.20 120
ROD-10V221M 220 8 x 11.5 0.20 200
ROD-10V331M 330 10 x 12.5 0.20 290
ROD-10V471M 470 10 x 16 0.20 380
ROD-10V102M 1000 12.5 x 20 0.20 670
ROD-10V222M 2200 16 x 25 0.22 1200
ROD-10V332M 3300 16 x 31.5 0.24 1600
ROD-10V472M 4700 16 x 35.5 0.26 1900
ROD-10V682M 6800 18 x 40 0.30 2600
16 V
ROD-16V100M 10 5 x 11 0.16 35
ROD-16V220M 22 5 x 11 0.16 60
ROD-16V330M 33 5 x 11 0.16 70
ROD-16V470M 47 6.3 x 11 0.16 95
ROD-16V101M 100 8 x 11.5 0.16 150
ROD-16V221M 220 10 x 12.5 0.16 265
ROD-16V331M 330 10 x 16 0.16 350
ROD-16V471M 470 10 x 20 0.16 460
ROD-16V102M 1000 12.5 x 25 0.16 810
ROD-16V222M 2200 16 x 25 0.18 1350
ROD-16V332M 3300 16 x 35.5 0.20 1800
ROD-16V472M 4700 18 x 35.5 0.22 2400
25 V
ROD-25V4R7M 4.7 5 x 11 0.14 25
ROD-25V100M 10 5 x 11 0.14 40
129
Note: Allowable Ripple Current 100 kHz at 105°C
Specification and dimensions in this catalog are subject to change without notice.
This catalog printed in U.S.A. on 1/98.
If necessary, drawings can be provided.
Page 3
ROD Aluminum Electrolytic Capacitors For Audio
Standard Ratings
ELNA PART NO. / WV (V)
ROD-25V220M 22 5 x 11 0.14 60
ROD-25V330M 33 6.3 x 11 0.14 80
ROD-25V470M 47 6.3 x 11 0.14 100
ROD-25V101M 100 8 x 11.5 0.14 165
ROD-25V221M 220 10 x 16 0.14 310
ROD-25V331M 330 10 x 20 0.14 410
ROD-25V471M 470 12.5 x 20 0.14 550
ROD-25V102M 1000 16 x 25 0.14 1000
ROD-25V222M 2200 16 x 35.5 0.16 1650
ROD-25V332M 3300 18 x 40 0.18 2100
35 V
ROD-35V100M 10 5 x 11 0.12 45
ROD-35V220M 22 6.3 x 11 0.12 75
ROD-35V330M 33 6.3 x 11 0.12 90
ROD-35V470M 47 8 x 11.5 0.12 120
ROD-35V101M 100 10 x 12.5 0.12 210
ROD-35V221M 220 10 x 20 0.12 365
ROD-35V331M 330 12.5 x 20 0.12 500
ROD-35V471M 470 12.5 x 25 0.12 640
ROD-35V102M 1000 16 x 25 0.12 1050
ROD-35V222M 2200 18 x 35.5 0.14 1900
50 V
ROD-50VR47M 0.47 5 x 11 0.10 5
ROD-50V010M 1 5 x 11 0.10 10
ROD-50V2R2M 2.2 5 x 11 0.10 20
ROD-50V3R3M 3.3 5 x 11 0.10 25
ROD-50V4R7M 4.7 5 x 11 0.10 35
ROD-50V100M 10 5 x 11 0.10 50
ROD-50V220M 22 6.3 x 11 0.10 80
ROD-50V330M 33 8 x 11.5 0.10 110
ROD-50V470M 47 8 x 11.5 0.10 130
ROD-50V101M 100 10 x 16 0.10 250
ROD-50V221M 220 12.5 x 20 0.10 440
ROD-50V331M 330 12.5 x 20 0.10 540
ROD-50V471M 470 16 x 25 0.10 800
ROD-50V102M 1000 16 x 31.5 0.10 1200
CAP. SIZE (φx L)
(µF) (mm) (mArms)
tan δ
Ripple Current
ELNA PART NO. / WV (V)
63 V
ROD-63V4R7M 4.7 5 x 11 0.09 35
ROD-63V100M 10 6.3 x 11 0.09 60
ROD-63V220M 22 8 x 11.5 0.09 100
ROD-63V330M 33 8 x 11.5 0.09 115
ROD-63V470M 47 10 x 12.5 0.09 165
ROD-63V101M 100 10 x 20 0.09 285
ROD-63V221M 220 12.5 x 20 0.09 470
ROD-63V331M 330 12.5 x 25 0.09 620
ROD-63V471M 470 16 x 25 0.09 840
ROD-63V102M 1000 18 x 35.5 0.09 1500
100 V
ROD-100VR47M 0.47 5 x 11 0.08 10
ROD-100V010M 1 5 x 11 0.08 15
ROD-100V2R2M 2.2 5 x 11 0.08 25
ROD-100V3R3M 3.3 5 x 11 0.08 30
ROD-100V4R7M 4.7 6.3 x 11 0.08 40
ROD-100V100M 10 8 x 11.5 0.08 70
ROD-100V220M 22 10 x 12.5 0.08 120
ROD-100V330M 33 10 x 16 0.08 160
ROD-100V470M 47 10 x 20 0.08 210
ROD-100V101M 100 12.5 x 20 0.08 340
ROD-100V221M 220 16 x 25 0.08 620
ROD-100V331M 330 16 x 31.5 0.08 820
ROD-100V471M 470 18 x 35.5 0.08 1000
CAP. SIZE (φx L)
(µF) (mm) (mArms)
Note: Allowable Ripple Current 120 kHz at 85°C
tan δ
Ripple Current
Radial Type
ROD
130
Specification and dimensions in this catalog are subject to change without notice.
This catalog printed in U.S.A. on 1/98.
If necessary, drawings can be provided.
