Elmo ESD-380, ESD-370 User Manual 2

ELMO USA Corp. 1478 Old Country Road, Plainview, NY 11803

Tel: [phone] • Fax: [phone] • www.elmousa.com

ESD-380 ESD-370

SDRS DR

CAMERA

Optical Zoom Ratio 22x 23x 22x 23x
Digital Zoom 1x - 12x variable 1x - 12x variable
Effective Pixels NTSC: 380k PAL: 440k NTSC: 380k PAL: 440k

NTSC: 480 TV lines NTSC: 480 TV lines
Horizontal Resolution PAL: 480 TV lines PAL: 480 TV lines
Scanning Area Progressive 1/4” CCD Progressive 1/4” CCD
Scanning System NTSC, PAL NTSC, PAL
Synchronization Internal/Line Lock Internal/Line Lock
Video Output 1.0 Vpp / 75 ohm, BNC 1.0 Vpp / 75 ohm, BNC
S/N Ratio (AGC OFF) More than 49dB More than 49dB

1 lux 0.01 lux, 0 lux 1 lux 0.01 lux, 0 lux
Minimum Illumination (IR illuminator) (IR illuminator)
Focal Length 4-88mm 3.6-82.8mm 4-88 mm 3.6-82.8mm
Focus Mode Auto/Manual Auto/Manual
White Balance Auto/Manual Auto/Manual
Iris Control Auto/Manual Auto/Manual

NTSC: 1/2-1/4k sec NTSC: 1/2-1/4k sec
Electronic Shutter PAL: 1/1.5-1/4k sec PAL: 1/1.5-1/4k sec
AGC Control Auto/Manual Auto/Manual
Back Light Compensation On/Off On/Off

OPERATION

ELMO, Pelco D&P, VCL, Philips, ELMO, Pelco D&P, VCL, Philips,
Built-In Protocol AD-Manchester, AD-422, JVC AD-Manchester, AD-422, JVC
Pan Travel 3600endless 3600endless
Tilt Travel -100to 100

0

-100to 190

0

-100to 100

0

-100to 190

0

Manual Speed 10to 900/sec 10to 900/sec
Presets 256 256
Preset Accuracy Pan: <0.2250Tilt: <0.45

0

Pan: 0.2250Tilt: 0.45

0

Pan: 50 to 4000/sec Pan: 50to 4000/sec
Preset Speed Tilt: 50 to 4000/sec Tilt: 50to 4000/sec
Cruise 1 1
Sequence 8 8
Auto Pan 4 4
Privacy Mask X 8 X 8
Pan & Tilt (Proportional to Zoom Ratio) Yes Yes
P/T/Z Auto-Restoring Yes Yes
Auto Turn Around Yes Yes
Zone Title Yes Yes
Home Function Yes Yes
Digital Flip X Yes X Yes
Digital Slow Shutter X Yes X Yes
Wide Dynamic Range X Yes X Yes
Day/Night IR Cut Filter X Yes X Yes
Alarm Input 8 8
Alarm Output 2 2

GENERAL

Environment Indoor/Outdoor Indoor
Controller Interface RS-485 RS-485
Operating Temperature -300C to 450C (-220F to 1130F) 00C to 400C (320F to 1040F)
Waterproof Standard IP 66 X

172 x 302.5mm (6.7 x 11.9 in) 131 x 226mm (5.2 x 7.6 in)
Dimensions w/ Sunshield 190 x 302.5mm (7.5 x 11.9 in)
Weight 5.8k (12.9 lbs) 1.6k (3.5 lbs)
Power Source AC 24 V AC 24 V
Power Consumption 52 W (w/Heater) 30 W
Regulatory CE, FCC CE, FCC

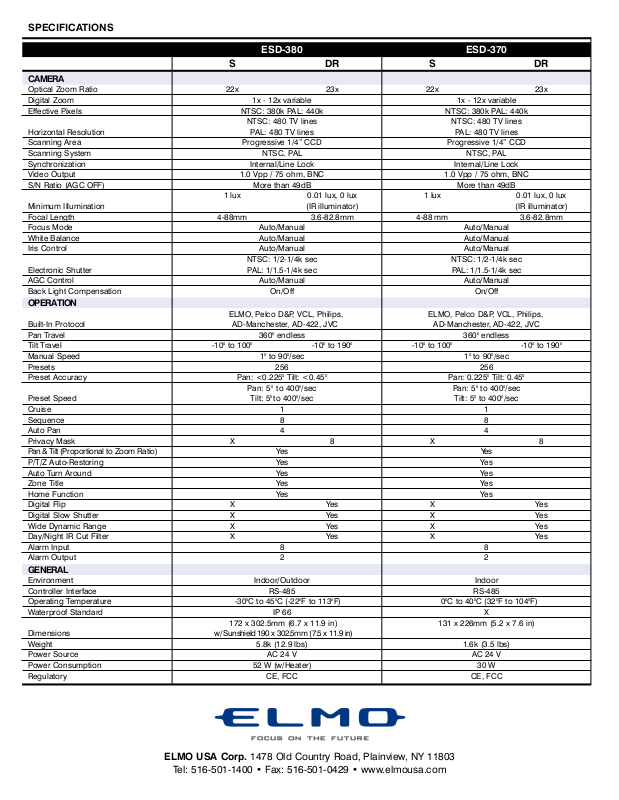

SPECIFICATIONS

Complete solutions for

outdoor & indoor installations

ELMO Hi-Speed

PTZ Color Domes

ELMO Hi-Performance
Hi-Speed PTZ Color Domes

With four indoor and outdoor configurations, ELMO’s compact high-speed
dome cameras offer the preformance, flexibility and ease of installation that
make them ideal for tightening security in shopping malls, transportation hubs,
supermarkets, casinos, corporate centers and industrial facilities.

These 1/4” CCD color cameras with DSP circuitry deliver high (480TVL)
resolution images with excellent color accuracy and a S/N ratio greater than
49dB. Heavy duty PTZ mechanisms are utilized to meet the demands of fre­quent movement and rapid changes in position. The ESD series cameras are
compatible with the most common controls and ELMO DVRs or controllers.

All 4 models have these features

4000/sec pan, accurate tracking
for maximum security

• Variable scan speed models, equipped with two types of precision motors,
achieve high acceleration rate, smooth steady motion

• 3600continuous pan rotation at a travel speed from 50to 4000/sec, operating
from presets with 1800auto-turnaround

• Tilt travel, -100to 1000(standard model); -100to 1900(wide dynamic range
model)

• Pan driver accuracy, of 0.2250and tilt driver, 0.450to track distant subjects
accurately

• Pan and tilt speed automatically adjust in proportion to depth of the zoom

• 256 programmable pre-sets pinpoint location of the target areas

User-friendly features speed setup,
enhance image reproduction

• Simplified housing designs for faster, easier installation

• On-screen display for easy set up

• Auto Pan, Cruise, Sequence, and Preset for efficient scanning of a specific area

• 8 alarm inputs programmable for either normally open or normally closed
operation

• Scheduling to set up a particular function to operate at a selected time

• Auto/manual focus; auto/manual iris, auto/manual white balance and
backlight compensation for best image quality

• 24VAC operation

Day/Night, wide dynamic range cameras offer
complete outdoor/indoor solutions

The ESD-380DR outdoor and ESD-370DR indoor day/night cameras, capture
image details in difficult lighting conditions ranging from brilliant, glaring sun­shine to near total darkness. These WDR design cameras can capture detailed
images from dark areas without any saturation from adjacent bright areas and
improve image quality in simultaneous indoor and outdoor light conditions.

• Digital Slow shutter and removable IR cut filters enhance capture capability
for brighter images, even at lowest light levels.

High-speed Shutter Image
(Progressive)

Normal Exposure Image
(Progressive)

Compos
Technolo

Day (Color Mode)

Privacy Zone Masking

• Digital flip always displays subjects in upright position as they pass under
the camera or change direction, without tracking delays

• IR cut filter can be automatically or manually removed making it possible
to capture color video with minimum illumination of 0.01 lux; B&W video with
a minimum 0 lux (IR illuminator)

• 23x optical zoom (3.6 to 82.8mm); 12x programmable digital zoom,
276x magnification for detailed close-ups.

• 8-position privacy zone-masking protects selected areas against intrusive
monitoring.

Full-featured Standard Models
for cost-effective installations

The rugged, compact Standard Models, ESD-380S outdoor and ESD-370S
indoor, offer highly-regarded proprietary optics.

• 22x precision optical zoom (4 to 88mm); 12x programmable digital zoom,
264x magnification

• Auto flip function for continuous tracking

• Minimum illumination of 1 lux

The Standard Models include almost all the features and capabilities of the
WDR models except privacy masking, digital slow shutter, IR cut filter, digital
image flip, day/night and wide dynamic range functions.

Everything it takes for complete outdoor
and indoor installations

The compact ESD-380 IP66 weather-resistant outdoor housings with goose­neck mounts are ideal for outdoor and indoor installation. They withstand harsh
weather and other environmental conditions. Equipped with a built-in sun­shield, heater, blower, and mounting bracket, they can be installed under build­ing eaves, on external walls, rooftops, almost anywhere.

The ESD-370 indoor cameras have a built-in fan and ship with a T-bar for
recessed ceilings and standard mounting ring for hard surfaces.

A full line of accessories accommodates any outdoor or indoor requirement.
Users can select from a variety of mounts, wall, corner, pole and ceiling based
on installation conditions.

Backed by ELMO's trusted service and support, these hi-speed cameras
offer all the fine performance and value for which ELMO stands.

ogy

Night (B/W mode)

ESD-380
with gooseneck

ESD-370
with surface mount

ESD-370
with flush mount
