Elmo Document Camera P30S Brochure & Specs

P30S

VISUAL PRESENTER

The Ultimate Faculty Enhancer

NEW

Welcome to the Real World of Visual Presentation

HD/Full-Motion Visual Presenter P30S

Quick, Easy, and Flexible

Visual Power

Expanded Possibilities

■

A variety of materials presented clearly and directly

■

Real-world materials, not virtual representations

■

An element of surprise to capture viewer attention

■

1.35-megapixel CMOS image sensor

■

Advanced 64x zoom and auto focus

■

30 fps for smooth motion display

■

HDTV- and 16:9-compatible

P30S

VISUAL PRESENTER

ELMO’s Checklist for Effective Visual Presentations:

Even in an increasingly virtual world, reality is often the best teacher. Actual

specimens, real three-dimensional objects, authentic documents, and pages

directly from a book all make visual presentations more diverse, realistic, and

vivid. Make the most of your real-world materials with an ELMO P30S Visual

Presenter. Deliver real-time, true-to-life presentations that catch and keep the

attention of everyone in the room. Integrate your resources into data files for

easy transfer to a PC or SD card storage. And let the learning begin.

Annotation

Screen Separation function

Still image

Live video

1.35-megapixel CMOS image sensor

For vivid, high-resolution images that keep viewers engaged, the P30S relies on a horizontal
resolution of 800 lines—meeting the highest industry standard—a highly precise 1,350,000­pixel CMOS image sensor, and a specially designed lens that minimizes distortion and light
falloff around the edges. The resulting images are as even as they are beautiful.

Advanced 64x zoom and auto focus

For unsurpassed clarity, the P30S boasts a camera unit, made up of a special lens and zoom
component, that was designed exclusively for the P30S. High-magnification 16x optical zoom
and 4x digital zoom ensure that all materials—from three-dimensional objects or books to
special items such as slides—are faithfully displayed down to the most intricate detail. Even
the tiniest display subjects appear distortion-free. And with one-push auto focus, the P30S
instantly and automatically determines and sets just the right focus for the sharpest, crispest
detail possible.

Built-in 3.5-inch LCD monitor

Thanks to the built-in 3.5-inch LCD monitor, you see before you on the control panel
exactly what viewers see behind you on the screen. This way, you can adjust your
materials as needed and continue your presentation without ever turning around or
missing a beat.

Flexible free-angle camera arm

Broaden the view and heighten your impact. The flexible camera arm lets you capture
your subjects from any angle and focus attention precisely where you want it. Simply
lower the arm and rotate the camera head to project an intriguing bottom-to-top
look at a three-dimensional object.

USB 2.0 PC interface

The P30S is conveniently equipped with a USB port for easy image transfer to a PC. It
can even be used as a 3D scanner. Bundled Image Mate software lets you easily
monitor, capture, edit, and save any image on your PC. This presentation-boosting
software provides annotation tools for drawing lines or boxes in a variety of colors on
captured images and a screen separation function for side-by-side comparisons of
live video and stored images. The P30S also has TWAIN compatibility that brings you
the versatility to import saved image files to commercially available photo
retouching software.

USB 2.0 SD card slot

SD card

PC

Digital camera

P30S

Text mode OFF Text mode ON

16 : 9

30 fps for smooth motion display

At 30 frames per second, the P30S smoothly captures and reproduces moving
images. The high frame rate helps eliminate the stroboscopic effects produced when
the zoom adjusts itself or the display subject is moved and the after-images
produced when the subject is changed.

HDTV- and 16:9-compatible

Thanks to a 1280x720-dot HDTV output, the P30S easily accommodates even 16:9
high-definition TV monitors—without elongating the display image. And progressive
scanning prevents on-screen flickering and blurring for distraction-free viewing.

Clear text mode

To accentuate the difference between black and white on monochrome texts, the
P30S is equipped with a contrast-enhancing text mode. As a result, letters and
numbers are clearly reproduced, facilitating the reading of even very small text and
ensuring that your presentation has the intended impact.

Easy access to primary functions

With zoom and auto focus conveniently concentrated on the camera
head, you can zoom in, zoom out, and adjust the focus as needed
without disrupting the flow of your presentation. Other frequently
used functions have been conveniently concentrated in plain view on
the control panel for easy operation. Everything is right at your
fingertips for immediate access.

Quick setup

With just one simple movement, the camera and light on the compact P30S
are ready for action. And both can be easily folded down when no longer
needed. This quick and easy setup gets your presentations off to the
smoothest of starts.

SD card-ready

Now there’s no need to bring a PC and
other hardware to every presentation. For
slide show presentations, simply store
your images on an SD card (sold
separately). You and the SD-card­accommodating P30S are ready to go.

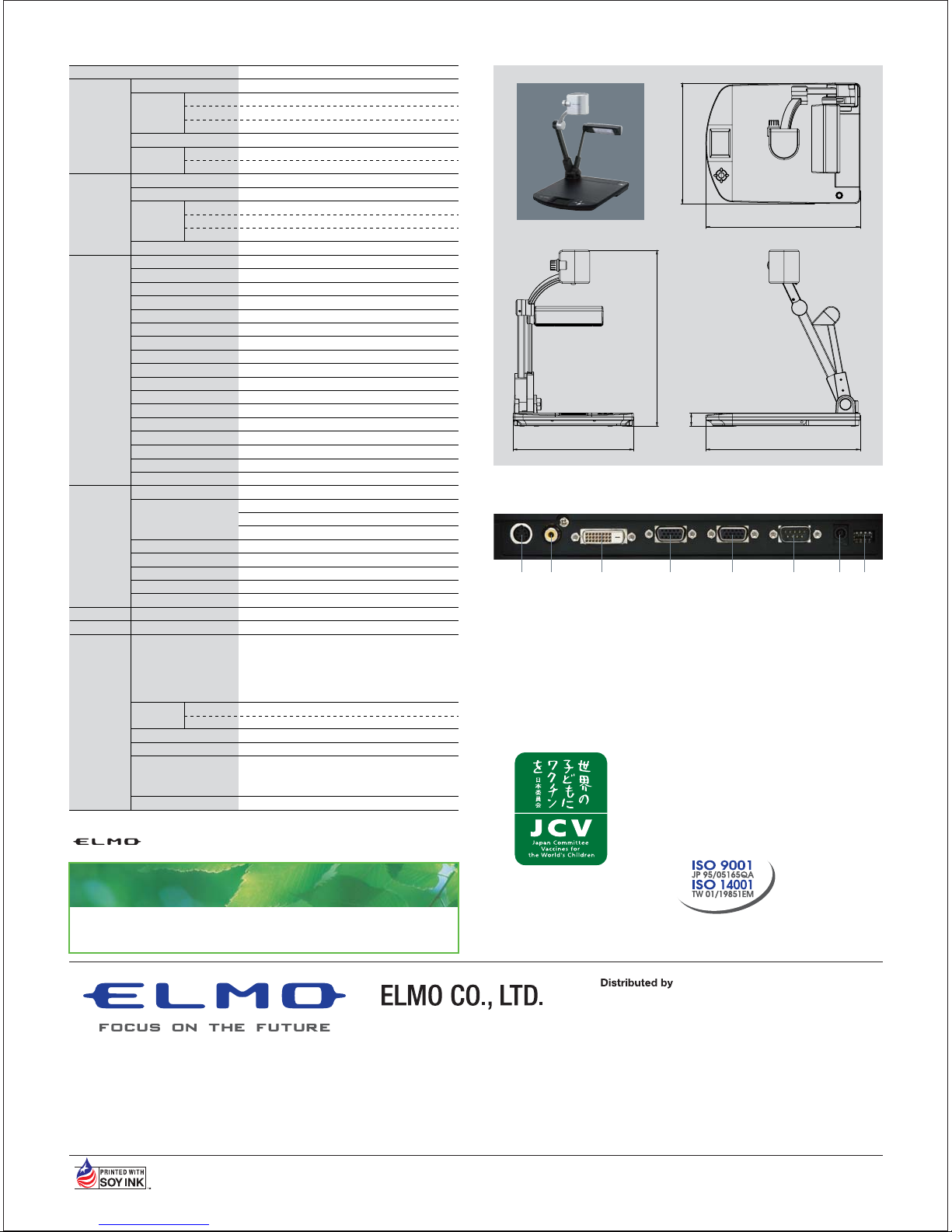

P30S Specifications Profile

Model P30S
Camera Image pick-up device 1/3" CMOS, 1,350,000 pixels

Effective SXGA output 1280 (H) x 1024 (V)
pixels

HD 720p output

1280 (H) x 720 (V)

XGA output 1280 (H) x 960 (V)
Frame rate 30 frames/sec.
Resolution RGB output 800 (H) x 800 (V) TV lines

Video output 450 (H) TV lines

Optics Zoom Powered, 16x optical

Lens F2.7, f=4.9 to 78.4 mm
Shooting area SXGA

Max. 16" x 12 3/4" (405 x 324 mm), min. 1 1/8" x 1" (30 x 24 mm)

HDTV

Max. 16" x 8 7/8" (405 x 224 mm), min. 1 1/8" x 5/8" (30 x 17 mm)

XGA Max. 16" x 12" (405 x 303 mm), min. 1 1/8" x 7/8" (30 x 23 mm)
Focus Auto/Manual (powered)

Functions White balance Full-Auto/One-Push/Manual

Negative/positive conversion Provided
Image mode Text 1, Text 2, Text 3, Graphics
Edge enhancement Provided (in Graphics mode)
Color/B&W selection Provided
Pause mode Provided
Digital zoom Provided (4x)
Gamma adjustment Provided (in Graphics mode)
OSD (on-screen display) Provided
Slide show Provided (SD card image)
Split screen Provided (SD card image, 9-split, 16-split)
Image save Provided (onto SD card)
Image rotation Provided (0°, 180° for forward shooting)
State presetting Up to 8 user settings
Annotation Provided (on PC screen)
Screen separation Provided (on PC screen; live image + saved image)
Sync. system Internal

Interface Internal selection Int./RGB

Analog RGB output SXGA (1280 x 1024 @60Hz)

HD 720p (1280 x 720 @60Hz)

XGA (1024 x 768 @60Hz)
Video output Composite (x1), S-Video (x1)
DVI output Provided (x1)
RGB input Provided (x1)
RS-232C port Provided (x1)
USB port Provided (x1)

Memory card SD card slot Provided (x1)
Lighting Upper lighting unit Provided (white LED)
Others Accessories AC adapter, Power cord (1.5 m), Video RCA cable (3 m),

RGB cable (2 m), DVI cable (2 m), S-Video cable (2 m),

USB cable (1.8 m), Instruction manual, IR remote control,

Slide shooting adapter, Remote control case, Warranty card,

Utility software (Image Mate) CD-ROM
Dimensions Set up 14

5

/8" x 19" x 21 5/8" (376 x 482 x 549 mm)

(W x D x H) Folded 14

5

/8" x 19" x 7 1/8" (376 x 482 x 181 mm)
Weight 10.1 lbs (4.6 kg)
Built-in 3.5" LCD monitor Provided
Application software Image Mate for Presentation, Image Mate for Movie Creation,

TWAIN driver (Windows® 2000 [SP4 or later],
Windows® XP [SP2 or later), Windows Vista™ [32-bit], Mac OS X)

Power source AC 100 to 240V, 50/60Hz

All dimensions in inches (mm)

Rear Panel

ELMO’s Helping to Provide a Greener

Future for Our Children

This ELMO product complies with RoHS Directive 2002/95/EC (Restriction Of the use of
certain Hazardous Substances in electronic equipment). This compliance helps to ensure a
healthier and greener environment for all our children.

This brochure is printed on recycled paper with soy ink.

Printed in Japan (O) 01/2008

Neanderstr. 18
40233 Dusseldorf, Germany
Tel. [phone] Fax. [phone]
E-mail : [e-mail]

Web : http://www.elmoeurope.com

..

ELMO (Europe) G.m.b.H.

6-14, Meizen-cho, Mizuho-ku
Nagoya, 467-8567, Japan

Additional technical information is available from any of the following subsidiary companies:

1478 Old Country Road
Plainview, NY 11803-5034, U.S.A.
Tel. [phone] Fax. [phone]
E-mail : [e-mail]

Web : http://www.elmousa.com

ELMO USA Corp.

Headquarters

West Coast Branch

Cypress Pointe Business Park
5676 Corporate Avenue
Cypress, CA 90630, U.S.A.
Tel. [phone] Fax. [phone]

H: horizontal, V: vertical
Design and specifications are subject to change without prior notice. The images in this brochure are simulated.
“ ” is a trademark of ELMO COMPANY, LIMITED. SD logo is a trademark.
Other brand names and product names may be trademarks or registered trademarks of their respective owners.

14

5

/

8

" (376)

19" (482)

1

5

/

8

" (42)

19" (482)

21

5

/

8

" (549)

14 5/8" (376)

ELMO CO., LTD. is one of the sponsors for
Japan Committee Vaccines for the World’s
Children (JCV).

JCV operates under basic guidelines and
objectives of the Children’s Vaccine Initiative
(CVI) founded in 1990 by UNICEF, WHO,
UNDP, the Rockefeller Foundation, and the
World Bank.

ELMO CO., LTD. (Head Office and Factory)’s
QMS/EMS has been registered to ISO 9001
& 14001 : 2004.

S-Video Out Composite Out DVI-D Out RGB Out RGB In RS-232C DC12V In DIP switch
