Elma Elmasteam 4.5 Series, Elmasteam 4.5 basic HP, Elmasteam 4.5 basic, Elmasteam 4.5 basic P-HP Operating Manual

Page 1

Operating Manual

Elmasteam 45  basic  basic HP  basic P-HP

Steam Jet Cleaner

 English 

Elma Schmidbauer GmbH Gottlieb-Daimler-Str. 17 D-78224 Singen Tel +49 (0) 7731 / 882-0 Fax +49 (0) 7731 / 882-266 [email protected]

www.elma-ultrasonic.com

document ref. 109 9623

Page 2

Contents

1 General ............................................................................ 4

2 Important safety instructions ............................................. 4

2.1 Notes for using this manual ........................................ 4

2.2 Description of the warnings on the machine ............... 5

2.3 Important instructions for using the machine .............. 6

3 Product description ........................................................... 9

3.1 Scope of delivery Elmasteam 4

basic P-HP ................................................................. 9

3.2 CE conformity ............................................................ 9

3.3 Functionality ............................................................... 9

3.4 Technical Data ......................................................... 10

3.5 Safety devices .......................................................... 11

3.6 Product description .................................................. 11

3.6.1 Elmasteam 4

3.6.2 Elmasteam 4

basic ........................................... 11

basic HP | basic P-HP ................. 12

3.7 Description of LED operation indicators ................... 14

3.8 Safety valve ............................................................. 14

basic | basic HP |

4 First start-up ................................................................... 15

4.1 Installation and connection conditions ...................... 15

4.2 Fixed nozzle mounting (option) ................................ 16

4.3 Mounting of the wall bracket (option) ........................ 17

4.4 Permanent water connection Elmasteam 4

basic P-HP ............................................................... 18

5 Filling the machine.......................................................... 20

5.1 Requirements for water quality ................................. 20

5.2 Manual filling ............................................................ 20

5.3 Automatic filling with pump (basic P-HP) .................. 22

6 Handling in operation ...................................................... 23

6.1 Working with the flexible hand piece ........................ 24

6.2 Working with the fixed nozzle or hand piece ............. 24

7 Safety / Maintenance / Repair ........................................ 25

7.1 Regular visual inspections ........................................ 25

7.2 Rinse pressure tank regularly ................................... 25

7.2.1 For water containing lime ................................... 26

7.2.2 For water containing chloride ............................. 28

7.3 Clean sieve in the water connection (only P-HP) ...... 28

7.4 Wear parts ............................................................... 29

7.4.1 O-ring in the pressure tank screw cap ................ 29

7.4.2 O-ring nozzle ..................................................... 29

7.4.3 Sealing collecting basin ..................................... 29

7.5 Repair ...................................................................... 30

BA_Elmasteam_4

_EN_Vers.05.2018 © Elma Schmidbauer GmbH

Page 3

7.6 Prepare machine for shipment ................................. 30

7.7 Troubleshooting ....................................................... 31

8 Decommissioning and disposal ...................................... 32

9 Manufacturer address/contact address ........................... 32

Page 4

General

Strictly observe the

following before

Exclusion of liability

1 General

This operating manual is an integral part of the scope of delivery. It must be kept easily accessible near the machine and also remain with the machine in the event of resale.

We reserve the right to make changes from the design shown in this operating manual due to technical further developments.

An operating manual cannot take into account every conceivable possibility. For more information or for issues that are not or insufficiently covered in this manual, please consult your dealer or the manufacturer.

2 Important safety instructions

Strictly observe the following before start-up!

Read through this manual carefully before use and only use this electric machine in accordance with the instructions included here.

start-

Also observe any country-specific safety regulations in addition to the instructions in this manual.

The manufacturer shall not accept any liability in the event of injuries to persons, damage to the machine or product to be cleaned which has been caused by improper use contrary to the instructions in this operating manual. The owner shall be responsible for training the operating personnel.

2.1 Notes for using this manual

Read through this manual carefully before use and only use this electric machine in accordance with the instructions included here.

Symbols in this manual

This symbol warns about the risk of injury from electricity.

This symbol warns about the risk of injury from hot surfaces.

This symbol warns about the risk of injury from hot surfaces and vapours.

This symbol provides a general warning about the risk of injury.

This symbol indicates a risk of property damage.

This symbol indicates supplementary information.

BA_Elmasteam 4

_EN_Vers. 01.2019 © Elma Schmidbauer GmbH

Page 5

Important safety instructions

Danger

Warning

Caution

Attention

Signal words in this manual

The "danger" signal word warns about the risk of severe injuries that could be fatal.

The "warning" signal word warns about the risk of severe injuries.

The "caution" signal word warns about the risk of minor to medium injuries.

The "attention" signal word warns about the risk of property damage.

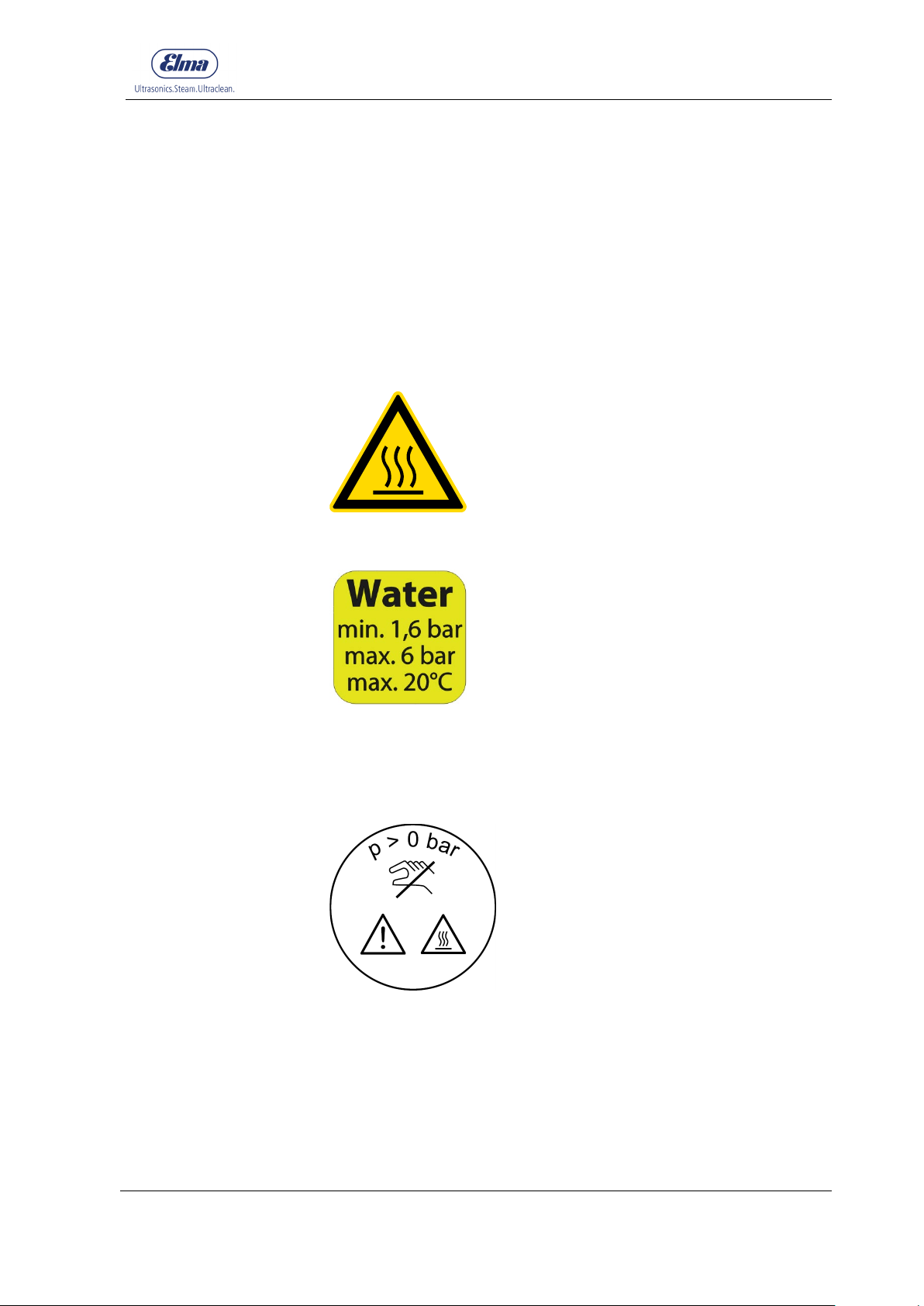

2.2 Description of the warnings on the machine

Caution: Hot surfaces/Hot vapours

Notice (only applicable for machines with optional water pump): For the connection to the water supply system, the minimum water pressure of 1.6 bar must not be undercut and the maximum water pressure of 6 bar must not be exceeded. Parts in the machine can be damaged.

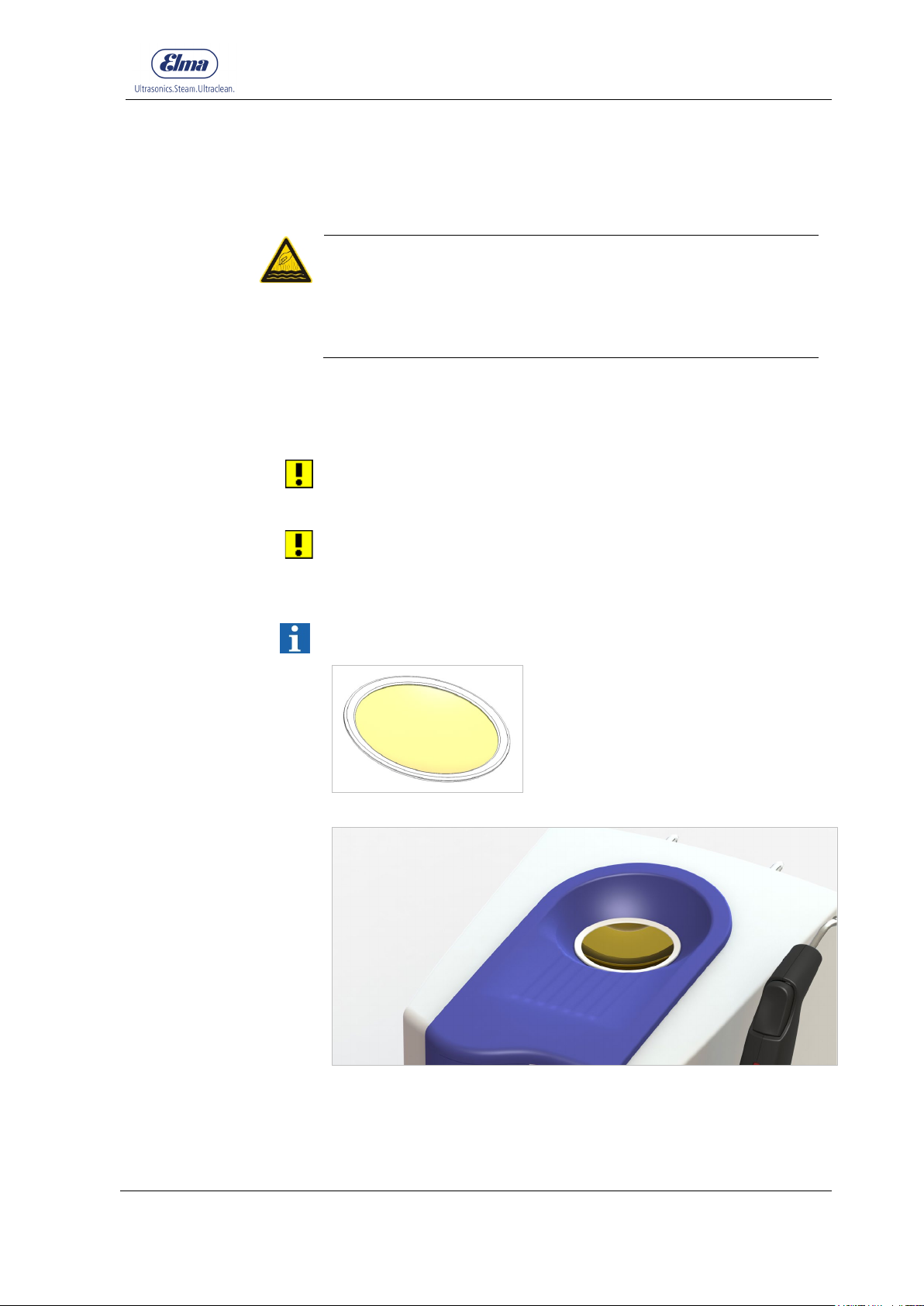

Notice on pressure tank screw cap:

• Do not open at pressure above 0 bar

• Hot surfaces/Hot vapours

• Replace pressure tank screw cap annually (chapter 7.4.1)

• Only fill with water

Page 6

Important safety instructions

Intended use

Operating personnel

Inspection for

possible transport

damage

Installation

Mains power

connection

Prevention of

electrical accidents

Pressure tank filling

No chemical

additives

Danger from hot

surfaces

2.3 Important instructions for using the machine

Use the Elmasteam steam jet cleaner in accordance with the operating instructions. The manufacturer shall not accept any responsibility for the safety of persons and the functionality of the machine in the case of improper use.

This steam jet cleaner is exclusively intended for cleaning objects. Living beings must never be sprayed with steam!

The machine is only permitted to be used in the industrial sector. For use as medical product, see additional instructions in chapter

2.4.

Only authorised qualified personnel who are familiar with the operating instructions are permitted to operate this steam jet cleaner. Unauthorised persons, particularly children must not operate this machine.

Check the machine for possible transport damage after unpacking. Do not start up the machine in the event of recognisable damage. Contact the carrier and supplier immediately in this case.

Install the machine on a stable, level and dry surface. Protect against ingress of moisture.

For safety reasons, the machine must only be connected to a grounded power socket in accordance with the regulations. The technical details of the rating plate must match the available connection conditions, particularly mains voltage and connected load.

For the prevention of electrical accidents and damage to the machine, the machine must never be sprayed with steam or exposed to penetrating liquid.

In the event of damage to the machine or entry of moisture, strictly unplug the mains plug immediately.

The machine is only permitted to be opened by authorised qualified personnel. The mains plug must always be unplugged before opening the machine.

Do not put the machine into operation if any mains connection cable or important parts of the machine such as safety elements or steam nozzle are damaged.

Connector and coupling must be waterproof if an extension cable is used. Warning: unsuitable extension cables can be dangerous.

Only operate the Elmasteam steam jet cleaner with sufficiently filled pressure vessel. Any operation with empty pressure tank can result in damage to the machine!

The machine must not be operated with chemical additives in the pressure tank. Only operate the machine with water; see additional instructions in chapter 5.

Hot temperatures occur during operation, particularly on the rear panel of the machine and at the steam discharge nozzle.

BA_Elmasteam 4

_EN_Vers. 01.2019 © Elma Schmidbauer GmbH

Page 7

Important safety instructions

Danger from hot

steam

Electrostatic discharge

Noise emission

Maintenance and

repair

Machines with

permanent water

connection

Upright Transport

Cleaning result

Exclusion of liability

There is a risk of scalding from hot steam in the case of incorrect operation!

Do not open pressure tank screw cap on the filling tube of the pressure tank at pressure above 0 bar!

There must not be any unauthorised third persons in the range of the steam jet. Handle hot steam carefully to avoid injuries.

The pressure tank screw cap must be correctly sealed during operation.

The outlet of the safety pressure valve is located in the tank cap. Attention! In the event of any possible tripping of the safety pressure valve, steam discharges on the underside of the tank cap.

The outflow of steam at high velocity causes electrostatic charge generated by friction to accumulate on the nozzle as well as on the product to be cleaned. The electrostatic charge developed on the handpiece is continuously dissipated via the ground connection of the device. Depending on external conditions such as insufficient conductivity of the floor and/or shoes, dissipation of electrostatic charge of the product to be cleaned may be impaired. This absolutely harmless but unpleasant state can be sensed as “tingling” or “electric shock” (a similar effect may occur, for example, in carpets or velvet car seats). The discharge that takes place here can be observed as a visible spark discharge from the product to be cleaned to the handpiece. It is recommended in such cases to ground the product to be cleaned or, if necessary, the wrist of the user (e.g. with an ESD wrist strap).

Steam jet cleaners can cause unpleasant noise levels during operation. Use personal hearing protection during the stay in the work area.

Perform the maintenance work described in this manual (chapter

7) at regular intervals to guarantee the function and safety of the

machine. Repairs must only be carried out by authorised qualified personnel.

Always unplug the mains plug before servicing or opening the machine.

Only original parts are permitted to be used for repairs. Close the water supply of the pump at the water tap after operation

or if the machine is unsupervised. The machine is only permitted to be stored and transported upright when the pressure tank is filled; otherwise residues can clog the

steam valve.

The user is responsible for checking the cleaning result. Elma Schmidbauer GmbH shall not accept any damage and warranty claims if:

the product is used for any other than the intended purpose

•

specified in the operating manual

unauthorised technical modifications have been made to the

•

product by third parties

Page 8

Important safety instructions

Storage and transport

conditions

the product is not serviced at a service point authorised by the

•

the product is further used despite recognisable safety defects

•

the specified maintenance tasks have not been performed.

•

It must be ensured that damage is avoided during storage and transport of the machine. Storage or transport at temperatures below freezing point must always be avoided. Freezing water in the steam jet cleaner can have lasting adverse effects on the function. The unit before storage or transport empty see cap. 7.2

Temperature during storage: +5 C (+ 41 F) to + 40 C (+ 104 F)

Temperature during transport: -15 C (+ 5 F) to +60 C (+ 140 C)

Humidity and air pressure during storage and transport:

manufacturer or has not been repaired using original spare parts

or damage external forceful impact

10% - 80% relative humidity; non-condensing

Pressure range 500 hPa – 1060 hPa absolute

BA_Elmasteam 4

_EN_Vers. 01.2019 © Elma Schmidbauer GmbH

Page 9

Product description

Pressure generation

Steam output

Operating medium

3 Product description

3.1 Scope of delivery Elmasteam 45 basic | basic HP | basic P-HP

1 basic machine with 4 litres tank capacity 1 service hose 1 mains cable 1 filling sieve 1 actuation clamp 1 flushing set 3 O-rings for pressure tank screw cap 1 pressure tank screw cap

1 water connection hose (Elmasteam 4

1 fixed nozzle (Elmasteam 4 1 wall bracket (optional accessory) 1 operating manual 1 information sheet first start-up 1 information sheet water quality and rinsing interval 1 information sheet warranty conditions

basic)

basic P-HP)

3.2 CE conformity

This Elmasteam steam jet cleaner fulfils the CE marking criteria according to the following EU Directives:

• Low Voltage Directive

• EMC Directive

• RoHS Directive

The declaration of conformity can be requested from the manufacturer.

3.3 Functionality

Water is heated to approx. 155 °C using a powerful heater in a manually or automatically filled pressure tank. A relative steam pressure of approx. 4.5 bar is produced in this way.

The steam is provided via the nozzle. Tap water with the usual local water hardness or preferably

deionised water. For operation with pump, the conductivity value of the water must be at least 15 µS/cm (for additional information, see chapter 5).

Page 10

Product description

Elmasteam 4

3.4 Technical Data

basic

basic P-HP

basic HP

Mains voltage (V) 220-240 | 115 - 120 220-240

Mains frequency (Hz) 50 / 60 50 / 60

Max. power consumption (W) 220 – 240 V

Max. power consumption (W) 115 – 120 V

2800 2850

1650 -

Rated power at 230 V (W) 2130 2180

Rated power at 115 V (W) 1540

Pressure tank volume (litres) 4 4

Max. filling volume (litres) 3,3 3.3

Operating pressure (bar) 4,5 4.5

Steam temperature at the output of the nozzle (°C)

Min. water connection pressure (bar)

≤ 155 ≤ 155

- 1.6

Max. water connection pressure (bar)

Dimensions with hand piece W x D x H (mm)

Dimensions with fixed nozzle W x D x H (mm)

290 x 320 x 420 290 x 320 x 420

250 x 320 x 420 -

- 6

Weight (kg) 6,75 8.05

Case material PC/ABS PC/ABS

BA_Elmasteam 4

_EN_Vers. 01.2019 © Elma Schmidbauer GmbH

Page 11

B C D E F

B D C

3.5 Safety devices

Elmasteam steam jet cleaners have all prescribed safety devices such as

• Safety relief valve

• Overtemperature protection

• Protection of the electrical contacts against spray water

• Contact protection at the ball valve

3.6 Product description

Product description

3.6.1 Elmasteam 4

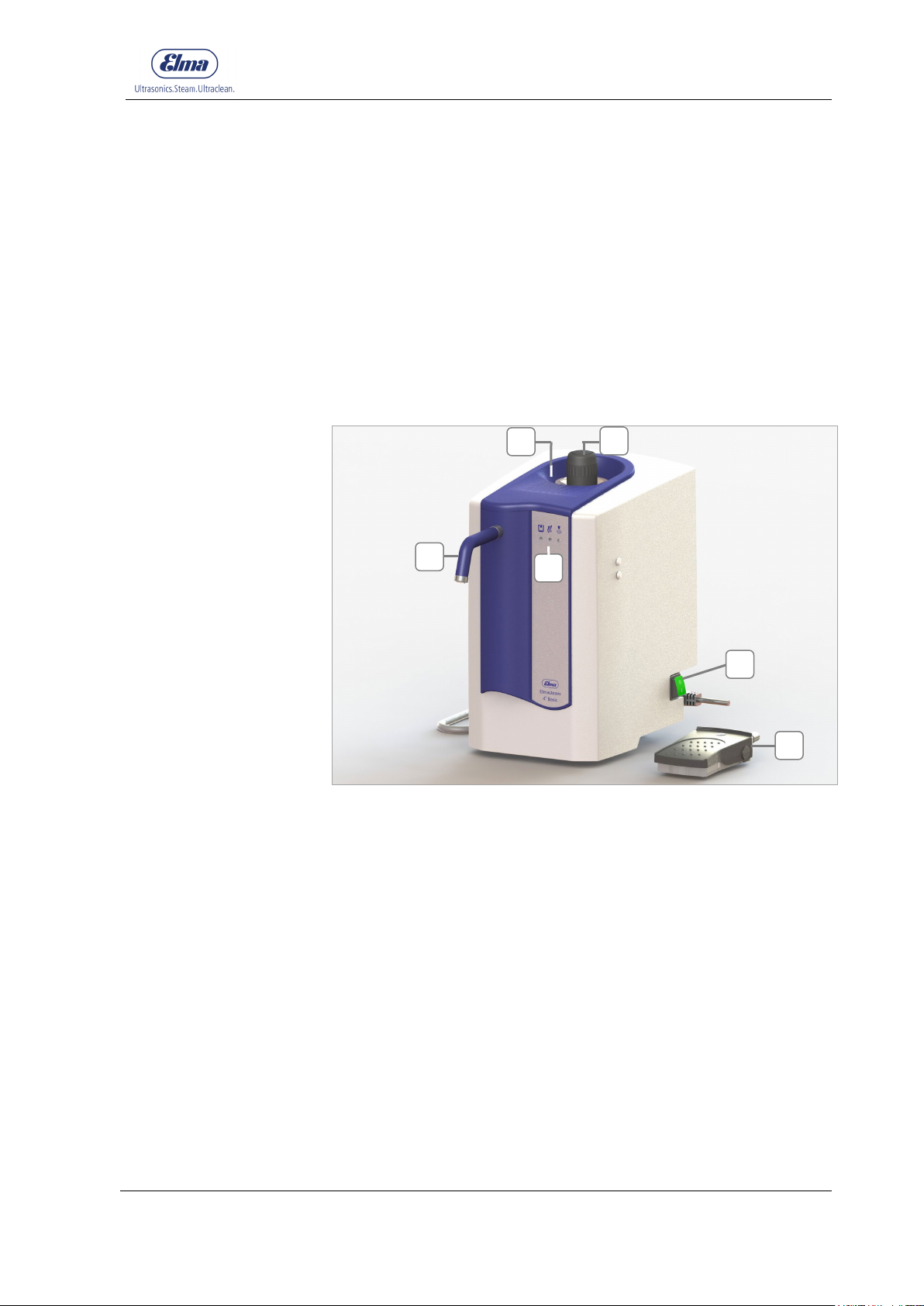

Fig. 3.6.1.1. Elmasteam 45 basic

Collecting basin for overflowing water

Pressure tank screw cap: filling opening for manual filling

basic

Fixed nozzle

Operation indicators

Mains power switch (I) = ON / (0) = OFF Reset after refilling and signalisation pressure tank empty (chapter

5.2)

Foot switch

Page 12

Product description

C D E F G

G I H

A C B F G D E

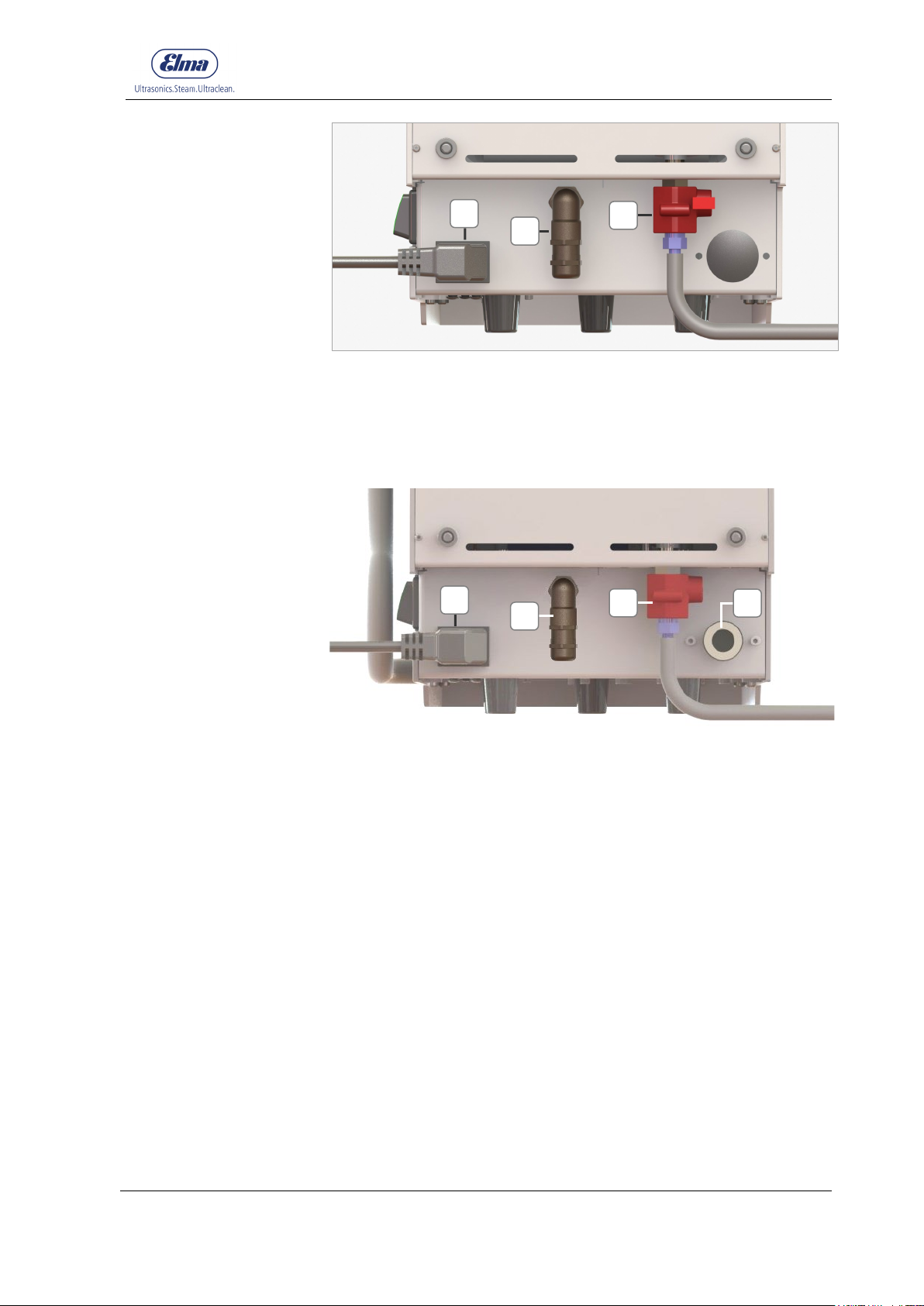

Fig. 3.6.1.2. Elmasteam 45 basic rear side

Device connector with mains cable

Foot switch connector

Ball valve with plastic contact protection and mounted service hose (chapter 7.2).

3.6.2 Elmasteam 45 basic HP | basic P-HP

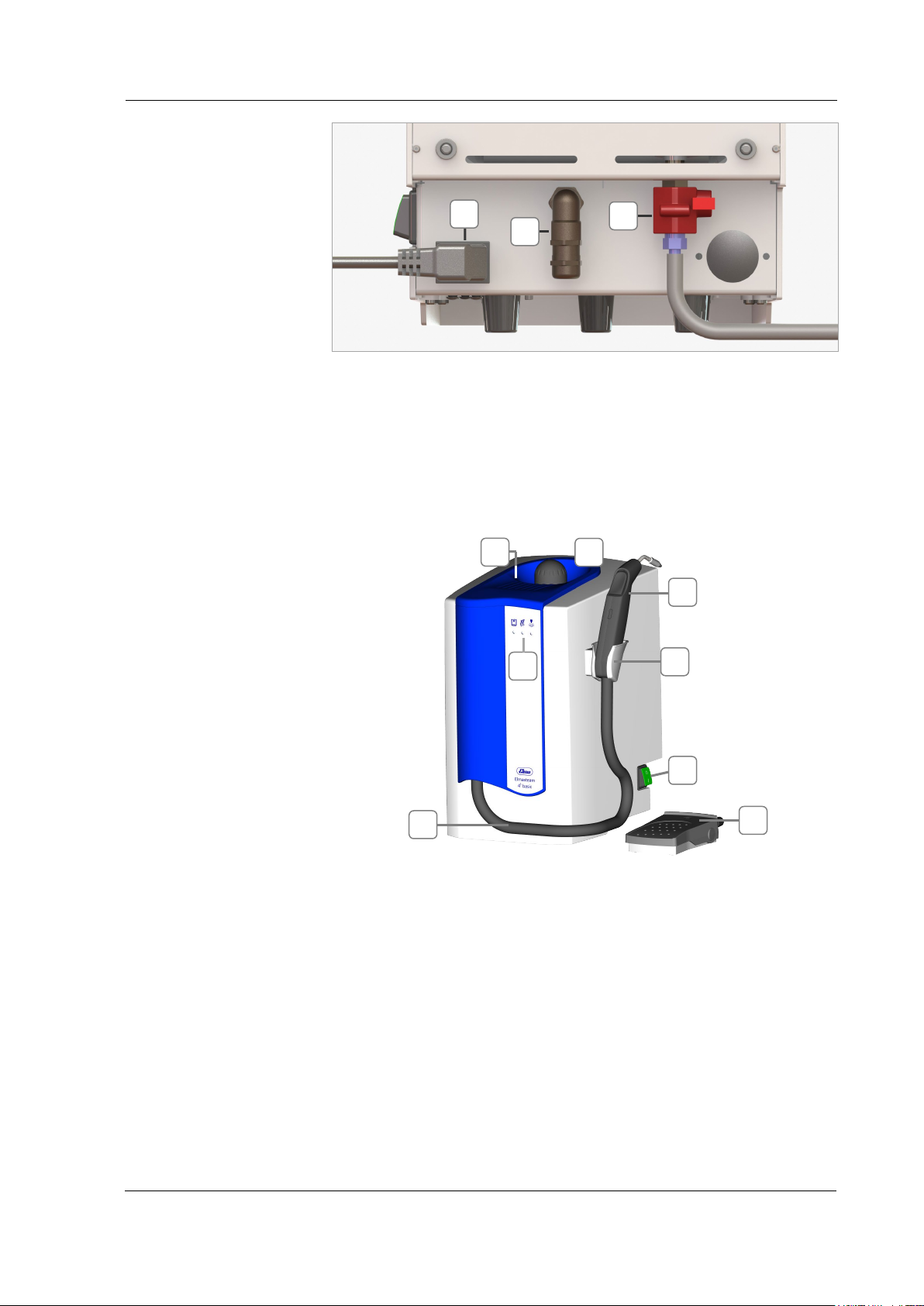

Fig. 3.6.2.1. Elmasteam 4

basic HP| basic P-HP

Collecting basin for overflowing water

Pressure tank screw cap: filling opening for manual filling

Flexible hand piece

Holder for hand piece

Operation indicators

Mains power switch (I) ON / (0) OFF Reset after refilling and signalisation pressure tank empty (chapter 5.2).

Foot switch

Steam hose

BA_Elmasteam 4

_EN_Vers. 01.2019 © Elma Schmidbauer GmbH

Page 13

Product description

I K J K L J I

Fig. 3.6.2.2. Elmasteam 4

basic HP rear side

Device connector with mains cable

Foot switch connector

Ball valve with plastic contact protection and mounted service hose (chapter 7.2).

Fig. 3.6.2.3. Elmasteam 4

basic P-HP

Permanent water connection

Page 14

Product description

A B

A B C

3.7 Description of LED operation indicators

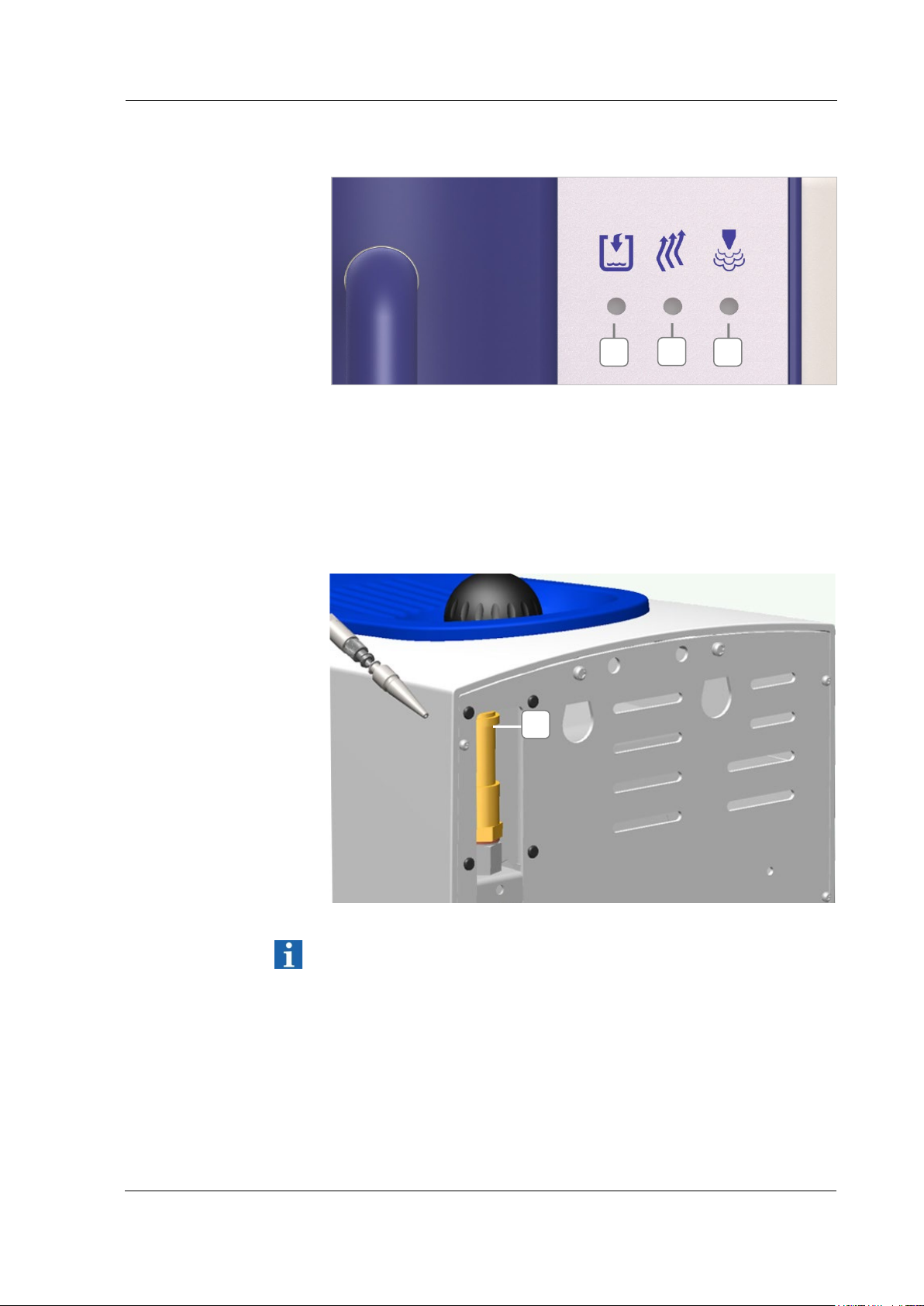

Fig. 3.7.1. View of front side

Pressure tank empty LED indicator (red)

Heater active (heat / reheat) LED indicator (orange)

Operating pressure reached (indicator can extinguish during operation) LED indicator (green)

3.8 Safety valve

Fig. 3.8.1 safety valve (A)

See chapt. 7.7.

BA_Elmasteam 4

_EN_Vers. 01.2019 © Elma Schmidbauer GmbH

Page 15

Packaging

Inspection for

transport damage

Installation

conditions

Ambient conditions

Connecting machine

to mains power

supply

4 First start-up

4.1 Installation and connection conditions

Keep the packaging if possible or dispose of it properly in accordance with the applicable disposal regulations. You can also return the packaging (at your expense) to the manufacturer. Inspect the Elmasteam steam jet cleaner for possible transport damage before start-up. In the case of recognisable damage, the machine must not be connected to the mains power supply. Contact the carrier and supplier immediately.

Install the machine on a stable, level and dry surface. The air slits on the rear side of the machine must not be covered. Only the original wall bracket (accessory) is permitted to be used

for wall mounting. Condensation not permitted. The machine is only permitted to be operated:

in well ventilated indoor areas

•

up to a height of 2,000 metres above sea level

•

at an ambient temperature of 5 - 40 ºC [41 - 104 ºF] *)

•

at maximum relative humidity of 80% at 31 ºC [87.8 ºF],

•

decreasing linearly to 50% relative humidity at 40 ºC [104 ºF] *)

with mains power supply if the voltage fluctuations are not

•

greater than 10 % of the rated value

*) From 5 - 30 ºC [41 - 86 ºF], the machine can be used with air humidity of up to 80%. At temperatures of 31 - 40 ºC [87.8 - 104 ºF], the air humidity must decrease proportionally to guarantee the operational readiness (e.g. at 35 ºC [95 ºF] = 65% air humidity, at 40 ºC [104 ºF] = 50% air humidity). The machine must not be operated at temperatures above 40 ºC [104 ºF].

First start-up

Connect the Elmasteam steam jet cleaner to a suitable grounded power outlet. The technical details of the rating plate must match the available connection conditions, particularly mains voltage and connected load.

Page 16

First start-up

Procedure

4.2 Fixed nozzle mounting (option)

Ensure that the Elmasteam is switched off and depressurised.

1. Remove the blanking plug by unscrewing the nut (Fig.

4.2.1.A).

2. Screw the fixed nozzle with the nut (Fig. 4.2.2.B) onto the

connection nozzle on the machine.

3. Tighten the nut with a ¼ turn using a 12 mm open-ended

spanner.

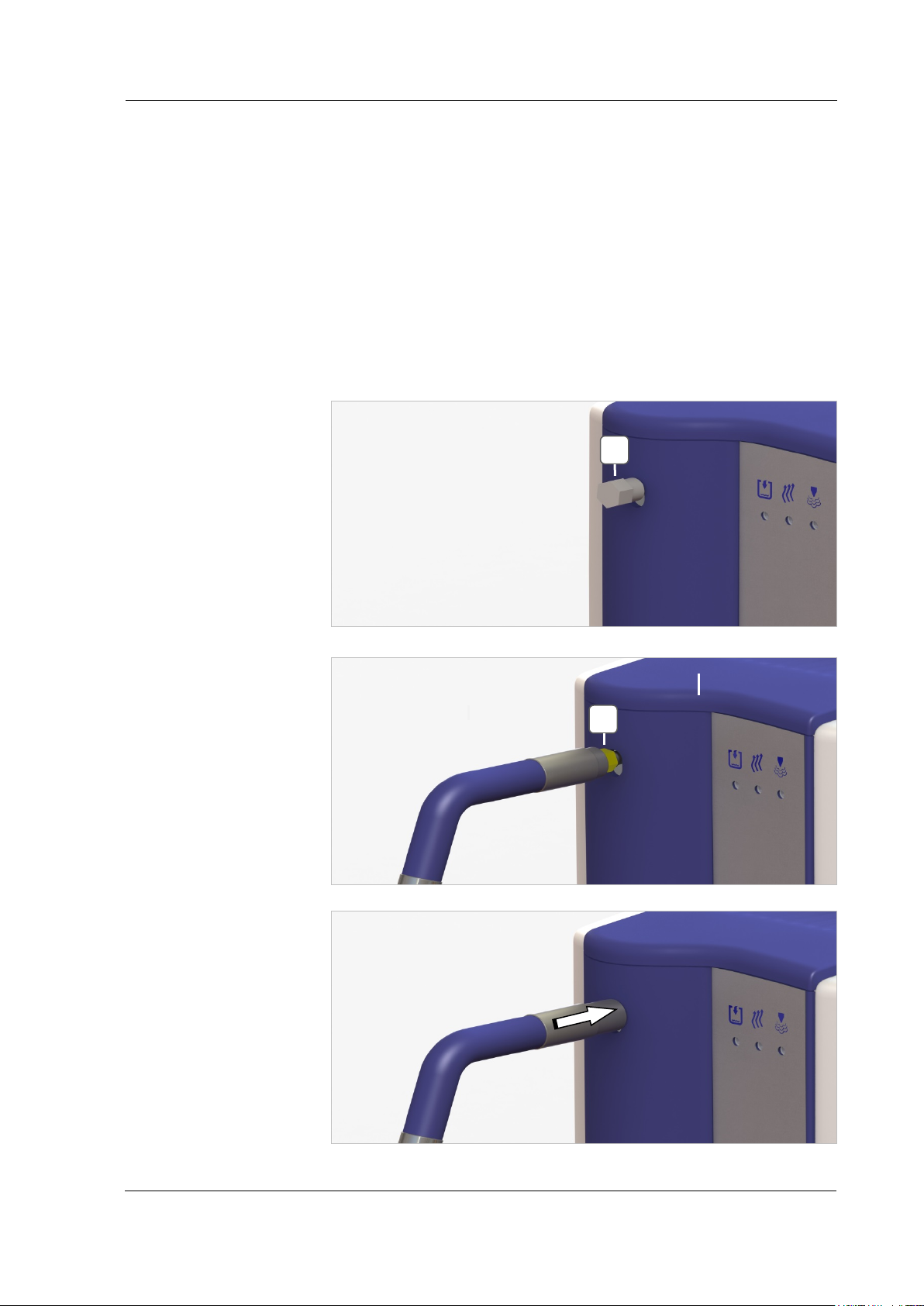

4. Slide the black protection sleeve in the direction of the arrow

over the nut (Fig. 4.2.3.).

Fig. 4.2.1 Blanking plug in the delivery condition

Fig. 4.2.2 Screwing on hand piece

Fig. 4.2.3. Sliding protection sleeve over connection

BA_Elmasteam 4

_EN_Vers. 01.2019 © Elma Schmidbauer GmbH

Page 17

(A)

2 Art. No. 1058680

(B)

Art. No. 1058678

(C)

Art. No. 1066448 (D)

2 Art. No. 1063024

Wall bracket

fastening material

Procedure

4.3 Mounting of the wall bracket (option)

Walls made of concrete, natural stone, dense structure, solid calcium silicate (lime sand) and solid plasterboard are suitable for attachment of the wall bracket.

Ensure there is a stable base.

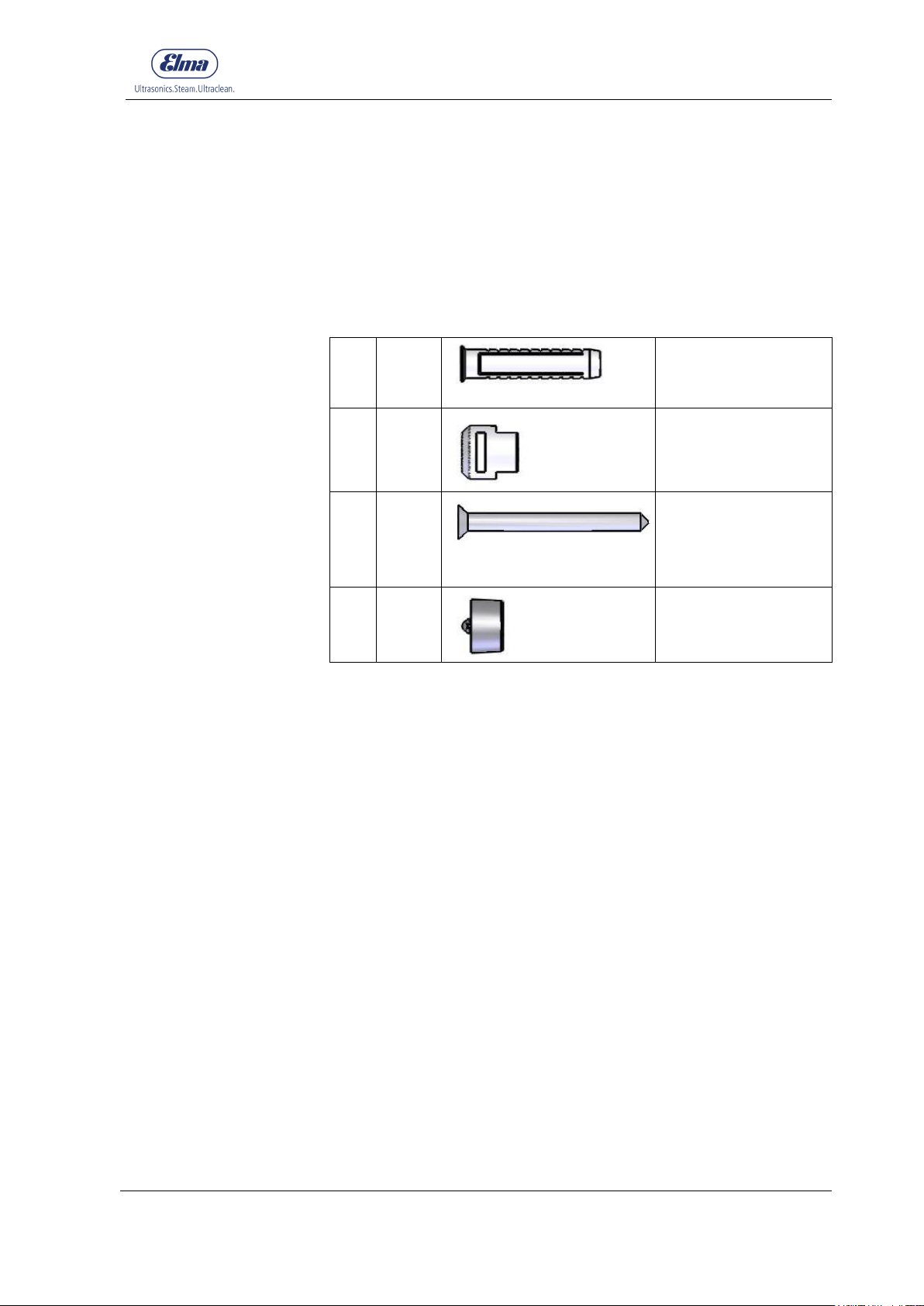

The following parts are supplied for the mounting of the wall bracket:

Plug

Suspension fitting

Screw

First start-up

Spacer

1. Drill

2 holes Ø 8 mm 90 mm apart and minimum 50 mm depth.

2. Press the plugs (A) as far as they will go into the holes.

3. Put the suspension fittings (B) on the screws (C) and align the

heads of the suspension fittings (B) upwards with the slots.

4. Turn the screws (C) into the plugs until only the suspension

fittings (B) are still visible.

5. Attach the 2 spacers (D) to the rear side of the machine.

6. Attach the machine using the openings on the rear side (E) in

the installed suspension fittings.

Page 18

First start-up

Exclusion of liability

Mounting procedure

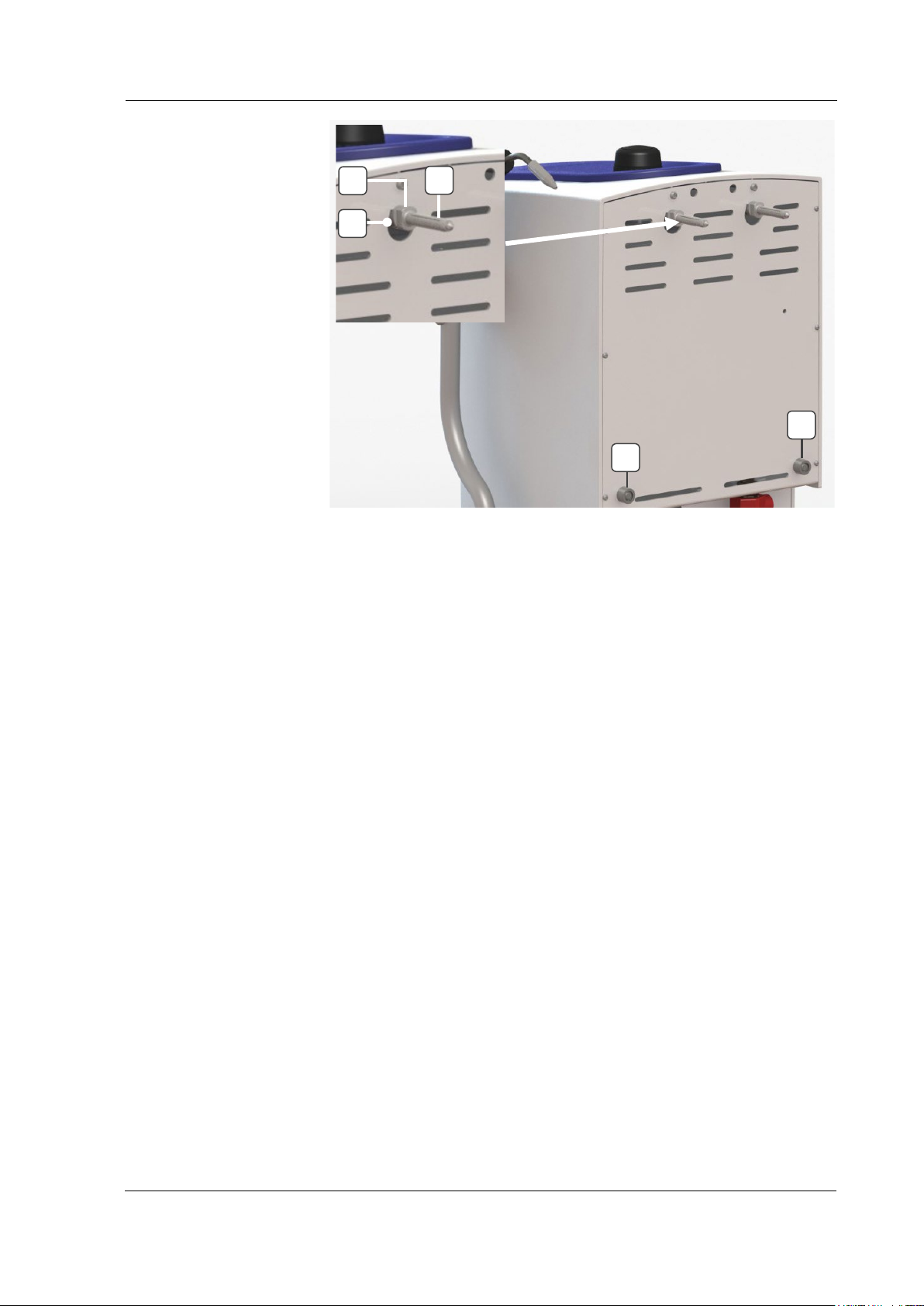

Fig. 4.3. View with plugs in the mounted state

The manufacturer shall not accept any liability in the event of injuries to persons or damage to the machine that has been caused by incorrect mounting or defective quality of the attachment wall.

4.4 Permanent water connection Elmasteam 45 basic P-HP

Ensure that the Elmasteam steam cleaner is switched off.

The minimum water pressure of 1.6 bar must not be undercut. The maximum water pressure of 6 bar must not be exceeded. Components in the machine can be damaged.

Use the supplied water hose. If required, an extension hose (2 m) can be ordered as optional accessory (106 5691).

1. Put the flat seals included in the delivery

(Fig. 4.4.1.A) into the screw thread (Fig. 4.4.1 B and C).

2. Screw the connector (Fig. 4.4.1.B) of the water hose to the

water hose connection of the Elmasteam (Fig. 4.4.2.D |

4.4.3.F)

3. Connect the water hose to the water line (Fig. 4.4.3.E.).

Pay attention to correct and secure fastening of the water hose.

BA_Elmasteam 4

_EN_Vers. 01.2019 © Elma Schmidbauer GmbH

Page 19

First start-up

D A B C A

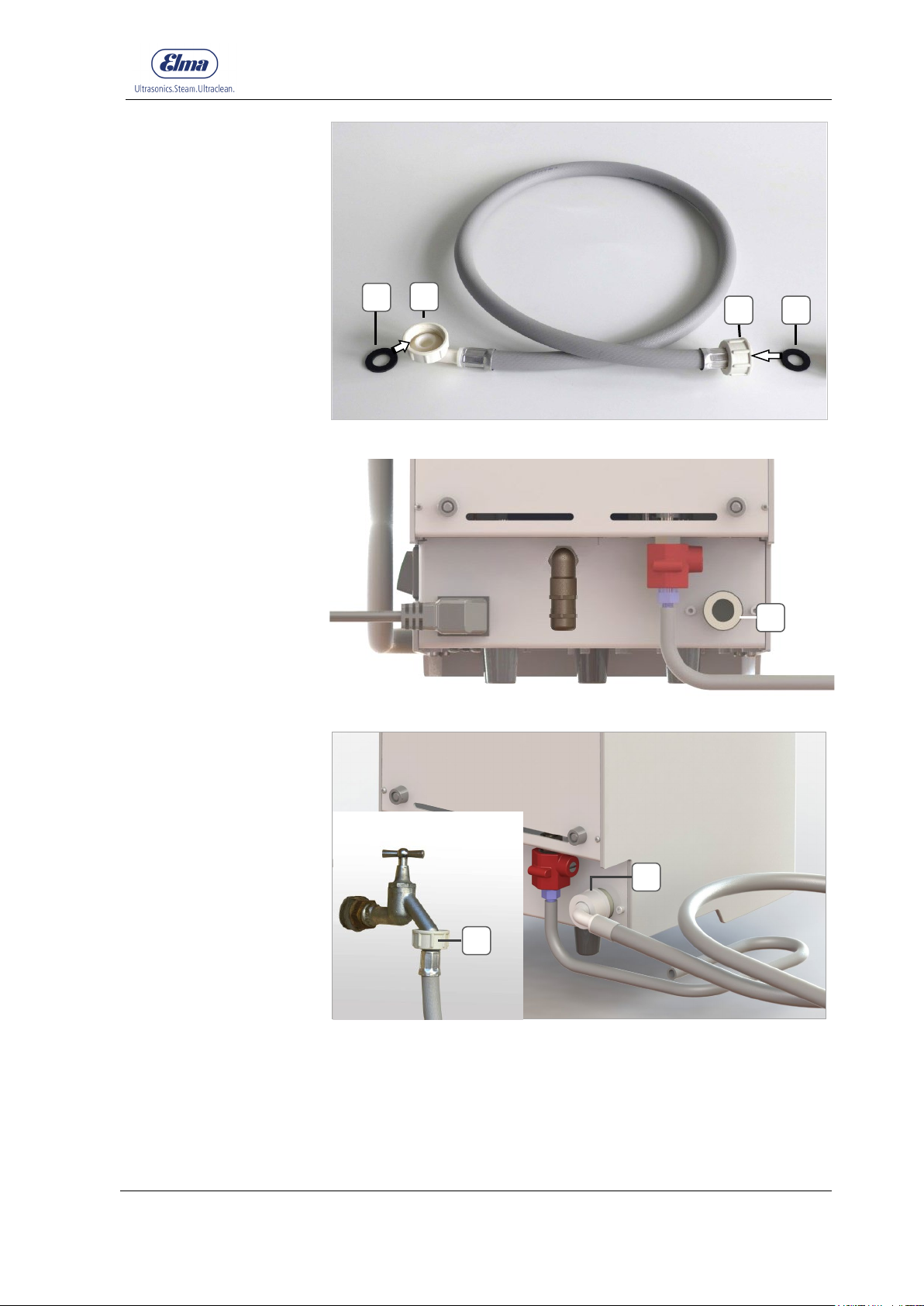

Fig. 4.4.1. Water hose (included in delivery)

Fig. 4.4.2. Machine connection (D) to the water supply (water pipe)

Fig. 4.4.3. Connected water hose

Page 20

Filling the machine

Pressure reduction for "Pressure tank empty"

indicator

Switch off mains power

switch

Let machine cool down

5 Filling the machine

5.1 Requirements for water quality

Basically, the machine is only permitted to be operated with drinking water or demineralised water*.

*Elmasteam 45 basic P-HP with integrated pump: If the conductivity of the water <15µS/cm or if the conductivity is unknown, 1 level teaspoon of table salt must be added to the pressure tank during initial commissioning (one-time only!). Dissolve the salt in a glass of water and fill into the filling opening.

The salt does not pass into the steam phase and thus remains in the machine; therefore the addition is only necessary during initial commissioning or after decalcification of the machine (see chapter

7.2)

The Elmasteam should preferably be operated using demineralised water. This can significantly increase the service life of the machine.

The water quality significantly affects the maintenance intervals (see chapter 7).

5.2 Manual filling

Start the filling process from point 4 when the machine is depressurised.

First reduce the pressure when the machine is warmed up.

Risk of scalding from discharging steam!

Do not open pressure tank screw cap when the steam pressure

CAUTION

is above 0 bar.

1. Let residual steam pressure escape through the steam nozzle.

1.1. Machine version with hand piece:

1.1.1 Fix the hand piece.

Ensure that the discharging steam does not present any hazard for persons or equipment.

1.1.2 For draining the residual steam pressure, keep the foot

switch pressed until no more steam escapes (approx. 40 50 seconds).

1.2 Machine version with fixed nozzle:

1.2.1 For draining the residual steam pressure, keep the foot

switch pressed until no more steam escapes (approx. 40 50 seconds).

2. Switch off the machine at the mains power switch (0) (Reset).

3. After complete depressurisation, the machine must still cool

down for approx. 5 minutes to prevent spontaneous steam formation during filling.

BA_Elmasteam 4

_EN_Vers. 01.2019 © Elma Schmidbauer GmbH

Page 21

Fill pressure tank

CAUTION

Switch on the mains

power switch

Filling the machine

4. Open pressure tank screw cap slowly (an integrated pressure-

ventilation system lets a stem possibly still in the pressure tank escape sideways at the pressure tank screw cap during opening of the screw connection).

5. Place the sieve in the collecting basin (Fig.5.2.1 | 5.2.2).

Risk of scalding from discharging steam during filling! Let pressure tank cool down (see point 3)! Fill pressure tank slowly. Do not bend over the filling opening of the pressure tank during

filling.

6. Fill water slowly!

Note the maximum filling volume of the pressure tank capacity of approx. 3.2 litres.

7. Remove the sieve.

Wipe off water that has overflowed. Encrusted residues can impair the safety mechanism in the pressure tank screw cap.

8. Check the opening of the pressure tank screw cap. In the case

of recognisable clogging, replace the pressure tank screw cap for safety reasons.

9. Close the pressure tank screw cap by hand (hand tight).

10. Switch on the machine at the mains power switch ( I ). If the machine has preciously signalled a minimum fill level using

the red LED, this signal is reset by the power off and power on.

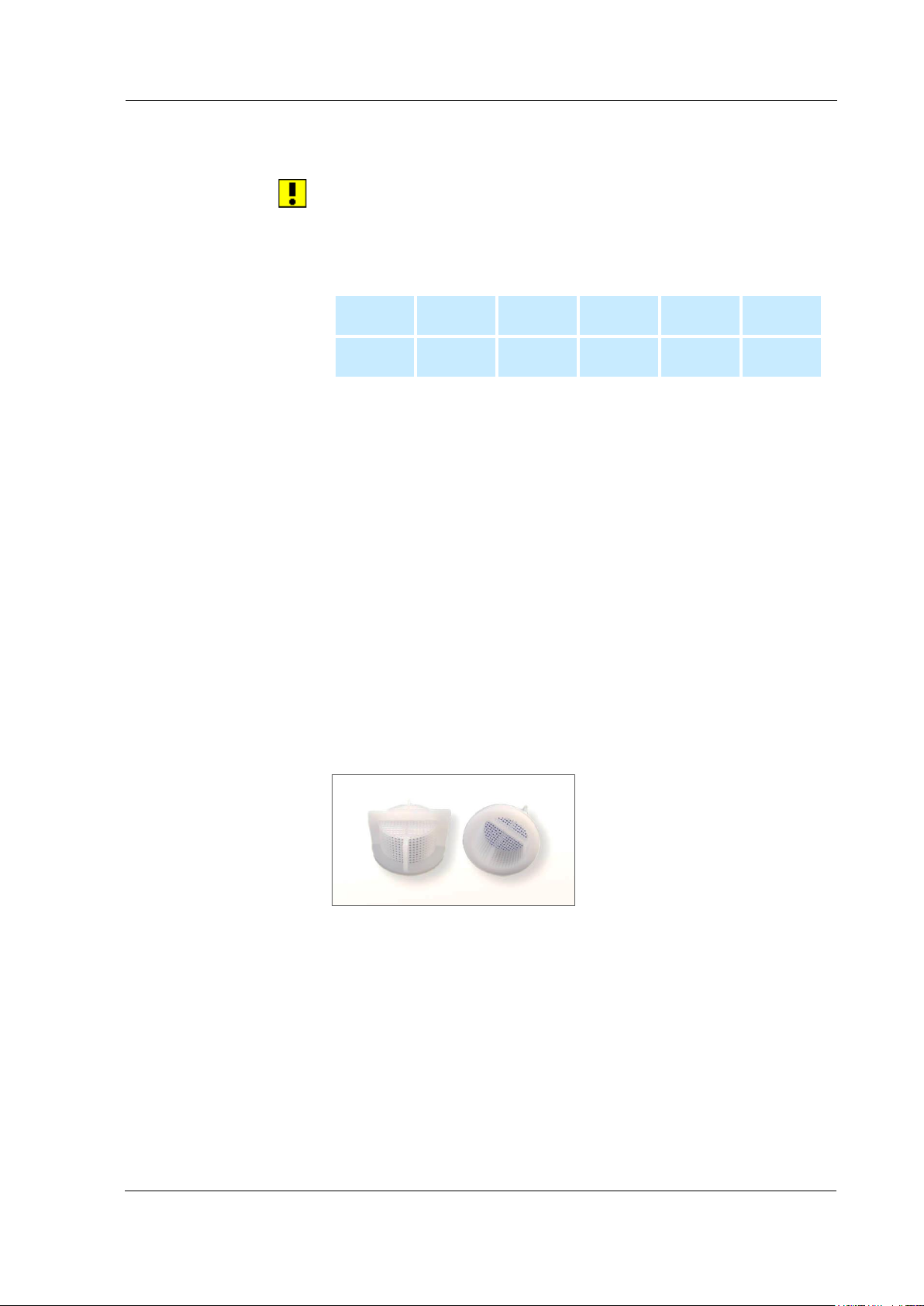

Fig. 5.2.1. Sieve for inserting in the collecting basin

Fig. 5.2.2. Sieve inserted in the collecting basin for the filling process

Page 22

Filling the machine

Pump ensures

optimum fill level

ATTENTION

5.3 Automatic filling with pump (basic P-HP)

Risk of brackish water backflow into the water supply!

A system separator must be installed between the water connection on the building side and the Elmasteam to protect drinking water against non-potable water.

The operating company is responsible for the implementation of the measure.

The pump fills the pressure tank with the optimum filling amount of water automatically. No waiting time are produced due to necessary cooling down phases as for manual filling.

Risk of water damage from possible detachment of the water hose!

Close the water supply of the pump at the water tap after operation or if the machine is unsupervised.

Risk of water damage from overfilling of the pressure tank! Observe requirement for the water quality (see chapter 5.1).

1. Before the first filling, fill the pressure tank manually with

approx. 2 litres of water (see chapter 5.2).

It is expedient for the first filling of the Elmasteam using the pump to unscrew the pressure tank screw cap to let the air escape from the system.

2. Open the water tap for the water supply.

Check the hose connections for leaks and tightness.

3. Switch on the machine.

After approx. 10 seconds, the machine starts filling and heating the pressure tank.

4. Screw the pressure tank screw cap closed again after the

automatic filling. Further refilling is performed automatically during operation. Note in the case of incorrectly dimensioned softening cartridges in

the water supply line: When the solenoid valve for the water inlet closes, a natural rebound on the line occurs as is also produced when closing a water tap. This can result in damage in the case of too weakly dimensioned softening cartridges.

BA_Elmasteam 4

_EN_Vers. 01.2019 © Elma Schmidbauer GmbH

Page 23

Requirements

Pressure tank must

be filled

Switch on machine

Operational

readiness

Holding the workpiece

Suitability of the

product to be

cleaned

Suitability of the

instruments

Distance from the

steam discharge

Cleaning result

6 Handling in operation

Risk of scalding from hot steam! Act cautiously when steam discharge is activated.

WARNING

Avoid hazardous situations caused by unintended activation of the steam output.

There must not be any unauthorised third persons in the range of the steam jet during the steam spraying.

Lock the steam button using the red lock on the hand piece. Use of the actuation clamp for the hand piece is only authorised

for the pressure reduction process when the machine is switched off!

Danger from hot surfaces! Hot temperatures occur during operation at the steam

discharge nozzle and on the rear panel of the machine.

Put the machine into operation as described in chapter 4. Ensure that the pressure tank is filled before starting work.

Otherwise, fill the pressure tank as described in chapter 5. Switch on the Elmasteam at the mains power switch. The machine starts to build up pressure. Depending on the fill level, the operating pressure of 4.5 bar is

reached after approx. 15 - 20 minutes. The green LED indicator lamp signals the operational readiness.

The green LED indicator lamp can extinguish depending on the duration of the steam dispensing.

Handling in operation

Steam can continue to be dispensed during the reheating. Use a suitable aid for the safe holding of smaller workpieces. Before starting the cleaning, ensure that the workpiece to be

cleaned is suitable for this cleaning process. In particular, the thermal and mechanical load capacity must be taken into account.

Instruments must be resistant to steam.

Keep the workpiece at least 1 cm away from the nozzle in the steam zone. Check the cleaning success at short time intervals (visual inspection) and possible adverse effects on sensitive surfaces of the product to be cleaned.

The user is responsible for checking the cleaning result.

Page 24

Handling in operation

Water that has entered the hand piece from outside can heat up

Procedure

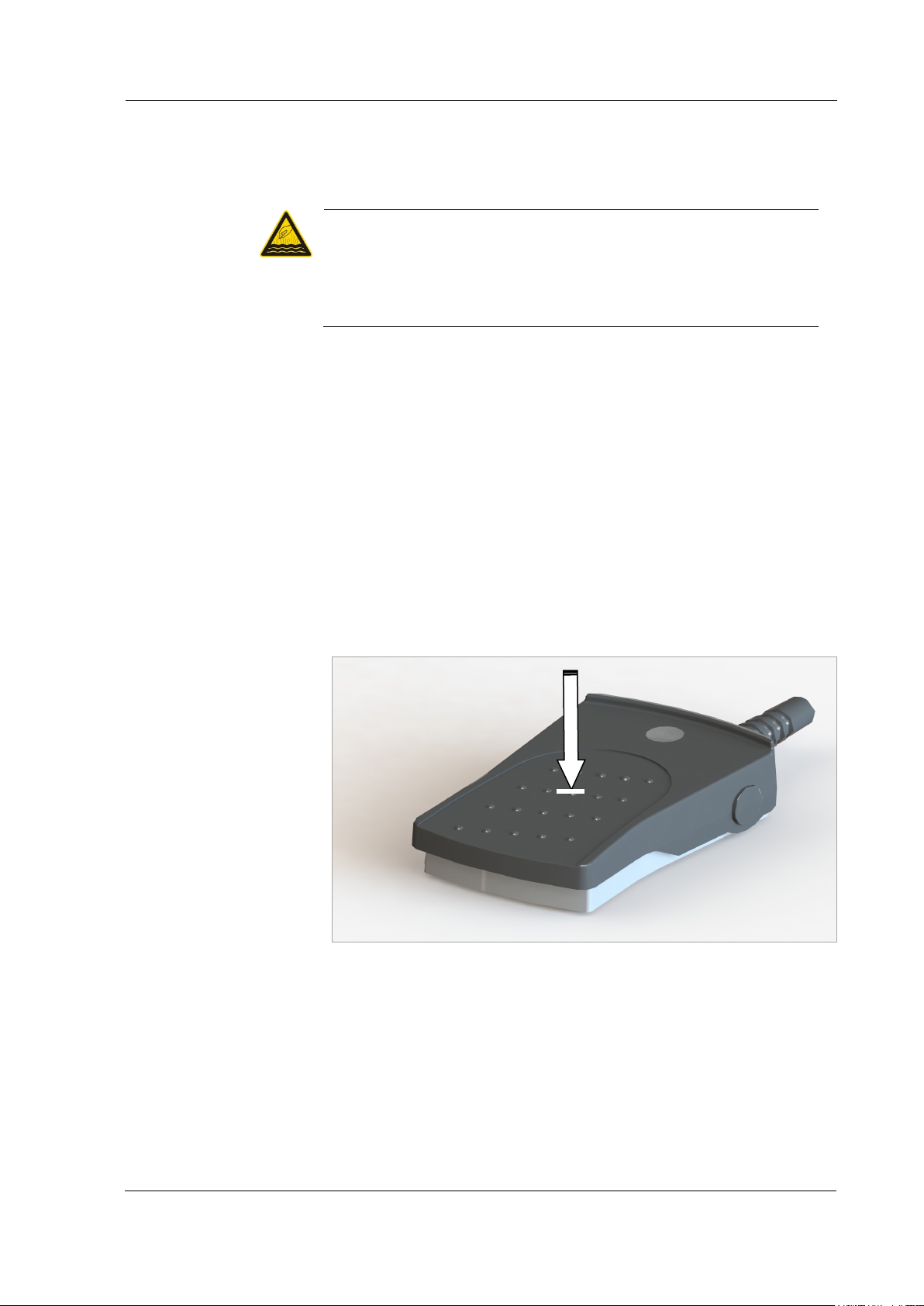

Actuation using foot

switch

Depress

100%

6.1 Working with the flexible hand piece

Observe the safety instructions in chapter 6.

Risk of scalding from steam or hot water discharging from the hand piece in the area of the steam button!

CAUTION

strongly or evaporate. Do not immerse hand piece in water.

1. Remove the hand piece from the hand piece holder.

2. Aim the hand piece into a container or sink for draining possible

accumulations of condensation water. Press the foot switch briefly until steam discharges.

3. Steam the product to be cleaned.

4. Put the hand piece back into the hand piece holder.

6.2 Working with the fixed nozzle or hand piece

Observe the safety instructions in chapter 6.

The steam output at the fixed nozzle or the hand piece is activated with the foot switch.

Activates steam at the fixed nozzle or hand piece.

Fig. 6.2.1. Illustration of foot switch

BA_Elmasteam 4

Page 25

Safety / Maintenance / Repair

Risk of chemical burns from steam containing acid!

Intervals

CAUTION

7 Safety / Maintenance / Repair

Maintenance work is the obligation of the user. Damage to the machine that has been caused by not performing maintenance is not covered by the liability for defects of the manufacturer!

7.1 Regular visual inspections

The following components must be inspected for recognisable damage at regular intervals:

• the mains power cable

• the foot switch and the electrical supply line to the foot switch

• the steam hose, the hand piece and the steam button

• the pressure tank screw cap: replace in the event of internal

soiling and residues (chapter 7.4.1).

• O-ring of the pressure tank screw cap (chapter 7.4.2)

• also check water hose for correct fastening.

In the event of recognisable damage, the steam jet cleaner must be taken out of operation for safety reasons. Restarting is only authorised after repair has been completed.

7.2 Rinse pressure tank regularly

Depending on the local water quality, the maintenance intervals shown in the tables in chapters 7.2.1 | 7.2.2 are applicable.

Use the rinsing set (Fig 7.2) included in the delivery.

Never fill decalcifiers or other chemicals in the pressure boiler!

CAUTION

Also only use water for the decalcification process. Hazard from dangerous excess pressure in the machine!

Lime deposits can result in failure of the safety function of the safety valve. The owner is responsible for regular rinsing to descale the pressure tank.

Risk of scalding from damaged pressure boiler! Never fill decalcifiers or other chemicals in the pressure boiler!

These can attack and damage the material of the pressure boiler.

Also only use water for the decalcification process.

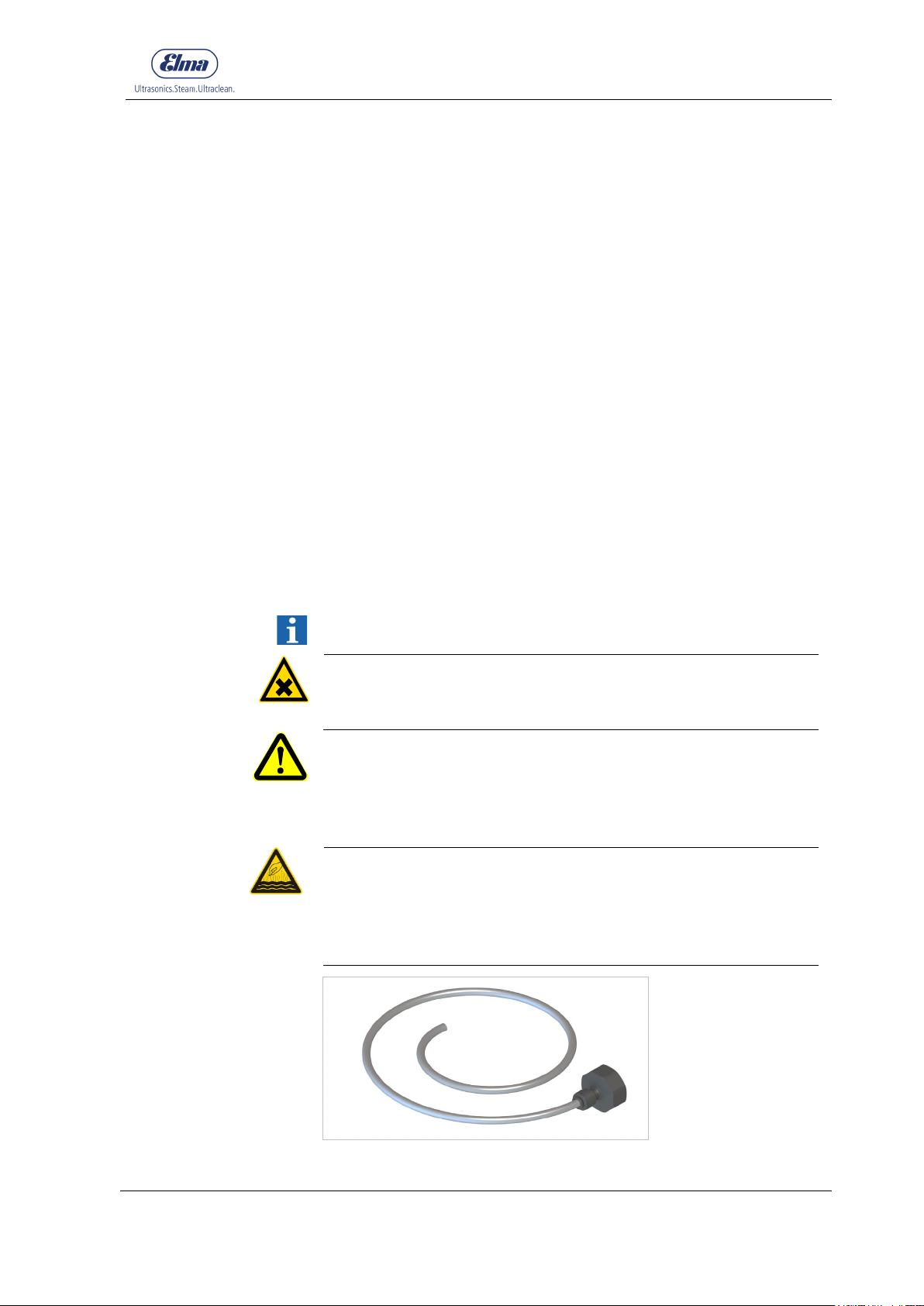

Fig.7.2. Rinsing set for connection to the water tap (3/4")

Page 26

Safety / Maintenance / Repair

German Rinsing

Intervals

Preparation

Rinsing procedure

7.2.1 For water containing lime

Observe the safety instructions in chapter 7.2.

There is the risk of calcification of diverse machine components for operation with mains water containing lime (tap water). The pressure tank must be rinsed by the user in accordance with the table to avoid lime scale damage to the machine.

In the case of continuous operation with tap water, lime sludge and scale accumulate in the pressure tank depending on the hardness of the water. In addition, lime particles detaching from the pressure tank can clog diverse machine components such as valves and nozzles. Polished surfaces can be adversely affected (matted) by such lime particles.

The following cleaning intervals are specified, depending on the water hardness:

CAUTION

hardness grade

interval

< 5 °dH

weeks

5 °dH 10 °dH

weeks

10 °dH -

15 °dH

weeks

15 °dH -

20 °dH

weeks

> 20 °dH

week

• Switch off the machine.

• Unplug mains plug.

• Let the machine cool down until it is depressurised (0 bar). After

complete depressurisation, the machine must still cool down for approx. 5 minutes to prevent spontaneous steam formation during rinsing.

• Have the maintenance hose included in the delivery ready.

1. Open pressure tank screw cap.

2. Push maintenance hose onto connection nozzle on the ball

valve.

3. Position machine so that the maintenance hose protrudes into

a sink or sufficiently large container and so that the ball valve can be operated.

Risk of scalding when draining possibly still heated residual water from the pressure boiler!

Wear gloves for holding the hose.

4. Open ball valve using a screwdriver (Fig. 7.2.1.2) and first

drain any still present residual water.

5. Connect rinsing set to a water tap (3/4" connection).

6. Using the hose from the rinsing set, spray the pressure tank in

circular movements.

Continue this process until no more lime residues are rinsed out of the pressure boiler.

In doing so, the water should be able to flow out of the pressure tank quickly*.

BA_Elmasteam 4

Page 27

Safety / Maintenance / Repair

Fig. 7.2.1.2 Ball valve opened

Fig. 7.2.1.3 Ball valve closed

7. Close ball valve (Fig. 7.2.1.3).

8. Remove maintenance hose.

9. For machines that are operated with a pump in combination

with deionised water: Fill 1 level teaspoon of salt into the pressure tank after the rinsing (see chapter 5.1).

*If no water flows away despite opened ball valve, this is possibly

closed by lime residues: Remove maintenance hose and clear the opening in the ball valve using a thin object.

Fig. 7.2.1.1 Connect water hose to the ball valve

Page 28

Safety / Maintenance / Repair

Chloride

Rinsing

Intervals

Preparation

Procedure

7.2.2 For water containing chloride

Regular rinsing is also required for water containing chloride. Otherwise, the chloride concentration in the pressure boiler continues to increase and the forming hydrochloric acid attacks the pressure tank. Procedure as described in chapter 7.2.1 .

content

interval

200 mg/l 150 mg/l 100 mg/l 50 mg/l 0 mg/l

2 weeks 3 weeks 5 weeks 6 weeks 8 weeks

7.3 Clean sieve in the water connection (only P-HP)

The sieve in the water connection can be clogged by particles and minerals in the supply system and the water supply to the machine can be impaired.

Dependent on the water quality. At the latest if the pressure boiler is no longer filled correctly.

Unplug mains plug

•

Close water supply to the machine

•

1. Remove hose on the permanent water connection (Fig. 4.4.3.F)

2. Pull out sieve using pliers

3. Clean sieve under running water

4. Replace sieve

5. Install water connection again correctly; check for secure

seating and leak tightness.

Fig. 7.2.3. Various views of sieve

BA_Elmasteam 4

Page 29

Safety / Maintenance / Repair

Dependent on the occurrence of

107 0074

Dependent on the function and

105 7949

Dependent on visible wear ( e.g.

105 7953

Replacement interval

Article number

Replacement interval

Article number

Replacement interval

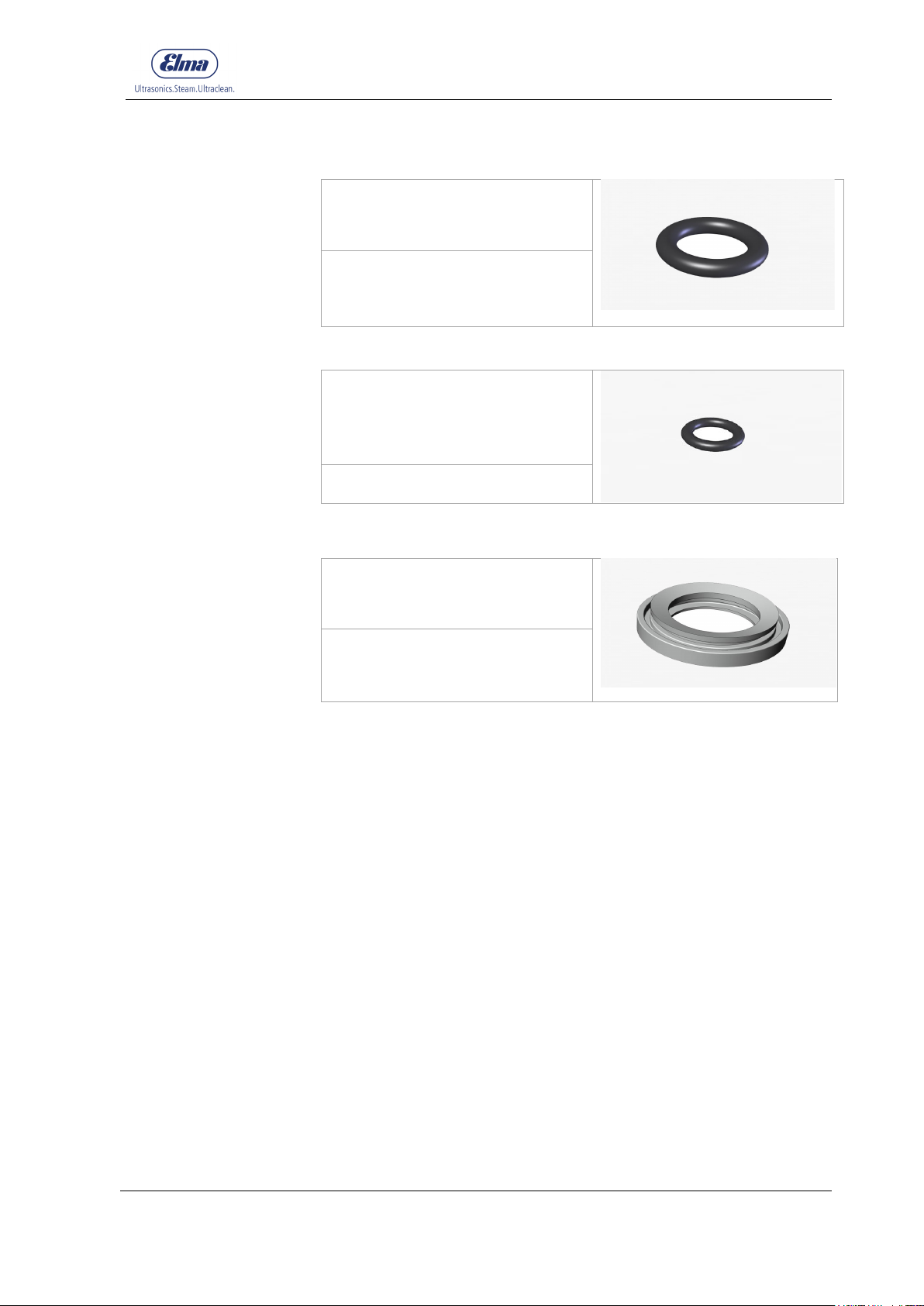

7.4 Wear parts

7.4.1 O-ring in the pressure tank screw cap

leaks and condition of the material.

7.4.2 O-ring nozzle

occurrence of leaks (water drips from the screw cap). Observe service instructions.

7.4.3 Sealing collecting basin

cracks). Observe service instructions.

Wear parts are excluded from the warranty.

Page 30

Safety / Maintenance / Repair

7.5 Repair

Contact the supplier or manufacturer of this machine for repairs. Repairs require specialist knowledge and are only permitted to be

performed by specialist personnel.

Danger of electric shock from live parts in the machine! Disconnect the machine from the mains power supply before

WARNING

CAUTION

repair work.

Risk of scalding from discharging steam! Do not open pressure tank screw cap on the filling nozzle of the

pressure tank at pressure above 0 bar. Do not remove parts in the machine that are pressurised above

0 bar. Let the machine cool down before opening.

Danger of burns from hot surfaces! Let the machine cool down first before opening.

Only original parts are permitted to be used for repairs.

Under certain circumstances, opening the machine can invalidate the CE conformity.

The manufacturer shall not accept any liability for consequential damage caused by unauthorised opening of the machine.

7.6 Prepare machine for shipment

The following points must be observed if it is required to send the machine to a service point or the manufacturer:

• Empty the machine completely before shipping.

• Pack the machine securely for transport in a suitable container,

if possible in the original carton.

BA_Elmasteam 4

Page 31

Safety / Maintenance / Repair

Pressure does not

• Pressure tank screw cap is not

• Close pressure tank screw

Steam suddenly discharges with short, loud

• Safety valve has tripped

• Take machine out of

• Water pressure too low

• ensure higher water pressure

7.7 Troubleshooting

Fault Possible cause Remedy

increase to 4.5 bar

LED heating lights

The Tank empty LED lights even if the tank is full

• Heater already damaged by

noise development at the safety valve

For basic P-HP machines (with pump):

closed leak-tight.

• Heater fault • Send machine to a service

• Heavy scale on heater or

thermostat

overheating due to heavy lime deposits

• Water supply not opened • Check water supply of the

cap tightly. If necessary replace sealing ring

point

• Rinse pressure boiler (chapter 7.2)

• Send machine to a service point

operation immediately.

• Send machine to a service point

machine

Pump no longer delivers water

• Machine has been switched on with empty pressure tank; thereby the maximum pump time of 2 minutes has been exceeded; pump goes into a fault state and is switched off automatically

• Sieve in the water connection is clogged.

• Perform initial filling with approx. 2 litres of water

• Switch mains power switch off and then on again (reset)

• Clean sieve (chapter 7.3).

Page 32

Decommissioning and disposal

We reserve the right to make technical and visual modifications Elma_ch_05.2015

8 Decommissioning and disposal

This machine must not be disposed of in domestic waste (municipal waste bin).

The machine can be sent back to the manufacturer for disposal or delivered to the local waste disposal in accordance with the local waste regulations.

Empty the machine. Disinfect the surfaces.

9 Manufacturer address/contact address

Elma Schmidbauer GmbH

Gottlieb-Daimler-Str. 17, D-78224 Singen

Tel (head office) +49 (0) 7731 / 882-0

Fax (head office) +49 (0) 7731 / 882-266

[email protected]

www.elma-ultrasonic.com

Technical Support

[email protected]

BA_Elmasteam 4
