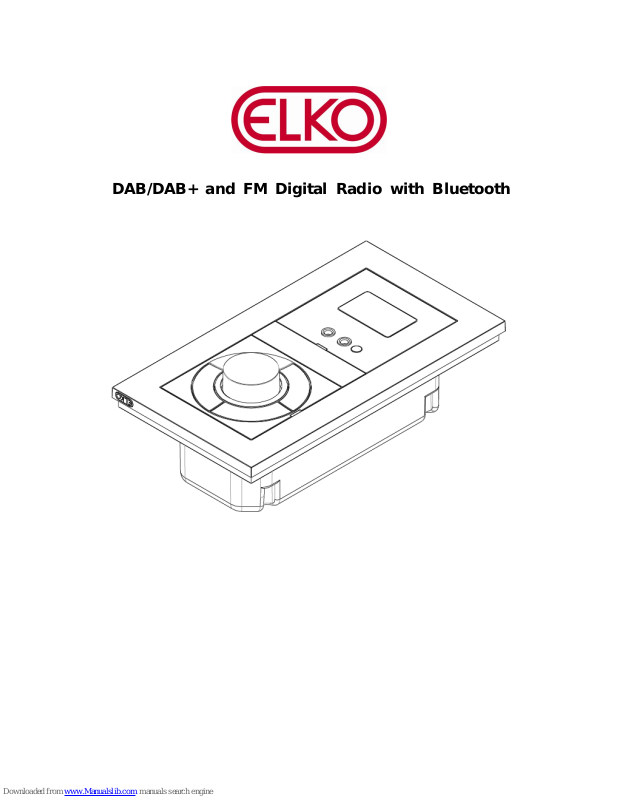

Elko Sound Player - 2 User Manual
DAB/DAB+ and FM Digital Radio with Bluetooth
2
Important Safety Instructions
1. Read these instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use the speaker near water.
6. Clean only with dry cloth.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS SPEAKER TO RAIN OR MOISTURE.
To reduce the risk of electrical shock, fire, etc.:
1. Do not place near any heat source such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
2. The device shall not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the device.
3. Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at any point where they exit from the device.
4. Never unplug your unit by pulling on the power cord. Always grasp the plug firmly and pull
straight out from the outlet.
5. Repair or replace all electric service cords that have become frayed or otherwise
damaged immediately. Do not use a cord that shows cracks or abrasion damage along its
length, the plug, or the connector end.
6. To prevent fire or shock hazard, do not use this plug with an extension cord or other outlet
unless the blades can be fully inserted to prevent blade exposure.
7. To prevent fire or shock hazard, do not expose this device to rain or moisture.
8. Do not place any heavy loads onto the unit, and do not step on it, the load may fall and
cause serious injury to the unit.
9. Do not attempt to carry out any service work yourself. By opening or removing the cabinet,
you may be exposed to dangerous voltage or other hazards. Any service work should be
carried out by qualified technicians.
10. During lightning or raining days, unplug the unit for additional protection during
thunderstorms or when the unit is not used for prolonged periods. This will prevent
damage to the unit from lightning and power surges.
11. The battery of remote control shall not be exposed to excessive heat such as sunshine,
fire or the like.
12. Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.
3
FCC Information
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
The normal function of the product may be disturbed by strong Electro-Magnetic Interference.
If so, simply reset the product to resume normal operation by following the instruction manual.
In case the function could not resume, please use the product in other location.
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user‟s authority to operate the equipment.
Caution: To maintain compliance with the FCC‟s RF exposure guidelines, place the unit at
least 20cm from nearby persons.
4
Contents
Important Safety Instructions ..................................................................................................... 2
FCC Information ........................................................................................................................ 3
Contents .................................................................................................................................... 4
Unit Front View .......................................................................................................................... 5
Unit Rear View ........................................................................................................................... 6
Remote Contorl overview .......................................................................................................... 7
Getting Started ........................................................................................................................... 8
DAB Mode ................................................................................................................................. 9
Selecting another DAB/DAB+ Station ................................................................................... 9
Updating Station List ............................................................................................................. 9
Showing the Signal Strength ................................................................................................. 9
DRC (Dynamic Range Control) value ................................................................................. 10
Prune ................................................................................................................................... 10
Viewing Station Information ................................................................................................. 10
FM Mode ................................................................................................................................... 11
Selecting FM Mode .............................................................................................................. 11
Scan Setting ......................................................................................................................... 11
Audio Setting ........................................................................................................................ 11
Viewing Station Information ................................................................................................. 12
Aux in Mode ............................................................................................................................. 13
Bluetooth Mode........................................................................................................................ 14
General Operation ................................................................................................................... 15
Storing Preset Stations ........................................................................................................ 15
Playing a Preset Station ...................................................................................................... 15
Setting Sleep ....................................................................................................................... 15
Setting Time ........................................................................................................................ 16
Setting Alarm ....................................................................................................................... 16
Setting Backlight .................................................................................................................. 17
Setting Language ................................................................................................................ 17
Factory Reset ...................................................................................................................... 17
SW Version .......................................................................................................................... 17
Troubleshooting ....................................................................................................................... 18
Specification............................................................................................................................. 19
5
Unit Front View
1. LCD display
2. Headphone socket
3. Remote control sensor
4. INFO/POWER button
Press and hold to turn on radio or
switch radio to standy.
Press to browse station info in DAB
and FM mode.
5. SCROLL/SELECT knob
Turn to adjust volume level.
In the menu setting, turn to browse
options, press to confirm selection.
6. PRESETS button
Press and hold to store preset
stations.
Press to recall preset stations.
7. AUX IN1 socket
Connect to a 3.5mm audio cable(not
supplied) in Auxiliary In 1 mode.
8. BACK button
Press to return to previous menu screen.
9. MODE/MENU button
Press to shift among DAB, FM,
Auxiliary In 1, Auxiliary In 2 and
Bluetooth mode.
Press and hold to access menu.
6
Unit Rear View
1. AUX OUT socket
Connect to a 3.5mm audio cable(not
supplied).
2. AUX IN2 socket
Connect to a 3.5mm audio cable(not
supplied) in Auxiliary In 2 mode.
3. SERVICE port
Please leave this software upgrade port
for service professional.
