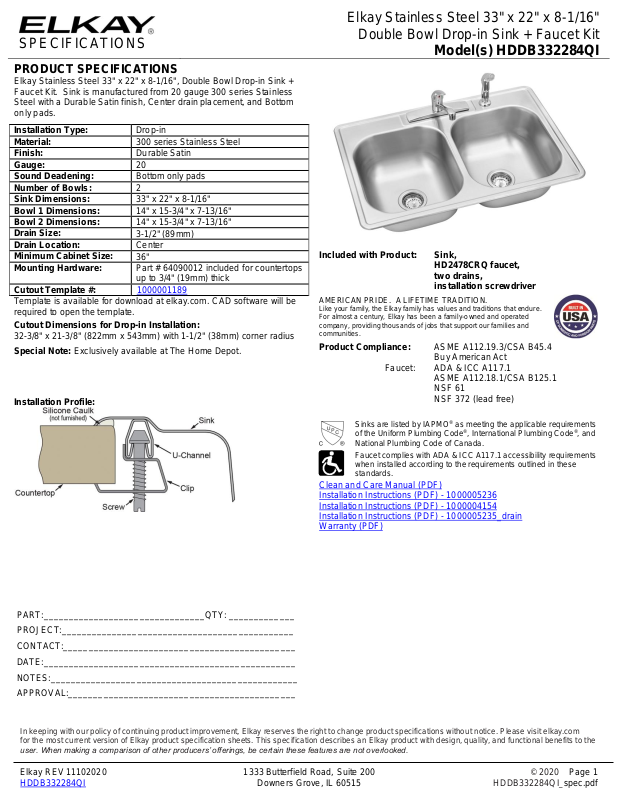

Elkay HDDB332284QI Specifications

SPECIFICATIONS

Elkay Stainless Steel 33" x 22" x 8-1/16"

Double Bowl Drop-in Sink + Faucet Kit

Model(s) HDDB332284QI

PRODUCT SPECIFICATIONS

Elkay Stainless Steel 33" x 22" x 8-1/16", Double Bowl Drop-in Sink +
Faucet Kit. Sink is manufactured from 20 gauge 300 series Stainless
Steel with a Durable Satin finish, Center drain placement, and Bottom
only pads.

Installation Type:

Drop-in

Material:

300 series Stainless Steel

Finish:

Durable Satin

Gauge:

20

Sound Deadening:

Bottom only pads

Number of Bowls:

2

Sink Dimensions:

33" x 22" x 8-1/16"

Bowl 1 Dimensions:

14" x 15-3/4" x 7-13/16"

Bowl 2 Dimensions:

14" x 15-3/4" x 7-13/16"

Drain Size:

3-1/2" (89mm)

Drain Location:

Center

Minimum Cabinet Size:

36"

Mounting Hardware:

Part # 64090012 included for countertops
up to 3/4" (19mm) thick

Cutout Template #:

1000001189

Template is available for download at elkay.com. CAD software will be
required to open the template.

Cutout Dimensions for Drop-in Installation:
32-3/8" x 21-3/8" (822mm x 543mm) with 1-1/2" (38mm) corner radius

Special Note: Exclusively available at The Home Depot.

Installation Profile:

Included with Product:

Sink,
HD2478CRQ faucet,
two drains,
installation screwdriver

AMERICAN PRIDE. A LIFETIME TRADITION.

Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.

Product Compliance:

ASME A112.19.3/CSA B45.4
Buy American Act

Faucet:

ADA & ICC A117.1
ASME A112.18.1/CSA B125.1
NSF 61
NSF 372 (lead free)

Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.

Faucet complies with ADA & ICC A117.1 accessibility requirements
when installed according to the requirements outlined in these
standards.

Clean and Care Manual (PDF)

Installation Instructions (PDF) - 1000005236
Installation Instructions (PDF) - 1000004154
Installation Instructions (PDF) - 1000005235_drain

Warranty (PDF)

PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________

In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.

Elkay REV 11102020 1333 Butterfield Road, Suite 200 © 2020 Page 1

HDDB332284QI Downers Grove, IL 60515 HDDB332284QI_spec.pdf

SPECIFICATIONS

Elkay Stainless Steel 33" x 22" x 8-1/16"

Double Bowl Drop-in Sink + Faucet Kit

Model(s) HDDB332284QI

OPTIONAL ACCESSORIES

Bottom Grid:

GBG1415SS

Hardware:

LK364, LK463
