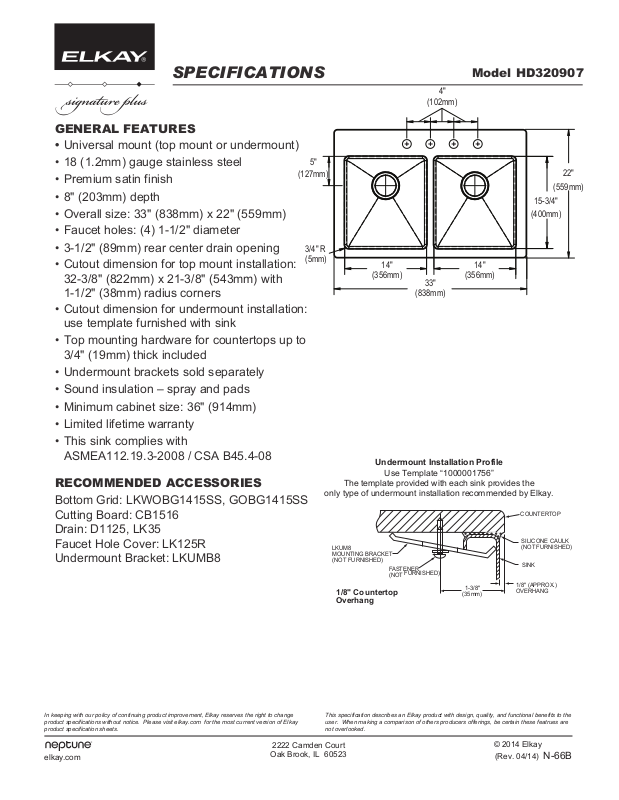

Elkay HD320907 User Manual
SPECIFICATIONS
GENERAL FEATURES
• Universal mount (top mount or undermount)
• 18 (1.2mm) gauge stainless steel
• Premium satin finish
• 8" (203mm) depth
• Overall size: 33" (838mm) x 22" (559mm)
• Faucet holes: (4) 1-1/2" diameter
5"
(127mm)
Model HD320907
4"
(102mm)
22"
(559mm)
15-3/4"
(400mm)
• 3-1/2" (89mm) rear center drain opening
• Cutout dimension for top mount installation:
32-3/8" (822mm) x 21-3/8" (543mm) with
1-1/2" (38mm) radius corners
• Cutout dimension for undermount installation:
use template furnished with sink
• Top mounting hardware for countertops up to
3/4" (19mm) thick included
• Undermount brackets sold separately
• Sound insulation – spray and pads
• Minimum cabinet size: 36" (914mm)
• Limited lifetime warranty
• This sink complies with
ASMEA112.19.3-2008 / CSA B45.4-08
RECOMMENDED ACCESSORIES
Bottom Grid: LKWOBG1415SS, GOBG1415SS
Cutting Board: CB1516
Drain: D1125, LK35
Faucet Hole Cover: LK125R
Undermount Bracket: LKUMB8
3/4" R
(5mm)
The template provided with each sink provides the
only type of undermount installation recommended by Elkay.
LKUM8
MOUNTING BRACKET
(NOT FURNISHED)
1/8" Countertop
Overhang
14"
(356mm)
Undermount Installation Profile
Use Template “1000001756”
FASTENER
(NOT
33"
(838mm)
FURNISHED)
14"
(356mm)
1-3/8"
(35mm)
COUNTERTOP
SILICONE CAULK
(NOT FURNISHED)
SINK
1/8" (APPROX.)
OVERHANG
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkay.com for the most current version of Elkay
product specification sheets.
2222 Camden Court
elkay.com
Oak Brook, IL 60523
This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of others producers offerings, be certain these featrues are
not overlooked.
© 2014 Elkay
(Rev. 04/14)
