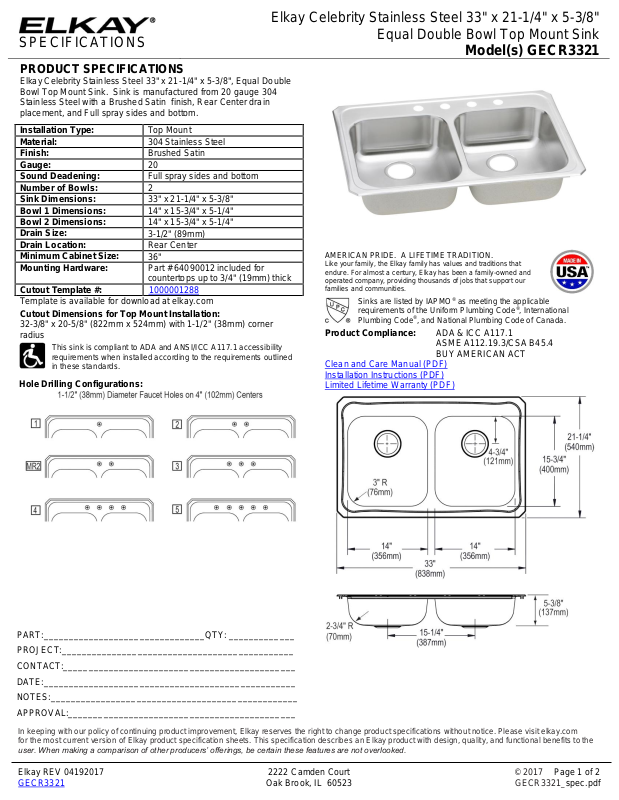

SPECIFICATIONS
Elkay Celebrity Stainless Steel 33" x 21-1/4" x 5-3/8"
Equal Double Bowl Top Mount Sink
Model(s) GECR3321
PRODUCT SPECIFICATIONS
Elkay Celebrity Stainless Steel 33" x 21-1/4" x 5-3/8", Equal Double
Bowl Top Mount Sink. Sink is manufactured from 20 gauge 304
Stainless Steel with a Brushed Satin finish, Rear Center drain
placement, and Full spray sides and bottom.
Installation Type:
Top Mount
Material:
304 Stainless Steel
Finish:
Brushed Satin
Gauge:
20
Sound Deadening:
Full spray sides and bottom
Number of Bowls:
2
Sink Dimensions:
33" x 21-1/4" x 5-3/8"
Bowl 1 Dimensions:
14" x 15-3/4" x 5-1/4"
Bowl 2 Dimensions:
14" x 15-3/4" x 5-1/4"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 64090012 included for
countertops up to 3/4" (19mm) thick
Cutout Template #:
1000001288
Template is available for download at elkay.com
Cutout Dimensions for Top Mount Installation:
32-3/8" x 20-5/8" (822mm x 524mm) with 1-1/2" (38mm) corner
radius
This sink is compliant to ADA and ANSI/ICC A117.1 accessibility
requirements when installed according to the requirements outlined
in these standards.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Sinks are listed by IAPMO® as meeting the applicable
requirements of the Uniform Plumbing Code®, International
Plumbing Code®, and National Plumbing Code of Canada.
Product Compliance:
ADA & ICC A117.1
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
Hole Drilling Configurations:
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04192017 2222 Camden Court © 2017 Page 1 of 2
GECR3321 Oak Brook, IL 60523 GECR3321_spec.pdf
SPECIFICATIONS
Elkay Celebrity Stainless Steel 33" x 21-1/4" x 5-3/8"
Equal Double Bowl Top Mount Sink
Model(s) GECR3321
OPTIONAL ACCESSORIES
Bottom Grid:
LKWOBG1415SS
Cutting Board:
CB1516
Drain:
LK99
Faucet:
LKGT1041, LKGT2041
Hardware:
LK364, LK463
Rinsing Basket:
LKWRB1316SS, LKWERBSS
Sinkmate:
LKSMHSL
Soap Dispenser:
LKGT1054
Installation Profile:
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04192017 2222 Camden Court © 2017 Page 2 of 2
GECR3321 Oak Brook, IL 60523 GECR3321_spec.pdf
