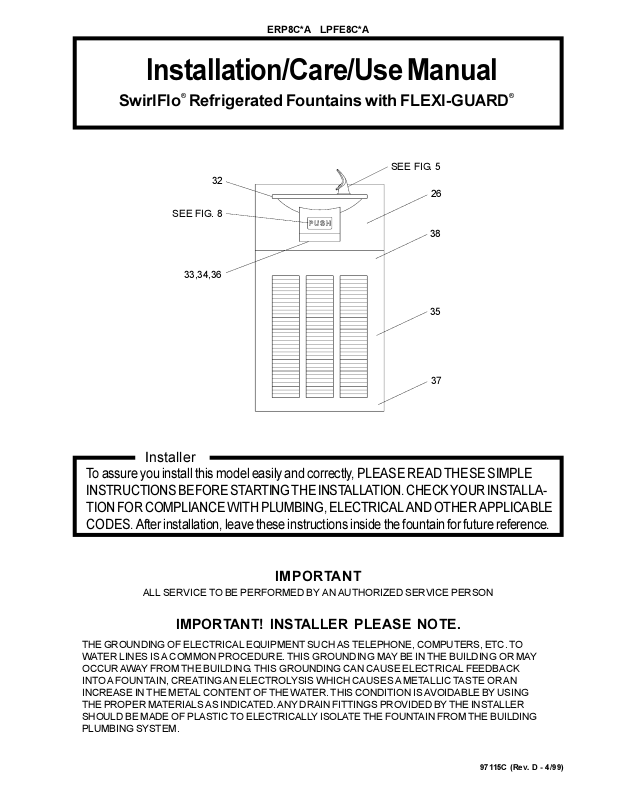

ERP8C*A LPFE8C*A
Installation/Care/Use Manual
SwirlFlo® Refrigerated Fountains with FLEXI-GUARD
SEE FIG. 5
32
26
SEE FIG. 8
38
33,34,36
35
37
®
Installer
To assure you install this model easily and correctly, PLEASE READ THESE SIMPLE
INSTRUCTIONS BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL AND OTHER APPLICABLE
CODES. After installation, leave these instructions inside the fountain for future reference.
IMPORTANT
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON
IMPORTANT! INSTALLER PLEASE NOTE.
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO
WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY
OCCUR AWAY FROM THE BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK
INTO A FOUNTAIN, CREATING AN ELECTROLYSIS WHICH CAUSES A METALLIC TASTE OR AN
INCREASE IN THE METAL CONTENT OF THE WATER. THIS CONDITION IS AVOIDABLE BY USING
THE PROPER MATERIALS AS INDICATED. ANY DRAIN FITTINGS PROVIDED BY THE INSTALLER
SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE FOUNTAIN FROM THE BUILDING
PLUMBING SYSTEM.
97115C (Rev. D - 4/99)
ERP8C*A LPFE8C*A
*
*
FINISHED FLOOR
FIG. 1
D = ELECTRICAL OUTLET LOCATION (BOTH SIDES)
* DIMENSIONS SHOWN ARE BASED ON 36" (914mm)
FLOOR TO BUBBLER ORIFICE HEIGHT. (WHEELCHAIR FOUNTAIN)
CHECK LOCAL CODES.
97115C (Rev. D - 4/99)
PAGE 2
COPPER TUBE CONNECT STUB 1-1/2" (38mm) OUT FROM WALL
LEGEND
A = RECOMMENDED WATER SUPPLY LOCATION 3/8 O.D. UNPLATED
SHUT OFF BY OTHERS
B = RECOMMENDED LOCATION FOR WASTE OUTLET 1-1/4 O.D. DRAIN
C = 1-1/4 TRAP NOT FURNISHED
