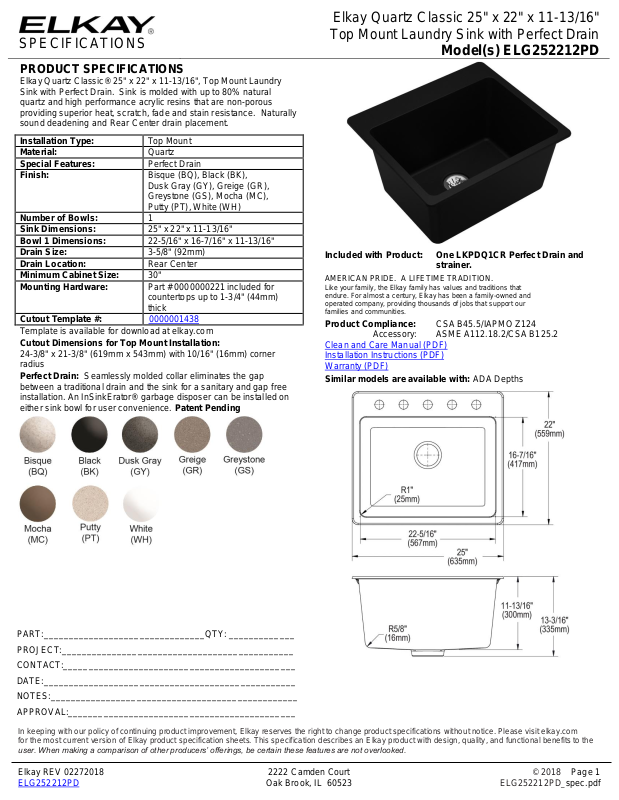

SPECIFICATIONS
Elkay Quartz Classic 25" x 22" x 11-13/16"
Top Mount Laundry Sink with Perfect Drain
Model(s) ELG252212PD
PRODUCT SPECIFICATIONS
Elkay Quartz Classic® 25" x 22" x 11-13/16", Top Mount Laundry
Sink with Perfect Drain. Sink is molded with up to 80% natural
quartz and high performance acrylic resins that are non-porous
providing superior heat, scratch, fade and stain resistance. Naturally
sound deadening and Rear Center drain placement.
Installation Type:
Top Mount
Material:
Quartz
Special Features:
Perfect Drain
Finish:
Bisque (BQ), Black (BK),
Dusk Gray (GY), Greige (GR),
Greystone (GS), Mocha (MC),
Putty (PT), White (WH)
Number of Bowls:
1
Sink Dimensions:
25" x 22" x 11-13/16"
Bowl 1 Dimensions:
22-5/16" x 16-7/16" x 11-13/16"
Drain Size:
3-5/8" (92mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
30"
Mounting Hardware:
Part # 0000000221 included for
countertops up to 1-3/4" (44mm)
thick
Cutout Template #:
0000001438
Template is available for download at elkay.com
Cutout Dimensions for Top Mount Installation:
24-3/8" x 21-3/8" (619mm x 543mm) with 10/16" (16mm) corner
radius
Perfect Drain: Seamlessly molded collar eliminates the gap
between a traditional drain and the sink for a sanitary and gap free
installation. An InSinkErator® garbage disposer can be installed on
either sink bowl for user convenience. Patent Pending
Included with Product:
One LKPDQ1CR Perfect Drain and
strainer.
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Product Compliance:
CSA B45.5/IAPMO Z124
Accessory:
ASME A112.18.2/CSA B125.2
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Warranty (PDF)
Similar models are available with: ADA Depths
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 02272018 2222 Camden Court © 2018 Page 1
ELG252212PD Oak Brook, IL 60523 ELG252212PD_spec.pdf
SPECIFICATIONS
Elkay Quartz Classic 25" x 22" x 11-13/16"
Top Mount Laundry Sink with Perfect Drain
Model(s) ELG252212PD
OPTIONAL ACCESSORIES
Drain:
LKPDQ1LS
Faucet:
LK2500CR
Installation Profile:
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 02272018 2222 Camden Court © 2018 Page 2
ELG252212PD Oak Brook, IL 60523 ELG252212PD_spec.pdf
