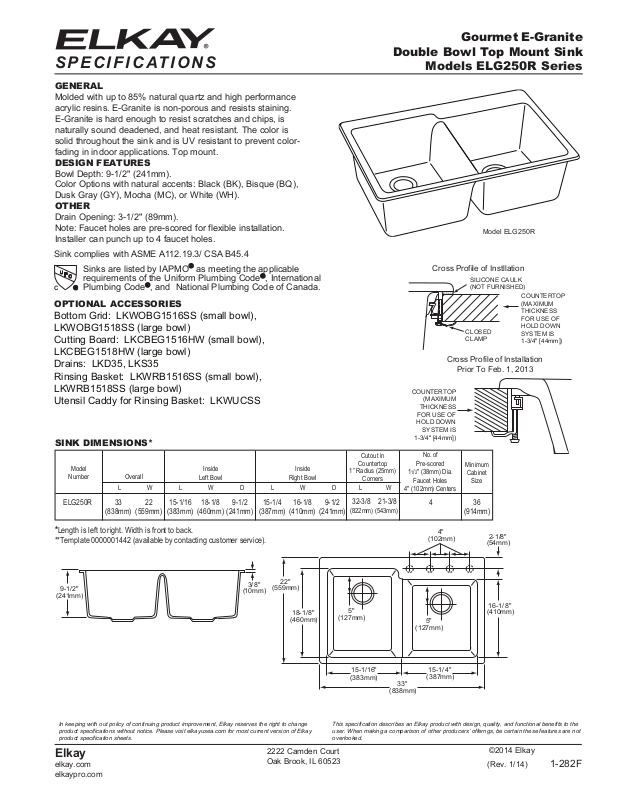

Elkay ELG250RBQ Specs

S P E C I F I C AT I O N S

GENERAL

Molded with up to 85% natural quartz and high performance
acrylic resins. E-Granite is non-porous and resists staining.
E-Granite is hard enough to resist scratches and chips, is
naturally sound deadened, and heat resistant. The color is
solid throughout the sink and is UV resistant to prevent color­fading in indoor applications. Top mount.

DESIGN FEATURES

Bowl Depth: 9-1/2" (241mm).

Color Options with natural accents: Black (BK), Bisque (BQ),
Dusk Gray (GY), Mocha (MC), or White (WH).

OTHER

Drain Opening: 3-1/2" (89mm).

Note: Faucet holes are pre-scored for flexible installation.
Installer can punch up to 4 faucet holes.

Sink complies with ASME A112.19.3/ CSA B45.4

Sinks are listed by IAPMO as meeting the applicable
requirements of the Uniform Plumbing Code , International
Plumbing Code , and National Plumbing Code of Canada.

C

OPTIONAL ACCESSORIES

Bottom Grid: LKWOBG1516SS (small bowl),
LKWOBG1518SS (large bowl)
Cutting Board: LKCBEG1516HW (small bowl),
LKCBEG1518HW (large bowl)
Drains: LKD35, LKS35
Rinsing Basket: LKWRB1516SS (small bowl),
LKWRB1518SS (large bowl)
Utensil Caddy for Rinsing Basket: LKWUCSS

SINK DIMENSIONS*

Model

Number

ELG250R 33

(838mm)22(559mm)

Overall

L W L W D L W D L W

15-1/16

(383mm)

Inside

Left Bowl

18-1/8

(460mm)

9-1/2

(241mm)

15-1/4

(387mm)

Right Bowl

(410mm)

Inside

16-1/8

9-1/2

(241mm)

Cutout in

Countertop

1” Radius (25mm)

Corners

32-3/8 21-3/8

(822mm) (543mm)

Gourmet E-Granite

Double Bowl Top Mount Sink

Models ELG250R Series

M

odel ELG250R

Cross Profile of Instllation

SILICONE CAULK

Cross Profile of Installation

COUNTERTOP

(MAXIMUM

THICKNESS

FOR USE OF

HOLD DOWN

SYSTEM IS

1-3/4" [44mm])

No. of

Pre-scored

1/2" (38mm) Dia.

1

Faucet Holes

4" (102mm) Centers

4 36

(NOT FURNISHED)

CLOSED
CLAMP

Prior To Feb. 1, 2013

Minimum

Cabinet

Size

(914mm)

COUNTERTOP
(MAXIMUM
THICKNESS
FOR USE OF
HOLD DOWN
SYSTEM IS
1-3/4" [44mm])

*

Length is left to right. Width is front to back.

**Template 0000001442 (available by contacting customer service).

9-1/2"

(241mm)

3/8"

(10mm)

22"

(559mm)

In keeping with out policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkayusea.com for most current version of Elkay
product specification sheets.

Elkay

elkay.com

2222 Camden Court
Oak Brook, IL 60523

elkaypro.com

18-1/8"

(460mm)

4"

(102mm)

5"

(127mm)

15-1/16"

(383mm)

(838mm)

This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerngs, be certain these features are not
overlooked.

33"

5"

(127mm)

15-1/4"

(387mm)

2-1/8"

(54mm)

16-1/8"

(410mm)

©2014 Elkay

(Rev. 1/14)

1-282F
