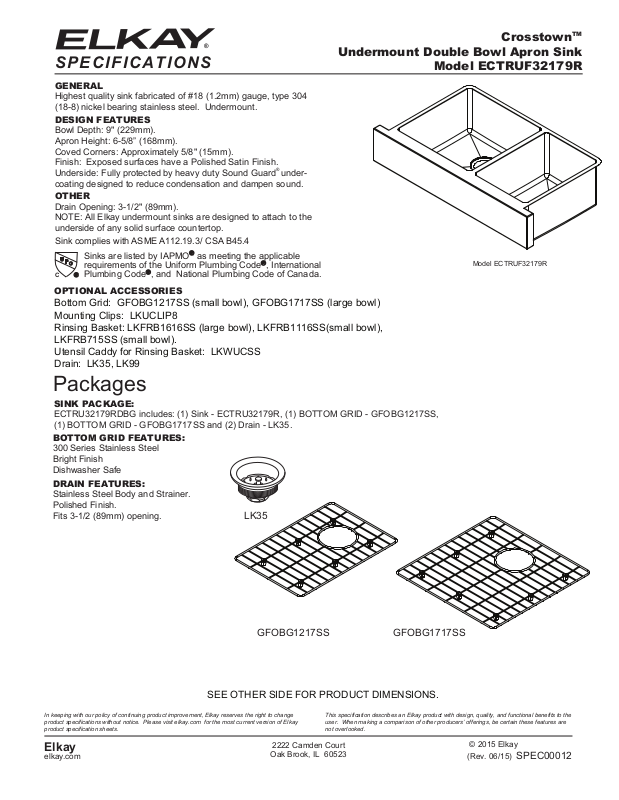

Elkay ECTRUF32179R User Manual
®
Undermount Double Bowl Apron Sink
SPECIFICATIONS
GENERAL
Highest quality sink fabricated of #18 (1.2mm) gauge, type 304
(18-8) nickel bearing stainless steel. Undermount.
DESIGN FEATURES
Bowl Depth: 9" (229mm).
Apron Height: 6-5/8” (168mm).
Coved Corners: Approximately 5/8" (15mm).
Finish: Exposed surfaces have a Polished Satin Finish.
Underside: Fully protected by heavy duty Sound Guard
coating designed to reduce condensation and dampen sound.
OTHER
Drain Opening: 3-1/2" (89mm).
NOTE: All Elkay undermount sinks are designed to attach to the
underside of any solid surface countertop.
Sink complies with ASME A112.19.3/ CSA B45.4
Sinks are listed by IAPMO as meeting the applicable
requirements of the Uniform Plumbing Code , International
Plumbing Code , and National Plumbing Code of Canada.
C
OPTIONAL ACCESSORIES
Bottom Grid: GFOBG1217SS (small bowl), GFOBG1717SS (large bowl)
Mounting Clips: LKUCLIP8
Rinsing Basket: LKFRB1616SS (large bowl), LKFRB1116SS(small bowl),
LKFRB715SS (small bowl).
Utensil Caddy for Rinsing Basket: LKWUCSS
Drain: LK35, LK99
®
under-
Crosstown
TM
Model ECTRUF32179R
Model ECTRUF32179R
Packages
SINK PACKAGE:
ECTRU32179RDBG includes: (1) Sink - ECTRU32179R, (1) BOTTOM GRID - GFOBG1217SS,
(1) BOTTOM GRID - GFOBG1717SS and (2) Drain - LK35.
BOTTOM GRID FEATURES:
300 Series Stainless Steel
Bright Finish
Dishwasher Safe
DRAIN FEATURES:
Stainless Steel Body and Strainer.
Polished Finish.
Fits 3-1/2 (89mm) opening.
LK35
GFOBG1217SS GFOBG1717SS
SEE OTHER SIDE FOR PRODUCT DIMENSIONS.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkay.com for the most current version of Elkay
product specification sheets.
Elkay
elkay.com
2222 Camden Court
Oak Brook, IL 60523
This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are
not overlooked.
© 2015 Elkay
(Rev. 06/15)
SPEC00012
SPECIFICATIONS
SINK DIMENSIONS*
Model
Number
ECTRUF32179R
*Length is left to right. Width is front to back.
Overall Inside Left Bowl Inside Right Bowl
L W L W D
35 7/8”
(911mm)
20 1/4”
(514mm)
(127mm)
(432mm)
5"
17"
(432mm)
17”
(432mm)
8-1/2"
(216mm)
®
Undermount Double Bowl Apron Sink
Crosstown
TM
Model ECTRUF32179R
Minimum
Cabinet
Size
36”
(914mm)
6"
5"
(127mm)
17"
(432mm)
20-1/4"
(514mm)
17”
9 1/8”
(231mm)
L W D
12”
(305mm)
(432mm)
17"
(432mm)
1"
(25mm)
17”
9 1/8”
(231mm)
Cutout in
Countertop
See
Template**
12"
(305mm)
(152mm)
30"
(762mm)
31-1/2"
(800mm)
15-1/2"
(394mm)
Installation Profile of ECTRU Models
recommended by Elkay .
MOUNTING
CLIP LKUCLIP8
(NOT FURNISHED)
FASTENER
(NOT FURNISHED)
1/8" (3mm)
Countertop
(ECTRU Models)
Overhang
(35mm) (6mm)
35-7/8"
(911mm)
1-3/8" +1/4"
_
COUNTERTOP
SILICONE CAULK
(NOT FURNISHED)
SINK
1/8" (3mm) (APPROX.)
OVERHANG
2-1/2"
(64mm)
6-5/8"
(168mm)
APRON
9-1/8"
(231mm)
BOWL
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visit elkay.com for the most current version of Elkay
product specification sheets.
Elkay
elkay.com
2222 Camden Court
Oak Brook, IL 60523
This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are
not overlooked.
© 2015 Elkay
(Rev. 06/15)
SPEC00012
