Elkay ECTRUD31199LT0 Specs

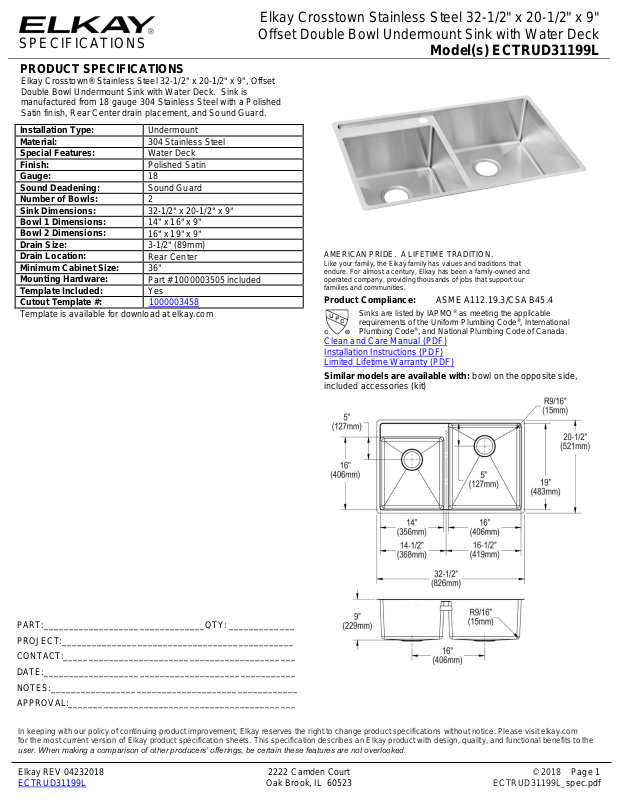

SPECIFICATIONS
Elkay Crosstown Stainless Steel 32-1/2" x 20-1/2" x 9"
Offset Double Bowl Undermount Sink with Water Deck
Model(s) ECTRUD31199L
PRODUCT SPECIFICATIONS
Elkay Crosstown® Stainless Steel 32-1/2" x 20-1/2" x 9", Offset
Double Bowl Undermount Sink with Water Deck. Sink is
manufactured from 18 gauge 304 Stainless Steel with a Polished
Satin finish, Rear Center drain placement, and Sound Guard.
Installation Type:
Undermount
Material:
304 Stainless Steel
Special Features:
Water Deck
Finish:
Polished Satin
Gauge:
18
Sound Deadening:
Sound Guard
Number of Bowls:
2
Sink Dimensions:
32-1/2" x 20-1/2" x 9"
Bowl 1 Dimensions:
14" x 16" x 9"
Bowl 2 Dimensions:
16" x 19" x 9"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
36"
Mounting Hardware:
Part # 1000003505 included
Template Included:
Yes
Cutout Template #:
1000003458
Template is available for download at elkay.com
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Sinks are listed by IAPMO® as meeting the applicable
requirements of the Uniform Plumbing Code®, International
Plumbing Code®, and National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
Similar models are available with: bowl on the opposite side,
included accessories (kit)
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04232018 2222 Camden Court © 2018 Page 1
ECTRUD31199L Oak Brook, IL 60523 ECTRUD31199L_spec.pdf
SPECIFICATIONS
Elkay Crosstown Stainless Steel 32-1/2" x 20-1/2" x 9"
Offset Double Bowl Undermount Sink with Water Deck
Model(s) ECTRUD31199L
OPTIONAL ACCESSORIES
Bottom Grid:
GFOBG1416SS, GFOBG1619SS
Drain:
LKDD, LK35
Faucet:
LK3000CR, LK3001CR, LK5000CR,
LK5000LS
Sinkmate:
LKSMHSL
Soap Dispenser:
LK320
Installation Profile:
Hole Drilling Configurations:
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04232018 2222 Camden Court © 2018 Page 2
ECTRUD31199L Oak Brook, IL 60523 ECTRUD31199L_spec.pdf
