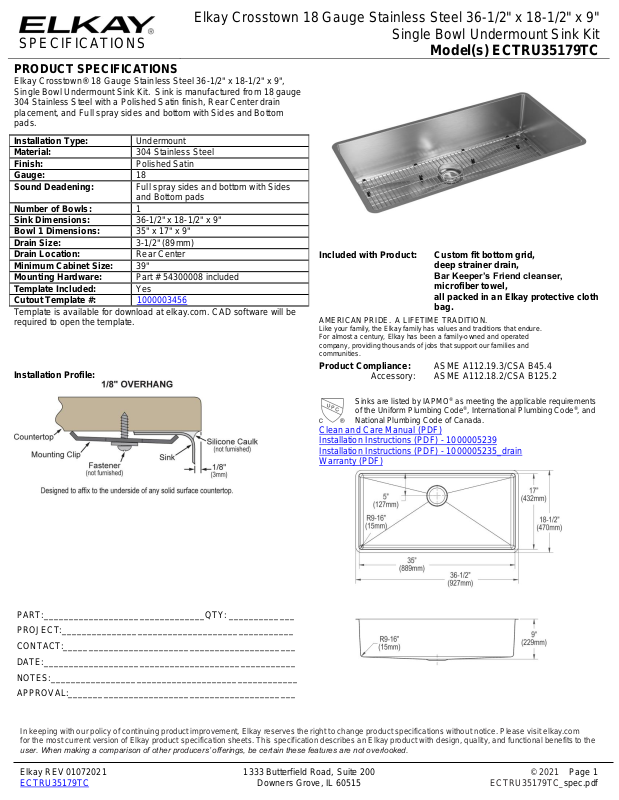

Elkay ECTRU35179TC Specifications

SPECIFICATIONS

Elkay Crosstown 18 Gauge Stainless Steel 36-1/2" x 18-1/2" x 9"

Single Bowl Undermount Sink Kit

Model(s) ECTRU35179TC

PRODUCT SPECIFICATIONS

Elkay Crosstown® 18 Gauge Stainless Steel 36-1/2" x 18-1/2" x 9",
Single Bowl Undermount Sink Kit. Sink is manufactured from 18 gauge
304 Stainless Steel with a Polished Satin finish, Rear Center drain
placement, and Full spray sides and bottom with Sides and Bottom
pads.

Installation Type:

Undermount

Material:

304 Stainless Steel

Finish:

Polished Satin

Gauge:

18

Sound Deadening:

Full spray sides and bottom with Sides
and Bottom pads

Number of Bowls:

1

Sink Dimensions:

36-1/2" x 18-1/2" x 9"

Bowl 1 Dimensions:

35" x 17" x 9"

Drain Size:

3-1/2" (89mm)

Drain Location:

Rear Center

Minimum Cabinet Size:

39"

Mounting Hardware:

Part # 54300008 included

Template Included:

Yes

Cutout Template #:

1000003456

Template is available for download at elkay.com. CAD software will be
required to open the template.

Installation Profile:

Included with Product:

Custom fit bottom grid,
deep strainer drain,
Bar Keeper’s Friend cleanser,
microfiber towel,
all packed in an Elkay protective cloth
bag.

AMERICAN PRIDE. A LIFETIME TRADITION.

Like your family, the Elkay family has values and traditions that endure.
For almost a century, Elkay has been a family-owned and operated
company, providing thousands of jobs that support our families and
communities.

Product Compliance:

ASME A112.19.3/CSA B45.4

Accessory:

ASME A112.18.2/CSA B125.2

Sinks are listed by IAPMO® as meeting the applicable requirements
of the Uniform Plumbing Code®, International Plumbing Code®, and
National Plumbing Code of Canada.

Clean and Care Manual (PDF)

Installation Instructions (PDF) - 1000005239
Installation Instructions (PDF) - 1000005235_drain

Warranty (PDF)

PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________

In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.

Elkay REV 01072021 1333 Butterfield Road, Suite 200 © 2021 Page 1

ECTRU35179TC Downers Grove, IL 60515 ECTRU35179TC_spec.pdf

SPECIFICATIONS

Elkay Crosstown 18 Gauge Stainless Steel 36-1/2" x 18-1/2" x 9"

Single Bowl Undermount Sink Kit

Model(s) ECTRU35179TC

OPTIONAL ACCESSORIES

Cutting Board:

LKCBF17HW

Faucet:

LK3000CR, LK3001CR, LK5000CR,
LK5000LS

Hardware:

LKUCLIP8 (2 Required)

In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.

Elkay REV 01072021 1333 Butterfield Road, Suite 200 © 2021 Page 2

ECTRU35179TC Downers Grove, IL 60515 ECTRU35179TC_spec.pdf
