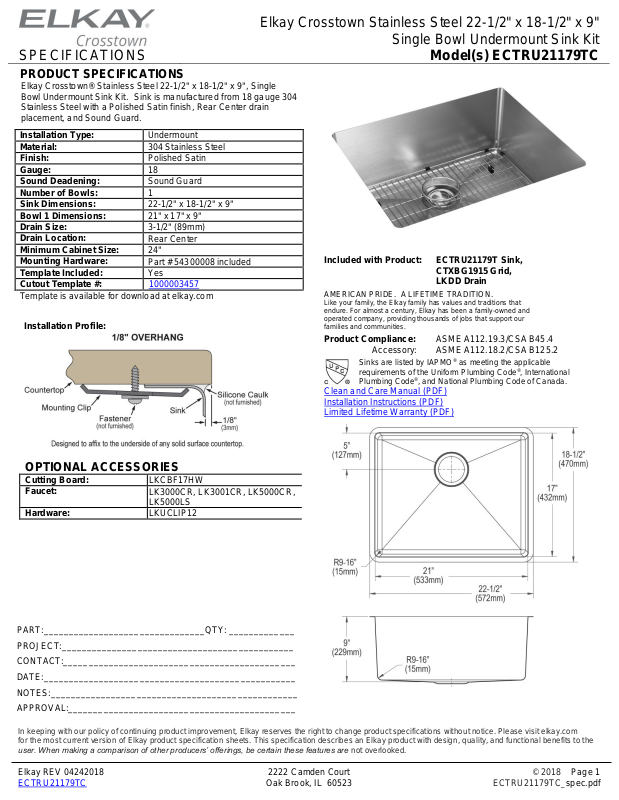

SPECIFICATIONS
Elkay Crosstown Stainless Steel 22-1/2" x 18-1/2" x 9"
Single Bowl Undermount Sink Kit
Model(s) ECTRU21179TC
PRODUCT SPECIFICATIONS
Elkay Crosstown® Stainless Steel 22-1/2" x 18-1/2" x 9", Single
Bowl Undermount Sink Kit. Sink is manufactured from 18 gauge 304
Stainless Steel with a Polished Satin finish, Rear Center drain
placement, and Sound Guard.
Installation Type:
Undermount
Material:
304 Stainless Steel
Finish:
Polished Satin
Gauge:
18
Sound Deadening:
Sound Guard
Number of Bowls:
1
Sink Dimensions:
22-1/2" x 18-1/2" x 9"
Bowl 1 Dimensions:
21" x 17" x 9"
Drain Size:
3-1/2" (89mm)
Drain Location:
Rear Center
Minimum Cabinet Size:
24"
Mounting Hardware:
Part # 54300008 included
Template Included:
Yes
Cutout Template #:
1000003457
Template is available for download at elkay.com
Included with Product:
ECTRU21179T Sink,
CTXBG1915 Grid,
LKDD Drain
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Product Compliance:
ASME A112.19.3/CSA B45.4
Accessory:
ASME A112.18.2/CSA B125.2
Sinks are listed by IAPMO® as meeting the applicable
requirements of the Uniform Plumbing Code®, International
Plumbing Code®, and National Plumbing Code of Canada.
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
OPTIONAL ACCESSORIES
Cutting Board:
LKCBF17HW
Faucet:
LK3000CR, LK3001CR, LK5000CR,
LK5000LS
Hardware:
LKUCLIP12
Installation Profile:
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04242018 2222 Camden Court © 2018 Page 1
ECTRU21179TC Oak Brook, IL 60523 ECTRU21179TC_spec.pdf
