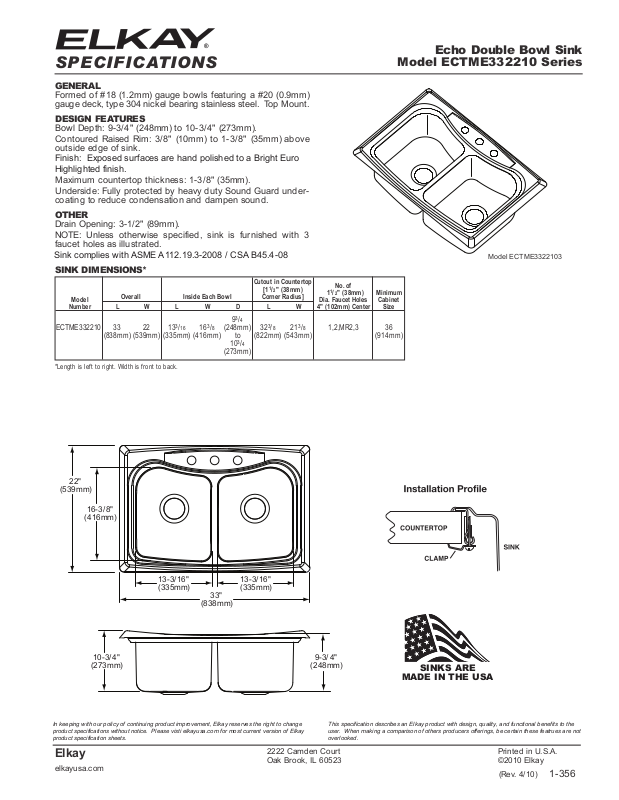

Elkay ECTME332210 User Manual
®
SP EC IFICATIONS
GENERAL
Formed of #18 (1.2mm) gauge bowls featuring a #20 (0.9mm)
gauge deck, type 304 nickel bearing stainless steel. Top Mount.
DESIGN FEATURES
Bowl Depth: 9- 3/4" (248mm) to 10-3/4" (273mm).
Contoured Raised Rim: 3/8" (10mm) to 1-3/8" (35mm) above
outside edge of sink.
Finish: Exposed surfaces are hand polished to a Bright Euro
Highlighted finish.
Maximum countertop thickness: 1-3/8" (35mm).
Underside: Fully protected by heavy duty Sound Guard under-
coating to reduce condensation and dam
OTHER
Drain Opening: 3-1/2" (89mm).
NOTE: Unless otherwise specified, sink is furnished with 3
faucet holes as illustrated.
Sink complies with ASME A112.19.3-2008 / CSA B45.4-08
SINK DIMENSIONS*
Model
Number L W L W D L W 4" (102mm) Center Size
ECTME332210 33 22 133/16 163/8 (248mm) 323/8 213/8 1,2,MR2,3 36
*Lengt h is left to right . Width is front t o back.
Overall Inside Each Bowl Corner Radius]
(838mm ) (539mm) (335mm ) (416mm ) to (822mm) (543mm) (914mm )
pen sound.
Cutout in Countertop
93/4
103/4
(273mm )
[11/2" (38mm)
No. of
1
/2" (38mm) Minimum
1
Dia. Faucet Holes Cabinet
Echo Double Bowl Sink
Model ECTME332210 Series
Model ECTME3322103
22"
(539mm)
16-3/8"
(416mm)
13-3/16"
(335mm)
(838mm)
10-3/4"
(273mm)
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice. Please visti elkayusa.com for most current version of Elkay
product specification sheets.
Elkay
elkayusa.com
13-3/16"
(335mm)
33"
2222 Camden Court
Oak Brook, IL 60523
9-3/4"
(248mm)
SINKS ARE
MADE IN THE USA
This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of others producers offerings, be certain these featrues are not
overlooked.
Printed in U.S.A.
©2010 Elkay
(Rev. 4/10) 1-356
Echo Double Bowl Sink
3
Model ECTME332210 Series
SP EC IFICATIONS
OPTIONAL ACCESSORIES
Model Number Description L W Depth/ Thickness Material
LK99 Drain Fits 31/2" (89mm) Drain Opening Stainless Steel
LKEOBG1314LSS Bottom Grid 117/8 151/16 1 Stainless Steel
for left bow l (302mm ) (384mm) (25mm)
LKEOBG1314RSS Bottom Grid 117/8 151/16 1 Stainless Steel
for right bow l (302mm ) (384mm) (25mm)
LKERB1314LSS Rinsing Basket 117/8 151/16 7 Stainless Steel
for left bow l (302mm ) (384mm) (178mm)
LKERB1314RSS Rinsing Basket 117/8 151/16 7 Stainless Steel
for right bow l (302mm ) (384mm) (178mm)
LKWUCSS Utensil Caddy 151/8 31/2 43/8 Stainless Steel
for rinsing basket (384mm) (89mm) (111mm)
LKCB1317HW Cutting Board 141/8 1711/16 1 Hardwood
reversible design (359mm) (449mm) (25mm)
fits both bow ls
*Lengt h is left to right . Width is front t o back.
LKEOBG1314LSS
*
LKEOBG1314RSS
Overall
LKERB1314LSS
LK99
LKERB1314RSS
LKWUCSS
LKCB1317HW
HOLE DRILLING CONFIGURATIONS
1
4"
(102mm)
2
4"
(102mm)
MR2
4"
(102mm)4"(102mm)
Elkay
1-356 (Rev. 4/10)
2222 Camden Court
Oak Brook, IL 60523
elkayusa.com
Printed in U.S.A.
©2010 Elkay
