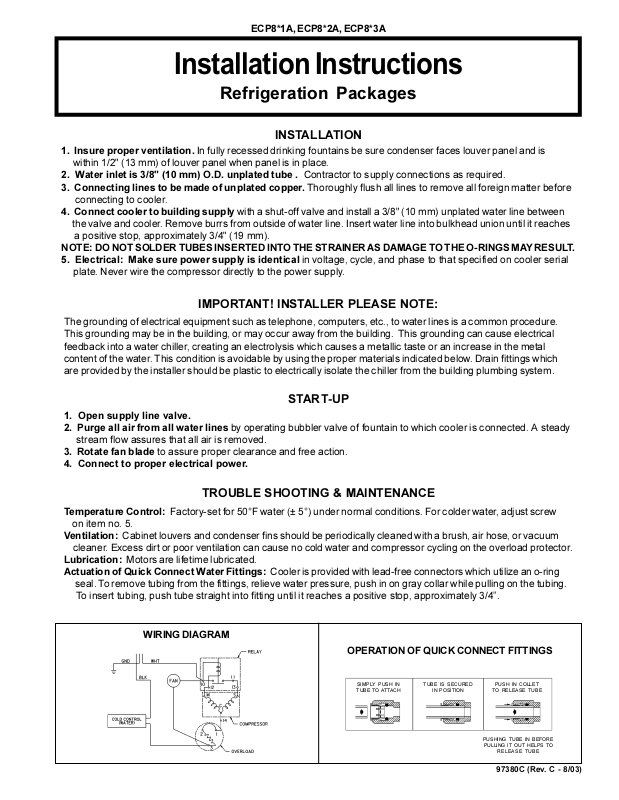

Elkay ECP82A Installation Manual
ECP8*1A, ECP8*2A, ECP8*3A
Installation Instructions
Refrigeration Packages
INSTALLATION
1. Insure proper ventilation. In fully recessed drinking fountains be sure condenser faces louver panel and is
within 1/2" (13 mm) of louver panel when panel is in place.
2. Water inlet is 3/8" (10 mm) O.D. unplated tube . Contractor to supply connections as required.
3. Connecting lines to be made of unplated copper. Thoroughly flush all lines to remove all foreign matter before
connecting to cooler.
4. Connect cooler to building supply with a shut-off valve and install a 3/8" (10 mm) unplated water line between
the valve and cooler. Remove burrs from outside of water line. Insert water line into bulkhead union until it reaches
a positive stop, approximately 3/4" (19 mm).
NOTE: DO NOT SOLDER TUBES INSERTED INTO THE STRAINER AS DAMAGE TO THE O-RINGS MAY RESULT.
5. Electrical: Make sure power supply is identical in voltage, cycle, and phase to that specified on cooler serial
plate. Never wire the compressor directly to the power supply.
IMPORTANT! INSTALLER PLEASE NOTE:
The grounding of electrical equipment such as telephone, computers, etc., to water lines is a common procedure.
This grounding may be in the building, or may occur away from the building. This grounding can cause electrical
feedback into a water chiller, creating an electrolysis which causes a metallic taste or an increase in the metal
content of the water. This condition is avoidable by using the proper materials indicated below. Drain fittings which
are provided by the installer should be plastic to electrically isolate the chiller from the building plumbing system.
START-UP
1. Open supply line valve.
2. Purge all air from all water lines by operating bubbler valve of fountain to which cooler is connected. A steady
stream flow assures that all air is removed.
3. Rotate fan blade to assure proper clearance and free action.
4. Connect to proper electrical power.
TROUBLE SHOOTING & MAINTENANCE
Temperature Control: Factory-set for 50°F water (± 5°) under normal conditions. For colder water, adjust screw
on item no. 5.
Ventilation: Cabinet louvers and condenser fins should be periodically cleaned with a brush, air hose, or vacuum
cleaner. Excess dirt or poor ventilation can cause no cold water and compressor cycling on the overload protector.
Lubrication: Motors are lifetime lubricated.
Actuation of Quick Connect Water Fittings: Cooler is provided with lead-free connectors which utilize an o-ring
seal. To remove tubing from the fittings, relieve water pressure, push in on gray collar while pulling on the tubing.
To insert tubing, push tube straight into fitting until it reaches a positive stop, approximately 3/4.
WIRING DIAGRAM
OPERATION OF QUICK CONNECT FITTINGS
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
97380C (Rev. C - 8/03)
ITEM NO.
1
2
3
4
5
6*
7
8
9
10
11
12
13
14
15
16
17
18
19
PART NO.
66505C
28339C
66531C
55996C
31513C
35947C
31039C
35768C
35935C
19037000
101516143550
100806740570
20282C
31490C
70018C
30664C
66202C
66305C
31504C
1
PARTS LIST
DESCRIPTION
EVAPORATOR ASSY
SHROUD - FAN
HEAT EXCHANGER
STRAINER
COLD CONTROL
COMPRESSOR SERV. PAK
OVERLOAD/RELAY ASSY
COVER RELAY
CAPACITOR - RUN
CLIP - COMP MTG
STUD - COMP MTG
GROMMET - COMP MTG
BRACKET - FAN MTG
FAN MOTOR
NUT
FAN BLADE
DRIER
CONDENSER
POWER CORD
ECP8*1A, ECP8*2A, ECP8*3A
ITEM NO.
6*
14
19
*INCLUDES RELAY & OVERLOAD. IF UNDER WARRANTY
REPLACE WITH SAME COMPRESSOR USED IN ORIGINAL
ASSEMBLY.
NOTE: ALL CORRESPONDENCE PERTAINING TO ANY OF
THE ABOVE WATER COOLERS OR ORDERS FOR REPAIR
PARTS MUST INCLUDE MODEL NO. AND SERIAL NO. OF
COOLER, NAME AND PART NO. OF REPLACEMENT PART.
3
220/240 - 50/60HZ
PART NO.
66236C
3
36085C
35842C
36195C
7
36050C
31430C
31431C
31506C
HEAT EXCHANGER (ECP2/3)
COMP SERV. PAK (ECP-2)
COMP SERV. PAK (ECP-3)
OVERLOAD (ECP-2)
RELAY (ECP2)
FAN MOTOR (ECP-2)
FAN MOTOR (ECP-3)
POWER CORD (ECP2/3)
DESCRIPTION
17
14, 15, 16
18
4
2
5
6
7, 8, 9
ELKAY MANUFACTURING COMPANY 2222 CAMDEN COURT OAK BROOK, IL 60523 630.574.8484
97380C (Rev. C - 8/03)
19
10, 11, 12
13
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620
