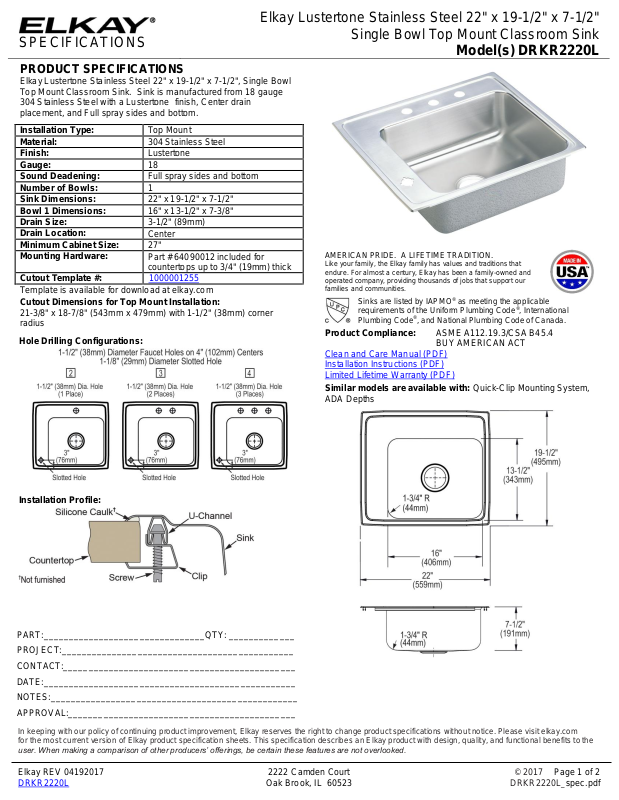

SPECIFICATIONS
Elkay Lustertone Stainless Steel 22" x 19-1/2" x 7-1/2"
Single Bowl Top Mount Classroom Sink
Model(s) DRKR2220L
PRODUCT SPECIFICATIONS
Elkay Lustertone Stainless Steel 22" x 19-1/2" x 7-1/2", Single Bowl
Top Mount Classroom Sink. Sink is manufactured from 18 gauge
304 Stainless Steel with a Lustertone finish, Center drain
placement, and Full spray sides and bottom.
Installation Type:
Top Mount
Material:
304 Stainless Steel
Finish:
Lustertone
Gauge:
18
Sound Deadening:
Full spray sides and bottom
Number of Bowls:
1
Sink Dimensions:
22" x 19-1/2" x 7-1/2"
Bowl 1 Dimensions:
16" x 13-1/2" x 7-3/8"
Drain Size:
3-1/2" (89mm)
Drain Location:
Center
Minimum Cabinet Size:
27"
Mounting Hardware:
Part # 64090012 included for
countertops up to 3/4" (19mm) thick
Cutout Template #:
1000001255
Template is available for download at elkay.com
Cutout Dimensions for Top Mount Installation:
21-3/8" x 18-7/8" (543mm x 479mm) with 1-1/2" (38mm) corner
radius
AMERICAN PRIDE. A LIFETIME TRADITION.
Like your family, the Elkay family has values and traditions that
endure. For almost a century, Elkay has been a family-owned and
operated company, providing thousands of jobs that support our
families and communities.
Sinks are listed by IAPMO® as meeting the applicable
requirements of the Uniform Plumbing Code®, International
Plumbing Code®, and National Plumbing Code of Canada.
Product Compliance:
ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Clean and Care Manual (PDF)
Installation Instructions (PDF)
Limited Lifetime Warranty (PDF)
Similar models are available with: Quick-Clip Mounting System,
ADA Depths
Installation Profile:
Hole Drilling Configurations:
PART:________________________________QTY: _____________
PROJECT:______________________________________________
CONTACT:______________________________________________
DATE:__________________________________________________
NOTES:_________________________________________________
APPROVAL:_____________________________________________
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04192017 2222 Camden Court © 2017 Page 1 of 2
DRKR2220L Oak Brook, IL 60523 DRKR2220L_spec.pdf
SPECIFICATIONS
Elkay Lustertone Stainless Steel 22" x 19-1/2" x 7-1/2"
Single Bowl Top Mount Classroom Sink
Model(s) DRKR2220L
OPTIONAL ACCESSORIES
Hardware:
LK364, LK463
Sinkmate:
LKSMHSL
In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice. Please visit elkay.com
for the most current version of Elkay product specification sheets. This specification describes an Elkay product with design, quality, and functional benefits to the
user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.
Elkay REV 04192017 2222 Camden Court © 2017 Page 2 of 2
DRKR2220L Oak Brook, IL 60523 DRKR2220L_spec.pdf
