Preface
Copyright
This publication, including all photographs, illustrations and software, is protected
under international copyright laws, with all rights reserved. Neither this manual, nor
any of the material contained herein, may be reproduced without written consent of
the author.
Version 1.0
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof
and specifically disclaims any implied warranties of merchantability or fitness for
any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation
of the manufacturer to notify any person of such revision or changes.
Trademark Recognition
Microsoft, Windows and Windows 7/8 are registered trademarks of Microsoft Corp.
MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel
Corporation.
Other product names used in this manual are the properties of their respective owners
and are acknowledged.
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment onto an outlet on a circuit different from that to
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Shielded interconnect cables and a shielded AC power cable must be employed with
this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’s
manufacturer could void the user’s authority to operate the equipment.
TIGD2-I USER MANUAL
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference
that may cause undesired operation.
This device is in conformity with the following EC/EMC directives:
EN 55022
EN 61000-3-2
EN 61000-3-3
EN 55024
EN 60950
CE marking
Limits and methods of mesurement of radio disturbance characteristics of information technology equipment
Disturbances in supply systems caused
Disturbances in supply systems caused by household appliances and similar electrical equipment “ Voltage fluctuations”
Information technology equipment-Immunity characteristicsLimits and methods of measurement
Safety for information technology equipment including electrical business equipment
Canadian Department of Communications
This class B digital apparatus meets all requirements of the Canadian Interferencecausing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Réglement
sur le matériel brouilieur du Canada.
About the Manual
The manual consists of the following:
Chapter 1
Introducing the Motherboard
Describes features of the
motherboard.
H
page 1
Chapter 2
Installing the Motherboard
Chapter 3
Using BIOS
Chapter 4
Trouble Shooting
ii
TIGD2-I USER MANUAL
Describes installation of
motherboard components.
Provides information on using the BIOS Setup Utility.
Provides basic trouble
shooting tips.
H
H
H
page 7
page 25
page 47
TABLE OF CONTENTS
Preface i
Chapter 1 1
Introducing the Motherboard 1
Introduction...........................................................................................1
Specifications......................................................................................2
Motherboard Components................................................................3
I/O Ports...............................................................................................5
Chapter 2 7
Installing the Motherboard 7
Safety Precautions..............................................................................7
Installing the Motherboard in a Chassis.......................................7
Checking Jumper Settings..................................................................8
Installing Hardware...........................................................................11
Installing Memory Modules.....................................................11
Installing Add-on Cards..........................................................12
Connecting Optional Devices.................................................14
Installing a SATA Hard Drive...................................................19
Connecting Case Components........................................................20
Front Panel Header................................................................22
Chapter 3 25
Using BIOS 25
About the Setup Utility......................................................................25
The Standard Configuration........................ ...........................25
Entering the Setup Utility.......................................................25
Resetting the Default CMOS Values.....................................26
Using BIOS..........................................................................................26
BIOS Navigation Keys..............................................................27
Main Menu..........................................................................28
Advanced Menu........................................................................29
Chipset Menu..........................................................................40
Tweak Menu...........................................................................42
Boot Menu.............................................................................43
Security Menu......................................................................44
Exit Menu...............................................................................45
Updating the BIOS......................................................................46
TIGD2-I USER MANUAL
iii
Chapter 4 47
Trouble Shooting 47
Start up problems during assembly..............................................47
Start up problems after prolong use............................................48
Maintenance and care tips..............................................................48
Basic Troubleshooting Flowchart.....................................................49
iv
TIGD2-I USER MANUAL
Chapter 1
Introducing the Motherboard
Introduction
Thank you for choosing the TIGD2-I motherboard of high performance, enhanced
function. This motherboard has Onboard D2550 CPU with a Thin Mini-ITX form factor
of 170 x 170 mm.
®®
®
This motherboard is based on Intel
system memory with single channel DDR3 SO-DIMM 1066/800 MHz. One optional
PCI slot is supported.
It implements an EHCI compliant interface that provides eight USB 2.0 ports (four
USB 2.0 ports at the rear panel and two USB 2.0 headers support additional four USB
2.0 ports).
The motherboard is equipped with a full set of I/O ports in the rear panel, including
PS/2 mouse and keyboard connectors, one DC-IN port, one VGA port, one DVI port,
two RJ45 LAN connectors, four USB 2.0 ports, and audio jacks for microphone and
line-out.
In addition, this motherboard supports two SATA 3.0Gb/s connectors for expansion.
®®
NM10 Express Chipset. It supports up to 4 GB of
Package Contents
Your motherboard package ships with the following items:
TIGD2-I Motherboard
User Manual
I/O Shield
2 SATA 3.0Gb/s Cables
The package contents above are for reference only, please take the actual
package items as standard.
Chapter 1
TIGD2-I USER MANUAL
1
Chapter 1
Specifications
CPU
Memory
Expansion
Slots
Storage
Audio
LAN • Dual LAN 8111E(VL) Gigabit Lan
Rear Panel I/O
Internal I/O
Connectors &
Headers
• Intel® Onboard D2550 CPU
• Intel TDP 10W
• Intel® NM10 ChipsetChipset
• Single channel DDR3 SO-DIMM memory architecture
• 1 x 204-pin DDR3 SO-DIMM sockets support up to 4 GB
• Supports DDR3 1066/800 MHz DDR3 SDRAM
• 1 x PCI slot
• Supported by Intel® NM10 Express Chipset
- 2 x Serial ATA 3.0Gb/s devices
• Realtek ALC662 VD
- 2.1 Channel High Definition Audio Codec
- Compliant with HD audio specification
- 10/100/1000 Fast Ethernet Controller
- Wake-on-LAN and remote wake-up support
• 1 x DC-IN port
• 1 x PS/2 keyboard and PS/2 mouse connectors
• 1 x D-Sub port (VGA)
• 1 x DVI port
• 4 x USB 2.0 ports
• 2 x RJ45 LAN connectors
• 1 x Audio port (1x Line out, 1x Mic_in Rear)
• 1 x 20-pin ATX Power Supply connector
• 1 x 4-pin SYS_FAN connector
• 2 x USB 2.0 header supports additional four USB 2.0 ports
• 2 x Serial SATA 3.0Gb/s connectors
• 6 x COM headers
• 6 x COM setting jumpers
• 1 x LVDS S/D channel & output data format setting jumper
• 1 x LVDS connector
• 1 x Printer header
• 1 x HDD_PWR connector
• 1 x ODD_PWR connector
• 1 x DIO header
• 1 x LVDS Power header
• 1 x LVDS Power select jumper
• 1 x LVDS_12V header
• 1 x LVDS_19V header
• 1 x Front Panel audio header
• 1 x Front Panel switch/LED header
• 1 x CLR_CMOS header
2
TIGD2-I USER MANUAL
System BIOS
Form Factor
• AMI BIOS with 16Mb SPI Flash ROM
- Supports Plug and Play, STR(S3)/STD(S4), Multi-Language
- Supports Hardware Monitor
- Supports ACPI 3.0 version & DMI
- Supports Audio, LAN, can be disabled in BIOS
- Supports Dual-Monitor function
- F7 hot key for boot up devices option
• Thin Mini-ITX Size, 170mm x 170mm
Chapter 1
TIGD2-I USER MANUAL
3
Chapter 1
Motherboard Components
This picture may be different due to Optional Features on speccifications.
4
TIGD2-I USER MANUAL
Table of Motherboard Components
LABEL
COMPONENTS
1. CPU
Onboard D2550 CPU

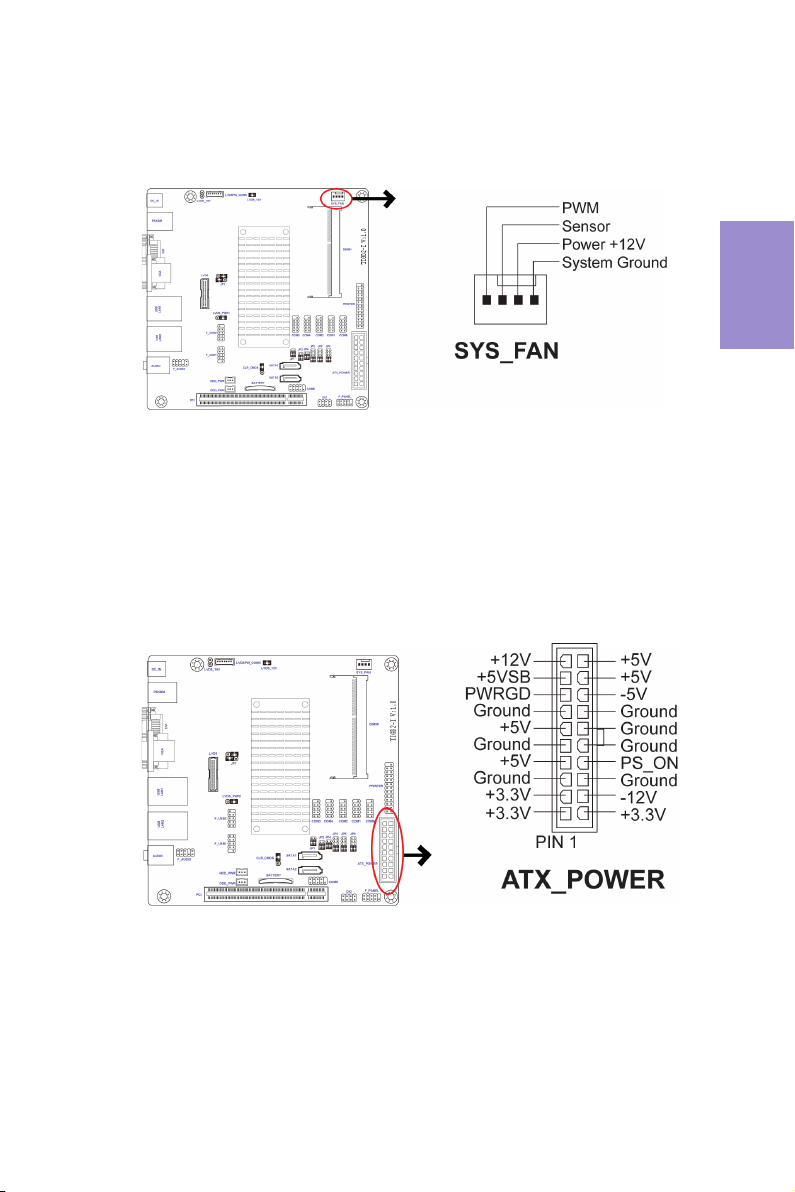

2. SYS_FAN
4-pin system cooling fan connector
3. DIMM1
204-pin DDR3 SDRAM SO-DIMM
4. PRINTER
Printer header
5. COM3/4/2/1/6
Onboard serial port headers
6. ATX_POWER
20-pin ATX power connector
7. JP1/2/4/3/5/6
COM setting jumpers
8. F_PANEL
Front panel switch/LED header
9. DIO
DIO header
10. SATA1~2
Serial ATA 3.0 Gb/s connectors
11. COM5
Onboard serial port header
12. PCI
32-bit add-on card slot
13. ODD_PWR
ODD power connector
14. HDD_PWR
HDD power connector
15. CLR_CMOS
Clear CMOS jumper
16. F_AUDIO
Front panel audio header
17. F_USB1~2
Front panel USB 2.0 headers
18. LVDS_PWR1
LVDS power select jumper
19. LVDS
LVDS header
20. JP7
LVDS S/D channel & output data format setting jumper
21. LVDS_19V
19V LVDS power header
22. LVDSPW_CONN LVDS power connector
23. LVDS_12V
12V LVDS power header
Chapter 1
TIGD2-I USER MANUAL
5
Chapter 1
LAN LED Status Description
Activity LED
Link LED
Link LED
LAN Port
I/O Ports
1. DC_IN Port
Connect the DC_IN port to the power adapter.
2. PS/2 Mouse(green)
Use the upper PS/2 port to connect a PS/2 mouse.
3. PS/2 Keyboard(purple)
Use the lower PS/2 port to connect a PS/2 keyboard.
4. VGA Port
Connect your monitor to the VGA port.
5. DVI Port
You can connect the display device to the DVI port.
6. LAN Ports
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
OFF No da ta
Yellow blinking Active
OFF No link
Green/Orange Link
7. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
8. Line-out(lime)
It is used to connect to speakers or headphones.
9. Microphone(pink)
It is used to connect to a microphone.
6
TIGD2-I USER MANUAL
Chapter 2
Installing the Motherboard
2-1. Safety Precautions
Follow these safety precautions when installing the motherboard:
• Wear a grounding strap attached to a grounded device to avoid damage
from static electricity.
• Discharge static electricity by touching the metal case of a safely grounded
object before working on the motherboard.
• Leave components in the static-proof bags.
• Always remove the AC power by unplugging the power cord from the power
outlet before installing or removing the motherboard or other hardware
components.
2-2. Installing the motherboard in a Chassis
This motherboard carries a Thin Mini-ITX form factor of 170 x 170 mm. Choose a
chassis that accommodates this form factor. Make sure that the I/O template in the
chassis matches the I/O ports installed on the rear edge of the motherboard. Most
system chassis have mounting brackets installed in the chassis, which corresponds
to the holes in the motherboard. Place the motherboard over the mounting brackets and secure the motherboard onto the mounting brackets with screws.
Chapter 2
Do not over-tighten the screws as this can stress the motherboard.
TIGD2-I USER MANUAL
7
2-3. Checking Jumper Settings
No. Components No. Components
1 JP 1/2/4 /3/5/6 4 JP 7
2 CLR_CMOS 5 LVDS_19V
3LVDS_PWR16 LVDS_12V
The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
Chapter 2
1 & 4. JP1/2/4/3/5/6 & JP7: COM Setting Jumpers & LVDS S/D channel and LVDS
output data format setting jumper
8
TIGD2-I USER MANUAL
Default
5V 12V RI 5V 12V DCD
COM1 JP6 (1-3) (3-5) (7-9) (2-4) (4-6)
（
）
COM2 JP5 (1-3) (3-5) (7-9) (2-4) (4-6)
（
）
COM3 JP3 NA NA NA (1-3) (3-5) (7-9)
COM5 JP3 NA NA NA (2-4) (4-6)
（
）
PIN1，9
PIN9 PIN1
（
8-10
）
*
(7-9)
(3-5)(4-6) TTL
(3-5)(4-6) TTL
(3-5)(4-6) RS485
COM3 JP1
COM5 JP4
COM4 JP2
(3-5) Single cha nnel
JP7
JP7
COM setting
OUTPUT
LVDS S/D channel & output data format setting
2. CLR_CMOS: Clear CMOS Jumper
(1-3)(2-4) RS232
(1-3)(2-4) RS232
(1-3)(2-4) RS232
(1-3) D ual channel
(2-4) 18bit
(4-6) 24bit
8-10
8-10
8-10
Chapter 2
To avoid the system instability after clearing CMOS, we recommend users to
enter the main BIOS setting page to “Load Default Settings” and then “Save
and Exit Setup”.
TIGD2-I USER MANUAL
9
3. LVDS_PWR1: LVDS Power Select Jumper
Chapter 2
5&6. LVDS_19V & LVDS_12V: LVDS Power Jumper
10
TIGD2-I USER MANUAL
2-4. Installing Hardware
2-4-1. Installing Memory Modules
• This motherboard accommodates one memory module. It can support
one 204-pin DDR3 SO-DIMM 1066/800.
• Do not remove any memory module from its antistatic packaging until
you are ready to install it on the motherboard. Handle the modules only
by their edges. Do not touch the components or metal parts. Always wear
a grounding strap when you handle the modules.
• You must install one module in SO_DIMM1 slot. Total memory capacity is
4 GB.
• Refer to the following to install the memory modules.
Install the DIMM module into the slot and press it firmly down until it fits
in place. Check that the cutouts on the DIMM module edge connector
match the notches in the DIMM slot.
Chapter 2
* For reference only
TIGD2-I USER MANUAL
11
2-4-2. Installing Add-on Cards
The slots on this motherboard are designed to hold expansion cards and connect
them to the system bus. Expansion slots are a means of adding or enhancing the
motherboard’s features and capabilities. With these efficient facilities, you can
increase the motherboard’s capabilities by adding hardware that performs tasks
Chapter 2
that are not part of the basic system.
PCI Slot
12
This motherboard is equipped with one standard PCI slot. PCI
stands for Peripheral Component Interconnect and is a bus
standard for expansion cards, which for the most part, is a
supplement of the older ISA bus standard. The PCI slot on this
board is PCI v2.3 compliant.
Before installing an add-on card, check the documentation for
the card carefully. If the card is not Plug and Play, you may have
to manually configure the card before installation.
TIGD2-I USER MANUAL
Follow these instructions to install an add-on card:
1 Remove a blanking plate from the system case corresponding to the slot
you are going to use.
2 Install the edge connector of the add-on card into the expansion slot.
Ensure that the edge connector is correctly seated in the slot.
3 Secure the metal bracket of the card to the system case with a screw.
1. For some add-on cards, for example graphics adapters and network adapters, you have to install drivers and software before you can begin using the
add-on card.
2. The onboard PCI interface does not support 64-bit SCSI cards.
Please refer to the following illustrations to install the add-on card:
* For reference only
Chapter 2
Install the VGA Card in the PCI slot
TIGD2-I USER MANUAL
13
No. Components No. Components
1PRINTER5 COM5
2 COM3/4/2/1/6 6 F_AUDIO
3SATA1~27F_USB1~2
4DIO8LVDS
2-4-3. Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:
Chapter 2
1 PRINTER: Printer Header
14
TIGD2-I USER MANUAL
2 & 5. COM2/1/4/3/6 & COM5: Onboard Serial Port Headers
Connect a serial port extension bracket to this header to add a serial port to your
system.
3. SATA1~2: Serial ATA connectors
SATA1~2 connectors are used to support the Serial ATA 3.0Gb/s devices, simpler disk
drive cabling and easier PC assembly. It eliminates limitations of the current Parallel ATA interface. But maintains register compatibility and software compatibility
with Parallel ATA.
Chapter 2
TIGD2-I USER MANUAL
15
4. DIO: DIO Header
Chapter 2
6. F_AUDIO: Front Panel Audio Header
The front panel audio header allows the user to install auxiliary front-oriented microphone and line-out ports for easier access. This header supports HD audio by
default. If you want connect an AC’ 97 front panel audio to HD onboard headers,
please set as below picture.
16
TIGD2-I USER MANUAL
AC’ 97 Audio Configuration: To enable the front panel audio connector to support AC97 Audio mode.
If you use AC
Detect ” . If you use HD Audio Front Panel, please don’ t tick off “Disabled Front Panel
Detect
If you use AC’ 97 Front Panel, please don’ t tick off “ Using Front Jack Detect ”. If you
use HD Audio Front Panel, please tick off the option of “Using Front Jack Detect ”.
’ 97 Front Panel, please tick off the option of “ Disabled Front Panel
” .
* For reference only
Chapter 2
* For reference only
TIGD2-I USER MANUAL
17
7. F_USB1~2: Front Panel USB 2.0 headers
The motherboard has two USB 2.0 headers supporting four USB 2.0 ports. Additionally, some computer cases have USB ports at the front of the case. If you have this
kind of case, use auxiliary USB connector to connect the front-mounted ports to the
motherboard.
Chapter 2
8. LVDS: LVDS Interface
Please make sure that the USB cable has the same pin assignment as indicated above. A different pin assignment may cause damage or system hangup.
18
TIGD2-I USER MANUAL
2-4-4. Installing a Hard Disk Drive/Optical Disk Drive/SATA Hard Drive
This section describes how to install a Hard Disk Drive/Optical Disk Drive/SATA Hard
Drive.
About SATA Connectors
Your motherboard features two SATA connectors supporting a total of two drives.
SATA refers to Serial ATA (Advanced Technology Attachment) is the standard interface
for the IDE hard drives which are currently used in most PCs. These connectors are
well designed and will only fit in one orientation. Locate the SATA connectors on the
motherboard and follow the illustration below to install the SATA hard drives.
Installing a Hard Disk Drive/Optical Disk Drive/Serial ATA Hard Drives
To install the Hard Disk Drive (HDD)/Optical Disk Drive (ODD)/Serial ATA (SATA) hard
drives, use the HDD/ODD/SATA cable that supports the Hard Disk Drive/Optical Disk
Drive/Serial ATA protocol. This HDD/ODD/SATA cable comes with a HDD/ODD/SATA
power cable. You can connect the comb end of the HDD/ODD/SATA cable to the Hard
Disk Drive/Optical Disk Drive and connect the other end to the connectors on the
motherboard.
Refer to the illustration below for proper installation:
1 Attach either cable end to the connector on the motherboard.
2 Attach the other cable end to the SATA hard drive.
3 Attach the SATA power cable to the SATA hard drive and connect the other
end to the power supply.
Chapter 2
* For reference only
TIGD2-I USER MANUAL
19
2-4-5. Connecting Case Components
No. Components No. Components
1LVDSPW_CONN4 F_PANEL
2 SYS_FAN 5 HDD_PWR
3 ATX_POWER 6 ODD_PWR
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
Chapter 2
1. LVDSPW_CONN: LVDS Power Connector
20
TIGD2-I USER MANUAL
2. SYS_FAN : System Cooling FAN Power Connector
Connect the system cooling fan cable to SYS_FAN.
3. ATX_POWER: ATX 20-pin Power Connector
Connect the standard power supply connector to ATX_POWER.
Chapter 2
TIGD2-I USER MANUAL
21
4. Front Panel Header
The front panel header (F_PANEL) provides a standard set of switch and LED headers
commonly found on ATX or Micro ATX cases.
Chapter 2
Hard Drive Activity LED
Connecting pins 1 and 3 to a front panel mounted LED provides visual indication that
data is being read from or written to the hard drive. For the LED to function properly,
an IDE drive should be connected to the onboard IDE interface. The LED will also
show activity for devices connected to the SCSI (hard drive activity LED) connector.
Power/Sleep/Message waiting LED
Connecting pins 2 and 4 to a single or dual-color, front panel mounted LED provides
power on/off, sleep, and message waiting indication.
Reset Switch
Supporting the reset function requires connecting pin 5 and 7 to a momentary-contact switch that is normally open. When the switch is closed, the board resets and
runs POST.
Power Switch
Supporting the power on/off function requires connecting pins 6 and 8 to a momentary-contact switch that is normally open. The switch should maintain contact for at
least 50 ms to signal the power supply to switch on or off. The time requirement is
due to internal de-bounce circuitry. After receiving a power on/off signal, at least
two seconds elapses before the power supply recognizes another on/off signal.
22
TIGD2-I USER MANUAL
5 & 6. HDD_PWR & ODD_PWR: HDD Power & ODD Power Connectors
Connect the HDD power cable to HDD_PWR.
Connect the ODD power cable to ODD_PWR.
This concludes Chapter 2. The next chapter covers the BIOS.
Chapter 2
TIGD2-I USER MANUAL
23
Memo
Chapter 2
24
TIGD2-I USER MANUAL
Chapter 3
Using BIOS
About the Setup Utility
The computer uses the latest “American Megatrends Inc.” BIOS with support for
Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup
instructions for configuring the motherboard BIOS.
The BIOS (Basic Input and Output System) Setup Utility displays the system’s configuration status and provides you with options to set system parameters. The parameters are stored in battery-backed-up CMOS RAM that saves this information
when the power is turned off. When the system is turned back on, the system is
configured with the values you stored in CMOS.
The BIOS Setup Utility enables you to configure:
• Hard drives, diskette drives and peripherals
• Video display type and display options
• Password protection from unauthorized use
• Power Management features
The settings made in the Setup Utility affect how the computer performs. Before
using the Setup Utility, ensure that you understand the Setup Utility options.
This chapter provides explanations for Setup Utility options.
The Standard Configuration
A standard configuration has already been set in the Setup Utility. However, we recommend that you read this chapter in case you need to make any changes in the
future.
This Setup Utility should be used:
• when changing the system configuration
• when a configuration error is detected and you are prompted to make
changes to the Setup Utility
• when trying to resolve IRQ conflicts
• when making changes to the Power Management configuration
• when changing the password or making other changes to the Security
Setup
Chapter 3
Entering the Setup Utility
When you power on the system, BIOS enters the Power-On Self Test (POST) routines.
POST is a series of built-in diagnostics performed by the BIOS. After the POST routines
are completed, the following message appears:
Press DEL or F2 to enter SETUP
TIGD2-I USER MANUAL
25
Press the delete or F2 key to access BIOS Setup Utility.
Main Advanced Chipset Tweak Boot Security Exit
BIOS Information
System Data [ Sat 01/01/2011]
System Time [19:31:14]
CPU Type Intel (R) Atom (TM) CPU
CPU Speed 1865 MHz
CPU Bus Speed 533 MHz
CPU Core Count 2
SATA Drive 0 HL-DT-STDVD-R0 ATAPI
SATA Drive1 ST3160318AS 157GB
Chapter 3
Resetting the Default CMOS Values
When powering on for the first time, the POST screen may show a “CMOS Settings
Wrong” message. This standard message will appear following a clear CMOS data
at factory by the manufacturer. You simply need to Load Default Settings to reset
the default CMOS values.
Note: Changes to system hardware such as different CPU, memories, etc. may
also trigger this message.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Set the Date. Use Tab to
switch between Data elements.
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
26
Using BIOS
When you start the Setup Utility, the main menu appears. The main menu of the
Setup Utility displays a list of the options that are available. A highlight indicates
which option is currently selected. Use the cursor arrow keys to move the highlight
to other options. When an option is highlighted, execute the option by pressing
<Enter>.
Some options lead to pop-up dialog boxes that prompt you to verify that you wish to
execute that option. Other options lead to dialog boxes that prompt you for information.
Some options (marked with a triangle
) lead to submenus that enable you to change
the values for the option. Use the cursor arrow keys to scroll through the items in the
submenu.
TIGD2-I USER MANUAL
In this manual, default values are enclosed in parenthesis. Submenu items are
denoted by a triangle
The default BIOS setting for this motherboard apply for most conditions
with optimum performance. We do not suggest users change the default
values in the BIOS setup and take no responsibility to any damage caused
by changing the BIOS settings.
.
BIOS Navigation Keys
The BIOS navigation keys are listed below:
KEY FUNCTION
ESC Exits the current menu
+/- Change Opt.
Enter Select
F1 General Help
F2 Previous Value
F3 Optimized Defaults
F4 Save & Exit
For the purpose of better product maintenance, the manufacture reserves
the right to change the BIOS items presented in this manual. The BIOS setup
screens shown in this chapter are for reference only and may differ from
the actual BIOS. Please visit the manufacture’s website for updated
manual.
Scrolls through the items on a menu
Chapter 3
TIGD2-I USER MANUAL
27
Main Menu
When you enter the BIOS Setup program, the main menu appears, giving you an
overview of the basic system information. Select an item and press <Enter> to
display the submenu.
Main Advanced Chipset Tweak Boot Security Exit
BIOS Information
System Data [ Sat 01/01/2011]
System Time [19:31:14]
CPU Type Intel (R) Atom (TM) CPU
CPU Speed 1865 MHz
Chapter 3
CPU Bus Speed 533 MHz
CPU Core Count 2
SATA Drive 0 HL-DT-STDVD-R0 ATAPI
SATA Drive1 ST3160318AS 157GB
Date & Time
The Date and Time items show the current date and time on the computer. If you are
running a Windows OS, these items are automatically updated whenever you make
changes to the Windows Date and Time Properties utility.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Set the Date. Use Tab to
switch between Data elements.
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
28
TIGD2-I USER MANUAL
Advanced Menu
The Advanced menu items allow you to change the settings for the CPU and other
system.
Main Advanced Chipset Tweak Boot Security Exit
Legacy OpROM Support
Launch PXE OpROM [Disabled]
Launch Storage OpROM [Enabled]
LAN Configuration
PC Health Status
Power Management Setup
ACPI Settings
CPU Configuration
SATA Configuration
USB Configuration
Super IO Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Launch PXE OpROM
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
Launch PXE OpROM (Disabled)
Use this item to enable or disable the PXE OpROM.
Launch Storage OpROM (Enabled)
Use this item to enable or disable the Storage OpROM.
LAN Configuration
The item in the menu shows the LAN-related information that the BIOS
automatically detects.
Main Advanced Chipset Tweak Boot Security Exit
LAN Configuration
Onboard LAN Controller #2 [Enabled]
Onboard LAN Controller #1 [Enabled]
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Onboard LAN Controller #2
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
Onboard LAN Controller #2/#1 (Enabled)
Use this item to enable or disable the Onboard LAN.
Chapter 3
Press <Esc> to return to the Advanced Menu page.
TIGD2-I USER MANUAL
29
PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.
Main Advanced Chipset Tweak Boot Security Exit
PC Health Status
CPU Temperature : +46°C
System Temperature : +37°C
CPU Vcore : +1.184 V
CPU Over Temperature Warning [75]
Chapter 3
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
CPU Over Temperature Warning
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
c
System Component Characteristics
These items display the monitoring of the overall inboard hardware health
events, such as CPU & system temperature, CPU core voltage... etc.
• CPU Temperature
• System temperature
• CPU Vcore
• CPU Over Temperature Warning
Press <Esc> to return to the Advanced Menu page.
30
TIGD2-I USER MANUAL
Power Management Setup
This page sets up some parameters for system power management operation.
Main Advanced Chipset Tweak Boot Security Exit
Power Management Setup
Resume By RING [Disabled]
Resume By PME [Disabled]
Resume By USB (S3) [Disabled]
Resume By PS2 MS (S3) [Disabled
Resume By PS2 KB (S3) [Disabled]
Resume by Alarm [Disabled]
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
About Resume by Ring
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
Resume By RING (Disabled)
The system can be turned off with a software command. If you enable this item, the
system can automatically resume if there is an incoming call on the Modem. You
must use an ATX power supply in order to use this feature.
Resume By PME (Disabled)
The system can be turned off with a software command. If you enable this item, the
system can automatically resume if there is an incoming call on the PCI Modem or
PCI LAN card. You must use an ATX power supply in order to use this feature. Use this
item to do wake-up action if inserting the PCI card.
Resume By PS2 KB (S3) (Disabled)
This item enables or disables you to allow keyboard activity to awaken the system
from power saving mode.
Resume By USB (S3) (Disabled)
This item allows you to enable/disable the USB device wakeup function from S3
mode.
Resume by Alarm (Disabled)
This item allows users to enable or disable the alarm to wake up the system. If set
to Enabled, users can specify the specific day of month and the exact time to power
up the system.
Press <Esc> to return to the Advanced Menu page.
Chapter 3
TIGD2-I USER MANUAL
31
ACPI Setting
The item in the menu shows the highest ACPI sleep state when the system enters
suspend.
Main Advanced Chipset Tweak Boot Security Exit
ACPI Settings
ACPI Sleep State [S3 (Suspend to RAM)]
Chapter 3
ACPI Sleep State (S3(Suspend to RAM))
This item allows user to enter the ACPI S3 (Suspend to RAM) Sleep State (default).
Press <Esc> to return to the Advanced Menu page.
CPU Configuration
Scroll to this item and press <Enter> to view the following screen:
Main Advanced Chipset Tweak Boot Security Exit
CPU Configuration
Intel(R) Atom(TM) CPU D2550 @ 1.86GHz
EM64T Supported
Processor Speed 1865 MHz
Processor Stepping 30661
Microcode Revision 269
Hyper-Threading Supported
Hyper-Threading [Enabled]
Execute Disable Bit [Enabled]
Limit CPUID Maximum [Disabled]
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Select the highest ACPI sleep
state the system will enter
when the SUSPEND button is
pressed.
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Enabled for Windows XP and
Linux (OS optimized for
Hyper-Threading Technology)
and Disabled for other OS (OS
not optimized for
Hyper-Threading Technology).
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
32
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
TIGD2-I USER MANUAL
D
Intel(R) Atom(TM) CPU D2550 @ 1.86GHz
This is display-only field and displays the information of the CPU installed in your
computer.
EM64T (Supported)
This item shows the computer supports EMT64.
Processor Speed (1865MHz)
This item shows the current processor speed.
Processor Stepping (30661)
This item shows the processor stepping version.
Microcode Revision (269)
This item shows the Microcode version.
Hyper-Threading Technology (Supported)
This item shows that your computer supports Intel HT technology or not.
Hyper-Threading (Enabled)
This item is only available when the chipset supports Hyper-Threading and you
are using a Hyper-Threading CPU.
Execute Disable Bit (Enabled)
This item allows the processor to classify areas in memory by where application
code can execute and where it cannot. When a malicious worm attempts to insert
code in the buffer, the processor disables code execution, preventing damage or
worm propagation. Replacing older computers with Execute Disable Bit enabled
systems can halt worm attacks, reducing the need for virus related repair.
Limit CPUID Maximum (Disabled)
Use this item to enable or disable the maximum CPUID value limit.
Chapter 3
Press <Esc> to return to the Advanced Menu page.
TIGD2-I USER MANUAL
33
SATA Configuration
Use this item to show the mode of serial SATA configuration options.
Main Advanced Chipset Tweak Boot Security Exit
SATA Mode [IDE Mode]
Serial-ATA Controller [Enhanced]
SATA Port1 HL-DT-STDVD-RO ATAPI
SATA Port2 ST3160318AS 157GB
Chapter 3
SATA Mode (IDE Mode)
Use this item to select SATA mode.
Serial-ATA Controller (Enhanced)
Use this item to select SATA mode.
SATA Port 1/2 (HL-DT-STDVD-RO ATAPI / ST3160318AS 157GB)
This motherboard supports two SATA channels and each channel allows one SATA
device to be installed. Use these items to configure each device on the SATA channel.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Select a configuration for
SATA Controller.
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
34
Press <Esc> to return to the Advanced Menu page.
TIGD2-I USER MANUAL
USB Configuration
Scroll to this item and press <Enter> to view the following screen:
Main Advanced Chipset Tweak Boot Security Exit
USB Configuration
All USB Devices [Enabled]
EHC I Contr oller [Enabled]
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Enable / Disable USB Function.
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
All USB Devices (Enabled)
Use this item to enable or disable all USB devices.
EHCI Controller (Enabled)
Use this item to enable or disable support for legacy USB devices. Setting to Audio
allows the system to detect the presence of the USB device at startup. If detected,
the USB controller legacy mode is enabled. If no USB device is detected, the legacy
USB support is disabled.
Press <Esc> to return to the Advanced Menu page.
Chapter 3
TIGD2-I USER MANUAL
35
Super IO Configuration
Use this item to show the information of the Super IO Configuration. Please do
not change IRQ or I/O port at random.
Main
Super IO Configuration
Serial Port 1 Configuration
Serial Port 2 Configuration
Serial Port 3 Configuration
Serial Port 4 Configuration
Serial Port 5 Configuration
Serial Port 6 Configuration
Parallel Port Configuration
Chapter 3
Serial Port 1 Configuration
Scroll to this item and press <Enter> to view the following screen:
Main Advanced Chipset Tweak Boot Security Exit
Serial Port 1 Configuration
Serial Port [Enabled]
Device Settings IO=3F8h; IRQ=4;
Change Settings [Auto]
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced Chipset Tweak Boot Security Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Set Parameters of Serial Port
1 (COMA)
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Enable or Disable Serial Port
(COM)
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
36
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
Serial Port (Enabled)
This item allows you to enable or disable serial port.
Device Settings (IO=3F8h; IRQ=4)
This item shows the information of the device settings.
Change Settings (Auto)
Use this item to change device settings.
Press <Esc> to return to the Super IO Configuration page.
TIGD2-I USER MANUAL
Serial Port 2 Configuration
Scroll to this item and press <Enter> to view the following screen:
Main Advanced Chipset Tweak Boot Security Exit
Serial Port 2 Configuration
Serial Port [Enabled]
Device Settings IO=2F8h; IRQ=3;
Change Settings [Auto]
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Enable or Disable Serial Port
(COM)
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
Serial Port (Enabled)
This item allows you to enable or disable serial port.
Device Settings (IO=2F8h; IRQ=3)
This item shows the information of the device settings.
Change Settings (Auto)
Use this item to change device settings.
Press <Esc> to return to the Super IO Configuration page.
Chapter 3
Serial Port 3 Configuration
Scroll to this item and press <Enter> to view the following screen:
Main Advanced Chipset Tweak Boot Security Exit
Serial Port 3 Configuration
Serial Port [Enabled]
Device Settings IO=3E8h; IRQ=7;
Change Settings [Auto]
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Enable or Disable Serial Port
(COM)
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
TIGD2-I USER MANUAL
37
Serial Port (Enabled)
This item allows you to enable or disable serial port.
Device Settings (IO=3E8h; IRQ=7)
This item shows the information of the device settings.
Change Settings (Auto)
Use this item to change device settings.
Press <Esc> to return to the Super IO Configuration page.
Serial Port 4 Configuration
Chapter 3
Scroll to this item and press <Enter> to view the following screen:
Main Advanced Chipset Tweak Boot Security Exit
Serial Port 4 Configuration
Serial Port [Enabled]
Device Settings IO=2E8h; IRQ=7;
Change Settings [Auto]
Serial Port 4 RS-485 [Disable]
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Enable or Disable Serial Port
(COM)
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
38
Serial Port (Enabled)
This item allows you to enable or disable serial port.
Device Settings (IO=2E8h; IRQ=7)
This item shows the information of the device settings.
Change Settings (Auto)
Use this item to change device settings.
Serial Port 4 RS-485 (Disable)
Use this item to enable or disable the serial port 4 RS-485.
Press <Esc> to return to the Super IO Configuration page.
TIGD2-I USER MANUAL
Serial Port 5 Configuration
Scroll to this item and press <Enter> to view the following screen:
Main Advanced Chipset Tweak Boot Security Exit
Serial Port 5 Configuration
Serial Port [Enabled]
Device Settings IO=2F0h; IRQ=7;
Change Settings [Auto]
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Enable or Disable Serial Port
(COM)
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
Serial Port (Enabled)
This item allows you to enable or disable serial port.
Device Settings (IO=2F0h; IRQ=7)
This item shows the information of the device settings.
Change Settings (Auto)
Use this item to change device settings.
Press <Esc> to return to the Super IO Configuration page.
Chapter 3
Serial Port 6 Configuration
Scroll to this item and press <Enter> to view the following screen:
Main Advanced Chipset Tweak Boot Security Exit
Serial Port 6 Configuration
Serial Port [Enabled]
Device Settings IO=2E0h; IRQ=7;
Change Settings [Auto]
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Enable or Disable Serial Port
(COM)
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
Serial Port (Enabled)
This item allows you to enable or disable serial port.
TIGD2-I USER MANUAL
39
Chipset Menu
The chipset menu items allow you to change the settings for the North Bridge
chipset, South Bridge chipset and other system.
Main Advanced Chipset Tweak Boot Security Exit
North Bridge
South Bridge
Chapter 3
North Bridge
Scroll to this item and press <Enter> and view the following screen:
Main
Fixed Graphics Memory Size [128M]
DVMT Mode [DVMT]
DVMT Fixed Memory Size [256M]
IGFX - Boot Type [CRT + LVDS]
LCD Panel Type [1024x768 LVDS]
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced Chipset Tweak Boot Security Exit
North Bridge Parameters
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Configure Fixed Graphics
Memory Size
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
40
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
Fixed Graphics Memory Size (128M)
BIOS must assign a block of memory range to integrated Graphics. This item is used
to select the size of this memory block.
DVMT Mode (DVMT)
DVMT is Dynamic Video Memory Technology. This item allows you to select video
mode.
DVMT Fixed Memory Size (256M)
If support DVMT(Dynamic Video Memory Technology) feature, the system need to
assign a block of memory range. This item is used to select the assigned memory
size.
IGFX- Boot Type (CRT + LVDS)
This item allows you to select which type of display device to be used before loading
VGA driver.
TIGD2-I USER MANUAL
LCD Panel Type (1024x768 LVDS)
This item enables you to select which resolution to be used for LVDS panel.
Press <Esc> to return to the chipset menu page.
South Bridge
Scroll to this item and press <Enter> to view the following screen:
Main Advanced Chipset Tweak Boot Security Exit
HD Audio Controller [Enabled]
Restore AC Power Loss [Power Off]
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
HD Audio Controller
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
HD Audio Controller (Enabled)
This item enables or disables Azalia HD audio.
Restore AC Power Loss (Power Off)
This item enables your computer to automatically restart or return to its operating
status.
Chapter 3
Press <Esc> to return to the chipset menu page.
TIGD2-I USER MANUAL
41
Tweak Menu
This page enables you to set the clock speed and system bus for your system. The
clock speed and system bus are determined by the kind of processor you have
installed in your system.
Main Advanced Chipset Tweak Boot Security Exit
Auto Detect DIMM/PCI Clk [Enabled]
Spread Spectrum [Enabled]
Total Memory 4 GB
Memory Frequency 1066 MHz
Chapter 3
Auto Detect DIMM/PCI Clk (Enabled)
When this item is enabled, BIOS will disable the clock signal of free DIMM/PCI slots.
Spread Spectrum (Enabled)
If you enable spread spectrum, it can significantly reduce the EMI (Electro-Magnetic
Interference) generated by the system.
Total Memory (4 GB)
This item shows the total memory of DDR3.
Memory Frequency (1066 MHz)
This item shows the memory frequency.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Enable/Disable DIMM/PCI Clock
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
42
TIGD2-I USER MANUAL
Boot Menu
This page enables you to set the keyboard NumLock state.
Main Advanced Chipset Tweak Boot Security Exit
Boot Configuration
Bootup NumLock State [On]
Quiet Boot [Disabled]
Set Boot Priority
1st Boot [Hard Disk: ST31603...]
2nd Boot [CD/DVD: HL-DT-STDV...]
3rd Boot [USB/IDE Floppy]
4th Boot [USB CD/DVD]
5th Boot [USB Hard Disk]
6th Boot [USB Flash]
7th Boot [Network]
8th Boot [UEFI]
Hard Disk Drive Priorities [Press Enter]
CD/DVD ROM Drive Priorities [Press Enter]
USB/IDE Floppy Drive Priorities [Press Enter]
USB CD/DVD ROM Drive Priorities [Press Enter]
USB HardDisk Drive Priorities [Press Enter]
USB Flash Drive Priorities [Press Enter]
Network Device Priorities [Press Enter]
UEFI Boot Drive Priorities [Press Enter]
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Select the keyboard NumLock
state
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
Boot Configuration
This item shows the information of the boot configuration.
Bootup NumLock State (On)
This item determines if the NumLock key is active or inactive at system start-up
time.
Quiet Boot (Disabled)
If enabled, BIOS will show a full screen logo at boot, if disabled, BIOS will set the
initial display mode to BIOS and show the diagnostic POST screen at boot.
Set Boot Priority
This item enables you to select boot priority for all boot devices.
1st/2nd/3rd/4th/5th/6th/7th/8th Boot
These items show the boot priorities.
Hard Disk Drive / CD/DVD ROM Drive / USB/IDE Floppy Drive / USB CD/DVD ROM Drive
/ USB HardDisk Drive / USB Flash Drive / Network Device / UEFI Boot Drive Priorities
These items enable you to specify the sequence of loading the operating system.
Press <Enter> to see the submenu.
Chapter 3
TIGD2-I USER MANUAL
43
Security Menu
This page enables you to set setup administrator and password.
Main
Administrator Password
Chapter 3
Administrator Password
This item allows you to set up the administrator password.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced Chipset Tweak Boot Security Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
Set Administrator Password
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
44
TIGD2-I USER MANUAL
Exit Menu
This page enables you to exit system setup after saving or without saving the
changes.
Main Advanced Chipset Tweak Boot Security Exit
Save Changes and Exit
Discard Changes and Exit
Save Changes and Reset
Discard Changes and Reset
Save Options
Save Changes
Discard Changes
Restore Defaults
Save as User Defaults
Restore User Defaults
Boot Override
SATA PM: HL-DT-STDVD-ROM DH10
SATA SM: ST3160318AS
Save Changes and Exit
This item enables you to save the changes that you have made and exit.
Discard Changes and Exit
This item enables you to discard any changes that you have made and exit.
Save Changes and Reset
This item enables you to save the changes that you have made and reset.
Discard Changes and Reset
This item enables you to discard any changes that you have made and reset.
Save Options
This item enables you to save the options that you have made.
Save Changes
This item enables you to save the changes that you have made.
Discard Changes
This item enables you to discard any changes that you have made.
Restore Defaults
This item enables you to restore the system defaults.
Save as User Defaults
This item enables you to save the changes that you have made as user defaults.
Restore User Defaults
This item enables you to restore user defaults.
Boot Override
Use this item to select the boot device.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Exit system setup after saving
the changes.
:Select Screen
:Select Item
Enter : Select
+/- : Change Opt.
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.14.1219. Copyright (C) 2011, American Megatrends, Inc.
Chapter 3
TIGD2-I USER MANUAL
45
Updating the BIOS
You can download and install updated BIOS for this motherboard from the
manufacturer’s Web site. New BIOS provides support for new peripherals, improvements in performance, or fixes for known bugs. Install new BIOS as follows:
Chapter 3
This concludes Chapter 3. Refer to the next chapter for information on the software
supplied with the motherboard.
1 If your motherboard has a BIOS protection jumper, change the setting to
allow BIOS flashing.
2 If your motherboard has an item called Firmware Write Protect in Ad-
vanced BIOS features, disable it. (Firmware Write Protect prevents BIOS
from being overwritten.)
3 Prepare a bootable device or create a bootable system disk. (Refer to
Windows online help for information on creating a bootable system disk.)
4 Download the Flash Utility and new BIOS file from the manufacturer’s
Web site. Copy these files to the bootable device.
5 Turn off your computer and insert the bootable device in your computer.
(You might need to run the Setup Utility and change the boot priority items
on the Advanced BIOS Features Setup page, to force your computer to
boot from the bootable device first.)
6 At the C:\ or A:\ prompt, type the Flash Utility program name and the file
name of the new BIOS and then press <Enter>. Example: AFUDOS.EXE
040706.ROM
7 When the installation is complete, remove the bootable device from the
computer and restart your computer. If your motherboard has a Flash
BIOS jumper, reset the jumper to protect the newly installed BIOS from
being overwritten. The computer will restart automatically.
46
TIGD2-I USER MANUAL
Chapter 4
Trouble Shooting
Start up problems during assembly
After assembling the PC for the first time you may experience some start up
problems. Before calling for technical support or returning for warranty, this
chapter may help to address some of the common questions using some basic
troubleshooting tips. You may also log onto our website for more information.
a) System does not power up and the fans are not running.
1. Disassemble the PC to remove the VGA adaptor card, DDR memory, LAN, USB and
other peripherals including keyboard and mouse. Leave only the motherboard,
CPU with CPU cooler and power supply connected. Make sure the power cord is
plugged into the wall socket & the switch on the Power Supply Unit (PSU) is turned
“ on “ as well. Turn on again to see if the CPU and power supply fans are running.
2. Make sure to remove any unused screws or other metal objects such as
screwdrivers from the inside PC case. This is to prevent damage from short circuit.
3. Check the CPU FAN connector is connected to the motherboard.
4. Check the 12V power connector is connected to the motherboard.
5. Check that the 12V power & ATX connectors are fully inserted into the
motherboard connectors. Make sure the latches of the cable and connector are
locked into place.
b) Power is on, fans are running but there is no display
1. Make sure the monitor is turned on and the monitor cable is properly connected
to the PC.
Chapter 4
2. Check the VGA adapter card (if applicable) is inserted properly.
3. Listen for beep sounds. If you are using internal PC speaker make sure it is
connected.
a. continuous 3 short beeps: memory not detected
b. 1 long beep and 8 short beeps: VGA not detected
c) The PC suddenly shuts down while booting up.
1. The CPU may experience overheating so it will shutdown to protect itself. Apply
the thermal grease onto the CPU heatsink & ensure the CPU fan is well-connected
with the CPU heatsink. Check if the CPU fan is working properly while the system
is running.
TIGD2-I USER MANUAL
47
2. From the BIOS setting, try to disable the Smartfan function to let the fan run at
default speed. Doing a Load Optimised Default will also disable the Smartfan.
Start up problems after prolong use
After a prolong period of use your PC may experience start up problems again. This
may be caused by breakdown of devices connected to the motherboard such as
HDD, CPU fan, etc. The following tips may help to revive the PC or identify the cause
of failure.
1. Clear the CMOS values using the CLR_CMOS jumper. Refer to CLR_CMOS jumper
in Chapter 2 for Checking Jumper Settings in this user manual. When completed,
follow up with a Load Optimised Default in the BIOS setup.
2. Check the CPU cooler fan for dust. Long term accumulation of dust will reduce its
effectiveness to cool the processor. Clean the cooler or replace a new one if
necessary.
3. Check that the 12V power & ATX connectors are fully inserted into the
motherboard connectors. Make sure the latches of the cable and connector are
locked into place.
Chapter 4
4. Remove the hard drive, optical drive or DDR memory to determine which of
these components may be at fault.
5. Check whether there is any bulked up electrolytic capacitor or abnormal
component.
Maintenance and care tips
Your computer, like any electrical appliance, requires proper care and
maintenance. Here are some basic PC care tips to help prolong the life of the
motherboard and keep it running as best as it can.
48
1. Keep your computer in a well ventilated area. Leave some space between the
PC and the wall for sufficient airflow.
2. Keep your computer in a cool dry place. Avoid dusty areas, direct sunlight and
areas of high moisture content.
3. Routinely clean the CPU cooler fan to remove dust and hair.
4. In places of hot and humid weather you should turn on your computer once
every other week to circulate the air and prevent damage from humidity.
5. Add more memory to your computer if possible. This not only speeds up the
system but also reduces the loading of your hard drive to prolong its life span.
6. If possible, ensure the power cord has an earth ground pin directly from the
wall outlet. This will reduce voltage fluctuation that may damage sensitive devices.
TIGD2-I USER MANUAL
tekcos llaw ot tcennoc ro
hctiws USP no nruT
.tratser dna
No
M SOC RLC tratser dna
?no denrut si hctiws USP dna
deulp si droc rewop CA gg
Basic Troubleshooting Flowchart
AMR tcatnoc >- melborp draob fI
?draob ro USP htiw melborP
seY
melborp draoB
AMR tcatnoc >-
.gn
es SOIB yfidom re
ts ot liaf metsyS elbatsnu ro tra
No
a
kcehc dna SOMC RLC
rewop V21 UPC fi
detcennoc si
CP eht tratseR
No
dnuos peeB ynA
seY
:speeb trohs 3 fI -
rotinom fi kcehC
yalpsid sah
seY
:speeb trohs 8 dna peeb gnol 1 fI -
ylreporp ton yromem MMID
eruliaf yromem ro detresni
detceted ton AGV
eussi ecived larehpireP
,rorre putes SOMC-
.melborp DDH-
No
desserp si no
.trats ot sliaf CP tub
uB rewoP
ylppuS rewoP fi kcehC
gnikrow si )USP(
tinU
No
h rotinom fi kcehC sa
seY
yalp
sid
No
neercs TSOP ta tlaH
seY
AMR tcatnoc ,liaf fI
seY
OMC RL dna SC tser .tra
d .SOMCRLC ot een
49
Memo
Chapter 4
50
TIGD2-I USER MANUAL
Loading...
