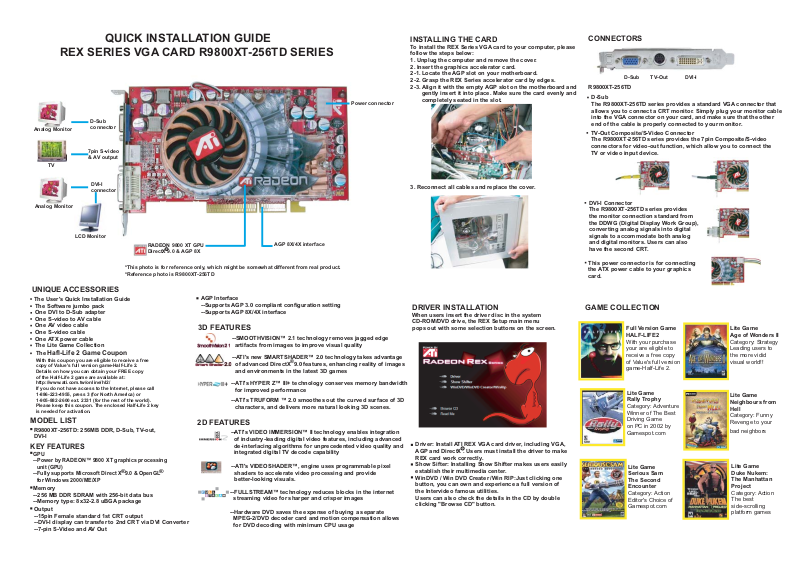

QUICK INSTALLATION GUIDE
REX SERIES VGA CARD R9800XT-256TD SERIES

D-Sub

Analog Monitor

TV

connector

7pin S-video
& AV output

Power connector

INSTALLING THE CARD

To install the REX Series VGA card to your computer, please
follow the steps below:

1. Unplug the computer and remove the cover.

2. Insert the graphics accelerator card.
2-1. Locate the AGP slot on your motherboard.
2-2. Grasp the REX Series accelerator card by edges.
2-3. Align it with the empty AGP slot on the motherboard and
gently insert it into place. Make sure the card evenly and
completely seated in the slot.

CONNECTORS

D-Sub

TV-Out

R9800XT-256TD

D-Sub
The R9800XT-256TD series provides a standard VGA connector that
allows you to connect a CRT monitor. Simply plug your monitor cable
into the VGA connector on your card, and make sure that the other
end of the cable is properly connected to your monitor.

TV-Out Composite/S-Video Connector
The R9800XT-256TD series provides the 7pin Composite/S-video
connectors for video-out function, which allow you to connect the
TV or video input device.

DVI-I

DVI-I
connector

Analog Monitor

LCD Monitor

RADEON 9800 XT GPU
DirectX 9.0 & AGP 8X

*This photo is for reference only, which might be somewhat different from real product.
*Reference photo is R9800XT-256TD

UNIQUE ACCESSORIES
The User's Quick Installation Guide

The Software jumbo pack
One DVI to D-Sub adapter
One S-video to AV cable
One AV video cable
One S-video cable
One ATX power cable
The Lite Game Collection

The Hafl-Life 2 Game Coupon

With this coupon you are eligible to receive a free
copy of Value's full version game-Half-Life 2.
Details on how you can obtain your FREE copy
of the Half-Life 2 game are available at :
http://www.ati.com.tw/online/hl2/
If you do not have access to the Internet, please call
1-886-223-4955, press 3 (for North America) or
1-905-882-2600 ext. 2331 (for the rest of the world).
Please keep this coupon. The enclosed Half-Life 2 key
is needed for activation.

MODEL LIST

R9800XT-256TD: 256MB DDR, D-Sub, TV-out,

DVI-I

KEY FEATURES

GPU

--Power by RADEON™ 9800 XT graphics processing
unit (GPU)

--Fully supports Microsoft Direct X 9.0 & OpenGL
for Windows 2000/ME/XP

Memory

--256 MB DDR SDRAM with 256-bit data bus

--Memory type: 8x32-2.8 uBGA package
Output

--15pin Female standard 1st CRT output

--DVI-I display can transfer to 2nd CRT via DVI Converter

--7-pin S-Video and AV Out

®

®

AGP 8X/4X interface

AGP Interface

--Supports AGP 3.0 compliant configuration setting

--Supports AGP 8X/4X interface

3D FEATURES

--SMOOTHVISION™ 2.1 technology removes jagged edge
artifacts from images to improve visual quality

--ATI's new SMARTSHADER™ 2.0 technology takes advantage
of advanced DirectX 9.0 features, enhancing reality of images
and environments in the latest 3D games

--ATI's HYPER Z™ III+ technology conserves memory bandwidth
for improved performance

--ATI's TRUFORM ™ 2.0 smoothes out the curved surface of 3D
characters, and delivers more natural looking 3D scenes.

®

2D FEATURES

--ATI's VIDEO IMMERSION™ II technology enables integration
of industry-leading digital video features, including advanced
de-interlacing algorithms for unprecedented video quality and
integrated digital TV decode capability

--ATI's VIDEOSHADER™, engine uses programmable pixel
shaders to accelerate video processing and provide
better-looking visuals.

--FULLSTREAM™ technology reduces blocks in the internet
streaming video for sharper and crisper images

--Hardware DVD saves the expense of buying a separate
MPEG-2/DVD decoder card and motion compensation allows
for DVD decoding with minimum CPU usage

3. Reconnect all cables and replace the cover.

DRIVER INSTALLATION

When users insert the driver disc in the system
CD-ROM/DVD drive, the REX Setup main menu
pops out with some selection buttons on the screen.

Driver: Install ATI REX VGA card driver, including VGA,
AGP and DirectX . Users must install the driver to make
REX card work correctly.
Show Sifter: Installing Show Shifter makes users easily
establish their multimedia center.
WinDVD / Win DVD Creater /Win RIP:Just clicking one
button, you can own and experience a full version of
the Intervideo famous utilities.
Users can also check the details in the CD by double
clicking "Browse CD" button.

DVI-I Connector
The R9800XT-256TD series provides
the monitor connection standard from
the DDWG (Digital Display Work Group),
converting analog signals into digital
signals to accommodate both analog
and digital monitors. Users can also
have the second CRT.

This power connector is for connecting
the ATX power cable to your graphics
card.

GAME COLLECTION

Full Version Game
HALF-LIFE2

With your purchase
your are eligible to
receive a free copy
of Value's full version
game-Half-Life 2.

Lite Game
Rally Trophy

Category: Adventure
Winner of The Best
Driving Game
on PC in 2002 by
Gamespot.com

Lite Game
Serious Sam
The Second
Encounter

Category: Action
Editor's Choice of
Gamespot.com

Lite Game
Age of Wonders II

Category: Strategy
Leading users to
the more vidid
visual world!!

Lite Game
Neighbours from
Hell

Category: Funny
Revenge to your

bad neighbors

Lite Game
Duke Nukem:
The Manhattan
Project

Category: Action
The best
side-scrolling
platform games
