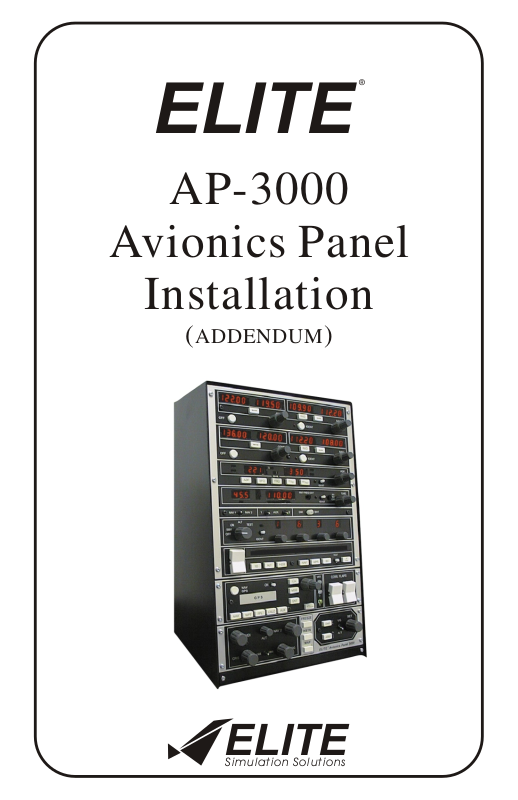

ELITE
AP-3000
Avionics Panel
Installation
(ADDENDUM)
ELITE
Simulation Solutions
ongratulations on your purchase of the AP-3000 Avionics
C
Panel. This guide is an addendum to the ELITE Hardware
Installation Manual and will provide the necessary information
for proper setup of the AP-3000.
IMPORTANT
The AP-3000 comes with its own special Power Supply. Using a
different power supply will cause unpredictable results and may
damage the AP-3000.
! The AP-3000 Power Supply should only be used to power
the AP-3000 by itself. Do NOT use AP-3000 Power Supply
to power other components.
! Connect AP-3000 as shown in the diagrams on the opposite
page or in the ELITE Hardware Installation Manual.
! Refer to the ELITE Hardware Installation Manual for
information on connecting other system components as
applicable.
NOTE:
The AP-3000 is designed to be similar in operation and function
to common avionics stacks found in actual aircraft. With few
exceptions, its use should be intuitive and integrate easily with
any system. A few functions unique to the AP-3000 are the
AUX 1 & AUX 2 toggle switches (pictured below). AUX 1 is an
ON/OFF style switch that controls the display of the on-screen
Moving Map. AUX 2 is used for DME selection in the King Air.
AUX 1 & 2 toggle switches
Connecting the AP-3000
AP-3000
(back view)
Avionics
9 pin - 9 pin cable
(
Flight Console
(back view)
Power
AP-3000
(back view)
Avionics
9 pin - 9 pin cable
(
)
)
IOIOIO
Serial
Por t
flight console
25 pin - 9 pin cable
(
UCI
IOIOIO
Serial
Por t
Avionics
Systems with a
Flight Console
)
Rudder
NOTE
External power connections
not shown.
Separate Quadrant
Systems with
Throttle
Quadrant
(back view)
Extended
Standard
quadrant
25 pin - 25 pin cable
(
)
www.flyelite.com
ELITE Simulation Solutions
672 N Semoran Blvd., Ste. 104
Orlando, FL 32807
Phone: (407) 277-7700 FAX: (407) 277-7623
!
