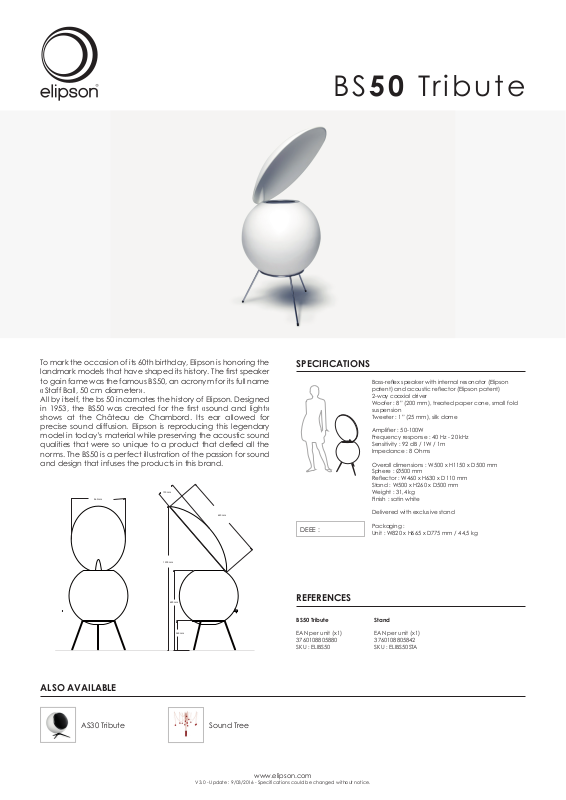

BS50 Tribute
To mark the occasion of its 60th birthday, Elipson is honoring the
landmark models that have shaped its history. The rst speaker
to gain fame was the famous BS50, an acronym for its full name
« Staff Ball, 50 cm diameter ».
All by itself, the bs 50 incarnates the history of Elipson. Designed
in 1953, the BS50 was created for the rst « sound and light »
shows at the Château de Chambord. Its ear allowed for
precise sound diffusion. Elipson is reproducing this legendary
model in today’s material while preserving the acoustic sound
qualities that were so unique to a product that deed all the
norms. The BS50 is a perfect illustration of the passion for sound
and design that infuses the products in this brand.
465 mm
130 mm
650 mm
1200 mm
690 mm
260 mm
SPECIFICATIONS
DEEE :
REFERENCES
BS50 Tribute
EAN per unit (x1)
3760108805880
SKU : ELIBS50
Bass-reex speaker with internal resonator (Elipson
patent) and acoustic reector (Elipson patent)
2-way coaxial driver
Woofer : 8” (200 mm), treated paper cone, small fold
suspension
Tweeter : 1” (25 mm), silk dome
Amplier : 50-100W
Frequency response : 40 Hz - 20 kHz
Sensitivity : 92 dB / 1W / 1m
Impedance : 8 Ohms
Overall dimensions : W500 x H1150 x D500 mm
Sphere : Ø500 mm
Reector : W460 x H630 x D110 mm
Stand : W500 x H260 x D500 mm
Weight : 31,4 kg
Finish : satin white
Delivered with exclusive stand
Packaging :
Unit : W820 x H665 x D775 mm / 44,5 kg
Stand
EAN per unit (x1)
3760108805842
SKU : ELIBS50STA
ALSO AVAILABLE
AS30 Tribute
Sound Tree
V3.0 - Update : 9/03/2016 - Specications could be changed without notice.
www.elipson.com
b
F'
F
1200 mm
260 mm
690 mm
650 mm
130 mm
465 mm
Haut-parleur coaxial Elipson
sur cahier des charges
Résonateur interne
Forme sphérique
anti-diraction
ADVANTAGES WITH A REFLECTOR
Beyond its unique esthetic appeal, the reector will provide you
with an unparalleled sound experience. Musical instruments
seem like they are really there, voices are crisp and true,
and you’ll experience the full volume of sound. These are the
system’s principal audio characteristics.
This is the result of pairing an ellipsoid-shaped reector with a
speaker placed in the center focal point (F). Reecting waves
give rise to a concentrated sound source located at the
second focal point (F’).
BS50 Tribute
F'
b
It’s the differential between the two focal points that creates
this unique sound sensation. Sharp notes seem to be emitted
solely from the second focal point located in front of the
reector, while the lower tones seem to be coming from the
bottom of the reector.
TECHNICAL DETAILS
F
Elipson coaxial speaker
on specications
Coaxial loudspeaker
Anti-diffraction system
Internal resonator
Fiberglass
strengthened resin
V3.0 - Update : 9/03/2016 - Specications could be changed without notice.
Anti-diffraction spherical form
Fiberglass strengthened resin
www.elipson.com
Internal resonator
