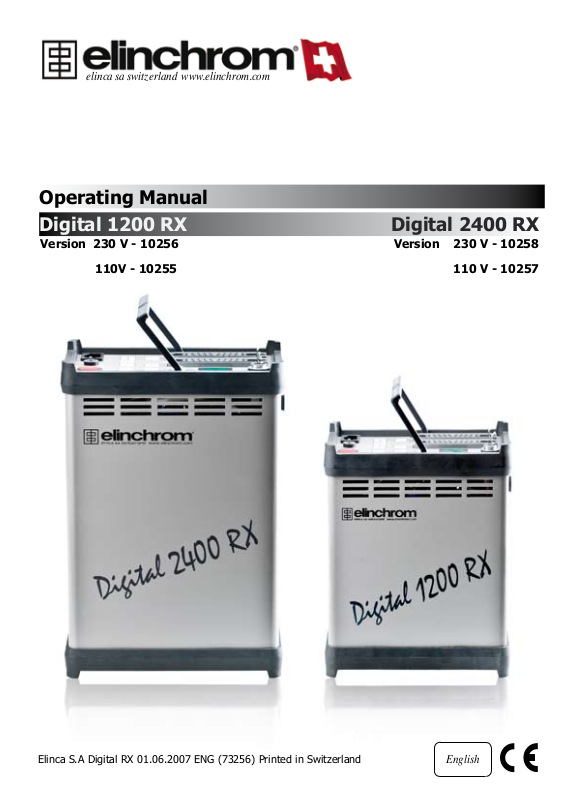

Operating Manual

Digital 1200 RX Digital 2400 RX

Version 230 V - 10256

Version 230 V - 10258

110V - 10255

110 V - 10257

Elinca S.A Digital RX 01.06.2007 ENG (73256) Printed in Switzerland

English

Table of contents

Introduction 2

Declaration of conformity, disposal and recycling, CE marking 3

Before you start, Safety notice 4

Control Panel 5

Operating instructions 6

Functions 6, 7

Relation of power between the outlets 8

Fuse 8

Flasheads 9

Symmertical/Asymmetrical power distribution 10

Flashheads compatibility 10

Flashhead types 11

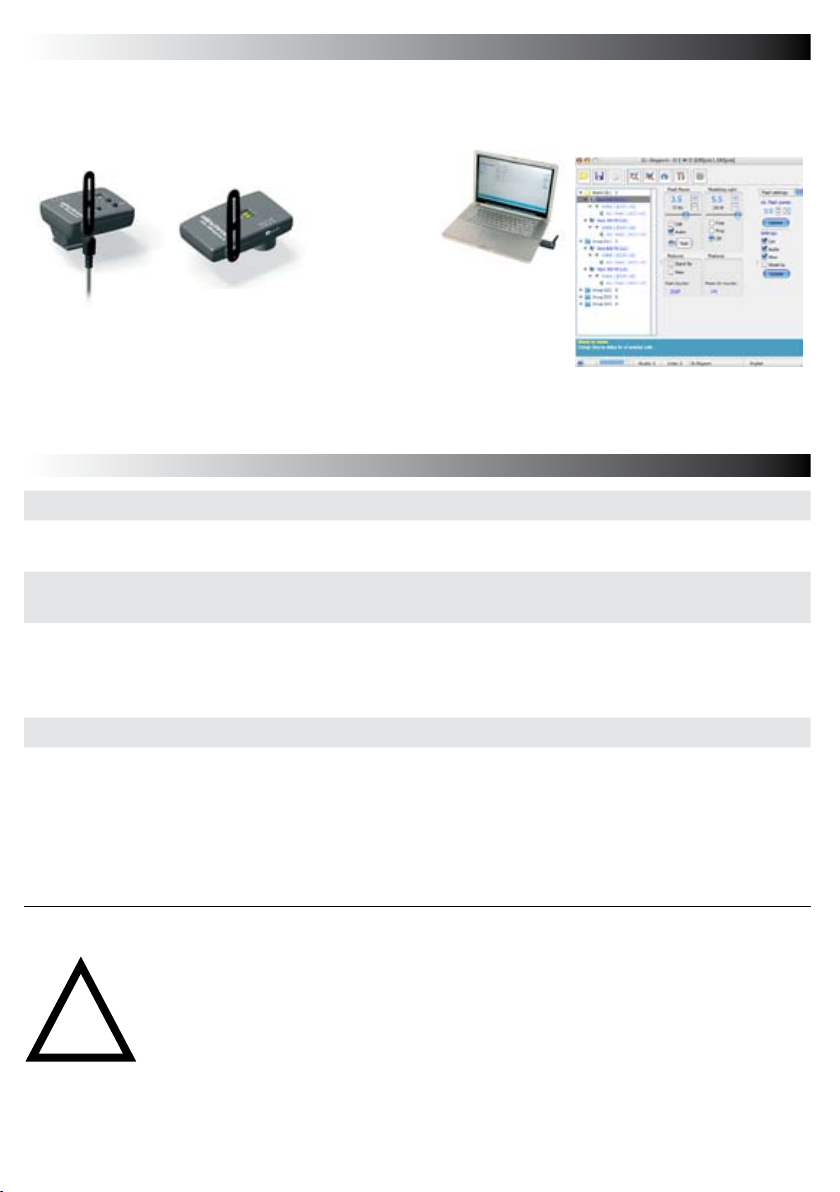

Wireless remote control and ash triggering 12

Troubleshooting 12

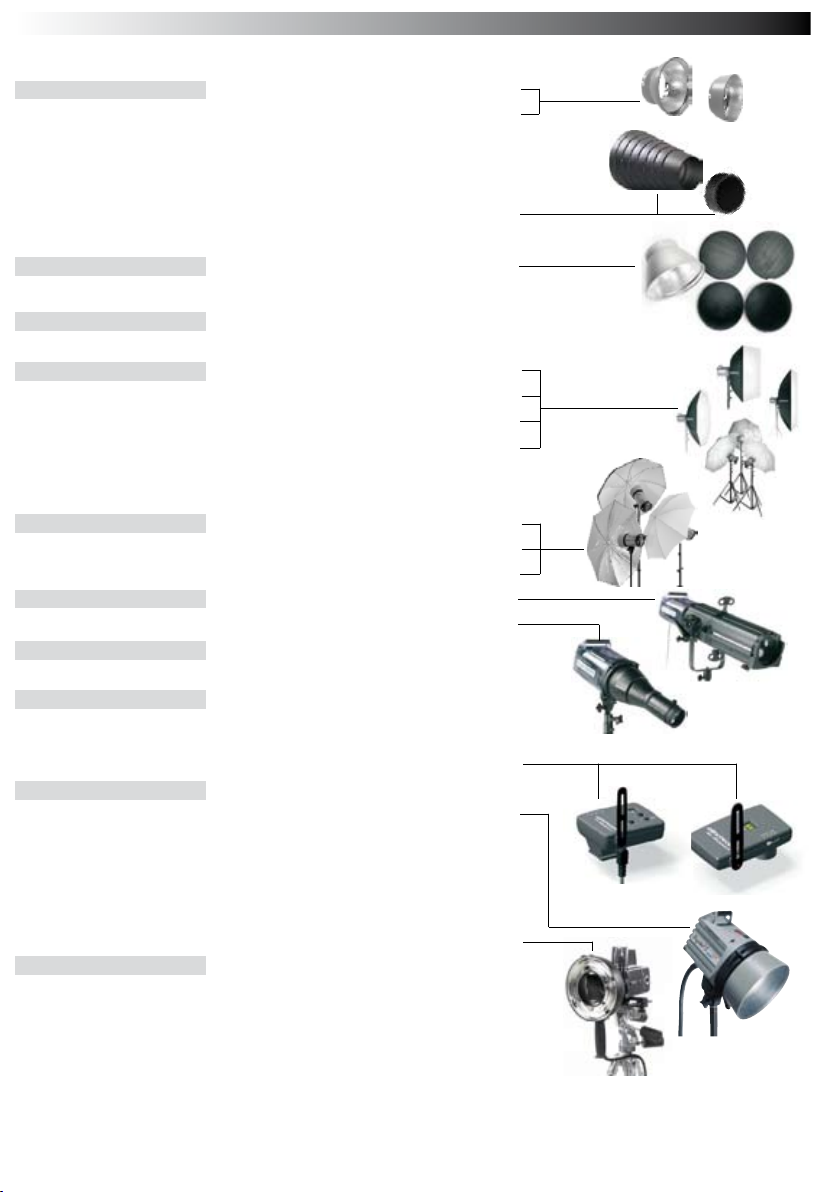

Elinchrom Accessories 13

Guarantee 14

P.S: Technical data subject to change.

The listed values are guide values which may vary due to tolerances in components used.

1

Introduction

The Elinchrom Digital RX is manufactured by Elinca S.A. CH -1020 Renens/Switzerland

Dear Photographer,

Thank you for buying your Digital RX ash generator.

All Elinchrom products are manufactured using the most advanced technology. Carefully selected
components are used to ensure the highest quality and the equipment is submitted to many controls
both during and after manufacture. We trust that it will give you many years of reliable service.

All Digital RX ash units are manufactured for the studio and location use of professional

photographers.
Only by observance of the information given, can you secure your warranty, prevent possible
damage and increase the life of this equipment.

Digital RX Flash Generator

The quality of light and exceptional performance is the result of long research, application of
demanding principles, the long experience of ELINCHROM in lighting products for the studio
and the utilization of the latest technology in this area.

Totally integrated to the range of the ELINCHROM ashes, the Digital RX Flash generator

maintain the traditional look and function that is ELINCHROM.

FCC Class B Compliance Statement

Note:

This equipement has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of

the FCC Rules and meets all requirements of the Canadian Interference-Causing Equipement Regulations. These limits

are designed to provide reasonable protection against harmful interference in a residential installation. This equipement

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipement does not cause harmful interferences to radio or television reception,

which can be determined by turning the equipement off and on, the user is encouraged to correct the interferences by one or

more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipement and receiver.

- Connect the equipement into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

ELINCA S.A. is not responsible for any radio or television interference caused by unauthorised modications of this

equipement or the substitution or attachment of connecting cables and equipement other than those specied by ELINCA S.A.

The correction of interference caused by such unauthorised modication, substitution or attachment will be the responsibility

of the user.

2

Declaration of conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause
undesired operation.

Product name: Professional Studio Flash

Generator

Trade name: ELINCHROM

Model number(s): Digital RX

Name of responsible party: Elinca S.A

Av. De Longemalle 11
1020 Renens / Switzerland

Phone : [phone]

We, ELINCA S.A., hereby declare that the equipement bearing the trade name and model number

specied above was tested conforming to the applicable FCC rules, and that all the necessary steps

have been taken and are in force to assure that the production units of the same equipement will
continue to comply with the Comissions requirements.

Disposal and recycling

This device has been manufactured to the highest possible degree from materials
which can be recycled or disposed of in a manner that is not enviromentally
damaging. The device may be taken back after use to be recycled, provided that is
returned in a condition that is the result of normal use. Any components not reclaimed
will be disposed of in a environmentally acceptable manner.

If you have any question on disposal, please contact your local ofce or your local ELINCHROM

agent (check our website for a list of all ELINCHROM agents world wide).

CE marking

The shipped version of this device complies with the requirements of ECC directives
89/336/ECC «Electromagnetic compatibility» and 73/23/ECC «Low voltage directive».

Notational Conventions

The meaning of the symbols and fonts used in this manual are as follows:

Pay particular attention to text marked with this symbol.
Failure to observe this warning endangers your life, destroys the device, or may
damage other equipement

!

Supplementary information, remarks, and tips follow this symbol.
Text which follows this symbol describes activities that must be performed in the
order shown.

i

«Quotation marks» indicate names of chapters or terms

3

Before you start ! User Safety Information

• Keep ash units out of reach whenever possible.

• Switch off when not in use and disconnect ashheads.

• Do not use in restricted areas (like hospitals, etc.)

• Do not use near ammable/explosive material.

• It must be protected from dripping water and from extremely dusty conditions

• The unit must ALWAYS be plugged into an EARTHED electrical socket.

• This equipment should be used only in a dry environment

• If the unit has been exposed to very cold conditions, sudden exposure to warm or humid air may

cause condensation => the unit should acclimate for some time to prevent condensation.

• There is high voltage and can be high currents, so please apply all the usual safety precautions

when handling the unit, changing fuses, modelling lamps etc.

• Do not open the unit. In the event of damage or apparent failure, contact a repair service or any

Elinchrom agent or email: [e-mail]

• Always switch off the unit before connecting or disconnecting ashheads

• Check always if ashhead connections are plugged in and locked correctly

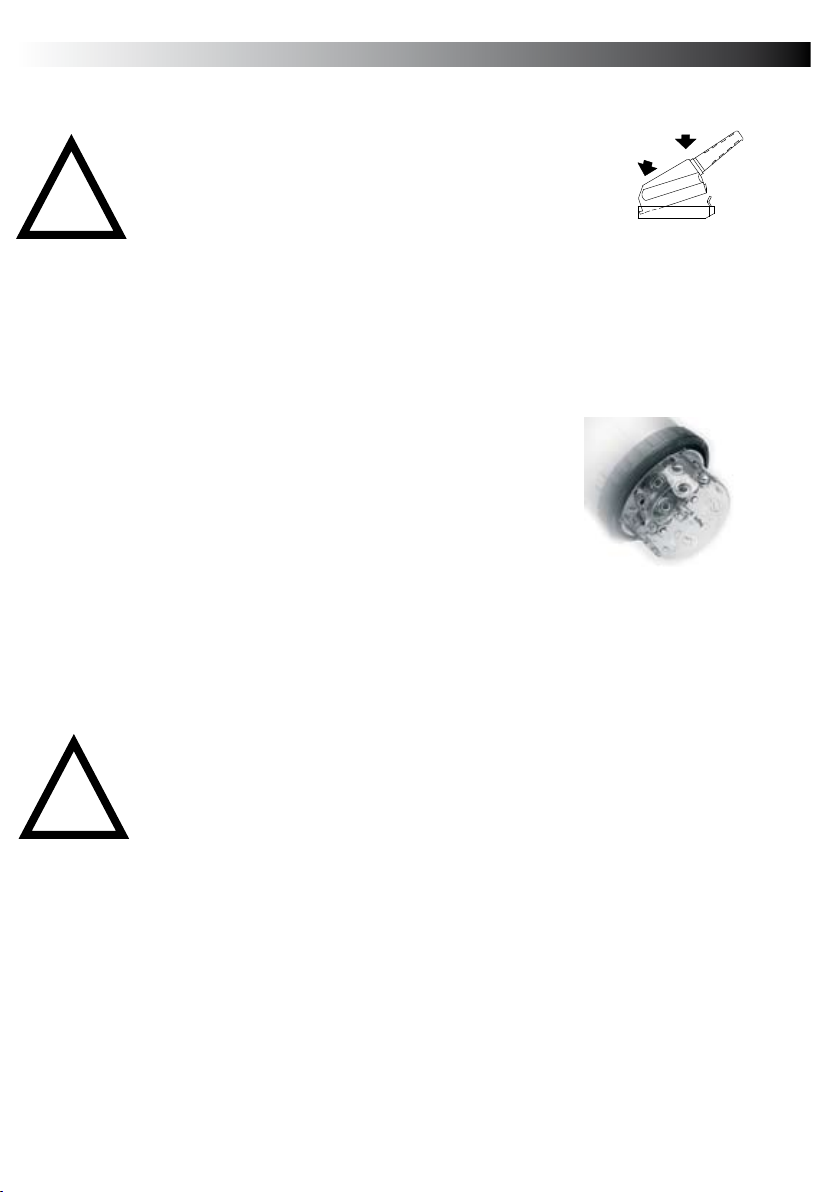

Flash Tubes and Modelling lamps

• Flash tubes and modelling lamps in use are very hot!

• Never touch a ash tube or lamp before the unit cooled down and is disconnected from the mains.

• Do not re ashes from short distance (less than 1m) directed to a person and avoid looking
into the ashlight!

• Keep generally distance to operating units.

• Always switch off the unit before connecting or disconnecting ashheads!

• The head connector must always be locked correctly before any use.

• Never store liquids or drinks on the power pack panel or closed to the unit!

!

• Flash systems store electrical energy in capacitors by applying high voltage.

• For your safety, never open or disassemble your ashes.

• Only an authorised service engineer should open or attempt to repair the units.

• Internal defect charge capacitors may explode whilst the unit is in use, neve
switch on a not proper working ash unit.

4

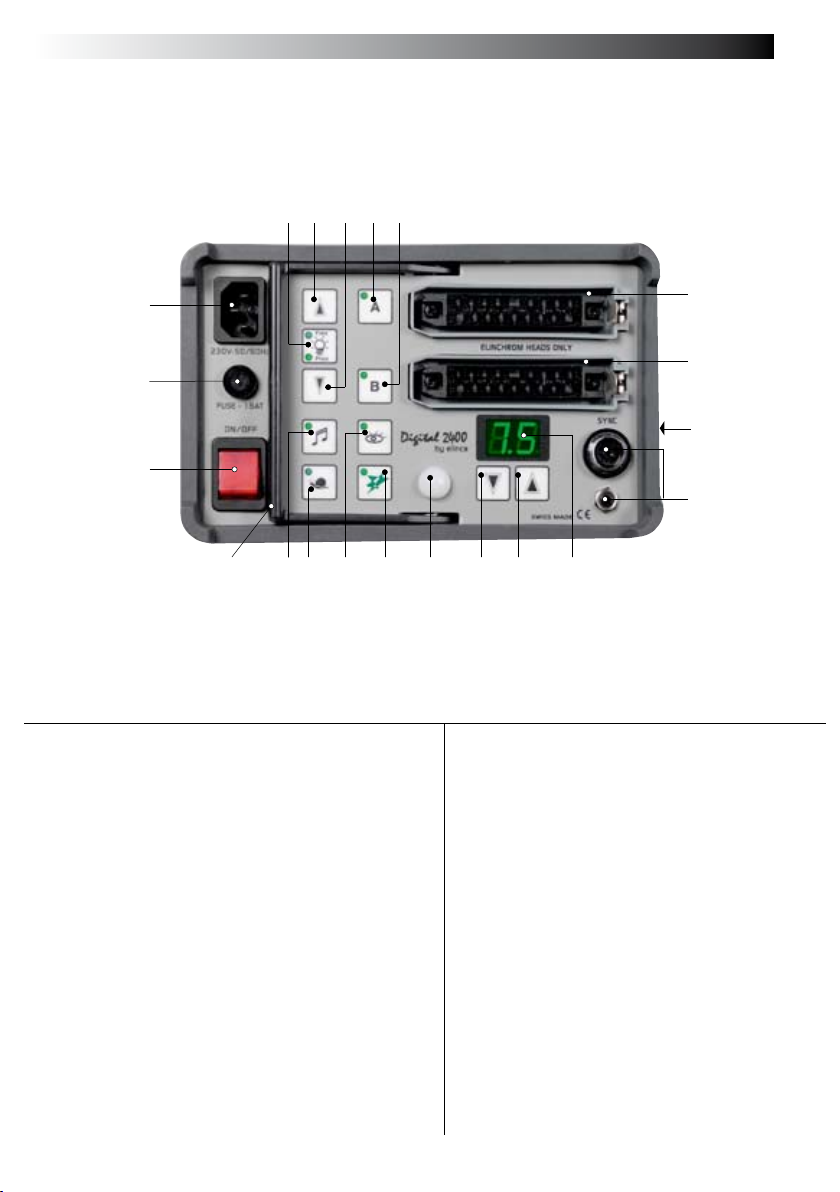

Control Panel

41316 17 19

1

2

3

7 8

Overview of Controls

1. Mains inlet socket

2. Fuse AC supply (16 AT, slow blow)

3. Illuminated mains switch

4. Modelling control (on/off free or prop)

5. Open ash and charge indicator

6. Slave cell on/off

7. Handle

8. Photocell receptor

9. Acoustic recharging signal (Beep)

10. Synchro-sockets, Amphenol + jack 3.5 mm

11. Charge speed (slow charge 230 V = 10 A)

9

11

18

5

6

20

21

15

10

12

12. Decrease power adjustment in 1/10
f-stops, with ADF

13. Increase power adjustment in 1/10
f-stops

14. Power display

15. Socket for remote or USB - Multi Link

16. Increase modelling power

17. Decrease modelling power

18. Lamphead (on/off) outlet A

19. Lamphead (on/off) outlet B

20. Socket outlet A (with security catch)

21. Socket outlet B (with security catch)

14

5

Operating Instructions

Before connecting the digital RX for the rst time, make sure that your mains supply and the rating
set on the equipment (electrical specication plate) are compatible to 110V or 230V.

• Connect lampheads ensuring that lamphead touches (18-19) are Off.

• Connect the mains cord in the inlet socket (1)

• Select charging rate (11) (" " slow position), only when the mains supply is too limited.

• Select modelling lamp setting (4)

• Connect the synchro lead (10)

• Check that the photocell’s switch (6) is in the required position.

• Use the touch buttons (12 - 13) to select the desired power.

• The open ash (5) will light up, indicating that the unit is ready for operation.

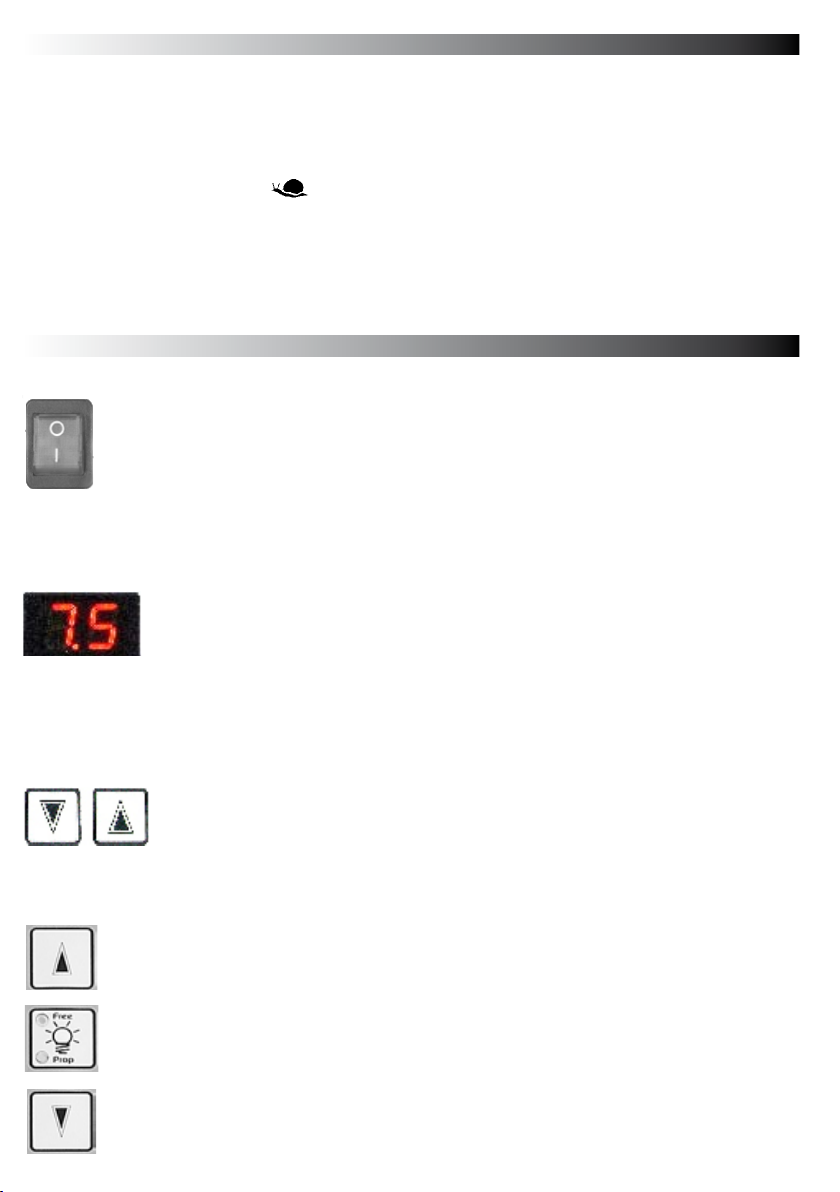

Fonctions

On/Off Switch (3)

By pressing this touch button the Digital RX is switched on or off.
This unit is protected by a thermal circuit breaker to avoid overheating. Should this
occur, the unit turns off automatically and cannot be operated! After a break for cooling,

the ash is ready again for operation.

Digital Power Display (14)

The actual ash power is displayed in a f-stop compatible format.

The power range is 6 f-stops. The digital display, provides continuous power

indication of the ash and modelling lamp. The controls cover a continuous

output range from full power 1/1 to 1/32th in 1/10th f-stop steps.

During charging or discharging the display "ashes". In case of overheating

or malfunction, the display shows "ER" for error.

Digital Power Regulation (12 and 13)

The power control provides simultaneous and continuously variable adjustment

of the modelling lamp and the ash power in step of 1/10 f-stop.

The display, provides digital power information, in f-stop from 3.5 to 8.5 for the
"Digital 2400 RX" and 2.5 to 7.5 for the "Digital 1200 RX".

Modelling Lamp Controls (4-16-17)

• Proportional: The modelling lamp will be adjusted automatically in proportion,
when the ash power is set to another value with touch button 12 or 13.

• Free: To set ash- and modelling lamp values individually.

• Modelling Lamp off

Note: There is an additional ON/OFF switch for the modelling lamp at the ashhead!
The ashhead control button A/B must be switched on for the selected ashhead.

6

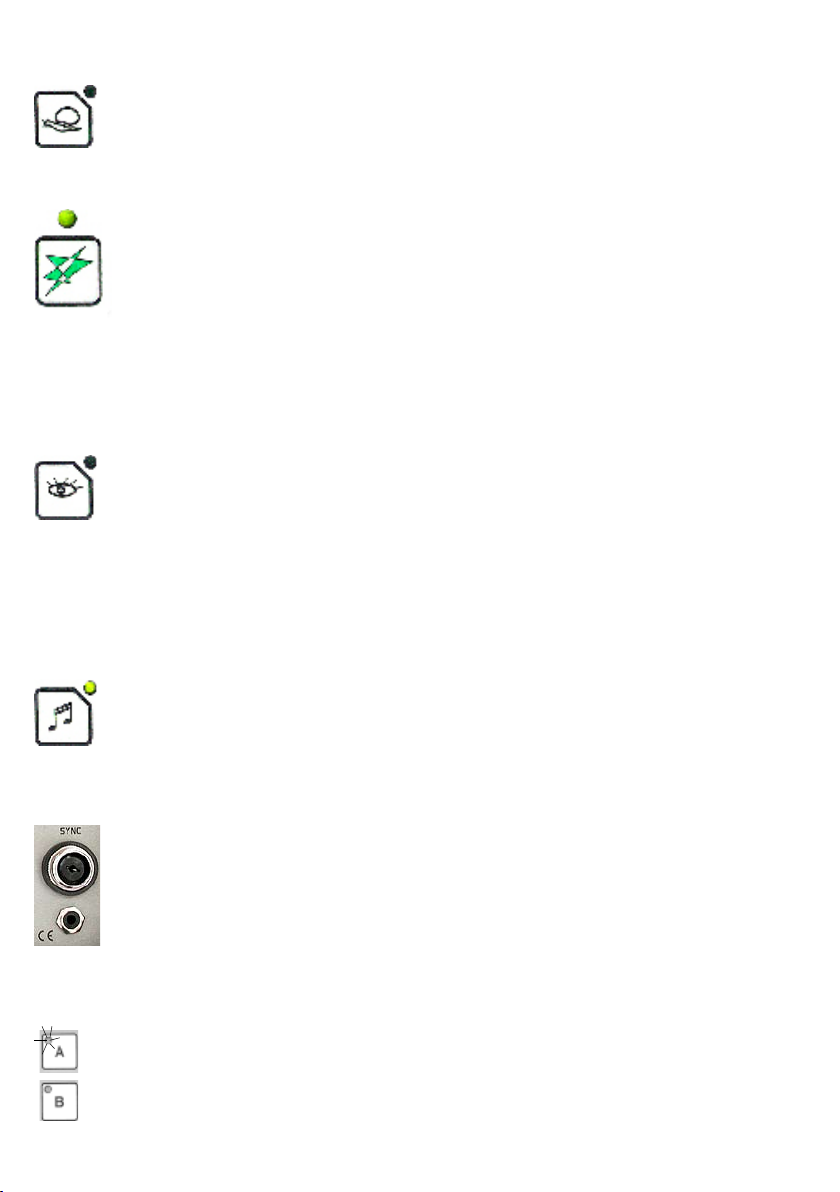

Slow Charge (11)

The green LED indicates that the slow charge function is selected.
This position is recommended if the mains line capacity is limited for the standard fast­charge mode.

Open Flash (5)

When the green LED is illuminated the ash may be released manually.

The release is blocked during charging, but not when the unit discharges.
The integrated discharge system is protected by a thermic cut out.

In order to restrict the heating of the unit, we suggest to release a ash with the green
touch (5) "READY" after each strong reduction of power (more the 2f-stop).
This allows to release the excess of energy in the ash tube.
You will gain time and extend the life span of your power packs.

Photocell On/Off (6)

The Photocell (8) is activated when the green LED (4) is illuminated. When switched on,

the pack can be remotely triggered by another ash unit!

The Digital RX photocell is specially designed to work under ambiant light situation in your
studio, direct light or other strong lights may reduce the sensitivity of the cell.

In difcult situations e.g. blinding, sunlight or obstacles, the additional cell with 5 m cord

(extensions available) solves most problems.

Charge Ready Beep (9)

Press this touch (9) to activate the acoustic signal
Once recycled, an acoustic signal (beep) indicates that the power pack is ready.

Synchronisation Socket (10)

Standard / Elinchrom Amphenol socket or 3.5 mm mini-jack (10).
N.B. Do not link ELINCHROM power packs via sync cable to other brands.
ELINCHROM uses low voltage (5V) for security reasons. Other systems may have
higher voltages and could cause damages.

Flashheads Control button (18 and 19)

These buttons switches on the ashhead sockets.

7

Relation of power range between the outlets

Guide aperture is based on the " Digital S or Digital SE " lamphead and the 50° reector,
distance 1 m/3.3 ft and lm ISO 100/21 DIN.

Digital 1200 RX Digital 2400 RX

Scale Ws f-stop Scale Ws f-stop Power

7.5 1200 (128) 8.5 2400 (180) 1/1

6.5 600 (90) 7.5 1200 (128) 1/2

5.5 300 (64) 6.5 600 (90) 1/4

4.5 150 (45) 5.5 300 (64) 1/8

3.5 75 (32) 4.5 150 (45) 1/16

2.5 37.5 (22) 3.5 75 (32) 1/32

Main Supply

While the MAINS SWITCH (3) is switched OFF (not illuminated), rmly push in the plug of the

original ELINCHROM mains cord (1).

Fuse

Standard type 5 x 20 mm, 16 AT (tempered). Before exchanging a blown fuse, switch off the unit
and remove mains cable. Depress and turn the fuse holder anti-clockwise 1/8th and remove it.
If the new fuse blows immediately upon reconnection return the pack to an ELINCHROM service
centre for a check-up.

(N.B. Check correct value of the fuse: 16 AT).

Overvoltage security

This unit is protected by security device.
Should the unit not work properly, due to a defective power component,
the security would instantly stop the charge.
The power pack requires a check up at a technical Elinchrom service.

Fuses for ashheads

Use only FAST BLOW FUSES, type 5 x 20 mm corresponding to the label on each ashhead.

Different modelling lamps require corresponding fuses. Slow blow fuses will not protect the
modelling lamp. The fast blow fuse will protect the triac of the modelling lamp circuit, the

lamp and therefore the ash tube.

Fuse

W 110V 240V

200 2 AF 2 AF

250 5 AF 2.5 AF

300 5 AF 2.5 AF

650 10 AF 5 AF

Only use recommended fuse

Modelling Lamp­switch

Fuse

8

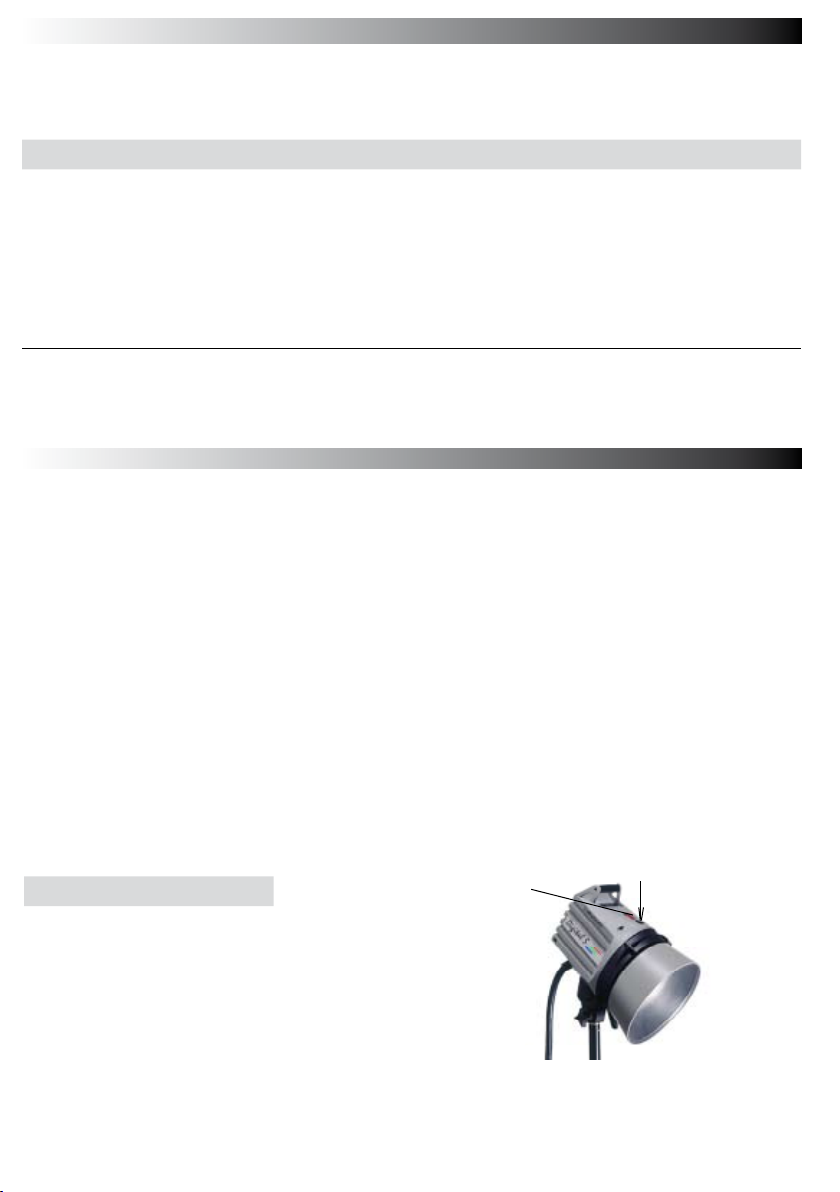

Flashheads

When plugging in a lamphead connector, rst push in the front part, then rmly press in the whole

plug, the rear part being secured by the locking spring.

Do NOT plug in or unplug lampcords
while the green leds on output A and B

!

Halogen modelling lamp

Use only the recommended modelling lamp, the Digital S and Digital SE heads

are tted with a 300 W halogen modelling lamp. For 230 V code 23022.

Protective Pyrex Dome

For use with standard halogen lamp GX 6.35 socket.

Transparent, matt or yellow (400° K colour correction), can be tted to all lampheads, except
R heads for which clear or matt security lters are available.

Easy attachment of the protective dome:

• Disconnect the lamphead from the pack

• Loosen the 3 screws of the lamphead reector

• Fit the clips underneath the screw heads and tighten the screws

• Put the dome in place and hook the springs into the airvent holes.

are ON (illuminated)

Protective dome

2

1

Socket

Safety Precautions

• The ashheads cannot be insulated against humidity and dust.

• Do NOT plug in or unplug lampcords while the green leds on output A and B

are ON (illuminated).

!

• Never store liquids or drinks on the power pack panel or closed to the unit!

• Do not use near ammable/explosive material (min. 1m distance of any object)

• For your safety, use only Elinchrom ashheads.

• Do not open the unit. In the event of damage or apparent failure, contact a

repair service or any Elinca agent or email: [e-mail]

9

Symmetrical power distribution

The Digital RX power packs deliver symmetrical power distribution when the same type of

ashhead is used for both power pack outlets. For example 2x Digital S or 2x A 3000 N head.

Asymmetrical power distribution

It is possible to set asymmetrical power distribution by using two different heads like
1x Digital S and 1x A3000N head. Instead of a 50% - 50% split, this head combination splits
into 75% for the A-head and 25% for the S-head.

This is 1,5 f-stops more ash power for this A-head.

Note: The A-heads are used for action freezing photography; therefore the ash tube is made
differently to any other EL-ashhead. A-tubes draw power very rapidly, with the effect that 25%

power is left for the S-head types.

Flashhead Compatibilty

Below is a table, listing lampheads made since 1980, which are adaptable and indicating the
equivalent in the current series.

Compatible with: Digital RX 1200 - 2400

Maximum Power From 1992 1988 1986 1980

S1500 N

1500/2000 Ws

2400 Ws/2000*
2400Ws/2000*
2400 Ws/2000*
2400 Ws/2000*
2400 Ws/2000*
3000 Ws

3000 Ws

4000 Ws

4800 Ws (2x2400) Twin X4

6000 Ws X6000N

8000 Ws X8000 X8 X

Chic S2

Mini 1500

Mini A
Mini R

Mini S
Digital SE
Digital RE

Digital S

R3000

S3000N

A3000N

Spot Lite 3000

Box Lite 3000

S2000

A2000

R2000 R2

S3000 A3000

S4000

A4

Box Lite 4000

R4000

Box Lite 4000

S2

A2

T4
A4

R4

S

T
A

10

Flashhead Types

• Digital S => Ultimate stability for digital and multishot imaging. The heavy duty

electrodes resist heat stress.

• Digital SE => Suitable for universal use and standard multishot imaging. The ash tube

can be used up to 3000 ws

• Digital SEE => This head covers all universal studio us and comes with a long life Swiss
Made ash tube up to 2400 ws.

• A 3000 N Speed => Unique super short ash duration with a single, twin electrode ash tube to

ensure even light distribution.

• X 6000 N => The at twin interlocking ash tubes bring a focusable light source to high
power users. Cabled into a single 6000 ws power source the ash duration

is halved. Cabled into 2x 3000 ws power packs faster discharges may be
cycled quicker.

• Mini S => Priced to budget with 250 w modelling lamp and a 2400 ws ash tube.

• Mini A => Priced to budget for action freezing purposes with 250 w modelling lamp.

• Twin X4 => Priced to budget with 2x U-type ash tubes, 2x cables up to 2400 ws for

light banks and softboxes

• Digital R => This linear ashhead creates sharp linear shadows and spreads light
evenly. The integral support can t lters and barndoors.

Technical Data

Units Digital 1200 RX Digital 2400 RX

f-stop variation 22 to 128 f-stop variation 32 to 180

Charge Speed (mains 230V/60Hz)

normal 0.3 - 1 s 0.5 - 2 s

slow 0.4 - 2.1 s 0.7 - 3.4 s

Charge Speed (mains 115V/60Hz)

normal 0.6 - 1.7 s 0.6 - 3.8 s

slow 0.6 - 2.2 s 0.8 - 5 s

Flash Duration

With 1 ashhead Digital S/SE 1/1200 1/600

2 ashheads Digital S/SE 1/1900 1/950

1 ashhead Digital type A 1/2200 1/1100

2 ashheads Digital type A 1/3400 1/1700

Weight 4.45 kg 6.5 kg

Dimensions 21.5 x 13.5 x 23.3 cm 21.5 x 13.5 x 32 cm

11

Wireless Remote Control and Flash Triggering

The charge socket is as well the interface for the EL-Skyport Trigger and Remote System.
With the EL-Skyport RX Trigger Set 19362, the Digital RX can be triggered wireless, up to
approximatly 100 m distance. Apart from triggering, the Transmitter offers modelling lamp on/off

settings and ash power control in 1/10th steps.

By using the EL-Skyport Computer Remote / Trigger Set 19361,
all Digital RX functions can be controlled and operated with a Mac°
or Windows° computer.

For details of the most advanced wireless system please visit :
www.elinchrom.com/products/RX Multi Remote/EL-Skyport

Troubleshooting

1. The mains switch (3) is ON, but not illuminated

• switch OFF the unit and change the mains fuse (2)

• Use only time-lag fuse (16 AT), corresponding to the Digital RX pack

2. The switch (3) is lit, the green led of the open ash (5) is illuminated and the touch
A or B (18 - 19) is activated but does not ash

• the ashtube in the ashhead may be faulty

• If replacing the lamphead does not solve the problem, the cause could be a

component failure => please return the unit to an authorised Elinchrom service.

3. The ON/OFF switch (3) is lit but the open ash signal (5) is not lit

• Temporary break for overheating, caused by fast ash sequences or ventilation

slots obturated

• Fan cooling defective => the unit turns off automatically and cannot be red any
more. After a break for cooling, the ash is ready again for operation.

• If after several minutes of break for cooling the ready signal (5) is not lit, the cause

could be a component failure. However, high voltage may remain on the capacitor
circuits.

• For your safety, never open your power pack.

• Do not attempt to repair the unit yourself.

!

• Please send the unit to your elinchrom agent

12

Elinchrom Accessories

code

Reectors Wide angle ø 16 cm /90° 26143

Compact ø 18 cm /60° 26144

Standard ø 21 cm /50° 26141

Mini soft ø 44 cm silver 26166

Mini soft ø 44 cm white 26168

Snoot & Grid 26061

Grid for snoot 26427

Grids Grid set for reector 18 cm 26135

Grid set for 21 cm 26051

Filters Set of 10 color/mixed lters for 21 cm x 21 cm 26243

Polarizing lter 21 cm 26244

Lightbanks ROTALUX Square 70 x70 cm 26178

Square 100 x100 cm 26179

Strip 95 x 35 cm 26180

Rectangular 130 x 50 cm 26181

Octagonal 100 cm 26183

Octagonal 135 cm 26184

Umbrellas White diam. 85 cm 26372

Silver diam. 83 cm 26350

Translucent diam. 85 cm 26371

Spots Zoom Spot 18° - 36° 26481

Mini Spot 26420

Stands Stand 85-235cm 30101

Stand Master 109-385 cm 30149B

Trigger accessories Universal Set (1x Transmitter, 1x Universal

Heads Digital S (230V) 20150

Modelling lamps Quarzt Halogen 300W/230V 23022

Receiver and cables)

EL-Skyport Computer remote set 19361

EL-Skyport RX Set 19362

Digital S (110V) 20149

Digital SE (230V) 20174

Digital SE (110V) 20175

Digital SEE (230V) 20172

Digital SEE (110V) 20173

Ringash 3000 20494

19360

13

GUARANTEE

This ELINCHROM product will be repaired free of charge by the vending agent if during a period of
24 months from date of purchase its working order is impaired through a manufacturing or material
defect. The faulty product should be immediately sent to the authorized dealer or ELINCA agent.

This guarantee is not valid for equipment which has been misused, dismantled, modied or repaired
by persons not belonging to the ELINCA distribution network. It does not cover ash tubes, lamps

and the normal ageing of capacitors. No responsibilities can be accepted for damage resulting from

unsatisfactoıy operation of the equipment, such as wasted lm or other expenses.

i

Please „register“ your Elinchrom product online, under

www.elinchrom.com > Downloads > Product Registration

In case you cannot register your Elinchrom unit via internet, please ll in the

Guarantee card and post it to Elinca.

Please return this registratioin card directly to
Diese Registrierkarte bitte direkt zurücksenden an

Veuillez retourner cette carte d’enregistrement directement à

Vi preghiamo di far pervenire questa cartolina di iscrizione direttamente a
Por favor envie esta carta de registro directamente

Elinchrom model
Elinchrom modèle
Elinchrom modell
Modello di Elinchrom
Modelo de Elinchrom

Date of purchase

Datum des Kaufs
La date d’achat

La data di acquisto
La fecha de la compra

:
:
:
:
: N°

:
:
:
:
:

Dealer
Händler
Négociant
Il distributore
El comerciante

:

elinca sa

:

P.O. Box 458

:

Avenue de Longemalle 11

:

CH-1020 Renens

:

Switzerland

:
:
:
:
:

Your full name and address

Ihr voller Name und redet an
Votre nom complet et adresse
Il suo nome pieno ed indirizza
Su nombre y apellidos y dirige

:
:
:
:
:

14

www.elinchrom.com
