Thank you for buying your «Digital 1500 AS» flash generator. All Elinchrom products are manufactured using the most advanced technology. Carefully selected component are used to ensure the highest quality and the equipment is submitted to many controls both during and after manufacture. We trust that it will give you many years of reliable service. All flash units are manufactured for the studio and location use of professional photographers. Only by observance of the information given, can you secure your warranty, prevent

possible damage and increase the life of this equipment.

!!

!

The Elinchrom Digital 1500 As generator is manufactured by Elinca S.A. CH -1020 Renens/Switzerland

Dear Photographer,

4

1. Mains inlet power socket

2. Mains fuse (16 AT, slow blow)

3. Charge speed selectors

- slow charge

- normal charge

- fast charge

4. Mains switch

5. Photocell and IR-Receiver

6. Photocell on/off

7. Sync.-socket with security lock

8. Open flash with charge indicator

9. IR-Remote On/off

10. LED indication of total power

11. Generator selector IR (1-8 packs)

12. Multi-purpose accoustic signal

13. Half/full power for modelling lamps

14. Modelling lamps on/off

15. Modelling lamp dimmer/charge signal

16. Proportional modelling light

17. Power output indication in Ws/joules

18. Lamphead sockets

19. Security catches

20. Lamphead power modulators

21. Socket accessories

22. Lamphead on/off

CONTROL PANEL

10

8

14

3

120125721

2

17

4

19

18

6

9 11

15 16

22

13

FOR YOUR SAFETY, NEVER OPEN YOUR POWER PACKS OR YOUR LAMPHEADS. FOR REPAIRS, BRING THEM TO YOUR ELINCHROM AGENT

..

.

5

1)

Mains connection The unit is manufactured to run on 200-240 V, 50/60 Hz. Before connecting them for the first time, make sure that your mains supply and the rating set on the equipment (electrical specification plate) are compatible.

2)

Check that the mains switch (4) is OFF

3)

Insert mains cable to the MAINS INLET (1) and connect to a FULLY EARTHED OUTLET

4) Using the mains switch (4) and switch the unit ON (switch illuminated)

5)

Connect lampheads ensuring that lampheads switches (22) are OFF, i.e. display NOT illuminated

6)

Select charging rate (3) "normal"

7)

Select modelling lamp setting (16)

8)

Connect the synchro cord on the socket (7)

9)

Check that photocell (6) is OFF (not illuminated)

10)

Switch on the lampheads : the touch ( 22) switches individually the flash circuits and modelling lamps

11)

Select the power with the touch (+ or -).

12)

The green open flash button ( 8) will light up, indicating that the unit is ready for operation.

Operating instructions

According to the safety regulation: we draw your attention to the fact that this equipment should be used only in a dry environment; it must be protected from dripping water and from extremely dusty conditions. The unit must ALWAYS be plugged into an EARTHED electrical socket.

6

Display Ws f-stop Power

8 1500 (128.3) 1/1 7 750 (90.3) 1/2 6 375 (64.3) 1/4 5 188 (45.3) 1/8 4 95 (32.3) 1/16 4** 47 (22.3) 1/32 with 2 lampheads 4*** 31 (16.7) 1/48 with 3 lampheads

on mains 230 V- 50 Hz 0.8 - 5 s 0.7 - 3.5 s 0.6 - 2.5 s

on mains 115 V- 60 Hz 0.9 - 6 s 0.8 - 4.5 s 0.7 - 3.5 s

For version 110/120 V : Mains voltage: 110-140 Vac 50/60 Hz

For version 220/230 V : Mains voltage: 210-240 Vac/50 Hz

Dimensions: 49 x 14 x 27 cms Weight: 8.6 kg

TECHNICAL DATA :

RELATION OF POWER RANGE BETWEEN THE OUTLETS

Guide aperture is based on the "Digital S" head and the standard reflector, distance 1 m/3.3 ft and film ISO 100/21 DIN.

This power pack Digital 1500 AS (1500Ws) offers three asymmetrical power head outlets. The power levels are indicated in Ws by bright LED display. These displays may be individually varied in 1/10th f-stop to any one of 57 settings on each lamphead (with three lampheads). The variation is continuous on 6.6 f-stops, (diaphram variation 16.7 to 128.3).

POWER REQUIREMENTS :

*with 2 or 3 lampheads

CHARGE SPEED

7

Standard type 5 x 20 mm, 16 AT (tempered). Before exchanging a blown fuse, switch off the unit and remove mains cable. Depress and turn the fuse holder anti-clockwise 1/8th and remove it. If the new fuse blows immediately upon reconnection return the pack to an ELINCHROM service centre for a check-up. (N.B. Check correct value of the fuse : 16 AT).

The button lights up when the pack is switched on. Switch off before removing the mains cord. Note : the absence of charge, despite the switch being illuminated, indicates a fault.

While the MAINS SWITCH (4) is switched off firmly push in the plug of the original ELINCHROM mains cord into the socket (1).

Select the required charging speed with the selector (3).

FAST : is the standard position recycling, for use in the professional studio. (Position for the digital "one shot")

230 V = 16 A 115 V = 25 A

NORMAL : standard recycling recommended for use in the studio with line 16 A.

(Position for the digital "multi-shot") 230 V = 12 A 115 V = 20 A

SLOW : position is recommended when the mains capacity is too limited for the use with

the standard charge. (for the digital "multi-shot") 230 V = 8 A 115 V = 15 A

charge

N.B. SECURITY FUSE

This unit is protected by an internal security device. Should the unit not work properly, for example because of a defective power component, the internal security fuse of 16AF (fast) would instantly get destroyed, which avoids any recharging. From then on, the power pack requires a check up by a technical Elinchrom service.

1. MAINS SUPPLY

2. FUSE

3. MAINS SWITCH

4. CHARGE SPEED SELECTOR

8

N.B. For even less load on the power supply line use and jointly. The modelling lamps automatically extinguish when the generator is charging but illuminate when the charge cycle ends.

When the indicator of the

touch (12) is illuminated and will sound whenever a command has been accepted by the generator (useful when using the IR handset). There is an audible signal after each recharge. It indicates that the generator is ready. Continuous signalling indicates a false request or malfunction. Please check generator and lamphead connections.

5. INITIAL CHARGE

7. AUDIBLE RECHARGE SIGNAL

Having pressed this button release a flash, the green led «READY» light will appear again once the unit is recharged. If the green light does not appear the charge system could by defective. Please contact and send to an authorized Elinchrom service.

N.B. Situation 2, as above is the only time when the open flash will function while the indicator blinks. At other times, the generator is not ready (still charging or fed with incorrect requests) and will therefore not function.

6. OPEN FLASH «TEST»

NOTE :

The "Digital" unit have an integrated discharge system, protected by a thermic switch. In order to restrict the heating of the unit, we suggest to release a flash with the green button (8) "READY" after each strong reduction of power (more than 2f-stop). This allows to release the excess of energy in the flash tube. You will gain time and extend the life span of your power packs.

If the generator has been recently used and the capacitors do not require «reforming», the generator will charge at the speed setting indicated, i.e. fast, normal or slow. If the generator has been recently used , to reform the capacitors it will charge slowly. If the desired speed setting is fast or normal, the appropriate indicator will glow, but the slow charge indicator will blink to show that for this one charge sequence it has automatically taken control.

9

10. POWER INDICATOR «BLINKS»

8. TOTAL POWER

9. INDIVIDUAL POWER OUTPUT

This display indicates the total power released through the lampheads. The variation is a single steps or if the touch is held it will run continuously. The first number indicates charges by full f-stop, the second number by 1/10 f-stop. When the total power is increased each individual lamphead increases proportionately. The ratio never changes and the power in any one lamphead is limited only by the total power in the generator. When this power is reduced your chosen asymmetry remains, but is always variable at your discretion.

This facility gives subtlety and independence of power control unobtainable in any other way. The Ws/Joules readout enables you at a glance to evaluate the relative power of each lamphead which you may change at any time. It varies progressively with the principal power read-out. The limite are only the maximum power of the pack and the minimum power through one outlet - all steps being in 1/10th f-stops.

If the power display blinks, the connecting of the lamphead may have given a total Ws/Joules display of all lampheads of more power than the generator can store.

Press the touch to reduce the totals of the power displayed to the correct figure. Alternatively, switch off a lamphead.

Conversely, if at minimum power, a lamphead is disconnected, the power indicator will blink because there is now more power in the generator than the read-outs in Ws/Joules indicate. Adjust by pressing .

N.B. The display will also blink if lamphead power supply is greater than the flashtube can accept, e.g. an S1500N head fitted to a generator outlet displaying 1500 Ws will not release and the display indicates that there is an incorrect request. Adding or removing a lamphead does not change the power programmed into other lampheads. It increases or decreases the total power stored.

+

-

8.0

10

11. SWITCHABLE PHOTOCELL (SLAVE)

12. SYNCHRONISATION SOCKET

12. ACCESSORY SOCKET

The Amphenol secure locking system with standard 5 m cable is retained. Longer cables may be used. N.B. Do not link ELINCHROM units by cable to other manufacturers sync outlets. ELINCHROM uses low voltage (12 V) for security reasons and other systems with higher voltages may cause damage.

Alternatively the ELINCHROM SYNCRON

(code 19316)

, cordless radio may be used with the FRC-1 transmitter (code 19306) which releases the flash instantaneously - faster but slightly slower than by sync cable. Therefore, use 1/60th for focal plane shutters and 1/125th for in lens shutters.

In difficult situations e.g. daylight, blinding or obstacles, the additional cell (code 11080) with 5 m cord (extensions available) solves most problems. Alternatively use the FRC-SYNCRON (code 19316) cordless remote flash release.

When switched ON indicator illuminated, the pack can be remotely triggered by another flash unit in your studio.

Alternatively mount an infrared flash trigger on the camera (e. g. Prolinca IR transmitter : code 40203)

Syncron Set : 19310

FRC1 : 19306

11

The modelling lamp will only function when the lamphead is switched on (note : there is an overheating control switch ON/OFF in the lamphead).

- Simple ON/OFF with ON setting indicated. Also incorporated is a slow start system to prolong lamp life

- Half power lamp setting further extends lamp life

- Adjusts the lamp to vary with the flash power.

- DIM/BRIGHT CHARGE INDICATOR This setting underpowers the modelling lamps during

charging. At full charge they <<indicate>> by coming to full brightness.

- Used together, the modelling lamp extinguishes during charge.

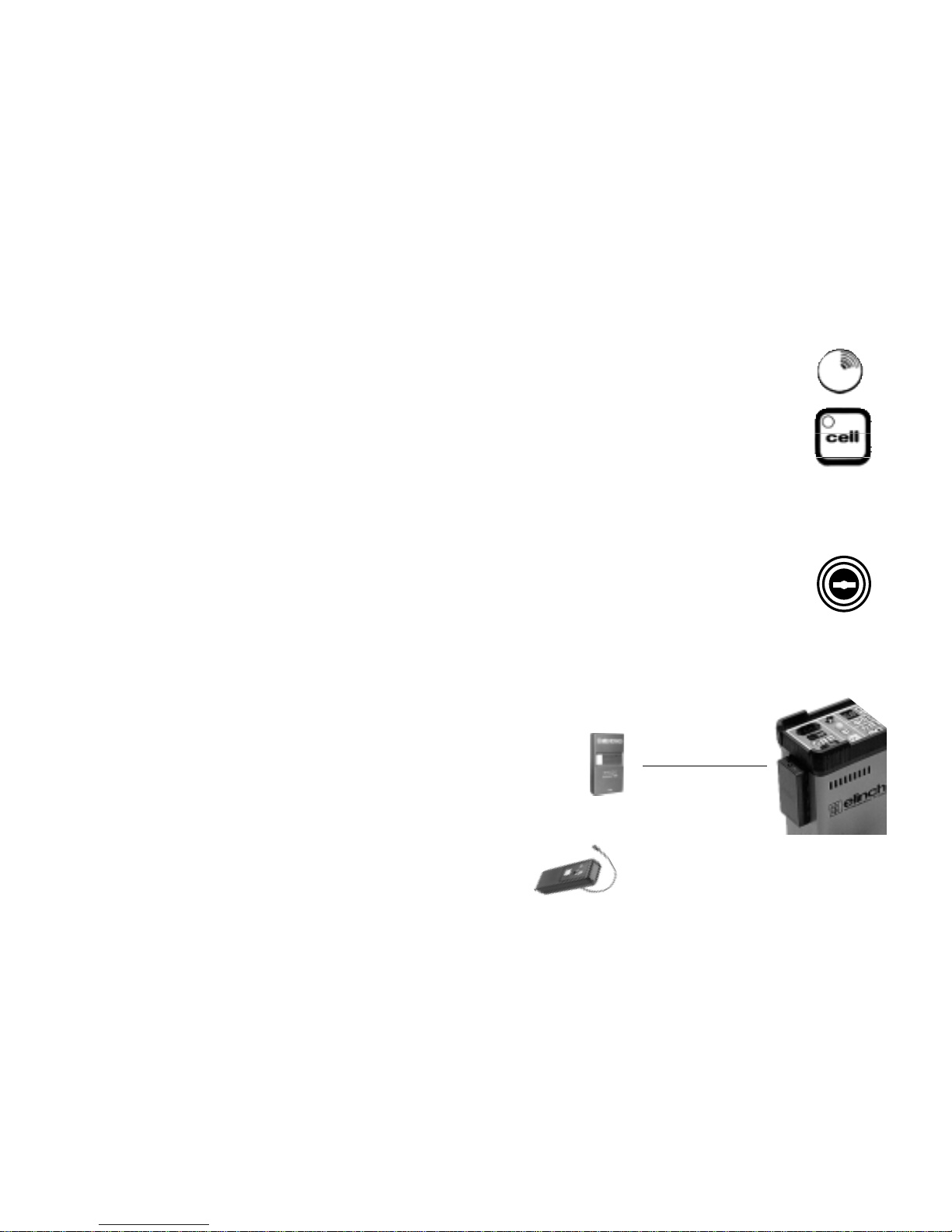

This will display a channel number 0 - 8. keept this button pressed and when you have reached your chosen number release. This sets the unit to the channel number displayed. You can either select a different number for every head. If you wish to control two or more heads identically then give them the same channel number, they will then respond to the same signal.

15. USE OF IRS

14. MODELLING LAMP CONTROLS

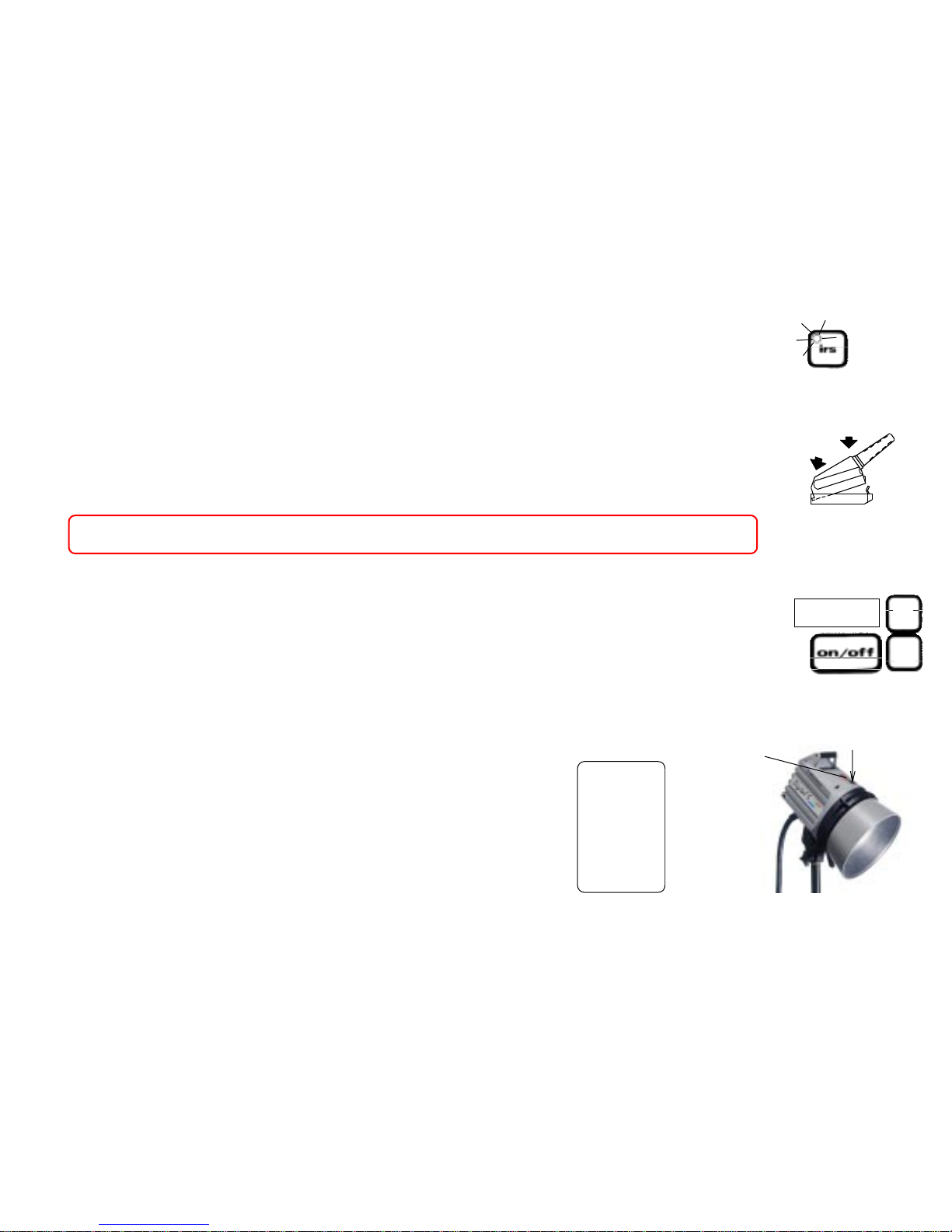

To activate the Infra Red System press the IRS Control

To use the IR-remote :

first select a numbered channel on the handset.

This will activate the unit(s) allocated to that channel. No other units will respond. To measure the f-stop, this unit can be flashed alone OR, to take an overall reading, ALL units will respond if «O» is pressed on the handset.

If any other number is selected on the IR-handset, the IRS indicator will blink to advise that the generator is not accepting the commands.

IR Remote control code : 19319

Allocate the unit a channel number. First press the channel selector

12

14. LAMPHEADS ON/OFF

15. FUSES FOR LAMPHEADS

13. LAMPHEADS Important :

When plugging in a lamphead connector, first push in the front part, then firmly press in the whole plug, the rear part being secured by the locking spring.

Different modelling lamps require corresponding fuses. Slow blow fuses will not protect the modelling lamp. The fast blow fuse will protect the triac of the modelling lamp circuit, the lamp and therefore the flash tube.

Connect the lamphead. The ventilator fan functions even in OFF mode. After a studio session, leaving the generator switched on, but the lampheads OFF extends lamp

and tube life

.

If the power display does not illuminate i.e. ON/OFF appears not to function, the lamphead is incorrectly fitted, the connector is damaged or it is an old lamphead unadapted.

Modelling switch

FUSE

W 110V 240V 200 2AF 2AF 300 5AF 2,5AF 650 10AF 5AF ATTENTION use only recommanded fuse

1 5 0 0

+

-

Use only FAST BLOW FUSES, type 5 x 20 mm corresponding to the label on each lamphead.

DO NOT PLUG IN OR UNPLUG LAMPCORDS WHILE THE DISPLAYS ARE ON i.e. ILLUMINATED.

22

2

11

1

Fuse

The indicator on the IRS will «blink» on the generator when its channel has not been selected. However, selecting its channel «O» will re-activate the units response system. The units function like and are therefore totally compatible with Micro AS power packs and 750 Micro.

USE OF IRS

13

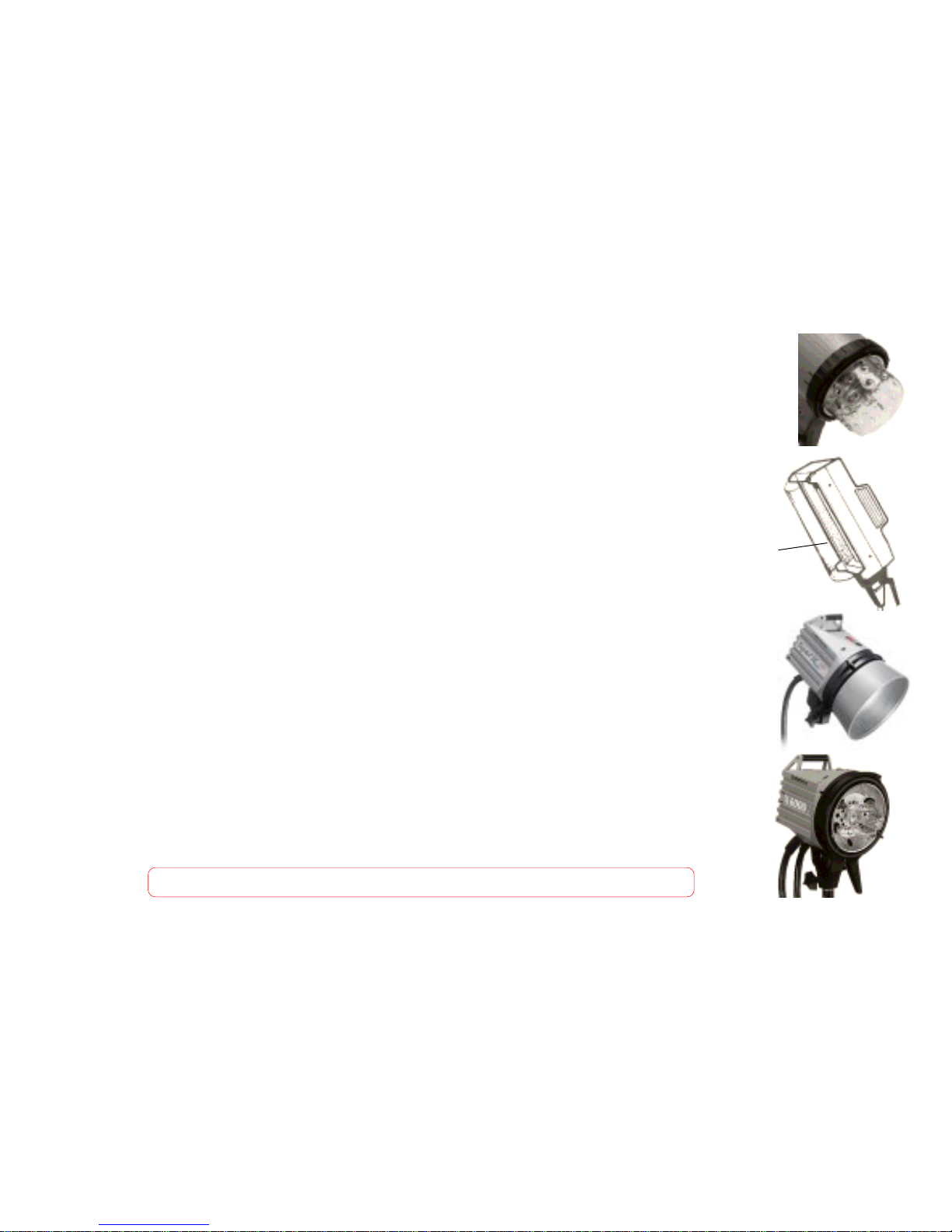

16. PROTECTIVE PIREX DOME

For use with standard halogen lamp GX 6.35 socket. Transparent, matt or yellow (400° K colour correction), can be fitted to all lampheads, except R heads (rectangular heads) for which clear or matt security filters are available.

17. LAMPHEAD TYPES

1. With standard flash duration : Types S and R (Digital S - Digital SE - Digital SEE - Digital RE)

2. With action stopping (short flash duration) : Type A (X 6000N and Twin X4 with one power pack) For fashion photography, sport applications and just as useful in the studio for photographing fast moving subjects.

NOTE : Due to their relatively high power and short duration, it is probable that the flash tube may be shorter than our standard lampheads.

The X-heads (X6000N - Twin X4 - X8000) has two special flash tubes that focus and maximise the light ouput.

FOR YOUR SAFETY, USE ONLY ELINCHROM LAMPHEADS ON YOUR GENERATORS

The security filters for the Digital RE - R 3000 - Mini R, can be put on the lateral accessory holders, matt (code 26254).

Easy attachment of the protective dome:

- Disconnect the lamphead from the pack

- Loosen the 3 screws of the lamphead reflector

- Fit the clips underneath the screw heads and tighten the screws

- Put the dome in place and hook the springs into the airvent holes.

security filters

b) with both cables in the same power pack, it gives short flash duration.

a) with each cable in a separate power pack, it gives standard flash duration.

They can be used for standard or action :

14

18. LAMPHEAD COMPATIBILITY

* 2000 Ws, with MICRO and Digital AS series. ** 3000 Ws, with MICRO and Digital AS series

MAXIMUM

Compatible with : Digital 1500/3000 AS and MICRO AS ADAPTABLE

4000 Ws

Digital S

S4000 T4 T

A4 A4 A

Box Lite 4000 Box Lite 4000

R4000 R4

6000 Ws (2 x 3000) X6000N

4800 Ws (2 x 2400) Twin X4

Below is a table listing lampheads made since 1980 which are adaptable and indicates the equivalent in the current series.

1500/2400 WS S1500 N S 2000 S2 S

Mini 1500 A2000 A2

2400 Ws/2000* Mini A R 2000 R2 2400 Ws/2000* Mini R 2400 Ws/2000* Mini S 2400 Ws/2000* Chic S2 2400 Ws/2000* Digital SEE 2400 Ws/2000* Digital RE

3000 Ws**

Digital S

(4000 W)

Digital SE

R3000 S3000N S3000

A3000N A3000

Spot Lite 3000 Box Lite 3000 Boxlite 3000N Ringflash RF 3000

POWER From 1992 1988 1986 1980

8000 Ws (2 x 4000) X8000 X8 X

15

Accessories overviewAccessories overview

Accessories overview

ReflectorsReflectors

Reflectors

code code

code

Wide angle ø 16 cm /90° 26143 Compact ø 18 cm /60° 26144 Standard ø 21 cm /50° 26141 Mini soft 44 silver 26166 Mini soft 44 white 26168

Snoot 26425

GridsGrids

Grids

codecode

code Grid set for 18 cm 26135 Grid set for 21 cm 26025

Lightshaper carriersLightshaper carriers

Lightshaper carriers

codecode

code Carrier for 21 cm reflectors 26034 Bandoor set for 21 cm 26037

FiltersFilters

Filters

code code

code Set of 10 color/mixed for 21 cm x 21 cm 26243 Polarizing filter 21 cm 26244

Lightbanks ROTALUXLightbanks ROTALUX

Lightbanks ROTALUX

codecode

code Square 70 x70 cm 26178 Square 100 x100 cm 26179

Strip 95 x 35 cm 26180 Rectangular 130 x 50 cm 26181

Octagonal 100 cm 26183 Octagonal 135 cm 26184

Varistar UmbrellasVaristar Umbrellas

Varistar Umbrellas Varistar Umbrella 85 cm 26383 Varistar Umbrella 105 cm 26384

TripodsTripods

Tripods

code code

code

Tripod «Deluxe» 85-200 cm 30128B Tripod «Master» 105-385 cm 30149B

SpotsSpots

Spots

code code

code

Zoom 12° - 24° 26471

Mini spot 26420

fresnel spot 26450

BagsBags

Bags

code code

code Carrying bag for 3 stands + umbrellas 105 cm 33222 Bag for medium size Rotalux 33223 Bag for large size Rotalux 33224

Miscellaneous cordsMiscellaneous cords

Miscellaneous cords

code code

code Synchro cable 5 m lenght, caméra to units 11075 Mains cord 11070

Modelling lampsModelling lamps

Modelling lamps

(100-140 V) (100-140 V)

(100-140 V)

code code

code

Krypton lamp E27/100 W 23006 Halogen lamp E27/ 250 W/2000 hrs 23019

Halogen lamp 300 W/GX 6,35 23030 Halogen lamp 650 W/GX 6,35 23027

UmbrellasUmbrellas

Umbrellas

code code

code White diam. 105 cm 26375 Silver diam. 105 cm 26361 Translucent diam. 105 cm 26374

Trigger accessories codeTrigger accessories code

Trigger accessories code and flashmeterand flashmeter

and flashmeterand flashmeter

and flashmeter IR flash remote 40203 Radio set FRC1 19305

Additional cell with grip 11080

Modelling lamps (200-260 V)Modelling lamps (200-260 V)

Modelling lamps (200-260 V)

code code

code

Krypton lamp E27/100 W 23002 Halogen lamp E27/ 250 W/2000 hrs 23018

Halogen lamp 300 W/GX 6,35 23022 Halogen lamp 650 W/GX 6,35 23005

16

Visit our Web site : www.elinchrom.com

Elinca s.a E. Digital 1500 AS (73315) Printed in Switzerland

Elinchrom digital 1500 AS Instructions For Use Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
