Elinchrom Bridge User Manual

USER MANUAL

Elinchrom Bridge

Elinchrom LTD – Elinchrom Bridge – 06.2020 – 73057

TABLE OF CONTENTS

TECHNICAL DATA
OPERATION INSTRUCTIONS
TROUBLESHOOTING
LEGAL INFORMATION

NOTE:

Check for product updates before using!

Download the EL-Updater to update the
Bridge:

https://www.elinchrom.com/support_
downloads.php?q=software+updater

2

3

4

5

3

ELINCHROM BRIDGE CHARACTERISTICS

The Elinchrom Bridge is a small and robust bridge
between your EL flash units and your computer
or mobile devices MAC / WIN or iOS / Android
operating systems.

It implements Bluetooth standards for easy pairing
with mobile devices for IOS and Android and a new
EL-Skyport software compatible with MAC or WIN
operating systems via the USB connection. The
Elinchrom Bridge enables you to use all the remote
control features available with the new EL-Skyport
Application for IOS or Android or either with Mac
and WIN software.

The EL-Bridge is compatible with EL flash units
with built in EL-Skyport receiver (Ranger Quadra
RX, BRX family, D-Lite RX family, ELB family,
ELC family). Style, Ranger RX, Digital RX with the
Transceiver RX are not supported.

The Elinchrom Bridge comes with ¼” thread, which
can be mounted anywhere in the distance range of
your mobile device. There is a USB connection for
power supply, firmware updates and to connect the
Bridge directly with a computer to control enabled
flash units.

TECHNICAL DATA

Product name
(product code)

Supplied with Micro-USB cable

Accessories International Charger Kit

Compatible
products

Technology Bluetooth 4.0 / Skyport

Distance range
Bluetooth

Distance range
Skyport

4

Elinchrom Bridge (19338)

(19276), not included

EL flash units with built in
EL-Skyport receiver

Maximum 30 m to mobile
devices

Indoor: 60, outdoor: 200

Frequency 2.4 GHz

Battery autonomy
in h.

~10h

Battery voltage 3.7V

Battery cell
technology

Li-Po

Battery energy 2.035Wh

Battery charging
time

~2h

Charge voltage 5V via USB socket

USB socket
(specification)

Dimensions (L x
W x H) in mm /
inches

Weight in grams
/ Ibs

Micro USB, for charging,
firmware updates and
remote communication with
MAC / WIN computer

80.4 x 51.8 x 18.4 mm / 3.1
x 2 x 0.7

55 g / 0.12 lbs

On/Off Button:

short press, 1 sec.

Update mode:
long press, min. 5 sec.

Battery Status:

switch on, double press shortly
to see the battery status:

LED lights up green: 100% charged
LED lights up orange about 50% charged
LED lights up RED recharge immediately

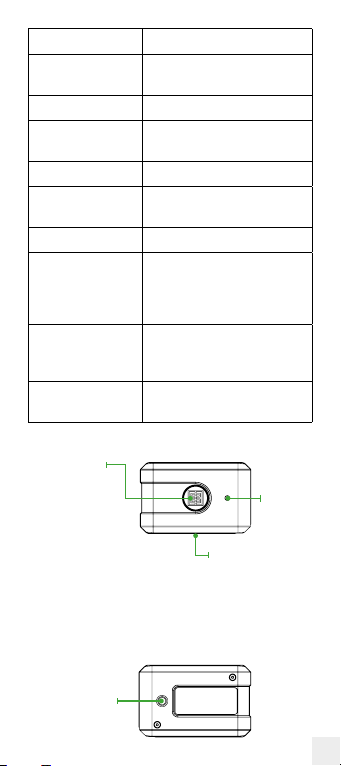

FRONT VIEW

USB charging socket

BACK VIEW

Inlet for
tripod
fixation

Status LED

5

OPERATION INSTRUCTIONS

TO SWITCH ON/OFF THE ELINCHROM BRIDGE

To switch on the Elinchrom Bridge, press and hold
ON/OFF (or power) button at least for one second
until the white LED will light up to indicate the
switching process (now release the button).

After that, the LED flashes in GREEN color,
indicating that the system is ready and waiting for
the Bluetooth connection.

Once a Bluetooth connection is established, the
LED will flash in BLUE.

When the Elinchrom Bridge is connected via USB
cable to a computer, the LED flashes GREEN and is
ready to operate the Elinchrom Studio software.

Switch OFF procedure is almost the same: press
and hold “ON/OFF (or power)” button at least for
one second, until the LED becomes white, then
release and the system will shutdown.

HOW TO OPERATE

IOS / Android

Install the Elinchrom App on your mobile device

Switch the Bridge on.

Open the Elinchrom APP

The BLUE LED will light up on the Bridge and the
App can scan now for compatible EL flash units.

MAC / WIN

Install the Elinchrom Studio software on your
computer

Connect the Bridge via the USB connection with
a cable

Open the Elinchrom software

The GREEN LED will light up on the Bridge and
the software can scan now for compatible EL flash
units.

6

HOW TO CHARGE

To charge the Elinchrom Bridge please connect it to
your computer with a micro-USB cable (included).
Alternatively, use the optional charger (International
Charger Kit, article code 19276. Not included).

FIRMWARE UPDATE

To update your Elinchrom Bridge, simply press
ON/OFF button for at least 5 secs. The white LED
will light up to indicate the switching process,
continue to hold power button until the LED lights
up in yellow and flashes two times each second,
meaning the Bridge is ready for updates. Download
the EL Updater software and follow the instructions.

TROUBLESHOOTING

Having this
problem?

The Bridge is not
switching on.

Limited distance
range.

Interferences with
other networks,
unrelilable
operation.

Please check the following
points:

Battery may be discharged.
Please charge the battery.

• Reposition the units.

• Increase the distance
from walls and
ceilings.

• Outdoors, the
distance range
can be reduced
due to humidity,
interferences,
obstacles etc.

• Try another
frequency channel
for both the units and
the application.

• Reduce the distance
between the unit and
the transmitter.

7

LEGAL INFORMATION

FCC CLASS B COMPLIANCE STATEMENT

Product
name

Accessories International Charger Kit (19276)

Trade name ELINCHROM

Name of
responsible
party

Phone [phone]

Fax [phone]

Email [e-mail]

This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:

1. This device may not cause harmful
interference.

2. This device must accept any interference
received, including interference that may
cause undesired operation.

This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment

8

Elinchrom Bridge (19338),
including the micro-US cable

ELINCHROM LTD

Avenue de Longemalle 11

1020 Renens

VD / Switzerland

off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the
equipment and receiver.

• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.

• Consult the dealer or an experienced radio/
television technician for help.

Modifications: Changes or modifications not
approved by ELINCHROM LTD can void the user’s
authority to operate the equipment.

Industry Canada (IC) Compliance Notice

This device complies with Industry Canada license­exempt RSS standard(s). Operation is subject to the
following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference,
including interference that may cause
undesired operation of the device

AVIS DE CONFORMITÉ AUX NORMES D’INDUSTRIE
CANADA (IC).

Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils radio
exempts de licence. Son exploitation est autorisée
aux deux conditions suivantes:

1. Il ne doit pas produire de brouillage; et

2. Il doit accepter tout brouillage radioélectrique
subi, même si celui-ci est susceptible d’en
compromettre le fonctionnement.

CE MARKING

The shipped version of this device complies with
the requirements of European Directives related
with it, therefore it is marked with the CE conformity
logo. For more information and to download the
European Declaration of Conformity of this product,
please, visit our website http://www.elinchrom.com/
support_downloads.php
