Elica ELI136S1, ELI142S1 Specification Sheet
LIGHT
LEONE ISLAND ELICA PRO SERIES
LED lamps
New commands
Elica Design Center

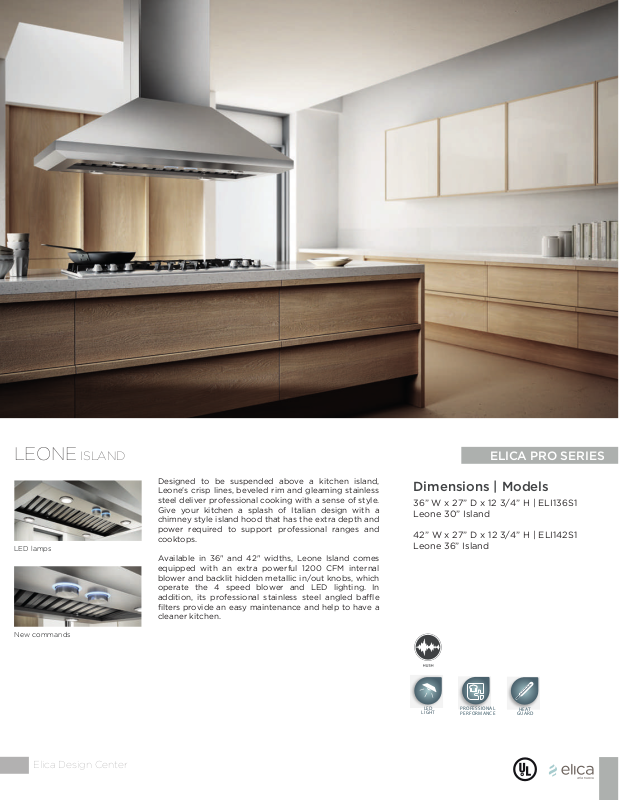

Designed to be suspended above a kitchen island,
Leone's crisp lines, beveled rim and gleaming stainless
steel deliver professional cooking with a sense of style.
Give your kitchen a splash of Italian design with a
chimney style island hood that has the extra depth and
power required to support professional ranges and
cooktops.
Available in 36" and 42" widths, Leone Island comes
equipped with an extra powerful 1200 CFM internal
blower and backlit hidden metallic in/out knobs, which
operate the 4 speed blower and LED lighting. In
addition, its professional stainless steel angled baffle
filters provide an easy maintenance and help to have a
cleaner kitchen.
Dimensions | Models
36” W x 27” D x 12 3/4” H | ELI136S1
Leone 30” Island
42” W x 27” D x 12 3/4” H | ELI142S1
Leone 36” Island
LED
PROFESSIONAL
PERFO RMANCE
HEAT
GUARD
FEATURES Golden 24
FEATURES
Size (in) & TypeSize (in) & Type 36” or 42” wide Island Chimney
Finish
Controls
LEONE
Stainless Steel
IN/OUT Backlit Knob
Illumination
Installation Type
Blower Type
Filter Type
Noise (sones):
Telescopic Chimney Extension
Duct Transition
Electrical
Line Drawing
4 LED 7.5 watts LED light, replaceable lamps (1 intensity)
Ducted Only
Speed 1, 375 CFMs
Speed 2, 640 CFMs
Speed 3, 940 CFMs
Speed 4, 1200 CFMs
2, Dishwasher-Safe, Professional Stainless Steel, Angled Bae Filters
Min: 3.21, Max: 7.7 Sones
For heights 8'-0" - 10'-0" (ducted)
8" Round with Back Draft Damper (Top Only)
120 Volts, 60 Hertz
E
F
PLUS
D
A
B
Models
ELI136S1 ELI142S1
A 36” (91.4 cm) 42” (106.7 cm)
B 27” (68.6 cm)
C Max: 46
D 13
Min: 37
9
⁄16” (118.3 cm)
1
⁄2” (95.3 cm)
2
⁄16” (33.2 cm)
HUSH SYSTEM
An exclusive sound deadening technology that effectively reduces sound levels by
over 35%, compared to typical range hoods.
C
LED LIGHT
LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected
life time of over 20.000 hours, represents the most remarkable advantage of LED
light bulbs.
PROFESSIONAL PERFORMANCE
Special features and very high performances for models with aspiration capacity
between 600 and 1200 CFM’s, and noise level between 65 and 75 db(A) at maximum
PROFESSIONAL
speed. The ideal complement of PRO ranges.
PERF ORMANCE
HEAT GUARD
A safety feature that protects the hood and cabinetry from excessive heat, by sensing
extreme temperatures (>158 degrees) and will automatically adjusts the blower speed
HEAT
GUARD
to HIGH. Blower speed will automatically adjust back once temperatures drop to a
safe level.
Accessories
Optional Long Chimney Extension
CODE: KIT02785 / (30”, 36”)
E 12” (30.5 cm)
F 8” (20.3 cm)
