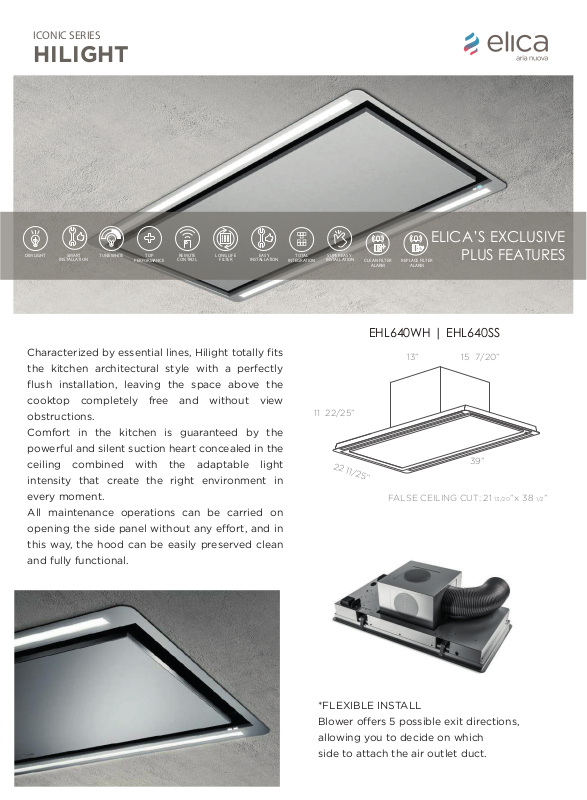

Elica EHL640SS Specification Sheet

ICONIC SERIES

HILIGHT

DIM LIGHT REMOTE

INSTALLATION

TUNE WHITESMART

TOP

PERFORMANCE

CONTROL

LONG LIFE

FILTER

EASY

INSTALLATION

TOTAL

INTEGRATION

SUPER EASY

INSTALLATION

CLEAN FILTER

ALARM

REPLACE FILTER

ALARM

ELICA’S EXCLUSIVE

PLUS FEATURES

Characterized by essential lines, Hilight totally fits

the kitchen architectural style with a perfectly

flush installation, leaving the space above the

cooktop completely free and without view

obstructions.

Comfort in the kitchen is guaranteed by the

powerful and silent suction heart concealed in the

ceiling combined with the adaptable light

intensity that create the right environment in

every moment.

All maintenance operations can be carried on

opening the side panel without any effort, and in

this way, the hood can be easily preserved clean

and fully functional.

11 22/25”

22 11/25”

EHL640WH | EHL640SS

13”

FALSE CEILING CUT: 21 13/20” x 38 1/2”

15 7/20”

39”

*FLEXIBLE INSTALL

Blower offers 5 possible exit directions,

allowing you to decide on which

side to attach the air outlet duct.

ICONIC SERIES

HILIGHT

SPECIFICATIONS

Model:
Dimensions:
Blower Type (internal):
Blower Performance:
Speed 1
Speed 2
Speed 3
Boost
Noise (sones):

At working speed

Finish:

Controls:
Illumination:
Filter type:
Duct transition:
Installation type:
Electrical:

39” UNIT

EHL640WH

White Glass with

Metal white frame

3S + 1B Remote Control

Grease aluminum filter

HOME VENTILATING INSTITUTE

39” UNIT

EHL640SS

39” x 22 ”

600 CFM

215 CFM
345 CFM
485 CFM
600 CFM

2.1

Stainless Steel

Strip LED 2 x 14 W

2”

Duct Out

120v 60 Hz

KITS:

Recirculating Kit:

WARRANTY:

PLUS FEATURES

DIM-LIGHT- The Dimmer allows you to adjust the brightness of the light as
you wish.With Elica, lighting is customized in a discreet, personal and
practical way, in order to contribute in creating the perfect kitchen
atmosphere.

TUNE WHITE - The ability to choose the preferred shade of white always
creates the right atmosphere. The Kelvin degrees regulation starts from
a very warm tone, 2400°K, to experience intimate and convivial
moments, up to a cold colour, 5000°K.

REMOTE CONTROL - Elica’s ADA compliant Remote Control, provides
added convenience to the typical user, as well as, full function access
for those with limited mobility.

KIT0167875

2 YEARS PARTS AND LABOR, EARN A 3RD YEAR OF FULL FACTORY

WARRANTY REGISTERING YOUR PRODUCT ON ELICA.COM

** For valid warranty extension, register within 3 months
from purchase. For USA & Canada Users only

*The product images shown are for illustration purposes
only and may not be an exact representation of the product.

SMART INSTALLATION - Elica thinks of every aspect of the product, taking
into great consideration even the installation phase of a hood, be it
wall-mounted or recessed, or an aspiration cooktoop.
Assembly and connection operations are simple and intuitive.

TOP PERFORMANCE - Excellent performance for models equipped with
this plus. High fume capturing capacity with an average aspiration
range of 600 CFM's. with low noise levels, 1.2 - 1.7 sones at working
speed.

LONG LIFE FILTER - One of a kind odour filter, capable of regenerating
itself and of lasting up to 3 years. To maintain these characteristics, the
filter only requires simple maintenance: wash every 2 or 3 months with
hot water and mild soap (also in dishwasher at 65 degrees) and dry in
the oven for ten minutes at 100 degrees.

SUPER EASY

INSTALLATION

SUPER EASY INSTALLATION -With the exclusive Elica system, installation
can be done in total safety in just a few steps, safeguarding the look of
the product and the space in which it is positioned.

replace filter alarm- When activated, your hood will emit a “beep” signal
let you know when is time to replace the carbon filters. See instructions
manual to activate feature.

TOTAL

INTEGRATION

TOTAL INTEGRATION - The Total Integration products have been
designed to be seamlessly integrated into the kitchen whilst maintaining
harmony with the surroundings.

CLEAN FILTER ALARM - When activated, your hood will emit a “beep”
signal to let you know when is time to clean your filters. For some models,
an intermittent light will remain active until cleaning filter action is
completed. See instructions manual to activate feature.
