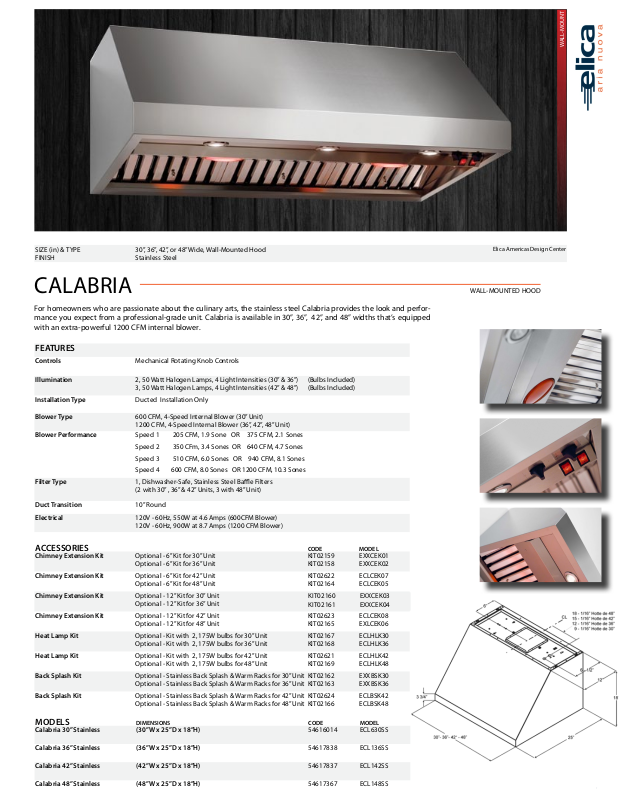

Elica ECL136SS, ECL142SS, ECL148SS, ECL630SS Specification Sheet

WALL-MOUNT

SIZE (in) & TYPE 30”, 36”, 42”, or 48” Wide, Wall-Mounted Hood
FINISH Stainless Steel

CALABRIA

For homeowners who are passionate about the culinary arts, the stainless steel Calabria provides the look and perfor­mance you expect from a professional-grade unit. Calabria is available in 30”, 36”, 42”, and 48” widths that’s equipped
with an extra-powerful 1200 CFM internal blower.

FEATURES

Controls Mechanical Rotating Knob Controls

Illumination 2, 50 Watt Halogen Lamps, 4 Light Intensities (30” & 36”)

Installation Type Ducted Installation Only

Blower Type 600 CFM, 4-Speed Internal Blower (30” Unit)

Blower Performance Speed 1 205 CFM, 1.9 Sone OR 375 CFM, 2.1 Sones

Filter Type 1, Dishwasher-Safe, Stainless Steel Bae Filters

Duct Transition 10” Round

Electrical 120V - 60Hz, 550W at 4.6 Amps (600CFM Blower)

3, 50 Watt Halogen Lamps, 4 Light Intensities (42” & 48”)

1200 CFM, 4-Speed Internal Blower (36”, 42”, 48” Unit)

Speed 2 350 CFm, 3.4 Sones OR 640 CFM, 4.7 Sones

Speed 3 510 CFM, 6.0 Sones OR 940 CFM, 8.1 Sones

Speed 4 600 CFM, 8.0 Sones OR 1200 CFM, 10.3 Sones

(2 with 30” , 36” & 42” Units, 3 with 48” Unit)

120V - 60Hz, 900W at 8.7 Amps (1200 CFM Blower)

(Bulbs Included)
(Bulbs Included)

Elica Americas Design Center

WALL-MOUNTED HOOD

PB 1>

ACCESSORIES CODE MODEL

Chimney Extension Kit Optional - 6” Kit for 30” Unit

Chimney Extension Kit Optional - 6” Kit for 42” Unit

Chimney Extension Kit Optional - 12” Kit for 30” Unit

Chimney Extension Kit Optional - 12” Kit for 42” Unit

Heat Lamp Kit Optional - Kit with 2, 175W bulbs for 30” Unit

Heat Lamp Kit Optional - Kit with 2, 175W bulbs for 42” Unit

Back Splash Kit Optional - Stainless Back Splash & Warm Racks for 30” Unit

Back Splash Kit Optional - Stainless Back Splash & Warm Racks for 42” Unit

MODELS DIMENSIONS CODE MODEL

Calabria 30” Stainless (30”W x 25”D x 18”H) 54616014 ECL630SS

Calabria 36” Stainless (36”W x 25”D x 18”H) 54617838 ECL136SS

Calabria 42” Stainless (42”W x 25”D x 18”H) 54617837 ECL142SS

Calabria 48” Stainless (48”W x 25”D x 18”H) 54617367 ECL148SS

Optional - 6” Kit for 36” Unit

Optional - 6” Kit for 48” Unit

Optional - 12” Kit for 36” Unit

Optional - 12” Kit for 48” Unit

Optional - Kit with 2, 175W bulbs for 36” Unit

Optional - Kit with 2, 175W bulbs for 48” Unit

Optional - Stainless Back Splash & Warm Racks for 36” Unit

Optional - Stainless Back Splash & Warm Racks for 48” Unit

KIT02159
KIT02158

KIT02622
KIT02164

KIT02160
KIT02161

KIT02623
KIT02165

KIT02167
KIT02168

KIT02621
KIT02169

KIT02162
KIT02163

KIT02624
KIT02166

EXXCEK01
EXXCEK02

ECLCEK07
ECLCEK05

EXXCEK03
EXXCEK04

ECLCEK08
EXLCEK06

ECLHLK30
ECLHLK36

ECLHLK42
ECLHLK48

EXXBSK30
EXXBSK36

ECLBSK42
ECLBSK48
