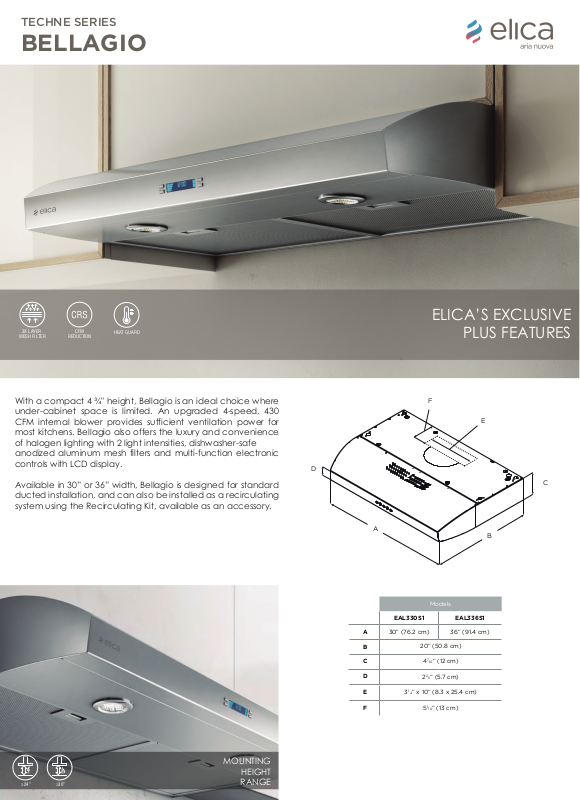

Elica EBL436SS, EBL430SS Specifications
TECHNE SERIES
BELLAGIO
3X LAYER
MESH FILTER
CFM
REDUCTION
HEAT GUARD
With a compact 4 ¾" height, Bellagio is an ideal choice where
under-cabinet space is limited. An upgraded 4-speed, 430
CFM internal blower provides sufficient ventilation power for
most kitchens. Bellagio also offers the luxury and convenience
of halogen lighting with 2 light intensities, dishwasher-safe
anodized aluminum mesh filters and multi-function electronic
controls with LCD display.
Available in 30” or 36” width, Bellagio is designed for standard
ducted installation, and can also be installed as a recirculating
system using the Recirculating Kit, available as an accessory.
ELICA’S EXCLUSIVE
PLUS FEATURES
F
E
D
C
A
B
≥24” ≥30”
MOUNTING
HEIGHT
RANGE
Models
EAL330S1 EAL336S1
30” (76.2 cm) 36” (91.4 cm)
A
B
C 4
D
E 3
F 5
20” (50.8 cm)
7
�10” (12 cm)
2
�5” (5.7 cm)
2
1
�4” x 10” (8.3 x 25.4 cm)
1
�10” (13 cm)
TECHNE SERIES
BELLAGIO
SPECIFICATIONS
30” UNIT 36” UNIT
Model:
Dimensions:
Blower Type(internal):
Blower Performance:
Speed 1
Speed 2
Speed 3
Speed 4
Noise (sones):
Woking Speed
Finish:
Controls:
Illumination:
Filter Type:
Installation Type:
Duct Transition:
Electrical:
KITS:
Optional Recirculating Kit
Optional Stainless Steel Mesh
Grease Filter
Optional Backdraft Damper,
7” Round
EBL430SS
30”W x 20”D x 4 3/4”H
36”W x 20”D x 4 3/4”H
EBL436SS
430 CFM, 4-Speed Internal
160 CFM
240 CFM
310 CFM
430 CFM
Min: 1.4, Max: 7.1
Stainless Steel
Multi-function electronic with LCD display
2, 50 Watt Halogen Lamps, 2 Light Intensities (bulbs included)
2, Dishwasher-Safe, Anodized Aluminum Mesh
Ducted or Recirculating Installation (Recirculating Kit Sold Separately)
3 1/4” x 10” with Back Draft Damper (top or rear), or 7” Round (top) sold separately
120V – 60 Hz, 445 Watts at 3.6 Amps
KIT02178
KIT02591
KIT02723
KIT02179
KIT02592
CONSUMABLE PARTS:
Replacement Grease Filter (1)
Replacement Carbon Filter (1)
Replacement Light Bulb (1)
PLUS FEATURES
3X LAYER GREASE FILTER - Elica aluminum mesh filters are a step above
competition, featuring triple layered, anodized aluminum that is woven
into a highly dense mesh. The thick mesh captures more grease,
anodization helps resist staining and provides durability to repeated
cleanings in the dishwasher.
HEAT GUARD - A safety feature that protects the hood and cabinetry
from excessive heat, by sensing extreme temperatures (>158 degrees)
and will automatically adjusts the blower speed to HIGH. Blower speed
will automatically adjust back once temperatures drop to a safe level.
GF04BA
TM01FA
2006BH
*Consumable parts are sold in units of one (1). Order accordingly
CFM REDUCTION - CFM Reduction System (CRS), is an exclusive feature
to Elica hoods, which enables the user to reduce directly in the glass
touch control the maximum blower CFM, to meet local code
requirements.
GF04BB
TM01FB
