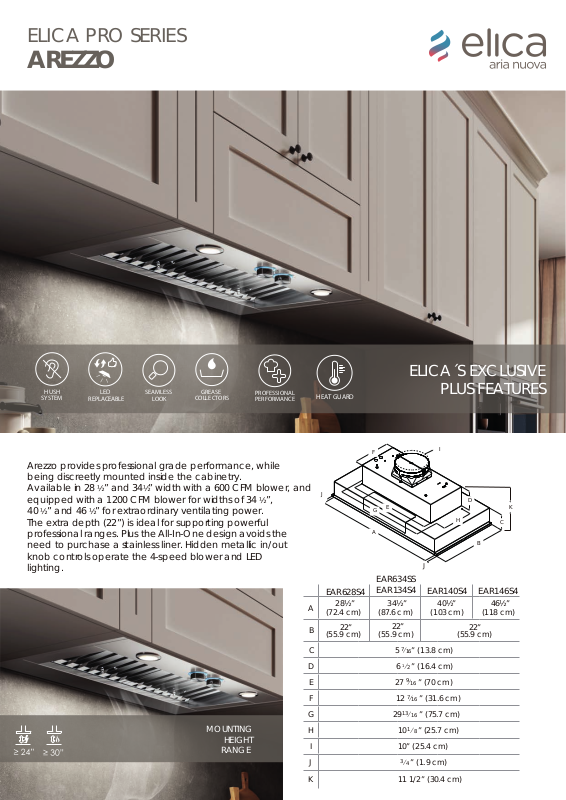

Elica EAR634SS, EAR628S4, EAR140S4 Specification Sheet
ELICA PRO SERIES
AREZZO
HUSH
SYSTEM
LED
REPLACEABLE
SEAMLESS
LOOK
GREASE
COLLECTORS
PROFESSIONAL
PERFORMANCE
Arezzo provides professional grade performance, while
being discreetly mounted inside the cabinetry.
Available in 28 ½” and 34 ” width with a 600 CFM blower, and
½
equipped with a 1200 CFM blower for widths of 34 ½”,
40 ½” and 46 ½” for extraordinary ventilating power.
The extra depth (22”) is ideal for supporting powerful
professional ranges. Plus the All-In-One design avoids the
need to purchase a stainless liner. Hidden metallic in/out
knob controls operate the 4-speed blower and LED
lighting.
MOUNTING
HEIGHT
RANGE
ELICA´S EXCLUSIVE
HEAT GUARD
F
J
E
G
A
EAR634SS
EAR628S4
28½”
A
(72.4 cm)
B
C 5
D 6
E 27
F 12
G 29
H 10
I 10” (25.4 cm)
J
22”
(55.9 cm)
EAR134S4
34½”
(87.6 cm)
22”
(55.9 cm)
7
16
1
9
13
3
4
PLUS FEATURES
J
EAR140S4 EAR146S4
(103 cm)
” (13.8 cm)
2 ” (16.4 cm)
” (70 cm)
16
7
16 ” (31.6 cm)
” (75.7 cm)
16
1
8” (25.7 cm)
” (1.9 cm)
I
40½”
D
H
B
(118 cm)
22”
(55.9 cm)
K
C
46½”
K
11 1/2” (30.4 cm)
ELICA PRO SERIES
AREZZO
SPECIFICATIONS
Model:
Dimensions:
Blower Type(internal):
Blower Performance:
Speed 1
Speed 2
Speed 3
Speed 4
Noise (sones):
Woking Speed
Finish:
Controls:
Illumination:
(replaceable lamps 1 intensity)
Filter Type:
Angled Baffle Filters:
Duct Transition:
Installation Type:
Electrical:
28” Unit
EAR628S4
28 1/2”W x 22”D x 11 1/2”H
600 CFM(4-speed)
90 CFM
330 CFM
490 CFM
600 CFM
Min:2 , Max:9.6
Fully retractable rotating knobs with blue backlighting
2 LED, 7.5 Watts
Dishwasher-Safe, Professional Stainless Steel Baffle Filter
1 2
34” Unit 40” Unit
EAR634SS (600 CFM)
EAR134S4 (1200 CFM)
34 1/2”W x 22”D x 11 1/2”H
600 CFM / 1200 CFM
(4 speed)
90 CFM
330 CFM
490 CFM
600 CFM
380 CFM
660 CFM
950 CFM
1200 CFM
Min:2, Max: 9.5
Stainless Steel
2 LED, 6.5 Watts (
2 LED, 7.5 Watts (
EAR634SS)
EAR134S4)
2
10” Round with BackDraft Damper (top only)
Ducted Installation Only
120V - 60 Hz
EAR140S4 EAR146S4
40 1/2”W x 22”D x 11 1/2”H
1200 CFM(4-speed)
380 CFM
660 CFM
950 CFM
1200 CFM
Min:2.05, Max:7.5
4 LED, 7.5 Watts 4 LED, 7.5 Watts
HOME VENTILATING INSTITUTE
46” Unit
46 1/2”W x 22”D x 11 1/2”H
1200 CFM(4-speed)
380 CFM
660 CFM
950 CFM
1200 CFM
Min:2.05, Max:7.5
3
CONSUMABLE PARTS:
Replacement
GF09GA
Grease Filter (1):
Replacement
Light Bulb (1):
WARRANTY:
*Consumable parts are sold in units of one (1). Order accordingly
LMP0131098 LMP0131098 LMP0131098
2 YEARS PARTS AND LABOR, EARN A 3RD YEAR OF FULL FACTORY
LMP0131098A (
LMP0131098 (
WARRANTY REGISTERING YOUR PRODUCT ON ELICA.COM
PLUS FEATURES
HUSH SYSTEM - An exclusive sound deadening technology that
effectivelyreduces sound levels by over 35%
LED CONSUMER REPLACEABLE BULB - High quality LED lighting
usually requires a skilled technician to replace lamps. Avoid this
expense with Elica´s new LED lamps that enable homeowners
to replace in seconds
SEAMLESS CRAFTSMANSHIP - Heavy gauge stainless steel
“Seamless” construction that delivers refined elegance.
GF09FA GF09EAGF09EA
EAR634SS)
EAR134S4)
** For valid warranty extension, register within 3 months
from purchase. For USA & Canada Users only
*The product images shown are for illustration purposes
only and may not be an exact representation of the product.
STAINLESS STEEL BAFFLE FILTERS WITH GREASE COLLECTORS Designed for high airflow cooking, the “S” shape design traps
high volumes of grease
PROFESSIONAL PERFORMANCE - Special features and high
performances for models with aspiration capacity between
600 and 1200 CFM’s
HEAT GUARD - Senses extreme temperatures (>158 degrees)
and automatically adjusts the blower speed to HIGH
