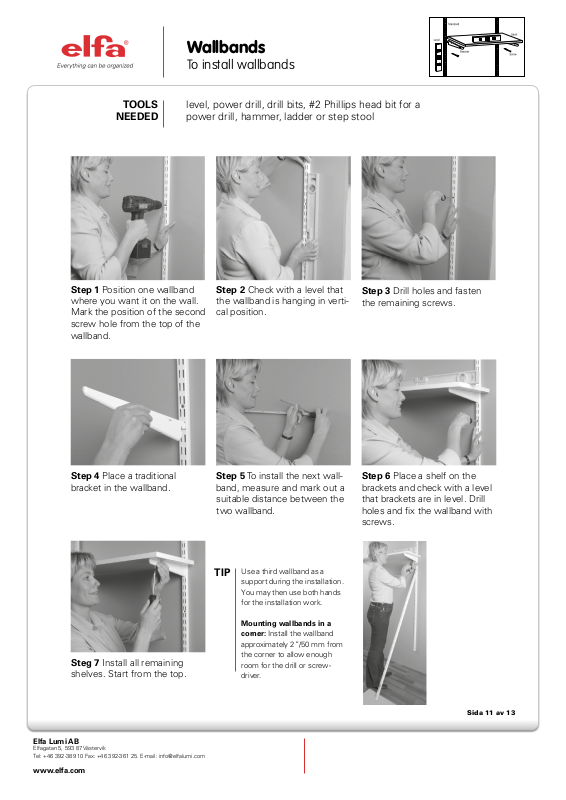

Elfa Wallbands User Manual

Wallbands

To install wallbands

TOOLS

NEEDED

level, power drill, drill bits, #2 Phillips head bit for a
power drill, hammer, ladder or step stool

Step 1 Position one wallband
where you want it on the wall.
Mark the position of the second
screw hole from the top of the

wallband.

Step 2 Check with a level that
the wallband is hanging in verti­cal position.

Step 3 Drill holes and fasten
the remaining screws.

Step 4 Place a traditional
bracket in the wallband.

Steg 7 Install all remaining
shelves. Start from the top.

Elfa Lumi AB

Elfagatan 5, 593 87 Västervik
Tel: [phone] Fax: [phone]. E-mail: [e-mail]

www.elfa.com

Step 5 To install the next wall-

band, measure and mark out a
suitable distance between the
two wallband.

Use a third wallband as a

TIP

support during the installation.
You may then use both hands
for the installation work.

Mounting wallbands in a
corner: Install the wallband

approximately 2”/50 mm from
the corner to allow enough
room for the drill or screw­driver.

Step 6 Place a shelf on the
brackets and check with a level
that brackets are in level. Drill
holes and fix the wallband with
screws.

Sida 11 av 13
