User Manual
Ceramic Cooktop Model : CRSF745
Please read this instruction manual carefully before using your new ceramic cooktop
and keep the manual in a safe place for future reference.
1
High temperature protection
Safety
Dear customer,
You will have many years of cooking enjoyment with your new cooktop.
Please read this manual carefully and keep in a safe place for future reference.
Please pay particular attention to the Safety and Maintenance section on page 8.
The installation and connection of the cooktop must only be carried out by
qualified personnel.
Repairs to the cooktop are only to be carried out by approved service persons.
Repairs carried out by inexperienced persons may cause injury or malfunctioning.
If your appliance needs repair contact your service centre.
Flush-mounted appliances may only be operated following installation in suitable
cabinets and workplaces which conform to the relevant standards. This ensures
sufficient protection against electric shock as required by certification body.
If your cooktop malfunctions or fractures switch off all cooking zones and contact
your service centre.
If the surface is cracked, switch off the appliance to avoid the possibility of electric
shock. Do not re-use your cooktop until the glass surface has been changed.
When using the cooktop, never use aluminium foil, products wrapped in aluminium
foil or deep frozen food in aluminium cookware.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
WARNING: Accessible parts may become hot during use. Young children should
be kept away.
This appliance is not intended for use by young children or infirm persons unless
they have been adequately supervised by a responsible person to ensure that
they can use the appliance safely. Young children should be supervised to
ensure that they do not play with the appliance.
The cooking zones will become hot when you cook. Always keep small children
away from the appliance.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
A sensor mounted inside the cooker will detect any excessive heat and the
cooking surface power will be disconnected.
2
Safety
Residual heat indicators
After using the hob, waste heat remains in the heating area. The
power nixie tube shows the code “H”, warning to be away from the
heating area.
Auto shut down protection
During the hob working, it is shut off automatically when the default
timing reach by the program if without operating. If several heating
zones work simultaneously, the hob will be automatically shut of f when
anyone heating area reaches it’s default timer. The default working
timer for various power levels are shown in the table below:
Installation
Selection of installation equipment
Drill holes on the table surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 50 mm space shall
be preserved around the hole.
Be sure the thickness of the table surface is at least 30mm. Please select
heat-resistant table material to avoid larger deformation caused by the heat
radiation from the hotplate.
As shown in Figure (1)
1
Power level 1 2 3 4 5 6 7 8 9
Default working
time(hour)
8 8 8 4 4 4 2 2 2
Note: The safety distance between the ceramic hob and the cupboard
above the hotplate should be at least 760mm.
Air intake
Figure (2)
mini 5 cm
mini 2 cm
3
Under any circumstances, make sure the ceramic hob is well
ventilated and the air inlet and outlet are not blocked.
Ensure the ceramic hob is in good work state. As shown in
Figure (2)
2
3
Fix the hob on the table by screw four brackets on the bottom of hob
(see picture) after installation. Adjust the bracket position to suit for
different table top thickness.
screw
bracket
base
screw hole
Air exit
mini 5 mm
4
Cautions
The ceramic hob must be installed by qualified personnel
The ceramic hob shall not be mounted to cooling equipment,
dishwashers and rotary dryers.
The ceramic hob shall be installed such that better heat radiation
can be ensured to enhance its reliability.
The wall and induced heating zone above the table surface shall
withstand heat.
To avoid any damage, the sandwich layer and adhesive must be
resistant to heat.
A steam cleaner is not to be used.
A board is must to be installed underneath the hob.
4.
5.
1.
2.
3.
6.
7.
If the cable is damaged or to be replaced, the operation must be
carried out the by after-sale agent with dedicated tools to avoid
any accidents.If the appliance is being connected directly to the
mains an omnipolar circuit-breaker must be installed with a
minimum opening of 3mm between contacts. The installer must
The cable must not be bent or compressed.
The cable must be checked regularly and replaced by authorised
technicians only.
4
Figure (3)
Power line connection
ensure that the correct electrical connection has been made and
that it complies with wiring rules.
The installer must ensure that the correct electrical connection has
been made and that it complies with wiring rules.
The socket shall be connected according to the relevant standard
blue
green-yellow
N2 N1 L2 L1
grey
brown
black
220-240V
220-240V
blue
green-yellow
N L
grey
brown
black
220-240V
PE
PE
connet to the main power supply
connet to the main power supply
220-240V 2+2N~
220-240V~
or connected to a single-pole cut-out. 30AMP minimum supply.

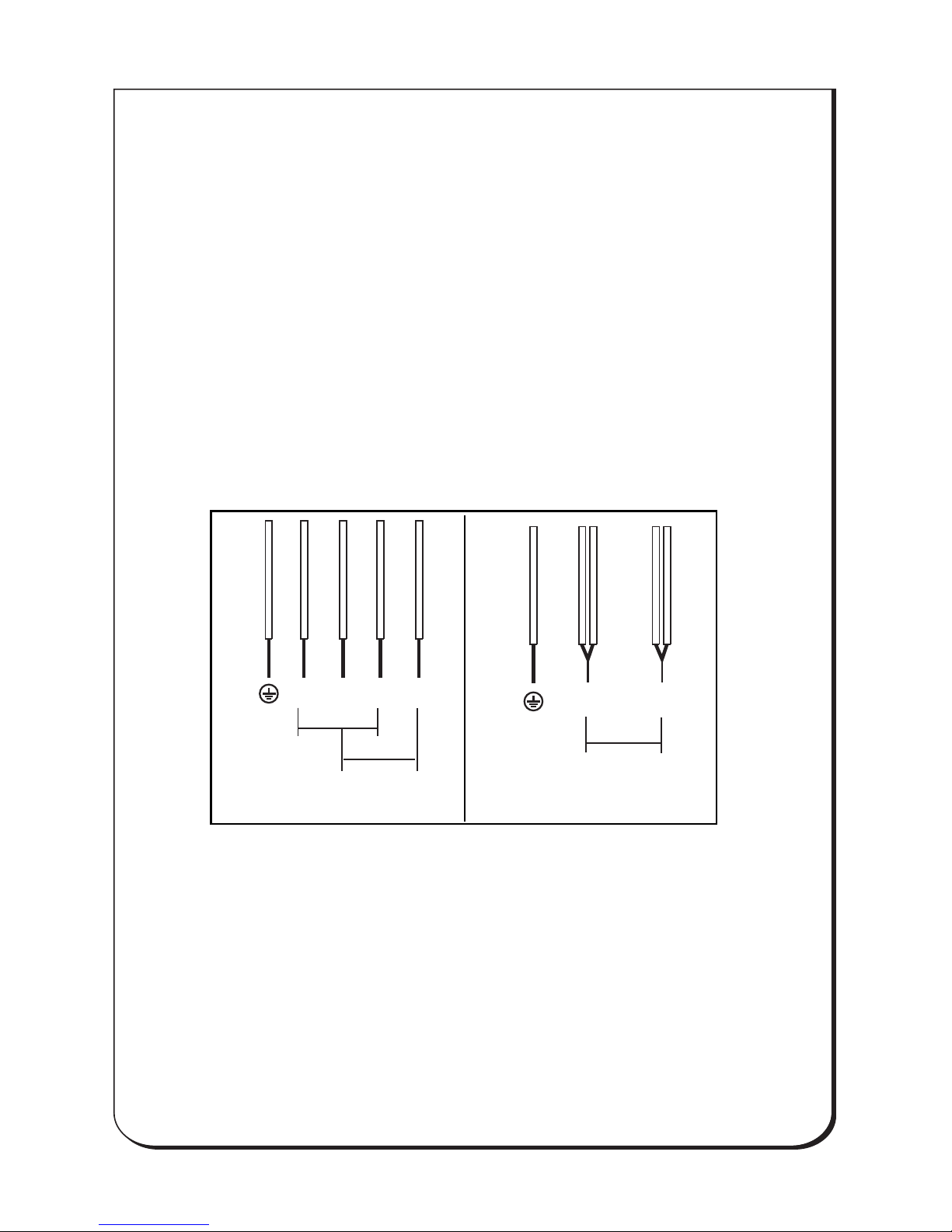

The method of connection is shown in Figure (3):
or technicians. Please never conduct the operation by
yourself.
The ceramic hob appearance

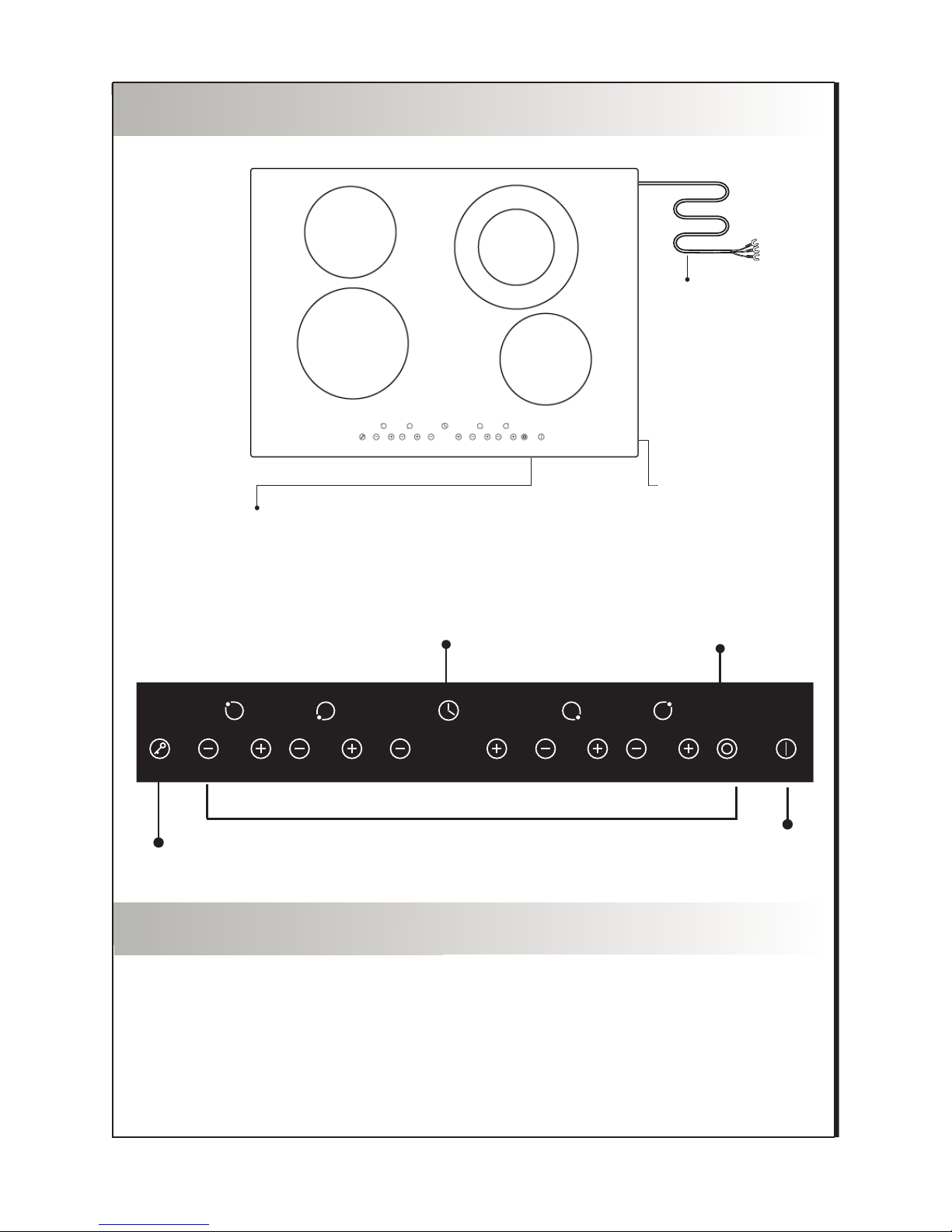

Schematic diagram of the control panel
Instructions for Use
5
Preparation before using
Put the pot in the center of the heating zone.
Double loop key
Lock key
Power cord
ON/OFF
Glass plate
Control panel
ON/OFF
Power/Timer
regulating key
Timer
After turning on, the buzzer will beep once. All the indicators light up for
one second then go out indicating the cooking hob has entered into
standby mode.
6
ON/OFF
Note: 1. In standby working mode, touch the “ON/OFF” symbol
the heating zone will restore to the standby workin
g
mode if there is no heat setting within 2 minutes
.
2. Every heating zone is independent each othe
r.
Heating zone selection function: If you want to use bigger
heatin
g zone, please touch the heating zone selection
symbol
when the hob is in working mode. You can select
the
size of the heating zone according to the size of the
po
t.
Operation Instructions:
Note: 1. This function is available only in the left front heating zone.
2. You can select the function from level 1 to level 9.
3. When the heating zone is in double loop working mode,
the double loop indicator will light up.
After the " ON/OFF "key is pressed,all the indicators show
" - ".Then you can set the heat setting of corresponding
heating zone
Timing function
Press the timing key, then the indicator flashes, and at this
point, you can set time.Using the “+" and “-“ keys, you
can realize the setting of timing from 1 to 99 minutes. When
the “+” key is pressed, the set time wil l increase by 1
minute;when the“-“ key is pressed,the set time will decrease
by 1 minute; when the set time exceeds 99 minutes,it will
restore to 0 minute automatically.
If press the "timer" key , the indicator displays 0.
Timing confirmation:
1.Select the power level of the cooking zone, then press
the "Timer" button, you can set the timer.
2. Once the timing indicator flashes for 5 seconds, the
set time will be confirmed to be valid automatically .
3 After selecting a set time, press the “Timing” key
confirming its effectiveness.
Child safety
Childproof lock: To ensure the safety of children, the
hob is provided with the function of childproof lock.
Activating the childproof lock: When the lock is
deactivated, touch the “childproof lock” symbol to activate
the childproof lock. However when in the locked position,
the "stop" touch control has priority and cuts off the
power to the hob. And the other buttons are disabled
except the “stop” touch control button and the “Lock”
button.
Deactivating the childproof lock: When the hob in the
locking mode, you can deactivate the childproof lock
by holding the “childproof lock” symbol.
The power of each heating zone are shown as follow:
Left rear
1200W 1800W 1000W 1200W
Right rear
Right front
Heating zone
Power
Inner outter
1200W
7
Left front
Never wash the induction
cooktop with water directly to
avoid danger.
Keep electrical appliance out
of reach from children or
inform person. Do not let them
use the appliances without
supervision.

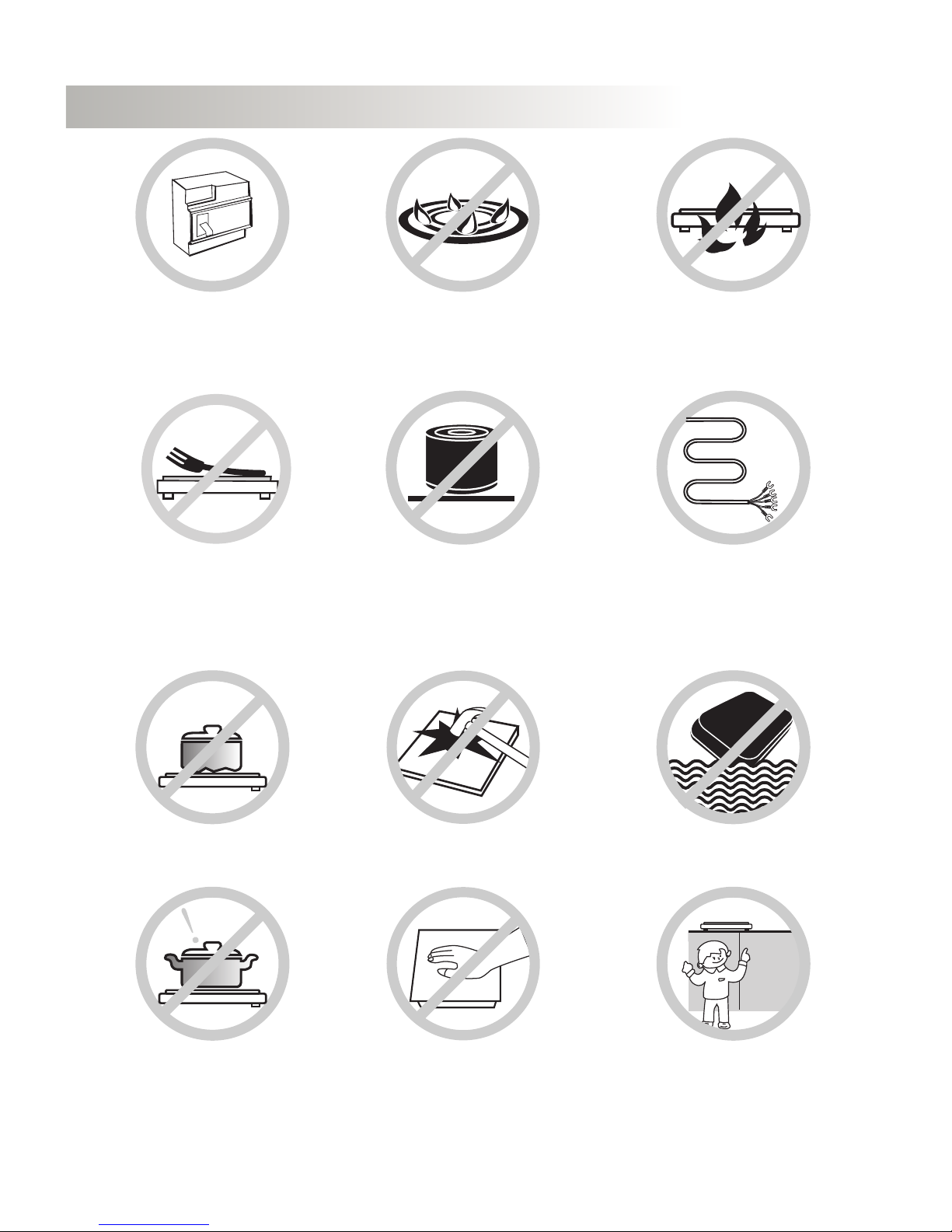

Safety Reminding and Maintenance
After being used for a long
time, the corresponding
heating zone of the ceramic
cooktop is till hot. Never
touch the ceramic surface to
avoid burning.
If the supply cord is damaged
, it must be replaced by the
manufacturer, its service agent
or similarly qualified persons
in order to avoid a hazard.
8
Never have the ceramic
cooktop to work without
food inside, otherwise its
operational performance may
be affected and danger may
happen.
A dedicated power protection
air swith protection air switch
must be incorporated in the
fixed wiring in accordance
with the wiring rules.
Never use the ceramic cooktop
in high temperature
environments such as near a
gas stove or kerosene stove.
For sealed foods such as
canned goods, please do not
heat them before opening their
covers so as to avoid any
dangers of explosion due to
heating expansion.
If the surface is cracked, swith
off the appliance to avoid the
possibility of electric shock.
Do not place rough or uneven
appliances, which may
damage the ceramic surface.
Do not put any detergents or
flammable materials in the
equipment installed under the
ceramic cooktop.
Metallic objects suc h as
knives, forks,spoons and lids
should not be placed on the
hotplate since they can get
hot.
DISPOSAL: Do not dispose this
product as unsorted municipal
waste. Collection of such waste
separately for special treatment
is necessary.
9
Clean the ceramic cooktop
on a regular basis to prevent
foreign matters from entering
the fan thus influencing the
normal operation.
Light
Clean with hot water and
damp sponge
Cleaning sponge
Accumulation
of dirt
Clean with hot water and
abrasive sponge
Special cleaning
sponge for ceramic
glass
Rings and lime
crumbles
Sweetmeat,
melt aluminum
or plastics
Apply white vinegar to the
polluted zone, then wipe it
dry with soft cloth or a
special article available in
local markets
Use a scraper suitable for
ceramic glass (to protect
glass, a silicon product is
preferred) to remove
residuals
Special adhesive for
ceramic glass
Special adhesive for
ceramic glass
Cleanness and Maintenance
You can easily clean the surface of the ceramic cooktop if
following the methods given in the table.
Hint: please disconnect power before the cleaning.
T ype of contamination
Method of cleaning
Articles used for
cleaning
Indoor use only.
Special DecIaration
All the contents in this material have been subjected to careful check.
For any mistake and omission in printing or misunderstanding of the
contents,the company keeps the right of interpretation.
Addition:any technical improvement will be placed in the revised
manual without notice;for product appearance and color is according
to the actual one
10
Maintenance Service Warranty
For any failure of the product, please contact the special
maintenance department or the customer service center.
1. There is a year’s guarantee with the our brand ceramic cooker
hob.
2. The period of warranty shall start from the date on which the invoice
is issued.
3. Any one of the following cases is without the warranty:
Damages caused by improper use, storage and maintenance of
the consumer.
Damages caused by unauthorized disassembly and repair in the
maintenance department not designated by the company.
Model of invoice and model of product maintained are not in
conformity or are altered.
Valid invoice can not be presented.
Damages caused by force majeure.
Using the ceramic cooker hob for commercial purposes.
Loading...
