Elexa Consumer DMWV1 User Manual

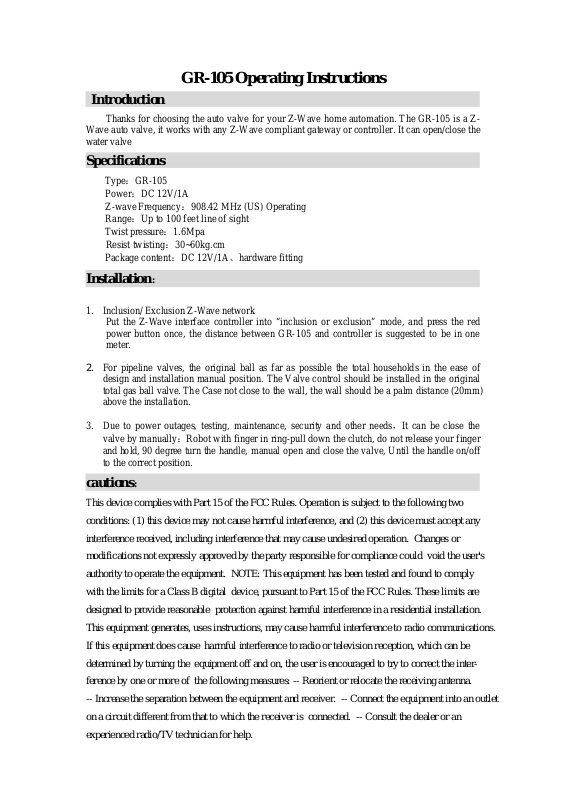

GR-105 Operating Instructions

Introduction

Thanks for choosing the auto valve for your Z-Wave home automation. The GR-105 is a Z­Wave auto valve, it works with any Z-Wave compliant gateway or controller. It can open/close the
water valve

Specifications

Type：

Power：DC 12V/1A

Z-wave Frequency：908.42 MHz (US) Operating

Range：Up to 100 feet line of sight

Twist pressure：1.6Mpa

Resist twisting：30~60kg.cm

Package content：DC 12V/1A、hardware fitting

GR-105

Installation：

1. Inclusion/ Exclusion Z-Wave network

Put the Z-Wave interface controller into “inclusion or exclusion” mode, and press the red

power button once, the distance between GR-105 and controller is suggested to be in one

meter.

2. For pipeline valves, the original ball as far as possible the total households in the ease of

design and installation manual position. The Valve control should be installed in the original
total gas ball valve. The Case not close to the wall, the wall should be a palm distance (20mm)
above the installation.

3. Due to power outages, testing, maintenance, security and other needs，It can be close the

valve by manually：Robot with finger in ring-pull down the clutch, do not release your finger
and hold, 90 degree turn the handle, manual open and close the valve, Until the handle on/off
to the correct position.

cautions：

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation. Changes or
modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment. NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses instructions, may cause harmful interference to radio communications.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the inter­ference by one or more of the following measures: -- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet
on a circuit different from that to which the receiver is connected. -- Consult the dealer or an
experienced radio/TV technician for help.
