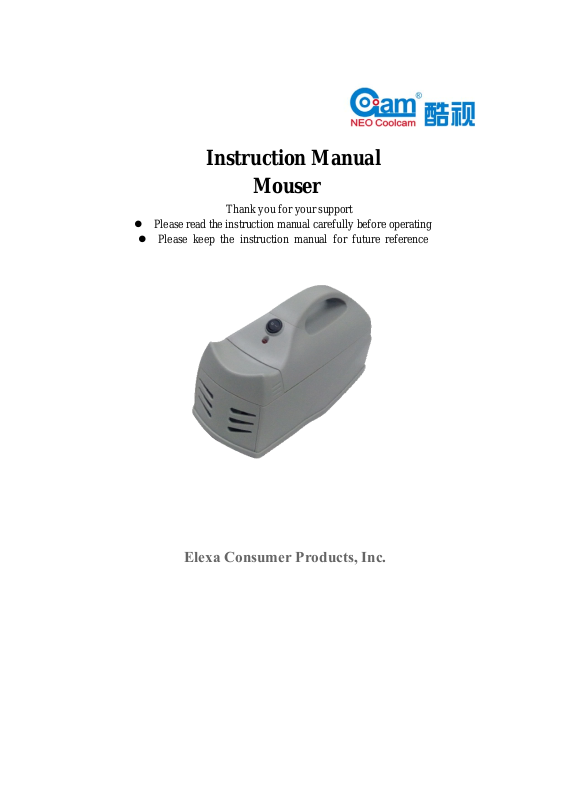

Elexa Consumer DMMZ1 User Manual

Instruction

Manual

Mouser

Thank you for your support

 Please read the instruction manual carefully before operating

 Please keep the instruction manual for future reference

Elexa Consumer Products, Inc.

Product Introduction

Mouse zapper is an intelligent security equipment that can transmit the Z-Wave network which
has particular frequency. Different countries or areas, the radio frequency of Z-wave network is
different.In the Z-Wave network communications, mouse zapper can work with any Z-wave main
controller. It can send messages to the Z-wave main controller, and realize association with other
devices through the Z-wave network, but it can not receive messages from the Z-wave main
controller. When the mouse zapper detects the rat enter in the mouse zapper, it will occur high
voltage after 2 seconds , the high voltage continue for 4 minutes to ensure the rat is killed,the red
LED light keep on and there will be some sound made by the high voltage for 4 minutes at the
same time. The mouse zapper sends messages to the Z-wave main controller, the Z-wave main
controller displays the current status of mouse zapper.

Technical Parameters

 Battery type: 1.5V AA Size × 4 (6V)
 Power Consumption: 0.6 W
 Radio Protocol:Z-wave


Radio Frequency: 908.42MHz US

 Wireless distance:50m

 Max Current: 100mA (In Rat Killing)
 Operation temperature: 0-40℃
 Storage temperature: 0-60℃
 Size (D x W x H): 222mm x 112mm x 120mm

Technical Information

 When the mouse zapper is triggered, it will output high voltage after 2 seconds ,

the high voltage will continue for 4 minutes to ensure the rat is killed.

 Easily install, can be used anywhere .
 Powered by battery.
 Compatible with any Z-Wave main controller.

Product Configuration

Mouse zapper main body

Mouse zapper cover

Power switch

LED light

Food box

Battery Cover

Code button

Safety switch

Product List



 Instruction manual 1pc

use r 1pc

Mo
