This product contains electrical or electronic materials. The presence of these materials may, if
not disposed of properly, have potential adverse effects on the environment and human health.
Presence of this label on the product means it should not be disposed of as unsorted waste
and must be collected separately. As a consumer, you are responsible for ensuring that this
product is disposed of properly. To nd out how to properly dispose of this product, please go
to www.Elementelectronics.com and click on “Company“ or call the customer service number
for your country listed in the instruction manual.
This TV incorporates High-Denition Multimedia Interface (HDMITM) technology.
HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
FCC
Federal Communications
Commission Statement
This equipment has been tested and found to comply with the limits of a class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
1. Reorient/Relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit which is different from what the receiver is
connected to.
4. Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user authority to operate the
equipment.
ENGLISHENGLISH
1
Warnings and Precautions
Warnings and Precautions
To prevent any injuries, the following safety precautions should be observed in the installation, use,
servicing and maintenance of this equipment.
Before operating this equipment, please read this manual completely, and keep it nearby for future
reference.
This symbol is intended to alert the user to avoid the risk of electric shock.
WARNING
CAUTION
This equipment must not be disassembled by anyone except qualied service personnel.
This symbol is intended to alert the user to the presence of important operating and
maintenance instructions in the literature accompanying the appliance.
To reduce the risk of re or electric shock, do not expose this equipment to rain or moisture.
▪ TO REDUCE THE RISK OF ELECTRIC SHOCK,
▪ DO NOT REMOVE COVER (OR BACK).
▪ NO USER-SERVICEABLE PARTS INSIDE.
▪ REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Use of controls, adjustments or performance of procedures other than those specied herein
may result in hazardous radiation exposure.
Important Safety Instructions
This symbol indicates caution points.
This symbol indicates actions that should not be done.
This symbol indicates actions that must be performed.
▪ Do not place the equipment on any uneven or unstable carts, stands, tables, shelves etc.
The equipment may fall, causing serious injury to children or adults and serious damage to
the equipment itself.
▪ Use only a cart or stand recommended by the manufacturer. This equipment and
recommended cart or stand should be handled with care. Quick stops, excessive force, and
uneven surfaces may cause the equipment and cart/stand to overturn.
▪ Do not disable the 3-wire grounding type plug. The grounding pin on the 3-prong plug is an
important feature. Removing the grounding pin will increase the risk of damaging the
equipment.
▪ If you can not t the plug into the electrical outlet, contact an electrician to install a grounding
outlet.
▪ Always operate this equipment from the type of power source indicated on the rear of the
serial/model plate.
▪ Never overload wall outlets and extensions.
2
Warnings and Precautions
▪ Use and handle the power cord with care. Do not place any heavy objects on the AC
power cord.
▪ Do not pull the AC power cord. Do not handle the AC power cord with a wet hand.
▪ Do not touch the power cord and antenna cable during lightning.
▪ Remove the plug from the wall outlet, if the equipment will not be used for a long period
of time.
▪ Do not place, use or handle this equipment near water.
▪ Never expose the equipment to liquid, rain, or moisture.
Seek for service if any of the above is spilled into the equipment.
▪ Do not expose the equipment to extreme temperature or to direct sunlight, as the
equipment may heat up and suffer damage.
▪ Do not install the equipment near any heat sources such as radiators, heat registers,
stoves, or any other apparatus that might produce heat.
▪ Do not attempt to service the equipment yourself.
▪ Opening and removing the covers may expose you to dangerous voltage or other
hazards and may void your warranty. Refer service to qualied personnel.
▪ Do not place or drop any other objects on top.
▪ Do not insert anything into the ventilation holes of your equipment.
Inserting any metal or ammable objects may result to re or electric shock.
▪ Protect the power cord from being walked on or pinchrd particularly at plugs ,convenience
receptacles, and the point where they exit from the apparatus.
▪ Do not place the equipment on uneven or unstable carts, stands, tables, shelves etc. The
equipment may fall, causing serious injury to children or adults and serious damage to
the equipment itself.
Always place the equipment on the oor or on a surface that is sturdy, level, stable and
strong enough to support the weight of the equipment.
▪ Do not block any ventilating openings. Leave an open space around the equipment.
Never place the equipment :
on a bed, sofa, rug, or any other similar surfaces; too close to drapes/curtains/walls, in a
bookcase, built-in cabinet, or any other similar places that may cause poor ventilation.
▪ Unplug this apparatus during lightning storms or when unused for long periods of time.
▪ Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
▪ Always remove the power cord from the outlet before cleaning the equipment.
▪ Never use liquid or aerosol cleaners on the equipment.
Clean only with a soft dry cloth.
ENGLISHENGLISH
▪ Only use attachments/accessories specified by the manufacturer.
3
Warnings and Precautions
Outdoor Antenna Safety Instructions
If an outdoor antenna is connected, follow the precautions below:
▪ An outdoor antenna should not be located in any area where it could come in contact with
overhead power lines, or any other electric light or power circuits.
▪ When installing an outdoor antenna system, extreme caution should be taken to prevent
contact with power lines. Direct contact with power lines may be fatal and should be avoided
at all costs.
Section 810 of National Electrical Code (NEC) provides information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for
the grounding electrode.
Antenna lead-in wire
Ground clamps
Electric service
equipment
Ground clamps
Power service grounding
(NEC Art250 part H)
NEC : National Electrical code
EXAMPLE OF OUTDOOR ANTENNA GROUNDING
4
Antenna discharge unit
(NEC section 810-20)
Grounding conductors
(NEC section 810-20)
TABLE OF CONTENTS
Federal Communications Commission Statement .......................... 1
Warnings and Precautions
Important Safety Instructions ....................................................................................... 2
Various Audio/Video terminals for external equipment connection
▪ 1 composite VIDEO input terminal
▪ 1 S-VIDEO terminals
▪ 1 sets of component Video input terminals
▪ 1 VGA/VGA LINE input terminals
▪ 1 HDMI input terminal
▪ 1 set of Audio(L/R) output terminals for composite C-VIDEO/S-VIDEO
▪ 1 COAXIAL output terminal
▪ 1 Headphone terminal
The built-in TV tuner to receive HD ATSC
▪ This function allows the reception of HD broadcasting without the addition of a set top
box.
High Definition Multimedia Interface (HDMI)
▪ High Denition Multimedia Interface (HDMI) is a small, user-friendly interconnect that
can carry up to 5 Gbps of combined video and audio in a single cable. This system
eliminates the cost, complexity and confusion of multiple cables used to connect
current A/V systems.
HDTV Component Video Inputs
▪ Offers the best video quality for DVD(1080i, 720p) and digital set-top-box (1080i, 720p)
connections.
2D Digital Noise Reduction
▪ This function can digitally reduce image noise to provide better picture quality.
Film-Mode Detection
▪ This function can automatically detect content derived from lm and adjust the
interlacer’s frame matching to provide a more natural-looking, clearer image of the
moving picture.
6
Package Contents
S.MODE
MTS
P.MODE
VOL.
CH.
MUTE
INPUT
TIXEEDIUG
UNEMOFNI
L
I
S
T
F
AV
.C
H
T
IM
E
R
FR
E
E
Z
E
P.SIZESLEEPCAPTION
Chapter 1 Introducing the LCD TV
Make sure all of the following contents are included.
LCD TV
Your TV may look different from the one pictured above.
Remote Control/
AAA Batteries x 2
ENGLISH
Power Cord
User’s Manual Quick Start Guide
These items are all you need to set up and operate the LCD TV in its basic conguration.
Make sure all of the above contents are included in the package. If you are missing
any items, please contact the Element customer service department.
7
Warranty Card
Chapter 1 Introducing the LCD TV
VHF/UHF IN
HDMI IN
L R L R
VGA IN
VGA LINE IN
VIDEO INS-VIDEO IN
COAXIAL
Y Pb Pr
AUDIO IN
AUDIO IN
Setting Up Your LCD TV
How to install the TV Stand
Follow the instructions below to install the TV stand:
Open the box, and make sure all necessary parts are in the box. The package
contains:
LCD TV
Stand
Cover an even stable surface with a soft cloth. Place the LCD TV unit face-
down on the cloth. Fit the stand onto the bottom of the LCD TV unit as shown:
Then push until stand into the LCD TV’s stand socket.
8
Chapter 1 Introducing the LCD TV
How to setup the TV

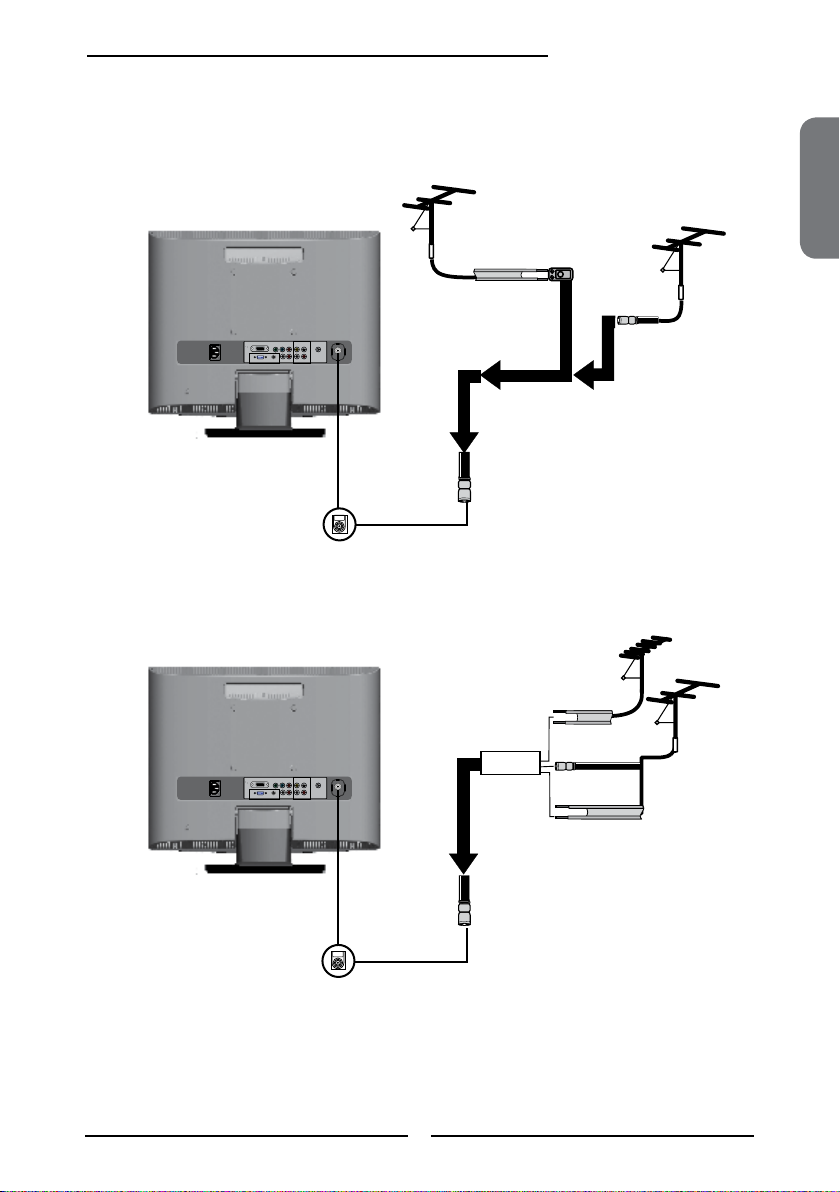

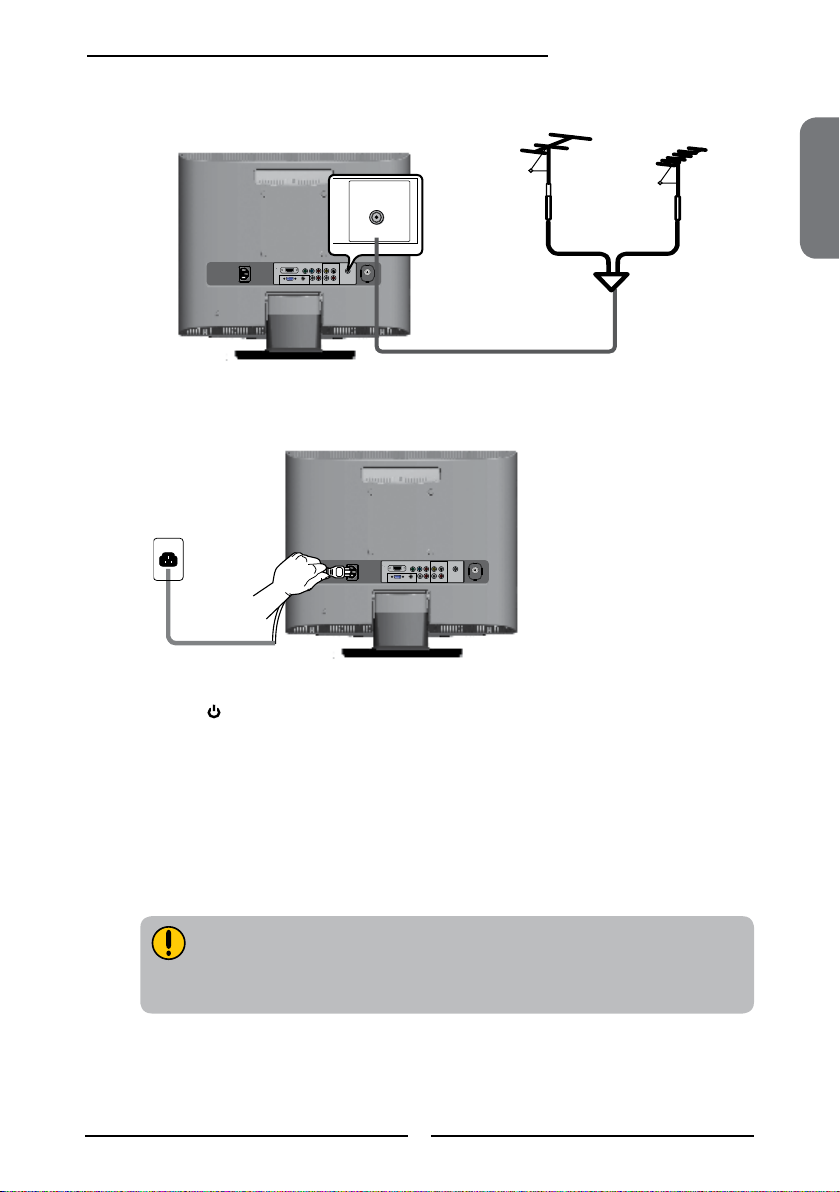

Use a supplied antenna cable to connect the VHF/UHF signal to the LCD TV’s ANT. terminal
(refer to page 15-18).
Connect the AC power cord at the back of the TV and connect the power cord to wall outlet.
Insert the 2 batteries supplied in remote control.
Step1 Slide the back cover up to open the
battery compartment of the remote
control.
Step2 Insert two AAA size batteries.
Make sure to match the (+) and
( - ) ends of the batteries with
the (+) and ( - ) ends indicated
in the battery compartment.
Slide the cover back into place.
ENGLISH
Do not use caustic cleaners (porcelain, stainless steel, toilet, or oven cleaner
etc.) on the remote, as it may suffer damage.
Connect other an external AV device (refer to page 19-25).
9
VOL.+
VOL.-
CH.
CH.
MENU
INPUT
Chapter 1 Introducing the LCD TV
Your LCD TV
Front/Left /Right Side View and Controls
Front View
IR
Infrared Receiver
LED
The LED light indicates when the
LCD TV is activated.
VOL.+/-
Adjusts the volume up and down.
Selects the main-menu item and change
values for items when in the OSD mode.
Left Side ViewRight Side View
HEADPHONE
Connects to the external
headphone for private listening.
CH.▲▼
Scans up and down through channels.
Selects sub-menu item when in the OSD
mode.
MENU
Press once to display the OSD (on screen
display), press again to turn the OSD off.
INPUT
Chooses from different input signal sources.
Turns the LCD TV on and into standby mode.
10
HDMI IN
L RLR
VGA IN
VGA LINE IN
VIDEO S-VIDEOCOAXIAL
YPbPr IN
VHF/UHF IN
YPb Pr
Rear View and Jacks
VHF/UHF IN
HDMI IN
L R L R
VGA IN
VGA LINE IN
VIDEO IN S-VIDEO IN
COAXIAL
Y Pb Pr
AUDIO IN
AUDIO IN

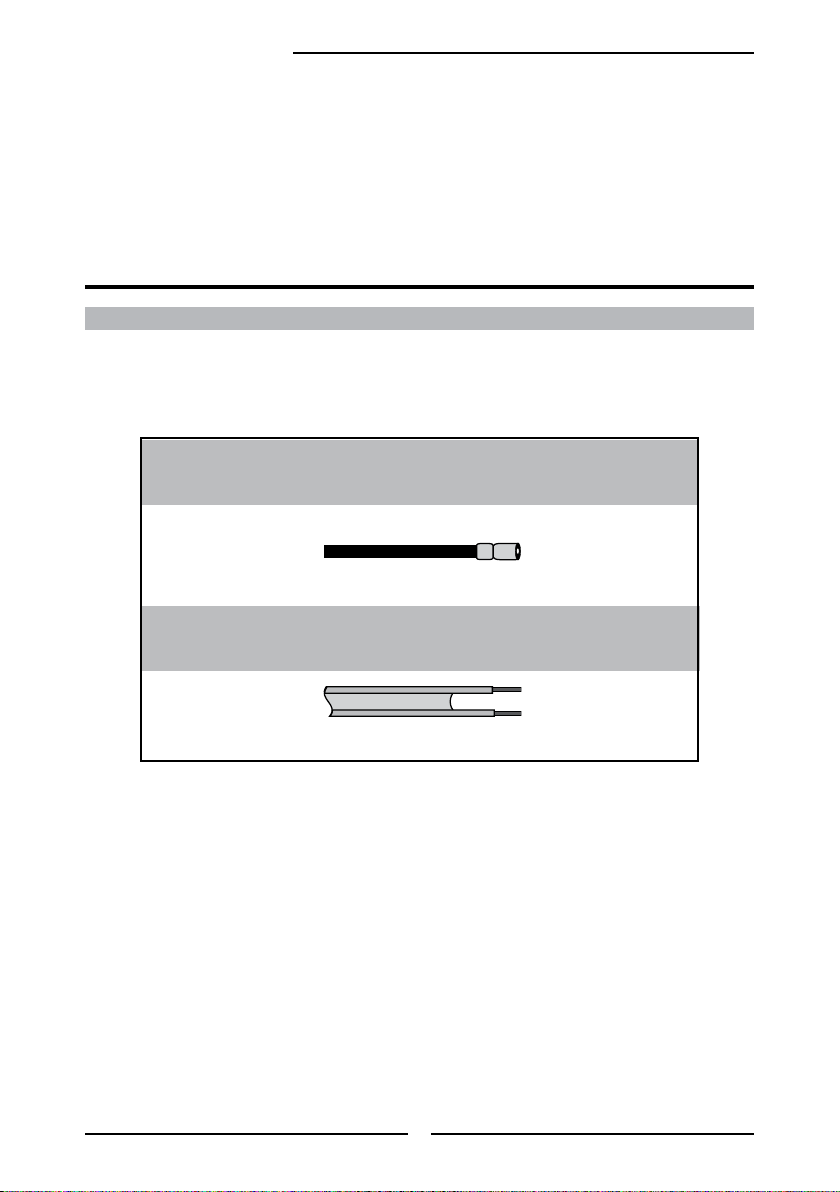

VHF/UHF IN
Connects RF input from VHF/UHF antenna or cable to receive high/
standard denition television.
COAXIAL OUT
Connect to the DIGITAL AUDIO jack on the digital or standard 5.1 audio system.
S-VIDEO/VIDEO/AUDIO(L/R) IN
Connects to the S-Video/Composite VIDEO and AUDIO(L/R) output
jacks on external video equipment.
Chapter 1 Introducing the LCD TV
ENGLISH
YPbPr IN
Connects to the DVD player, Digital Set-Top-Box, or other AV
equipment with component(YPbPr) video and audio output jacks.
AC INPUT
Connect the AC power cord.
HDMI IN
Connects the all digital AV equipment with HDMI
connector.HDMI supports enhanced, highdenition video and two-channel digital audio.
VGA IN/ VGA LINE IN
Connects the PC, or other AV equipment with
VGA and AUDIO output jacks.
11
Chapter 1 Introducing the LCD TV
S.MODE
MTS
P.MODE
VOL.
CH.
MUTE
INPUT
TIXEEDIUG
UNEMOFNI
LIST
F
AV
.CH
T
I
ME
R
F
REEZ
E
P.SIZESLEEPCAPTION
Your Remote Control
2
2
3
3
6
6
7
7
Turns the LCD TV on and off.
1
MTS Cycles through the multi-channels TV
2
2
1
1
S.MODE Selects sound effect options: Surround/
3
sound(MTS) options: SAP/MONO/
STEREO
Live/Dance/Techno/ Cla ssi c/Soft/Rock/
Pop/Off.
4
4
5
5
P.MODE Selects picture mode: Vivid/Hi-Bright/
4
5
P.SIZE Cycles through Wide mode settings :
Cinema/Sport/User
NORMAL /FULL/WIDE/ZOOM
8
8
CAPTION Cycles through the Closed Caption:
6
Anlalog Closed Caption:CC1/CC2/
CC3/CC4/TT1/TT2/TT3/TT4/Off
9
9
10
10
11
11
12
12
13
Digital Closed Caption:Service1/
Service2/Service3/Service4/Service5/
Service6/Off
SLEEP Cycles through the LCD TV sleep timer:
7
0-9 Select and switch to a channel by using
8
OFF/10/20/30/40/50/60/90/120 mins
0-9 buttons.
In HDTV mode, use with 0-9 and
buttons to select a digital channels.
9
JUMP Returns to previously selected channel.
10
MUTE Mutes and restores the audio
11
VOL.+- Increases and decreases volume.
CH.+- Scans up and down the channels
12
INPUT Pressing INPUT display the source list,
13
use ▲▼ to select the video equipment
connected to the video inputs of your LCD
T V : T V/ V ID E O1 /V I DE O2 / VI D EO 3/
VIDEO4/COMPUTER
