Digitakt
Beat making powerhouse
User Manual
FCC compliance statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003.
European Union regulation compliance statement
This product has been tested to comply with the Low Voltage Directive 2014/35/EU and the Electromagnetic Compatibility Directive 2014/30/EU. The product meets the requirements of RoHS 2 Directive
2011/65/EU.
This symbol indicates that your product must be disposed of properly according to local laws
and regulations.
Legal disclaimer
The information in this document is subject to change without notice and should not be construed as a
commitment by Elektron. Elektron assumes no responsibility for any errors that may appear in this document. Elektron may also make improvements and/or changes in the products and programs described
in this document at any time without notice. In no event shall Elektron be liable for any special, indirect,
or consequential damages or any damages whatsoever resulting from loss of use, data, or profits,
whether in an action of contract, negligence, or other action, arising out of or in connection with the use
or performance of this information.
IMPORTANT SAFETY AND MAINTENANCE INSTRUCTIONS
Please read these instructions carefully and adhere to the operating advice.
1. Do not use this unit near water.
2. Never use aggressive cleaners on the casing or on the screen. Remove dust, dirt and fingerprints with
a soft, dry and non-abrasive cloth. More persistent dirt can be removed with a slightly damp cloth using
only water. Disconnect all cables while doing this. Only reconnect them when the product is safely dry.
3. Install in accordance with the manufacturer’s instructions. Make sure you place the unit on a stable surface before use. If you mount the unit in a rack, be sure to tighten all four screws in the rack mount holes.
4. Connect the unit to an easily accessible electrical outlet close to the unit.
5. When transporting the unit, use accessories recommended by the manufacturer or the original box and
padding.
6. Do not install near any heat sources such as radiators, heat registers, stoves, or any other equipment
(including amplifiers) producing heat.
7. Do not put the PL-2S Protective Cover (Elektron accessory) on the unit while the unit is powered on.
8. This product, by itself or in combination with amplifiers, headphones or speakers, is capable of producing sound levels that may cause permanent hearing loss. Do not operate at a high volume level or at a
level that is uncomfortable.
9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the unit.
10. Only use attachments/accessories specified by the manufacturer.
11. Unplug this unit during lightning storms or when it is not used for long periods of time.
12. Refer all servicing to qualified service technicians. Servicing is required when the unit has been damaged
in any way, liquid has been spilled or objects have fallen into the unit, the unit has been exposed to rain
or moisture, does not operate normally, or has been dropped.
WARNING
To reduce the risk of fire, electrical shock or product damage:
• Do not expose the unit to rain, moisture, dripping or splashing and also avoid placing objects filled with
liquid, such as vases, on the unit.
• Do not expose the unit to direct sunlight, nor use it in ambient temperatures exceeding 40°C as this can
lead to malfunction.
• Do not open the casing. There are no user repairable or adjustable parts inside. Leave service and
repairs to trained service technicians only.
• Do not exceed the limitations specified in the Electrical specifications.
SOUND PEAKS
• A brief signal will be sent to all audio outputs of the Digitakt when the Test mode on the STARTUP Menu
is activated. Remember to turn down the volume on all speakers and headphones before activating
Test mode.
• During calibration there will be loud and unpleasant sounds on all audio outputs. Disconnect these during
calibration.
SAFETY INSTRUCTIONS FOR THE POWER ADAPTER ELEKTRON PSU-3b
• The adapter is not safety grounded and may only be used indoors.
• To ensure good ventilation for the adapter, do not place it in tight spaces. To prevent risk of electric
shock and fire because of overheating, ensure that curtains and other objects do not prevent adapter
ventilation.
• Do not expose the power adapter to direct sunlight, nor use it in ambient temperatures exceeding 40°C.
• Connect the adapter to an easily accessible electrical outlet close to the unit.
• The adapter is in standby mode when the power cord is connected. The primary circuit is always active
when the cord is connected to the power outlet. Pull out the cord to completely disconnect the adapter.
• In the EU, only use CE approved power cords.
RESTART
• For a complete restart of the Digitakt, wait for at least 30 seconds after turning it o before turning it
on again.
TABLE OF CONTENTS
TABLE OF CONTENTS
1. INTRODUCTION ................................................................8
1.1 CONVENTIONS IN THIS MANUAL ............................................................. 8
2. THE DIGITAKT ..................................................................9
3. PANEL LAYOUT AND CONNECTORS ...........................................10
3.1 FRONT PANEL .............................................................................10
3.2 REAR CONNECTORS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3 SETTING UP AND STARTING THE DIGITAKT ................................................ 12
4. DIGITAKT SOUND ARCHITECTURE ............................................13
4.1 AUDIO VOICES ............................................................................. 13
4.2 EFFECTS .................................................................................. 13
5. OVERVIEW OF THE DIGITAKT DATA STRUCTURE ..............................14
5.1 +DRIVE .................................................................................... 14
5.2 DATA STRUCTURE ......................................................................... 14
5.2.1 PROJECT .................................................................................14
5.2.2 PATTERNS ...............................................................................14
5.2.3 SOUNDS .................................................................................14
5.2.4 SAMPLES ................................................................................14
5.3 ABOUT THE TRACKS ...................................................................... 15
5.3.1 THE AUDIO TRACKS ......................................................................15
5.3.2 THE MIDI TRACKS ........................................................................15
5.3.3 EDITING THE TRACKS ....................................................................15
6. THE USER INTERFACE ........................................................16
6.1 SCREEN NAVIGATION ...................................................................... 16
6.2 PARAMETER EDITING ..................................................................... 16
6.2.1 PARAMETER VALUE JUMP ................................................................16
6.2.2 CONTROL ALL ...........................................................................16
6.2.3 [FUNC] KEY PRESS COMBINATIONS .....................................................17
6.3 QUICK SCROLLING ........................................................................ 17
6.4 COPY, CLEAR, AND PASTE ................................................................. 17
6.5 THE NAMING SCREEN ..................................................................... 17
6.5.1 POP-UP NAMING .......................................................................... 17
6.6 OVERBRIDGE .............................................................................. 18
7. QUICK START .................................................................19
7.1 PLAYING THE FACTORY PRESETS .......................................................... 19
7.1.1 USING CHROMATIC MODE .................................................................19
7.1.2 USING MUTE MODE ....................................................................... 19
7.1.3 TEMPO ...................................................................................19
7.1.4 EDITING PARAMETERS ....................................................................20
7.2 SAMPLING FROM THE EXTERNAL INPUTS ..................................................20
8. DIGITAKT CONTROLS .........................................................21
8.1 TRIG KEYS ................................................................................. 21
8.2 ROTARY ENCODERS ....................................................................... 21
8.3 KEY BEHAVIOR ............................................................................ 21
8.4 MIDI NOTES ............................................................................... 21
8.5 MODES .................................................................................... 21
8.5.1 CHROMATIC MODE .......................................................................21
4
TABLE OF CONTENTS
8.5.2 MUTE MODE .............................................................................22
9. PATTERNS, KITS, SOUNDS, AND SAMPLES ................................... 23
9.1 THE +DRIVE SOUND LIBRARY AND THE SOUND POOL ......................................23
9.1.1 ADDING SOUNDS TO THE SOUND POOL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
9.2 SOUND BROWSER .........................................................................24
9.3 SOUND MANAGER .........................................................................24
9.4 PLAYING A SOUND ........................................................................26
9.5 EDITING A SOUND .........................................................................26
9.6 SAVING A SOUND ..........................................................................26
9.7 ASSIGNING A SAMPLE .....................................................................27
9.7.1 ASSIGNING A SAMPLE USING THE QUICK ASSIGN METHOD ...............................27
10. THE SEQUENCER ........................................................... 28
10.1 BASIC PATTERN OPERATIONS ............................................................28
10.1.1 SELECTING BANK AND PATTERN .........................................................28
10.1.2 PATTERN CONTROL .....................................................................28
10.1.3 PATTERN TEMPO ........................................................................28
10.2 EDITING A PATTERN ......................................................................28
10.2.1 TRIG TYPES .............................................................................29
10.2.2 GRID RECORDING MODE ................................................................29
10.2.3 LIVE RECORDING MODE ................................................................29
10.3 MICRO TIMING MENU .....................................................................30
10.4 RETRIG MENU ............................................................................30
10.5 PATTERN MENU .......................................................................... 31
10.5.1 RENAME .................................................................................31
10.5.2 CLEAR ..................................................................................31
10.5.3 SAVE TO PROJ ..........................................................................31
10.5.4 RELOAD FROM PROJ ....................................................................31
10.5.5 IMPORT/EXPORT ........................................................................31
10.6 TRIG PARAMETERS PAGE .................................................................32
10.7 QUANTIZE MENU .........................................................................32
10.8 METRONOME MENU ......................................................................32
10.9 SCALE MENU .............................................................................32
10.9.1 LENGTH PER PATTERN MODE ...........................................................33
10.9.2 LENGTH PER TRACK MODE .............................................................33
10.10 SEQUENCER FEATURES .................................................................34
10.10.1 PARAMETER LOCKS ....................................................................34
10.10.2 SOUND LOCKS .........................................................................34
10.10.3 CONDITIONAL LOCKS ..................................................................34
10.10.4 FILL MODE .............................................................................35
10.10.5 SWING .................................................................................35
10.10.6 COPY, PASTE AND CLEAR OPERATIONS ................................................36
10.10.7 TEMPORARY SAVE AND RELOAD PATTERN COMMANDS ................................36
10.11 CHAINS ..................................................................................36
11. AUDIO TRACK PARAMETERS ................................................ 38
11.1 EDITING THE AUDIO TRACK PARAMETERS .................................................38
11.2 TRIG PARAMETERS PAGE .................................................................38
11.3 SRC PAGE 1 ...............................................................................38
11.4 SRC PAGE 2 ...............................................................................40
11.5 FLTR PAGE ...............................................................................40
11.6 AMP PAGE ................................................................................ 41
5
TABLE OF CONTENTS

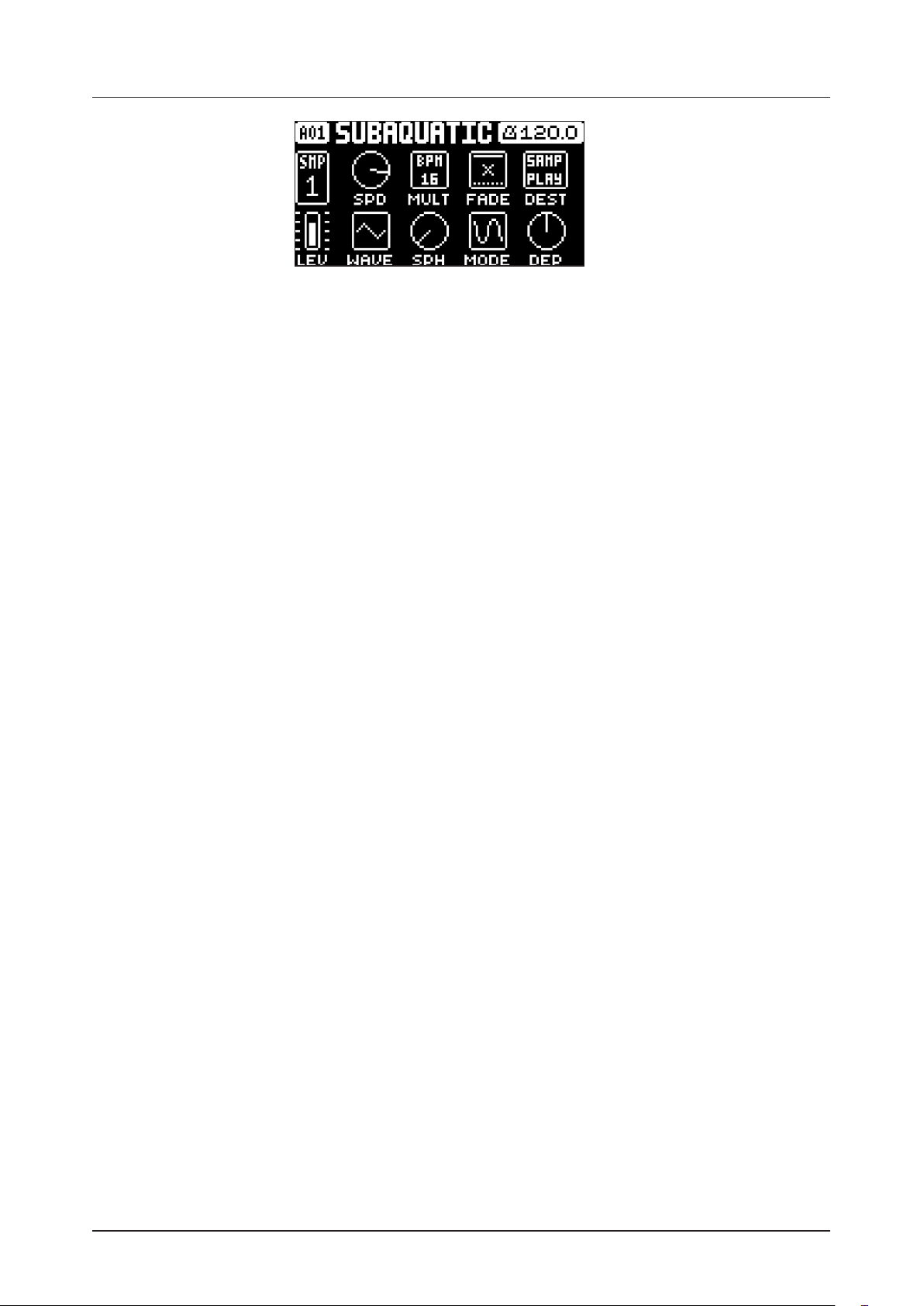

11.7 LFO PAGE ................................................................................42
12. MIDI TRACK PARAMETERS .................................................. 45
12.1 EDITING THE MIDI TRACK PARAMETERS ..................................................45

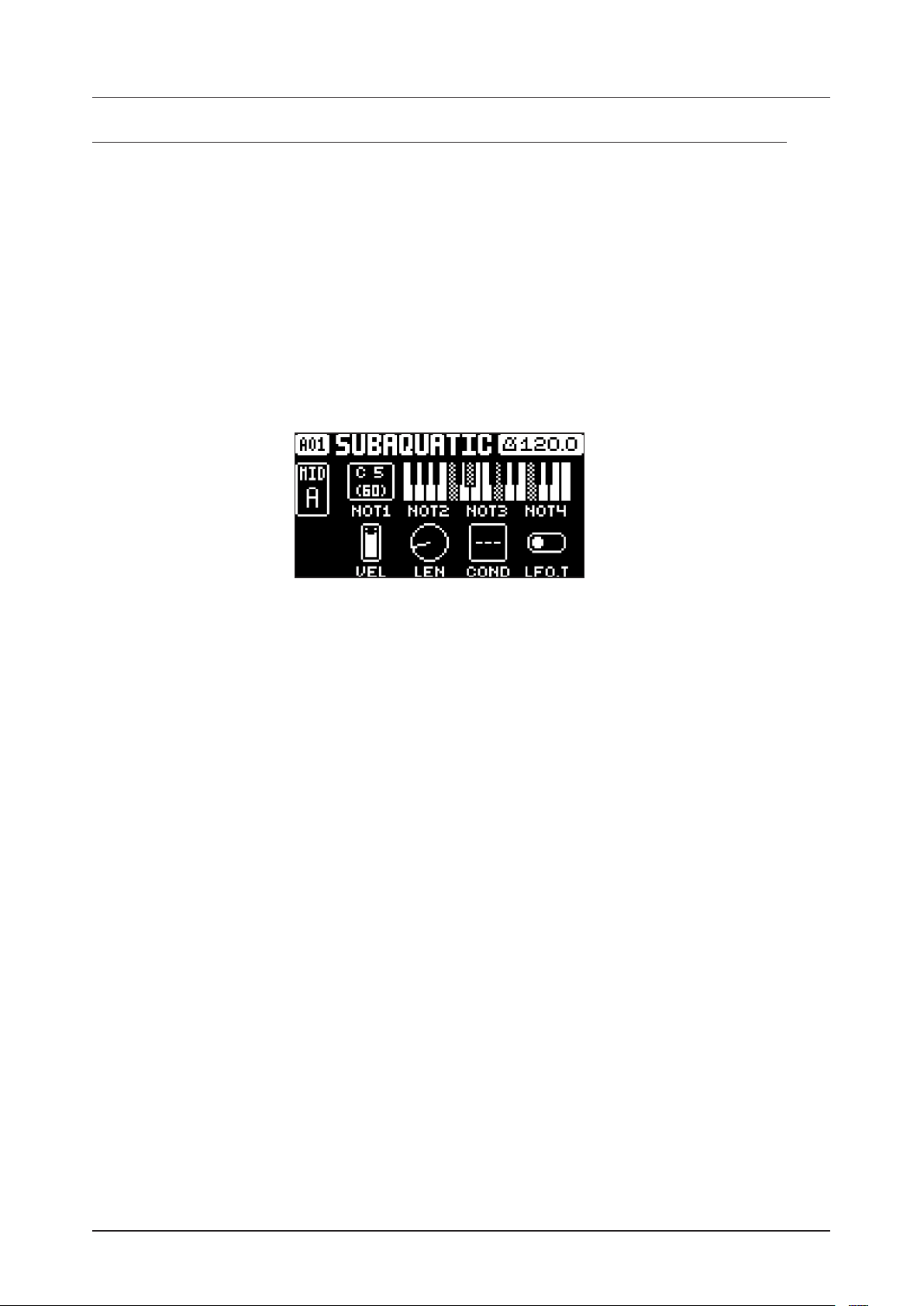

12.2 TRIG PARAMETERS PAGE .................................................................45

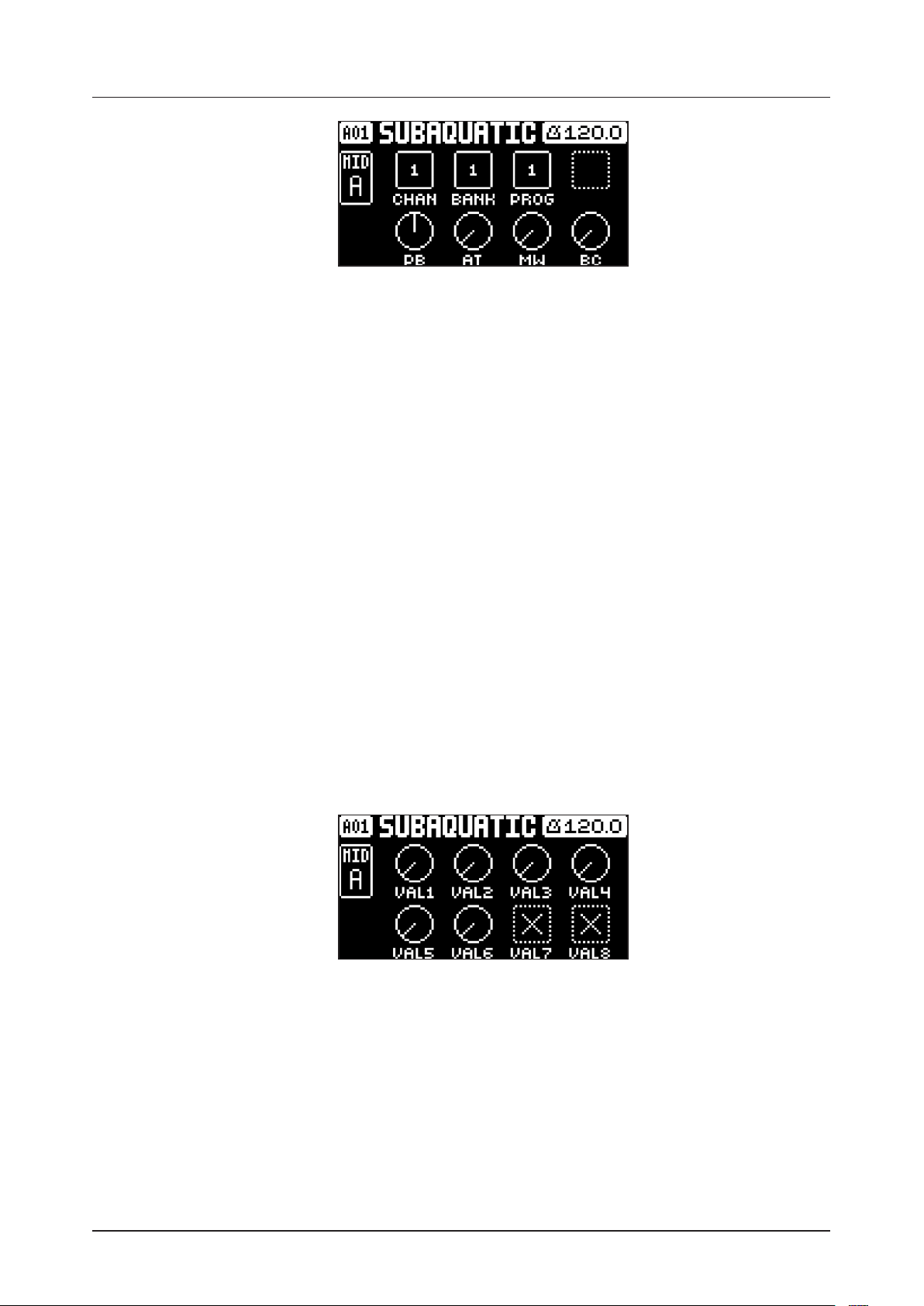

12.3 SRC PAGE ................................................................................45
12.4 FLTR PAGE (CC VALUE) ...................................................................46

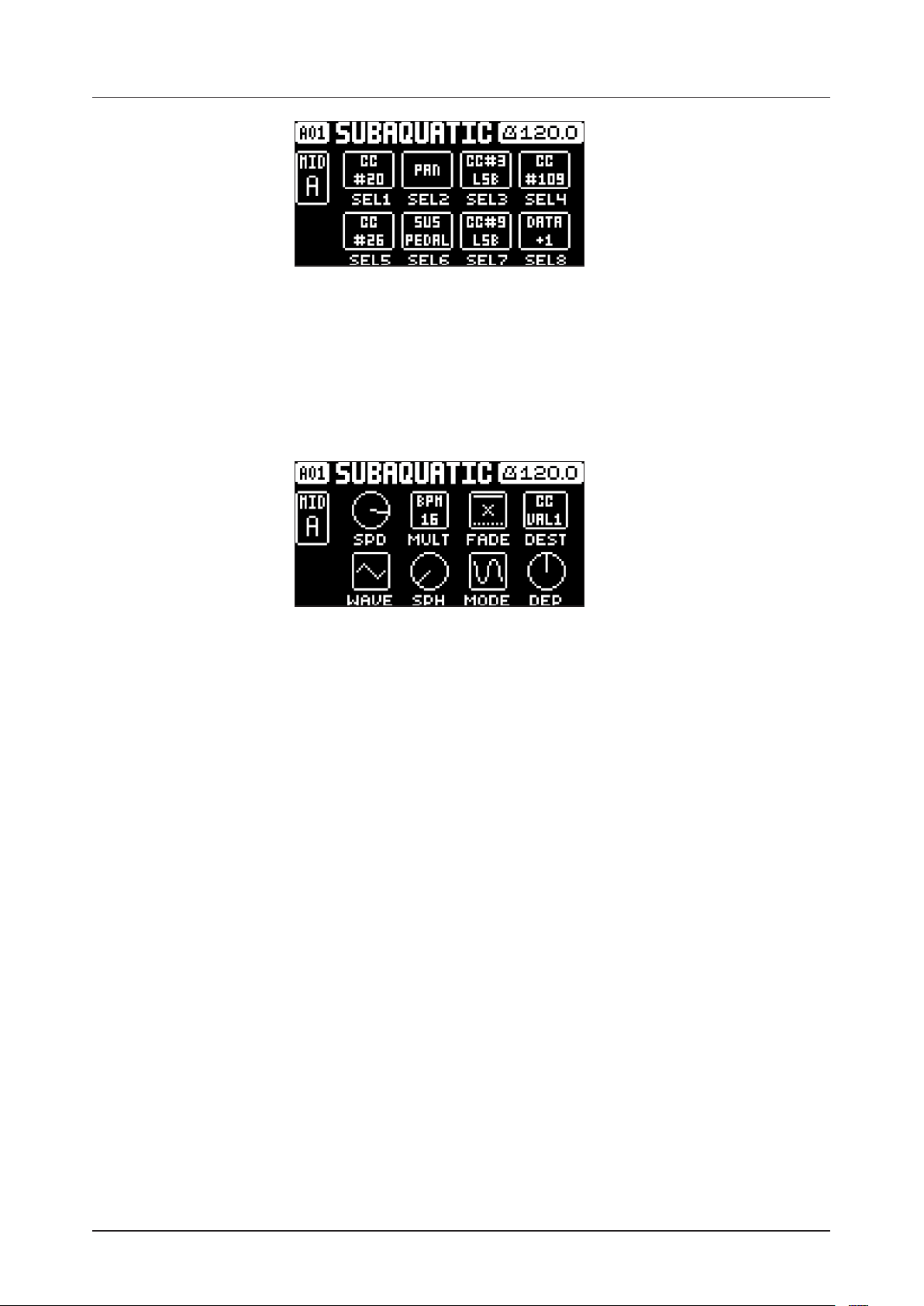

12.5 AMP PAGE (CC SELECT) ..................................................................46
12.6 LFO PAGE ................................................................................47
13. FX PARAMETERS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
13.1 EDITING THE FX PARAMETERS ............................................................49
13.2 DELAY ....................................................................................49
13.3 REVERB ..................................................................................50
13.4 MASTER PAGE 1 COMPRESSOR ........................................................... 51
13.5 MASTER PAGE 2 MIXER ...................................................................52
14. SAMPLING .................................................................. 53

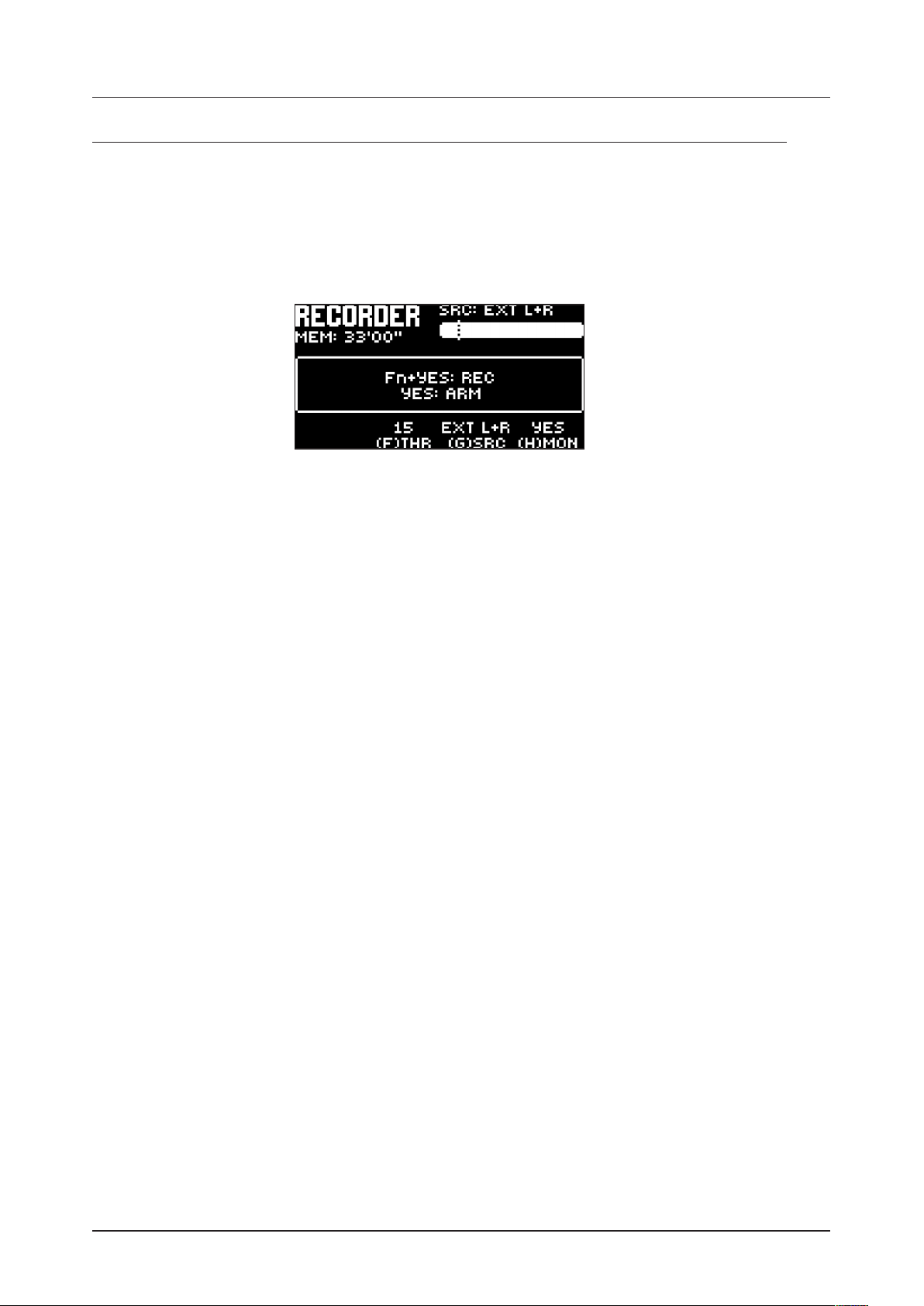

14.1 SAMPLING MENU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
14.1.1 REC ......................................................................................53
14.1.2 ARM .....................................................................................53
14.1.3 THR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
14.1.4 SRC .....................................................................................53
14.1.5 MON .....................................................................................53
14.2 SAMPLING AUDIO ........................................................................53
14.3 DIRECT SAMPLING .......................................................................54
14.4 ASSIGNING A SAMPLE TO A TRACK FROM THE +DRIVE ...................................54
14.5 SAMPLE PLAYBACK ......................................................................54
15. SETTINGS MENU ........................................................... 56
15.1 PROJECT .................................................................................56
15.1.1 LOAD PROJECT ..........................................................................56
15.1.2 SAVE PROJECT AS .......................................................................56
15.1.3 MANAGE PROJECTS .....................................................................56
15.2 SAMPLES .................................................................................56
15.2.1 LOADING A SAMPLE .....................................................................57
15.2.2 UNLOADING A SAMPLE ..................................................................58
15.2.3 REPLACING A SAMPLE ..................................................................58
15.2.4 RENAMING A SAMPLE ...................................................................58
15.2.5 MOVING A SAMPLE ......................................................................58
15.2.6 TRANSFERRING SAMPLES FROM A COMPUTER TO DIGITAKT ...........................59
15.2.7 CREATING A NEW DESTINATION DIRECTORY ............................................59
15.2.8 TRANSFERRING SAMPLES FROM DIGITAKT TO A COMPUTER ...........................59

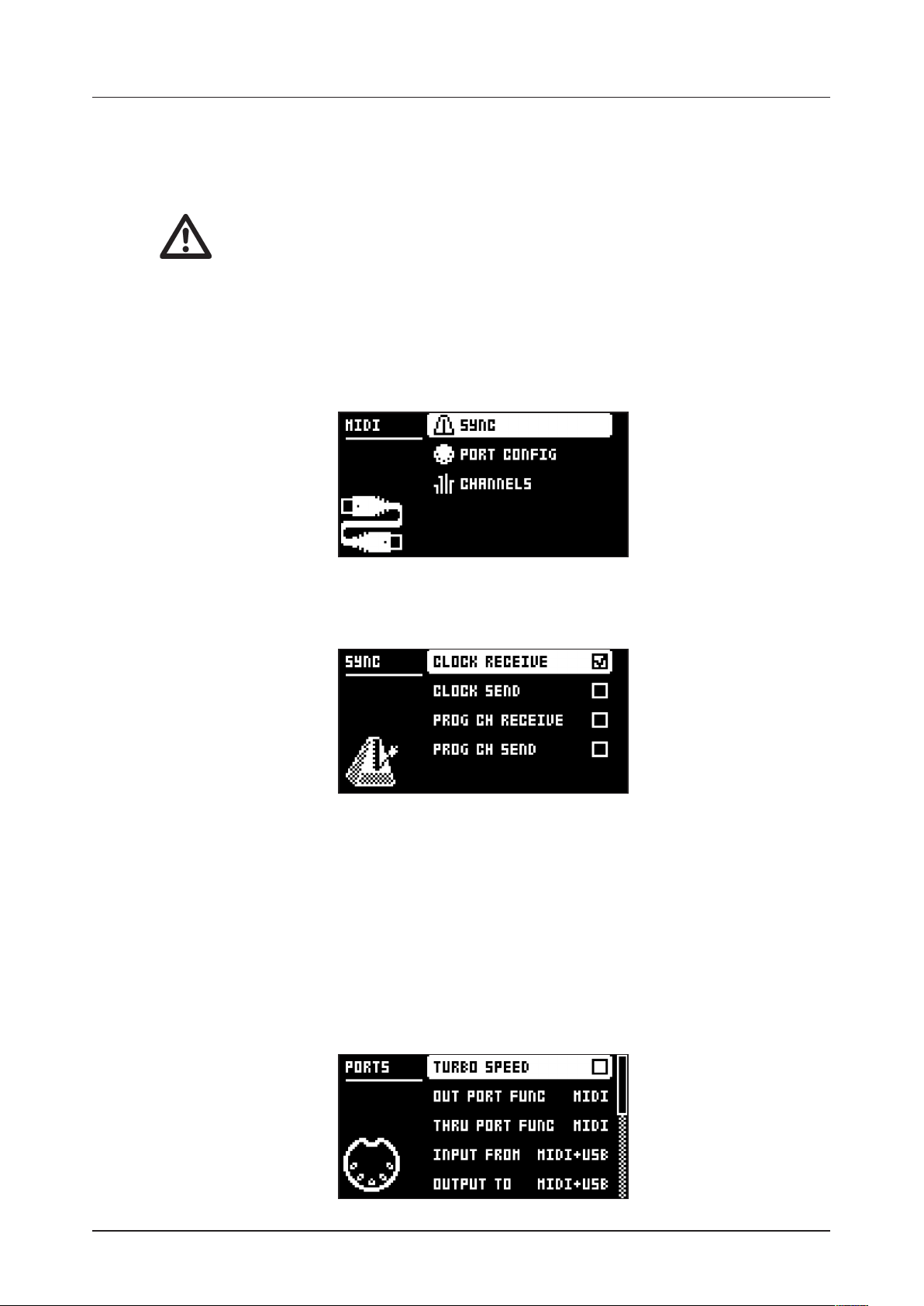

15.3 MIDI CONFIG .............................................................................60
15.3.1 SYNC ....................................................................................60
15.3.2 PORT CONFIG ...........................................................................60

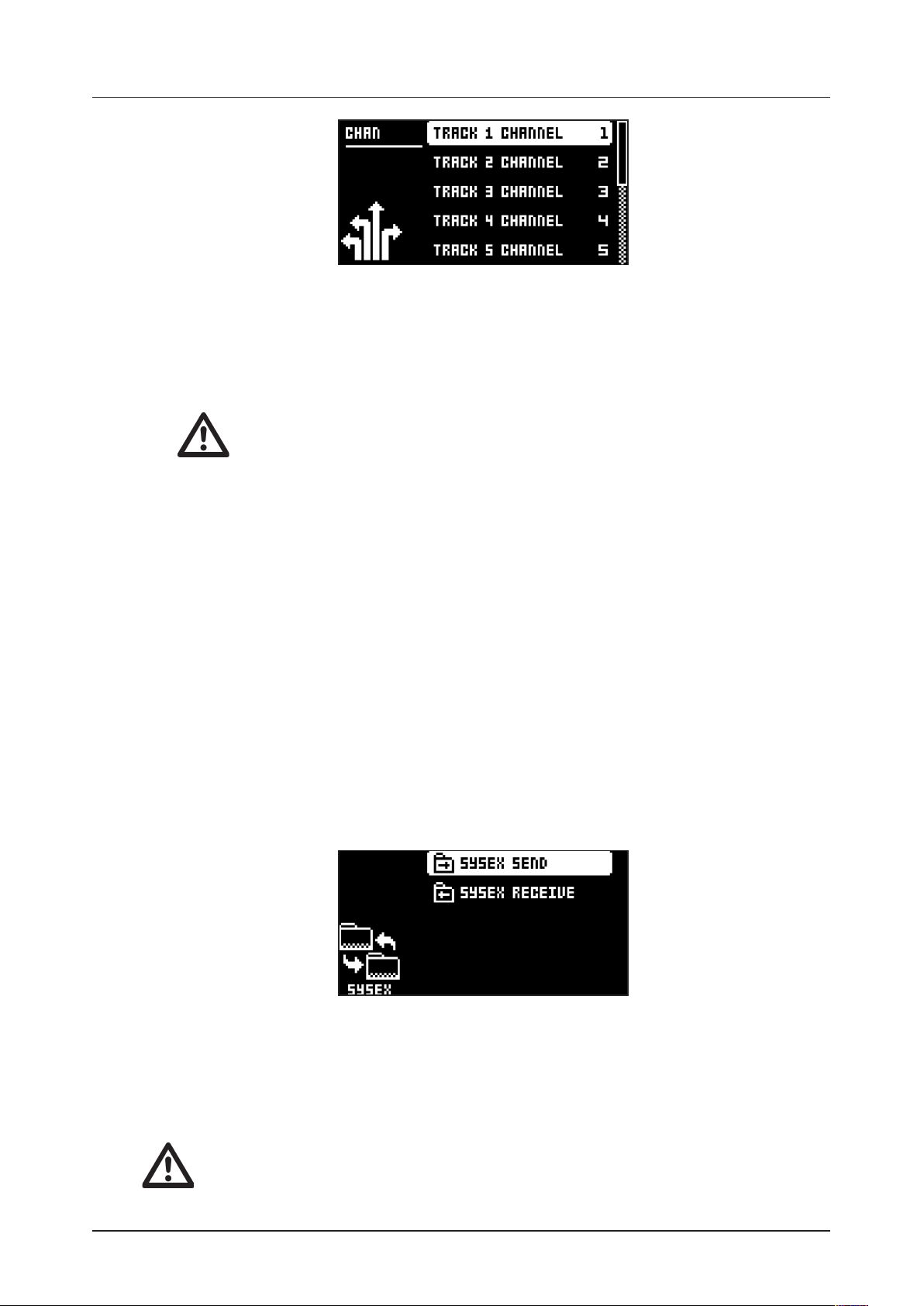

15.3.3 CHANNELS ..............................................................................61
15.4 SYSEX DUMP .............................................................................62
15.4.1 SYSEX SEND .............................................................................63
15.4.2 SYSEX RECEIVE .........................................................................63

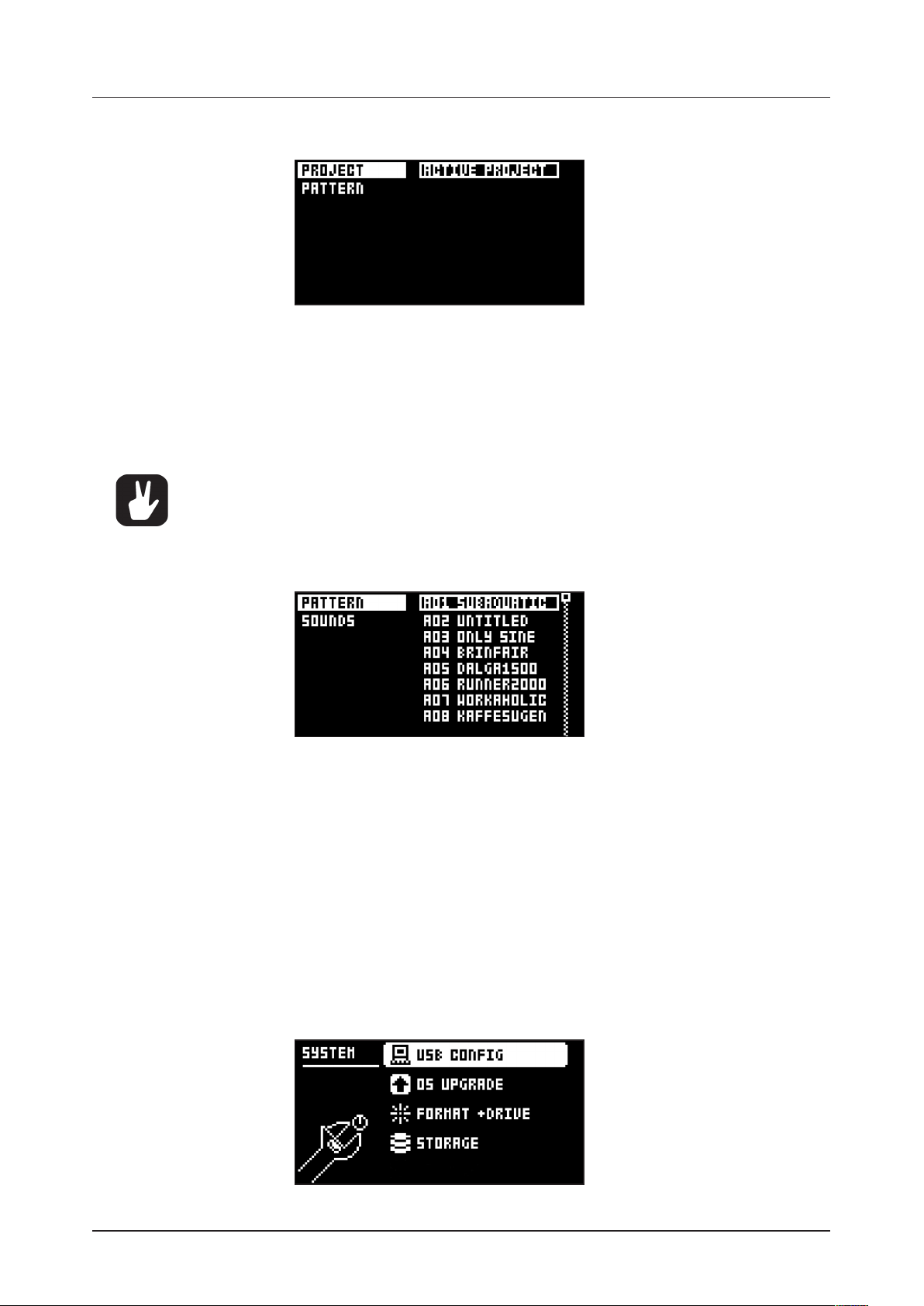

15.5 SYSTEM ..................................................................................63
15.5.1 USB CONFIG .............................................................................64
15.5.2 OS UPGRADE ...........................................................................64
15.5.3 FORMAT +DRIVE ........................................................................64
6
TABLE OF CONTENTS
15.5.4 STORAGE ...............................................................................65
16. STARTUP MENU ............................................................. 66
16.1 TEST MODE ...............................................................................66
16.2 EMPTY RESET ............................................................................66
16.3 FACTORY RESET .........................................................................66
16.4 OS UPGRADE .............................................................................66
16.5 EXIT ......................................................................................66
17. SETUP EXAMPLES .......................................................... 67
17.1 DIGITAKT WITH A MONOPHONIC BASS MACHINE ..........................................67
17.2 SAMPLING FROM A SMART PHONE .......................................................67
17.3 CONTROLLING A SYNTHESIZER USING THE MIDI TRACKS ................................68
18. USEFUL KEY COMBINATIONS (QUICK KEYS) ................................ 69
. TECHNICAL INFORMATION ...................................................71
. CREDITS AND CONTACT INFORMATION .....................................71
APPENDIX A: MIDI ...............................................................72
A.1 TRACK PARAMETERS ......................................................................72
A.2 TRIG PARAMETERS .......................................................................72
A.3 SOURCE PARAMETERS ....................................................................72
A.4 FILTER PARAMETERS .....................................................................72
A.5 AMP PARAMETERS ........................................................................72
A.6 LFO PARAMETERS ........................................................................73
A.7 FX PARAMETERS .......................................................................... 73
A.8 VAL PARAMETERS ........................................................................74
INDEX ...........................................................................75
7
1. INTRODUCTION
1. INTRODUCTION
Thank you for purchasing Digitakt. The Digitakt is a compact drum machine from Elektron. It contains all the
necessary tools to make people move to the beat. A digital and highly flexible sound engine, sampling capability, a live-friendly sequencer, the means to control external MIDI gear, and Overbridge support. To get the
most out of your machine, we recommend that you read this manual in its entirety.
1.1 CONVENTIONS IN THIS MANUAL
We have used the following conventions throughout the manual:
Key names are written in upper case, bold style and within brackets. For instance, the key labeled “FUNC”
on the main panel is written as [FUNC].
Knobs are written in upper case, bold, italic letters. For instance, the knob “Level/Data” is called LEVEL/
DATA.
Menu names are written in upper case letters. The SETTINGS menu is an example of that.
Parameter names and certain menu options where settings can be made or actions performed are written
in bold, upper case letters. For example, VOL.
Upper case letters are used for parameter setting alternatives. For example, OFF.
Messages visible on the screen are written in upper case letters with quotation marks.
For example, “QUANTIZE LIVE REC”.
LED indicators like the Chromatic LED are written like this: <CHROMATIC>.
The following symbols are used throughout the manual:
Important information that you should pay attention to.
A tip that will make it easier for you to interact with the Digitakt.
8
2. THE DIGITAKT
2. THE DIGITAKT
When we started thinking about the product that was to become the Digitakt, we began by asking ourselves:
what are the ideal features and tools required to quickly make a really good sounding beat? How to define
the bare essentials? But not only that. Certain products possess an almost sparkling allure, and they give
more than they take. You just want to use them. Why do they evoke such a feeling? And thus, with these
questions in mind, the work began.
Fast forward. It’s May 2017 and Digitakt will start shipping in about a week. The Elektron HQ is bristling with
activity. Factory patterns are being made, tweaks to the Digitakt OS implemented, content for the Elektron
website created. Seeing Digitakt in almost complete form is a sight to behold. Now, switch it on. Hopefully
you will experience the same thing as we do.
The sound.
Digitakt sounds very good. Audio material handled by the sample engine appears big, full and almost
three-dimensional. Sample everything you can. Your studio gear, random clips from YouTube, everyday life.
Process and sequence. Digitakt is a sound exploration tool.
The workflow.
The streamlined approach makes beat making a focused activity. Nothing will distract you. This clarity is
one of the core features of Digitakt, and gives it a unique character. Being drawn into the Digitakt universe
is a very enjoyable experience.
The totality.
Easy sampling, sequencing of both audio and MIDI, the flexible sample engine, and Overbridge support
form a very versatile product. The provided feature set allows for depth and adaptability, and also bestows
Digitakt with a certain free-spiritedness. Something, somehow, feels alive.
Digitakt is here. And we think we have found the answers to the questions we once asked ourselves.
Sincerely,
The Elektron Team
Digitakt User Manual. This manual is copyright © 2018 Elektron Music Machines MAV AB. All reproduction, digital or
printed, without written authorization is strictly prohibited. The information in this manual may change without notice.
Elektron’s product names, logotypes, titles, words or phrases may be registered and protected by Swedish and international law. All other brand or product names are trademarks or registered trademarks of their respective holders.
This manual for Digitakt OS version 1.10 was last updated August 6, 2018.
9
3. PANEL LAYOUT AND CONNECTORS
3. PANEL LAYOUT AND CONNECTORS
3.1 FRONT PANEL
21
20
19
18
17
16
15
14
Master Volume
Level/Data
Sound Browser
FUNC
TRK
Chromatic
PTN
Metronome
BANK
Mute Mode
MIDI InInput RInput LRightLeft
8 Voice Digital Drum Computer & Sampler
Digitakt
Imp/Exp Save Proj Direct
Copy
KICK
MIDI A
Clear Paste
SNARE
MIDI B
Tap Tempo
TOM
MIDI C
7 8
MIDI Out
Sync A
CLAP
MIDI D
Sync B
A
E
TRIG SRC FLTR AMP LFO
AssignQuantize Delay Reverb Master
YES
Save Ptn
NO
Reload Ptn
μTime - μTime +Rtrg/Oct -
COWBELL
MIDI E
93 4 5 621
B
F
Rtrg/Oct+
CLOSED HAT
MIDI F
C
G
OPEN HAT
MIDI G
PowerDC InUSBMIDI Thru
1:4
Fill/Scale
CYMBAL
D
H
2:4 3:4 4:4
GE
PA
MIDI H
Quick
Mute
10
11
12
13
1. MASTER VOLUME sets the volume for the main outputs and the headphones output.
2. Screen.

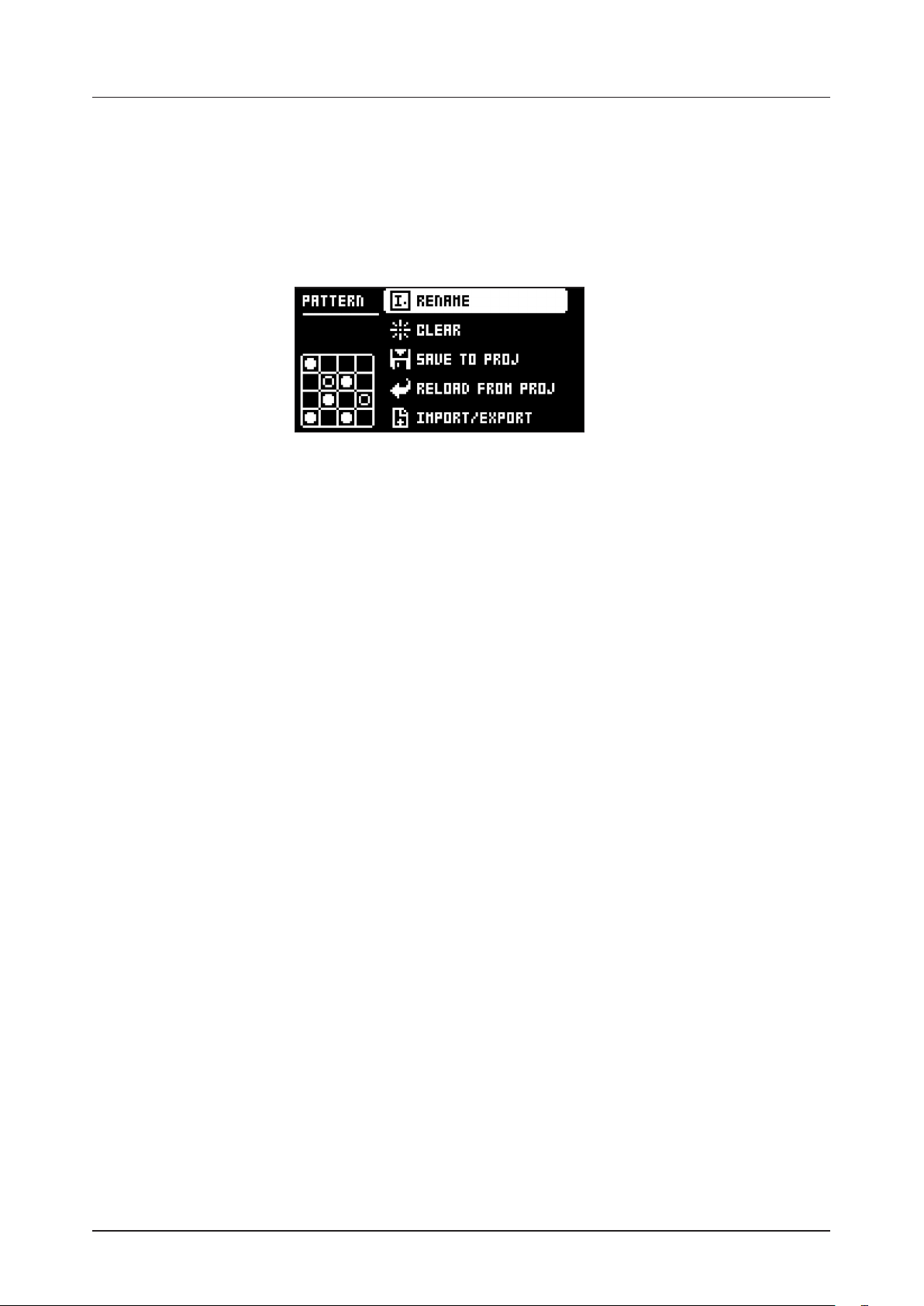

3. [PATTERN MENU] opens the PATTERN menu, where pattern management is located.
The secondary function accesses the Import/Export menu.
4. [GLOBAL SETTINGS] contains the management of projects, MIDI configuration, and the System
settings. The secondary function saves the current project.
5. [SAMPLING] opens the SAMPLING menu, where you perform the sampling.
The secondary function starts Direct Sampling.
6. [TEMPO] opens the TEMPO menu, where you can adjust the global/pattern tempo and also adjust
the swing. The secondary function makes it possible to tap the tempo.
7. [NO] key. Used for exiting an active menu, backing one step and negating. The secondary function is to
temporary reload the active pattern.
8. [YES] key. Used for entering sub-menus, selecting and confirming. The secondary function is to temporary save the active pattern.
9. DATA ENTRY knobs A-H. Used for setting parameter values. Press and turn the knobs to change values
in larger increments.
10. [PARAMETER] keys access the PARAMETER pages of the active track. The color of the keys indicates
if the page is active (red/orange) or inactive (o).
• [TRIG PARAMETERS] accesses parameters such as NOTE, VELOCITY, and other trig related param-
eters. The secondary function accesses the QUANTIZE menu.

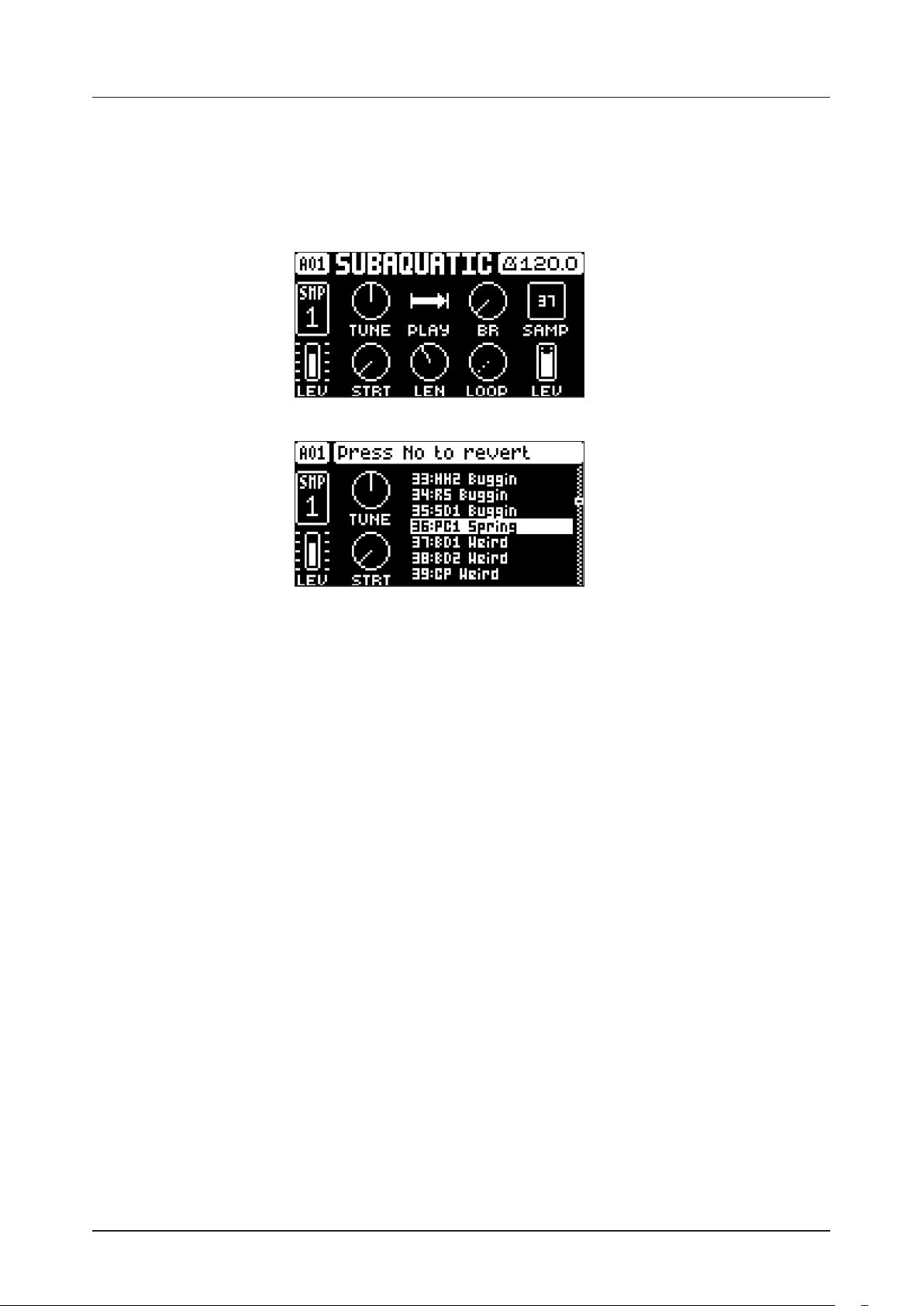

• [SRC] takes you to the SOURCE page that deals with sample playback on audio tracks. For MIDI
tracks this page has parameters such as CHANNEL, PROGRAM, and AFTERTOUCH. The secondary
function accesses SAMPLE SELECT.
• [FLTR] accesses the FILTER page. Here are the parameters for the multimode filter for the audio tracks.
On MIDI tracks you find the CC value settings here. The secondary function accesses the DELAY page.
10
3. PANEL LAYOUT AND CONNECTORS
• [AMP] takes you to the AMP page, where you find parameters for the amplitude envelope and eect
sends. On MIDI tracks you find the CC select settings here. The secondary function accesses the
REVERB page.
• [LFO] accesses the LFO parameters for the active track. The secondary function accesses the
MASTER page.
11. The [ARROW] keys. Used for navigation and for setting some parameter values. In menus, they are
called [UP], [DOWN], [LEFT], and [RIGHT].
12. [PAGE] selects the active pattern page, if the pattern is made up of more than 16 steps. The <PATTERN
PAGE> LEDs indicate how many pattern pages the active pattern consists of and which pattern page is
currently active. The LED flashes on the pattern page currently playing. The secondary function accesses the SCALE menu. This key also activates Fill Mode (when GRID RECORDING mode is not active).
13. [TRIG] keys are used for entering or removing sequencer trigs, and parameter locks, in combination
with the DATA ENTRY knobs. They are also used to select a track, bank, and pattern, in combination
with the [TRK], [PTN], and [BANK] keys. The [TRIG] keys are also used as a keyboard in CHROMATIC
mode. The secondary function is to Quick Mute tracks.
The [TRIG] keys lights indicate trigs on the sequencer by lit red keys, while flashing red keys indicates
parameter locks, in GRID RECORDING mode. When a pattern is playing, or when LIVE RECORDING is
enabled, a light “runs” along the 16 steps of the sequencer across all (up to four) pages at the set tempo.
14. [BANK] selects bank A–H in combination with the [TRIG 9–16] keys. The secondary function accesses
the MUTE Mode.
15. [PTN] selects pattern 1–16 in combination with the [TRIG 1–16] keys. The secondary function opens the
METRONOME menu.
16. [STOP] stops playback. The secondary function is the paste operation.
17. [PLAY] starts the sequencer playback. The secondary function is the clear operation.
18. [RECORD] key. Activates/deactivates GRID RECORDING mode. Keep [RECORD] pressed, then press
[PLAY], to activate LIVE RECORDING mode. Activate/deactivate QUANTIZATION of LIVE RECORDING
by keeping [RECORD] pressed, then tapping [PLAY] twice. The secondary function is the copy operation.
19. [TRK] key. Press [TRK] + one of the [TRIG] keys to select a track for editing. The secondary function
accesses the CHROMATIC mode.
20. [FUNC] key. Press, hold and press another key to access the secondary function of that key. The sec-
ondary functions are written in orange on the Digitakt front panel.
21. LEVEL/DATA sets the overall volume level of the active track. It is also used for setting parameters and
scrolling through lists. The secondary function opens the SOUND BROWSER.
11
3. PANEL LAYOUT AND CONNECTORS
3.2 REAR CONNECTORS
1 2 3 4 5 6 87 9
1. POWER, Switch for turning the unit on and o.
2. DC In, Input for power supply. Use the included PSU-3b power adapter, connected to a power outlet.
3. USB, For connecting the unit to a computer. For MIDI-control or Overbridge use. Use the included A to B
USB 2.0 connector cable to connect to a computer host.
4. MIDI THRU/SYNC B, Forwards data from MIDI IN. Can also be configured to send DIN sync to legacy
instruments. Use a standard MIDI cable to connect another MIDI device in the chain.
5. MIDI OUT/SYNC A, MIDI data output. Can also be configured to send DIN sync to legacy instruments.
Use a standard MIDI cable to connect to MIDI In of an external MIDI device.
6. MIDI IN, MIDI data input. Use a standard MIDI cable to connect to MIDI Out of an external MIDI device.
7. INPUT L/R, Audio inputs. Use a 1/4” mono phone plug (unbalanced connection).
8. OUTPUT L/R, Main audio outputs. Use either 1/4” mono phone plug (unbalanced connection) or
1/4” (Tip/Ring/Sleeve) phone plug (balanced connection).
9. HEADPHONES, Audio output for stereo headphones. Use 1/4” (Tip/Ring/Sleeve) phone plug.
3.3 SETTING UP AND STARTING THE DIGITAKT
Make sure you place the Digitakt on a stable support, such as a sturdy table, with sucient space for the
cables. Make sure to switch o all devices before you connect the Digitakt to other devices.
1. Plug the supplied DC adapter to a power outlet and connect the small plug to the 12 V DC In on the
Digitakt.
2. Connect OUTPUT L/R from the Digitakt to your mixer or amplifier.
3. To control the Digitakt from a computer, connect a USB cable between the computer and the USB
connector of the Digitakt.
4. If you want to use MIDI to control the Digitakt, connect the MIDI OUT port of the device you wish to
send data from to the MIDI IN port of the Digitakt. The MIDI THRU port duplicates the data arriving at
the MIDI IN port, so it can be used for chaining MIDI units together. Connect the MIDI OUT port of the
Digitakt to the MIDI IN port of the of the device you want to control if you want to use Digitakt to control
other devices using MIDI.
5. If you want to sample audio from external sources, connect the audio source to INPUT L/R or via USB.
6. Switch on all units. Switch on the Digitakt by pressing the Power switch located at the back of the unit.
12
4. DIGITAKT SOUND ARCHITECTURE
TO MIXER
SAMPLE
PLAYBACK
ENGINE
OVER-
DRIVE
MULTIMODE
FILTER
AMP
FILTER
ENVELOPE
AMP
ENVELOPE
FADE
ENVELOPE
LFO
DESTINATION
PAN
DELAY
SEND
REVERB
SEND
TO MIXER
4. DIGITAKT SOUND ARCHITECTURE
The illustrations below show the Digitakt sound architecture, with its eight audio voices, two send
eects (delay and reverb), and master eect (compressor).
4.1 AUDIO VOICES
FILTER
ENVELOPE
SAMPLE
PLAYBACK
ENGINE
4.2 EFFECTS
FROM EFFECT SENDS
DELAY
FROM AUDIO VOICES OUTPUTS L/R
OVERDRIVE
ENVELOPE
REVERB
SEND
REVERB
AMP
MULTIMODE
FILTER
AMP
TO MIXER
TO MIXER OR OUTPUTS L/R
DELAY RETURNS
MIXER
COMPRESSOR
PAN
DELAY
SEND
REVERB
SEND
PRE COMP POST COMP
REVERB RETURNS
13
5. OVERVIEW OF THE DIGITAKT DATA STRUCTURE
5. OVERVIEW OF THE DIGITAKT DATA STRUCTURE
The image below outlines the data structure of the Digitakt.
+DRIVE
Projects, Samples, Sounds
PROJECT
127 SAMPLES
8 AUDIO TRACKS
(per pattern)
128 PATTERNS
8 MIDI TRACKS
(per pattern)
SOUND POOL
128 Sounds
5.1 +DRIVE
The +Drive is a non-volatile storage. It keeps up to 128 projects stored internally, and it also holds all saved
Sounds. The +Drive also contains the sample bank. All projects have access to these samples.
5.2 DATA STRUCTURE
5.2.1 PROJECT
A project contains 128 patterns. General settings and states are also stored in the project. When a
project is loaded it becomes the active working state of the Digitakt. From here it is possible to edit the
patterns and Sounds of the project. Every time the Digitakt is switched on, it boots to the active working
state, the active project. Projects are saved, loaded and managed in the SETTINGS menu. For more
information, please see “9. PATTERNS, KITS, SOUNDS, AND SAMPLES” on page 23.
5.2.2 PATTERNS
The patterns are the primary data container for the Digitakt. 16 patterns are available for each of the
eight banks, which means that 128 patterns are available for each project. A pattern contains up to eight
Sounds (one for each audio track), sequencer data like trigs and parameter locks. It also contains the
settings on the TRIG page and BPM, length, swing and time signature settings. The pattern also contains
all the parameter settings for the eight MIDI tracks. For more information, please see “10. THE SEQUENCER” on page 28.
14
5.2.3 SOUNDS
A Sound is a sample, plus all the audio track settings in the SRC, FLTR, AMP, and LFO PARAMETER
pages. Sounds are stored in the +Drive Sound library. The +Drive Sound library holds up to 2048 Sounds.
You can use the SOUND MANAGER to manage Sounds. For more information, please see “9.3 SOUND
MANAGER” on page 24, “9. PATTERNS, KITS, SOUNDS, AND SAMPLES” on page 23, and “11.
AUDIO TRACK PARAMETERS” on page 38.
When a Sound is imported to a pattern, it becomes an independent copy of the Sound on
the +Drive and is not linked to the original Sound on the +Drive. Instead, it fully becomes a
part of the pattern.
5.2.4 SAMPLES
You can load up to 64 MB (about 11 minutes) of samples in a project, using a maximum of 127 sample
slots. Samples are stored in the +Drive Sample bank. Additional samples can be transferred to the Digitakt from a computer with the Elektron Transfer software. You also have the possibility to sample straight
into the Digitakt.
For more information, please see “14. SAMPLING” on page 53.
5. OVERVIEW OF THE DIGITAKT DATA STRUCTURE
5.3 ABOUT THE TRACKS
5.3.1 THE AUDIO TRACKS
The Digitakt has eight audio tracks. Each audio track contains one sample, and the parameter settings in
the PARAMETER pages TRIG, SRC, FLTR, AMP, and LFO.
To select an audio track for editing, press and hold [TRK] key and then press one of the [TRIG 1–8] keys.
5.3.2 THE MIDI TRACKS
The Digitakt has eight dedicated MIDI tracks. They are used to control external, MIDI equipped, gear.
Each MIDI track can trigger a chord of up to four notes with adjustable parameters such as velocity
and length, control pitch bend and aftertouch, as well as eight freely assignable MIDI control change
parameters (MIDI CCs). For more information, please see “12. MIDI TRACK PARAMETERS” on page
45. Any MIDI channel can be assigned to a MIDI track and several tracks can share the same channel.
If several tracks are assigned to the same MIDI channel the track with the lowest number has priority
regarding parameter conflicts.
The MIDI tracks function almost the same way as the audio tracks. Parameter locks, LFO modulation,
copy and paste commands are available. Each MIDI track also features micro timing, individual track
length and time signature settings. The main dierence is that the MIDI tracks do not generate any sound
and the sequencer data is instead transmitted through the MIDI OUT or USB ports.
To select a MIDI track for editing, press and hold [TRK] key and then press one of the [TRIG 9–16] keys.
5.3.3 EDITING THE TRACKS
The five [PARAMETER] keys open parameter pages that are used for editing the tracks.
• The TRIG page contains dierent parameters such as NOTE, VELOCITY, and other trig related parameters.
• The SRC page hosts the parameters that deal with sample selection and editing of samples on audio
tracks. For MIDI tracks this page has parameters such as CHANNEL, PROGRAM, and AFTERTOUCH.
• On the FLTR page, you find parameters for the multimode filter and its filter envelope for the audio
tracks. On MIDI tracks you find the CC value settings here.
• The AMP page for audio tracks hosts parameters for the amplitude envelope and eect sends. On MIDI
tracks you find the CC select settings here.
• Finally, the LFO page hosts LFO parameters for the active track.
Use the DATA ENTRY knobs A-H to edit the corresponding parameters. Press and turn a knob to adjust
its parameter in larger increments. Press and hold a [PARAMETER] key to see the values for all parameters on that page. For more information, please see “11. AUDIO TRACK PARAMETERS” on page 38,
and “12. MIDI TRACK PARAMETERS” on page 45.
15
6. THE USER INTERFACE
6. THE USER INTERFACE
The screen shows all the information needed for real-time interaction and editing on the Digitakt. The eight
DATA ENTRY knob parameters shown will vary depending on the given situation. Below is the main interface screen of the SRC page.
1 2 3
7
6
4
5
1. The current bank and pattern.
2. The current pattern name.
3. The current tempo.
4. Eight track parameters. They show what the DATA ENTRY knobs control and their current parameter
values.
5. The main volume setting of the active track. Use the LEVEL/DATA knob to change the volume setting.
6. The current active track.
7. Track type. Audio (SMP) track or MIDI (MID) track.
6.1 SCREEN NAVIGATION
Use the [ARROW] keys [UP], [DOWN], [LEFT] or [RIGHT] to navigate menus or sub-menus.
The LEVEL/DATA knob can be used to scroll through menus and lists quickly.
[YES] is used to arm, select, enter sub-menus and tick/untick boxes.
[NO] is used to negate, deselect or go back one or more steps.
When in a menu or sub-menu, the [NO] key can be used to go back, one step at a time, all the
way to the main screen.
6.2 PARAMETER EDITING
The DATA ENTRY knobs are used to change the values of the track parameters. The positions of the pa-
rameters on the screen correspond to the physical locations of the knobs on the front panel. Some of the
parameters on the screen tell you what DATA ENTRY knob controls that particular parameter.
For example “(E)”.
• The parameters are adjusted in larger increments if you press down the DATA ENTRY knob while turning
it. This makes it quicker to sweep through the whole parameter range.
• Press DATA ENTRY knob + [NO] to reset the parameter to the default value.
• Press [PARAMETER] key + [PLAY] to reset all the parameters in the selected parameter page to
default values.
• Press and hold a [PARAMETER] key to see the values for all parameters on that page.
6.2.1 PARAMETER VALUE JUMP
Pressing [FUNC] while editing certain parameters will make the parameter values jump to appropriate
positions. The time of the Delay, for example, will jump between 16, 32, 64 and 128 and the sample tuning
will jump whole octaves.
16
6.2.2 CONTROL ALL
If you press and hold [TRK] and change a parameter setting, this change will aect this parameter in all
the audio tracks in the pattern.
6. THE USER INTERFACE
6.2.3 [FUNC] KEY PRESS COMBINATIONS
The standard way to use the [FUNC] key in combination with other keys, is to press and hold [FUNC]
and then make a short press on the second key in the combination. For some key combinations, it is also
possible to access a sub-menu by pressing and holding [FUNC] + second key for a second.
6.3 QUICK SCROLLING
Scroll through menus using the LEVEL/DATA knob. Quick scrolling is possible on many menus. Press
[FUNC] + the [UP] or [DOWN] keys to move the cursor one menu page.
6.4 COPY, CLEAR, AND PASTE
Copy, clear and paste commands are available in a lot of contexts. Pressing [FUNC] + [RECORD] to copy.
Press [FUNC] + [STOP] to paste. Press [FUNC] + [PLAY] to clear. Paste and clear operations is undone by
repeating the key press combination. Please see the dierent sections in the manual for more information
on when these commands are available.
The copy clipboard can only hold one item at a time. When you perform a copy command,
the item copied replaces any earlier copied items. For example, you can not have both a
trig and a pattern copied at the same time.
6.5 THE NAMING SCREEN
The naming method is identical for the various naming situations that appear when you save samples,
Sounds, projects et cetera.
The [LEFT] and [RIGHT] arrow keys are used to navigate between the characters. Turning the LEVEL/
DATA knob or pressing the [UP] or [DOWN] arrow keys selects the characters. [FUNC] + [NO] erases
characters. [FUNC] + [YES] inserts space. Press and hold [FUNC] to access the Pop-up Naming menu.
6.5.1 POP-UP NAMING
A convenient way of naming is to open a pop-up menu that shows all available letters, symbols, and
digits. Press and hold the [FUNC] key when you are on the NAMING screen to access the Pop-up
Naming screen.
Keep [FUNC] pressed and use the [ARROW] keys to highlight the character you want to insert. Once
there, release [FUNC] to add the character.
Copy, paste, and clear commands are available on the NAMING screen.
17
6. THE USER INTERFACE
6.6 OVERBRIDGE
The Overbridge software enables a tight integration between the Digitakt and a computer DAW software.
When using Overbridge, the user interface for the Digitakt presents itself as a plug-in window in your DAW.
Access, edit and automate parameters for sound shaping on screen. Always find your device preset parameters in the same state as you left them when you return to your DAW project, with the useful total recall
functionality.
Read more about Overbridge use and availability on the Elektron website: https://www.elektron.se/overbridge/
18
7. QUICK START
7. QUICK START
This quick start will guide you through some of the basic operations to start using the Digitakt right away.
First, connect it as described in section “3.3 SETTING UP AND STARTING THE DIGITAKT” on page 12.
7.1 PLAYING THE FACTORY PRESETS
You can find a number of preset patterns, Sounds, and samples in the Digitakt. Follow the instructions below
to get started exploring your new instrument.
1. Press [BANK] and then press [TRIG 9] key to select bank A. The screen reads “BANK A : SELECT PTN”.
2. Press [TRIG 1] key to select the first pattern of bank A.
3. Press [PLAY] to listen to pattern A01.
4. Press [PTN] and then press [TRIG 2] key to select pattern A02. It will start once pattern A01 has
reached its end. Select pattern A03 by pressing [PTN] and then press [TRIG 3] key, and so on.
5. Press [STOP] to stop playback.
7.1.1 USING CHROMATIC MODE
You can use the [TRIG] keys to play any audio track sample chromatically.
1. Select the audio track to play chromatically by pressing [TRK] + one of the [TRIG 1–8] keys.
2. Press [FUNC] + [TRK] to enter CHROMATIC mode. The [TRIG] keys will light up in a pattern that
resembles an octave of a piano keyboard. Only lit keys are playable.
3. Play the [TRIG] keys. The active track Sound will be pitched dierently for each of the playable
keys. Press the [ARROW] keys [UP] or [DOWN] to transpose the virtual keyboard up or down one
octave.
For more information, please see “8.5.1 CHROMATIC MODE” on page 21.
CHROMATIC mode is an eective way to add musical variety to your beats. The timbre,
tonality and impact of playing a Sound chromatically depend on the character of the
source Sound.
7.1.2 USING MUTE MODE
You can mute any of the sequencer tracks in this mode. Unlike the CHROMATIC mode, it makes no difference which track is active when this mode is activated. You can access all tracks simultaneously.
1. Make sure a pattern is playing.
2. Press the [FUNC] + [BANK] key to enter MUTE mode.
3. Press any of the [TRIG] keys to mute the corresponding track. Press again to unmute. The light of
the [TRIG] keys indicates the mute status. Unlit keys are muted tracks. Lit keys are active tracks.
For more information, please see “8.5.2 MUTE MODE” on page 22.
7.1.3 TEMPO
To change the BPM setting, open the TEMPO menu by pressing the [TEMPO] key. Use the LEVEL/DATA
knob to change tempo. Pressing the knob while turning it changes the tempo eight BPM at a time. The
[ARROW] keys [UP] or [DOWN] change the tempo in fractional steps. Note that you can chose between
a global tempo or using a separate tempo for every pattern. Press [FUNC] + [YES] to switch between
GLOBAL and PATTERN tempo mode. On the main interface screen, you can also press and hold
[ARROW] keys [LEFT] or [RIGHT] to nudge the tempo 10% up or down temporarily. Release the key to
revert to the original tempo.
To tap a tempo setting, hold the [FUNCTION] key and tap the [TEMPO] key in a steady rhythm. After
four consecutive taps the average tempo of the taps will be calculated. By continuing tapping, the average tempo will keep on updating.
19
7. QUICK START
7.1.4 EDITING PARAMETERS
Each track has five PARAMETER pages. Press [PARAMETER] keys TRIG, SRC, FLTR, AMP, and LFO to
access the dierent PARAMETER pages. These parameters aect the sound and signal in various ways.
1. Make sure a pattern is playing.
2. Press [TRK] + [TRIG] keys 1-8 to select one of the eight audio tracks.
3. To change, for example, the cuto of the filter, press the [FLTR] key to open the FILTER page.
Try out the rest of the PARAMETER page parameters to explore a variety of sound shaping possibilities.
Nudging the tempo is very handy when manually syncing Digitakt to a turntable or an
external sound source. Note that you do not need to be in the TEMPO menu to perform
tempo nudging.
The parameter labeled FREQ changes the cuto of the filter. Turn DATA ENTRY knob E to change
the parameter value, and hear how the sound is aected.
7.2 SAMPLING FROM THE EXTERNAL INPUTS
Digitakt can also sample audio. It can sample audio from external sources, via the external inputs, and it can
also sample audio internally from the Digitakt itself.
1. Connect your audio source to the INPUT L/R inputs of the Digitakt.
2. Press [SAMPLING] to access the SAMPLING menu and then use DATA ENTRY knob G to set
SOURCE to EXT L+R.
3. Keep an eye on the audio input meter and play the audio source and make sure that the volume of the
audio source is as strong as possible, but without clipping or distorting. Set MON to YES to monitor
the incoming audio through the Digitakt.
4. Again, with an eye on the audio input meter and use DATA ENTRY knob F to set THRESHOLD just
above the indicated background noise of the audio source (when it is not playing).
5. Press [YES] to arm the sampler and then play the sound source. When the input audio exceeds the
set THRESHOLD level, sampling will start.
6. Press [YES] when you want to finish the sampling.

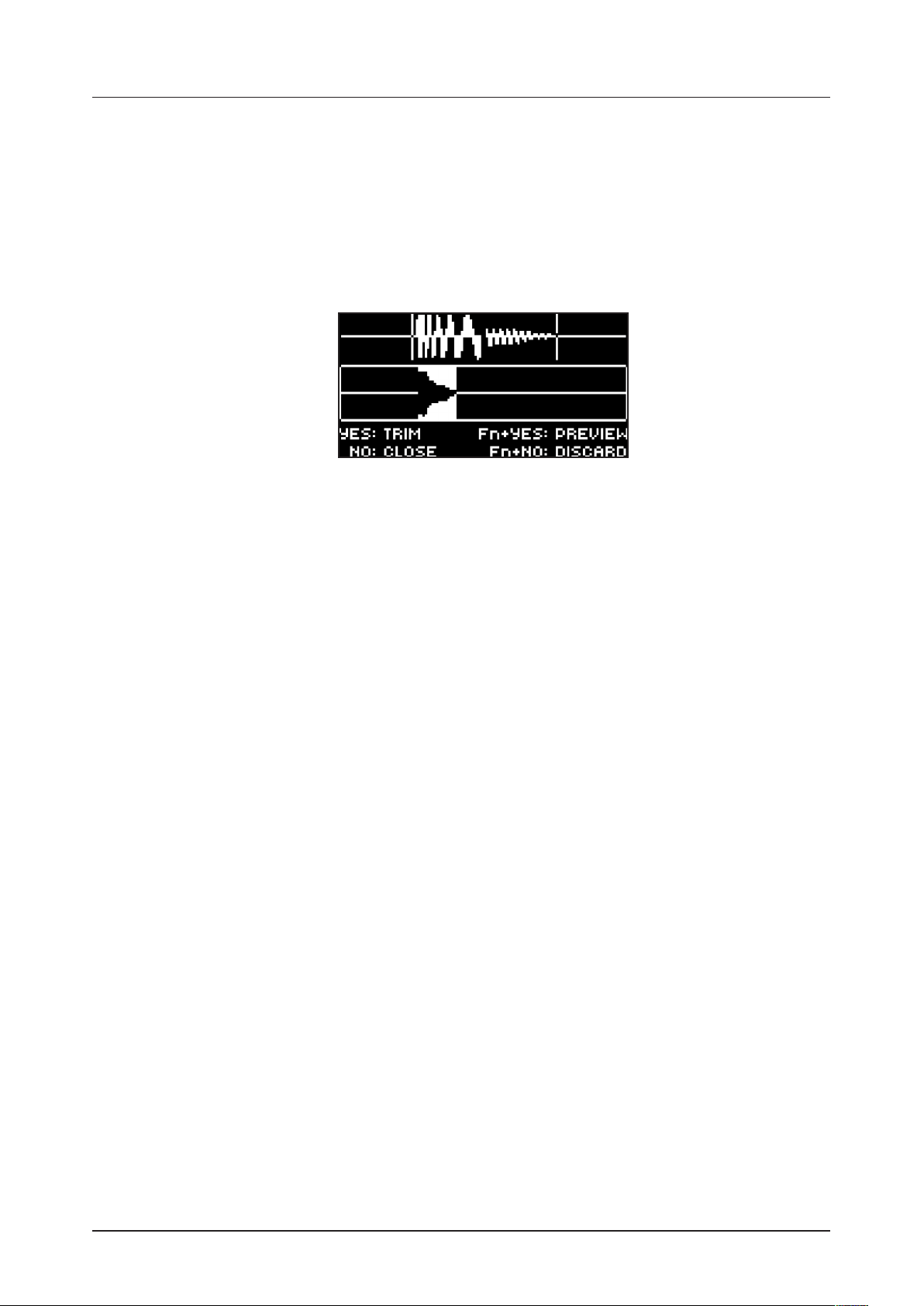

7. Use the DATA ENTRY knobs A and C to set the parameters TRIM START and TRIM END to trim the
sample to the desired length. You can use the DATA ENTRY knobs B and D to zoom in and out to
make it easier to see where to trim the sample. Press [FUNC] + [YES] to preview the sample.
8. Press [YES] to save the sample.
9. Name the sample and press [YES] again to confirm the save.
10. Press [TRACK 1–8] to select the track to where you want to assign the sample.
For more information, please see “14. SAMPLING” on page 53.
20
8. DIGITAKT CONTROLS
8. DIGITAKT CONTROLS
8.1 TRIG KEYS
The [TRIG] keys have several uses, including for example, trigging an audio track Sound (track 1–8) from
the active pattern. (When sequencer recording is deactivated). They are also used for placing trigs in GRID
RECORDING mode. When pressed in combination with the [PTN] and [BANK] keys, they select patterns
and banks. The [TRIG] keys light up to indicate the position of placed trigs and to indicate the selected
bank and track.
8.2 ROTARY ENCODERS
The MASTER VOLUME is an absolute encoder, spanning roughly 320 degrees from its left extreme to its
right extreme. The LEVEL/DATA and DATA ENTRY knobs (with which you set various parameter values),
are relative encoders which may be spun any number of turns. Pressing and turning these encoders will
change their associated values at a greater speed.
8.3 KEY BEHAVIOR
As a group, the track selection keys ([TRIG] keys) have radio button functionality, i.e. when a new track is
set to be active, the previous one is simultaneously deactivated. Only one track can be selected at a time.
Likewise, the group consisting of the five [PARAMETER] keys have radio button functionality.
The [FUNC], [TRK], [PTN], and [BANK] keys must always be used in combination with other keys.
8.4 MIDI NOTES
Some functions can be triggered by sending MIDI note values from an external MIDI device (a MIDI keyboard or a computer, for example) connected to the Digitakt via a standard MIDI cable or a USB 2.0 A to B
connector cable.
Of the 128 notes in the standard MIDI range, Note numbers 0–8 correspond to notes C0 through to G0, the
leftmost octave (which is sometimes called C-2–G-2 in certain applications). These notes will trigger the
Sound of track 1 through track 8, respectively (provided they are set to their default channels 1-8). These
notes values map to each of the eight tracks, regardless of which track is active.
MIDI note numbers 12–59 (corresponding to notes C1–B4, the second through to fifth octaves in the MIDI
range) will trigger the Sound of the active track in any of its 49 chromatic variations (as if played by the
[TRIG] keys in CHROMATIC mode, see section below), from lowest to highest pitch.
MIDI program change messages 0–127 will select pattern 1–128 (A01–H16) on the Digitakt. Additionally,
MIDI CC and NRPN messages can be sent to control various aspects of the Digitakt. For more information,
please see “APPENDIX A: MIDI” on page 72.
8.5 MODES
There are two special modes of operation on the Digitakt: CHROMATIC mode and MUTE mode.
8.5.1 CHROMATIC MODE
Press [FUNC] + [TRK] to enter CHROMATIC mode. In this mode, you can play the Sound of the active
audio track (or send MIDI notes if you have an active MIDI track) chromatically. The [TRIG] keys will light
up in a pattern that resembles an octave of a piano keyboard layout. Only lit keys are playable. Press
[TRK] + [TRIG 1–16] keys to select the track you want to play chromatically.
Press the trig keys to change the chromatic note pitch of the Sound. The range from [TRIG 9] key to
[TRIG 16] key is one octave. The whole range for audio tracks spans four octaves: middle, 1 up and 2
down. The whole range for MIDI tracks spans eleven octaves. Press the [ARROW] keys [UP] or [DOWN],
to transpose the virtual keyboard up or down one octave.
Notes trigged chromatically can be recorded on the sequencer in LIVE RECORDING mode. Find out how
this is done in section “10.2.3 LIVE RECORDING MODE” on page 29.
The active state of CHROMATIC mode (the portion of the chromatic keyboard currently visible on the
[TRIG] keys) is not stored per pattern but stays in the state as it was last set.
Press [FUNC] + [TRK] to exit CHROMATIC mode.
21
8. DIGITAKT CONTROLS
You can also use an external keyboard to play the active tracks Sound chromatically.
Connect the keyboard to the Digitakt and configure the external keyboard and the Digitakt
MIDI Auto Channel (SETTINGS > MIDI CONFIG > CHANNELS) to the same MIDI channel.
Then play the keys on the external keyboard to play the active tracks Sound chromatically.
You can play the active track’s Sound chromatically even if the Digitakt is not in CHROMATIC mode.
8.5.2 MUTE MODE
You can use MUTE mode to mute any number of the 16 sequencer tracks. Unlike CHROMATIC mode,
it makes no dierence which track is active when you enter MUTE mode. All tracks are accessed simultaneously. Press any of the [TRIG] keys to mute the corresponding track. Press again to unmute. The
color of the [TRIG] keys indicates its tracks mute status. Unlit keys signify muted tracks. Lit keys signify
unmuted tracks.
There are two dierent versions of MUTE mode on the Digitakt:
• GLOBAL MUTE MODE In GLOBAL MUTE mode, the muted tracks are muted in all patterns, and the
trig [TRIG] keys are lit green.
Press [FUNC] + [BANK] to enter GLOBAL MUTE mode. If tracks are muted in GLOBAL MUTE mode,
the tracks will flash green when the pattern plays.
Press [FUNC] + [BANK] to exit GLOBAL MUTE mode.
• PATTERN MUTE MODE In PATTERN MUTE mode, the muted tracks are muted only in the active
pattern, and the trig [TRIG] keys are lit purple.
Press [FUNC] + double-tap [BANK] to enter PATTERN MUTE mode. If tracks are muted in PATTERN
MUTE mode, the tracks will flash purple when the pattern plays.
Press [FUNC] + [BANK] to exit PATTERN MUTE mode.
The GLOBAL MUTE mode settings are saved together with the project. The PATTERN MUTE mode
settings are saved together with the pattern.
• You can also use QUICK GLOBAL MUTE to mute and unmute sequencer tracks globally.
Press and hold [FUNC] and then press the [TRACK] keys to mute or unmute tracks.
• You can also use QUICK PATTERN MUTE to mute and unmute sequencer tracks in
the active pattern. Press and hold [PTN] and then press the [TRACK] keys to mute or
unmute tracks..
• Digitakt remembers the last used version of MUTE mode and will access this one first
when you press [FUNC] + [BANK].
22
9. PATTERNS, KITS, SOUNDS, AND SAMPLES
9. PATTERNS, KITS, SOUNDS, AND SAMPLES
The patterns are the primary data container for the Digitakt. Sixteen patterns are available for each of the
eight banks, which means that 128 patterns are available for each project. A pattern contains up to eight
Sounds (one for each audio track), sequencer data like trigs and parameter locks. It also contains the default settings on the TRIG page and BPM, length, swing and time signature settings. A pattern also contains
all the parameter settings for the eight MIDI tracks.
A kit is a collection of eight Sounds. A Sound is a sample, plus all the settings in the PARAMETER pages
(SRC, FLTR, AMP, and LFO). A Sound can be assigned to one of the eight audio tracks.
Each of the audio tracks can contain one Sound. A Sound that has been imported from the +Drive to a pattern becomes part of the active pattern. Any changes made to a Sound will therefore not aect the stored
Sound or kit. It will only aect the Sound in the active pattern. You can export (and in that way save) a
Sound from the active pattern to the +Drive. For more information, please see “9.3 SOUND MANAGER” on
page 24.
A sample that is used in a Sound or a pattern can be renamed or moved and still work as intended. This is
due to a hash function that adds a file specific value to every file, and this value is independent of the file
name or the file’s location in the data structure. However, if you delete a sample, it will not be included in any
Sounds or patterns anymore.
• When a Sound is imported to a pattern, it becomes a copy of the Sound on the +Drive and
is not linked to the original Sound stored on the +Drive. Instead, it fully becomes a part of
the pattern.
• If you delete a sample from the +Drive, it will not be included in any Sounds or patterns
anymore.
A Pattern contains:
• A kit.
• All parameter settings for the eight MIDI tracks.
• Sequencer data like trigs and parameter locks.
• The settings on the TRIG PARAMETERS page, BPM, length, swing and time signature settings.
A Kit contains:
• Eight audio track Sounds.
• LEVEL settings for the audio tracks.
A Sound contains:
• A sample (linked from the +Drive), plus the SRC, FLTR, AMP, and LFO PARAMETER pages settings for
the audio track.
A Sample contains:
• A 16 bit, 48 kHz, mono audio file.
9.1 THE +DRIVE SOUND LIBRARY AND THE SOUND POOL
The total size of the +Drive is 1 GB. The +Drive Sound library can hold up to 2048 Sounds (256 Sounds in
each bank A-H) that are available to all projects. The +Drive Sound library also contains the samples. You
can load up to 64 MB (about 11 minutes) of samples to a project. A sample must be imported to a project,
for it to be Sample locked. For more information, please see “11.3.4 SAMP” on page 39.
Sounds can be loaded to a pattern from either the +Drive Sound library or the Sound pool of the active
project. The dierence between the two is that the +Drive Sound library has the capacity of 2048 Sounds,
available to all projects, while the Sound pool is a part of a project and limited to 128 Sounds. The primary
benefit of Sounds loaded to the Sound pool is the possibility for them to be Sound locked. This feature is
not available for the Sounds in the +Drive Sound library. For more information, please see “10.10.2 SOUND
LOCKS” on page 34.
9.1.1 ADDING SOUNDS TO THE SOUND POOL
You must first add Sounds to the Sound pool to be able to perform Sound locks.
1. Press [FUNC] + [PATTERN MENU] to open the IMPORT/EXPORT menu.
2. Select MANAGE SOUNDS, and then press [YES] to open the SOUND MANAGER.
3. Select the Sounds you want to add to the Sound pool by highlighting them and pressing [YES].
23
9. PATTERNS, KITS, SOUNDS, AND SAMPLES
4. Press [RIGHT] to open the SOUND OPERATIONS menu.
5. Select COPY TO ... and then press [YES].
6. Select SOUND POOL, and then press [YES].
9.2 SOUND BROWSER
Press [FUNC] + LEVEL/DATA to open the SOUND BROWSER. The SOUND BROWSER is used to pre-
view and load Sounds. This menu will show a list of all Sounds in the +Drive Sound library. Scroll the list by
turning the LEVEL/DATA knob or by pressing [UP]/[DOWN]. Press [FUNC] + [YES] to preview the Sound
before you load it to the track. Press [YES] to load the Sound to the track.
Press [LEFT] to access the SORTING menu. Press [YES] to execute the commands. Press [NO] or the
[RIGHT] arrow key to exit the menu.
VIEW POOL lists Sounds available in the Sound pool of the active project. The command is only available
when you browse the +Drive Sound library.
VIEW +DRIVE lists Sounds available on the +Drive Sound library. The command is only available when
you browse the Sound pool of the active project.
SORT ABC sorts the Sounds in alphabetical order. The command is only available when Sounds are
being sorted by slot number.
SORT 123 sorts the Sounds by slot number. The command is only available when Sounds are being sort-
ed alphabetically.
FILTER opens a list where Sounds can be arranged according to tags. Select and deselect tags by
pressing [YES]. Multiple tags can be selected. Exit the tag list by pressing [NO].
SEARCH will perform a text search and list all Sounds with names matching or including the text input.
For more information, please see “6.5 THE NAMING SCREEN” on page 17 on how to enter text.
9.3 SOUND MANAGER
Press [FUNC] + [PATTERN MENU] to open the IMPORT/EXPORT menu. The SOUND MANAGER is used
to manage Sounds, for example import, export, rename, and tag Sounds. Select MANAGE SOUNDS and
press [YES] to open the SOUND MANAGER. Sounds can be saved, loaded, renamed, tagged et cetera.
Opening this menu will show a list of all Sounds found in the +Drive Sound library. Turn the LEVEL/DATA
knob or press [UP]/[DOWN] to scroll through the list. Press [FUNC] + [YES] to preview the Sound before
you load it to the track.
24
9. PATTERNS, KITS, SOUNDS, AND SAMPLES
Press [LEFT] to access the SORTING menu. Press [YES] to execute the commands. Press [NO] or the
[RIGHT] arrow key to exit the menu.
VIEW POOL lists Sounds available in the Sound pool of the active project. The command is only available
when you browse the +Drive Sound library.
VIEW +DRIVE lists Sounds available on the +Drive Sound library. The command is only available when
you browse the Sound pool of the active project.
SORT ABC sorts the Sounds in alphabetical order. The command is only available when Sounds are
being sorted by slot number.
SORT 123 sorts the Sounds by slot number. The command is only available when Sounds are being sort-
ed alphabetically.
FILTER opens a list where Sounds can be arranged according to tags. Select and deselect tags by
pressing [YES]. You can select multiple tags. Exit the tag list by pressing [NO].
SEARCH will perform a text search and list all Sounds with names matching or including the text input.
For more information, please see “6.5 THE NAMING SCREEN” on page 17 on how to enter text.
Press [RIGHT] to access the SOUND OPERATIONS menu. The available operations will aect the highlighted Sound. Press [YES] to apply the commands to the selected Sound. Press [NO] or the [LEFT] arrow key
to exit the menu.
IMPORT TO TRACK loads the selected Sound to the active track and makes it a part of the active pattern.
COPY TO... Copies the selected Sounds to one of the following:
• SOUND POOL copies the selected Sounds to the first free slots of the Sound pool.
• +DRIVE copies the selected Sounds to the first free slots of the +Drive Sound library.
• +BANK (A-H) copies the selected Sounds to the first free slots of a specific bank inside the +Drive.
EXPORT TO HERE exports the active track Sound and saves it to the selected slot.
RENAME Opens a screen where you can rename the selected Sound.
EDIT TAGS opens a menu where Sounds can be tagged. Sounds can have any number of tags, but only
the first two will show on the Sound list. Press [YES] to apply or remove tags. Highlight <SAVE> and
press [YES] to save
25
9. PATTERNS, KITS, SOUNDS, AND SAMPLES
DELETE deletes the Sound.
SELECT ALL selects all Sounds in the list.
DESELECT ALL deselects all Sounds in the list.
TOGGLE enables or disables write protection for the selected Sounds. When a Sound is write protected
it cannot be overwritten, renamed, tagged or deleted. A write protected Sound has a padlock symbol
next to its name
SEND SYSEX sends the selected Sounds as SysEx data.
• Sounds in the +Drive Sound library are organized into eight banks, ranging from A to H.
Each bank can contain 256 Sounds. Use the [TRIG A–H] keys to view only Sounds located
in a specific bank.
• You can preview the currently selected Sound by pressing the [TRIG 1–8] key of the active
track. All Sounds available for the active track can be previewed. Please note that if the
previewed Sound is sent to the eects, the current eects settings will aect it.
• Several Sounds can be simultaneously aected by the commands available in the SOUND
OPERATIONS menu. Select/deselect individual Sounds by highlighting them and pressing
[YES].
• Press [FUNC] + [UP]/[DOWN] for faster scrolling in the Sound list.
9.4 PLAYING A SOUND
Press the [TRIG 1–8] keys to play the Sounds of the eight tracks of the active pattern. The [TRIG] keys will
briefly light up when pressed.
PLAYING A SOUND WITH AN EXTERNAL MIDI UNIT
The Sounds can also be played using an external MIDI device connected to Digitakt. The MIDI channels for
of each of the audio tracks can be assigned in the MIDI CHANNELS menu, covered in the section “15.3.3
CHANNELS” on page 61. You can also use an external MIDI unit to play a Sound chromatically when you
are in CHROMATIC mode. For more information, please see “8.5.1 CHROMATIC MODE” on page 21.
9.5 EDITING A SOUND
Activate one of the audio tracks for editing by pressing [TRK] + one of the [TRIG] keys 1–8. When editing
the settings of the track, any changes made will be stored as part of the active pattern.
Adjust the overall volume level of the active audio track with the LEVEL/DATA knob.
Edit a Sound by adjusting the parameters found on the PARAMETER pages. Access these pages by
pressing a [PARAMETER] page key. Use the DATA ENTRY knobs A-H to change the parameters. For more
information, please see “11. AUDIO TRACK PARAMETERS” on page 38.
SRC controls sample selection and playback of samples.
FLTR controls the filter mode, cuto frequency, and envelope.
AMP controls the amplitude parameters, eect sends, and levels.
LFO controls parameters for the LFO of the Sound.
The complete Sound, with all its parameter settings and sample, may be copied to another track. Press
[TRK] + [RECORD], and then press [TRK] + one of the [TRIG] keys to select the track you want to copy
the Sound to, and finally press [TRK] + [STOP] to paste the Sound to the selected track.
9.6 SAVING A SOUND
After you edited the parameters of a Sound, you can save it to the +Drive.
1. Press [FUNC] + [PATTERN MENU] to open the IMPORT/EXPORT menu.
2. Select EXPORT SOUND, and then press [YES].
3. Turn the LEVEL/DATA knob or use the [UP]/[DOWN] keys to select an empty slot to where you want
to save your Sound, and then press [YES]. If you want to save your Sound to another bank, press
[BANK] + [TRIG 9–16] to select a bank.
4. On the NAMING screen, name your sound and then press [YES]. For more information, please see
“6.5 THE NAMING SCREEN” on page 17.
5. On the TAGS screen, use the [ARROW] keys and [YES] key to select the appropriate tags for your
sound, and then select <SAVE> and press [YES].
26
9. PATTERNS, KITS, SOUNDS, AND SAMPLES
9.7 ASSIGNING A SAMPLE
Any of the 127 samples loaded to a project may be assigned to a Sound on any of the audio tracks. The
user samples can be replaced, relocated and otherwise managed in the SAMPLES menu. For more information, please see “15.2 SAMPLES” on page 56.
1. Press [TRK] + [TRIG 1–8]. To select an audio track to assign the sample to.
2. Press [SRC] to open the SOURCE parameter page.
3. Turn DATA ENTRY knob D to bring up a list of samples.
4. Turn the knob counter-clockwise to scroll up the list, clockwise to scroll down the list. Press the
[TRIG] key of the active track while browsing to listen to the sample currently outlined.
5. Press [YES] to select a sample. Press DATA ENTRY knob D or [NO] to exit the list without selecting a
sample.
9.7.1 ASSIGNING A SAMPLE USING THE QUICK ASSIGN METHOD
You can also use the Quick assign method to load a sample to a track and the project’s Sound pool.
1. Press [SRC] to open the SOURCE page, and then turn the knob for the SAMP parameter.
2. While the Sample list is open, press [FUNC] + [YES] to open the SAMPLES menu. For more infor-
mation, please see “15.2 SAMPLES” on page 56.
3. Navigate to the sample you want to load. Any sample can be previewed (played back by the voice
of the active track), just highlight it and then press [FUNC] + [YES]. Approximately, ten seconds of
the sample can be previewed.
4. Highlight the sample, and then press [YES] to load it directly to the track and the project’s Sound
pool.
27
10. THE SEQUENCER
10. THE SEQUENCER
The sequencer of the Digitakt stores information in patterns. A pattern controls the playback of the audio
tracks, the MIDI tracks and various pattern-specific aspects of the tracks. Each of the eight banks, A to H,
contains 16 patterns, which means 128 patterns are available for each project. For more information, please
see “10.5 PATTERN MENU” on page 31.
A pattern contains:
• General trig settings on the TRIG page (default note pitch, velocity et cetera).
• The parameter settings on the SCR, FLTR, AMP, and LFO pages.
• The settings on the DELAY, REVERB, and MASTER pages.
• Quantization settings.
• Note trigs for all tracks.
• Lock trigs for all tracks.
• Parameter locks.
• Sample locks
• Sound locks.
• Length and time signature for the tracks.
10.1 BASIC PATTERN OPERATIONS
Digitakt can seamlessly switch between patterns. This, together with the ability to chain patterns, is a handy
feature when improvising live. For more information, please see “10.11 CHAINS” on page 36.
10.1.1 SELECTING BANK AND PATTERN
Press [BANK] and then press [TRIG 9–16] to select a bank. Then press [TRIG 1–16] to select a pattern.
Press [PTN] and then press [TRIG 1–16] to select a new pattern in the current bank. When you press
[BANK] or [PTN] you must choose a bank or pattern within four seconds for the change to take eect.
A message on the screen indicates the four second timeout. Press [TRK] to exit pattern or bank select.
White [TRIG] keys indicate pattern positions that contain data. A red [TRIG] key indicates the current
active pattern. Empty patterns are unlit.
When a pattern is playing, and a new pattern is selected, the new pattern position will be shown flashing
in the upper left corner of the screen. Once the last step of the pattern has played, the new pattern will
start, and the pattern position will cease to flash.
• Patterns can be changed while the sequencer is running.
• Patterns can be changed and queued by sending program change messages.
• It is possible to copy, clear and paste one or several patterns at the same time without
leaving the active pattern. To copy, press and hold [PTN] + [TRIG] key to select the pattern you wish to copy. Then press [RECORD]. Let go of the [TRIG] key and then press
and hold the [TRIG] key(s) to where you want to paste the pattern. Finally, press and hold
[STOP] to paste the pattern(s). To clear, press and hold [PTN] + [TRIG] key(s) to select
the pattern(s) you wish to clear. Then press and hold [PLAY] to clear the pattern(s).
10.1.2 PATTERN CONTROL
Press [PLAY] to start the playback of a pattern. Press [STOP] to stop the playback of all tracks. The
sound will be cut o, but eects like Delay will continue to be audible until the delay repeats have faded
out. When the sequencer has stopped, quickly press [STOP] + [STOP] to stop playback of all tracks and
get just a short fade out the send eects.
When a pattern is playing and [PLAY] is pressed, playback will pause. Press [PLAY] again to resume the
playback.
If a pattern contains more than 16 sequencer steps, the <PATTERN PAGE> LEDs will indicate this. When
a pattern is playing, the currently active pattern page is shown with a flashing, <PATTERN PAGE> LED.
10.1.3 PATTERN TEMPO
The tempo is set in the TEMPO menu. Press [TEMPO] to open this menu. For more information, please
see “7.1.3 TEMPO” on page 19.
10.2 EDITING A PATTERN
Digitakt oers two main modes of input when editing or creating a pattern, GRID RECORDING mode and
LIVE RECORDING mode. In these modes, two types of trigs can be entered: note trigs and lock trigs.
28
10. THE SEQUENCER
10.2.1 TRIG TYPES
A trig is a sequencer event that you can place when you want the sequencer to perform an action on the
Digitakt. There are two types of trigs that you can use, note trigs and lock trigs.
• Note trigs trigger Sounds or MIDI notes.
• Lock trigs trigger parameter locks, but without triggering notes.
Note trigs are indicated by red [TRIG] keys and lock trigs are indicated by yellow [TRIG] keys. Unlit
[TRIG] keys indicate steps that does not contain any trigs. Read more about parameter locks in section
“10.10.1 PARAMETER LOCKS” on page 34. The two types of trigs are added dierently in the sequencer, depending on whether GRID RECORDING or LIVE RECORDING mode is active.
10.2.2 GRID RECORDING MODE
GRID RECORDING is a method of composing where you use the [TRIG] keys to add trigs.
1. Enter GRID RECORDING mode by pressing the [RECORD] key. The [RECORD] key lights up red to
indicate that GRID RECORDING mode is active.
2. Select the track to which you want to add trigs by pressing and holding [TRACK] and then one of
the [TRIG] keys. A red [TRIG] key indicates the active track.
3. Place note trigs on the sequencer using the sixteen [TRIG] keys. To add a lock trig, press [FUNC-
TION] and [TRIG]. Lock trigs may be entered on any step of the sequencer, including ones that
contains note trigs. Quickly pressing the [TRIG] key of any of the trigs entered will remove the trig.
Pressing a [TRIG] key of a trig and holding it slightly longer will prepare the trig for editing, rather
than removing it.
4. Select another track, and add note trigs and lock trigs. Repeat the procedure for all the tracks you
want to use.
5. Press [PLAY] to listen to the sequence.
Add micro timing to a note trig by pressing and holding the [TRIG] key while pressing [ARROW] keys
[LEFT] or [RIGHT]. For more information, please see “10.3 MICRO TIMING MENU” on page 30.
Set the retrig speed by pressing and holding the [TRIG] key while pressing [ARROW] keys [UP] or
[DOWN]. Similarly, a pop-up menu will appear on the screen, where various retrig settings are made.
For more information, please see “10.4 RETRIG MENU” on page 30.
If the pattern contains more than 16 steps, select the pattern page you want to edit by pressing the
[PAGE] key. A fully lit <PATTERN PAGE> LED shows the active pattern page.
Press [RECORD] to exit the GRID RECORDING mode.
• You can use an external MIDI controller such as a keyboard to input NOTE and TRIG
VELOCITY data when you are in GRID RECORDING mode. Just press and hold a [TRIG]
key, and then play a note on the external keyboard. On MIDI tracks, you can add up to a
four note chord to every trig. The first note sets the TRIG VELOCITY value for all notes
on the trig.
• If you use an external MIDI controller to record to the Digitakt MIDI tracks, the sequenc-
er receives data on the Auto MIDI channel and records on the active track. For more
information, please see “15.3.3 CHANNELS” on page 61.
• All trigs of a track can be shifted forwards or backward on the sequencer. While in GRID
RECORDING mode, hold down [FUNC] while pressing the [LEFT] or [RIGHT] arrow
keys to perform the trig shift.
10.2.3 LIVE RECORDING MODE
LIVE RECORDING mode is the second method of adding trigs to the tracks. In this recording mode, the
[TRIG] keys are played in real time to input trigs to the tracks. You can also use CHROMATIC mode to
add note trigs chromatically. It is also possible to enter parameter locks in real time. Trigs input in LIVE
RECORDING mode can be automatically quantized or not. Non-quantized trigs can be quantized after
they are recorded, by using the QUANTIZE menu that is accessed by pressing [FUNC] + [TRIG]. For
more information, please see “10.7 QUANTIZE MENU” on page 32.
1. Press and hold [RECORD], then press [PLAY] to enter LIVE RECORDING mode. Quickly pressing
[PLAY] twice while keeping the [RECORD] key pressed will activate/deactivate automatic quantization of LIVE RECORDING. The sequencer starts to play, and the [RECORD] key starts to flash
red.
29
10. THE SEQUENCER
2. Enter trigs in real time by tapping the [TRIG] keys. If CHROMATIC mode is active, the pitch value of
the note trig will be recorded according to which [TRIG] key is pressed. Any changes to PARAMETER page settings, using the DATA ENTRY knobs, will be recorded as parameter locks and add
lock trigs where needed.
3. Press [PLAY] to exit LIVE RECORDING mode while keeping the sequencer playing. If LIVE RECORDING mode is active and [RECORD] is pressed, GRID RECORDING mode will be activated.
4. Press [STOP] to stop both recording and playback of the sequencer.
To exit LIVE RECORDING mode while keeping the sequencer playing, press [PLAY].
• You can use an external MIDI controller such as a keyboard to input NOTE, TRIG
VELOCITY, and TRIG LENGTH data in LIVE RECORDING mode. Just play the notes on
the external keyboard and they will be recorded by the sequencer. On MIDI tracks, you
can add up to a four note chord to every trig. The first note sets the TRIG VELOCITY
value for all notes on the trig. The last note that is released sets the TRIG LENGTH for
all notes on the trig.

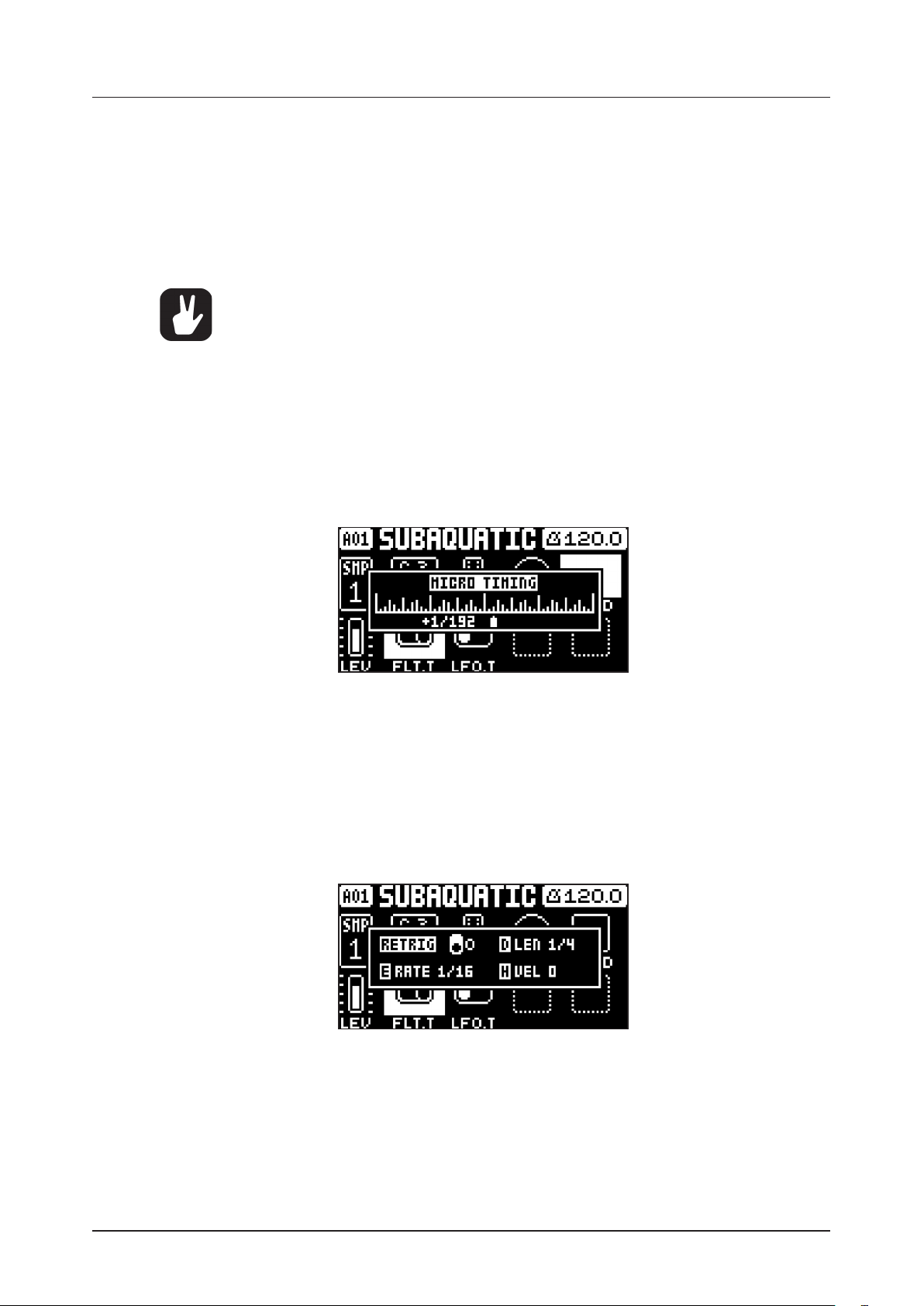

10.3 MICRO TIMING MENU
Here you can add micro timing to a note trig, moving it ahead or behind the beat. Micro timing can be customized on any of the sequencer steps on both audio and MIDI tracks. In GRID RECORDING mode, press
and hold one or several [TRIG] keys and then press [LEFT]/[RIGHT] to access the pop-up Micro timing
menu that shows the time oset for the chosen sequencer step(s) on the active track. To exit the micro
timing menu, release the [TRIG] key(s). The micro timing settings are stored in the active pattern
MICRO TIMING Press [LEFT]/[RIGHT keys to adjust the time oset.
10.4 RETRIG MENU
Retrigs can be customized on any of the sequencer steps on the audio tracks (the retrig function is not
available on the MIDI tracks). In GRID RECORDING mode, press and hold one or several [TRIG] keys and
then press [UP]/[DOWN] to access the pop-up Retrig menu that shows the retrig actions for the chosen
sequencer step(s) on the active track. They are recorded as separate trigs. If the retrig speed is greater
than the duration of a sequencer step, trigs are created with additional internal steps (i.e. steps with retrig
enabled). To exit the Retrig menu, release the [TRIG] key(s). The retrig settings are stored in the active
pattern.
RETRIG Turns the retrig lock ON/OFF. Use DATA ENTRY knob A to turn retrig on/o.
RATE Sets the retrig rate (1/1, 1/2, 1/3, 1/4, 1/5, 1/6, 1/8, 1/10, 1/12, 1/16, 1/20, 1/24, 1/32, 1/40, 1/48, 1/64
or 1/80). 1/16 is the nominal retrig rate, one trig per step. 1/32 corresponds to two trigs per step and so
on. To trig triplets, for example, set the retrig rate to 1/12 (or 1/24). You can also press the [UP]/[DOWN]
keys when you are in the retrig menu to adjust the rate.

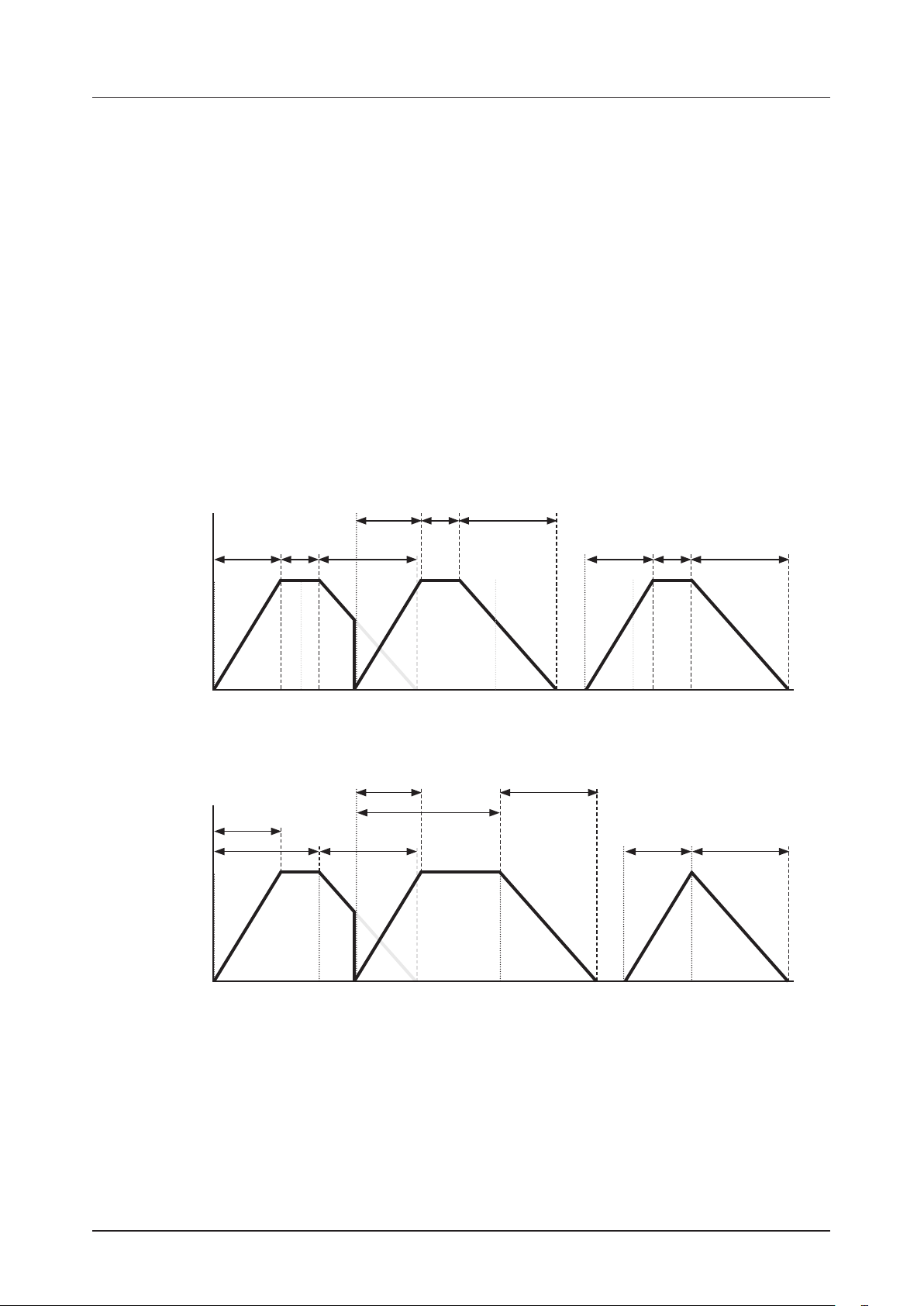

LEN Sets the duration of the retrig velocity curve in fractions of, or rational or integer multiples of, a step
(0,125–INF). 1/16 is the nominal length of one step. This setting aects the behavior of the velocity curve
by defining the boundaries of its envelope.
30
10. THE SEQUENCER
VEL Sets the velocity curve fade out/fade in of the retrig (128–127). 128 corresponds to a complete
fade out during the set length, 64 fades out to half the velocity during the set length, 0 equals a flat
velocity curve with no fade, 64 fades into half velocity during the set length and 127 fades in completely
to full velocity during the set length.
10.5 PATTERN MENU
Use the PATTERN menu to perform pattern management. Press [PATTERN MENU] to open the menu. Use
the [UP] and [DOWN] arrow keys to move between the options. Press [YES] to confirm your selection. Exit
the menu by pressing [NO].
10.5.1 RENAME
Opens a NAMING screen where you can rename the active pattern.
10.5.2 CLEAR
• WHOLE PATTERN Clears the active pattern’s sequencer data and kit. A prompt appears when you
select this option. Press [YES] to clear, or [NO] to cancel the operation. Note that no pattern information will be permanently lost until the pattern is saved to the same pattern slot that it was loaded from.
• KIT DATA Clears the active pattern’s kit. All sequencer data will remain unchanged. A prompt appears when you select this option. Press [YES] to clear, or [NO] to cancel the operation. Note that no
kit information will be permanently lost until the pattern is saved to the same pattern slot that it was
loaded from.
• SEQUENCE DATA Clears the active pattern’s sequence data. All Sounds will remain unchanged. A
prompt appears when you select this option. Press [YES] to clear, or [NO] to cancel the operation.
Note that no sequencer information are permanently lost until the pattern is saved to the same pattern
slot it was loaded from.
10.5.3 SAVE TO PROJ
You must have saved the project at least once before you can save pattern information.
• WHOLE PATTERN Saves the active pattern’s sequence data and kit to the +Drive. A prompt appears
when you select this option. Press [YES] to save, or [NO] to cancel the operation.
• KIT DATA Saves the active pattern’s kit to the +Drive. A prompt appears when you select this option.
Press [YES] to save, or [NO] to cancel the operation.
• SEQUENCE DATA Saves the active pattern’s sequence data to the +Drive. A prompt appears when
you select this option. Press [YES] to save, or [NO] to cancel the operation.
10.5.4 RELOAD FROM PROJ
You must have saved the pattern at least once before you can reload pattern information.
• WHOLE PATTERN Reloads the active pattern’s sequence data and kit from the +Drive. A prompt will
appear when you select this option. Press [YES] to reload, or [NO] to cancel the operation.
• KIT DATA Reloads the active pattern’s kit from the +Drive. A prompt appears when you select this
option. Press [YES] to reload, or [NO] to cancel the operation.
• SEQUENCE DATA Reloads the active pattern’s all sequence data from the +Drive. A prompt appears
when you select this option. Press [YES] to reload, or [NO] to cancel the operation.
10.5.5 IMPORT/EXPORT
Here you can manage the Sounds on the Digitakt.
• IMPORT SOUND Imports (copies) a Sound from the +Drive to the active pattern. Turn the LEVEL/
DATA knob or press [UP]/[DOWN] to scroll through the list. Press [YES] to select a Sound and then
press [TRACK 1–8] to select the track to where you want to assign the Sound.
31
10. THE SEQUENCER
• EXPORT SOUND Exports (saves) the active track’s Sound to the +Drive. Turn the LEVEL/DATA
knob or press [UP]/[DOWN] to choose a destination memory slot. Press [YES] to export the Sound.
Name the Sound and press [YES] again to confirm the export.
• MANAGE SOUNDS Opens the SOUND MANAGER. For more information, please see “9.3 SOUND
MANAGER” on page 24.
10.6 TRIG PARAMETERS PAGE
Set the actions for when a note is trigged in the TRIG PARAMETERS page. Press the [TRIG PARAMETERS] key to access the menu. Change settings using the DATA ENTRY knobs. These general settings
aect note trigs placed on the sequencer. On any step of the pattern, trigs can be locked to other settings
by first pressing and holding a [TRIG] key, then changing the settings. For more information, please see
“11.2 TRIG PARAMETERS PAGE” on page 38.
10.7 QUANTIZE MENU
Press [FUNC] + [TRIG PARAMETERS] to access this menu. Change settings with DATA ENTRY knob E
and F.
TRK. aects all micro-timed trigs of the active track in real time. The higher the quantize value, the more
all micro-timed trigs will be quantized. Press [TRACK 1–4] key to select track to quantize. (0–127)
GLOBAL aects all micro-timed trigs of all tracks in real time. The higher the quantize value, the more all
micro-timed trigs will be quantized. (0–127)
Press [FUNC] + [YES] to apply quantization to the pattern. Press [NO] to exit the menu.
10.8 METRONOME MENU
The METRONOME menu controls the internal metronome of the Digitakt. Press [FUNCTION] + [PTN] to
open the METRONOME menu. Use the DATA ENTRY knobs to change the settings.
ACTIVE activates/deactivates the metronome. You can also press [FUNC] + [PTN] and hold for a sec-
ond to toggle the metronome on and o when you are not in the METRONOME menu.
TIME SIG. controls the note and beat measure of the metronome time signature.
PREROLL BARS controls for how many bars the metronome will sound before the sequencer starts
playing. This setting is only relevant when you are in LIVE RECORDING mode.
VOL. controls the volume of the click.
10.9 SCALE MENU
The length and timing of the pattern and tracks is set in this menu. The SCALE menu has two modes. In
LENGTH PER PATTERN mode all tracks share the same length. In LENGTH PER TRACK mode each track
can have dierent lengths. Access the SCALE menu by pressing [FUNC] + [PAGE]. Press [FUNC] + [YES]
to toggle between the two SCALE modes. Use the DATA ENTRY knobs to adjust the dierent settings.
32
10. THE SEQUENCER
10.9.1 LENGTH PER PATTERN MODE
This is the default mode. In this mode, all tracks of the pattern share the same length and time signature.
LENGTH controls the step length of the pattern. The leftmost number displays the number of steps in
the pattern. The maximum number of steps available in the pattern is determined by the total length, set
by the second number. This can be either 16, 32, 48 or 64 steps. If 17 steps or more are used in a pattern,
the [PAGE] key is, while in GRID RECORDING mode, used to toggle between the dierent pattern pages.
SCALE controls the time signature of the pattern. It oers seven possible settings, 1/8X, 1/4X, 1/2X, 3/4X,
1X, 3/2X and 2X. A setting of 1/8X will play back the pattern at one-eighth of the set tempo. 3/4X plays
the pattern back at three-quarters of the tempo; 3/2X will play back the pattern twice as fast as the 3/4X
setting. 2X will make the pattern play at twice the BPM.
Trigs are automatically copied when extending the length of a pattern. If a pattern consists of for example two pages and the pattern length is increased to four pages, the two additional pattern pages will be
copies of the first two pattern pages.
Press the [PAGE] key to change the total length of the pattern quickly. Press the [TRIG] keys to change
the number of steps of the pattern quickly.
A 2X time signature setting is useful for increasing the base resolution of the step sequencer to 32nd
notes. A 3/4X setting is useful when Digitakt is playing alongside other instruments set to the same BPM,
and you want Digitakt to play triplets.
10.9.2 LENGTH PER TRACK MODE
In this mode, the tracks of the pattern can be assigned individual lengths. Press [FUNC] + [YES] to
switch between the two scale modes. In LENGTH PER TRACK mode, two columns exist, TRACK and
PATTERN.
The TRACK column sets the step length of the track. It works just like setting the pattern length in
LENGTH PER PATTERN mode. The settings will only aect the active track. Press the [TRK] keys to
select the track whose scale settings will be edited.
The PATTERN column sets the master length, the master change length and the general time signature
of the pattern.
M.LEN controls the number of steps the pattern will play before all tracks restart. An INF setting will
make the tracks of the pattern loop infinitely, without ever being restarted. Note that this setting also
aects for how long the active pattern will play before a chained pattern starts playing. The CH.LEN
parameter can override this.
CH.LEN controls for how long the active pattern will play before a cued or chained pattern will begin
to play. This setting is important when, for example, M.LEN is set to INF. If no CH.LEN setting is made,
the pattern will play infinitely, and the next pattern will thus not be cued. But if CH.LEN, for instance, is
set to 64, the pattern will behave like a pattern consisting of 64 steps in terms of cueing and chaining.
SCALE sets the general time signature of the pattern.
33
10. THE SEQUENCER
Press [FUNC] + [UP]/[DOWN] to set the TRACK LENGTH in increments of 16.
10.10 SEQUENCER FEATURES
10.10.1 PARAMETER LOCKS
Parameter locks makes it possible to set every trig to have its own unique parameter values. The note
trigs of an audio track can, for example, have dierent pitch, amp or filter settings. It is possible to parameter lock the parameters found on the PARAMETER pages, and you can apply parameter locks to
all types of tracks. For a complete overview of all parameters on the PARAMETER pages, please see “11.
AUDIO TRACK PARAMETERS” on page 38, and “12. MIDI TRACK PARAMETERS” on page 45.
To apply parameter locks in GRID RECORDING mode, press and hold the [TRIG] key of a trig (note trig
or a lock trig). Use the DATA ENTRY knobs to adjust the parameters you want to lock. The graphics
become inverted for the locked parameter, and the locked parameter values are displayed. The [TRIG]
key of the locked trig blinks red (for note trigs) or yellow (for lock trigs) to indicate the trig now contains a
parameter lock.
Remove a single parameter lock by holding [TRIG] + pressing the DATA ENTRY knob of the locked pa-
rameter. You can erase all parameter locks from a trig if you remove the note trig and then enter it again.
In LIVE RECORDING mode, turning a DATA ENTRY knob, or playing the [TRIG] keys in CHROMATIC
mode, will input parameter locks to the active track. Note trigs will be locked accordingly, and lock trigs
containing the locks will be placed on the sequencer steps not containing note trigs.
Press [NO] + one (or several) of the [TRIG] keys to erase a sequence of recorded trigs on a specific
track (or on several tracks) in time with the sequencer, i.e. all steps reached on the pattern playing will be
erased until the keys are released.
You can also remove specific parameter locks on a track in real time. In LIVE RECORDING mode, press
and hold [NO] and then press and hold the DATA ENTRY knob corresponding to the parameter that you
want to remove.
Up to 72 dierent parameters can be locked in a pattern. A parameter counts as one (1)
locked parameter no matter how many trigs that lock it. If for example the cuto parameter of the filter is locked on every sequencer step, there are still 71 other parameters that
can be locked.
10.10.2 SOUND LOCKS
You can change a tracks Sound to another Sound from the Sound pool on any individual sequencer
step. These Sound locks are an immensely useful feature for adding variations to a track. Press and
hold a note trig and turn the LEVEL/DATA knob to open the Sound pool list. Use the LEVEL/DATA
knob to scroll through the list. Select the Sound you want to assign to the note trig and then release the
[TRIG] key. The [TRIG] key starts to flash to indicate that it contains a Sound lock. Press and hold the
[TRIG] key of the note trig to show the assigned Sound. For more information, please see “9.1.1 ADDING
SOUNDS TO THE SOUND POOL” on page 23.
10.10.3 CONDITIONAL LOCKS
On the TRIG PARAMETERS page, there is a parameter called COND (Trig Condition) with which a set
of conditional rules can be applied to any trig, using a parameter lock. Each setting is a logical condition
that will determine whether a trig set in the sequencer will be triggered or not. If the condition is true then
the trig will become active and aect the sequence. You must first place a trig on the sequencer step to
where you want to apply a conditional lock.
The sequencer needs to be in FILL mode to activate the conditional lock called FILL. For more information, please see “10.10.4 FILL MODE” on page 35.
You can use the COND parameter to set the following trig conditions:
FILL is true (activates the trig) when FILL mode is active.
FILL is true when FILL is false. A trig with this trig condition is active when you are not in FILL mode.
PRE is true if the most recently evaluated trig condition on the same track was true. (PRE and PRE
conditions are ignored and not evaluated.)
PRE is true when PRE is false. A trig with this trig condition is active if the most recently evaluated trig
condition on the same track was not true. (PRE and PRE conditions are ignored and not evaluated.)
34
10. THE SEQUENCER
Example 1: Trig 1, 50% = True > Trig 2, PRE = False > Trig 3, PRE = False > Trig 4, PRE = True
Example 2: Trig 1, 50% = False > Trig 2, PRE = True > Trig 3, PRE = True > Trig 4, PRE = False
NEI is true if the most recently evaluated trig condition on the neighbor track was true. (PRE and PRE
conditions on the neighbor track are ignored and not evaluated.) The neighbor track is the track
before the active track. For example, track 3 is the neighbor track of track 4. NEI and NEI conditional
trigs on track 4 evaluate the conditional trigs placed on track 3. The NEI condition is false if no conditional trigs exist on the neighbor track.
NEI is true when NEI is false. A trig with this trig condition is active if the most recently evaluated trig
condition on the neighbor track was not true. (PRE and PRE conditions on the neighbor track are
ignored and not evaluated.)
1ST is true the first time the pattern plays (when looped).
1ST is true when 1ST is false. A trig with this trig condition is always active apart from the first time the
pattern plays (when looped).
X% is a probability condition. There is an x% chance that the trig will be active.
A:B A sets how many times the pattern plays before the trig condition is true. B sets how many times
the pattern plays before the count is reset and starts over again. This cycle then repeats indefinitely.
For example:
With the setting 1:2, the trig condition is true the first time the pattern plays and then the third, the fifth,
and so on.
With the setting 2:2, the trig condition is true the second time the pattern plays and then the fourth,
the sixth, and so on.
With the setting 2:4, the trig condition is true the second time the pattern plays and then the sixth, the
tenth, and so on.
With the setting 4:7 the trig condition is true the fourth time the pattern plays and then the eleventh,
the eighteenth, and so on.
• Conditional parameter locks are a great way to add variety to a pattern. To set up a
grid of mutually exclusive or conclusive note trigs across any of the synth tracks, and
throwing some probability locks in there as well (perhaps, in turn, also sporting an array
of logically conditioned trigs), is a neat way to make the most minimal of compositions
come alive with randomness.
• Note that random or arbitrary variety, while fun and interesting, is not the only way of us-
ing conditional trigs. They may also be used, for example, to have two dierent melodic
or percussive sequences on the same track, one of which is activated only when FILL
mode is active.
10.10.4 FILL MODE
FILL mode can be used to create a temporary variation, such as a drum fill, in your pattern.
Press [YES] + [PAGE] to activate FILL mode for one pattern cycle. It will become active when the pat-
tern loops, and remain active until it loops again. You can also activate FILL mode at any time, and for any
duration, by pressing and holding the [PAGE] key when the pattern is playing (GRID RECORDING mode
cannot be active). The FILL mode is active for as long as the key is held.
Press and hold [PAGE] + [YES], and then release [PAGE] before you release [YES] to latch FILL mode.
Press [PAGE] again to unlatch FILL mode.
10.10.5 SWING
Adjust the swing setting of the pattern, to employ a propulsive, rhythmic groove. Press [TEMPO] to
access this menu.
Turn DATA ENTRY knob E to set the SWING ratio to 51-80%. The default setting is equal spacing, 50%.
35
10. THE SEQUENCER
10.10.6 COPY, PASTE AND CLEAR OPERATIONS
Patterns, tracks, track pages, and trigs can be copied, pasted and cleared.
The active pattern can be copied to another location in the same bank or in another bank. To perform
a pattern copy operation, GRID RECORDING mode must be deactivated. Copy the pattern by pressing
[FUNC] + [RECORD]. Select another pattern, and then press [FUNC] + [STOP] to paste the copied pattern to this location. Please note that you can only paste to the currently active pattern. Clear a pattern
by pressing [FUNC] + [PLAY].
Individual sequencer tracks can be copied, pasted and cleared in the same way as patterns. To do so,
GRID RECORDING mode must be active.
A single track page may also be copied, pasted and cleared. It is similar to copying/pasting/clearing a
track, but will only aect the active track page. Select the track page of choice by pressing the [PAGE]
key. Copy by pressing [PAGE] + [RECORD]. Select a new track page and press [PAGE] + [STOP] to
paste. Press [PAGE] + [PLAY] to clear the active track page.
Trigs, complete with all parameter lock settings, can be copied, pasted and cleared as well. GRID RECORDING mode needs to be active to access this functionality. Press and hold a trig and press [RE-
CORD] to perform the copy operation. Paste by holding another [TRIG] key and pressing [STOP]. It is
also possible to copy more than one trig. Hold several trigs and press [RECORD]. The trig first pressed
will act as the starting point. When pasting, the other copied trigs will be placed in relation to this trig.
Paste the copied sequence of trigs by holding another [TRIG] key and pressing [STOP]. Clear trig locks
by holding one or more trigs and press [PLAY].
You can undo any copy, paste, and clear operation by repeating the key presses.
• It is possible to copy, clear and paste one or several patterns without leaving the active
pattern. To copy, press and hold [PTN] + [TRIG] key to select the pattern you wish to
copy. Then press [RECORD]. Let go of the [TRIG] key and then press and hold the
[TRIG] key(s) to where you want to paste the pattern. Finally, press and hold [STOP]
until the count down finishes to paste the pattern(s). To clear, press and hold [PTN] +
[TRIG] key(s) to select the pattern(s) you wish to clear. Then press and hold [PLAY] to
clear the pattern(s).
10.10.7 TEMPORARY SAVE AND RELOAD PATTERN COMMANDS
Patterns can instantly be saved to a temporary memory space and then reloaded again from this space.
• To perform a temporary save of the active pattern, press [FUNC] + [YES]. This is useful in order to
create a restore point when you are live tweaking, but without permanently save your changes.
• To perform a temporary reload of the active pattern, press [FUNC] + [NO]. It will the reload the pattern from when you last used the temporary save command. If you have not done any temporary save,
then the pattern will reload from the permanently saved state.
The TEMPORARY SAVE PATTERN and TEMPORARY RELOAD PATTERN commands are
great when improvising live. Any changes made to the active pattern, like adding bass line
notes or using CONTROL ALL , can immediately be undone. And at the same time, the
saves and reloads will not aect the pattern in a permanent way.
The TEMPORARY SAVE PATTERN command will not save the pattern permanently and
any changes will be lost if you load another project. If you wish to save your changes permanently, you should use SAVE TO PROJ in the PATTERN MENU. For more information,
please see “10.5 PATTERN MENU” on page 31.

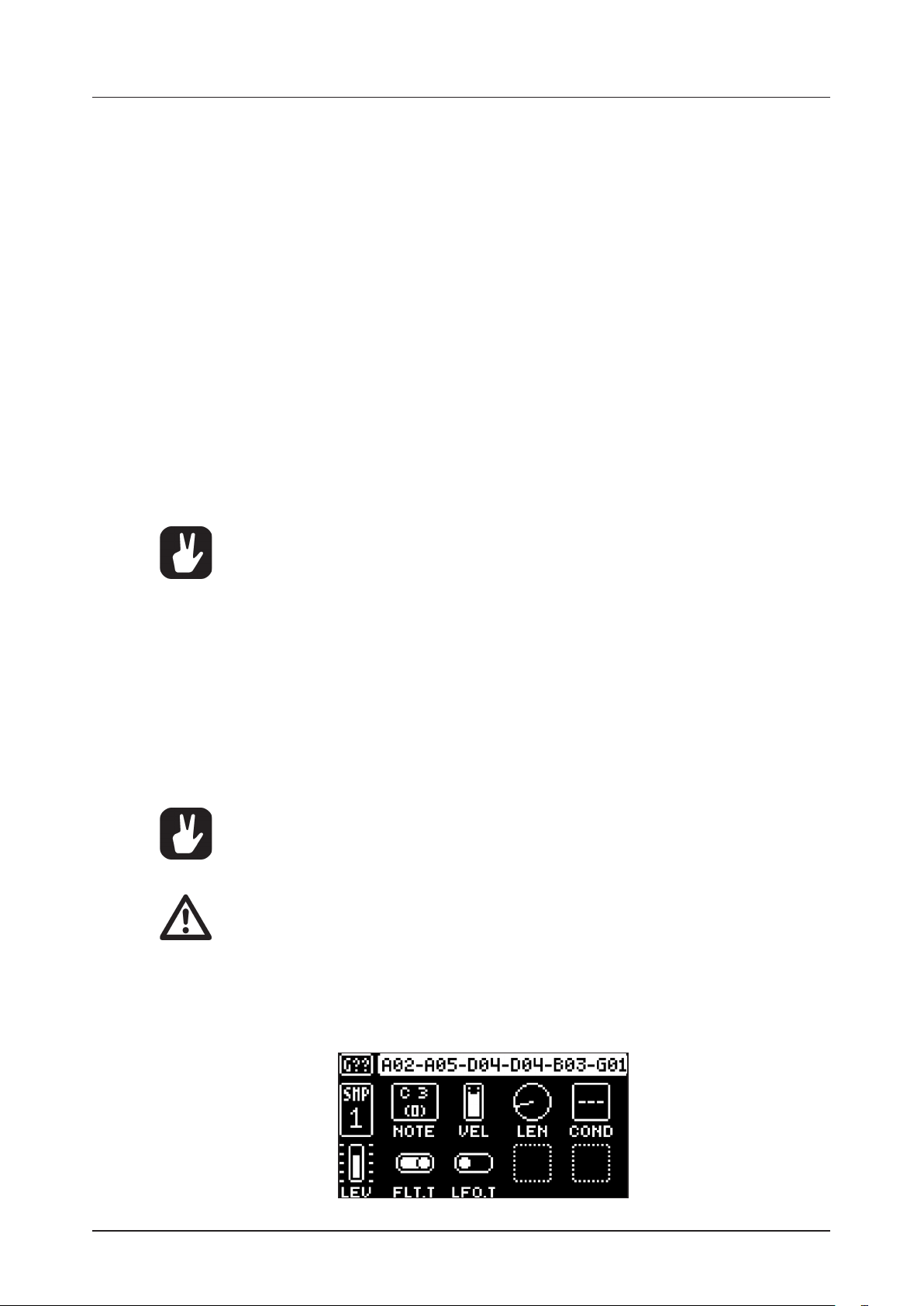

10.11 CHAINS
Chains are sequences that consist of more than one pattern. You can use chains to preselect and automate
in what order you want your patterns to play.
36
10. THE SEQUENCER
You can create one chain and it can contain any pattern in bank A–H. The chain can consist of up to 64
patterns.
1. Press [BANK] + [TRIG 9–16] key to select bank.
2. Press and hold [PTN] and then press a [TRIG 1–16] key to select the first pattern in the chain.
3. Release the [PTN] key and then press [TRIG 1–16] keys in the same order as you want the chained
patterns to play. Keep a previous [TRIG] key pressed while you press the next one, the one after that
and so on. You can press the same [TRIG] key again if you wish to add the pattern multiple times in a
row. If you want to add a pattern from another bank, press [BANK] + [TRIG 9–16] to select bank, and
then press [TRIG 1–16] to select pattern.
4. Press [PLAY] to start the sequencer and play the chain. The chain will be looped once the final pattern of the chain has played.
Please note that the chain will be lost when you create a new chain or when you select a new
bank/pattern. Also, chains cannot be saved and will be lost when you switch the Digitakt o.
• Chains can be created while the sequencer is running.
• You can also use MIDI program change messages from an external device to change
patterns on the Digitakt. For more information, please see “15.3.1 SYNC” on page 60.
37
11. AUDIO TRACK PARAMETERS
11. AUDIO TRACK PARAMETERS
Here follows a description of all of the parameters that are available on the audio tracks PARAMETER pages. The parameters on the TRIG page are not saved together with the Sound, but are instead saved with
the pattern. The audio track parameters may be locked to other settings on any step of the pattern by first
pressing and holding a [TRIG] key, then changing the parameters’ settings with the DATA ENTRY knobs.
For more information, please see “10.10.1 PARAMETER LOCKS” on page 34.
11.1 EDITING THE AUDIO TRACK PARAMETERS
There are five PARAMETER pages for the audio tracks. Press the [PARAMETER] keys to access the audio
tracks PARAMETER pages. The SRC parameter group has two pages To access page one, press the [SRC]
key once. To access page two, press the [SRC] key twice. Use the DATA ENTRY knobs A-H to change the
parameters. Press and hold a [PARAMETER] key to see the values for all parameters on that page.
11.2 TRIG PARAMETERS PAGE
Set the actions for when a note is trigged. Change settings using the DATA ENTRY knobs. These general
settings aect note trigs placed in the sequencer.
Press [TRIG PARAMETERS] to access this parameter page.
11.2.1 NOTE
Trig Note sets the pitch of the note when trigged. When in LIVE RECORDING mode and playing in
CHROMATIC mode, the pitch of the [TRIG] keys played will override this setting. (24–+24)
11.2.2 VEL
Trig Velocity sets the velocity of the sequencer’s note trigs. (0–127)
11.2.3 LEN
Trig Length sets the length of the note trig. In LIVE RECORDING mode, the duration of pressing the
[TRIG] keys overrides this general setting. (0–127, INF)
11.2.4 COND
Trig Condition lets you set a number of conditional rules that can be applied to any trig, using a parameter lock. Each setting is a logical condition, which will determine whether or not the sequencer note will
be triggered. For more information, please see “10.10.3 CONDITIONAL LOCKS” on page 34.
11.2.5 FLT.T
Filter Trig controls if the filter envelope will be trigged or not. (ON, OFF)
11.2.6 LFO.T
LFO Trig controls if the LFO will be trigged or not. (ON, OFF)
11.3 SRC PAGE 1
The parameters on the SOURCE page control the playback of the user samples. Within each pattern, the
samples may be dynamically allocated, modulated and customized. There are 127 sample slots available for
every project.
Press [SRC] once to access this parameter page.
38
11. AUDIO TRACK PARAMETERS
11.3.1 TUN
Tune sets the pitch of the sample. The knob works in a bipolar fashion, and a value of 0 leaves the pitch
unchanged. (-24.00–+24.00, equivalent to four octaves.)
11.3.2 PLAY
Play Mode sets the play mode of the sample. It controls how the sample will be played back when it is
trigged.
The dierent modes are:
• REVERSE The sample will be played back in reverse once every time it is trigged.
• REVERSE LOOP The sample will loop continuously in reverse between Loop Position and Length.
How long it will loop for is set with the LEN parameter on the TRIG page. This time is also constrained
by the AMP page envelope parameters HLD and DEC.
• FORWARD LOOP The sample starts at the STRT position and will loop continuously between Loop
Position and Length. How long it will loop for is set with the LEN parameter on the TRIG page. This
time is also constrained by the AMP page envelope parameters HLD and DEC.
• FORWARD The sample will be played back once every time it is trigged.
11.3.3 BR
Bit Reduction. Increasing the value of this parameter decreases the resolution of the sample, making it
more lo-fi. (0–127)
11.3.4 SAMP
Sample Select. Here you can browse the list of the up to 127 samples that are loaded to the project, and
assign them to the audio tracks. Turn the knob clockwise to scroll down the list, counter-clockwise to
scroll up. The first position, OFF, plays no sample. Press [FUNC] + [SRC] to quickly access this parameter. You must to load a sample from the +Drive to the project before you can assign it to a track. For
more information, please see “14.4 ASSIGNING A SAMPLE TO A TRACK FROM THE +DRIVE” on page
54. You can apply parameter locks to the SAMP parameter and change the sample on any step of the
sequencer, so called Sample locks. For more information, please see “10.10.1 PARAMETER LOCKS” on
page 34. (OFF, 1–127).
11.3.5 STRT
Start sets the start position for playback of the sample. (0.00–120.00)
11.3.6 LEN
Length sets the length of the playback of the sample. Start + Length eectively define the end point of
the portion of the sample that is played. (0.00–120.00)
11.3.7 LOOP
Loop Pos sets the position in the sample to where playback will return to after reaching the Length
Position (defined by STRT + LEN) of the sample if PLAY MODE is set to FORWARD LOOP or REVERSE
LOOP. The sample is then looped between the end of LEN and LOOP. (0.00–120.00)
11.3.8 LEV
Sample Level sets the level of the sample. (0.00–127.00)
If you press and hold [SRC], you can see the name of the currently loaded sample.
39
11. AUDIO TRACK PARAMETERS
The STA , LEN, and LOP parameters.
FORWARD LOOP play mode.
Loop
Start
Position
Length
Start
Loop Position
Start
Length
Length
Loop
Position
Loop
Position
Start
Length
11.4 SRC PAGE 2
Same parameters as on SRC page 1 but with a graphical representation of the parameters.
Press [SRC] twice to access this parameter page.
11.5 FLTR PAGE
On the FILTER page, you will find all parameters that control the multimode filter and its associated envelope.
Press [FLTR] to access this parameter page.
40
11.5.1 ATK
Attack Time sets the length of the attack phase of the filter envelope. (0–127)
11.5.2 DEC
Decay Time sets the length of the decay phase of the filter envelope. (0–127)
11.5.3 SUS
Sustain Level sets the sustain level of the filter envelope. (0–127)
11. AUDIO TRACK PARAMETERS
11.5.4 REL
Release Time sets the length of the release phase of the filter envelope. (0–126, INF)
11.5.5 FREQ
Frequency sets the cuto frequency of the multimode filter. (0.00–127.00)
11.5.6 RESO
Resonance sets the resonance behavior of the filter. Resonance introduces a peak in the spectrum at
the cuto frequency. (0.00–127.00)
11.5.7 TYPE
Filter Type selects the type of filter. (OFF, 2-pole Lowpass, 2-pole Highpass)
11.5.8 ENV
Env. Depth sets the amount of cuto frequency modulation from the filter envelope. The knob is bipolar,
both negative and positive modulation depths are available. Range (64.00–63.00)
Attack
AMPLITUDE
Note On
Decay
Release
Sustain
Note O
TIME
11.6 AMP PAGE
The AMP page controls parameters for the amplitude envelope, overdrive, eects sends, panning and
volume.
Press [AMP] to access this parameter page.
11.6.1 ATK
Attack Time sets the length of the attack phase of the amp envelope. (0–127)
11.6.2 HOLD
Hold Time sets the length of the hold phase of the amp envelope. Fixed Hold time values (0–126) specify
the length of the hold phase, and the envelope ignores Note O events such as Trig Length (See “10.6
TRIG PARAMETERS PAGE” on page 32), releasing a [TRIG] key or a key on an external controller.
Setting HOLD to NOTE means the hold phase will be determined by Note On and Note O events.
(0–126, NOTE)
If you set HOLD to NOTE and use an external keyboard to trigger the envelope, then the
sound will be sustained for as long as you press a key on the keyboard (or until the sample
ends).
11.6.3 DEC
Decay Time sets the length of the decay phase of the amp envelope. (0–126, INF)
41
11. AUDIO TRACK PARAMETERS
11.6.4 OVER
Overdrive sets the amount of overdrive and clipping distortion of the signal entering the filter.
(0.00–127.00)
11.6.5 DEL
Delay Send sets the amount of the sound that is sent through to the Delay eect. For more information,
please see “13. FX PARAMETERS” on page 49. (OFF, 0.01–127.00)
11.6.6 REV
Reverb Send sets the amount of the sound that is sent through to the Reverb eect. For more information, please see “13. FX PARAMETERS” on page 49). (OFF, 0.01–127.00)
11.6.7 PAN
Pan positions the sound in the stereo field. The knob function is bipolar with 0 being the balanced midpoint, L64 sends all sound to the left channel and R63 sends all sound to the right.
(L64–R63)
11.6.8 VOL
Volume sets the amount volume of the sound. This parameter is independent of the overall track level.
(0.00–127.00)
Amplitude envelope with a fixed HOLD time.
Hold
Attack
Hold
Attack
Decay
AMPLITUDE
Note On
Note O
Note On Note O
Amplitude envelope with HOLD set to NOTE.
Attack Decay
Hold
Attack
Hold
Decay
AMPLITUDE
Decay
TIME
Note On
Attack
Note O
Hold
Attack/
Hold
Decay
Decay
Note On
Note O
Note
On
Note O
TIME
Note On
Note O
11.7 LFO PAGE
The Low-Frequency Oscillator can be used to modulate the parameters found on the audio tracks SRC,
FILTER and AMP pages. Customize the low-frequency oscillator behavior, orientation, and depth on this
page.
Press [LFO] to access this parameter page.
42
11. AUDIO TRACK PARAMETERS
11.7.1 SPD
Speed sets the speed of the LFO. Try settings of 8, 16 or 32 to sync the LFO to straight beats. The knob
is bipolar. The LFO cycle can be played backward by using negative values. (64.00–63.00)
11.7.2 MULT
Multiplier multiplies the SPD parameter by the set factor either by multiplying the current tempo (BPM
settings), or by multiplying a fixed tempo of 120 BPM.
11.7.3 FADE
Fade In/Out makes it possible to fade in/fade out the LFO modulation. The knob is bipolar. Positive values give a fade-out, negative values give a fade in. 0 gives no fade in/fade out. (-64–63)
11.7.4 DEST
Destination selects the modulation destination for the LFO. Preview how the LFO modulation will aect
the sound by highlighting a destination. Press [YES] to confirm the selection.
11.7.5 WAVE
Waveform sets the LFO waveform. There are seven waveforms: Triangle, Sine, Square, Sawtooth, Exponential, Ramp, and Random.
11.7.6 SPH
Start Phase sets the point within the wave cycle where the LFO will start when it is trigged. 0 makes the
LFO start at the beginning of a complete wave cycle, 64 makes it start at the center. (0–127)
11.7.7 MODE
Trig Mode sets how the LFO will act when a note is trigged.
• FRE is the default free-running mode. It makes the LFO run continuously, never restarting or
stopping even if notes are trigged..
• TRG makes the LFO restart when a note is trigged.
• HLD makes the LFO run free in the background, but when a note is trigged the LFO output level is
latched and held still until the next note is trigged.
• ONE will make the LFO start from the beginning when a note is trigged, run for one cycle and then
stop. This makes its function similar to an envelope.
• HLF will make the LFO start from the beginning when a note is trigged, run for half a cycle and
then stop.
11.7.8 DEP
Depth sets the depth and polarity of the LFO modulation. Both negative (inverted) and positive modulation depth is possible. A center setting, 0.00, equals no modulation depth. (-64.00–63.00)
43
11. AUDIO TRACK PARAMETERS
LFO waveforms and trig modes.
TRIG FREE TRIG
TRIG TRIG TRIG TRIG TRIG TRIG TRIG TRIG
TRI
SIN
SQR
SAW
WAVEFORM
EXP
RMP
RND
HOLD
ONE
HALF
LFO speed (measured in whole note values) generated by combinations of the SPD and MULT settings.
MULT
1 2 4 8 16 32 64 128 256 512 1K 2K
1 128 64 32 16 8 4 2 1 1/2 1/4 1/8 1/16
2 64 32 16 8 4 2 1 1/2 1/4 1/8 1/16 1/32
S
4 32 16 8 4 2 1 1/2 1/4 1/8 1/16 1/32 1/64
P
8 16 8 4 2 1 1/2 1/4 1/8 1/16 1/32 1/64 1/128
D
16 8 4 2 1 1/4 1/4 1/8 1/16 1/32 1/64 1/128 1/256
32 4 2 1 1/4 1/8 1/8 1/16 1/32 1/64 1/128 1/256 1/512
64 2 1 1/4 1/8 1/16 1/16 1/32 1/64 1/128 1/256 1/512 1/1024
44
12. MIDI TRACK PARAMETERS
12. MIDI TRACK PARAMETERS
Here follows a description of the parameters that are on the MIDI tracks PARAMETER pages. The MIDI
tracks parameters are saved together with the pattern. The parameters may be locked to other settings on
any step of the pattern by first pressing and holding a [TRIG] key, then changing the parameters settings with
the DATA ENTRY knobs. For more information, please see “10.10.1 PARAMETER LOCKS” on page 34.
12.1 EDITING THE MIDI TRACK PARAMETERS
There are five PARAMETER pages for the MIDI tracks. Press the [PARAMETER] keys to access the MIDI
tracks PARAMETER pages. Use the DATA ENTRY knobs A-H to change the parameters. Press and hold a
[PARAMETER] key to see the values for all parameters on that page.
12.2 TRIG PARAMETERS PAGE
Set the actions for when a note is trigged. Change settings using the DATA ENTRY knobs. These general
settings aect note trigs placed in the sequencer.
Press [TRIG PARAMETERS] to access this parameter page.
12.2.1 NOT1
Note 1 sets the root note that should be sent by the MIDI track. (C0–G10)
12.2.2 NOT2–NOT4
Note 2–4 will add more notes, oset from the root note by the selected values, to a note trig. This makes
it possible for a MIDI track to send out chords that consists of up to 4 notes. If the root note is changed
the oset notes will transpose accordingly. A value of 0 will remove the oset note. (-64–+63)
12.2.3 VEL
Trig Velocity controls the velocity of the notes the MIDI track sends out. A setting of 0 equals a NOTE
OFF command. (1–127)
12.2.4 LEN
Trig Length sets the duration of the notes. When a note has finished playing a NOTE OFF command will
be sent. The INF setting equals infinite note length. (0.125–128, INF)
12.2.5 COND
Trig Condition is a set of conditional rules that can be applied to any trig, using a parameter lock. Each
setting is a logical condition, which will determine whether or not the sequencer note will be triggered.
For more information, please see “10.10.3 CONDITIONAL LOCKS” on page 34.
12.2.6 LFO.T
LFO Trig controls if the LFO will be trigged or not. (ON, OFF)
12.3 SRC PAGE
Here you can set the MIDI channel that the MIDI track should use to send data. Bank and program change
values are also set here, together with a few standard CC parameters. The default value of the parameters
on this page is OFF, meaning they are disabled and will not send out any data. Press and hold [FUNC] and
then press the DATA ENTRY knobs to enable them. You can then use the DATA ENTRY knobs to set the
parameter values as usual. Disable the parameters again by repeating the activation procedure.
Press [SRC] once to access this parameter page.
45
12. MIDI TRACK PARAMETERS
12.3.1 CHAN
Channel sets the MIDI channel the track will send MIDI data to. If this parameter is set to OFF, it basically
turns the MIDI track o. Please note that this parameter cannot be parameter locked. (OFF, 1–16)
12.3.2 BANK
Bank is used for sending out a bank change message. Bank 1 to 128 can be sent. (OFF, 1–128)
12.3.3 PROG
Program change is used for sending out a program change message. Program 1 to 128 can be sent.
(OFF, 0–128)
12.3.4 PB
Pitch Bend controls the pitch bend data sent on the MIDI track. (OFF, 128.00–128.00)
12.3.5 AT
Aftertouch controls the aftertouch data sent on the MIDI track. (OFF, 0–127)
12.3.6 MW
Mod Wheel controls the modulation wheel data sent on the MIDI track. (OFF, 0–127)
12.3.7 BC
Breath controller controls the breath control data sent on the MIDI track. (OFF, 0–127)
12.4 FLTR PAGE (CC VALUE)
Here you can set the values of up to eight assignable CC commands. The default value of the parameters
on this page is OFF, meaning they are disabled and will not send out any data. Press and hold [FUNC] and
then press the DATA ENTRY knobs to enable them. You can then use the DATA ENTRY knobs to set the
parameter values as usual. Disable the parameters again by repeating the enabling procedure.
Press [FLTR] to access this parameter page.
12.4.1 VAL1-VAL8
CC 1–8 Value controls the values that are sent for the CC commands, which are specified on the AMP
(CC SELECT) page. These parameters default value is OFF. Press [TRIG] + DATA ENTRY knobs to acti-
vate the parameters and then set a value. (OFF, 0–127)
12.5 AMP PAGE (CC SELECT)
Here you select the eight CC commands whose values are controlled by the parameters on the FLTR PAGE
(CC VALUE) page. Press the corresponding knob or [ENTER/YES] to activate the parameter change.
Press [AMP] to access this parameter page.
46
12. MIDI TRACK PARAMETERS
12.5.1 SEL1-SEL8
CC 1–8 Select specifies the CC commands that are controlled by the parameters on the AMP PAGE 1
(CC VALUE) page. The selectable values are the standard MIDI Control Change Messages. (0–119)
12.6 LFO PAGE
The Low-Frequency Oscillator can be used to interact with the parameters found on the MIDI tracks’ SRC,
and FLTR pages. Customize the low-frequency oscillator behavior, orientation, and depth on this page.
Press [LFO] to access this parameter page.
12.6.1 SPD
Speed sets the speed of the LFO. Try settings of 8, 16 or 32 to sync the LFO to straight beats. The knob
is bi-polar. The LFO cycle can be played backward by using negative values. (64.00–63.00)
12.6.2 MULT
Multiplier multiplies the SPD parameter by the set factor either by multiplying the current tempo (BPM
settings), or by multiplying a fixed tempo of 120 BPM.
12.6.3 FADE
Fade In/Out makes it possible to fade in/fade out the LFO modulation. The knob is bipolar. Positive
values give a fade out, negative values give a fade in. 0 gives no fade in/fade out. (-64–63)
12.6.4 DEST
Destination selects the modulation destination for the LFO. Preview how the LFO modulation will aect
the sound by highlighting a destination. Press [YES] to confirm the selection.
12.6.5 WAVE
Waveform sets the LFO waveform. There are seven waveforms: Triangle, Sine, Square, Sawtooth, Exponential, Ramp and Random.
12.6.6 SPH
Start Phase sets the point within the wave cycle where the LFO will start when it is trigged. 0 makes the
LFO start at the beginning of a complete wave cycle, 64 makes it start at the center. (0–127)
12.6.7 MODE
Trig Mode sets how the LFO will act when a note is trigged.
• FRE is the default free-running mode. It makes the LFO run continuously, never restarting or
stopping even if notes are trigged.
• TRG makes the LFO restart when a note is trigged.
• HLD makes the LFO run free in the background, but when a note is trigged the LFO output level is
latched and held still until the next note is trigged.
47
12. MIDI TRACK PARAMETERS
• ONE will make the LFO start from the beginning when a note is trigged, run for one cycle and then
stop. This makes its function similar to an envelope.
• HLF will make the LFO start from the beginning when a note is trigged, run for half a cycle and
then stop.
For more information about the Trig Modes, please see the illustration at the end of section “11.7 LFO
PAGE” on page 42.
12.6.8 DEP
Depth sets the depth and polarity of the LFO modulation. Both negative (inverted) and positive modulation depth is possible. A center setting, 0.00, equals no modulation depth. (-64.00–63.00)
48
13. FX PARAMETERS
13. FX PARAMETERS
The Digitakt eect parameters are explained in this chapter.
13.1 EDITING THE FX PARAMETERS
The Digitakt’s Delay and Reverb are send eects and are set on a pattern level. It means that all the Sounds
in a pattern shares the same eect settings but have individual send levels to the eects. The Delay and
Reverb parameters are set on their respective PARAMETER page, but their incoming signals are set by the
DEL and REV send parameters on the AMP page of each audio track. Press [FUNC] + [FLTR] to edit the
Delay. Press [FUNC] + [AMP] to edit the Reverb. Use the DATA ENTRY knobs A-H to change the parameters.
DELAY controls the character, reverb send and volume of the delay send eect.
REVERB controls the character and volume of the reverb send eect.
• The FX parameter settings are stored as part of the pattern. Don’t forget to save the pat-
tern and give it a unique name once you have achieved the results you want.
13.2 DELAY
The Delay send eect takes the input signal, delays it in time and then rejoins it with the original signal.
Press [FUNC] + [FLTR] to access this parameter page.
13.2.1 TIME
Delay Time sets the delay time. It is relative to the current BPM and is measured in 128th notes.
(1.00–128.00)
TIME setting Divide ratio
1 1/128
2 1/64
2.67 1/48 (1/32T)
3 1/64.
4 1/32
5.33 1/24 (1/16T)
6 1/32.
8 1/16
10.67 1/12 (1/8T)
12 1/16.
16 1/8
21.33 1/6 (1/4T)
24 1/8.
32 1/4
42.67 1/3 (1/2T)
48 1/4.
64 1/2
96 1/2.
128 1
49
13. FX PARAMETERS
13.2.2 X
Ping-pong sets the delay signal to alternate across the stereo field. There are two settings:
• OFF lets you manually set the position of the delay signal in the stereo field. Use the WID parameter
to change the stereo field position.
• ON makes the delay signal alternate between left and right pan positions. The WID parameter
controls the amount of panning.
13.2.3 WID
Stereo Width sets the delay signal pan width across the stereo field. The knob is bipolar. (64.00–63.00)
13.2.4 FDBK
Feedback Gain sets the amount of delay output signal to feed back into the input of the delay. With higher parameter settings, infinite and/or swelling delays are possible. Please be aware that high feedback
can lead to a very loud signal. (0–198)
13.2.5 HPF
Feedback HPF sets the cuto frequency of the delay highpass filter. (0.00–127.00)
13.2.6 LPF
Feedback LPF sets the cuto frequency of the delay lowpass filter. (0.00–127.00)
13.2.7 REV
Reverb Send sets the amount of Delay output signal to be sent to the Reverb. (0.00–127.00)
13.2.8 VOL
Mix Volume adjusts the volume of the Delay output signal. (0.00–127.00)
13.3 REVERB
The Reverb send eect controls the persistence, and ambient characteristics, of the sound reverberations.
It can simulate many dierent sonic locations, from huge spaces to small rooms.
Press [FUNC] + [AMP] to access this parameter page.
13.3.1 PRE
Pre-delay sets the pre-delay time of the Reverb. (0.00–127.00)
13.3.2 DEC
Decay Time sets the length of the decay phase of the reverberated signal, essentially setting the size of
the acoustic space. (1–127, INF)
13.3.3 FREQ
FB Shelving Freq sets the shelving filter frequency. Together with the GAIN parameter, it can be used to
dampen the reverberated signal above a chosen frequency, making the reverberation sound more prominent or more mued. (0.00–127.00)
50
13.3.4 GAIN
FB Shelving Gain aects the damping of the reverberated signal above the shelving frequency set by the
