Page 1
Betriebsanleitung
Schweißgeräte
mit Stufenschalter und stufenloser Regelung
Operating Instructions
Welding Transformers and Rectifiers
with Step-Switch and Stepless Current Control
Instrucciones de servicio
Aparatos de soldadura
con conmutador de etapas y regulación sin escalones
Gebruiksaanwijzing
elektroden lasapparaten
met trapschakelaar en traploze regeling
Achtung!
Bitte lesen Sie die Betriebsanleitung vor Installation und Inbetriebnahme des
Schweißgerätes aufmerksam durch.
Important!
Please read and understand these instructions before installation and
initial operation of this welding transformer/rectifier
Atención!
Por favor, antes de la instalción y puesta en marcha delaparato de soldadura,
lea atentamente las instrucciones de servicio.
Attentie!
Leest U voor installatie en ingebruikname de gebruiksaanwijzing aandachtig door.
115 161 2730 / 0903 - 1.1
Page 2
D DEUTSCH ENG ENGLISH
Ñ
Ê
ÖRSÄ
KONFORMITÄTSERKLÄRUNG DECLARATION OF CONFORMITY
Wir erklären in alleiniger Verantwortlichkeit, daß dieses Produkt mit den
folgenden Normen übereinstimmt* gemäß den Bestimmungen der
Richtlinien**.
F FRANÇAIS NL NEDERLANDS
DECLARATION DE CONFORMITE CONFORMITEITSVERKLARING
Nous déclarons, sous notre seule responsabilité, que ce produit est en
conformité avec les normes ou documents normatifs suivants* en vertu
des dispositions des directives **
We herewith declare in our sole repsonsibility that this product complies
with the following standards*
in accordance with the regulations of the undermentioned Directives**
Wij verklaren als enige verantwoordelijke, dat dit product in
overeenstemming is met de volgende normen*
conform de bepalingen van de richtlijnen**
IT ITALIANO ES ESPA
DICHIARAZIONE DI CONFORMITÀ DECLARACION DE CONFORMIDAD
Noi dichiariamo sotto la nostra esclusiva responsabilità che il presente
prodotto è conforme alle seguenti norme*. in conformità con le
disposizioni delle normative **
PT PORTUGU
DECLARAÇÃO DE CONFORMIDADE
Declaramos sob nossa responsabilidade que este produto está de
acordo com as seguintes normas*.de acordo com as directrizes dos
regulamentos **
FIN SUOMI NO NORGE
VAATIMUKSENMUKAISUUSVAKUUTUS SAMSVARSERKLÆRING
Vakuutamme, että tämä tuote vastaa seuraavia normeja*.on direktiivien
määräysten mukainen**
DA DANSK POL POLSKI
OVERENSSTEMMELSESATTEST OŚWIADCZENIE O ZGODNOŚCI
Hermed erklærer vi på eget ansvar, at dette produkt stemmer overens
ed følgende standarder*. iht. bestemmelserne i direktiverne**
EL ΕΛΛHNIKA HU MAGYAR
∆ΗΛΩΣΗ ΑΝΤΙΣΤΟΙΧΕΙΑΣ MEGEGYEZŐSÉGI NYILATKOZAT
∆ηλώνουµε µε ιδία ευθύνη ότι το προϊόν αυτό αντιστοιχεί στις ακόλουθες
προδιαγραφές* σύµφωνα µε τις διατάξεις των οδηγιών**
S SV SVENSKA
Declaramos bajo nuestra exclusiva responsabilidad, que el presente
producto cumple con las siguientes normas*.de acuerdo a lo dispuesto en
las directrices**
F
Vi försäkrar på eget ansvar att denna produkt överensstämmer med
följande standarder*. Enligt bestämmelserna i direktiven**
Vi erklærer under eget ansvar at dette produkt samsvarer med følgende
normer*. henhold til bestemmelsene i direktiv**
Oświadczamy z pełną odpowiedzialnością, że niniejszy produkt odpowiada
wymogom następujących norm*.według ustaleń wytycznych **
Kizárólagos felelősségünk tudatában ezennel igazoljuk, hogy ez a termék
kielégíti az alábbi szabványokban lefektetett követelményeket*.megfelel az
alábbi irányelvek előírásainak**
OL
KRAN OM ÖVERENSSTÄMMELSE
SK 200 MA - SK 230 MA - SK 260 MA
SB 200 MA - SB 230 T MA - SB 260 T MA
* EN 55014, EN 60555 Teil 2, EN 60555 Teil 3 (1987), EN 60974-1(05.90)
** 89/336/EWG, 73/23/EWG, 93/68/ EG
Ing. grad. Hans-Joachim Schaller
Leiter Entwicklung und Konstruktion
Metabowerke GmbH
Business Unit Elektra Beckum
Daimlerstr. 1
D - 49716 Meppen
D - 49716 Meppen, 17.03.2003 1001107
Page 3
You have bought a high-quality electric arc welding machine, designed and built by specialists with many years of
experience. A machine built to last, giving a long service life.
All models have the correct size power supply cable fitted, the transformer‘s core is made from top-quality insulated
sheet steel, to keep eddy currents and cyclic magnetization losses to an absolute minimum.
Please read the instructions given in the manual in order to fully utilize the potential of your machine.
Know and adhere to all local safety codes and regulations governing the operation of electric arc welding machines.
ELEKTRA offers a range of welding transformers or rectifiers for just about every conceivable application.
Welding Transformers: SB 200 SK 200
SB 230 T SK 230
SB 260 T SK 260
Product Liability/Warranty
Caution! Do not operate this welding machine near electronic data processing equipment.
These welding machines shall only be used as specified. Any other use requires the written consent of Metabo GmbH,
Business Unit Elektra Beckum, P.O.Box 1352, D-49703 Meppen, Germany.
This product carries 2 years (5 years on main transformer and choke) manufacturer warranty under the prevailing legal
provisions, which may vary from country to country. Retain proof of purchase! You are only entitled to claim warranty
against proof of purchase. Please see back cover for manufacturer representative's address nearest you.
The warranty period begins with the date of the original purchase by the end user. Proof of purchase should be retained
and must be presented in the event of a warranty claim. This warranty excludes and does not cover defects, malfunction
and failure caused by natural wear, overload, unreasonable use or failure to provide reasonable and necessary
maintenance.
In case of a defect notify your dealer or Elektra Beckum distributor, who will decide how to handle your claim. Warranty
claims can only be taken care of by your Elektra Beckum dealer or authorized service centre.
Contents
1.0 Specifications
2.0 Putting A Single-Phase Machine Into Operation
2.1 Putting A Combination 1-Ph/2-Ph Machine Into Operation
2.2 Connection To Mains Power
2.3 Information Shown On Type Plate
3.0 General Information For Welding Transformer/Rectifier Operators
3.1 Overview Of Stick Electrodes And Their Correct Use
4.0 Welding Hints
5.0 Wiring Diagrams And Spare Parts List
Page 4
1.0 Specifications
Mains voltage 220 - 240 V 220 - 240 V 220 - 240 V 220 - 240 V 220 - 240 V 220 - 240 V
Mains frequency 50 H 50 Hz 50Hz 50Hz 50Hz 50 Hz
Welding steps stepless stepless stepless stepless stepless stepless
Current Range 25-200 A 25-230 A 25-260 A 20-200 A 20-230 A 30-260 A
Stepless at 220/240 V 25-110 A 25-114 A 25-120 A 20-110 A 20-114 A 30-135 A
Stepless at 380/415 V 40-200 A 40-230 A 40-260 A 30-200 A 36-230 A 75-260 A
Max. OCV
at 220 - 240 V 36.5 - 39 V 37.0 - 40 V 36.0 - 40 V 36.5 - 39 V 37.0 - 40 V 39.0 - 40 V
Max. OCV at 380 - 415 V 48.5 - 55 V 53.0 - 59 V 55 - 60 V 48.5 - 55 V 53.0 - 59 V 55.0 - 60 V
Max. input cap. at 220 - 240 V 4.3 kVA 4.5 kVA 4.4 kVA 4.3 kVA 4.5 kVA 4.5 kVA
Max. input cap. at 380 - 415 V 11.8 kVA 13.7 kVA 16.4 kVA 11.8 kVA 13.7 kVA 16.4 kVA
Working voltage 21.0-28.0 V 21.0-28.8 V 21.0-30.2 V 21.0-28.0 V 21.0-28.8 V 21.0-30.2 V
Cos - 220 - 240 V 0.77 (110 A) 0.77 (114 A) 0.80 (120 A) 0.77 (110 A) 0.77 (114 A) 0.8 (130 A)
Cos - 380 - 415 V 0.66 (200 A) 0.63 (220 A) 0.62 (260 A) 0.67 (200 A) 0.63 (220 A) 0.62 (260 A)
Duty cycle at max.
output 220 - 240 V* (25 / 40°) 25 %/ 17 % 25 %/ 17% 25 %/ 17% 20 %/ 15 % 55 %/ 40 % 50 %/ 35 %
100% duty cycle 220 - 240 V*
(25 / 40°) 55 A/ 35 A 60 A/ 40 A 55 A/ 35 A 50 A/ 35 A 85 A/ 60 A 90 A/ 65 A
Duty cycle at max.
output 380 - 415 V* (25 / 40°)5 %/ 3 % 5 %/ 3 % 5 %/ 3 % 5 %/ 3 % 20 %/ 15 % 10 %/ 1,5 %
100% duty cycle 380 - 415 V*
(25 / 40°)-----90 A
Mains fuse 220 - 240 V 16 A time-lag 16 A time-lag 16 A time-lag 16 A time-lag 16 A time-lag 16 A time-lag
Mains fuse 380 - 415 V 25 A time-lag 25 A time-lag 35 A time-lag 20 A time-lag 25 A time-lag 35 A time-lag
Cooling self self self self fan fan
Insulation class F F FFFF
Protection class IP 21 IP 21 IP 21 IP 21 IP 21 IP 23
Dimensions (lxwxh) in mm 440x230x430 440x230x430 440x230x430 550x330x380 550x330x380 550x330x380
Weight 27 kg 31 kg 35 kg 40 kg 44 kg 44 kg
Accessory kit no. 7 8 8 130 8 8
Max. electrode diameter 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm
SK 200 SK 230 SK 260 SB 200 SB 230 SB 260
380 - 415 V 380 - 415 V 380 - 415 V 380 - 415 V 380 - 415 V 380 - 415 V
2.0 Putting A Single-Phase Machine Into Operation
- This welding machine should be connected to the power source via an Earth Fault Circuit Interrupter with 30 mA
capacity.
- Have worn or damaged power cables replaced immediately by a qualified electrician.
Do not operate the welding machine with a damaged power cable, danger of personal injury through electric shock.
- Children under the age of 16 should not operate this welding machine.
Connect to an earthed, single-phase 220 - 240 V outlet on a circuit protected by a 16 A time-lag fuse. Double insulated
machines (with PVC housing) do not require an earthed outlet. Operating other electrical machines or appliances on
the same circuit while welding is not recommended.
If your machine has detachable welding and earth cables, connect cables to the sockets, lock by turning plug clockwise.
With transformers the polarity does not matter, so both cables can be connected to either the + or - sockets. The same
applies for machines with permanently attached earth and welding cables.
Attach earth clamp to the work piece, close to the area to be welded and on to bare metal for good conduction. Place
a stick electrode into the electrode holder.
Set current selector switch to desired current. On all machines with stepless setting turn crank or handwheel until
desired current is indicated (stepless).
If there is no power outlet near the work piece an extension cable is required. The cable lead cross section must be
at least 2.5 mm2. The extension cable should be fully uncoiled to prevent heat build-up by inductance. Inductance also
considerably reduces the welding current. Extending the welding cables is also possible, however the cross section
of the extension cable should be larger than that of the cable supplied with the machine. Every machine is overload
protected by a thermo switch, which switches the transformer off if it becomes too hot. Let cool down until machine
switches on automatically. Some machines are equipped with a fan to increase the duty cycle through forced cooling.
The fan operates as long as the machine is switched on.
2.1 Putting A combination 1-Ph/2-Ph Machine Into Operation
All " Combi " machines are supplied with a plug (CEE 5 pin 16/32 A) installed on the power cable. Connect to a 220 - 240 V
single-phase outlet with the adaptor supplied or to two phases of a 380/415 V 3-phase mains.
Page 5

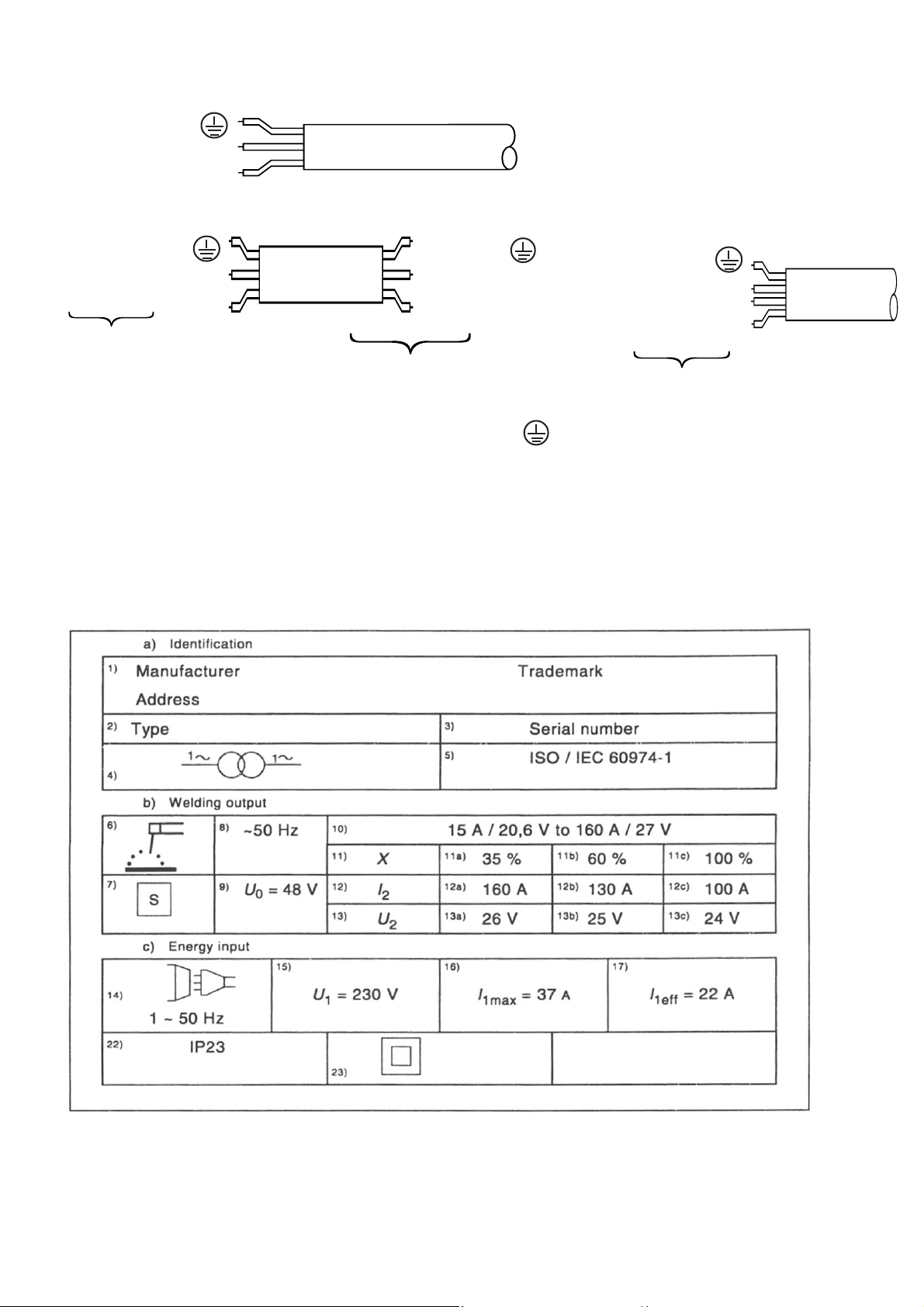

2.2 Connection To Mains Power (See Also Wiring Diagram)
220/240 V single-phase
to machine
PE green/yellow
L1 brown
N blue
Adaptor Cable (only with combination 1-phase/3-phase machines)
PE green/yellow
L1 brown
N blue
1,5 m
Schuko-plug
Connect yellow-green earth lead only to plug terminal marked . In case a plug matching your local standard
has to be fitted to the power cable please note that connection is made to only two phases. Have plug changed or
replaced by a qualified electrician.
For welding in boilers, containers and confined spaces only transformers having a maximum open-circuit voltage of 42 V
are permitted.
Combination 1-/2-phase machines are equipped with a safety circuit to prevent damage to the machine components
in case the voltage selector switch is set wrong, i.e. set to 220 V with the machine connected to a 380/415 V 3-phase
mains or set to 380 V with the machine connected to 220 V single-phase.
L2, L3 not used
32 A 5-pin CEE coupling
→
green/yellow PE
black L1
blue N
Power cable
PE green/yellow
L1 black
L2 brown
N blue
L3 not used
32 A 5-pin CEE coupling
→
to machine
2.3 Information - Shown On Type Plate
Page 6

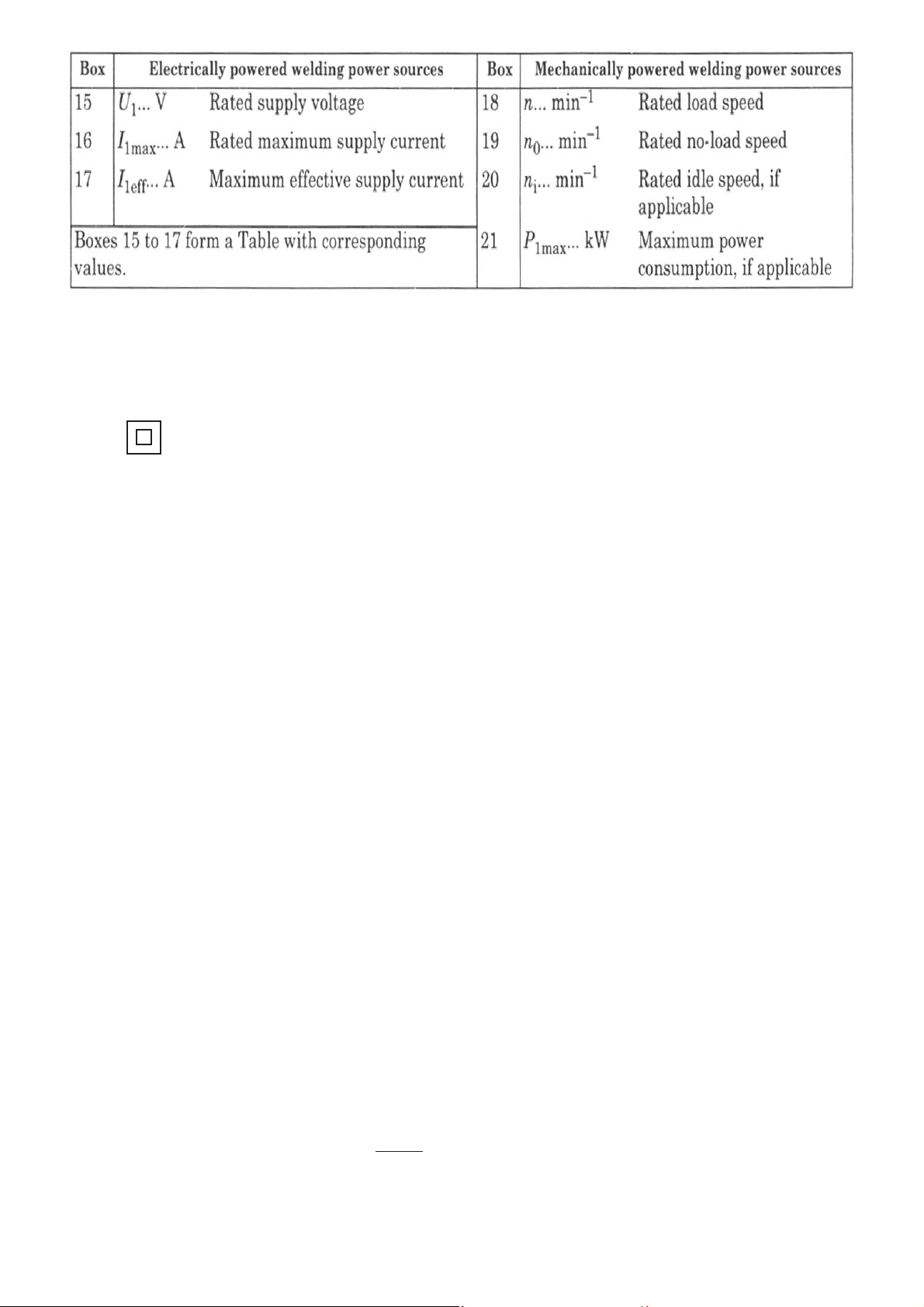

The following explanations refer to the numbered boxes shown in Figure 2.3 according to ISO/IEC 60974-1.
a) Identification
Box l Name and address of the manufacturer or distributor or importer and, optionally, a trade mark and the
country of origin, if required
Box 2 Type (identification) as given by the manufacturer
Box 3 Traceability of design and manufacturing data, e.g. serial number
Box 4 Welding power source symbol (optional) e g
Single-phase transformer
Single- or three-phase transformer-rectifier
Single- or three-phase static frequency
converter-transformer-rectifier
Three-phase motor-generator
Three-phase motor-generator-rectifier
Three-phase rotating frequency Converter
Single-phase combined a.c. and d.c. power source
Engine-a.c. generator
Engine-generator-rectifier
Box 5 Reference to this Standard confirming that the welding power source complies with its requirements
b) Welding Output
Box 6 Welding process Symbol e.g.:
Manual metal arc welding with covered electrodes
Tungsten inert-gas welding
Metal inert and active gas welding including the use of flux cored wire
Selfshielded flux cored arc welding
Submerged arc welding
Symbol for plasma cutting
Symbol for plasma gouging
Box 7 Symbol for welding power sources which are suitable for supplying power to welding operations
carried out in an environment with increased hazard of electric shock (if applicable).
Page 7
Box 8 Welding current symbol e.g.:
Direct current
Alternating current, and additionally the rated frequency in
hertz e.g.: ~50 Hz
Box 9 U0... V Rated no-load voltage
a) Arithmetic mean value in case of direct current
b) RMS value in case of alternating current
c) Ur... V Reduced rated no-load voltage in case of a voltage reducing device
d) Us... V Switched rated no-load voltage in case of an a.c. to d.c. switching device
Box 10 ... A/... V to... A/... V Range of output, rated minimum and maximum welding current and their
corresponding conventional load voltage.
Box 11 X Duty cycle (duty factor) symbol.
Box 12 I2 Rated welding current symbol.
Box 13 U2 Conventional load voltage symbol.
Boxes 11a, 11b, 11c ...% Values of the duty cycle (duty factor).
12a, 12b, 12c ... A Values of the rated welding current.
13a, 13b, 13c ... V Values of the conventional load voltage.
These boxes form a table with corresponding values of the three settings:
a) ... % duty cycle (duty factor) at the rated maximum welding current;
b) 60 % duty cycle (duty factor);
and
c) 100 % duty cycle (duty factor) as far as relevant.
Column a) need not be used if the duty cycle (duty factor) for the rated maximum welding
current is 60 % or 100 %.
Column b) need not be used if the duty cycle (duty factor) at the rated maximum welding current is 100 %.
c) Energy input
Box 14 Energy input symbol e.g.:
Input supply, number of phases (e.g. l or 3), symbol for alternating current
and the rated frequency (e.g. 50 Hz or 60 Hz)
Engine
Motor
Belt drive
Page 8
Box 22 IP.. Degree of protection, e.g. IP21 or IP23.
Box 23 Symbol for protection class II, if applicable.
3.0 General Information For Welding Transformer/Rectifier Operators
Dust, dirt and metal chips will harm any welding machine. It is of particular importance that the air ventilation for cooling
is not obstructed.
A weld should join two work pieces as if they were made from a single piece. Prior to the welding the joints must be
cleaned and dirt, rust, grease and paint removed. Also slag from previous welds must be completely removed. Attach
earth clamp firmly to work piece, assuring good metal to metal contact. Check that all cables and connectors are in proper
operating condition to ensure proper current conduction.
Place electrode with the uncoated end into one of the electrode holder's notches. Each welding machine is supplied
complete with an accessory kit, which includes besides the welding cables a welding visor and a slag hammer. When
removing slag it is recommended to protect the eyes by suitable means (goggles) from injury by sharp and hot slag. The
welding visor's dark glass plate protects the eye against ultra-violet and infrared rays. The clear glass plate protects the
dark plate against spatters and damage. The dark protective glass is available in different shades for different types of
electrodes and to suit different eye sensivity. Normally for electrodes from 1.5 mm to 4 mm Ø protective glasses of shade
DIN 9 are used, for electrode over 4 mm Ø shade DIN 10.
Select the correct welding current as shown below:
Current (A) Electrode Ø Material Thickness
15 - 50 1.0 - 2.0 mm 1.0 - 2.0 mm
50 - 100 2.0 - 2.5 mm 2.0 - 4.0 mm
100 - 140 2.5 - 3.25 mm 4.0 - 8.0 mm
140 - 220 3.25 - 5.0 mm 8.0 - 12.0 mm
220 - 300 5.0 - 6.0 mm 12.0 - 20.0 mm
In principle do not use too thick an electrode. As a general rule calculate 40 amps welding current per 1 mm of electrode
diameter. Depending on electrode type, material thickness and weld position this calculated value may have to be
adjusted to plus or minus.
All machines work well with thin plate from 1.0 mm thickness.
3.1 Care Of Stick Electrodes And Their Correct Use
In order to achieve a good weld the electrode has to be dry, thus storing in a dry place is essential- Should electrodes
have become moist, dry in an oven at between 200° C to 300° C for 30 minutes.
Basic coated low-hydrogen type electrodes always require pre-drying at 200° C to 300° C for 3 hours as atomic
hydrogen causes weld flaws.
Page 9
4.0 Welding Hints
Because of the multitude of and great differences in the important points for welding only the very basic operations
for the most common electrodes for low-carbon steels, the rutile- or rutile/cellulose type electrode, are introduced here.
In the case that other electrodes have to be used, the electrode manufacturers supply upon request all relevant
information for the type of special electrode to be used.
Always make some trial welds on scrap material. Select electrode diameter and welding current as per Table 1 (shown
on page 5). Attach earth clamp to work piece and place electrode into electrode holder as described earlier. Now hold
the electrode tip approx. 2 cm / 1 inch above the starting point of your welding seam. Hold the welding shield in front
of your face and draw the electrode with a short stroke along the groove. Through the welding shield you watch the
arc, keeping it to a length of 1 to 1.5 times the electrode diameter.
wrong
arc too long
(Pic. 3)
correct
approx. 1 - 1.5 the electrode-Ø
(Pic. 4)
The correct arc length is important for a good weld, because with too short or too long an arc both welding current and
working voltage change. A low working voltage causes insufficient penetration. Too high or too low welding current
gives a poor welding seam. Too long an arc does not sufficiently melt the parent material, resulting in high spatter
losses. Also the air, with its detrimental substances like hydrogen and nitrogen, may get access to the weld pool.
For a good weld the work angle of the electrode (or electrode inclination angle) is of substantial importance. The
inclination should be 70° - 80° to the welding direction. With the work angle too steep slag will run under the weld pool,
too flat an work angle causes the arc to spatter, in both cases the result is a porous, weak welding seam (see pictures
5 - 7).
wrong
welding direction
> 80°
wrong correct
welding direction
welding direction
< 70°
70-80°
(Pic. 5)
(Pic. 6)
(Pic. 7)
The welder has to keep the arc at the same length, that is the electrode burn-off is compensated by feeding the
electrode into the weld. At the same time the welder has to watch the weld pool for even penetration and width.
Welding is always done from left to right (backhand welding).
At the end of the welding seam the electrode can not simply be lifted or pulled from the weld, this creates porous end
craters, which weaken the weld. To correctly terminate a weld the electrode is held for a short moment at the end of
the weld seam, then lifted in an arc over the just laid weld.
wrong
(Pic. 8)
correct
(Pic. 9)
Remove slag only after it has cooled down and is no longer glowing.
If an interrupted weld is to be continued, the slag at the end of the already finished weld must be removed. Then the
arc can be started either in the groove or on the weld, as described earlier, and then moved to the end of the weld,
which has to be thoroughly melted for good fusion. Welding is then continued normally.
Page 10
5.0 Wiring Diagrams And Spare Parts List
Stock-no. Item SB 200 SB 230 SB 260 SK 200 SK 230 SK 260
810 202 2085 Thermal overload switch 140° XXXXX
810 202 0171 Thermal overload switch 130° X
705 100 5818 Pressure spring XXXXXX
132 100 6619 Pressure piece XXXXXX
132 100 6589 Shunt XXXXXX
132 104 5622 Shunt
132 502 2139 Spindle XXXXXX
100 200 9443 Resistor, assembled XXXXXX
811 217 9829 Rotary switch XXXXXX
805 115 0768 Discharging resistor X
805 001 1837 Kondensator 50 µFX
819 002 1778 Handle wheel, red
860 112 1000 Neon control light, yellow XXXXXX
804 113 8069 Rotary fan 380 V - 415 V 50/60 Hz X X
700 301 6930 Handwheel 100 Ø M10 XXXXXX
821 507 1317 Insulated panel socket 50 mm
821 502 1930 Panel socket 25 mm
821 502 1948 Panel socket 50 mm
2
2
824 001 5090 Strain relieve PG 11 X
824 001 5103 Strain relieve PG 13,5 X X X X
824 010 6338 Strain relieve PG 16
100 200 4077 Rubber cord w/plug 4x2.52x4000 X X X X X
840 214 1779 Rubber cord w/plug 4x2.52x6000 X
840 212 5854 Rubber cord w/plug 2x1.52x2700
100 213 8375 Adaptor SB/SK for 220/240 V 1-ph XXXXXX
132 702 1849 Accessory kit no. 3
132 702 2381 Accessory kit no. 7 X
132 702 2578 Accessory kit no. 8 X X X X
132 702 0222 Accessory kit no. 130 X
2
XX
XXX
Wiring Diagram for SK Serie
Adapter 1-/2-ph
Schuko
plug
CEECoupling
PE
CEEplug
L1
N
L2
Wiring Diagram for SB-Serie
Adapter cable
Schuko
plug
CEECoupling
CEEplug
PE
L1
N
L2
400
230 400
1
2
ϑ
x
7
5
11
12
8
6
x = lagging
Ø
230
nacheilend
2
6
8
14
Ø
400 230
1
140°
12
11
5
7
13
1
2
4
3
2
1
Page 11
Apartado 53; 7000-171 Evora Codex; (+351) 266 - 74 93 00; (+351) 266 - 74 93 09;
Portugal; BOLAS-Maq. e Ferramentas de Qualidade, S.A.; Rua B, Lotes 8-10-12;
Puerto Rico; J.J. Trading; PMB 409 P.O. Box 4956 Caguas; ; Puerto Rico 00726-4956;
AJAC
(+1) 787 - 739 9693; (+1) 787 - 739 1177; [email protected]
Zona 9-A; Panamá; (+507) 2 23 77 05; (+507) 2 69 18 66; [email protected]
STREET; MEADOWDALE - Germiston; Johannesburg; (+27) 11 - 372 - 96 00;
(+27) 11 - 453-41 63; [email protected]
Domingo; (+1) 809 - 531 50 80; (+1) 809 - 531 53 38;
(+40) 1 - 3 46 31 31; (+40) 1 - 3 46 31 51; [email protected]
(+7) 095 - 198 43 14/198 17 13; (+7) 095 - 198 43 14; [email protected]
(+41 ) 52 - 3 54 34 44; (+41) 52 - 3 54 34 45; [email protected]
(+22) 1 - 823.67.14; (+22) 1 - 823.67.14;
Number One Building; Singapore 408563; (+65) 67 48 28 66; (+65) 67 45 38 72;
(+421) 33 - 641 2522; (+421) 704 - 6 41 25 22; [email protected]
(+386) 61 - 1 68 16 16; [email protected]
263-1 Ipchung-Dong, Chung-Gu; Seoul; (+82) 2 - 22 76 09 14/5; (+82) 2 - 2 78 62 62;
P.O. Box 214 / 130 Front Street; Colombo 11; (+94) 1 - 2 81 71 / 72 / 73;
(+94) 1 - 50 11 83; [email protected]
Santa Lucia; (+1)758 - 452-99 14; (+1)758 - 452-99 15; [email protected]
P.O. Box 169 / Code 113; ; Muscat; (+968) 7 71 09 83; (+968) 7 71 57 55;
(+46) 36 - 16 07 54; [email protected]
(+963) 21 - 2 11 62 45; [email protected]
(+886) 2 - 28 11 08 08; (+886) 2 - 28 16 98 38; [email protected]
Pomprab Bangkok 10100; (+66) 2 - 3 28 11 89; (+66) 2 - 3 28 13 04; [email protected]
(+216) 1 - 25 83 92; (+216) 1 - 35 18 45; [email protected]
(+90) 212 - 2 56 49 50; (+90) 212 - 2 38 98 26; [email protected]
03 151 Kiev; (+380) 44 - 2 45 94 34; (+380) 44 - 2 45 96 57; [email protected]
(+971) 6 - 533 05 51 ; (+971) 6 - 533 73 68; [email protected]
Brandywine Industrial Park; West Chester, PA 19380; (+1) 610 - 4 36 59 00;
(+1) 610 - 4 36 90 72; [email protected]
(+598) 2 - 92 26 06; (+598) 2 - 92 12 69; [email protected]
Caracas 1071; (+58) 212 - 2 37 30 22; (+58) 212 - 2 39 23 65;
Tan Binh District; Ho Chi Minh City; (+84) 8 - 811 74 54; (+84) 8 - 811 63 38;
(+38) 12 15 28 56; (+38) 12 15 24 57; [email protected]
Qatar; Gulf Incon; P.O.Box 4076; ; Doha; (+974) 4 68 35 11; (+974) 4 68 40 65;
Rep. de Panamá; German-Tec (Panamá) S.A.; Via Argentina 46-70; Apartado 342,
Republic of South Africa; Metabo Power Tools SA (Pty.) Ltd.; 165 Van DER BIJL
Republica Dominicana; Agroindustrial Ferretera S.A.; Av. Luperon No. 42; ; Santo
Rumania; S.C. Agent Trade S.R.L.; Splaiul Unirii 235-237; ; 74299 Bucuresti 3;
Russia; OOO ITA-Strojinkom; Uliza Alabjana 3; ; 125057 Moskau;
Schweiz; Metabo (Schweiz) AG; Lindauerstr. 17; ; 8317 Tagelswangen;
Senegal; Ets. M.Y.S.; 12, Rue Tolbiac; B. P. 2389; Dakar;
Singapore; HOMELY HARDWARE PTE LTD; No. 1 Ubi Crescent #01-01;
Slovakia; STAMET Bratislava spol. s.r.o.; M.R. Stefanika 28; ; 90201 Pezinok;
Slovenia; Dilex d.o.o.; Ogrinceva 17; ; 1000 Ljubljana; (+386) 61 - 1 68 16 20;
South Corea; Metabo-Korea Co. Ltd.; Room No. 101, Daesung Building;
Sri Lanka; Hunter + Company Ltd.; General Hardware Importers ;
St. Lucia; Eurotools Int`l Ltd; P.O.Box RB 2484; Rodney Bay, Gros Islet, West Indies;
Sultanate of Oman; Suhail & Saud Bahwan Building Materials L.L.C.;
Sverige; Metabo Sverige AB; Skiffervägen 6; ; 553 03 Jönköping; (+46) 36 - 10 06 60;
Syria; Bachar & Elias Taoutel; Boite Postal 325; ; Aleppo; (+963) 21 - 2 11 80 30;
Taiwan; Taiwan Overseas Trade Co. Ltd.; No. 103 Chung King N. Road Sec. 4; ; Taipei;
Thailand; SSM - Sri Siam Mongkol Co., Ltd; 1570-1576 Krung Kasem RD.; ;
Tunesia; L´Equipment Moderne; 86, Ave. de Carthage; ; 1000 Tunis;
Turkey; Burla A.S.; Voyvoda Cad. 61-65; ; 80003 Karaköy-Istanbul;
Ukraine; Comservice; Ukraian-Russian Joint Venture 2; Narodnogo Opolcheniaya;
United Arab Emirates; Sedana Trading Co; P.O. Box 1919; ; Sharjah;
United States of America; Metabo Corporation; 1231 Wilson Drive / P.O.Box 2287;
Uruguay; Goldfarb S. A.; Rio Negro 1617; P.O. Box 11100; Montevideo;
Venezuela; OLY-COPIA C.A.; 3 ra Transversal Los Ruices ; Edificio Principal II, Piso 4;
Vietnam; HUU HONG MACHINERY CO., LTD.; 157-159 Xuan Hong Street, Ward 12;
(+263) 4 - 77 52 56-9; (+263) 4 - 77 06 95; [email protected]
Yugoslavia; WHM WOBY HAUS MARKT; Brace Ribnikara 55; ; 21000 Novi Sad;
Zimbabwe; Field Technical Sales; 45 Kelvin Road North; Graniteside; Harare;
Ambethan Road, Kharabwadi; Chakan, Tal.: Khed, Dist.-Pune(Pin410 501);
India; Metabo Power Tools PVT Ltd.; Plot No. 40, WMDC Industrial Complex;
Country; Company; Address 1; Address 2; City; Phone; Fax; E-mail
Albania; Extra Industrial Goods; Rl. Fadil Rada 88; ; Tirana; (+355) 42 - 3 30 62;
(+91) 213 - 55 22 03; (+91) 213 - 55 21 61
Indonesia; P.T. Kawan Lama Sejahtera pt; Gedung Kawan Lama Jl. Puri Kencana No. 1;
(+355) 42 - 3 30 62; [email protected]
Algerie; Haddad Equipement Professionel; 98 A, Site du Lycée; ; 16012 Rouiba;
Meruya - Kembangan; Jakarta 11610; (+62) 21 - 5 82 82 82;
(+213) 21 - 85 49 05; (+213) 21 - 85 57 72; [email protected]
(+62) 21 - 5 82 55 88; [email protected]
Argentina; Metabo Argentia S.A.; Teniente Gral. Richieri 4773; ; 1702 - Ciudadela -
Iran; Kalavaran Co. Ltd.; P.O.Box: 11365 - 4653; ; Tehran;
Buenos Aires; (+54) 11 - 44 88 - 9180; (+54) 11 - 44 88 - 39 89; [email protected]
(+98)21 - 67 00 862/67 01 383; (+98)21 - 67 09 427; [email protected]
Australia; Metabo Pty. Ltd; 10 Dalmore Drive; ; Scoresby, Melbourne, Vic. 3179;
Israel; Proter + Cohn Ltd; Technical Supply P.O.Box 33215 / 3; Haatzmaut Road;
(+61) 3 - 97 65 01 99; (+61) 3 - 97 65 01 89; [email protected]
33033 Haifa; (+972) 4 - 8 64 04 69; (+972) 4 - 8 67 18 03; [email protected]
Italia; Carlo Stechel & Figli S.rl; Via Buozzi, 22; ; 20 097 San Donato Milanese (MI);
P.O. Box 5262; Manama; (+973) 71 36 15 / 71 41 74; (+973) 71 26 12;
Bahrain; Bokhammas Establishment; Bldg. 334 Block 321 Old Exhibition Road;
(+39) 02 - 52 77 71; (+39) 02 - 55 60 03 22; [email protected]
Japan; Metabo Japan Co., Ltd.; 5-1024-3, Baigou, Ohme-city; ; Tokyo 198-0063;
Bangladesh; East Bengal Impex; 175, Nawabpur Road (4th floor); ; Dhaka; ;
(+81) 4 - 28 77 05 06; (+81) 4 - 28 77 05 07
Jordan; Newport Trading Agency; P.O.Box 6166 / 151 Hashimi Str.; City Center;
(+880) 2 - 9 56 94 77 / 9 55 04 00;
Belarus; Rosinstrument LTD. INTL. DEPT.; PR-T Skkoriny 107-11; P.O.Box 67; 220023
Amman 111 18; (+962) 6 - 465 56 80; (+962) 6 - 464 54 39; [email protected]
Minsk; (+375) 17 263 99 94; (+375) 17 263 99 94; [email protected]
Kenya; Agriquip Agencies (E.A.) Ltd.; Lusaka Rd.; P.O.Box 30 612; Nairobi;
Belgique; Metabo Belgium; ´t Hofveld 3 - 5; ; 1702 Groot Bijgaarden;
(+254) 2 - 54 02 70 / - 73; (+254) 2 - 54 00 56; [email protected]
Kingdom of Saudi Arabia; Saudi Industrial Tools Corporation; Madinah Road, Kilo 9;
(+32) 2 - 4 67 32 10; (+32) 2 - 4 66 75 28; [email protected]
Bolivia; Agencias Generales S.A.; Casilla de Correo 530 Avda. San Martin S-0253; ;
P.O.Box 11429; Jeddah 21453; (+96) 62 - 6 82 04 58; (+96) 62 - 6 91 12 67;
Cochabamba; (+591) 4 - 425 10 62 ; (+591) 4 - 425 10 61; [email protected]
Bosnia and Herzegovina; Agrarkombinat; Majevicka 1; ; Banja Luka;
Kuwait; Naser Moh. Al-Sayer ; Gen. Trading & Contracting Co.; P.O. Box 663 SAFAT;
(+387) 51 - 302 718; (+387) 51 - 785 708; [email protected]
13007 State of Kuwait; (+965) 47 47 137; (+965) 47 47 945;
Brazil; Metabo do Brasil Ltda.; Rua Guicurus 306 - Vila Conceicao; ;
Diadema - Sao Paulo - Cep 09911-630; (+55) 11 - 40 51 - 25 11;
Latvia; SIA WESS Instrumenti un Tehnika Ltd.; Ganibu dambis 34 a; ; 1005, Riga;
(+55) 11 - 4056 - 4152; [email protected]
(+371) 7 38 23 53; (+371) 7 34 94 72; [email protected]
Latvia; Stoller Sia; Krasta 42; ; 1003, Riga; (+371) 7 24 55 61;
(+359) 2 - 9 78 58 90; (+359) 2 - 9 78 86 04; [email protected]
Bulgariia; KIROV Ltd.; Gara Iskar; Porutschik-Nedeltscho-Bontschev-Str.10; 1582 Sofia;
(+371) 7 24 55 62; [email protected]
Lebanon; SPAN s.a.r.l.; Tools & Equipment Division; P.O. Box 90 - 1218; Beirut;
Ontario, L4Z 1 W6; (+1) 905 - 755 06 08; (+1) 905 - 755 06 11; [email protected]
Canada; Metabo Canada Inc.; 190 Britannia Road East; Unit No. 12; Mississauga,
(+961) 1- 888 288; (+961) 1 - 902 690; [email protected]
Ceska Republica; Metabo s.r.o; Kralovicka 544; ; 250 01 Brandys nad Labem;
Lithuania; Technikonas; Savanoriu 286; ; 3042 Kaunas; (+370) 37 - 31 15 53;
(+420) 202 - 80 44 55; (+420) 202 - 80 44 56; [email protected]
(+370) 37 - 31 10 21; [email protected]
Macedonia; MAKWELD D.O.O.; Ilindenska 138; ; 1000 Skopje; (+389) 2 - 363 180;
(+56) 2 - 6 99 04 85; [email protected]
Chile; Nordchil S.A.; San Diego 895; ; Santiago de Chile; (+56) 2 - 6 72 29 11;
(+389) 2 - 364 746; [email protected]
Magyarorszag; INNOSERVICE-METABO Márkaszerviz Kft.; 1101 Bp. Köbányai út.
Bogota; (+57) 1 - 346 28 99; (+57) 1 - 346 29 16; [email protected]
Colombia; EUROTOOLS Ltda.; Avenida Caracas No. 74-25; Edificio Ferricentros-4 Piso;
47./b.; ; 1475 Budapest; (+36) 12 - 60 67 12; (+36) 12 - 60 14 23;
Costa Rica; Capris S.A.; Frente la Imprenta Nacional, La Uruca; P.O. Box 7-2400;
San José; (+506) 2 32 91 11; (+506) 2 32 93 53; [email protected]
56100 Kuala Lumpur; (+60) 3 - 92002966 / 92003966; (+60) 3 - 92007599;
Malaysia; Finetools SDN BHD; No. 7 Jalan 1/92C; Batu 3 1/4 Jalan Cheras;
(+385) 1 - 24 06 000; [email protected]
Croatia; CROM d.o.o.; Obrtnicka 2; ; 10000 Zagreb; (+385) 1 - 24 06 246;
Malta; G + T Imports Limited; Metabo Shop, Birkirkara By-Pass; ; Iklin BZN 11;
1641 Lefkosia, Cyprus; (+357) 22 - 34 95 77; (+357) 22 - 34 93 94;
Cyprus; Med Marketing Ltd. (eurotools); P.O. Box 27017; 17, Digenis Akritas Ave;
(+356) 21 - 43 54 24; (+356) 21 - 41 73 58; [email protected]
(+222) 525 14 09; [email protected]
Mauritanie; S.T.A.F; B.P.: 40246; ; Nouakchott; (+222) 525 33 85;
(+45) 43 - 31 34 01; [email protected]
Danmark; Metabo Danmark A/S; Helgeshoj Allé 12; ; 2630 Tastrup; (+45) 43 - 31 34 00;
(+230) 2 10 74 57; [email protected]
Mauritius; Dema - Supplies Ltd.; 2A Deschartres Street; ; Port Louis; (+230) 2 12 64 05;
0180 - 3 00 04 16; 0180 - 300 04 17; [email protected]
Deutschland; Metabowerke GmbH ; Walter-Rauch-Str. 1; ; 72622 Nuertingen;
Mexico; Uniservicio Ferretero S.A de C.V.; Matamoros No. 237 Col. la Joya ;
Ecuador; Maquinarias Henriquez C.A.; P.O.Box 09 - 01 - 43 61; ; Guayaquil;
Del. Talpan; C.P. 14090 México, D.F.; (+52) 5 - 555 737 233; (+52) 5 - 555 737 244;
(+593) 4 - 25 43 00; (+593) 4 - 25 49 39; [email protected]
Moldova; BRISAR-COM S.R.L.; str. Sciusev, 78; ; 2012 Chisinau; (+373) 2 - 22 24 50;
(+372) 620 11 12; [email protected]
Eestlane; A/S MECRO; Peterburi tee 44; ; 11415 Tallinn; (+372) 620 11 11;
(+373) 2 - 27 77 87; [email protected]
Morocco; Sté Yyes Rouger; 20 Bd. Ibn Tachfine; ; 20300 Casablanca;
(Cairo); (+20) 2 - 3 03 02 51 / 3 47 89 17; (+20) 2 - 3 02 58 96;
Egypt; Modern Machines + Materials Co.; 18 Geziret El Arab. St.; ; Mohandseen Giza
(+212) 2 31 25 06; (+212) 2 - 31 24 62
El Salvador; Metabo S.A. de C.V.; Colonia Santa Clara, Pasaje C No. 20;
Nederland; Metabo Nederland b.v.; Postbus 180; ; 3620 AD Breukelen;
Cuscatancingo; San Salvador; (+503) 2 - 38 47 65; (+503) 2 86 52 36;
(+31) 3462 - 6 42 44; (+31) 3462 - 6 35 54; [email protected]
New Caledonia; Ets. Szemmelveisz; 3, Rue Fernand Forest; Boite Postale 668;
Espana; Herramientas Metabo S.A.; Polígono Ind. Prado del Espino; C/Forjadores, 12;
98845 Nouméa; (+687) 27 20 02; (+687) 27 30 94; [email protected]
New Zealand; Tooline Ltd.; 49 A Sonter Road; P.O. Box 797; Christchurch;
28660 Boadilla del Monte (Madrid); (+34) 91 - 6 32 47 40; (+34) 91 - 6 32 41 47;
(+64) 3 - 36 55 931; (+64) 3 - 36 55 932; [email protected]
Nigeria; Mathani Brothers Ltd.; 60 Park View North Action; ; London W3 OPT;
(+251) 1- 52 68 19; (+251) 1-53 53 85; [email protected]
Ethiopia; SUTCO Pvt. Ltd. Co.; W. 19 K. 50 HN new, Wollo Sefer; ; Addis Ababa;
(+44) 20 - 8992 5727; (+44) 20 - 8992 5335; [email protected]
Finland; Wihuri Oy Autola; P.O. Box 58 Manttaalitie 9; ; 01511 Vantaa;
(+234) 1 - 774 1305; (+234) 1 - 774 1305; [email protected]
Nigeria; Bestline Nigeria Ltd.; 15, Hospital Road; Olodi Apapa; Lagos ;
(+358) 9 - 41 58 15; (+358) 9 - 41 58 22 07; [email protected]
France; Metabo S.A.; Z.A.C. 2, Avenue des Ormeaux; ; 78180 Montigny-le-Bretonneux;
Norway; Metabo Norge AS; Postboks 1296; ; 3205 Sandefjord; (+47) 33 - 44 55 55;
(+33) 1 - 30 64 55 30; (+33) 1 - 30 44 37 68; [email protected]
(+47) 33 - 44 55 50; [email protected]
Pakistan; Mercantile Company; Mercantile House 44-Brandreth Road; ; Lahore;
P.O. Box 1783; Accra; (+233) 21 - 66 39 94; (+233) 21 - 78 02 90;
Ghana; Emmnock Powercom Ltd.; Knutsford. Avenue opp. Morocco House;
(+92) 42 - 7 66 11 88/7 63 06 81; (+92) 42 - 7 66 45 89/7 63 45 95;
(+595) 981 - 43 15 13; (+595) 21 - 33 36 77; [email protected]
(+51) 14 - 4 22 86 31; (+51) 14 - 442 41 30; [email protected]
(+63) 2 - 3 63 01 59; (+63) 2 - 3 61 48 41; [email protected]
(+48) 91 - 5 78 11 95; (+48) 91 - 5 78 07 76; [email protected]
Paraguai; Taguato S.A.; Avda.Gra.Santos No. 1948/Tte. Garay; ; Asuncion;
Peru; Sucesion Carlos Kaufmann; Juan de Arona 760, Of.102 ; ; San Isidro ;
Philippines; Mach Tools Inc.; 185 A & B del Monte Avenue; ; Manresa, Quezon City;
Southampton / SO 16 OYT; (+44) 2380 - 73 20 00; (+44) 2380 - 74 75 00;
01009; (+502) 3 32 47 24; (+502) 3 32 47 81; [email protected]
Great Britain; Metabo (UK) Ltd.; 25 Majestic Road ; Nursling Industrial Estate;
Guatemala; Almacen la Palma S.A.; 2a Calle 4-38, Zona 9; ; Guatemala Ciudad,
Hellas; Fedon N. Economides + Co.; Prigiponison Street 27; ; 11363 Athens;
(+689) 41 24 00; [email protected]
Polska; Metabo Polska Sp. z o.o.; Gdynska 28; ; 73-110 Stargard Szczecinski;
Polynésie francaise; Ets Dieumégard Import; BP 14 132 Arue; ; Tahiti; (+689) 42 32 38;
(+30) 1 - 8 21 60 83 / 8 84 29 66; (+30) 1 - 8 82 56 00; [email protected]
Sha Wan Road; Kowloon / Hong Kong; (+852) 29 26 22 00; (+852) 28 82 19 78;
(+354) 57 57 605; [email protected]
Hong Kong; Jebsen & Co. Ltd. ; 9/F, Jebsen Motor Group Building; 924-926 Cheung
Iceland; Fossberg Ltd; Sudurlandsbraut 14; ; 108 Reykjavik; (+354) 57 57 600;
Loading...
