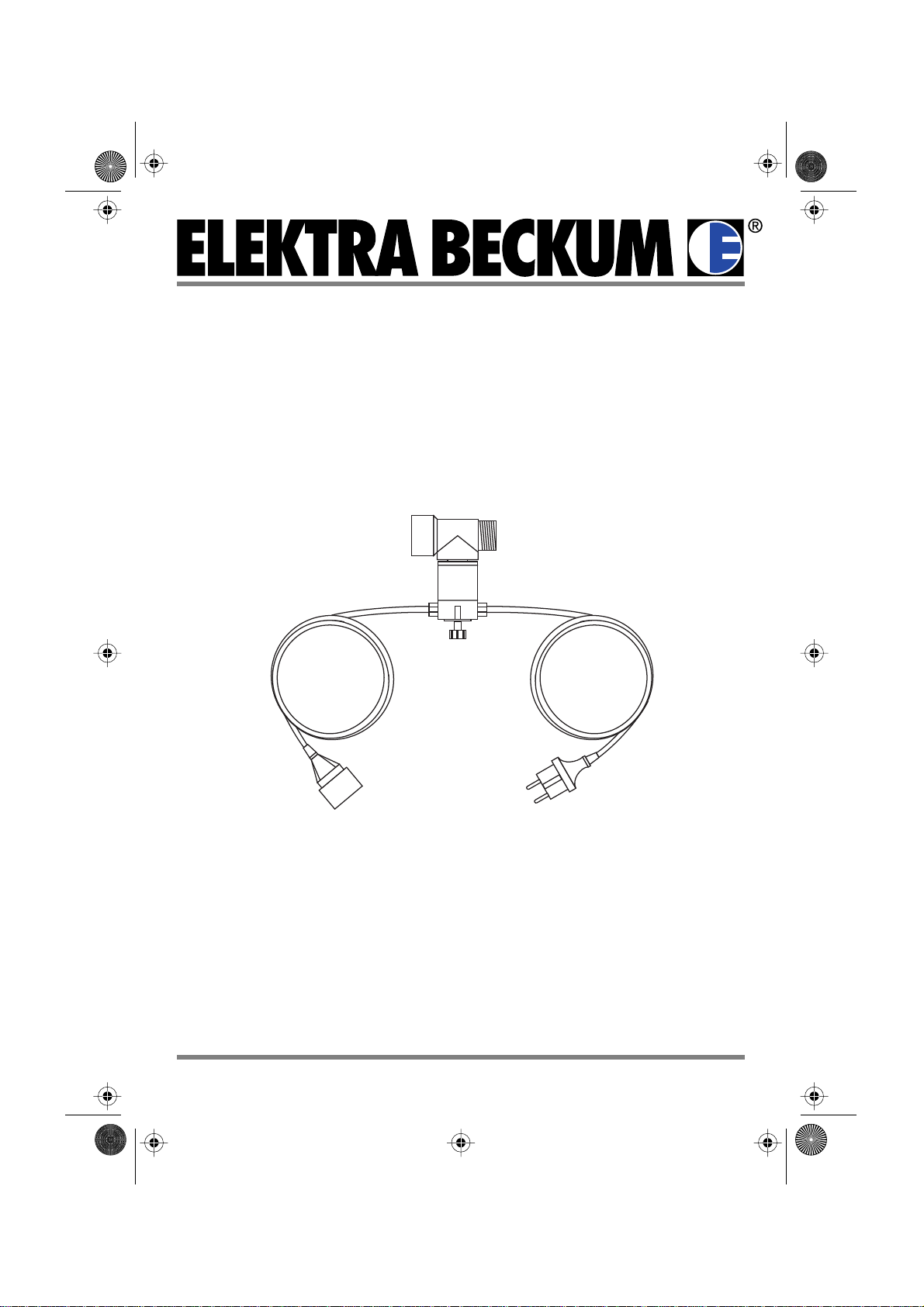

Betriebsanleitung

D

Trockenlaufsicherung
Operating Instructions

G

Hydrostop

T0001 Seite 2 Mittwoch, 17. Juni 1998 20:45 Uhr

Die beiliegende Garantiekarte senden Sie bitte an uns
zurück.
Den Kaufbeleg bitte aufbewahren! Ein Anspruch auf

D

Deutschland 1.

Garantieleistungen besteht nur gegen Vorlage des Kauf­belegs.
Die Adresse Ihrer nächstgelegenen Werksvertretung finden
Sie auf der hinteren Umschlagseite.

G

Please return the enclosed warranty card to us.
Retain proof of purchase! You are only entitled to claim war-

Great Britain 2.

ranty against proof of purchase.
Please see back cover for manufacturer representative´s
address nearest you.

T0001 Seite 1 Mittwoch, 17. Juni 1998 20:45 Uhr

XT0001E1.fm

2Great Britain

Dry-running sensor Hydrostop

Read instructions carefully before operating this device. Keep instructions for

3

future reference.

Safety first!

Electricity and water are a dangerous combination! A current-carrying cable or

B

electrical appliance in water can lead to a lethal electric shock, as soon as
somebody touches the water. It is therefore absolutely necessary that you
observe the following safety information:

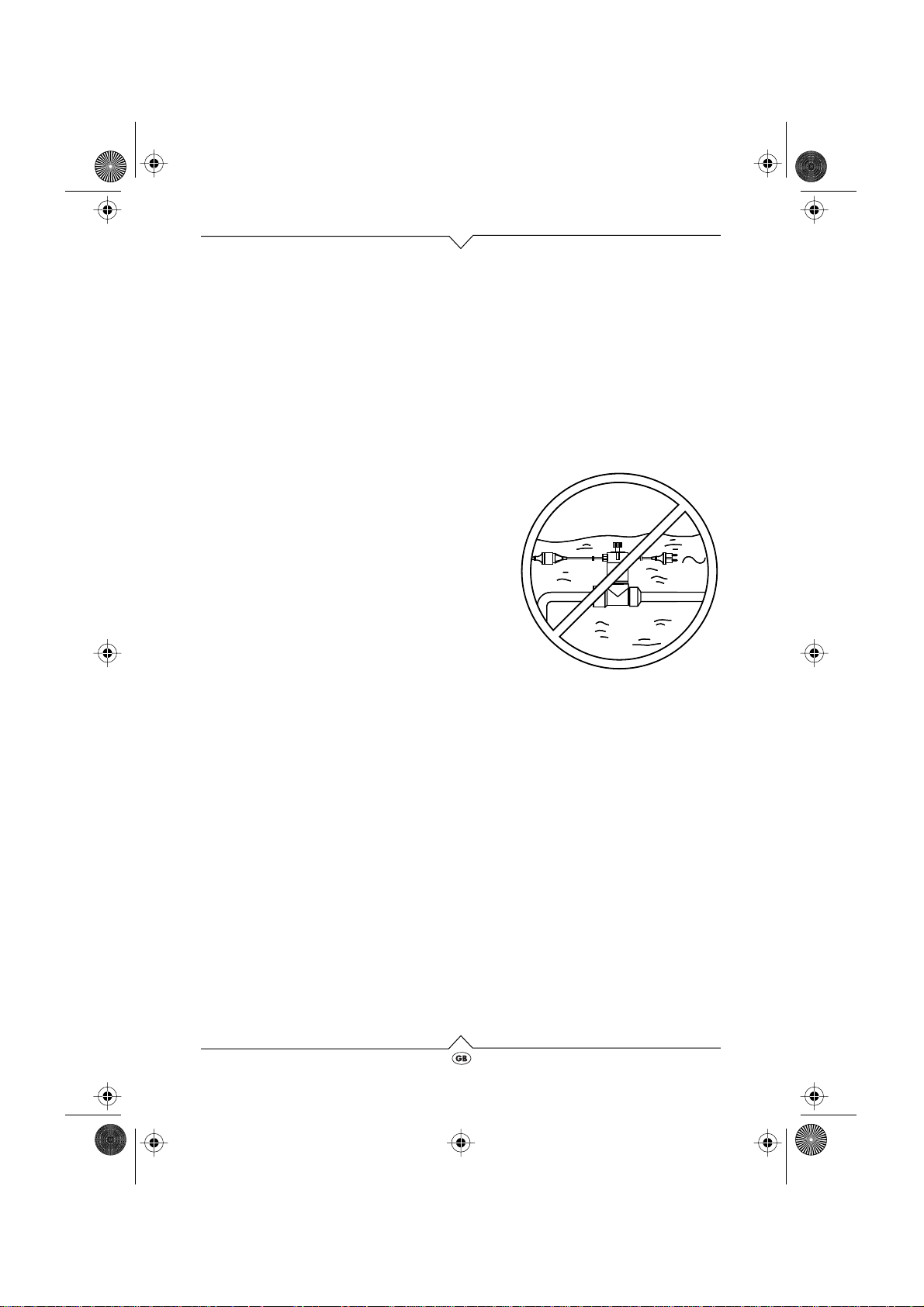

The dry-running sensor’s
and sensor enclosure) must
with water. Position the dry-running sensor so that

-

no parts can fall into water;

-

no water can run over any of the parts when
the pump starts;

-

no parts can become moist by atmospheric
influence;

-

any possibly used extension cables do not
come in contact with water either.

outer

parts (plug, cable

not

come in contact

Connect the dry-running sensor only to a power source meeting the following requi­rements:

-

Power supply cables and extension cables with a minimum conductor cross sec­tion required by VDE for rubber-sheathed cable type H07 RNF.

-

When pumping from swimming pool or garden pond, the pump must be protec­ted by a residual current device according to VDE 0100, parts 702 and 738.

Check dry-running sensor for any damage before use. Do not use a damaged
device; it cannot be repaired, as the device will no longer be waterproof. Damaged
cables in particular must not be repaired. If the dry-running sensor is faulty, replace
with an intact one.

Drain dry-running sensor completely if there is risk of freezing.

2.1

Hydrostop

T0001 Seite 2 Mittwoch, 17. Juni 1998 20:45 Uhr

The dry-running sensor may only be used with garden irrigation systems and pond
pumps or similar. It must not be used in liquid food handling installations (drinking
water or drinks).

Note:

3

Pumps designed for pumping liquids cannot prime air for a prolonged period:
the pumped liquid provides – similar to the oil in an automobile engine – lubri­cation and cooling. If the liquid is absent the pump can be damaged.
The Hydrostop dry-running sensor prevents a pump priming air. It is installed in
the pump’s discharge line. As long as there is water in the line, the water pres­sure is sensed by a pressure-sensing switch, closing the circuit supplying the
power to the pump, and the pump runs. If no liquid is pumped, the spring­actuated pressure-sensing switch opens the supply circuit, and the pump
stops.

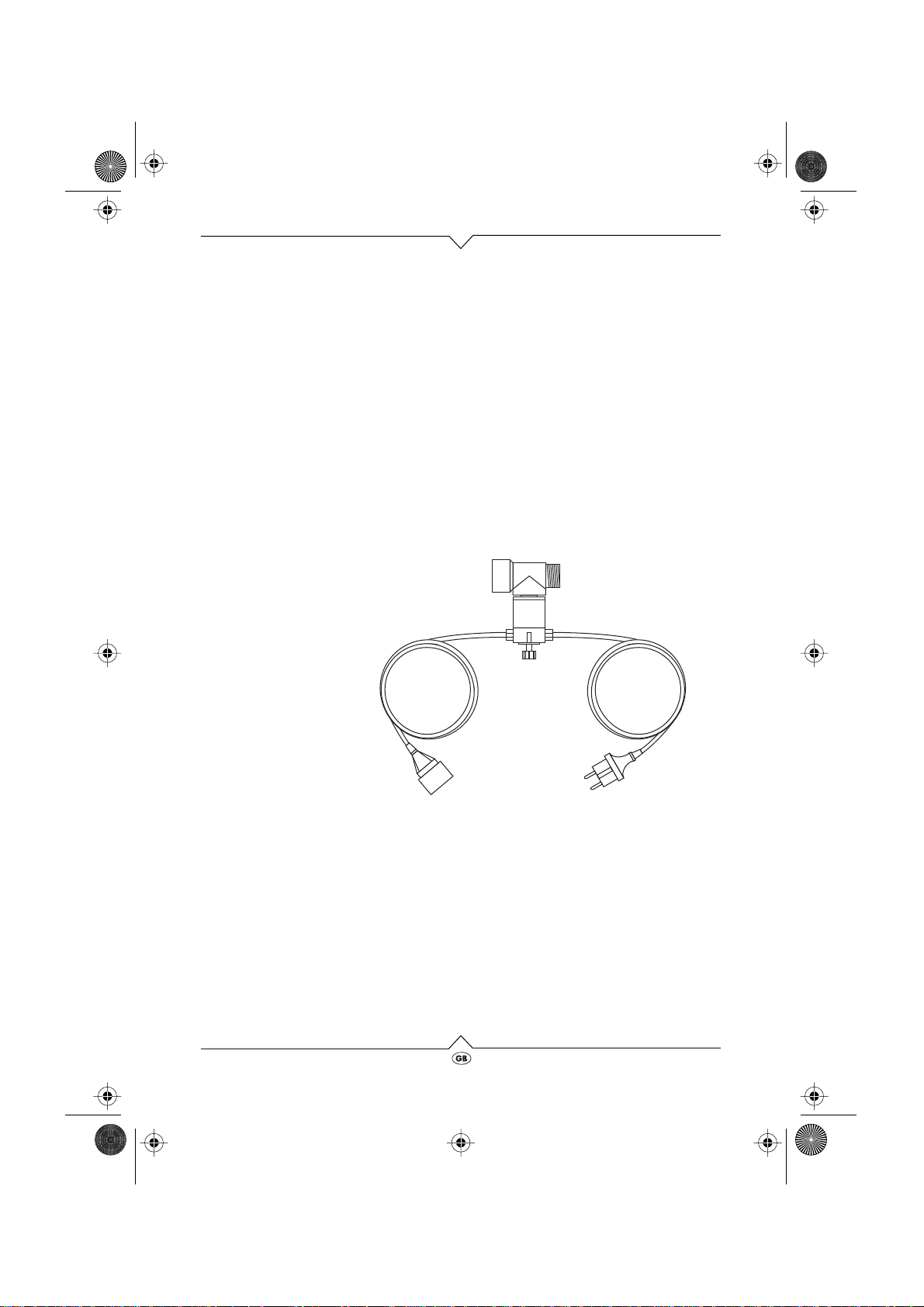

Operating controls

1. Plug

2. Tee fitting,
threaded

3. Sensor enclosure

4. Female connector

5. Push-button

Hydrostop

2.2

T0001 Seite 3 Mittwoch, 17. Juni 1998 20:45 Uhr

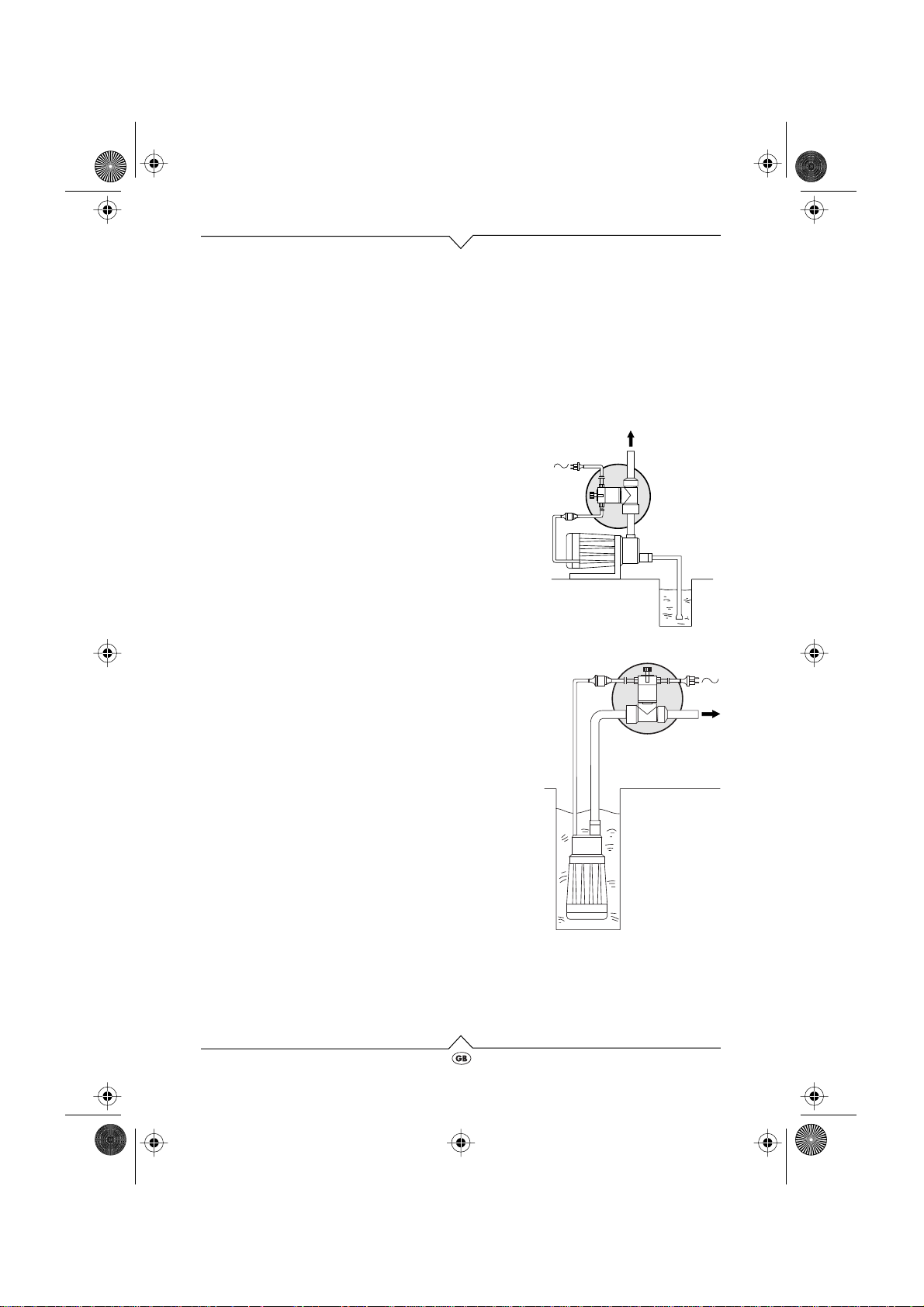

Installation

Risk of electric shock!

B

The dry-running sensor must be installed such that sensor enclosure, power
supply cable and plug cannot get wet under any operating condition.
If there is a risk of the discharge line, with the dry-running sensor installed, fal­ling into water, it must be properly secured (e.g. with piping clips).
Install the dry-running sensor so that the sensor enclosure, power supply cable
and plug cannot be flooded when the pump is started.

1. Install the tee fitting in the discharge line (=behind
the pump). The flow direction is irrelevant.

2. In order for the dry-running sensor to shut down
the pump as early as possible, the distance bet­ween pump and tee fitting should be as short as
possible (but with sufficient distance to any
water!).

3. Screw sensor enclosure into tee fitting.

4. Plug dry-running sensor into a properly installed
and earthed outlet. The plug must remain accessi­ble at all times, so it can be disconnected imme­diately from the power supply in case of a fault.

5. Plug pump into the dry-running sensor’s female
connector.

2.3

Hydrostop

T0001 Seite 4 Mittwoch, 17. Juni 1998 20:45 Uhr

Starting

1. Switch pump on.

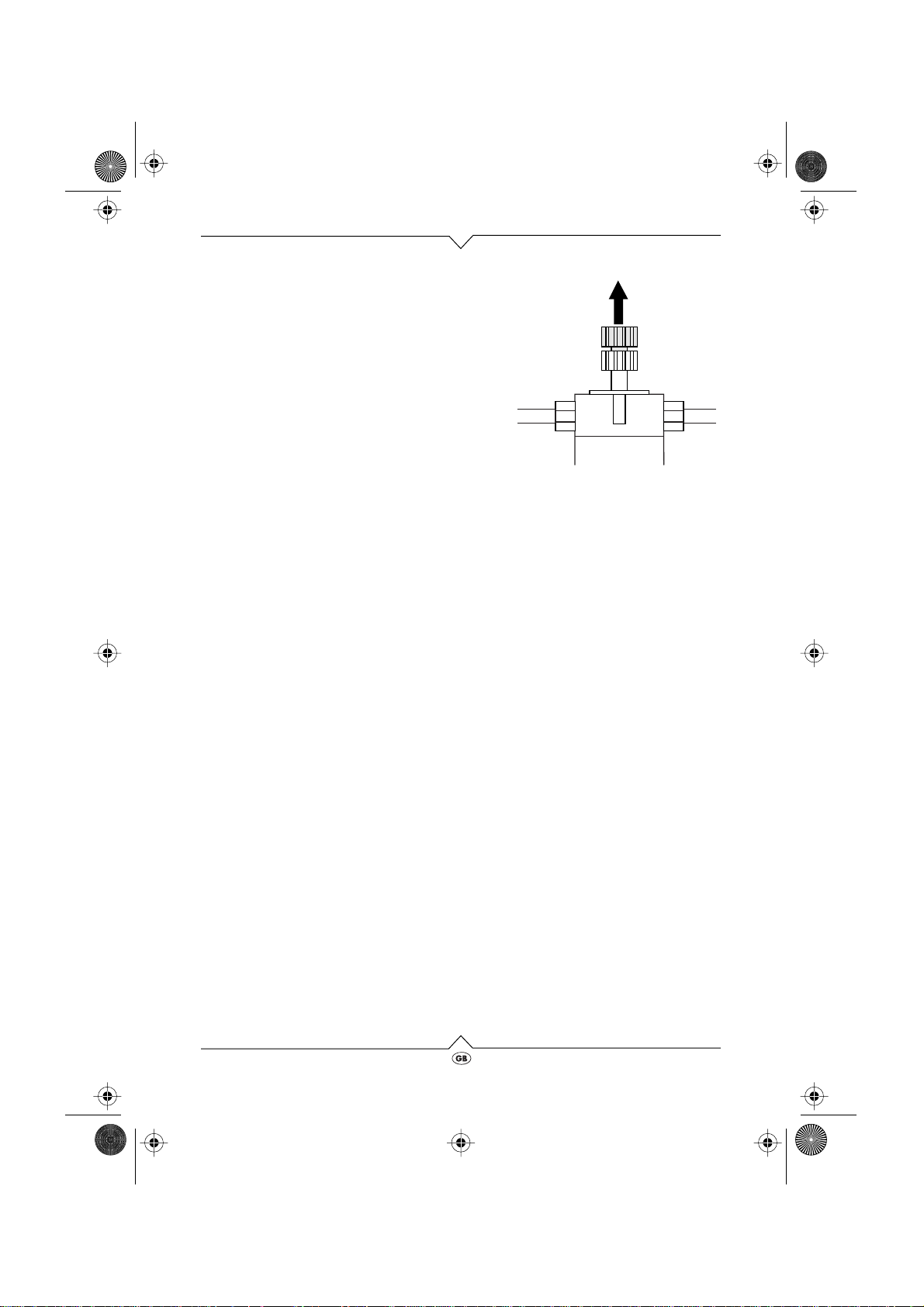

2. Pull out push-button on dry-running sensor –

3

pump starts.
Hold push-button until pull on push-button
lessens and it is held by the water pressure.

The water pressure required in the tee fit­ting is at least 0.8 bar. At a lower water
pressure the dry-running sensor cuts out.
If the pump is stopped it needs to be star­ted again as described above. Thus an
operation under automatic control (e.g.
time switch) is not possible.

Hydrostop

2.4

T0001 Seite 5 Mittwoch, 17. Juni 1998 20:45 Uhr

Technical Specifications

Operating voltage 230 V / 50 ... 60 Hz
Max. switching capacity 2200 W / 10 A
Protection class IP X4
Max. water temperature 35
Max. water pressure 6.0 bar
Min. water pressure 0.8 bar
Thread size 33.3 mm (G1’’)

°

C

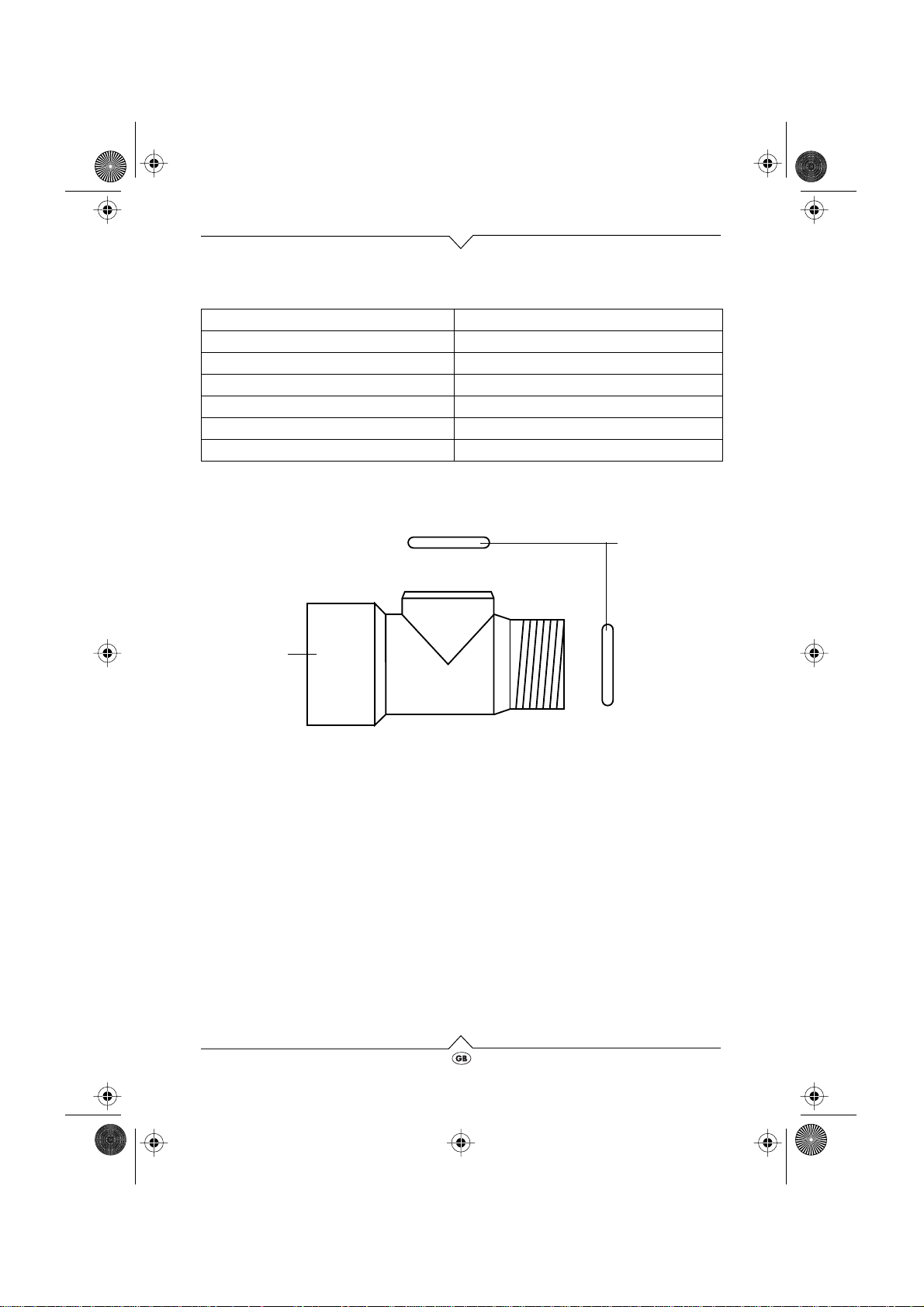

Replacement Parts

Tee fitting
787 164 7377

O-ring
763 214 9390

2.5

Hydrostop

U3T0001 Seite 6 Donnerstag, 30. Juli 1998 17:10 Uhr

Aktiengesellschaft
Postfach 13 52, D-49703 Meppen

EG-Konformitätserklärung - EC conformity declaration - Déclaration de conformité CEE

EG-verklaring van overeenstemming - EF-overensstemmelsesattest - EG-konformitetsdeklaration

EF-konformitetserklæring - Selvitys ey-standardinmukaisuudesta - Dichiarazione di conformità CE

Vi erklærer, at konstruktionen af maskinen/apparatet - Härmed försäkrar vi att maskin/apparat - Vi erklærer at konstruksjonsmåten til maskin/apparat

Art.-Nr. - Stock-no. - N° d’ article - art.-nr. - art.-nr. - Art.-nr. - Art.-Nr. - tuotenumero - N° Art. - Art.N° - artigo n°:

est conforme aux règlements applicables suivants - aan de volgende terzake geldende voorschriften voldoet - opfylder følgende gældende bestemmelser

Declaración de conformidad-UE - Declaração de conformidade CE

Wir erklären, daß die Bauart der Maschine/des Gerätes - We declare that the design of the machine/appliance

Nous certifions que le type de la machine/de l’appareil - Wij verklaren dat de constructie van de machine/het apparaat

Täten selvitämme, että alla mainittu kone/laite - Dichiariamo che il modello della macchina/dell’apparecchio

Declaramos, que el modelo de la máquina/aparato - Declaramos que o tipo de construção da máquina/do aparelho

folgenden einschlägigen Bestimmungen entspricht - corresponds with the following relevant regulations

enligt sitt byggsätt motsvarar följande gällande föreskrifter - oppfyller de følgende gjeldende bestemmelser

vastaa seuraavia asiaa koskevia määräyksiä - corrisponde alle seguenti norme in materia

se ajusta a las siguientes directrices correspondientes - se enquadra com as seguintes disposições pertinentes:

Geräteschalter

HYDROSTOP

090 3052 597

EG-Richtlinie Elektromagnetische Verträglichkeit - EC-directive electro-magnetic compatibility - directive CEE sur la conformité électromagnétique

EG-richtlijn elektromagnetische compatibiliteit - EF-direktiv vedr. elektromagmetisk fordragelighed - EG-direktiv för elektromagnetisk tolerans

EF-direktiv om elektromagnetisk kompatibilitet - Sähkömagneettista toleranssitasoa koskeva EY-direktiivi - Direttiva CE compatibilità elettromagnetica

Angewendete harmonisierte Normen - Applied harmonized standards - normes harmonisées appliquées - Toegepaste geharmoniseerde normen

Anvendte harmoniserede standarder - Tillämpade harmoniserande direktiv - Anvendte tilpassede normer - Sovelletut harmonisoidut normit

Anvendte tyske standarder - Tillämpade nationella direktiv - Anvendte nasjonale normer - Sovelletut kansalliset normit - Norme nazionali applicate

D/GB/F/NL/DK/S/N/SF/I/E/P 1000863/ 98

Directriz-UE Compatibilidad electromagnética - Directiva CE sobre compatibilidade electromagnética

EG-Niederspannungs-Richtlinie - EC-Low voltage directive - Directive CEE de basse tension

EG-laagspanningsrichtlijn - EF-lavspændingsdirektiv - EG-direktiv för lågspänning

EF-direktiv om lavspenning - Pienjännitettä koskeva EY-direktiivi - Direttiva CE per bassa tensione

Norme armonizzate applicate - Normas armonizantes aplicadas - Normas harmonizadas aplicadas:

EN 292-1, 292-2EN 60335-1, EN 60335-2-41, EN 55014, EN 50081-2, EN 500082-2

Angewendete nationale Normen - Applied national standards - normes nationales apppliquées - Toegepaste nationale normen

Technischer Leiter - Technical Manager - Le responsable technique - Chef techniek - Teknisk leder - Produktledare

Teknisk leder - Tekninen johtaja - Direttore teccnico - Director técnico - O director técnico

Directriz para baja tensión-UE - Directiva CE sobre baixa tensão

Normas nacionales aplicadas - Normas nacionais aplicadas

DIN VDE 0700-1, VDE 0700-2-41, EN 60555 Teil 2+3

89/336/EWG

73/23/EWG

U3T0001 Seite 7 Donnerstag, 30. Juli 1998 17:10 Uhr

D

Deutschland

Elektra Beckum AG
Daimlerstraße 1
D-49716 Meppen
Tel.: [phone]

Fax: [phone]

G

Great Britain

Elektra Beckum Machinery
Ltd.

6 The Quadrangle
Premier Way

GB-SO51 9AQ Romsey
Tel.: [phone]

Fax: [phone]

Hydrostop 115 164 7614 D/GB 3198 1.0
