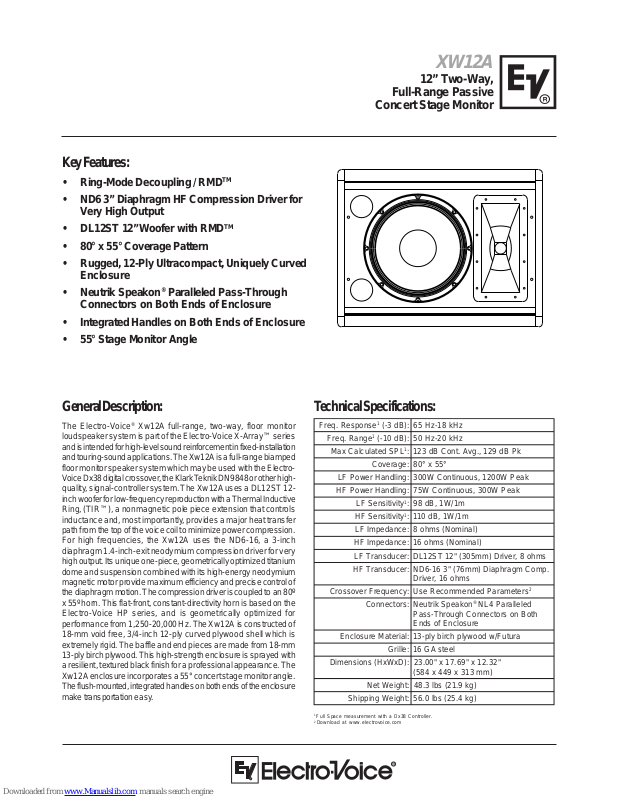

Electro-Voice Xw12A Technical Specifications

Key Features:

.

• Ring-Mode Decoupling / RMD

• ND6 3” Diaphragm HF Compression Driver for
Very High Output

• DL12ST 12” Woof er with RMD

• 80° x 55° Coverage Pattern

• Rugged, 12-Ply Ultracompact, Uniquely Curved
Enclosure

®

• Neutrik Speakon

Paralleled Pass-Through

Connectors on Both Ends of Enclosure

• Integrated Handles on Both Ends of Enclosure

• 55° Stage Monitor Angle

TM

TM

XW12A

12” Two-Way,

Full-Range Passive

Concert Stage Monitor

General Description:

The Electro-Voice® Xw12A full-range, two-way, floor monitor
loudspeaker system is part of the Electro-Voice X-Array™ series
and is intended for high-level sound reinforcement in fixed-installation
and touring-sound applications. The Xw12A is a full-range biamped
floor monitor speaker system which may be used with the Electro­Voice Dx38 digital crossover , the Klark T eknik DN9848 or other high­quality, signal-controller system. The Xw12A uses a DL12ST 12­inch woofer for low-frequency reproduction with a Thermal Inductive
Ring, (TIR™), a nonmagnetic pole piece extension that controls
inductance and, most importantly , provides a major heat transfer
path from the top of the voice coil to minimize power compression.
For high frequencies, the Xw12A uses the ND6-16, a 3-inch
diaphragm 1.4-inch-exit neodymium compression driver for very
high output. Its unique one-piece, geometrically optimized titanium
dome and suspension combined with its high-energy neodymium
magnetic motor provide maximum efficiency and precise control of
the diaphragm motion. The compression driver is coupled to an 80º
x 55º horn. This flat-front, constant-directivity horn is based on the
Electro-Voice HP series, and is geometrically optimized for
performance from 1,250-20,000 Hz. The Xw12A is constructed of
18-mm void free, 3/4-inch 12-ply curved plywood shell which is
extremely rigid. The baffle and end pieces are made from 18-mm
13-ply birch plywood. This high-strength enclosure is sprayed with
a resilient, textured black finish for a professional appearance. The
Xw12A enclosure incorporates a 55° concert stage monitor angle.
The flush-mounted, integrated handles on both ends of the enclosure
make transportation easy .

Technical Specifications:

1

esnopseR.qerF

1

egnaR.qerF

1

Full Space measurement with a Dx38 Controller.

2

Download at www.electrovoice.com

:)Bd3-(zHk81-zH56
:)Bd01-(zHk02-zH05

1

LPSdetaluclaCxaM

:kPBd921,.gvA.tnoCBd321
:egarevoC°55x°08
:gnildnaHrewoPFLkaePW0021,suounitnoCW003
:gnildnaHrewoPFHkaePW003,suounitnoCW57

1

ytivitisneSFL

:m1/W1,Bd89

1

ytivitisneSFH

:m1/W1,Bd011
:ecnadepmIFL)lanimoN(smho8
:ecnadepmIFH)lanimoN(smho61
:recudsnarTFLsmho8,revirD)mm503("21TS21LD
:recudsnarTFH

:ycneuqerFrevossorCsretemaraPdednemmoceResU
:srotcennoCnokaepSkirtueN

:lairetaMerusolcnEarutuF/wdoowylphcribylp-31
:ellirGleetsAG61
:)DxWxH(snoisnemiD"23.21x"96.71x"00.32

:thgieWteN)gk9.12(sbl3.84
:thgieWgnippihS)gk4.52(sbl0.65

smho61,revirD

®

erusolcnEfosdnE

)mm313x944x485(

pmoCmgarhpaiD)mm67("361-6DN

2

delellaraP4LN

htoBnosrotcennoChguorhT-ssaP

Block Diagram:

Performance Match:

• Dx38 Digital Sound System Crossover

• Klark Teknik DN9848 Digital Sound Controller

• P-Series Amplifiers

XW12A Part Number:

• XW12A -- 1139-3423

Frequency Response & Impedance:

Horizontal Off Axis Frequency Response:

Vertical Off Axis Frequency Response:

Dimension Drawings:
