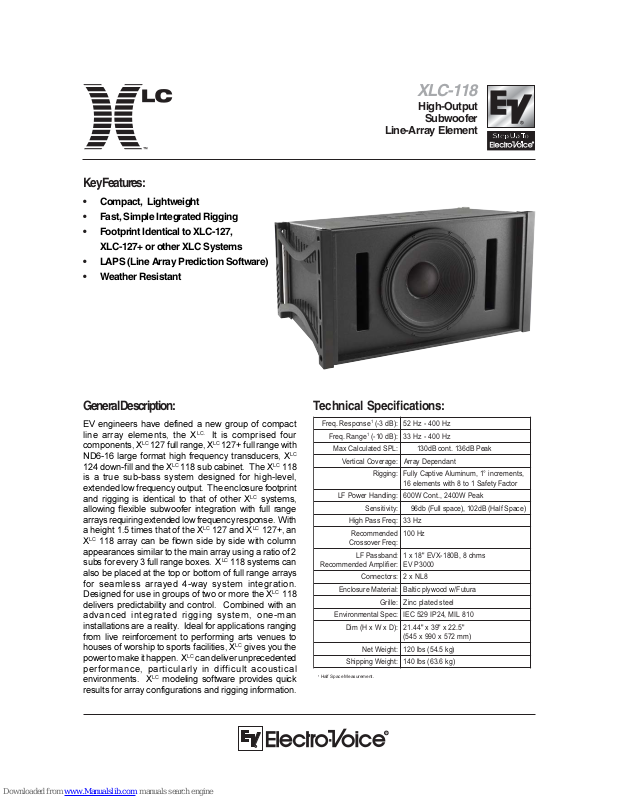

Electro-Voice Xlc Series Xlc-118, XLC-118 Specifications
Key Features:
• Compact, Lightweight
• Fast, Simple Integrated Rigging
• Footprint Identical to XLC-127,
XLC-127+ or other XLC Systems
• LAPS (Line Array Prediction Software)
• Weather Resistant
XLC-118
High-Output
Subwoofer
Line-Array Element
General Description:
EV engineers have defined a new group of compact
line array elements, the X
LC.
It is comprised four
components, X
LC
127 full range, XLC 127+ full range with
ND6-16 large format high frequency transducers, X
LC
124 down-fill and the X
LC
118 sub cabinet. The XLC 118
is a true sub-bass system designed for high-level,
extended low frequency output. The enclosure footprint
and rigging is identical to that of other X
LC
systems,
allowing flexible subwoofer integration with full range
arrays requiring extended low frequency response. With
a height 1.5 times that of the X
LC
127 and XLC 127+, an
X
LC
118 array can be flown side by side with column
appearances similar to the main array using a ratio of 2
subs for every 3 full range boxes. X
LC
118 systems can
also be placed at the top or bottom of full range arrays
for seamless arrayed 4-way system integration.
Designed for use in groups of two or more the X
LC
118
delivers predictability and control. Combined with an
advanced integrated rigging system, one-man
installations are a reality. Ideal for applications ranging
from live reinforcement to performing arts venues to
houses of worship to sports facilities, X
LC
gives you the
power to make it happen. X
LC
can deliver unprecedented
performance, particularly in difficult acoustical
environments. X
LC
modeling software provides quick
results for array configurations and rigging information.
Technical Specifications:
esnopseR.qerF
1
:)Bd3-(zH004-zH25
egnaR.qerF
1
:)Bd01-(zH004-zH33
:LPSdetaluclaCxaM 130dB cont. 136dB Peak
:egarevoClacitreVtnadnepeDyarrA
:gniggiR,stnemercni°1,munimulAevitpaCylluF
rotcaFytefaS1ot8htiwstnemele61
:gnildnaHrewoPFLkaePW0042,.tnoCW006
:ytivitisneS 96db (Full space), 102dB (Half Space)
:qerFssaPhgiHzH33
dednemmoceR
:qerFrevossorC
zH001
:dnabssaPFL
:reifilpmAdednemmoceR
smho8,B081-XVE"81x1
0003PVE
:srotcennoC8LNx2
:lairetaMerusolcnEarutuF/wdoowylpcitlaB
:ellirGleetsdetalpcniZ
:cepSlatnemnorivnE018LIM,42PI925CEI
:)DxWxH(miD"5.22x"93x"44.12
)mm275x099x545(
:thgieWteN)gk5.45(sbl021
:thgieWgnippihS)gk6.36(sbl041
1
Half Space Measurement.
Block Diagram: Grid Drawing:
Dimension Drawings (inches/metric):
Performance Match:
• XLC-127+ - Full Range Line-Array Loudspeaker System
• XLC-127 - Full Range Line-Array Loudspeaker System
• XLC-124 - Downfill Line-Array Loudspeaker System
• P3000 - Precision Series
TM
Power Amplifier
• P2000 - Precision Series
TM
Power Amplifier
• P3000RL - Precision Series
TM
Remote Control Power Amplifier
• Dx38 - Digital Sound System Controller
• XLC-118 Cover - Protective Cover for Transporting
• XFC-118 - Front Dolly for Rigging and Transporting
• XLC Series Grid - Grid for Hanging X
LC
Line-Arrays
XLC-118 Part Number:
• XLC-118 - 301283-001
12000 Portland Avenue South, Burnsville, MN 55337
Phone:952/884-4051, Fax:952/884-0043
www.electrovoice.com
© Telex Communications, Inc. 8/2002
Part Number 38110-167 Rev A
U.S.A. and Canada only. For customer orders, contact Customer Service at:
800/392-3497 Fax: 800/955-6831
Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:
+ 49 9421-706 0 Fax: + 49 9421-706 265
Other International locations. For customer orders, contact Customer Service at:
+ 1 952 884-4051 Fax: + 1 952 887-9212
For warranty repair or service information, contact the Service Repair department at:
800/685-2606
For technical assistance, contact Technical Support at: 866/78AUDIO
Specifications subject to change without notice.
Side
Front
Top
Connections
Pins 2, 3, 4: Pass Through
Sub: Pins 1
