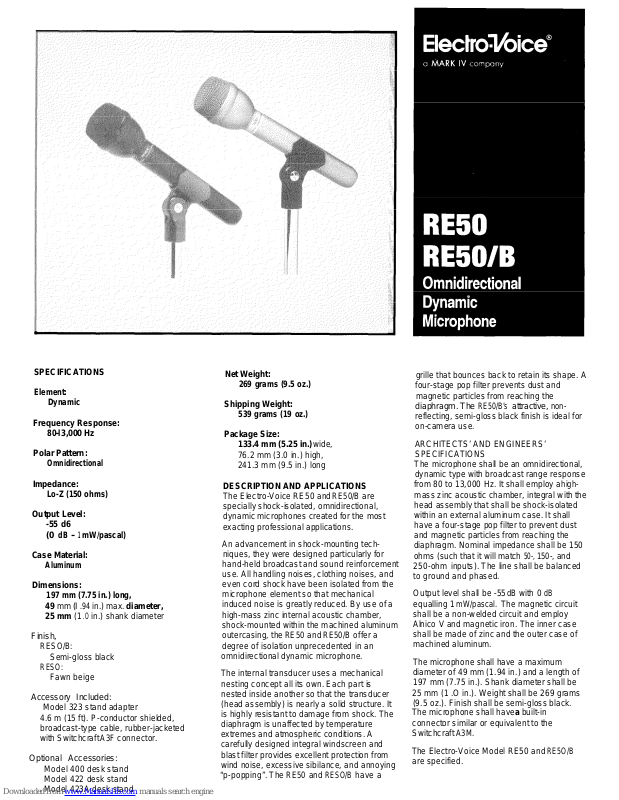

Electro-Voice RE50, RE50B Specifications
SPECIFICATIONS
Element:
Dynamic
Frequency Response:
80-l
3,000 Hz
Polar Pattern:
Omnidirectional
Impedance:
Lo-Z (150 ohms)
Output Level:
-55 d6
(0 dB - 1
mW/pascal)
Case Material:
Aluminum
Dimensions:
197 mm (7.75 in.) long,
49
mm (I
.94
in.) max.
diameter,
25 mm
(1 .O in.) shank diameter
Finish,
RESO/B:
Semi-gloss black
RESO:
Fawn beige
Accessory Included:
Model 323 stand adapter
4.6 m (15 ft). P-conductor shielded,
broadcast-type cable, rubber-jacketed
with Switchcraft
A3F
connector.
Optional Accessories:
Model 400 desk stand
Model 422 desk stand
Model 423A desk stand
Net Weight:
269 grams (9.5 oz.)
Shipping Weight:
539 grams (19 oz.)
Package Size:
133.4 mm (5.25 in.)
wide,
76.2 mm (3.0 in.) high,
241.3 mm (9.5 in.) long
DESCRIPTION AND APPLICATIONS
The Electro-Voice RE50 and
RE50/B
are
specially shock-isolated, omnidirectional,
dynamic microphones created for the most
exacting professional applications.
An advancement in shock-mounting techniques, they were designed particularly for
hand-held broadcast and sound reinforcement
use. All handling noises, clothing noises, and
even cord shock have been isolated from the
microphone element so that mechanical
induced noise is greatly reduced. By use of a
high-mass zinc internal acoustic chamber,
shock-mounted within the machined aluminum
outercasing, the
RE50
and
RE50/B
offer a
degree of isolation unprecedented in an
omnidirectional dynamic microphone.
The internal transducer uses a mechanical
nesting concept all its own. Each part is
nested inside another so that the transducer
(head assembly) is nearly a solid structure. It
is highly resistant to damage from shock. The
diaphragm is unaffected by temperature
extremes and atmospheric conditions. A
carefully designed integral windscreen and
blast filter provides excellent protection from
wind noise, excessive sibilance, and annoying
“p-popping”. The
RE50
and
RESO/B
have a
grille that bounces back to retain its shape. A
four-stage pop filter prevents dust and
magnetic particles from reaching the
diaphragm. The
RE50/B’s
attractive,
nonreflecting, semi-gloss black finish is ideal for
on-camera use.
ARCHITECTS’ AND ENGINEERS’
SPECIFICATIONS
The microphone shall be an omnidirectional,
dynamic type with broadcast range response
from 80 to 13,000 Hz. It shall employ a
highmass zinc acoustic chamber, integral with the
head assembly that shall be shock-isolated
within an external aluminum case. It shall
have a four-stage pop filter to prevent dust
and magnetic particles from reaching the
diaphragm. Nominal impedance shall be 150
ohms (such that it will match
50-, 150-,
and
250-ohm inputs). The line shall be balanced
to ground and phased.
Output level shall be -55
dB
with 0
dB
equalling 1
mW/pascal.
The magnetic circuit
shall be a non-welded circuit and employ
Alnico V and magnetic iron. The inner case
shall be made of zinc and the outer case of
machined aluminum.
The microphone shall have a maximum
diameter of 49 mm (1.94 in.) and
a length of
197 mm (7.75 in.). Shank diameter shall be
25 mm (1 .O in.). Weight shall be 269 grams
(9.5 oz.). Finish shall be semi-gloss black.
The microphone shall have
a
built-in
connector similar or equivalent to the
Switchcraft
A3M.
The Electro-Voice Model RE50 and
RE5O/B
are specified.
l+----+;;~~--------Li
FIGURE 1 - Dimensions
POSlTlVE
PRESSURE ON
GENERATING
ELEMENT CAVSES
POSlTlVE
VOLTAGE
ON
RED
CABLE LEAD
REF
TO
BLUE
CABLE
LEAD
FIGURE 3 -Wiring Diagram
WARRANTY (Limited)
Electro-Voice products are guaranteed
against malfunction due to defects in
materials or workmanship for a specified
period, as noted in the individual product-line
statement(s) below,
or in the individual
product data sheet or owner’s manual,
beginning with the date of original purchase. If
such malfunction occurs during the specified
period, the product will be repaired or
replaced (at our option) without charge. The
product will be returned to the customer
prepaid.
Exclusions and Limitations: The
Limited Warranty does not apply to: (a)
exterior finish or appearance; (b) certain
specific items described in the individual
product-line statement(s) below, or in the
individual product data sheet or owner’s
manual; (c) malfunction resulting from use or
operation of the product other than as
specified in the product data sheet or owner’s
manual; (d) malfunctron resulting from misuse
or abuse of the product; or (e) malfunction
occurring at any time after repairs have been
made to the product by anyone other than
Electro-Voice or any of its authorized service
representatives.
Obtaining Warranty
Service:
To obtain warranty service, a
customer must deliver the product, prepaid, to
Electra-Voice or any of its authorized service
representatives together with proof of
purchase of the product in the form of a bill of
sale or receipted invoice. A list of authorized
service representatives is available from
Electra-Voice at 600 Cecil Street, Buchanan,
Ml 49107 (616/695-6831) and/or ElectroVoice West, at 8234 Doe Avenue, Visalia, CA
93291 (209/651-7777).
Incidental and
Consequential Damages Excluded:
Product
repair or replacement and return to the
customer are only remedies provided to the
customer. Electro-Voice shall not be liable for
any incidental or consequential damages
including, without limitation, injury to persons
or property or loss of use. Some states do not
allow the exclusion or limitation of incidental
or consequential damages so the above
limitation or exclusion may not apply to you.
Other Rights:
This warranty gives you
specific legal rights, and you may also have
other rights which vary from state to state.
Electro-Voice N/D, PL, BK, and Professional Microphones are guaranteed against
malfunction from any cause for two (2) years
from the date of original purchase. In addition,
the Limited Warranty for the acoustic system
contained in these microphones shall apply
for the life of the product, defined
as
a period
of ten (10) years from the date that the
manufacture of the specific microphone has
been discontinued. Any and all active
electronics incorporated in these microphones
are guaranteed against malfunction due to
defects in materials or workmanship for a
period of three (3) years from the date of
original purchase. The Limited Warranty does
not extend to cables, cable connectors, or
switches. Additional details are included in the
Uniform Limited Warranty statement.
