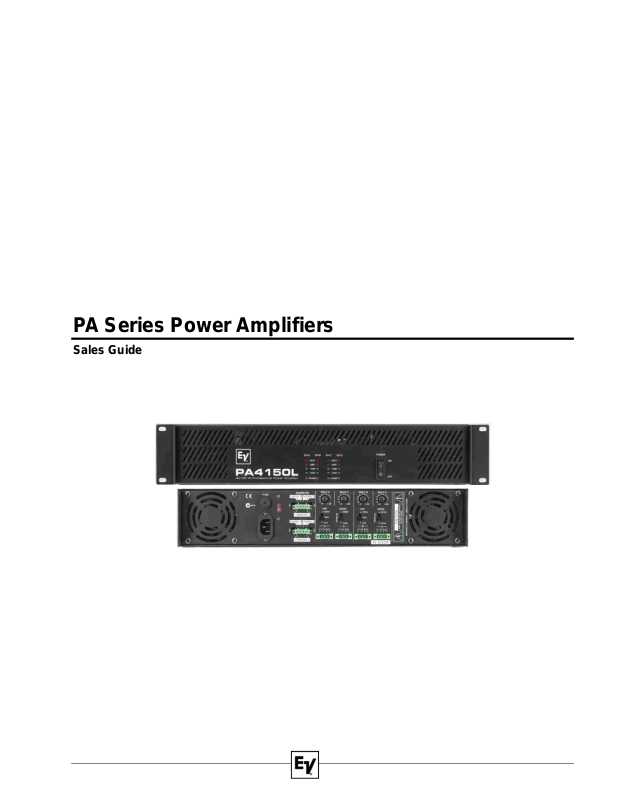

PA Series Power Amplifiers

Sales Guide

PA Series Power Amplifier Sales Guide

The PA series of professional rack mount power amplifiers are designed for professional/commercial
audio and public address system installations where expandability and flexibility is the ticket. These
new units are exceptional values, loaded with features and are easy to install in a variety of system
designs.

The PA series consists of five models ranging from 160 watts per channel to 470 watts. There are
common features and performance specifications with the major theme of the product being superior
reliability with a “value” price tag. The product line also gives as an added bonus key enhanced
features often provided only on more expensive products including a comprehensive power protection
system and advanced cooling technology.

The PA Series Product Position is….. Value Priced Reliability!

All units incorporate the following advanced features:

1. Balanced phoenix style input connectors – makes installation easy.

2. A single phoenix style connector block for all output modes.

3. Continuously variable speed ultra quiet cooling fan

4. Bridge mode operation on all multi channel models provides power flexibility.

5. Switch selectable hi-pass filter at either 50Hz or 300Hz meets any installation requirement.

6. Independent rear panel level controls provided for each channel

7. Comprehensive 4-way power protection package with comprehensive LED monitor and
level display

8. All models provide multi-voltage operation from 110-240vac.

9. Integrated “rack ears” allow for rack mounting without additional accessories.
