Electronics ES User Manual

Enrollment Station Installation Instructions

Specifications

Mechanical: Electrical:

2.74” W x 4.6” L x 1.4” H Operating Voltage: 12 VDC
Current Draw: 20mA

Environmental:

Environment: For indoor use only.
Temperature Tolerance: -20º to 130º F

Description

The Enrollment Station is used to enroll HID format proximity cards directly into the PC software by
presentation. This provides a convenient way to enroll cards whether you know the card format or
not. The raw card data is read from the card and then stored in the PC software.

Packing List

1 Enrollment Station
1 Installation Instructions
1 12VDC, 300mA Transformer
1 6-foot straight cord
1 DB-9 Serial Connector
1 DB-25 Serial Connector

Operation

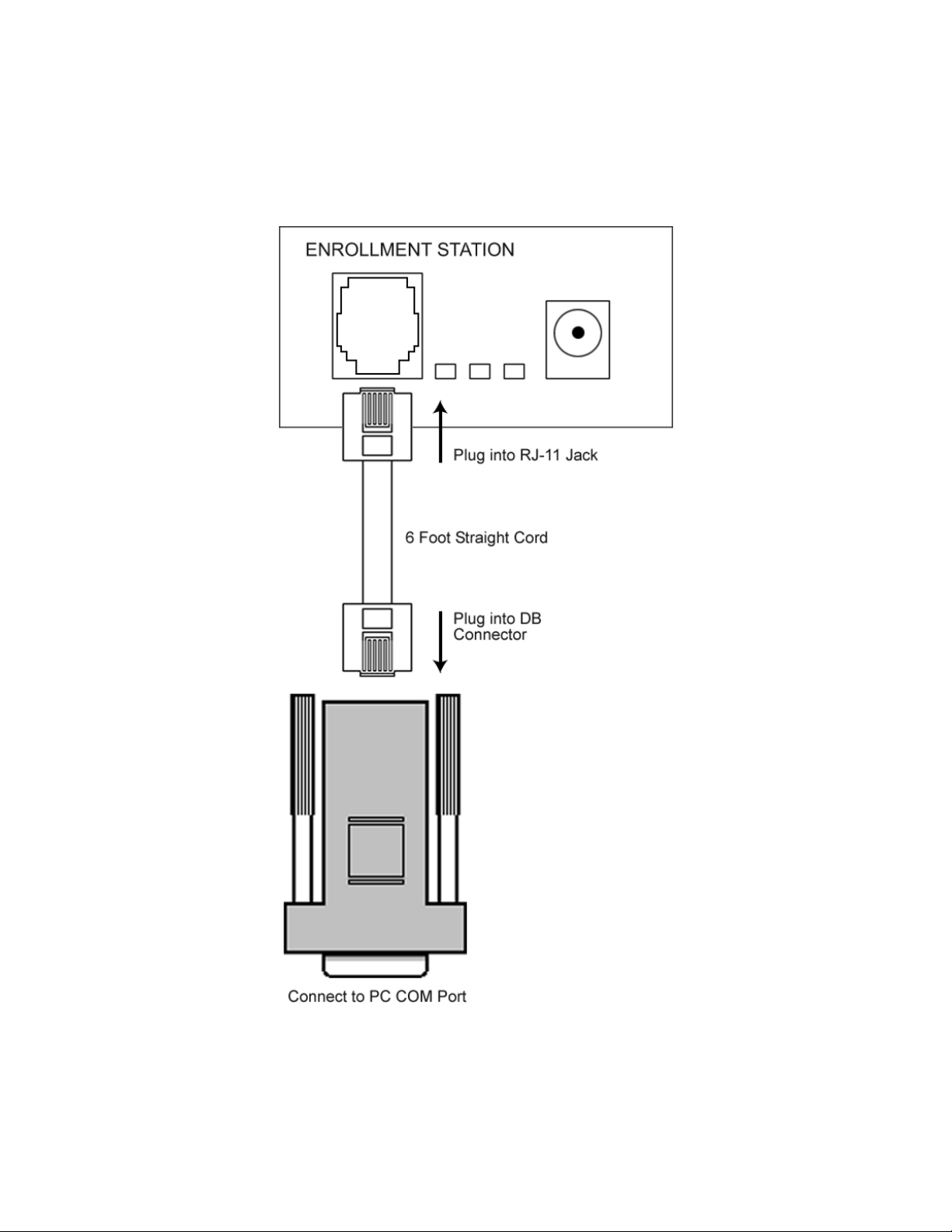

To operate the Enrollment Station simply connect power and connect it to your PC as shown in the
diagrams in the following sections. Once it’s connected to your PC you are now ready to enroll your
cards. To enroll cards, present them over the labeled area on the top of the unit. When a card is
successfully read, the Enrollment Stations responds with an audible beep.

Any changes or modifications not expressly approved

by the party responsible for compliance could void the

user’s authority to operate the equipment.

15.21 Information to User

Document # 6055680 Rev 1.0, D1b

1

Connecting the Transformer to the Enrollment Station

The Enrollment Station is shipped with a 12VDC, 300mA plug-in transformer. To power the unit just
plug the connector from the transformer into the power jack on the Enrollment Station. Then plug the
transformer into a 120VAC wall outlet.

Document # 6055680 Rev 1.0, D1b

2
