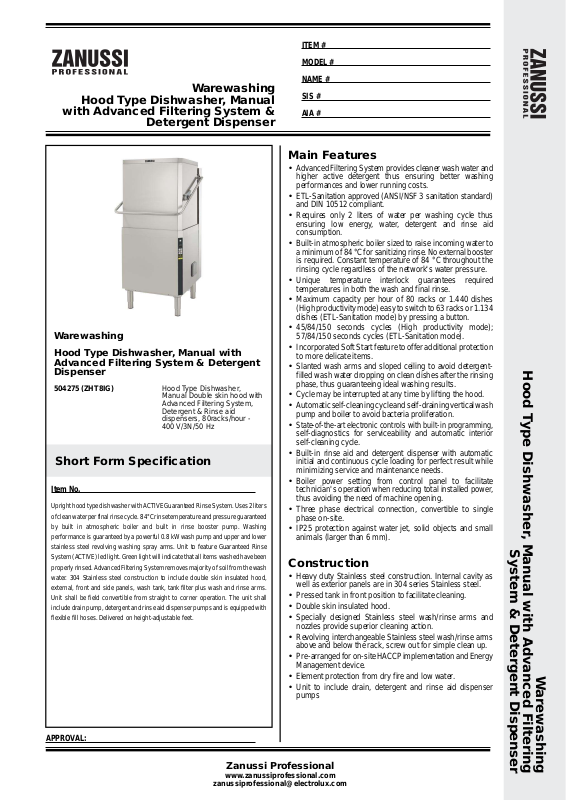

Warewashing
Hood Type Dishwasher, Manual
with Advanced Filtering System &
Detergent Dispenser
Warewashing
Hood Type Dishwasher, Manual with
Advanced Filtering System & Detergent
Dispenser
504275 (ZHT8IG)Hood Type Dishwasher,
Manual Double skin hood with
Advanced Filtering System,
Detergent & Rinse aid
dispensers, 80racks/hour 400 V/3N/50 Hz
Short Form Specification
Item No.
Upright hood type dishwasher with ACTIVE Guaranteed Rinse System. Uses 2 liters
of clean water per final rinse cycle. 84°C rinse temperature and pressure guaranteed
by built in atmospheric boiler and built in rinse booster pump. Washing
performance is guaranteed by a powerful 0.8 kW wash pump and upper and lower
stainless steel revolving washing spray arms. Unit to feature Guaranteed Rinse
System (ACTIVE) led light. Green light will indicate that all items washed have been
properly rinsed. Advanced Filtering System removes majority of soil from the wash
water. 304 Stainless steel construction to include double skin insulated hood,
external, front and side panels, wash tank, tank filter plus wash and rinse arms.
Unit shall be field convertible from straight to corner operation. The unit shall
include drain pump, detergent and rinse aid dispenser pumps and is equipped with
flexible fill hoses. Delivered on height-adjustable feet.
ITEM #
MODEL #
NAME #
SIS #
AIA #
Main Features
•Advanced Filtering System provides cleaner wash water and
higher active detergent thus ensuring better washing
performances and lower running costs.
•ETL-Sanitation approved (ANSI/NSF 3 sanitation standard)
and DIN 10512 compliant.
•Requires only 2 liters of water per washing cycle thus
ensuring low energy, water, detergent and rinse aid
consumption.
•Built-in atmospheric boiler sized to raise incoming water to
a minimum of 84 °C for sanitizing rinse. No external booster
is required. Constant temperature of 84 °C throughout the
rinsing cycle regardless of the network's water pressure.
•Unique temperature interlock guarantees required
temperatures in both the wash and final rinse.
•Maximum capacity per hour of 80 racks or 1.440 dishes
(High productivity mode) easy to switch to 63 racks or 1.134
dishes (ETL-Sanitation mode) by pressing a button.
•45/84/150 seconds cycles (High productivity mode);
57/84/150 seconds cycles (ETL-Sanitation mode).
•Incorporated Soft Start feature to offer additional protection
to more delicate items.
•Slanted wash arms and sloped ceiling to avoid detergentfilled wash water dropping on clean dishes after the rinsing
phase, thus guaranteeing ideal washing results.
•Cycle may be interrupted at any time by lifting the hood.
•Automatic self-cleaning cycle and self-draining vertical wash
pump and boiler to avoid bacteria proliferation.
•
State-of-the-art electronic controls with built-in programming,
self-diagnostics for serviceability and automatic interior
self-cleaning cycle.
•Built-in rinse aid and detergent dispenser with automatic
initial and continuous cycle loading for perfect result while
minimizing service and maintenance needs.
•Boiler power setting from control panel to facilitate
technician's operation when reducing total installed power,
thus avoiding the need of machine opening.
•Three phase electrical connection, convertible to single
phase on-site.
•IP25 protection against water jet, solid objects and small
animals (larger than 6 mm).
Construction
•Heavy duty Stainless steel construction. Internal cavity as
well as exterior panels are in 304 series Stainless steel.
•Pressed tank in front position to facilitate cleaning.
•Double skin insulated hood.
•Specially designed Stainless steel wash/rinse arms and
nozzles provide superior cleaning action.
•Revolving interchangeable Stainless steel wash/rinse arms
above and below the rack, screw out for simple clean up.
•Pre-arranged for on-site HACCP implementation and Energy
Management device.
•Element protection from dry fire and low water.
•Unit to include drain, detergent and rinse aid dispenser
pumps
Hood Type Dishwasher, Manual with Advanced Filtering
System & Detergent Dispenser
Warewashing
APPROVAL:
Zanussi Professional
www.zanussiprofessional.com
Page 2
Included Accessories
•2 of Yellow cutlery containerPNC 864242
•1 of Basket for 18 dinner plates or 27 side plates
(max. diam. 240 mm)
•1 of Basket for cups and coffee cups (24-48 pcs)
- blue
PNC 867002
PNC 867007
Optional Accessories
•Kit 8 plastic boxes for cutlery - yellowPNC 780068 ❑
•External manual water softener - 12 ltPNC 860412 ❑
•External automatic water softener - 8 ltPNC 860413 ❑
•External manual water softener - 20 ltPNC 860430 ❑
•Printer for HACCP dishwashersPNC 864002 ❑
•Stainless steel inlet hose kitPNC 864016 ❑
•Filter for partial demineralizationPNC 864017 ❑
•External reverse osmosis filter for ACTIVE
undercounter and hood type
•Kit to measure total/partial water hardnessPNC 864050 ❑
•Yellow cutlery containerPNC 864242 ❑
•Filter for total demineralizationPNC 864367 ❑
•Set of 4 yellow cutlery containersPNC 865574 ❑
•Basket for 6 trays 530x370 mmPNC 866743 ❑
•Basket for 12 soup plates or 12 cups (max. diam.
240 mm)
•Basket for 18 dinner plates or 27 side plates
(max. diam. 240 mm)
•Basket for cups and coffee cups (24-48 pcs) blue
•Basket for bulk cutlery-capacity: 100 pieces brown
•Cover grid for small/light items in rackPNC 867016 ❑
•Basket for 25 glasses max. height: 120 mm
diameter: 80 mm - blue
•Basket for 16 glasses max. height: 70 mm - bluePNC 867023 ❑
•Basket semi-professional (500x500x190mm)PNC 867024 ❑
•Basket for 16 glasses max. height: 220 mm
diameter: 100 mm - blue
PNC 864026 ❑
PNC 867000 ❑
PNC 867002 ❑
PNC 867007 ❑
PNC 867009 ❑
PNC 867021 ❑
PNC 867040 ❑
Warewashing
Hood Type Dishwasher, Manual with
Advanced Filtering System & Detergent
Dispenser
Page 3
Warewashing
970
332
124 565
755
746
647
65 538
667
0 - 850
2046
1913
440875
1567
999
200
WI
D
EQ
EI
XI
XR
XD
325
268
241
215
55
294
334334
752
970
332
124 565
755
746
647
65 538
667
31
359335
36
90
421335
881
0 - 850
2046
1913
440875
1567
999
200
WI
D
EQ
EI
XI
XR
XD
WI
EI
EQ
D
XI
XR
XD
970
332
124 565
755
0 - 850
2046
1913
440875
WI
D
EQ
EI
XI
XR
XD
Hood Type Dishwasher, Manual with
Advanced Filtering System & Detergent
Dispenser
CWI
D=Drain
EI=Electrical connection
EQ=Equipotential screw
HWI
WI=Water inlet
=Cold Water inlet
=Hot water inlet

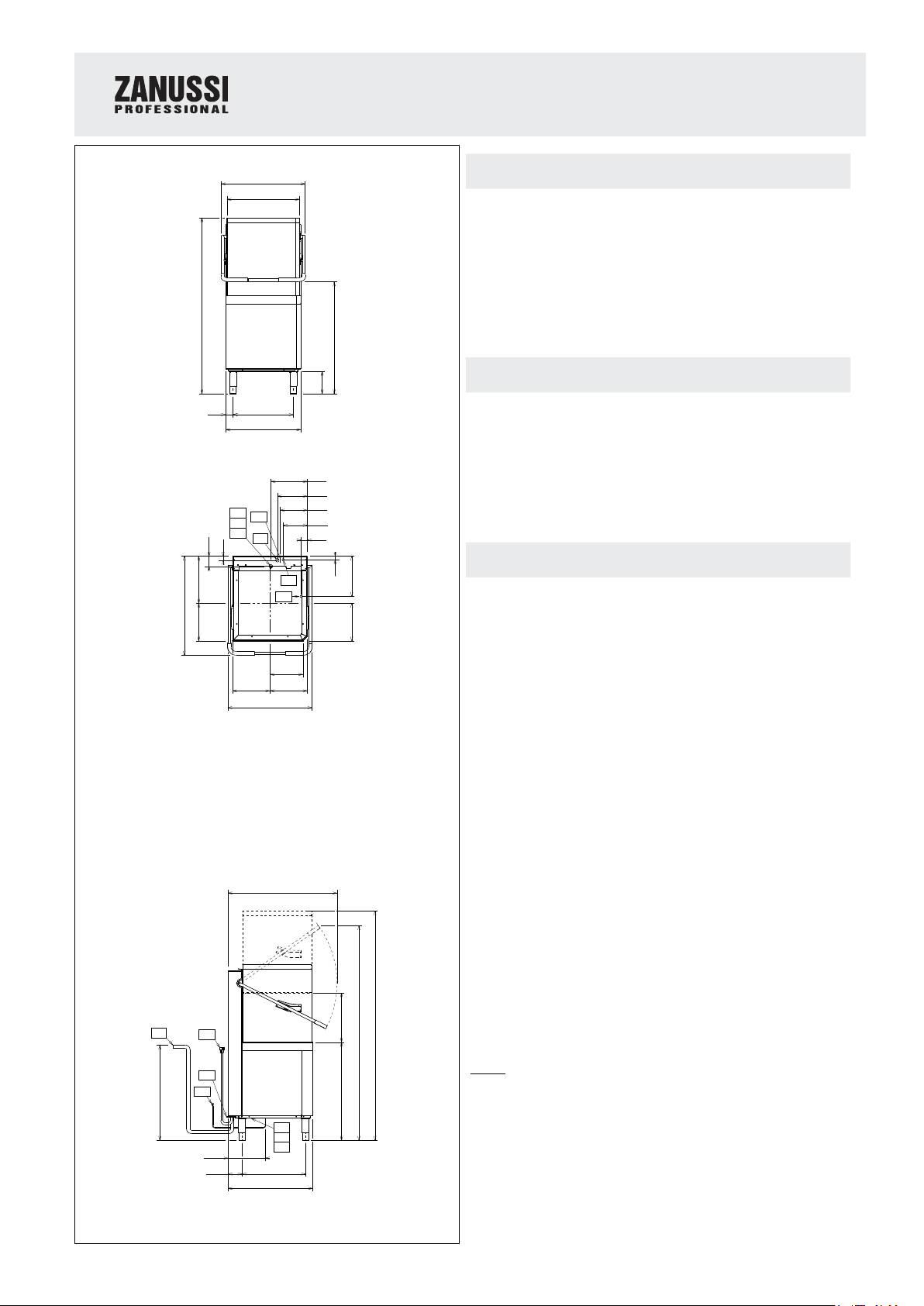

Front
Electric
Supply voltage:
504275(ZHT8IG)400 V/3N ph/50 Hz
Convertible to:230V 1N~; 230V 3~
Default Installed Power:*9.9 kW
Reducible Installed Power:*6.9 kW
Boiler Heating Elements Power:*9 kW
Boiler Reducible To:*6 kW
Tank heating elements:3 kW
Wash pump size:0.8 kW
Water:
Water supply temperature:10-65°C
Water supply hardness (MAX):14°fH (8°dH)
Inlet Water supply pressure:0.5 - 7 bar
Top
Water consumption per cycle (lt):2
Boiler Capacity (lt):12
Tank Capacity (lt):24
Incoming water line size:G 3/4"
Drain line size:20.5 mm
Key Information:
N° of cycles:3
Duration cycle - High
productivity:*45/84/150 sec.
Duration cycle - ETL Sanitation:*57/84/150 sec.
Racks per hour - High
productivity: *80
Racks per hour - ETL
XD=Detergent connection
XI=Chemicals inlet
XR=Rinse aid connection
Side
Sanitation: *63
Dishes per hour - High
productivity: *1440
Dishes per hour - ETL
Sanitation: *1134
Wash temperature - High
productivity:55-65 °C
Wash temperature - ETL
Sanitation:75 °C MIN
Rinse temperature (MIN):84 °C
Net weight:117 kg
Shipping weight:129 kg
Shipping volume:1.04 m³
Packaging size
(WxDxH):667x755x1567 mm
Noise level:<63 dBA
* According to market standard, the productivity is declared at an
inlet water supply temperature of 50°C . If the water is supplied at
65°C, the power can be reduced by 3 kW without any loss in
productivity.
NOTE:
If the water supply temperature is less than 50°C, it is necessary to
request higher power to maintain productivity.
Page 4
==
20 1/16”
510 mm
==
20 1/16”
510 mm
min 17 5/16”
min 440 mm
min 15/16”
min 23 mm

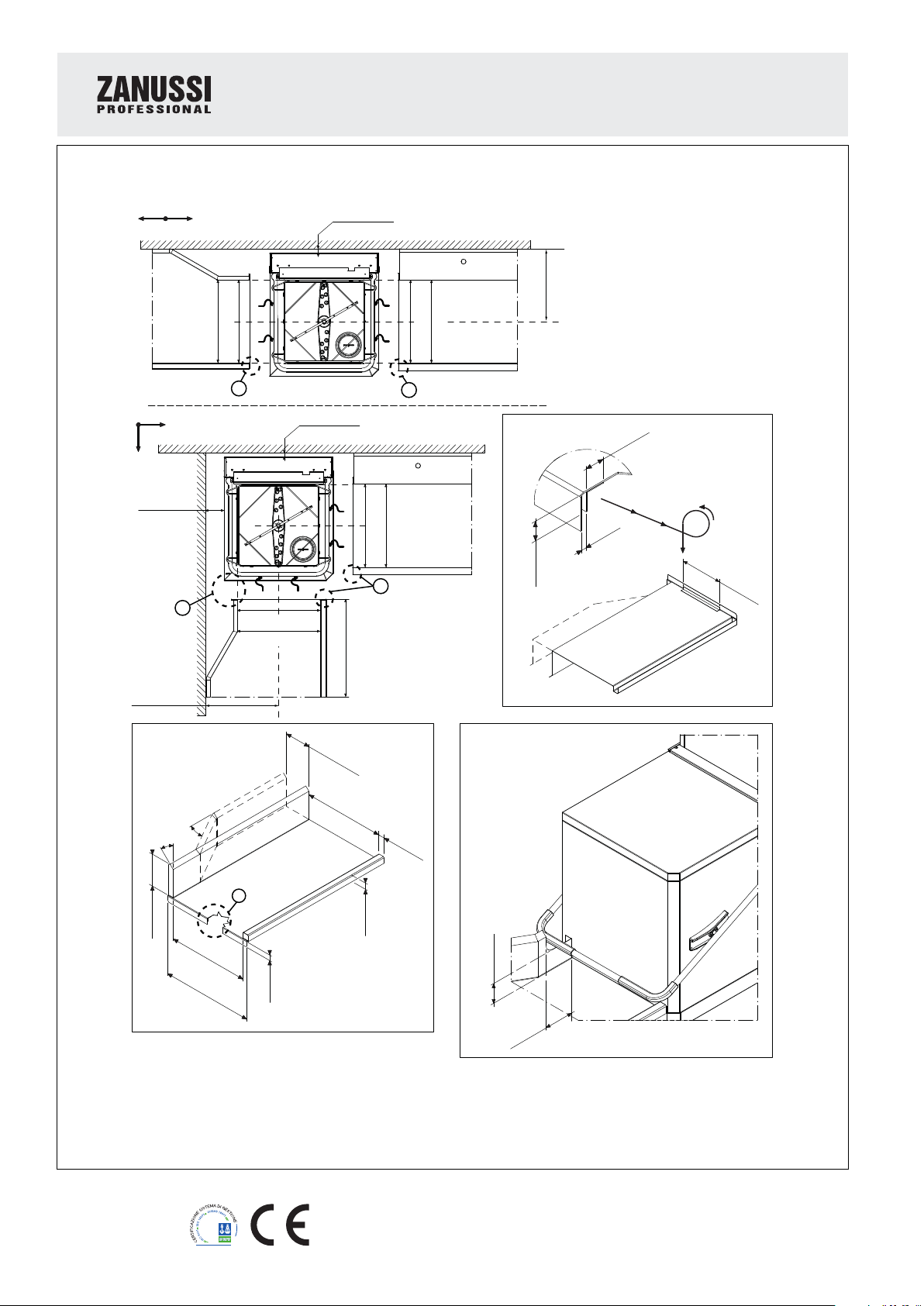

Line installation
==
20 1/16”
510 mm
min 15/16”
min 23 mm
==
20 1/16”
510 mm
Corner installation
B
20 1/16”
510 mm
Max sugg.
6 7/8”
165 mm
1 9/16”
40 mm
1 9/16"
40 mm
1 3/8"
35 mm
20 1/16”
510 mm
22 13/16”
580 mm
A
7 15/16"
201 mm
45°
30°
Suggested
design
*
13/16"
20 mm
Detail “ A ”
11 13/16"
300 mm
3/16"
5 mm
13/16"
20 mm
Detail “ B ”
*
5 7/8"
149 mm
3 7/8"
99 mm
A
A
Doc Nr : 59566BF00
Recommended table connection
All tables must be connected to the dishwashing units according to local regulations and industry standards
which may differ from the recommendations herein suggested. Electrolux Professional is not liable for any
failure in complying with local design standards.
min 2 15/16”
min 75 mm
min 27 9/16”
min 700 mm
A
min 17 3/4”
min 451 mm
Warewashing
Hood Type Dishwasher, Manual with
Advanced Filtering System & Detergent
Dispenser
Hood Type Dishwasher, Manual with Advanced Filtering System &
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
Warewashing
Detergent Dispenser
2013.01.30
